Model Electrolux LE400MXD1 LAUNDRY CENTER – Common Parts & Diagrams
02 - CABINET AND COMPONENT PARTS
03 - MOTOR, BLOWER AND CABINET PARTS

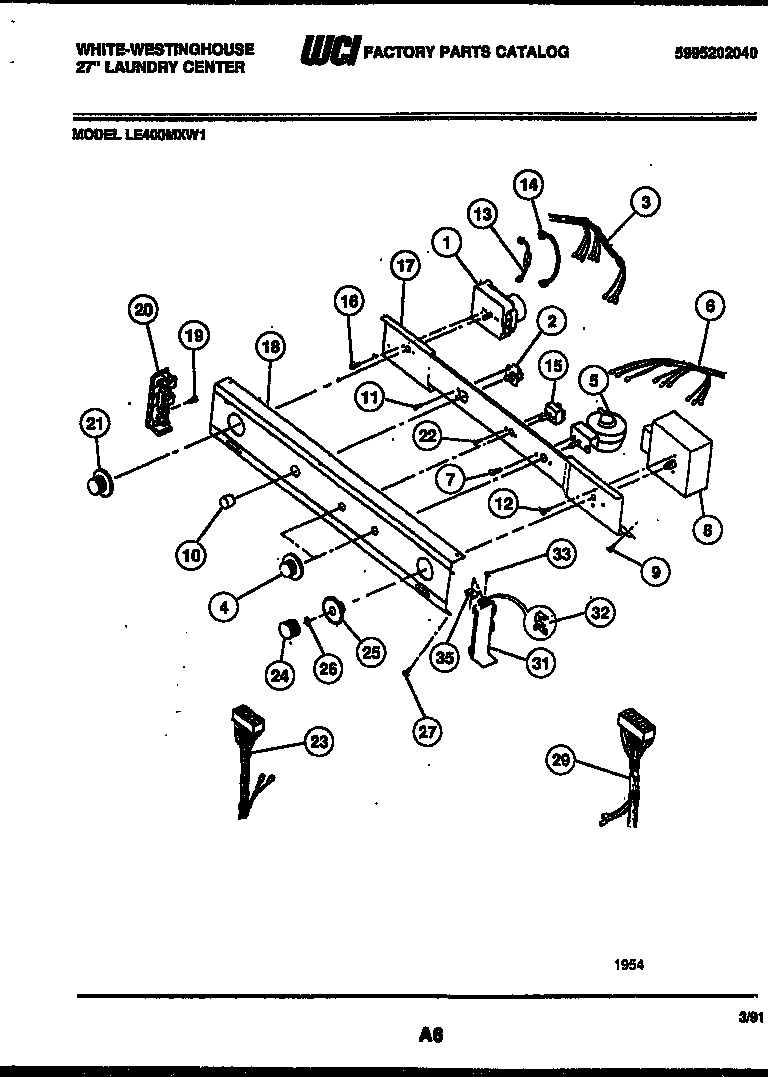

04 - CONSOLE AND CONTROL PARTS

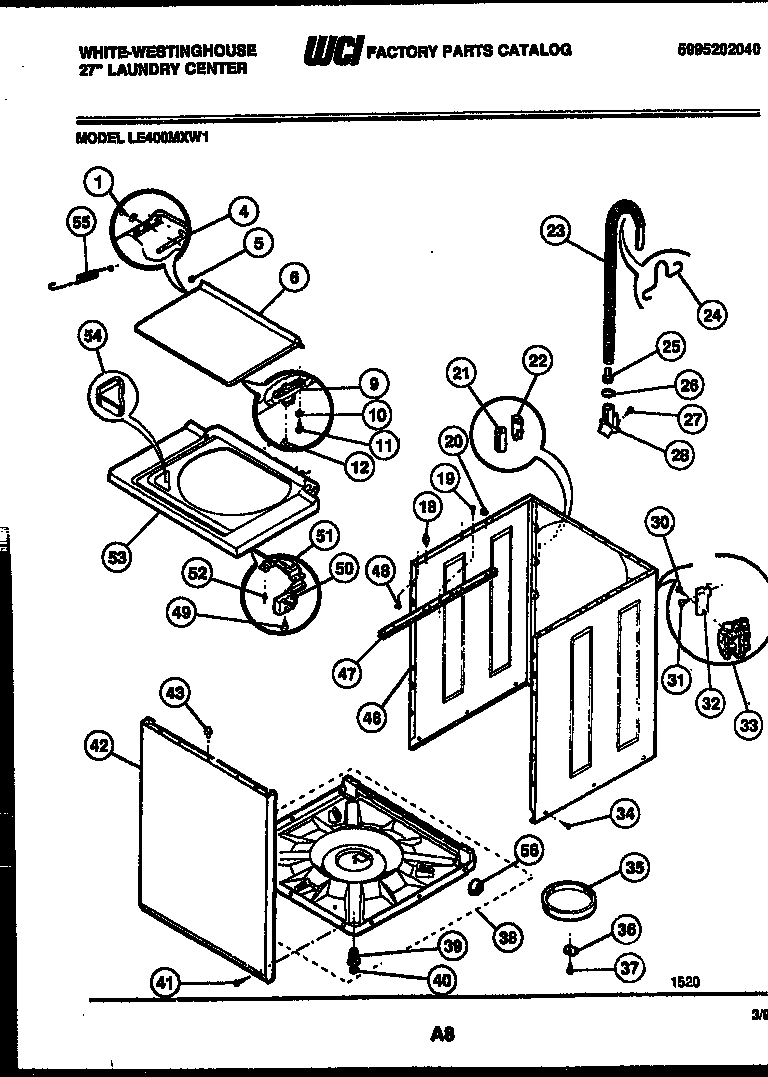

05 - CABINET PARTS

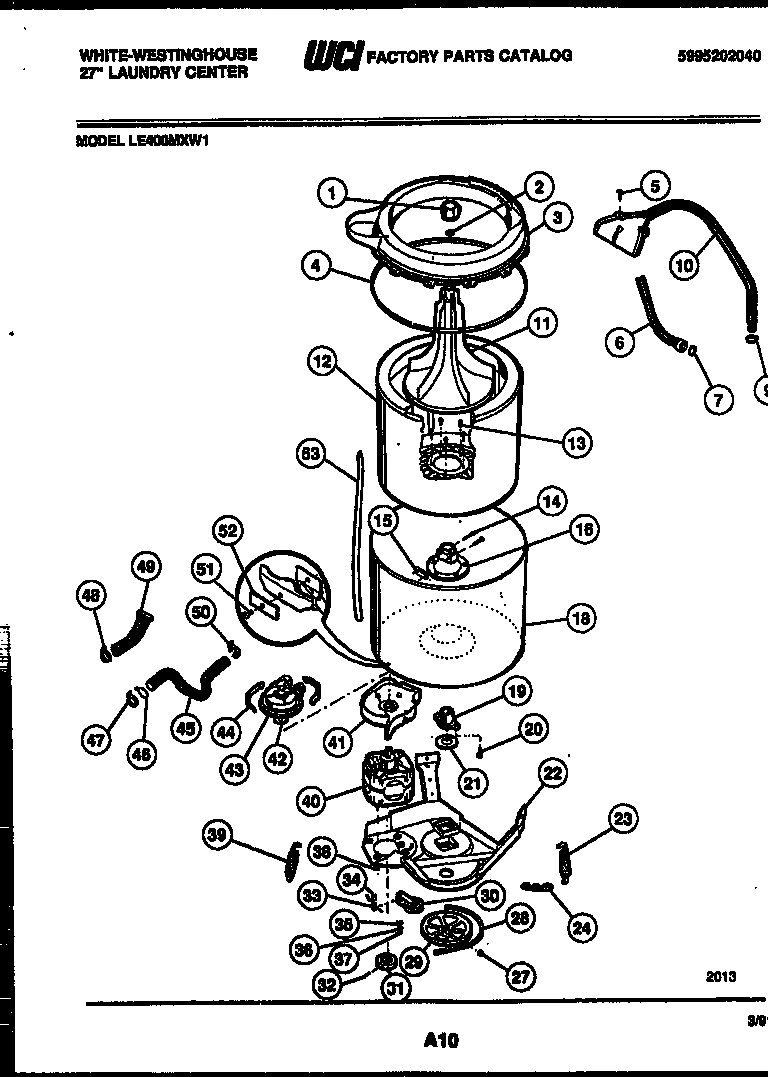

06 - TUB DETAIL

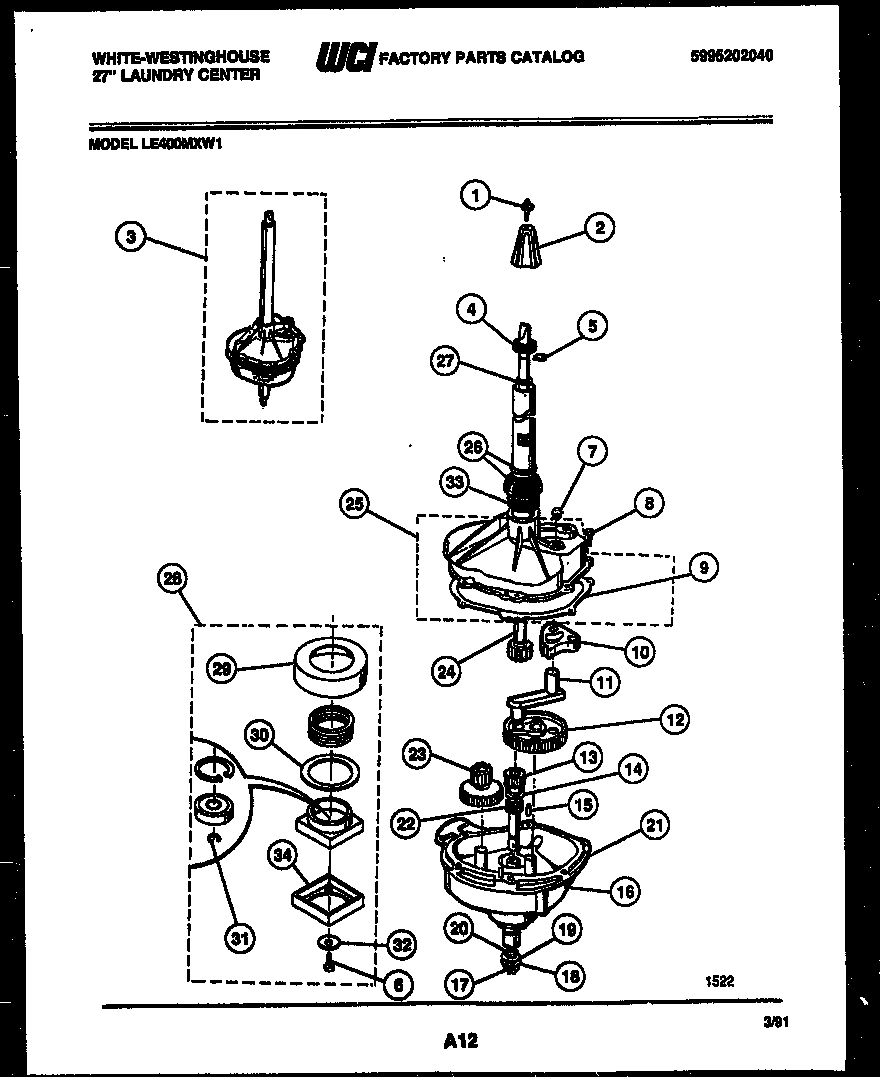

07 - TRANSMISSION PARTS
Common parts from model Electrolux LE400MXD1 LAUNDRY CENTER
*43311
SPACER PAD (2) CONTROL PANEL BRACKET WCI 5303210651 Contact Us For Availability
*43322
INSERT - STRING ADJ WCI 5303212877 Contact Us For Availability
*43327
SHIM-DRIVE HUB WCI 5303161222 Contact Us For Availability
1
WCI 3204461 WCI 3204461 Contact Us For Availability
1
TIMER-DRYER WCI 5303212897 Contact Us For Availability
1
SCREW (2) WCI 5303211089 Contact Us For Availability
1
AGITATOR CAP WCI 5303211002 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
2
WCI 5303209890 WCI 5303209890 Contact Us For Availability
3
HARNESS-DRYER CONTROL WCI 5303209918 Contact Us For Availability
5
WCI 5303209894 WCI 5303209894 Contact Us For Availability
6
WCI 5303209895 WCI 5303209895 Contact Us For Availability
6
WCI 5303212873 WCI 5303212873 Contact Us For Availability
6
SCREW (2) WCI 5308027582 Contact Us For Availability
7
WCI 5303161224 WCI 5303161224 Contact Us For Availability
8
SCREW (6) WCI 3205245 Contact Us For Availability
8
WCI 5303209896 WCI 5303209896 Contact Us For Availability
8
SCREW (6) WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
CLAMP WCI 5303012110 Contact Us For Availability
10
WCI 3205632 WCI 3205632 Contact Us For Availability
10
WASHER (2) WCI 5308002408 Contact Us For Availability
10
NOZZLE & HOSE ASSY WCI 3204400 Contact Us For Availability
10
WCI 5308011268 WCI 5308011268 Contact Us For Availability
11
WCI 08001544 WCI 08001544 Contact Us For Availability
11
WCI 5303211003 WCI 5303211003 Contact Us For Availability
11
WCI 5303161169 WCI 5303161169 Contact Us For Availability
12
SPIN TUB WCI 3204402 Contact Us For Availability
12
WCI 5308015496 WCI 5308015496 Contact Us For Availability
13
WCI 3205877 WCI 3205877 Contact Us For Availability
13
SCREW (5) WCI 5308027519 Contact Us For Availability
13
LOWER SHAFT ASSEMBLY WCI 5308014905 Contact Us For Availability
14
POWER-RESISTOR WCI 3205243 Contact Us For Availability
15
WCI 5308014346 WCI 5308014346 Contact Us For Availability
15
WCI 5303161227 WCI 5303161227 Contact Us For Availability
16
SCREW WCI 3161188 Contact Us For Availability
16
WCI 5308014908 WCI 5308014908 Contact Us For Availability
16
LOWER HOUSING ASSY WCI 5303912535 Contact Us For Availability
17
WCI 5303161223 WCI 5303161223 Contact Us For Availability
17
BRACKET WCI 3205639 Contact Us For Availability
18
WCI 5303270949 WCI 5303270949 Contact Us For Availability
18
LOCATING PIN (2) WCI 3204373 Contact Us For Availability
18
SPLASH TUB & BEARING ASSEMBLY WCI 3204404 Contact Us For Availability
18
WCI 5308002475 WCI 5308002475 Contact Us For Availability
19
WCI 5303161226 WCI 5303161226 Contact Us For Availability
19
SCREW (2) WCI 5308057419 Contact Us For Availability
20
WCI 5303209671 WCI 5303209671 Contact Us For Availability
21
WCI 3204260 WCI 3204260 Contact Us For Availability
21
SCREW-CRADLE TO PAN WCI 3281077 Contact Us For Availability
21
WCI 5308014903 WCI 5308014903 Contact Us For Availability
21
WCI 3005242 WCI 3005242 Contact Us For Availability
22
WCI 5303161174 WCI 5303161174 Contact Us For Availability
22
WCI 3161259 WCI 3161259 Contact Us For Availability
22
WCI 5303161252 WCI 5303161252 Contact Us For Availability
22
LEG & DOME ASSEMBLY WCI 3204408 Contact Us For Availability
23
WCI 3205242 WCI 3205242 Contact Us For Availability
23
WCI 5303209919 WCI 5303209919 Contact Us For Availability
23
DRAIN HOSE WCI 3205414 Contact Us For Availability
23
WCI 5303161175 WCI 5303161175 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
WCI 5303210341 WCI 5303210341 Contact Us For Availability
24
HORIZONTAL SPRING (3) WCI 5303208859 Contact Us For Availability
24
AGITATOR SHAFT ASSY WCI 3205151 Contact Us For Availability
25
WCI 3204314 WCI 3204314 Contact Us For Availability
25
INDICATOR-WASHER TIMER WCI 5303209901 Contact Us For Availability
25
UPPER HOUSING ASSY WCI 5303205527 Contact Us For Availability
26
TUB SEAL ASSEMBLY WCI 5308950197 Contact Us For Availability
26
SPACER-SHAFT WCI 3205248 Contact Us For Availability
26
BLOCK - SUPPORT (2) WCI 5303212870 Contact Us For Availability
26
WCI 5364154013 WCI 5364154013 Contact Us For Availability
27
CLAMP-MOTOR (2) WCI 5303212834 Contact Us For Availability
27
SCREW WCI 3205253 Contact Us For Availability
27
THRUST WASHER WCI 5303161232 Contact Us For Availability
28
GUIDE CLIP (4) WCI 5303281074 Contact Us For Availability
28
WCI 5303209662 WCI 5303209662 Contact Us For Availability
28
WCI 3204376 WCI 3204376 Contact Us For Availability
28
BEARING-HOUSING PKG WCI 5308950058 Contact Us For Availability
29
HARNESS-WASHER WCI 3205645 Contact Us For Availability
29
TRANSMISSION PULLEY WCI 3204420 Contact Us For Availability
29
WCI 5303161182 WCI 5303161182 Contact Us For Availability
30
SCREW (2) WCI 5308015309 Contact Us For Availability
30
WCI 5303010202 WCI 5303010202 Contact Us For Availability
30
IDLER ARM ASSEMBLY WCI 3204422 Contact Us For Availability
30
WCI 5308057430 WCI 5308057430 Contact Us For Availability
31
MOTOR PULLEY WCI 3204423 Contact Us For Availability
31
WCI 5303212832 WCI 5303212832 Contact Us For Availability
31
WCI 5303210650 WCI 5303210650 Contact Us For Availability
31
WCI 5308015536 WCI 5308015536 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
32
WCI 3204317 WCI 3204317 Contact Us For Availability
32
WCI 3204357 WCI 3204357 Contact Us For Availability
32
WCI 3204378 WCI 3204378 Contact Us For Availability
32
RUBBER SPACER (2) WCI 5303207426 Contact Us For Availability
33
TORSION SPRING WCI 3204425 Contact Us For Availability
33
SCREW (2) WCI 08010789 Contact Us For Availability
33
WCI 5303161231 WCI 5303161231 Contact Us For Availability
34
WCI 3204319 WCI 3204319 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
34
WCI 5377009100 WCI 5377009100 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
35
CLIP (2) WCI 5308014350 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
36
SHIPPING BLOCK WCI 3204380 Contact Us For Availability
37
SPRING WASHER WCI 5303161306 Contact Us For Availability
37
SHIPPING SCREW WCI 3204381 Contact Us For Availability
38
ELBOW WCI 3204320 Contact Us For Availability
38
BASE ASSEMBLY WCI 3204382 Contact Us For Availability
38
HEX NUT (4) WCI 5308001875 Contact Us For Availability
39
LEVELING LEG & PAD (2) WCI 5303937004 Contact Us For Availability
40
SCREW (2) WCI 5303207394 Contact Us For Availability
40
WCI 3205647 WCI 3205647 Contact Us For Availability
41
MOTOR SHIELD WCI 5303211074 Contact Us For Availability
42
INTERIOR MARRIAGE BRACKET (2) WCI 3204324 Contact Us For Availability
42
FRONT PANEL-ALMOND WCI 5303209677 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
LOCATING PIN WCI 3204350 Contact Us For Availability
43
WCI 3204452 WCI 3204452 Contact Us For Availability
44
WCI 3204453 WCI 3204453 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
45
WCI 08011280 WCI 08011280 Contact Us For Availability
46
SCREW (2) WCI 3204325 Contact Us For Availability
46
WCI 3204388 WCI 3204388 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
47
WCI 3204389 WCI 3204389 Contact Us For Availability
48
SCREW (2) WCI 08001578 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
49
SCREW (2) WCI 5303206864 Contact Us For Availability
50
SAFETY COVER WCI 3204329 Contact Us For Availability
50
WCI 3205646 WCI 3205646 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
WCI 3204391 WCI 3204391 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
RIVET (3) WCI 08002420 Contact Us For Availability
52
WCI 3204460 WCI 3204460 Contact Us For Availability
53
CLAMP-FRONT WCI 3205236 Contact Us For Availability
53
WCI 5303212875 WCI 5303212875 Contact Us For Availability
54
BLEACH DISPENSER WCI 3204394 Contact Us For Availability
54
WCI 3205237 WCI 3205237 Contact Us For Availability
55
WCI 3205238 WCI 3205238 Contact Us For Availability
56
PAD-SELF LEVELING LEG WCI 5303201463 Contact Us For Availability
× ![]()
