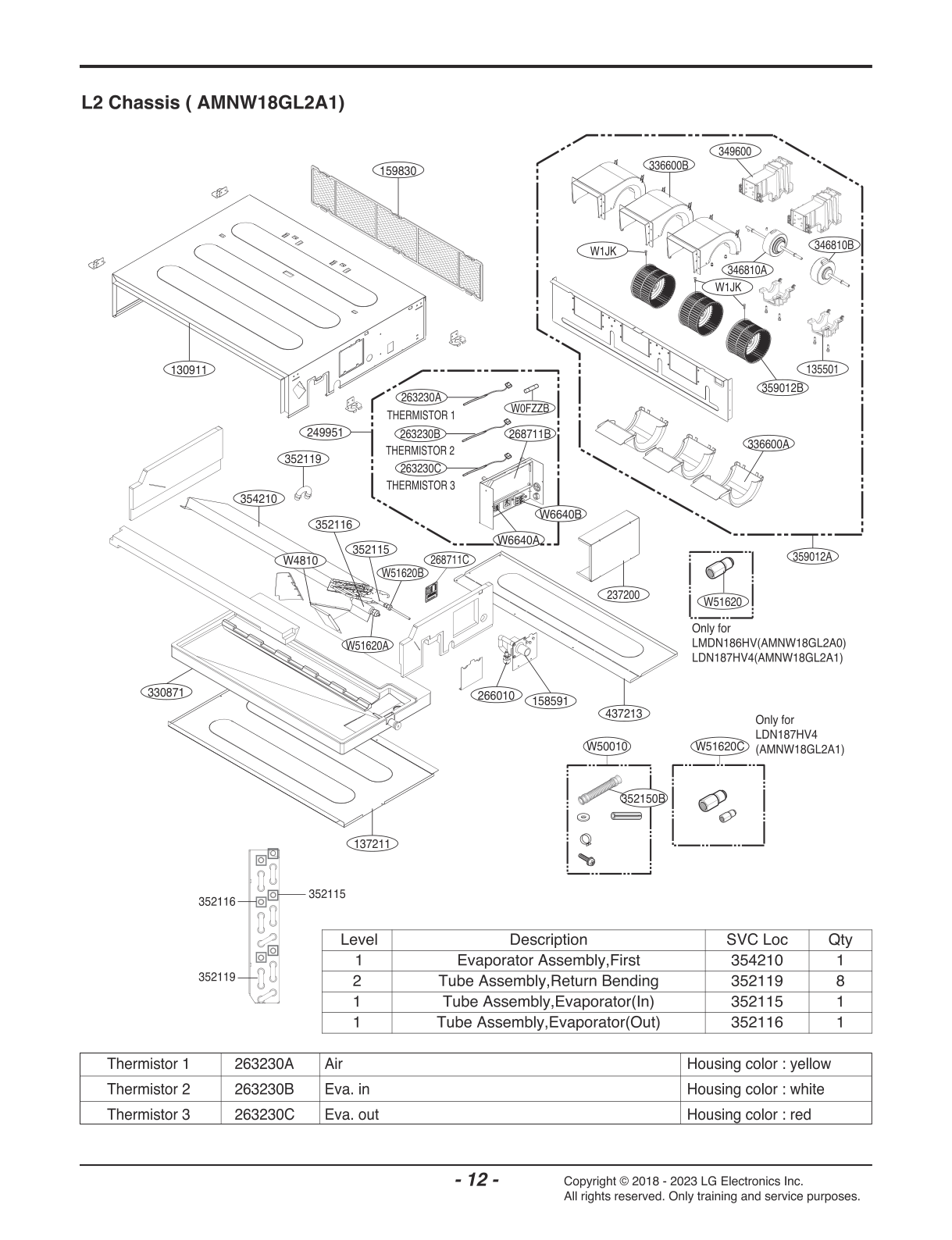

Model LG LDN187HV4.BWHBEUS – Common Parts & Diagrams

137211
Panel Assembly,Front(Indoor)
Panel Assembly,Front(Indoor) LGE AGL73859102 Contact Us For Availability
View on Model
237200
Panel,Control
Panel,Control LGE MGC63188601 Contact Us For Availability
View on Model
266010
Switch Assembly
Switch Assembly LGE 6601A20001L Contact Us For Availability
View on Model
268711C
PCB Assembly,Sub
PCB Assembly,Sub LGE EBR78258503 Contact Us For Availability
View on Model
336600A
Housing,Wrapper
Housing,Wrapper LGE 3660A20059A Contact Us For Availability
View on Model
336600B
Housing,Wrapper
Housing,Wrapper LGE 3660A20060A Contact Us For Availability
View on Model
352115
Tube Assembly,Evaporator(In)
Tube Assembly,Evaporator(In) LGE AJR74203402 Contact Us For Availability
View on Model
352116
Tube Assembly,Evaporator(Out)
Tube Assembly,Evaporator(Out) LGE AJR74284504 Contact Us For Availability
View on Model
359012A
Fan Assembly,Final
Fan Assembly,Final LGE ADP73513618 Contact Us For Availability
View on Model
359012B
Fan Assembly,Blower
Fan Assembly,Blower LGE 5901A20049A Contact Us For Availability
View on Model
437213
Panel Assembly,Rear(Indoor)
Panel Assembly,Rear(Indoor) LGE AGL73957002 Contact Us For Availability
View on Model
W1JK
Screw,Set
Screw,Set LGE 4H00516B Contact Us For Availability
View on Model
W4810
Bracket
Bracket LGE MAZ63470401 Contact Us For Availability
View on Model
W6640A
Connector,Terminal Block
Connector,Terminal Block LGE EAG63452304 Contact Us For Availability
View on Model
W6640B
Connector,Terminal Block
Connector,Terminal Block LGE EAG38884441 Contact Us For Availability
View on Model
W51620A
Socket,Flare
Socket,Flare LGE 3A00375E Contact Us For Availability
View on Model
W51620B
Socket,Flare
Socket,Flare LGE 4010AR3071C Contact Us For Availability
View on Model
W51620C
Socket,Flare
Socket,Flare LGE 5162A20011A Contact Us For Availability
View on Model
