Model LG LDLIM31 Delivery Robot (Door Type) – Common Parts & Diagrams
Diagram 0
Diagram 1

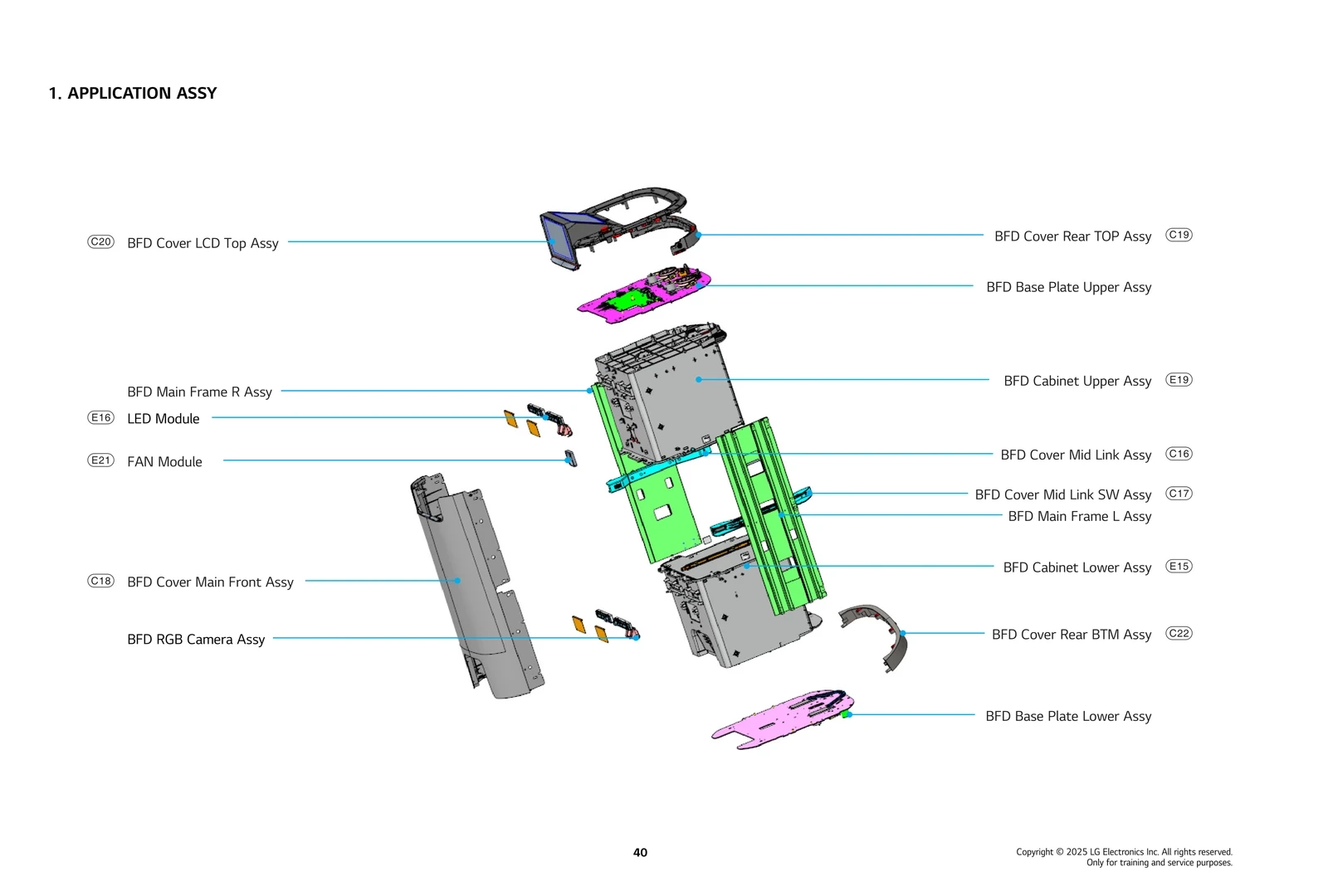

Diagram 2

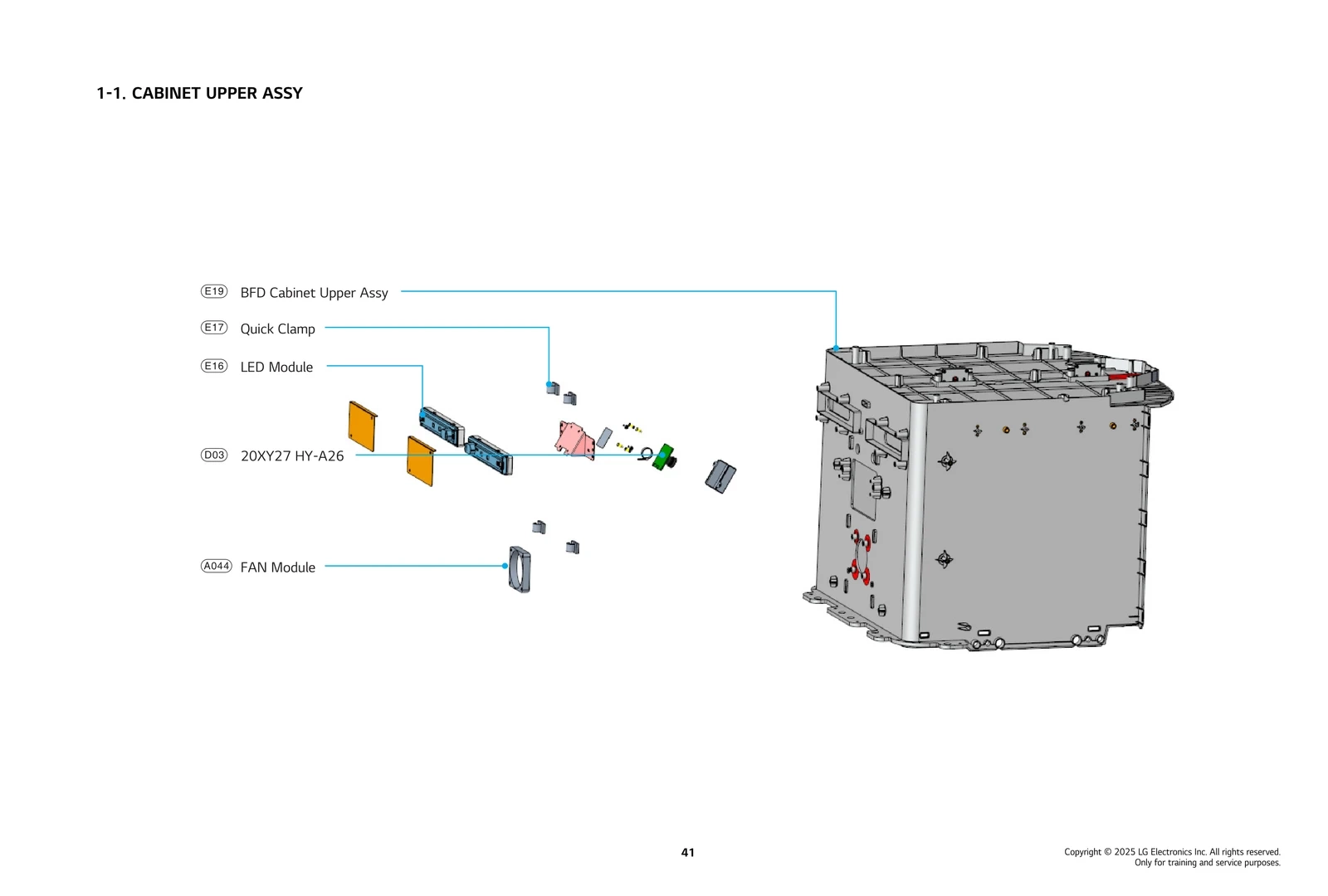

Diagram 3

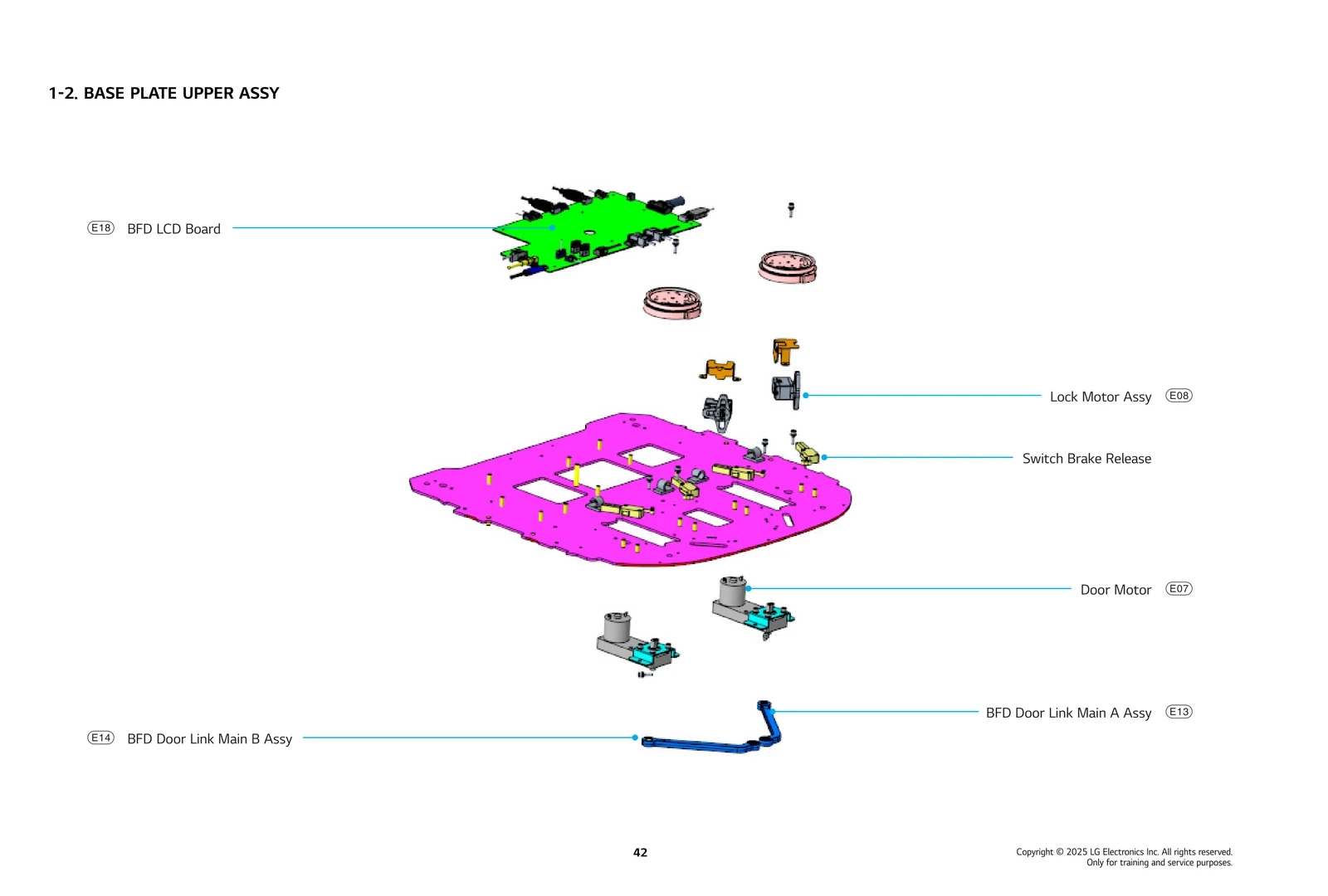

Diagram 4

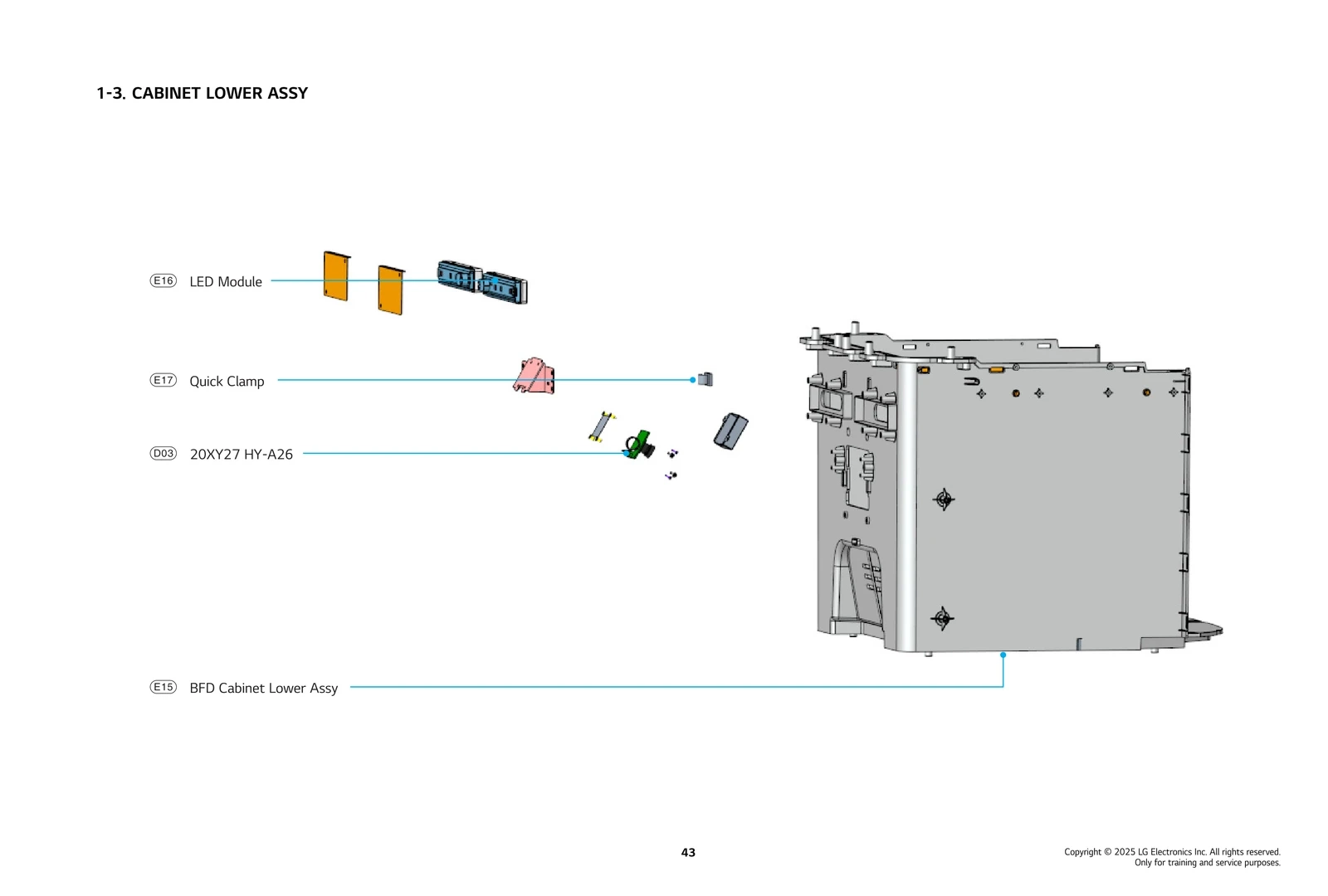

Diagram 5

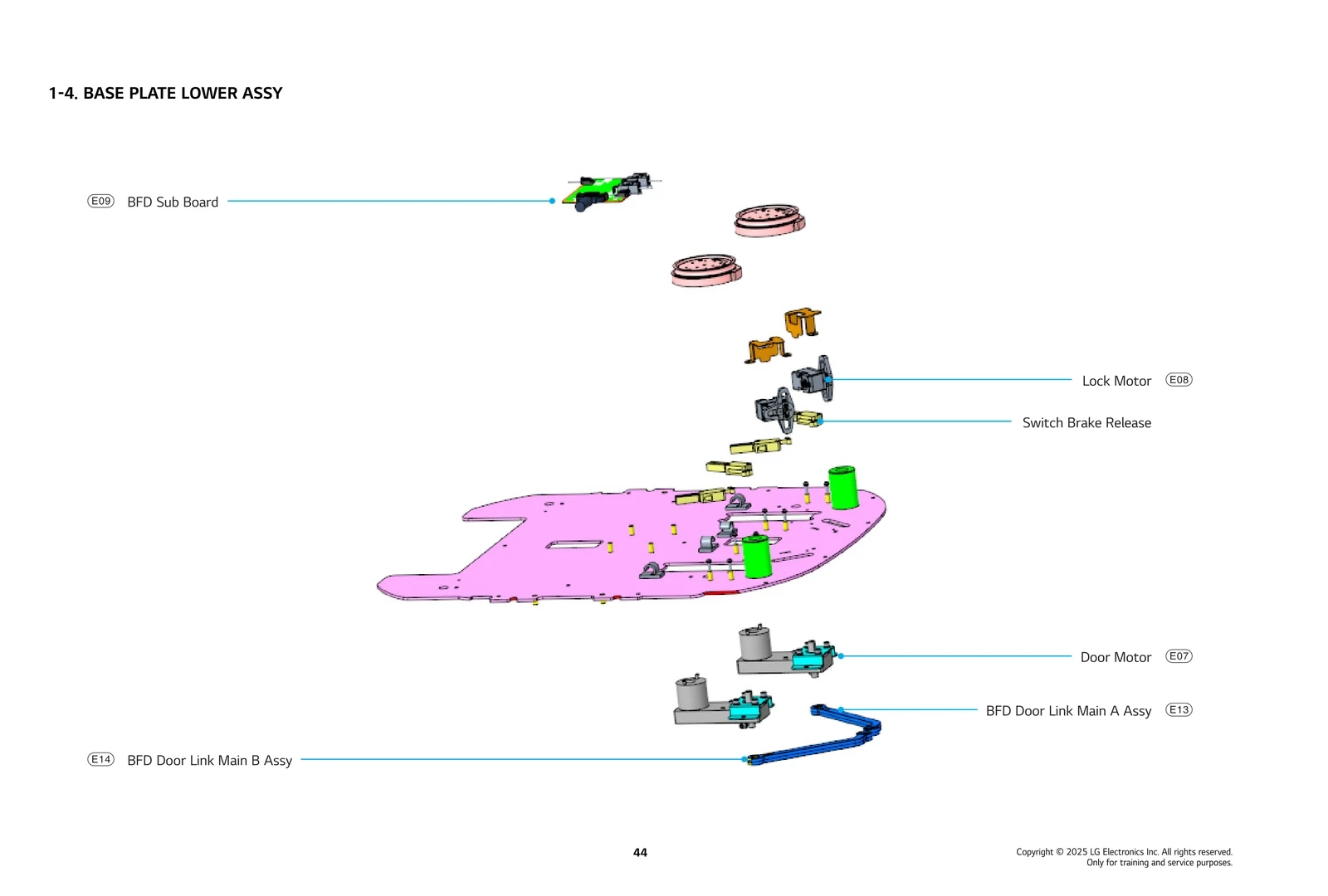

Diagram 6

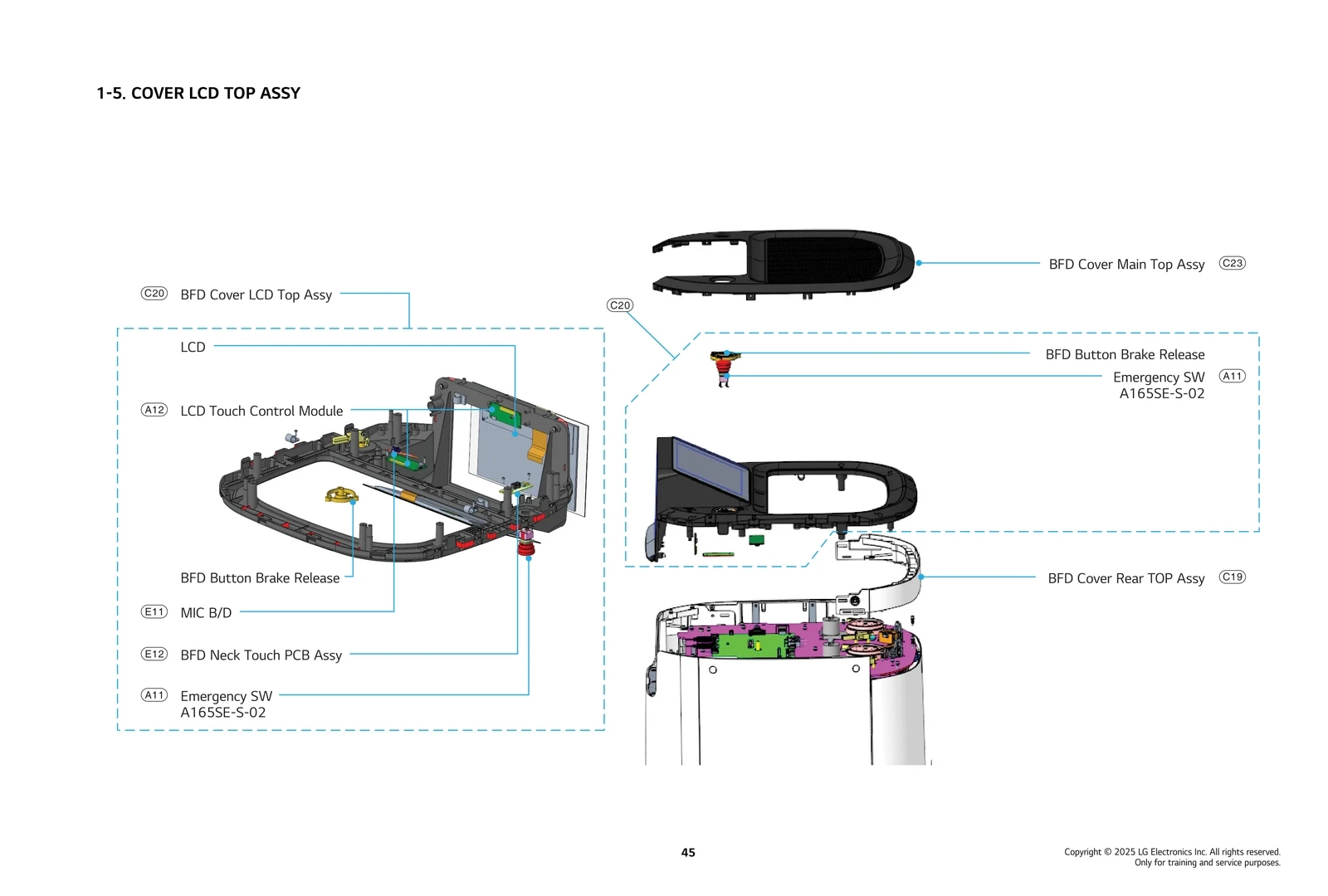

Diagram 7

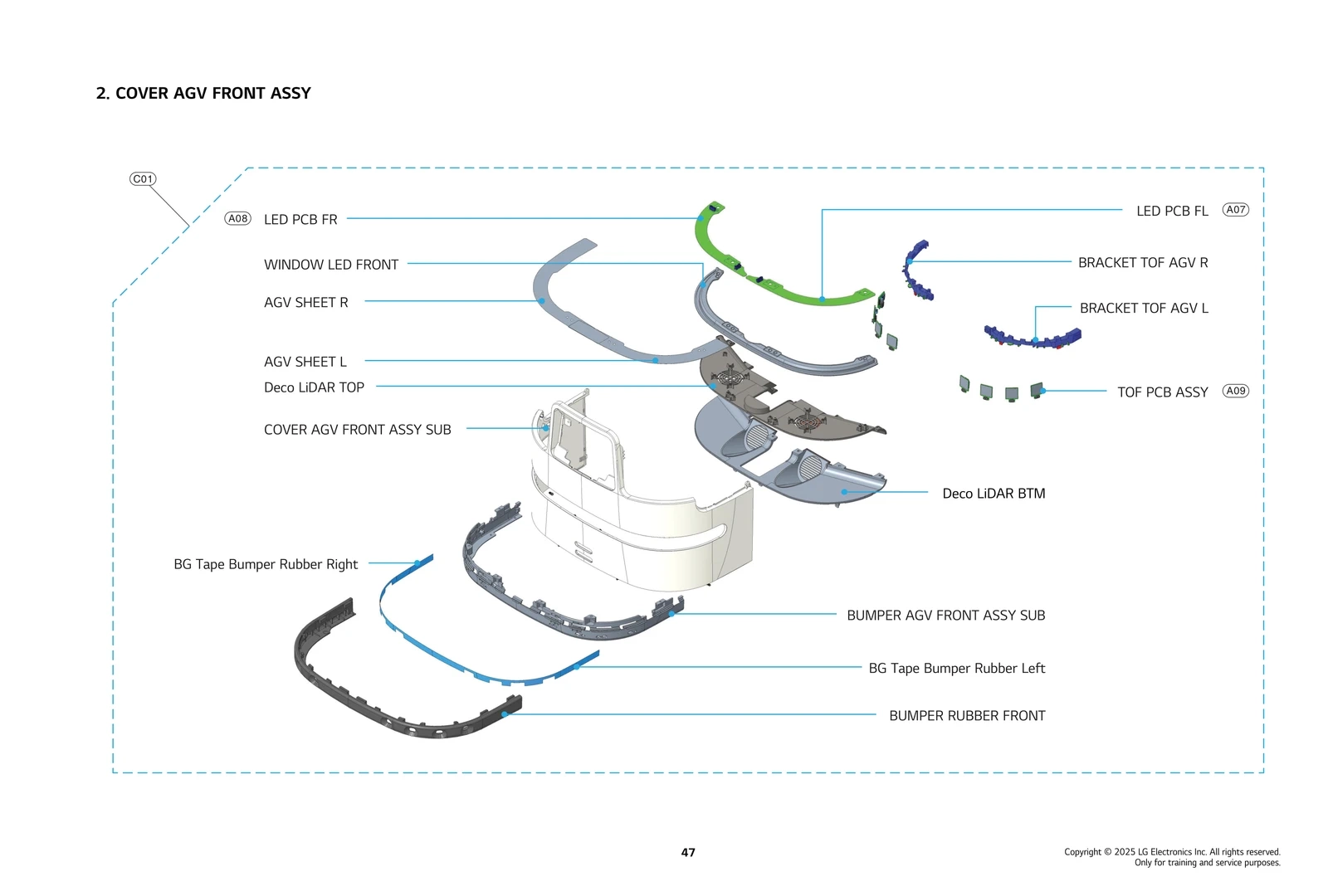

Diagram 8

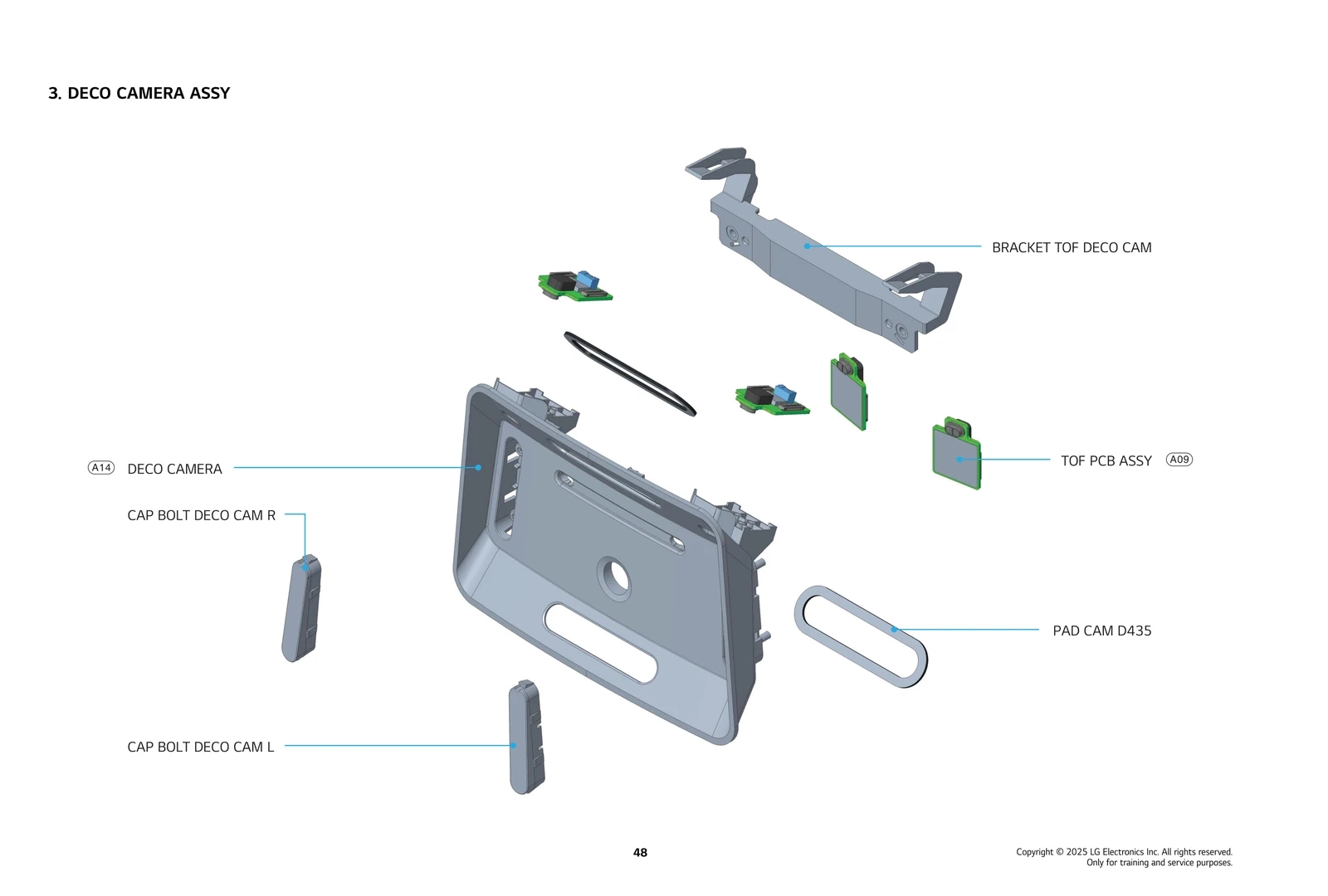

Diagram 9

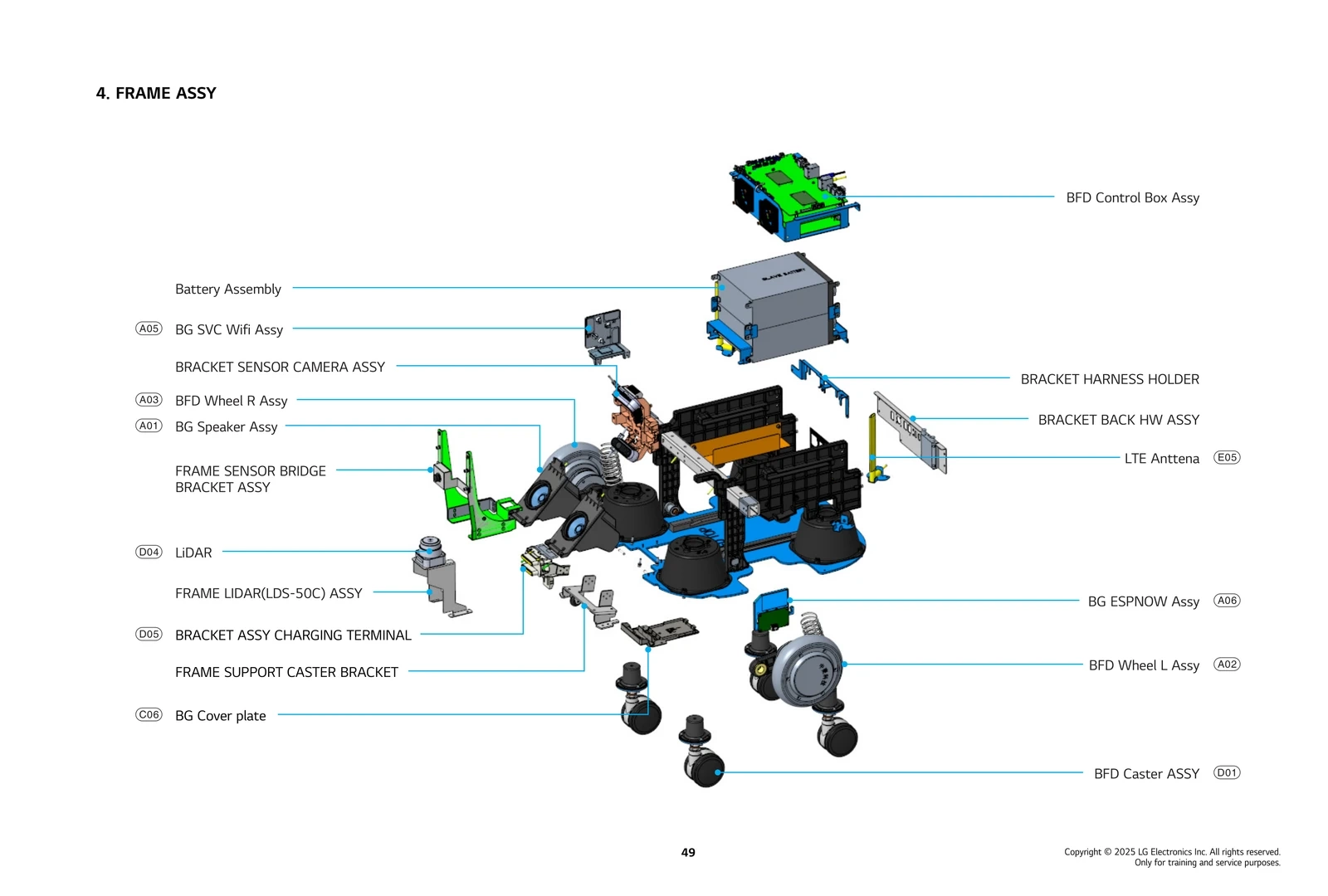

Diagram 10

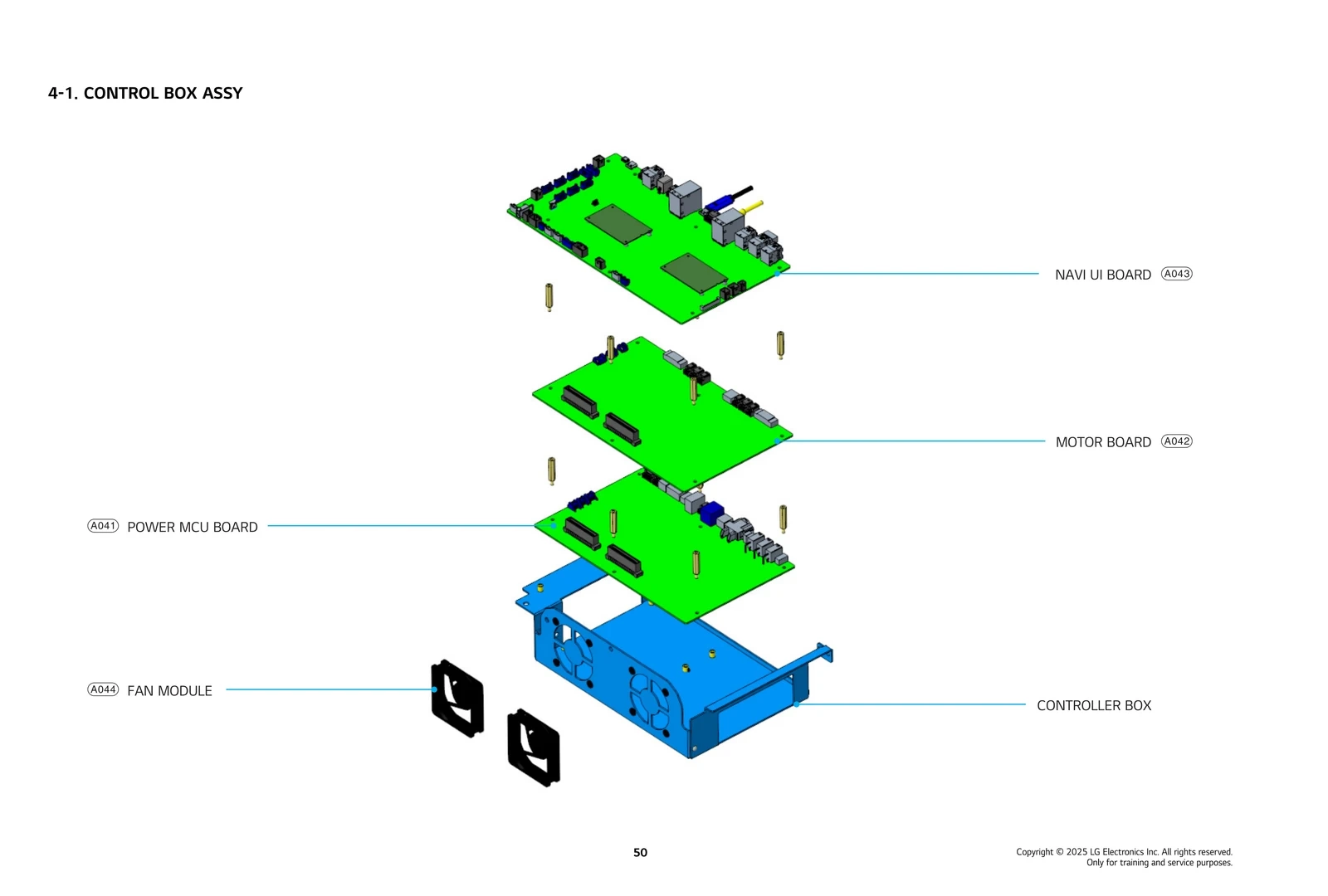

Diagram 11

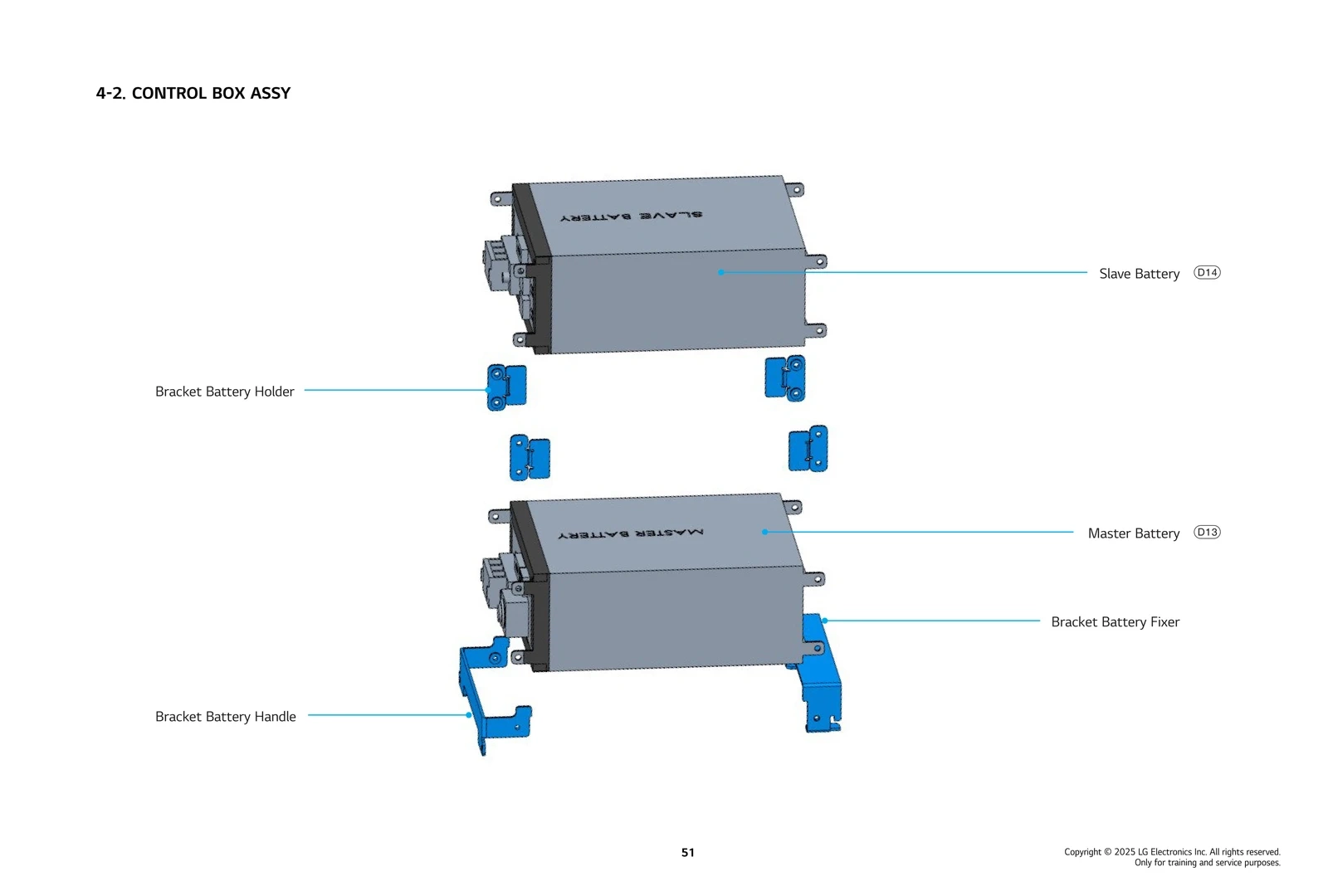

Diagram 12

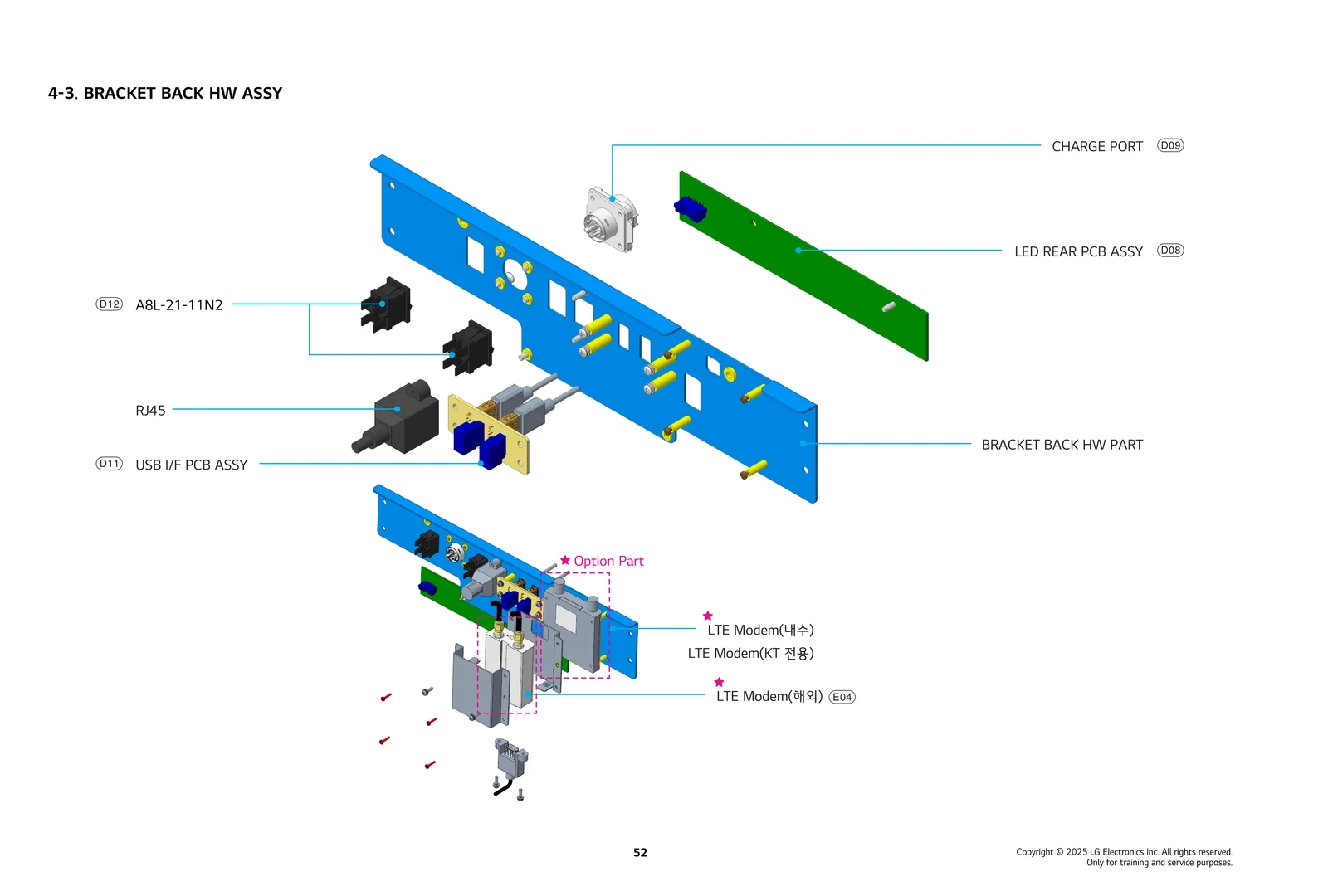

Diagram 13

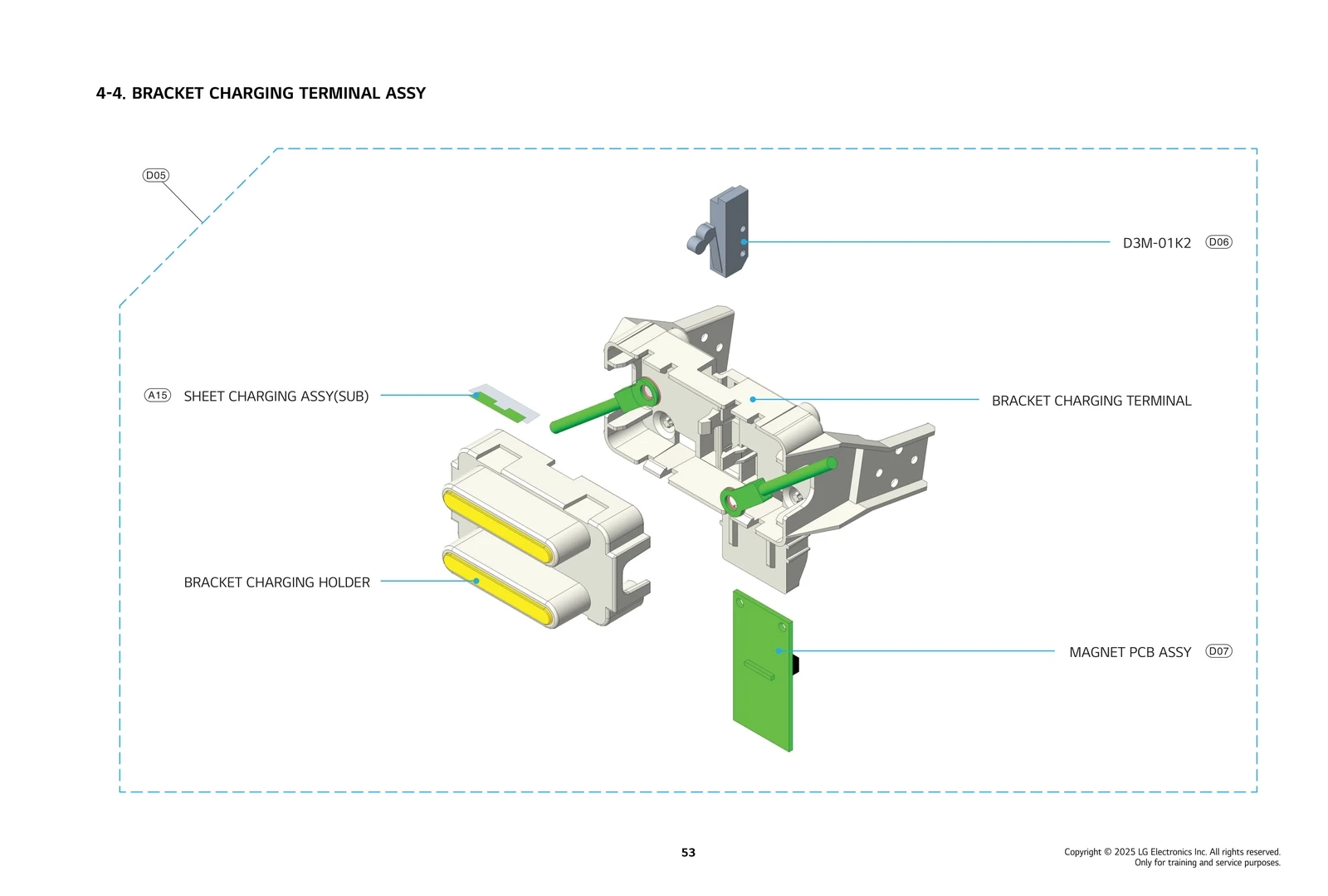

Diagram 14

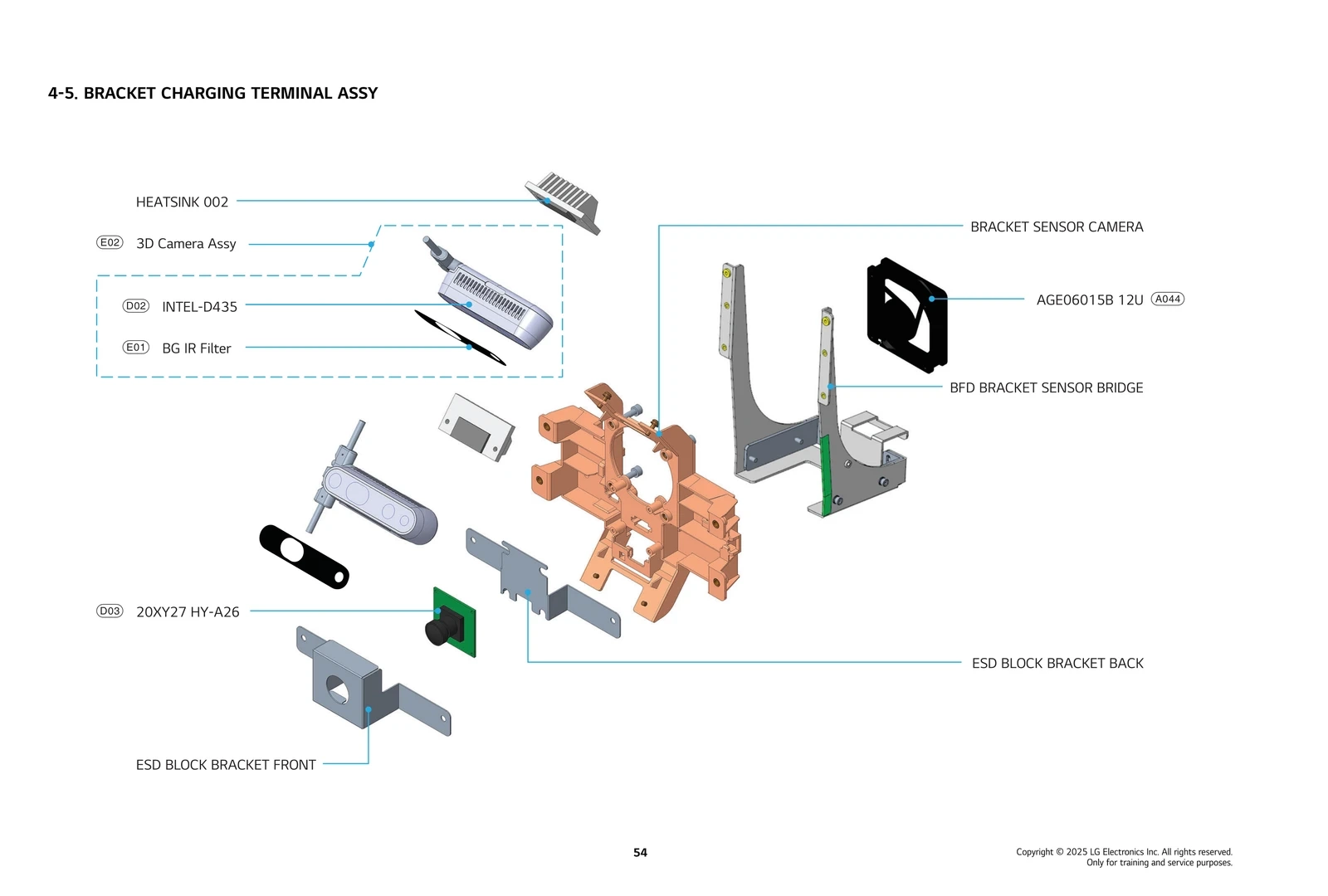

Diagram 15

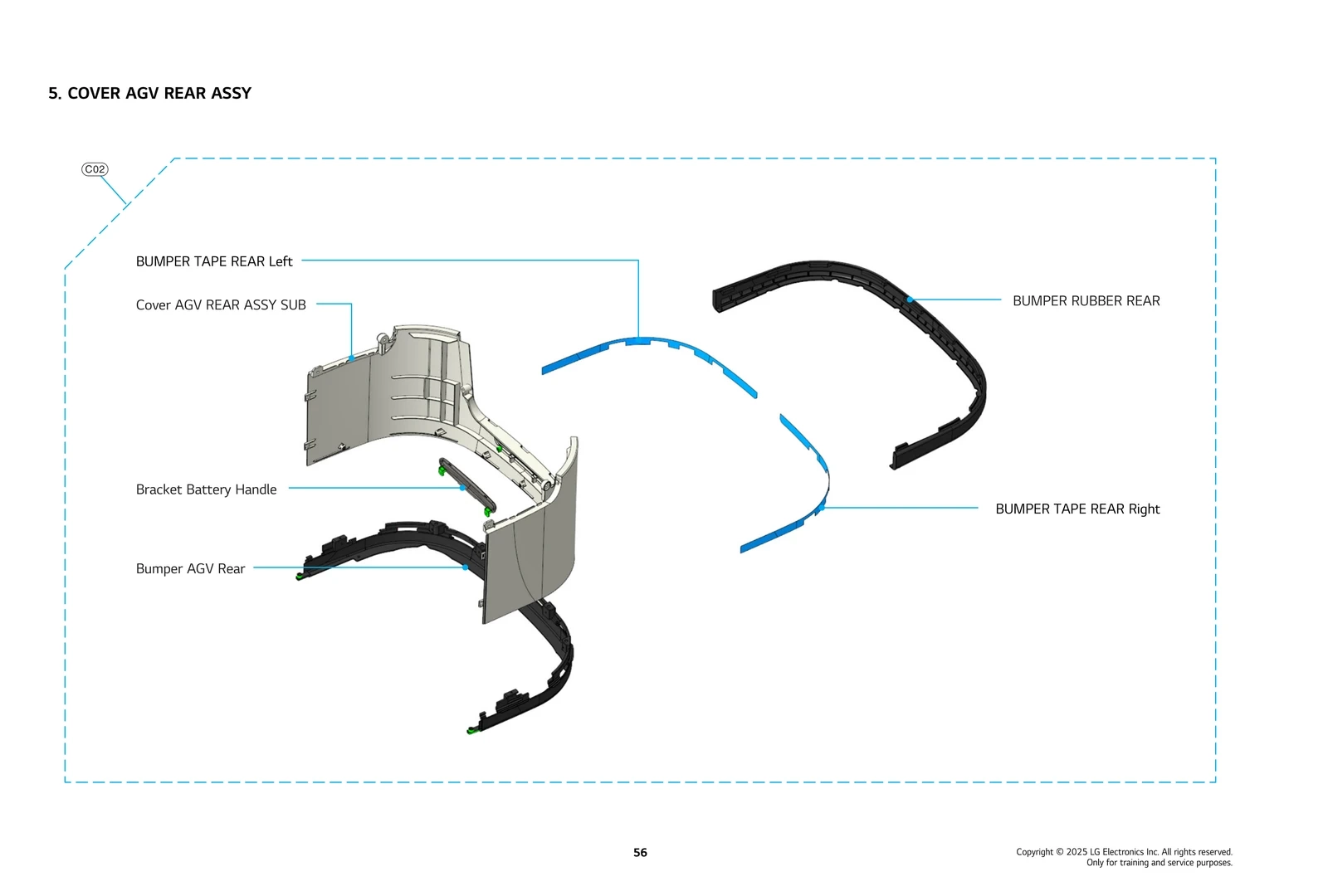

Diagram 16

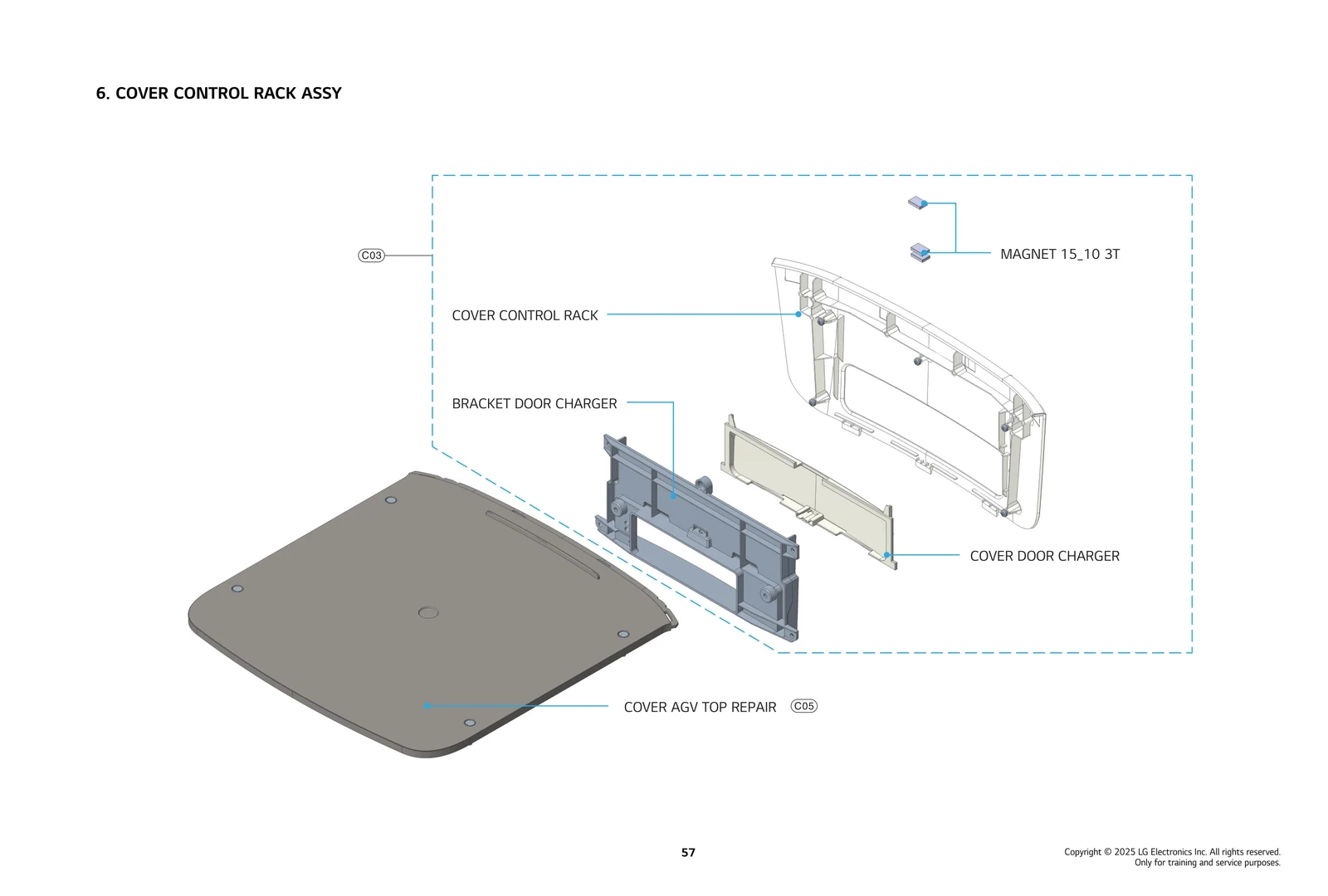

Diagram 17

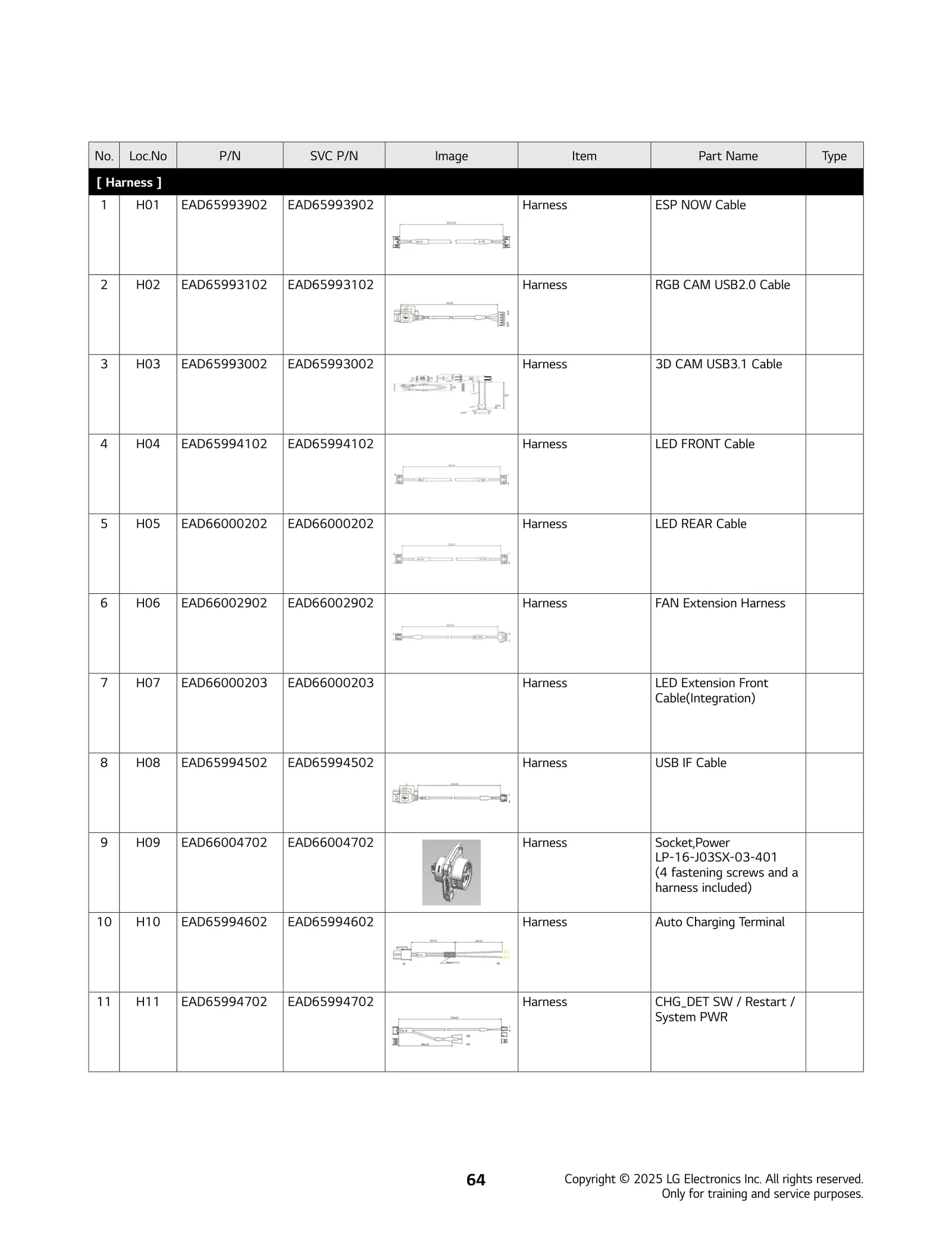

Diagram 18

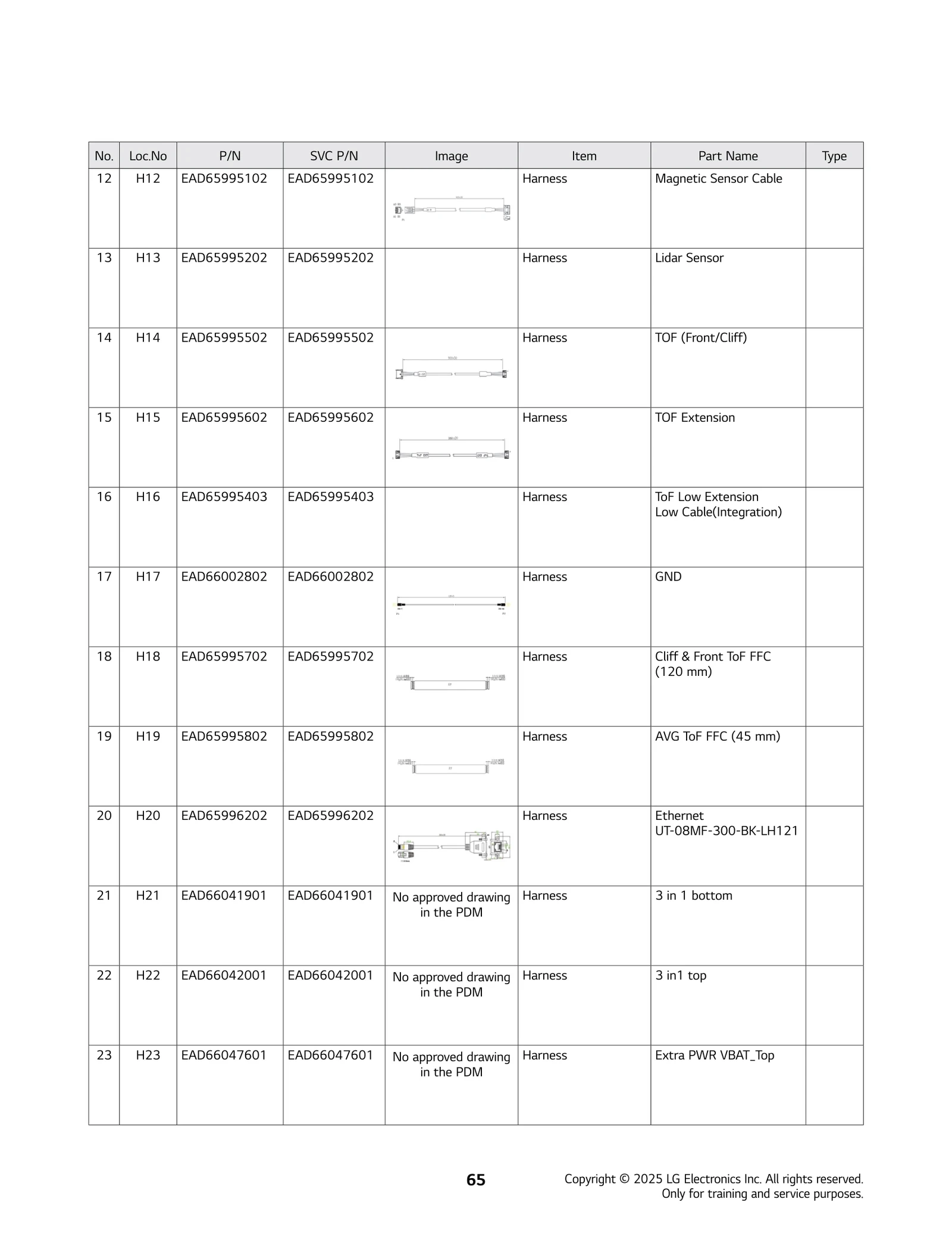

Diagram 19

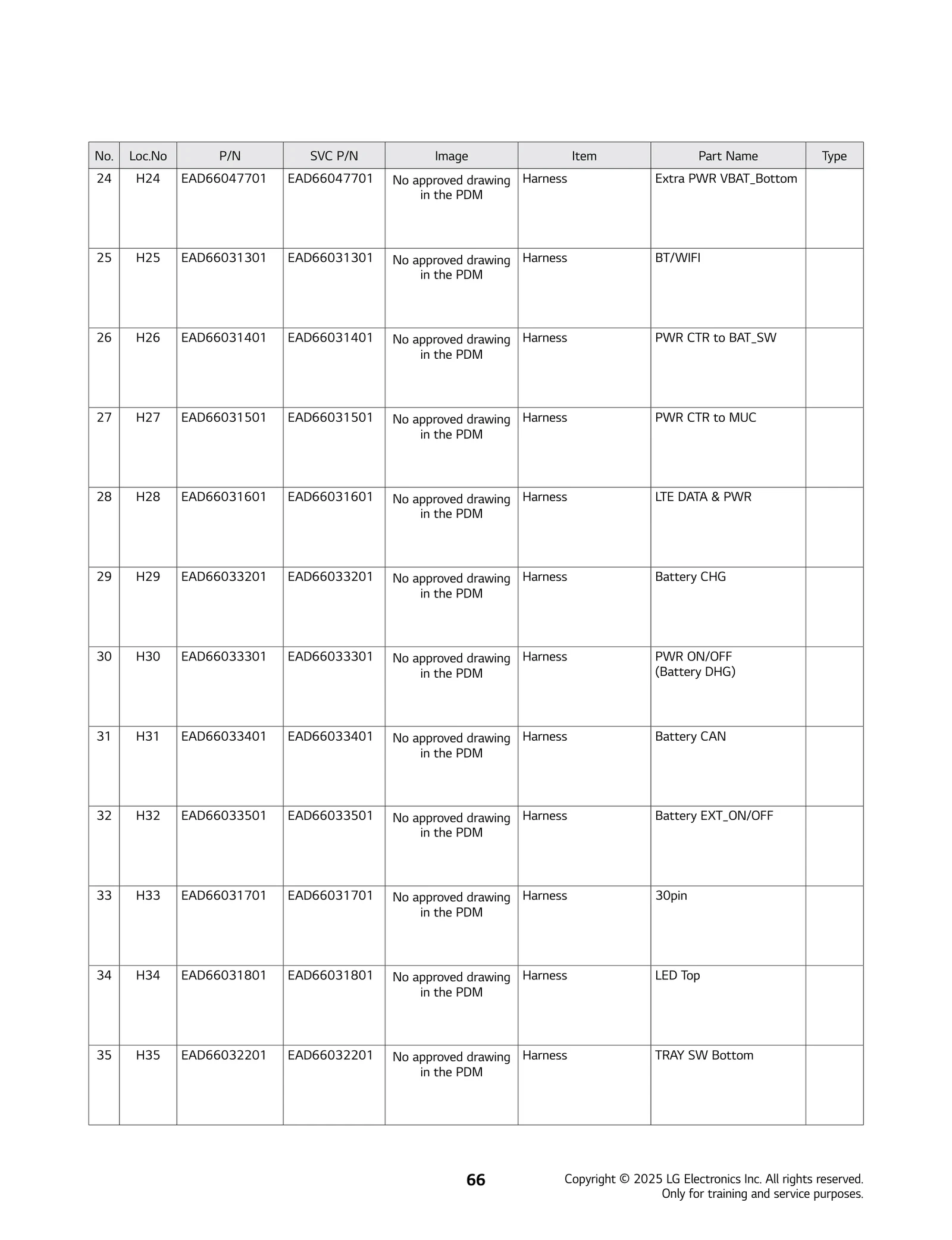

Diagram 20

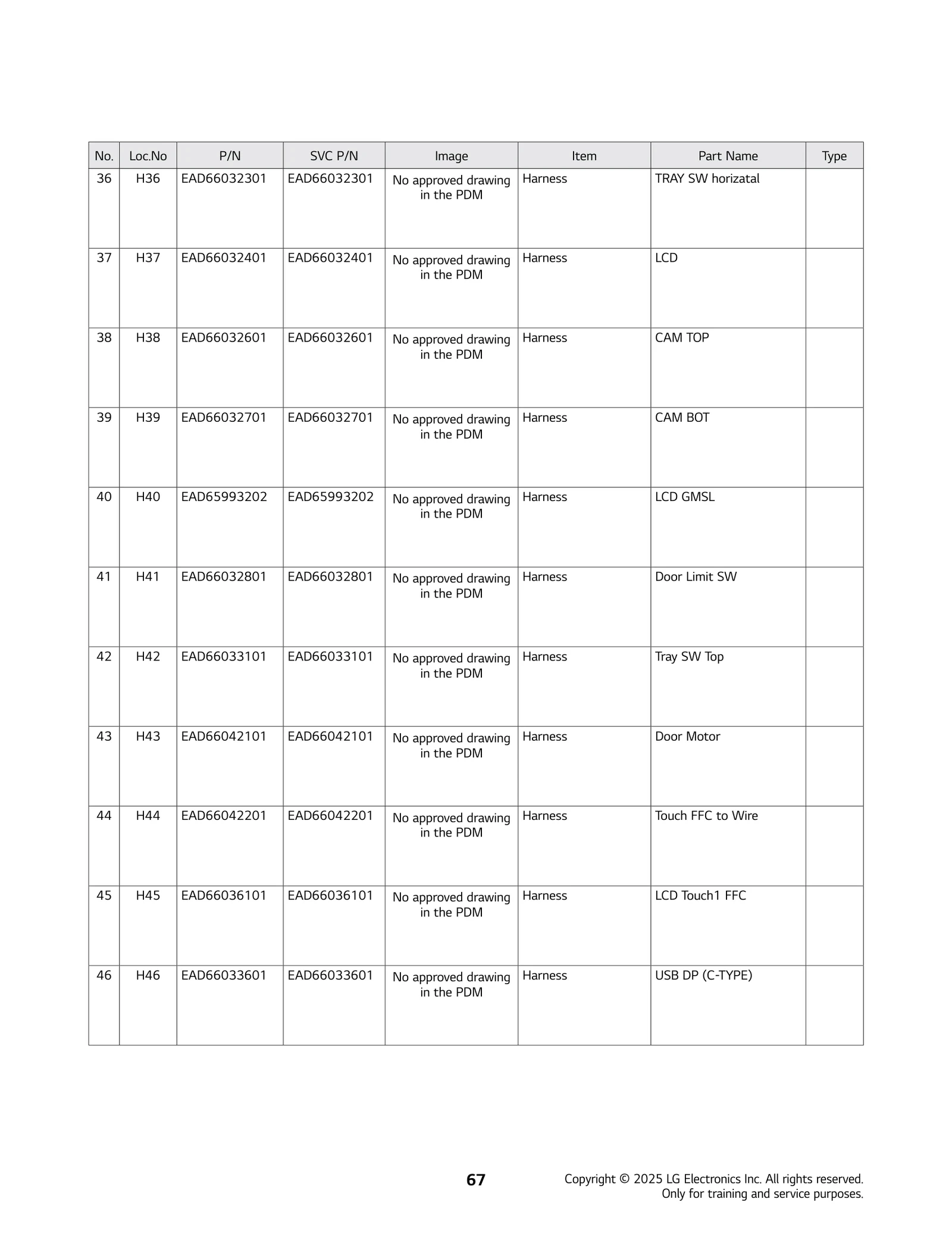

Diagram 21
Common parts from model LG LDLIM31 Delivery Robot (Door Type)
A01
Speaker Assembly,Outsourcing LGE COV37988001 Contact Us For Availability
A02
Motor Assembly,Outsourcing LGE COV37988201 Contact Us For Availability
A03
Motor Assembly,Outsourcing LGE COV37988301 Contact Us For Availability
A041
PCB Assembly LGE EBR39759601 Contact Us For Availability
A042
PCB Assembly LGE EBR39759703 Contact Us For Availability
A043
PCB Assembly,Main(H/W) LGE EBR41981001 Contact Us For Availability
A044
Fan Module LGE EAL62726901 Contact Us For Availability
A05
Bracket Assembly,Outsourcing LGE COV38001101 Contact Us For Availability
A06
Bracket Assembly,Outsourcing LGE COV38001201 Contact Us For Availability
A07
PCB Assembly LGE EBR39761001 Contact Us For Availability
A08
PCB Assembly LGE EBR39760901 Contact Us For Availability
A11
Switch,Push Button LGE EBF64557702 Contact Us For Availability
A12
PCB Assembly,Module LGE EBR39979301 Contact Us For Availability
A15
Plate Assembly LGE AGU30084901 Contact Us For Availability
B05
Cap LGE MBL68744201 Contact Us For Availability
B06
Cover Assembly LGE ACQ30686801 Contact Us For Availability
C01
Cover Assembly,Outsourcing LGE COV37988101 Contact Us For Availability
C02
Cover Assembly LGE ACQ30567002 Contact Us For Availability
C03
Cover Assembly LGE ACQ30635701 Contact Us For Availability
C04
Cover LGE MCK71718801 Contact Us For Availability
C05
Cover LGE MCK71718901 Contact Us For Availability
C06
Cover LGE MCK71905101 Contact Us For Availability
C08
Cover Assembly LGE ACQ30633401 Contact Us For Availability
C10
Cover Assembly LGE ACQ30633601 Contact Us For Availability
C13
Cover LGE MCK71830201 Contact Us For Availability
C15
Cover Assembly LGE ACQ30633801 Contact Us For Availability
C17
Cover Assembly LGE ACQ30633201 Contact Us For Availability
C18
Cover Assembly LGE ACQ30638501 Contact Us For Availability
C20
Cover Assembly,Outsourcing LGE COV37988601 Contact Us For Availability
C22
Cover Assembly LGE ACQ30632901 Contact Us For Availability
D03
Camera Module LGE EBP64157501 Contact Us For Availability
D04
LiDAR LGE EBD64426101 Contact Us For Availability
D05
Bracket Assembly,Outsourcing LGE COV38000801 Contact Us For Availability
D08
PCB Assembly LGE EBR39759001 Contact Us For Availability
D11
PCB Assembly LGE EBR39780601 Contact Us For Availability
D13
Battery Assembly,Lithium Ion LGE EAC64785101 Contact Us For Availability
D14
Battery Assembly,Lithium Ion LGE EAC64787501 Contact Us For Availability
E01
Plate Assembly LGE AGU30079401 Contact Us For Availability
E04
MODEM LGE EBM61623702 Contact Us For Availability
E05
Antenna,Bar LGE EAA65968601 Contact Us For Availability
E07
Motor Assembly LGE AKU30952401 Contact Us For Availability
E08
Motor Assembly,Outsourcing LGE COV37988501 Contact Us For Availability
E09
PCB Assembly LGE EBR41981101 Contact Us For Availability
E11
PCB Assembly LGE EBR43336401 Contact Us For Availability
E12
PCB Assembly LGE EBR42684501 Contact Us For Availability
E13
Frame Assembly LGE ADV30095901 Contact Us For Availability
E14
Frame Assembly LGE ADV30096001 Contact Us For Availability
E17
Clamp,Wire LGE MBU64447601 Contact Us For Availability
E18
PCB Assembly,Display(H/W) LGE EBR41980901 Contact Us For Availability
H01
Harness,Single LGE EAD65993902 Contact Us For Availability
H03
Harness,Single LGE EAD65993002 Contact Us For Availability
H04
Harness,Single LGE EAD65994102 Contact Us For Availability
H05
Harness,Single LGE EAD66000202 Contact Us For Availability
H07
Harness,Single LGE EAD66000203 Contact Us For Availability
H08
Harness,Single LGE EAD65994502 Contact Us For Availability
H09
Harness,Single LGE EAD66004702 Contact Us For Availability
H10
Harness,Single LGE EAD65994602 Contact Us For Availability
H11
Harness,Multi LGE EAD65994702 Contact Us For Availability
H12
Harness,Single LGE EAD65995102 Contact Us For Availability
H13
Harness,Single LGE EAD65995202 Contact Us For Availability
H14
Harness,Single LGE EAD65995502 Contact Us For Availability
H15
Harness,Single LGE EAD65995602 Contact Us For Availability
H16
Harness,Single LGE EAD65995403 Contact Us For Availability
H17
Harness,Single LGE EAD66002802 Contact Us For Availability
H18
Harness,Single LGE EAD65995702 Contact Us For Availability
H20
Harness,Single LGE EAD65996202 Contact Us For Availability
H21
Harness,Single LGE EAD66041901 Contact Us For Availability
H22
Harness,Single LGE EAD66042001 Contact Us For Availability
H23
Harness,Single LGE EAD66047601 Contact Us For Availability
H24
Harness,Single LGE EAD66047701 Contact Us For Availability
H25
Harness,Single LGE EAD66031301 Contact Us For Availability
H26
Harness,Single LGE EAD66031401 Contact Us For Availability
H27
Harness,Single LGE EAD66031501 Contact Us For Availability
H28
Harness,Single LGE EAD66031601 Contact Us For Availability
H29
Harness,Single LGE EAD66033201 Contact Us For Availability
H30
Harness,Single LGE EAD66033301 Contact Us For Availability
H31
Harness,Single LGE EAD66033401 Contact Us For Availability
H33
Harness,Single LGE EAD66031701 Contact Us For Availability
H34
Harness,Single LGE EAD66031801 Contact Us For Availability
H35
Harness,Single LGE EAD66032201 Contact Us For Availability
H36
Harness,Single LGE EAD66032301 Contact Us For Availability
H37
Harness,Single LGE EAD66032401 Contact Us For Availability
H38
Harness,Single LGE EAD66032601 Contact Us For Availability
H39
Harness,Single LGE EAD66032701 Contact Us For Availability
H40
Harness,Single LGE EAD65993202 Contact Us For Availability
H41
Harness,Single LGE EAD66032801 Contact Us For Availability
H42
Harness,Single LGE EAD66033101 Contact Us For Availability
H44
Harness,Single LGE EAD66042201 Contact Us For Availability
H45
Harness,Single LGE EAD66036101 Contact Us For Availability
H46
Harness,Single LGE EAD66033601 Contact Us For Availability
× ![]()
