Model GE LDL3TRWW301NW22 General Electric Model LDL3TRWW301NW22 – Common Parts & Diagrams

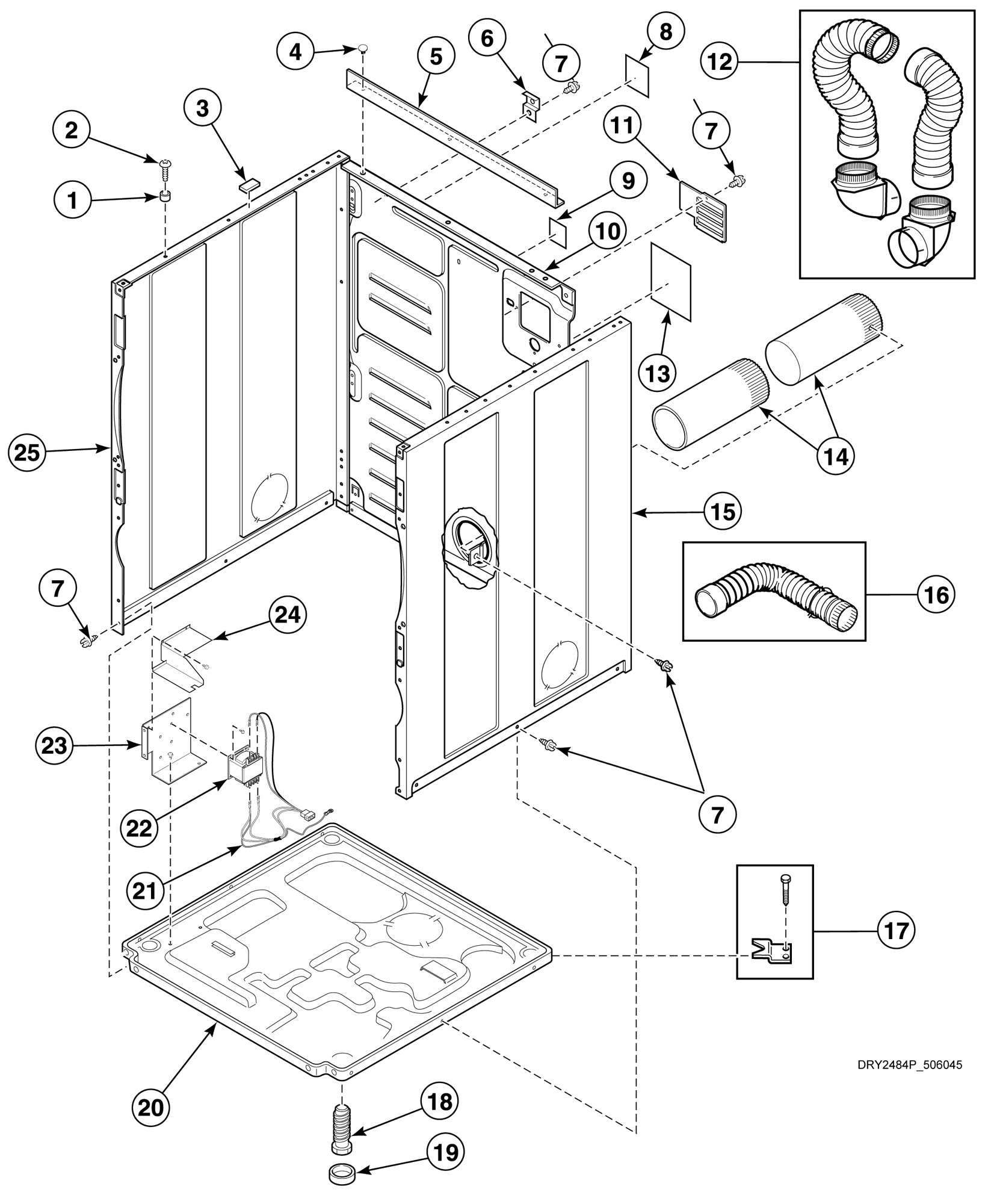

Cabinet, Exhaust Duct and Base

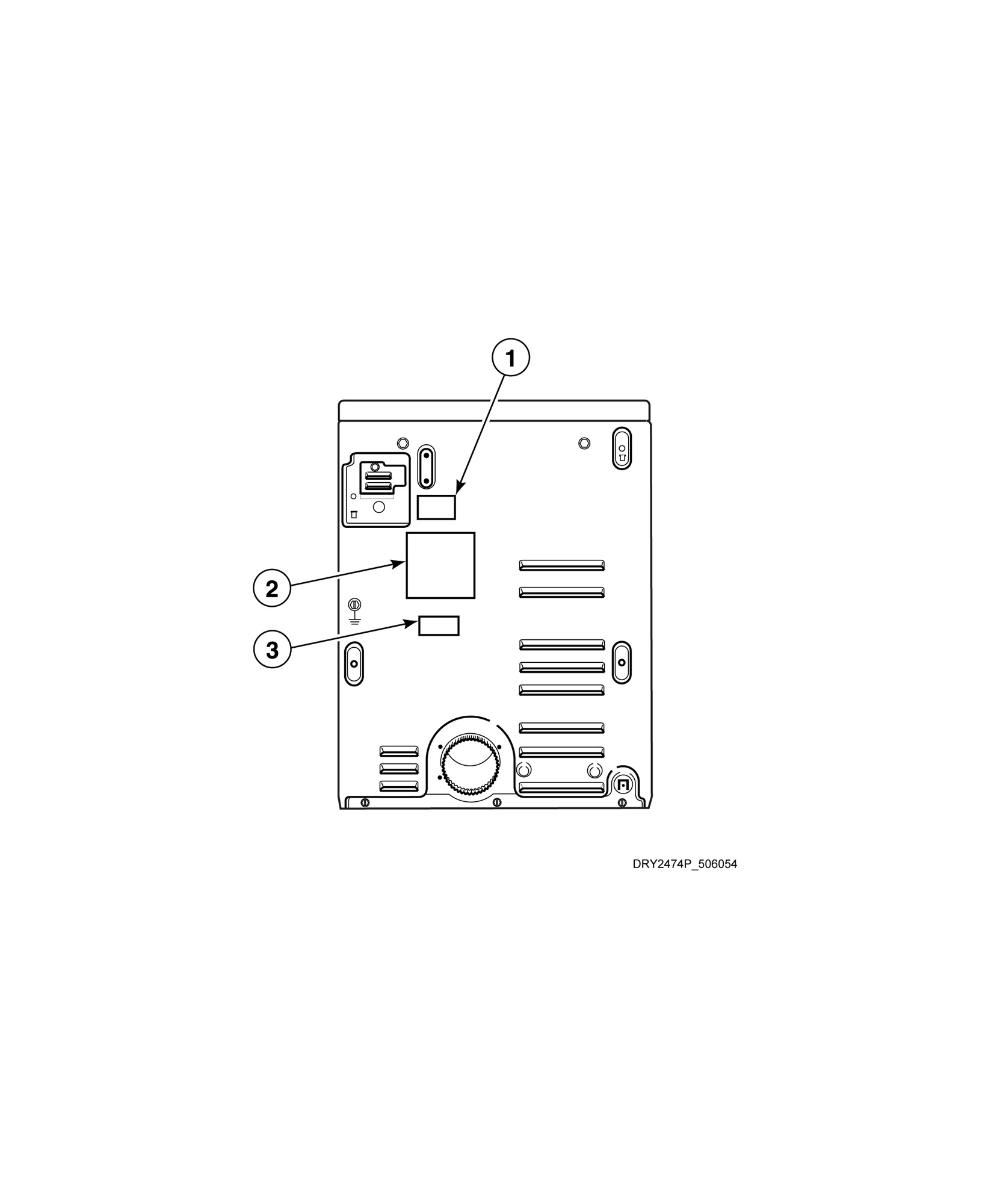

Cabinet Labels
Cabinet Top and Control Hood Rear Panel - Rear Control Models

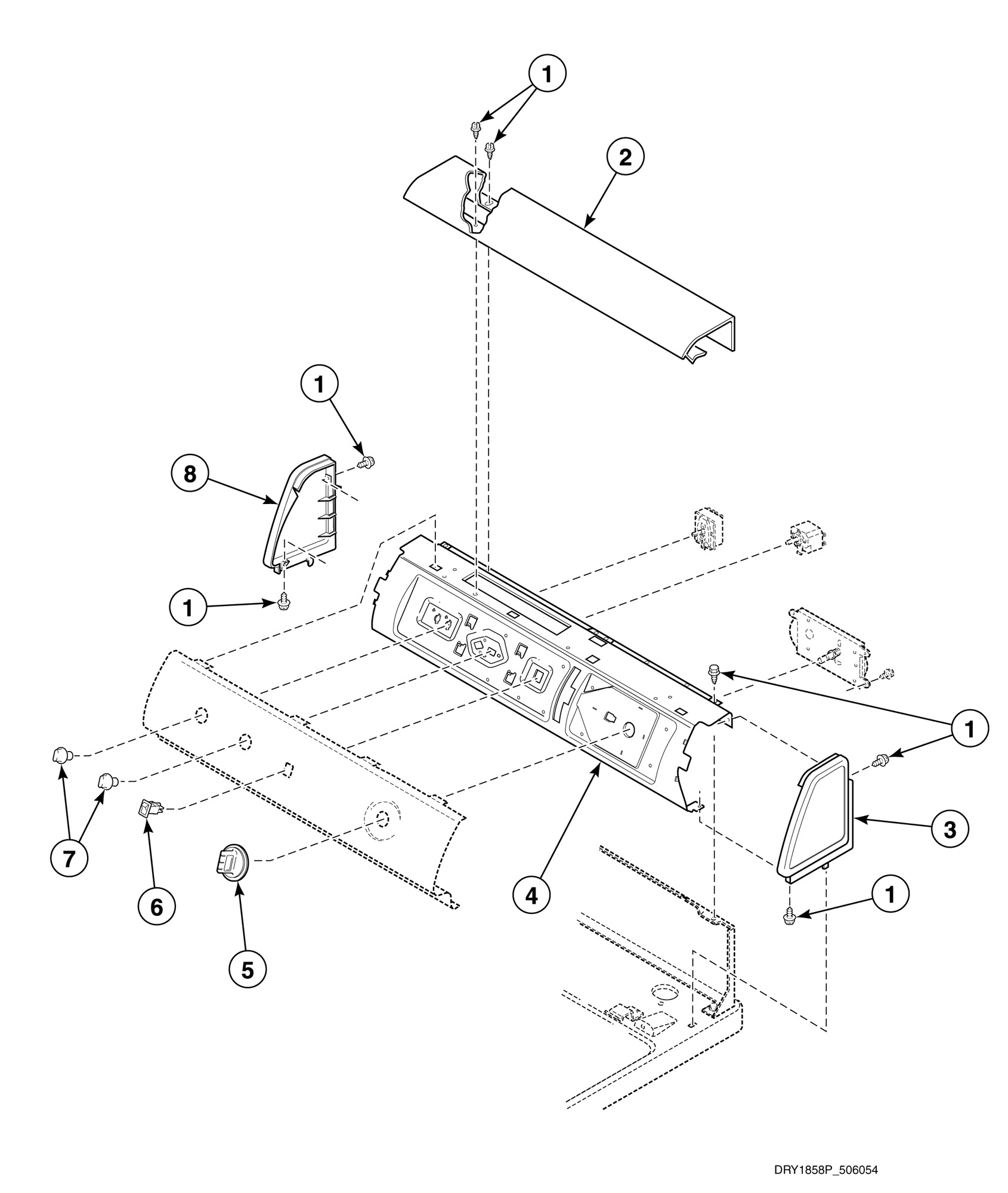

Control Panel and Knobs - Rear Control Models

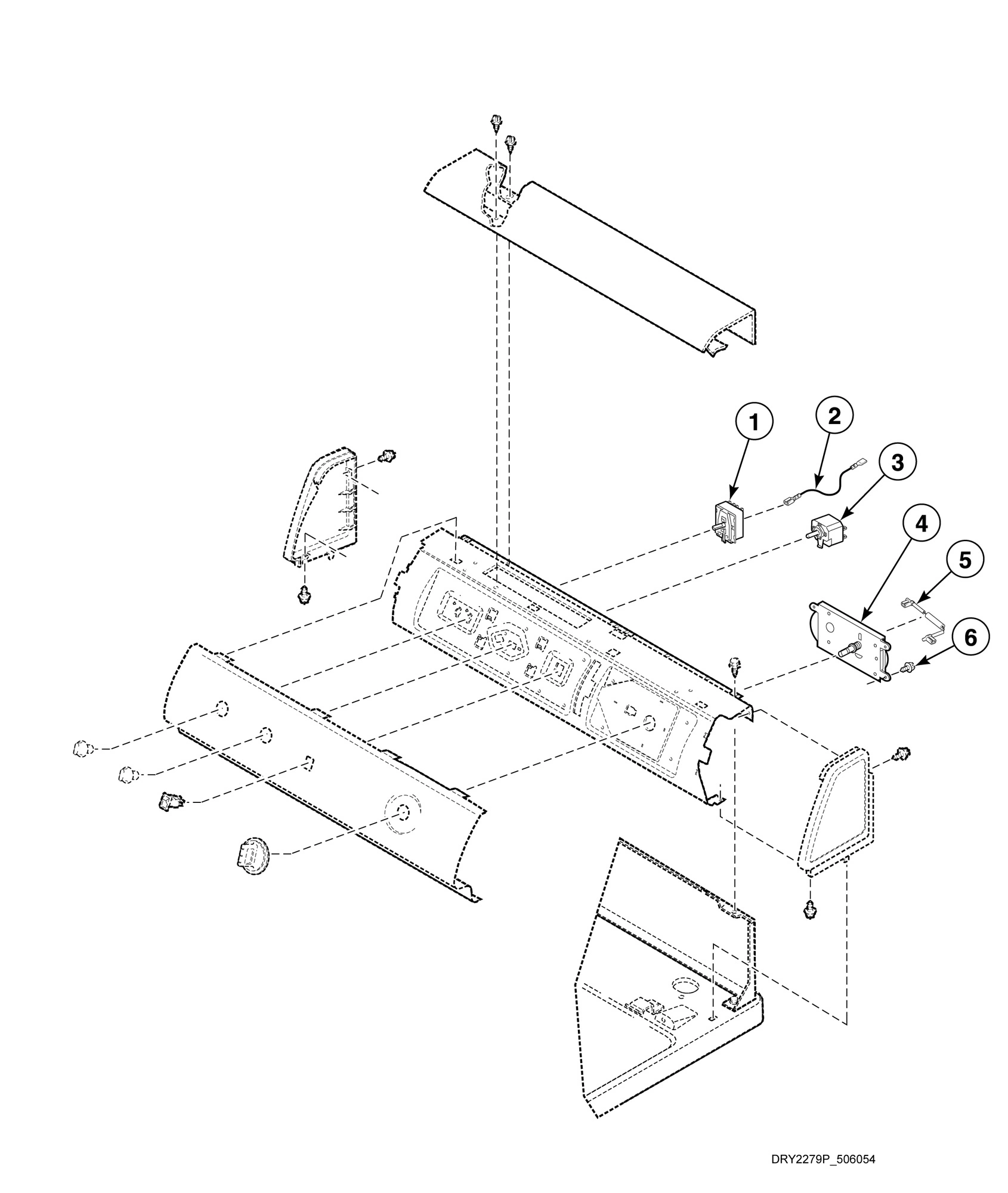

Controls - Rear Control Models

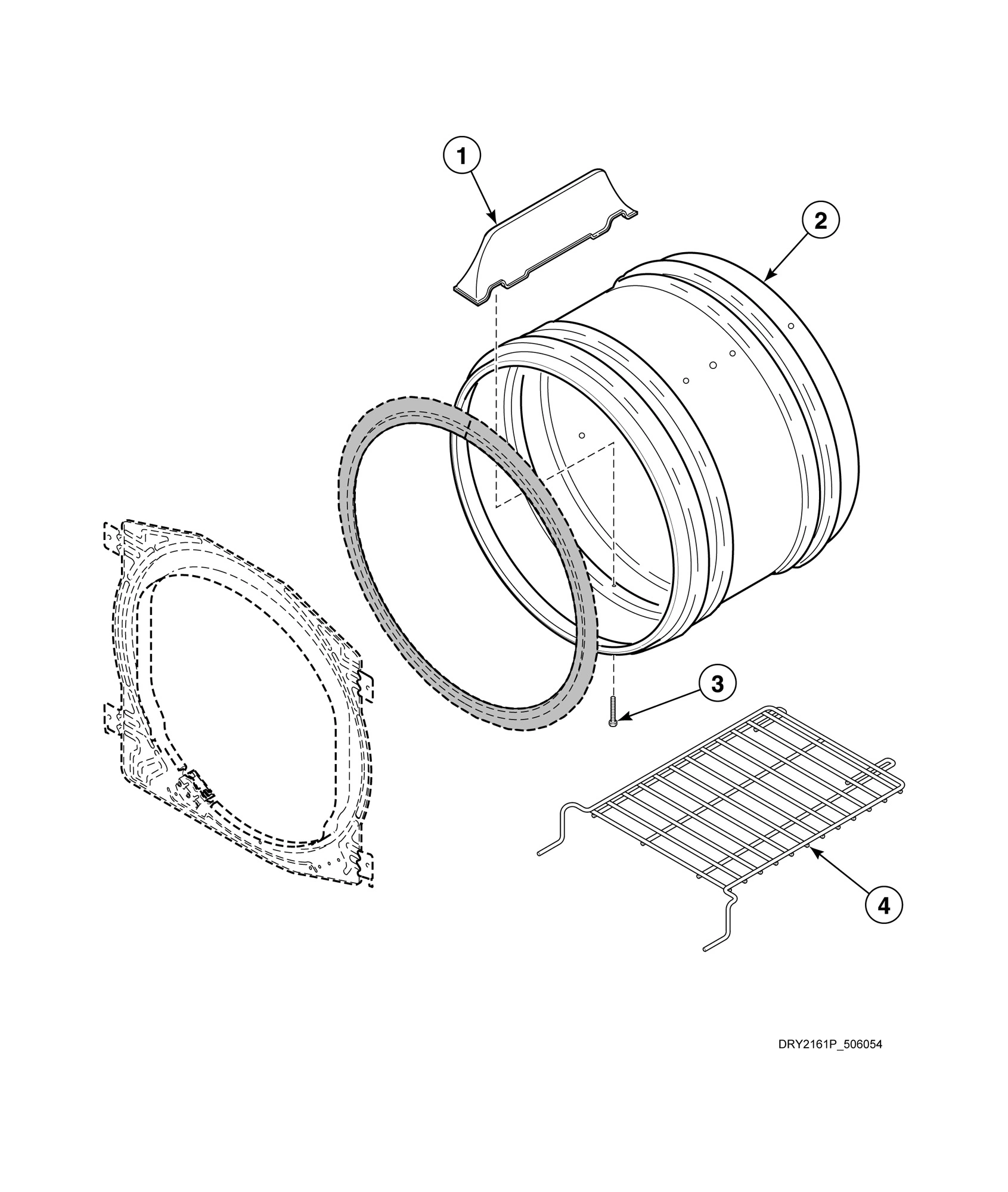

Cylinder, Baffles and Drying Rack

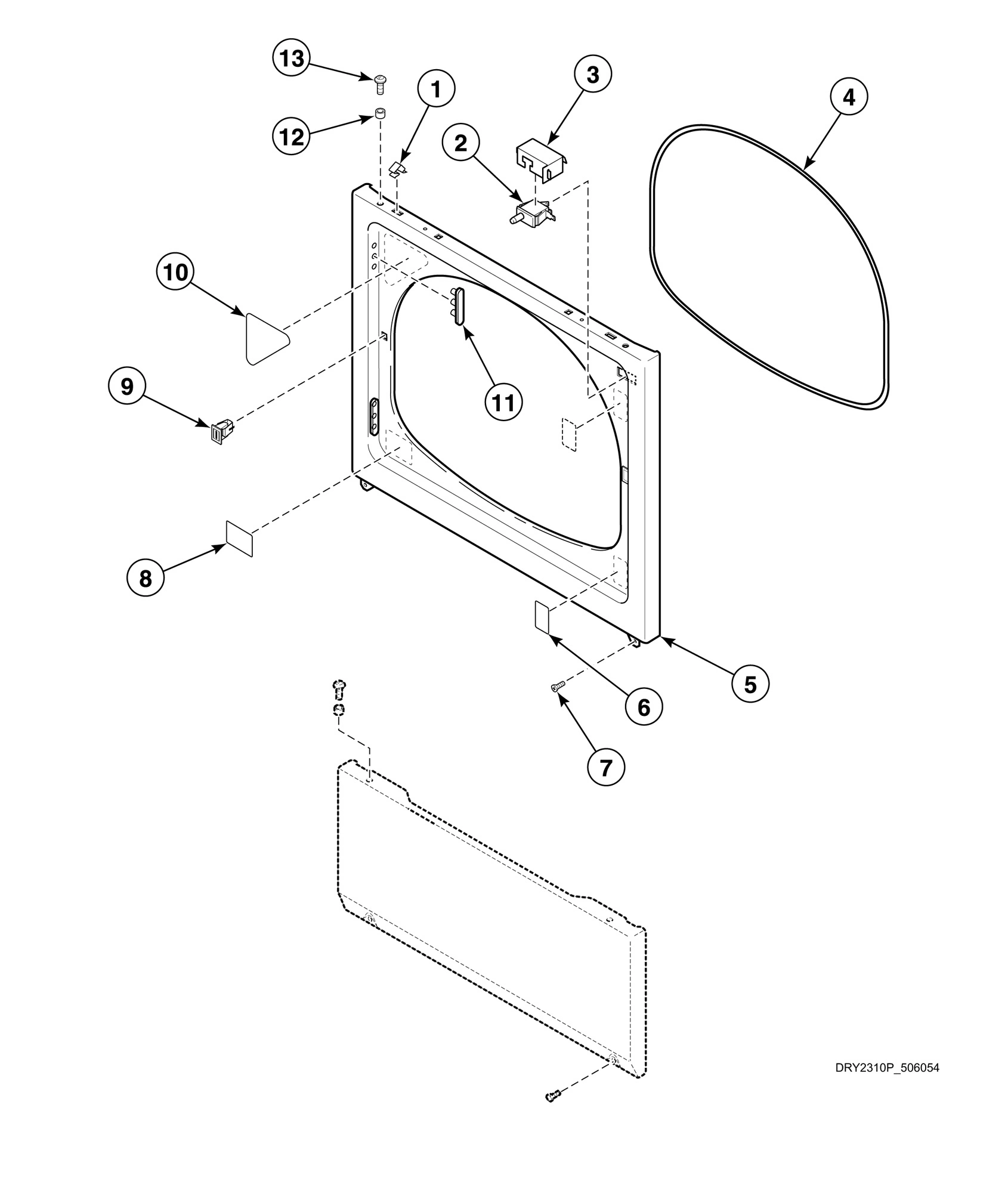

Front Panel and Seal

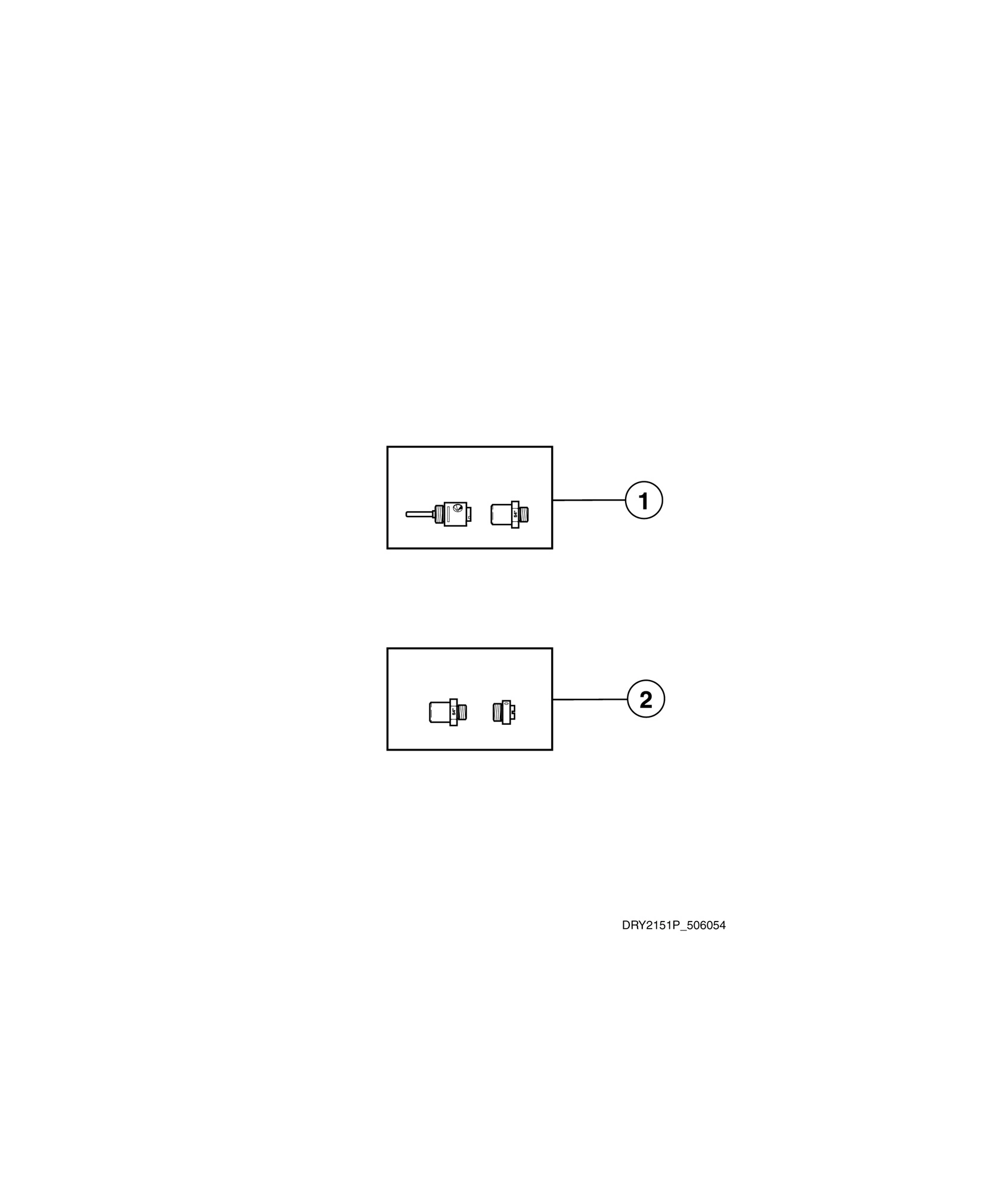

Gas Conversion Kits

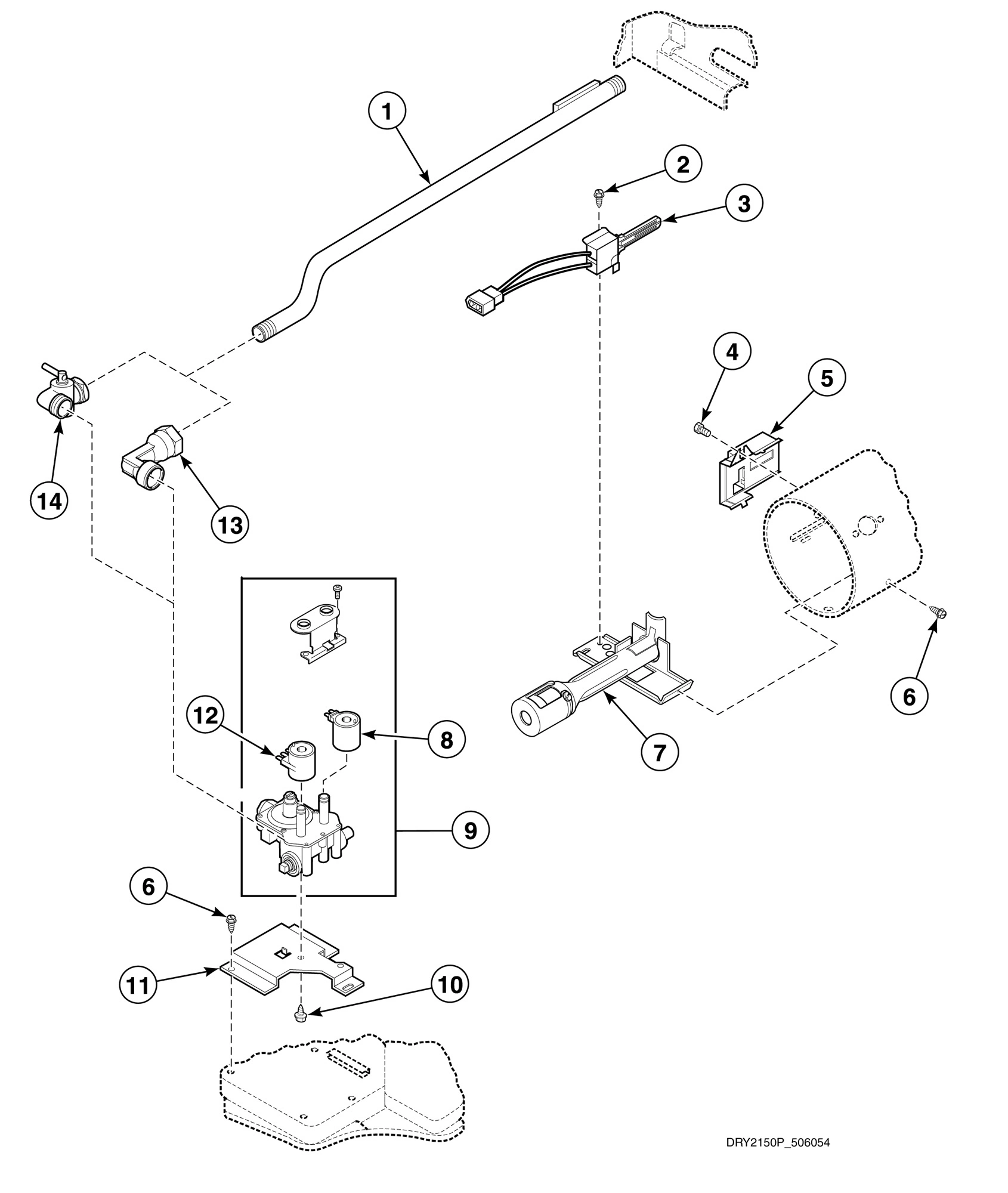

Gas Valve and Igniter

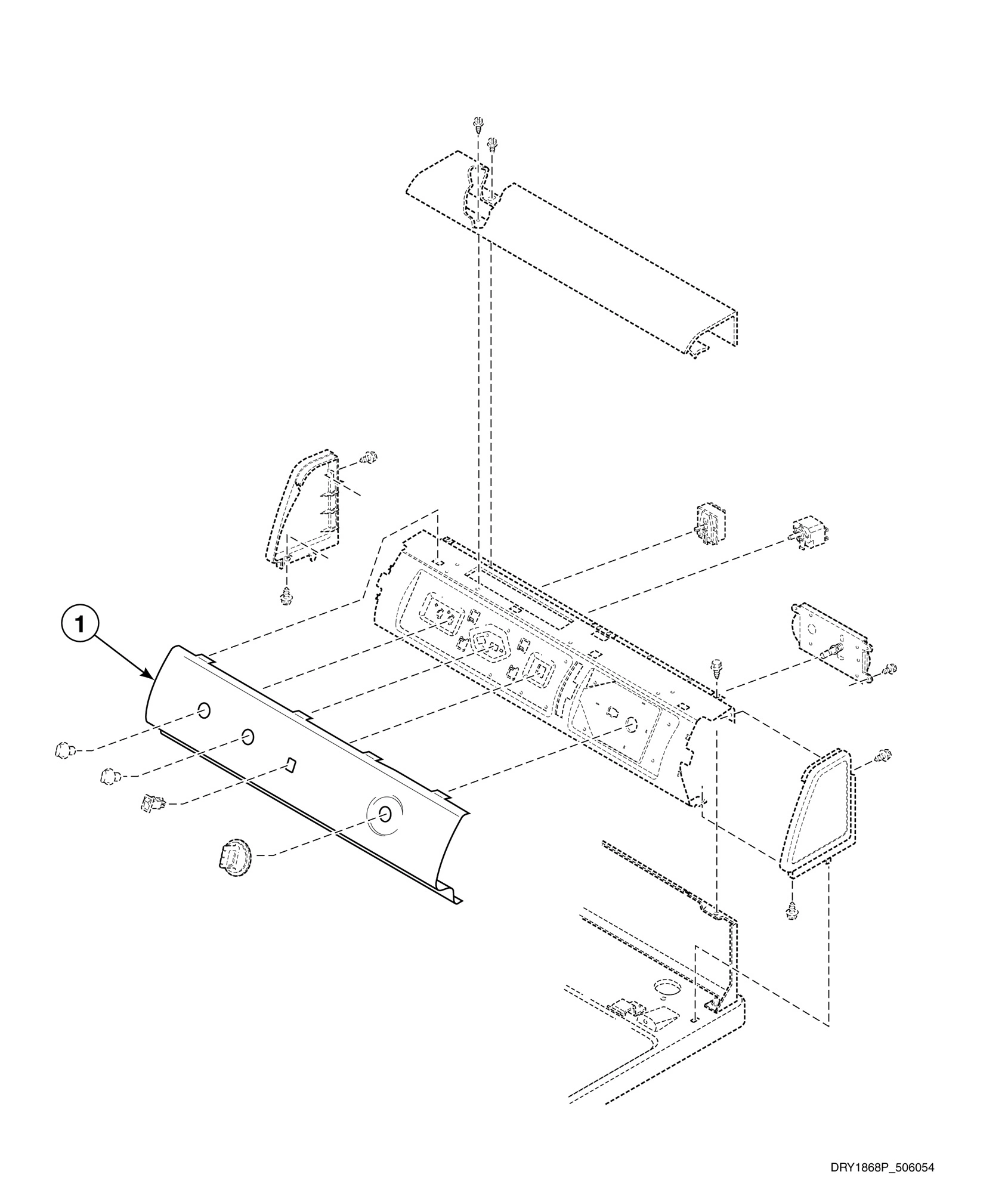

Graphic Panel - Rear Control Models

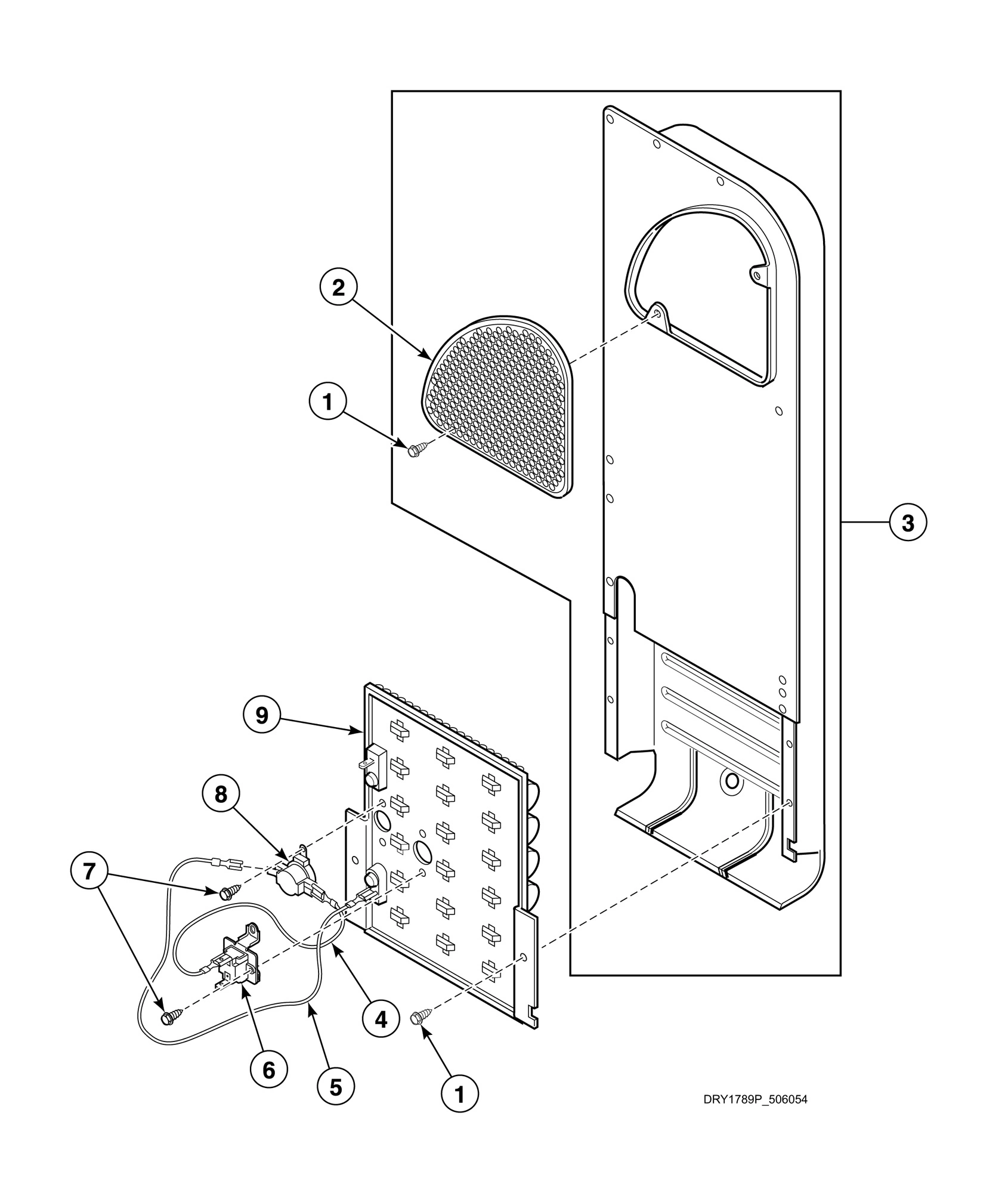

Heater Duct and Element Assembly - 1 Phase Models

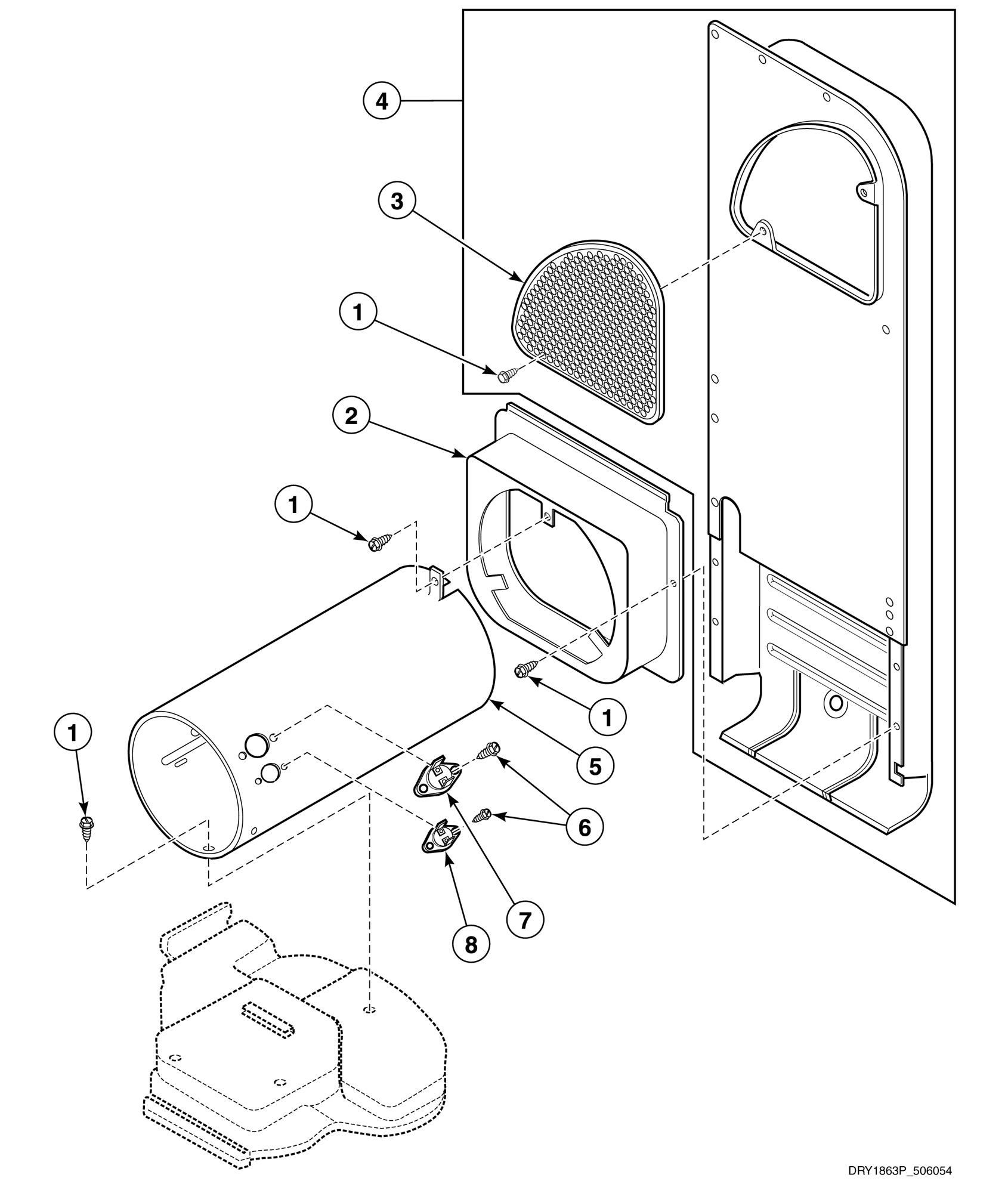

Heater Duct Assembly

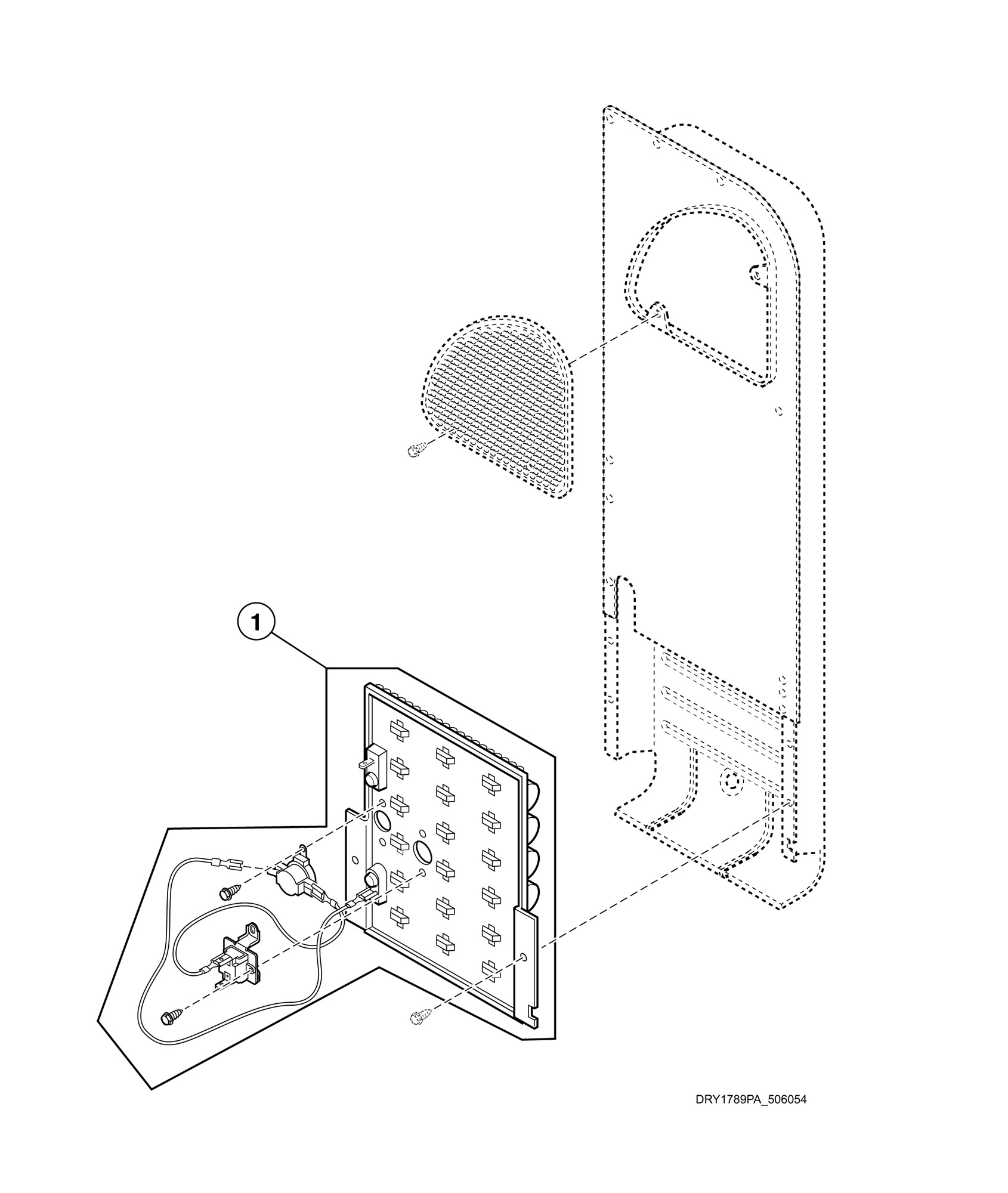

Heater Kit Assembly - 1 Phase Models
Loading Door (Drawing 2 of 2)

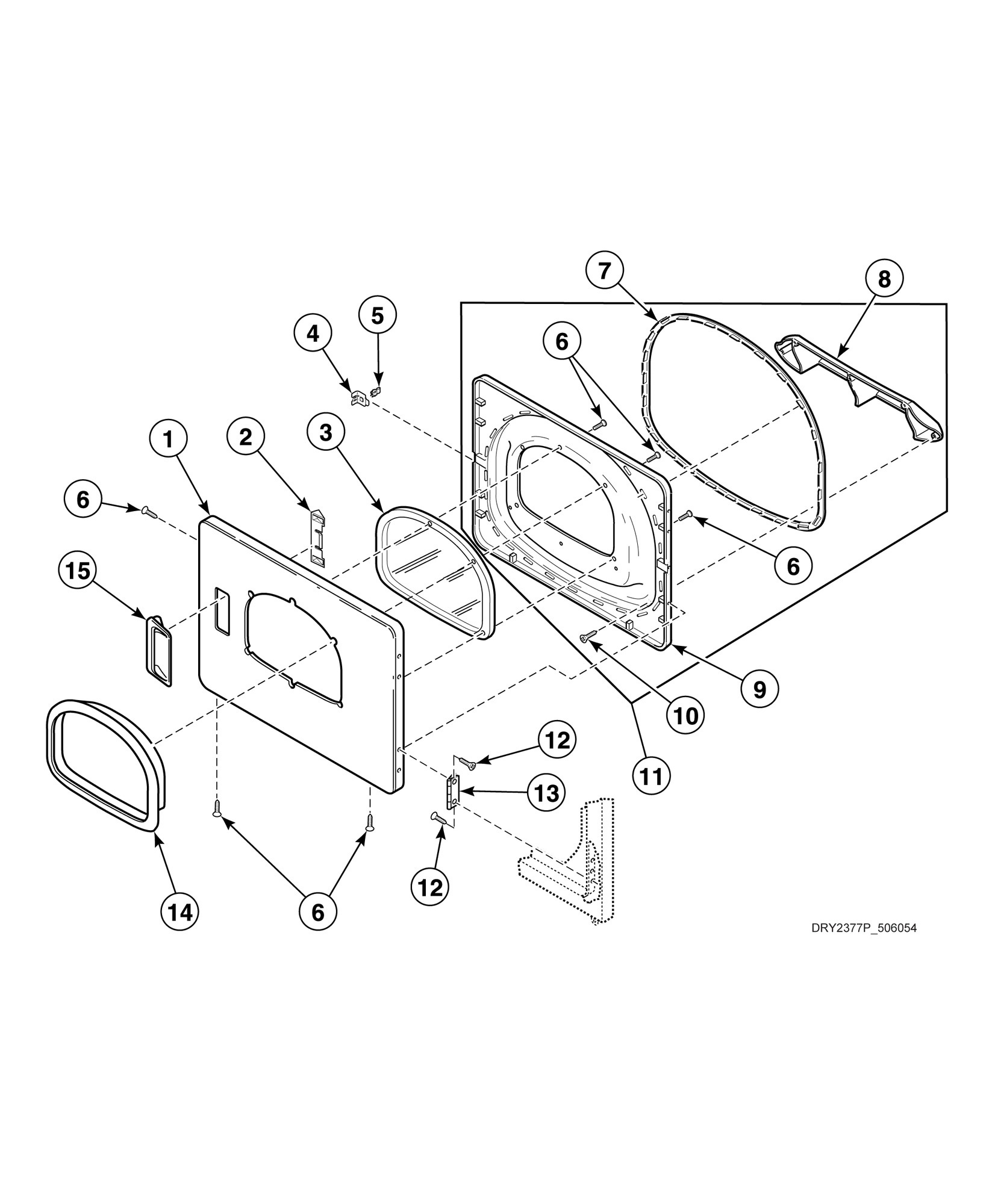

Loading Door with Window

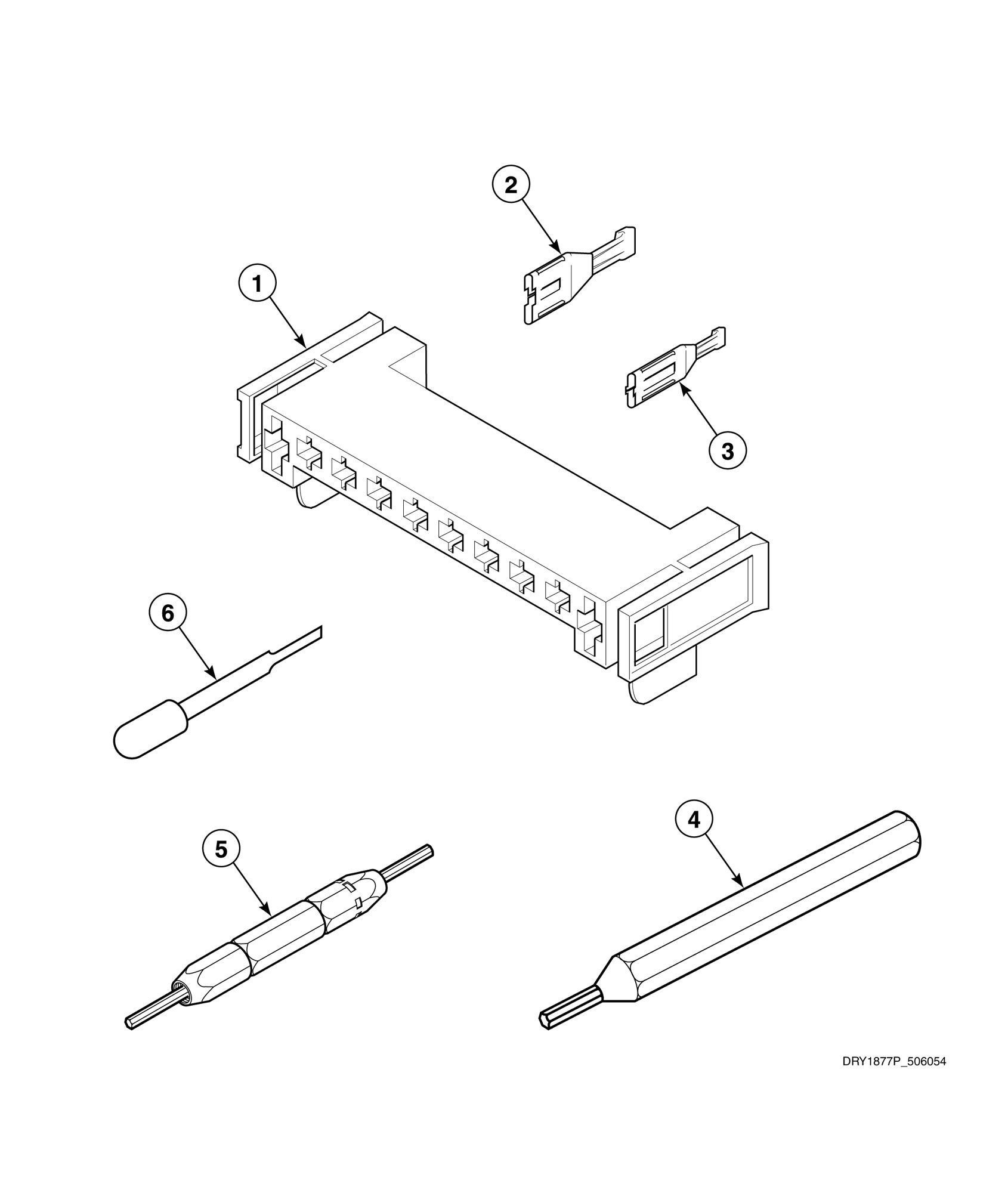

Motor Connection Block, Terminal Extractor Tools

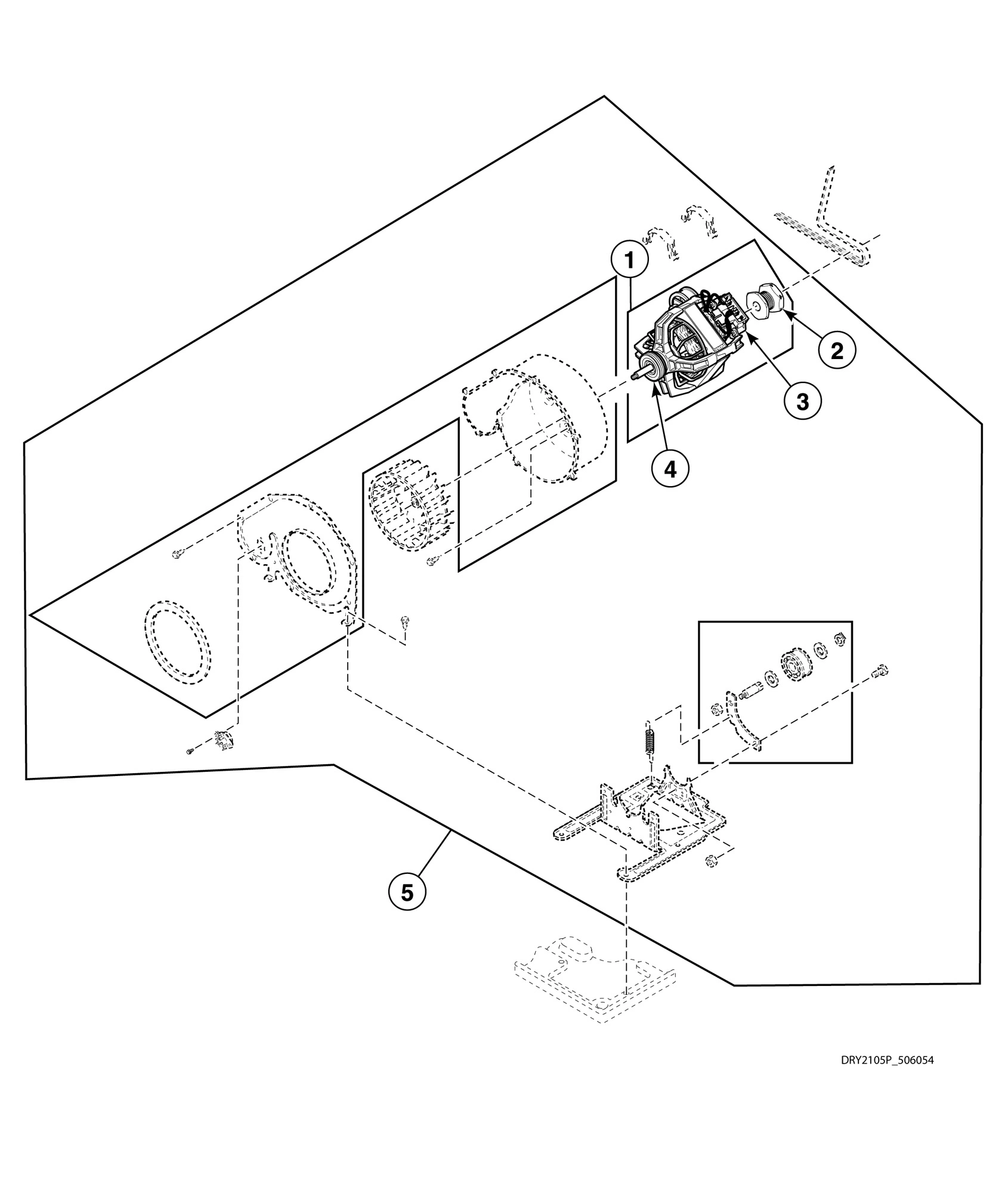

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

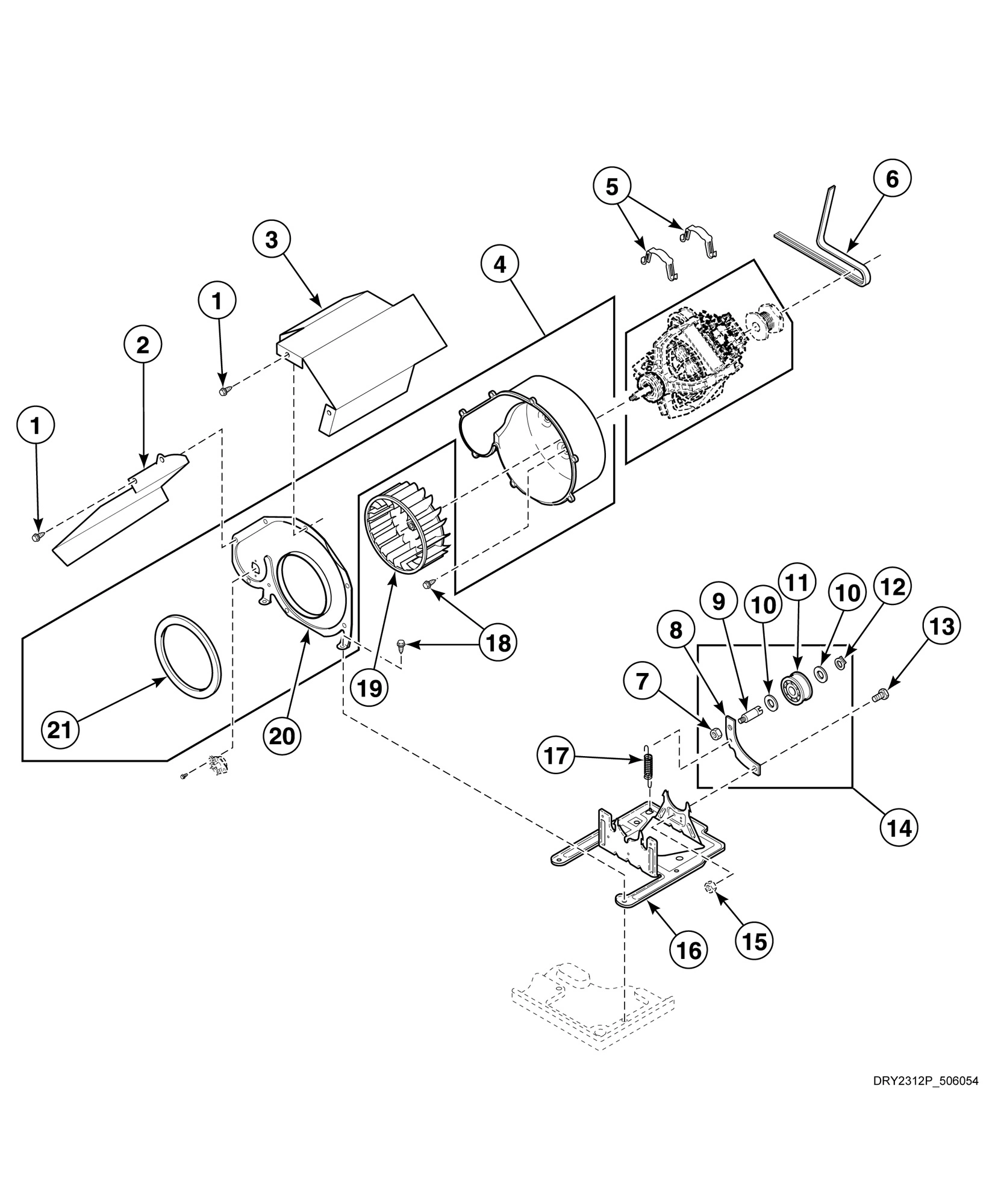

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

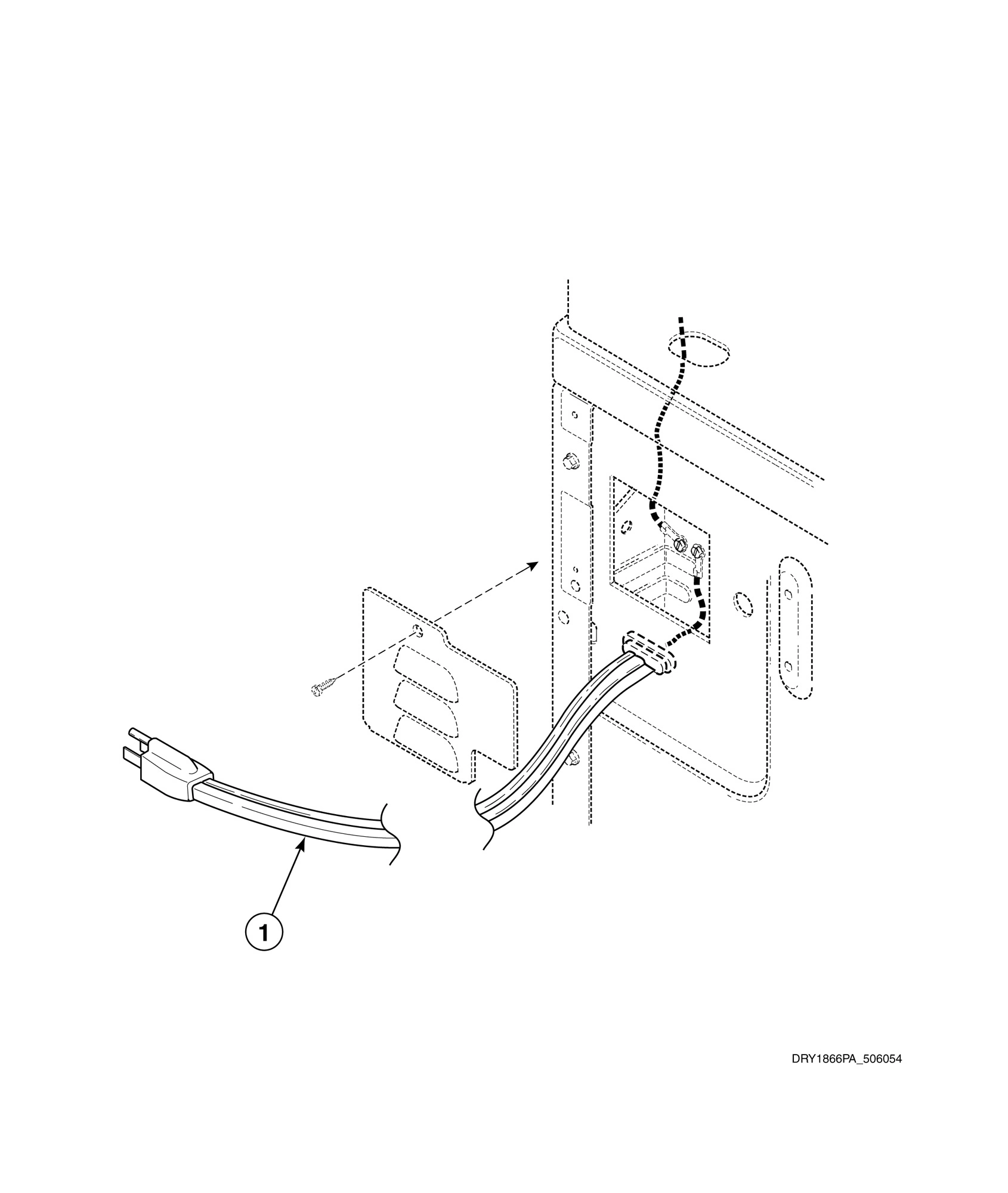

Power Cord

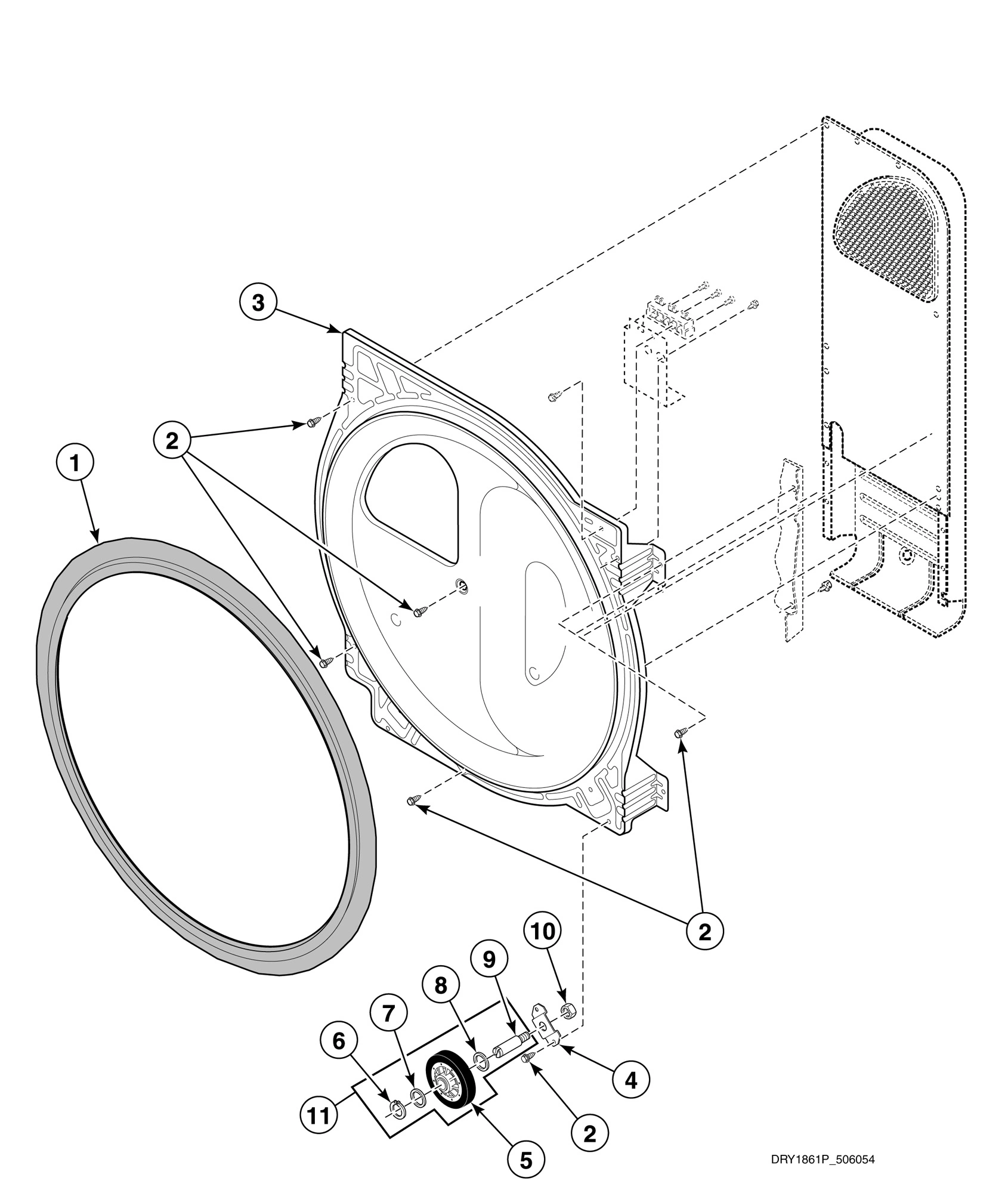

Rear Bulkhead, Felt Seal and Cylinder Roller - 1 Phase Models

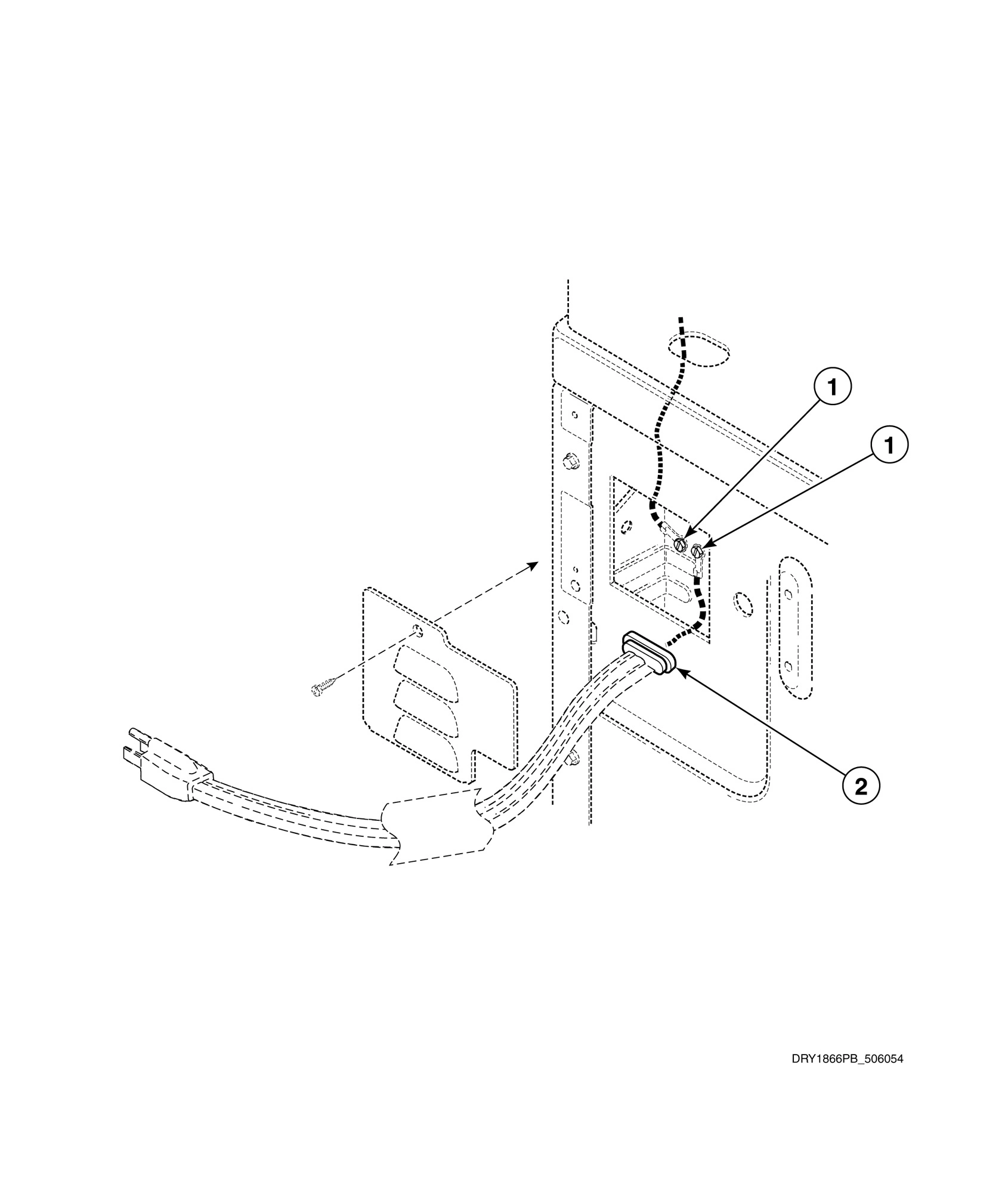

Strain Relief

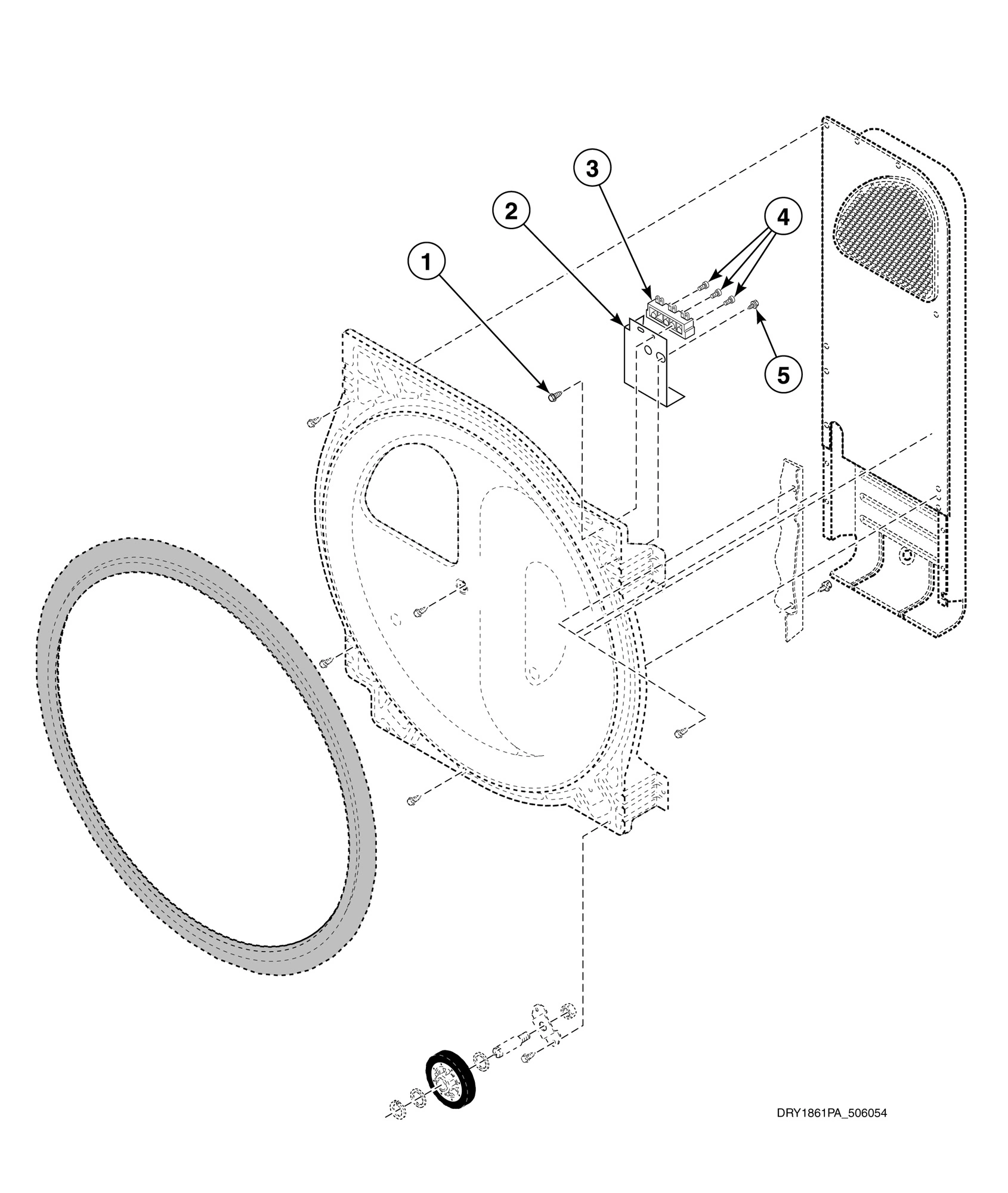

Terminal Block - 1 Phase Models

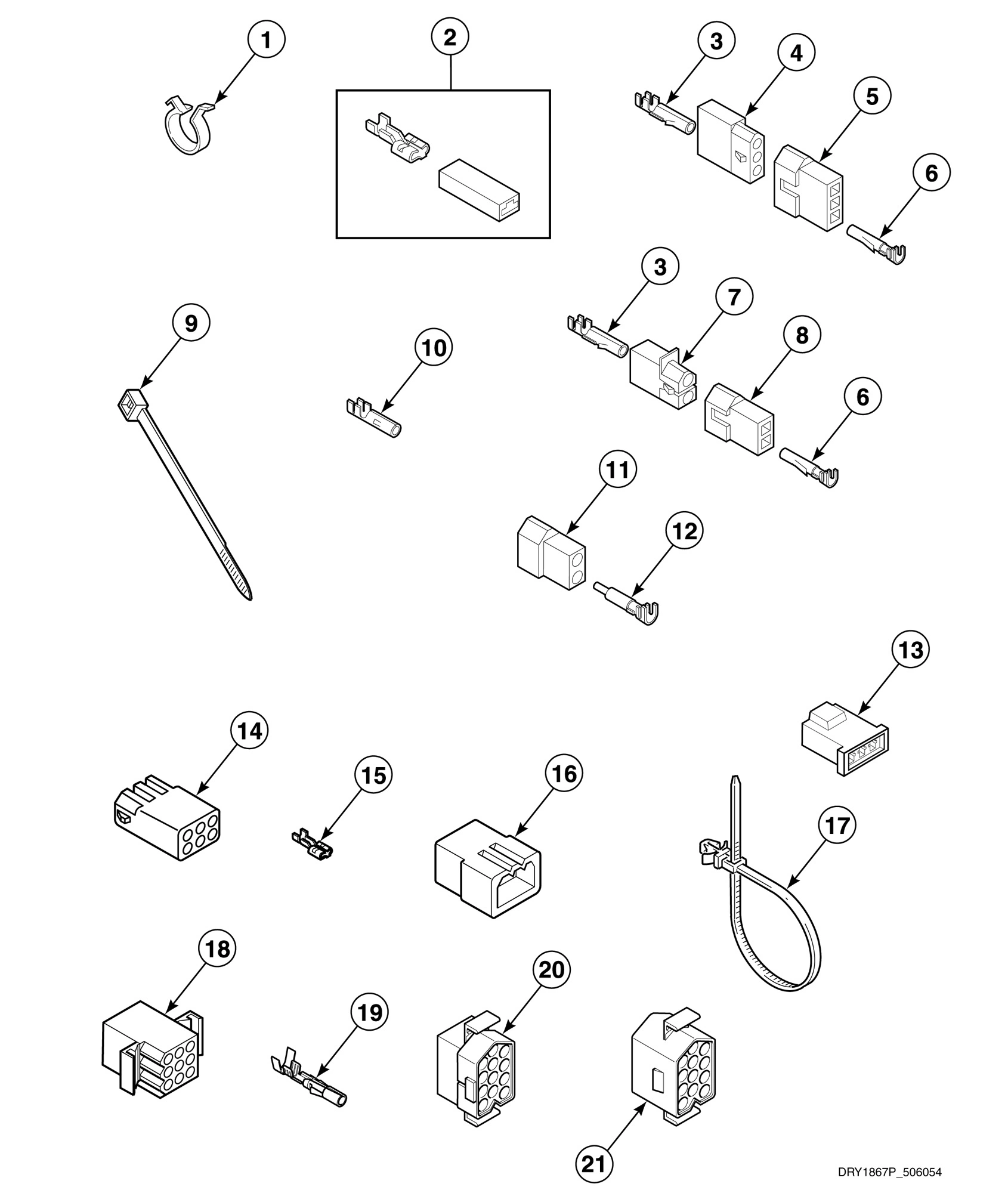

Terminal Block and Terminals

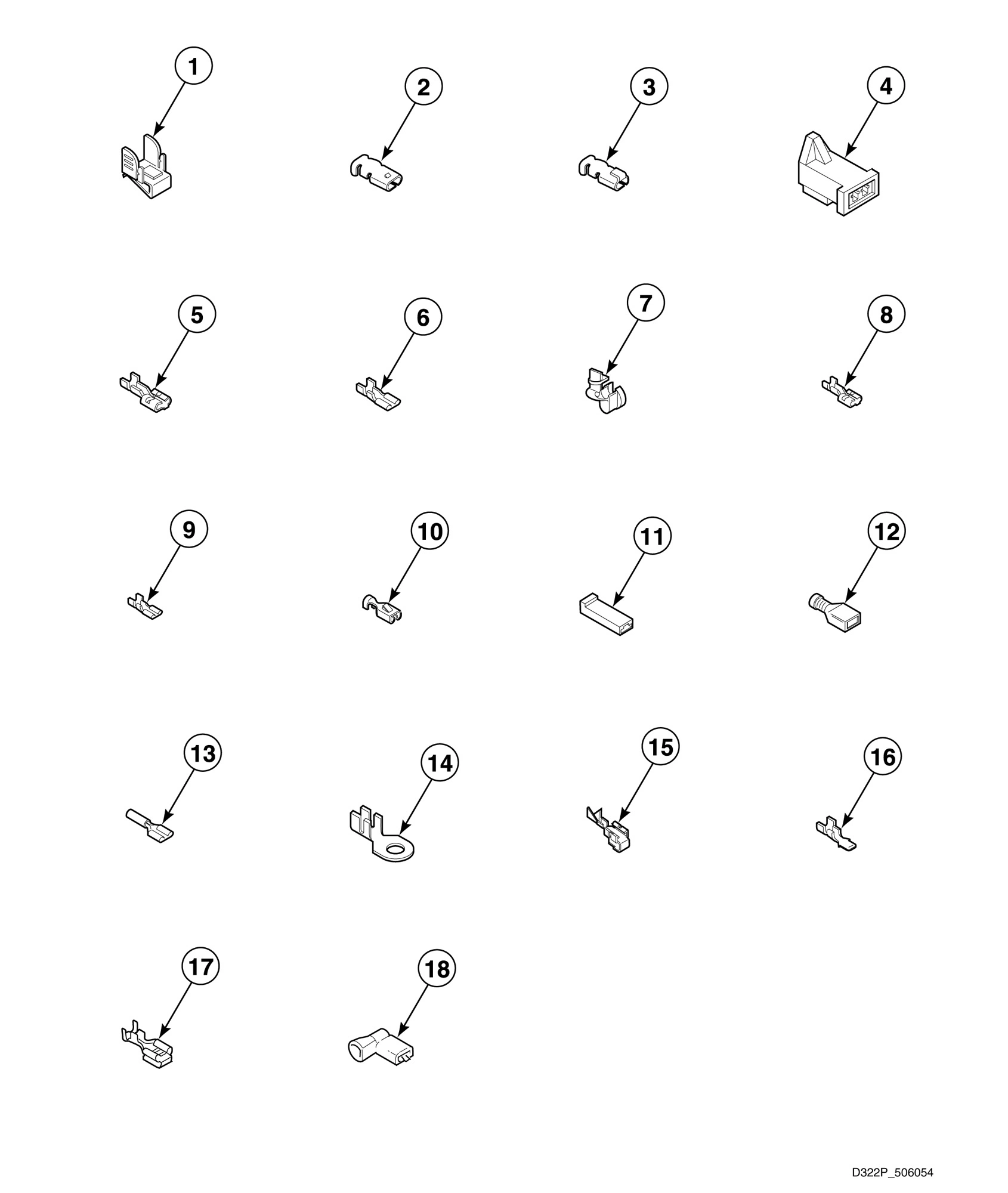

Terminals

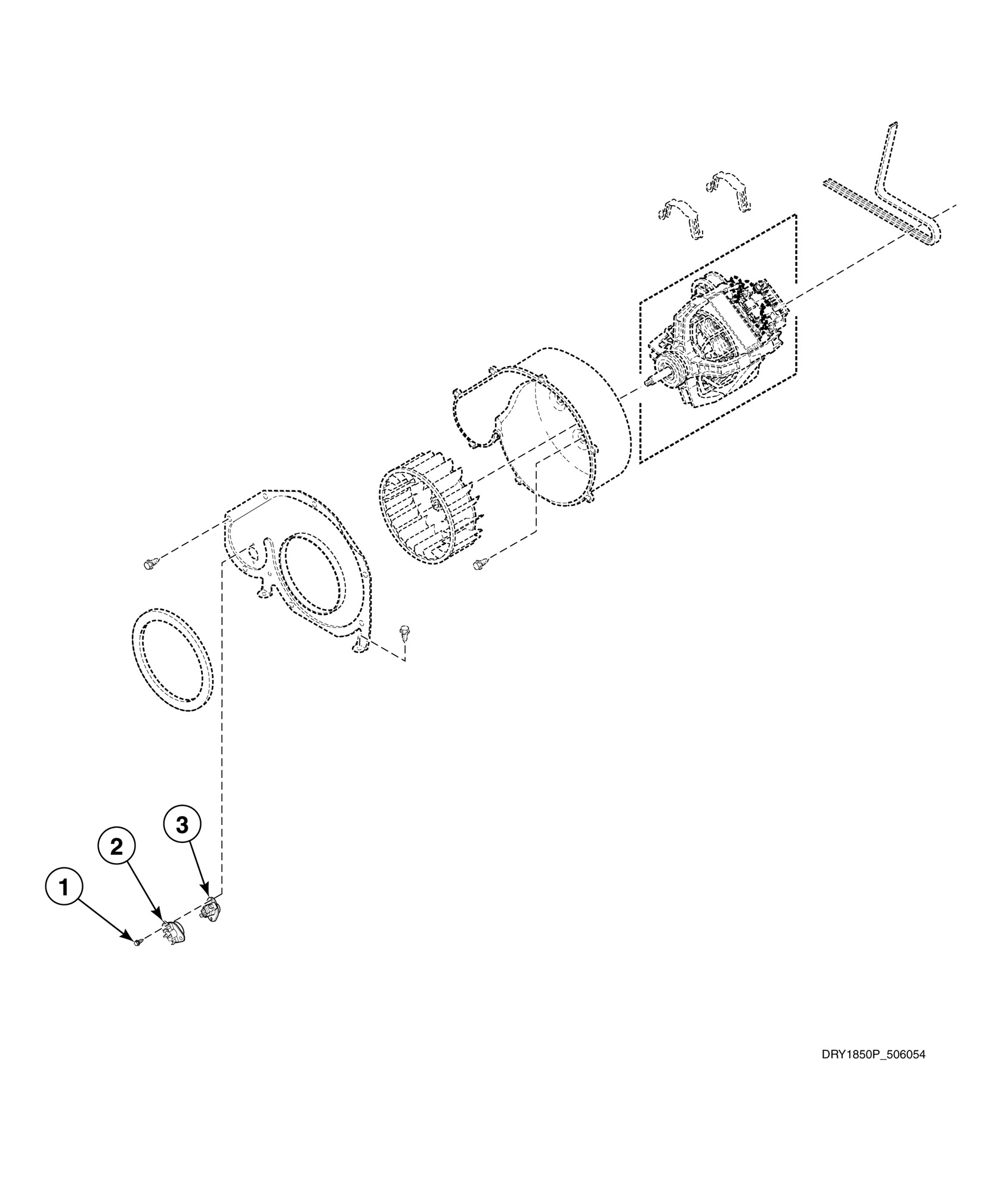

Thermostat
Wire Harnesses and Wires - Rear Control Models Starting Serial No. 1207
Common parts from model GE LDL3TRWW301NW22 General Electric Model LDL3TRWW301NW22
1
Fabric Selector Switch GEN D513505 Contact Us For Availability
1
Cylinder Baffle GEN D510102W Contact Us For Availability
1
Speed Clip GEN 28835 Contact Us For Availability
1
L.P. Conversion Kit (Comment: Used to convert GEN 401P3 Contact Us For Availability
1
Lead-In Pipe Assembly GEN D510204 Contact Us For Availability
1
Graphic Panel GEN D504070W Contact Us For Availability
1
Dryer Door GEN D510082 Contact Us For Availability
1
Dryer Door (Comment: Stainless steel) GEN D513225 Contact Us For Availability
1
10 Position Housing GEN D500338 Contact Us For Availability
1
Motor and Pulley Assembly (Comment: 240 Volt/ GEN D505843P Contact Us For Availability
1
Screw GEN 31260 Contact Us For Availability
1
Lead-In Cord GEN 203344 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: For cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Screw GEN 20530 Contact Us For Availability
1
Screw GEN D501285 Contact Us For Availability
1
Wire Clip (Comment: 1 inch) GEN 687500 Contact Us For Availability
1
Wire Clip (Comment: 11/16 inch) GEN D504034 Contact Us For Availability
1
Grounding Clip GEN 00161 Contact Us For Availability
1
Screw GEN D502535 Contact Us For Availability
1
Wire Harness Assembly GEN D513651 Contact Us For Availability
2
Screw (Comment: Use with stainless steel pane GEN D512921 Contact Us For Availability
2
Top Cover (Comment: Gray) GEN D505808G Contact Us For Availability
2
Top Cover (Comment: Bisque) GEN D505808Q Contact Us For Availability
2
Top Cover (Comment: White) GEN D505808W Contact Us For Availability
2
Cylinder Assembly (Comment: White, Includes ( GEN D510159WP Contact Us For Availability
2
Switch GEN D512973 Contact Us For Availability
2
N.G. Conversion Kit (Comment: Used to convert GEN 402P3 Contact Us For Availability
2
Heat Duct Shroud GEN D510101 Contact Us For Availability
2
Door Handle Wedge GEN D510129LG Contact Us For Availability
2
Door Handle Wedge GEN D510129 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) 1 GEN 00255 Contact Us For Availability
2
Female Terminal (Comment: 1/4 inch, For (1) o GEN 00256 Contact Us For Availability
2
Motor Pulley (Comment: 60 Hertz, Use with D51 GEN D500011 Contact Us For Availability
2
Insulated Female Spade Terminal (Comment: (1) GEN 00360 Contact Us For Availability
2
Female Spade Terminal GEN 00189 Contact Us For Availability
2
Thermostat (Comment: White) GEN D511957 Contact Us For Availability
3
Bumper Pad GEN 56128 Contact Us For Availability
3
NOT ON YOUR MODEL GEN - Contact Us For Availability
3
Warning Label (Comment: Risk of fire) GEN 44321601 Contact Us For Availability
3
Exhaust Warning Label GEN D502507 Contact Us For Availability
3
End Panel (Comment: Almond, Right) GEN D504008L Contact Us For Availability
3
End Panel (Comment: Bisque, Right) GEN D504008QP Contact Us For Availability
3
End Panel (Comment: White, Right) GEN D504008WP Contact Us For Availability
3
Screw GEN 62588 Contact Us For Availability
3
Igniter and Bracket Assembly GEN D510184P Contact Us For Availability
3
Outlet Cover GEN D500820 Contact Us For Availability
3
Dryer Door Window GEN D503982P Contact Us For Availability
3
Female Terminal (Comment: For 1 or 2 wire app GEN 00188 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Female Piggyback Terminal (Comment: Receptacl GEN 00361 Contact Us For Availability
4
Control Support Panel GEN D503901 Contact Us For Availability
4
Timer GEN D505795P Contact Us For Availability
4
Drying Rack GEN D512082P Contact Us For Availability
4
Front Panel Seal GEN D511056 Contact Us For Availability
4
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Door Strike Mount GEN D510127 Contact Us For Availability
4
Liner, Seal and Grill Assembly GEN D510163WP Contact Us For Availability
4
Liner, Seal and Grill Assembly GEN D510289 Contact Us For Availability
4
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
4
Blower Housing (Comment: Includes items 1 and GEN D511969LG Contact Us For Availability
4
Blower Housing (Comment: Includes items 1 and GEN D511969WP Contact Us For Availability
4
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
4
Screw GEN 61199 Contact Us For Availability
4
3 Circuit Receptacle GEN 23039 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Screw GEN D503688 Contact Us For Availability
5
Hood Back Panel GEN D510099 Contact Us For Availability
5
Timer Knob Assembly (Comment: Bisque) GEN D512117Q Contact Us For Availability
5
Timer Knob Assembly (Comment: White) GEN D512117W Contact Us For Availability
5
Resistor Assembly GEN D511277 Contact Us For Availability
5
Front Panel (Comment: Gray) GEN D510066GP Contact Us For Availability
5
Front Panel (Comment: Almond) GEN D510066LP Contact Us For Availability
5
Front Panel (Comment: Bisque) GEN D510066QP Contact Us For Availability
5
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
5
Sensor GEN D510213 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Combustion Duct GEN D510132 Contact Us For Availability
5
Door Strike GEN D510181 Contact Us For Availability
5
Motor Mount Clamp GEN D510180 Contact Us For Availability
5
Cylinder Roller GEN D510708P Contact Us For Availability
5
Plug GEN 23040 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (2) GEN 00121 Contact Us For Availability
5
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00223 Contact Us For Availability
5
Spade Terminal (Comment: 1/4 inch, (1) 22 gau GEN 00245 Contact Us For Availability
6
Top Hinge GEN D510136 Contact Us For Availability
6
Screw GEN D501086 Contact Us For Availability
6
Screw GEN 51782 Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Screw GEN D500226 Contact Us For Availability
6
Terminal Extractor Tool (Comment: For use on GEN 283P4 Contact Us For Availability
6
Cylinder Belt GEN D511255P Contact Us For Availability
6
Retaining Ring GEN 23748 Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, (1 GEN 00124 Contact Us For Availability
6
Female Spade Terminal (Comment: 3/16 inch, Th GEN 00156 Contact Us For Availability
7
Knob Assembly (Comment: Almond) GEN 36701L Contact Us For Availability
7
Knob Assembly (Comment: Bisque) GEN 36701Q Contact Us For Availability
7
Knob Assembly (Comment: White) GEN 36701W Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Burner Assembly GEN D510149P Contact Us For Availability
7
Limit Thermostat (Comment: Auto reset, Black) GEN D510702 Contact Us For Availability
7
Liner Door Seal GEN D510147P Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Almond, Inc GEN D510103LP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: Bisque, Inc GEN D510103QP Contact Us For Availability
7
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
7
Door Liner (Comment: White) GEN D510097W Contact Us For Availability
7
Washer GEN 52549 Contact Us For Availability
7
Strain Relief GEN 38384 Contact Us For Availability
7
2 Circuit Receptacle GEN 56451 Contact Us For Availability
8
End Panel (Comment: Bisque, Left) GEN D504009QP Contact Us For Availability
8
End Panel (Comment: White, Left) GEN D504009WP Contact Us For Availability
8
Lint Filter Label GEN D502781 Contact Us For Availability
8
Secondary Coil (Comment: 50 Hertz) GEN 59063B Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Thermostat (Comment: Manual reset) GEN D510703 Contact Us For Availability
8
Dryer Door (Comment: Gray) GEN D510013GP Contact Us For Availability
8
Dryer Door (Comment: Almond) GEN D510013LP Contact Us For Availability
8
Dryer Door (Comment: Bisque) GEN D510013QP Contact Us For Availability
8
Dryer Door (Comment: White) GEN D510013WP Contact Us For Availability
8
Door Liner Grill GEN D503870LG Contact Us For Availability
8
Door Liner Grill GEN D503870W Contact Us For Availability
8
Idler Lever GEN D510133 Contact Us For Availability
8
Washer GEN D504082 Contact Us For Availability
8
2 Circuit Plug GEN 56448 Contact Us For Availability
9
Warning Label (Comment: Disconnect power) GEN 803260 Contact Us For Availability
9
Relay GEN D502501 Contact Us For Availability
9
Door Catch Assembly GEN D510177 Contact Us For Availability
9
Gas Valve Assembly (Comment: 20,000 Btu, Incl GEN D513630 Contact Us For Availability
9
Heater Assembly (Comment: 240 Volt/60 Hertz, GEN D510324P Contact Us For Availability
9
Door Handle Wedge GEN D510129W Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098LG Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098W Contact Us For Availability
9
Shaft GEN 56461P Contact Us For Availability
9
Harness Strap GEN 55881 Contact Us For Availability
9
Terminal GEN 00347 Contact Us For Availability
10
Bracket GEN D510146 Contact Us For Availability
10
Caution Label (Comment: French) GEN D500253 Contact Us For Availability
10
Screw GEN 56124 Contact Us For Availability
10
Screw GEN D505870 Contact Us For Availability
10
Nut GEN 56156 Contact Us For Availability
10
Female Pin Terminal (Comment: 1/8 inch) GEN 00130 Contact Us For Availability
10
Female Spade Terminal (Comment: 1/4 inch, (1) GEN 00115 Contact Us For Availability
11
Top Panel (Comment: Gray) GEN D510029G Contact Us For Availability
11
Top Panel Kit (Comment: Almond, Includes 2 of GEN D510029LP Contact Us For Availability
11
Top Panel Kit (Comment: White, Includes 2 of GEN D510029WP Contact Us For Availability
11
Hinge Hole Plug GEN D510186 Contact Us For Availability
11
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
11
Liner and Seal Assembly (Comment: Gray, Inclu GEN D513109P Contact Us For Availability
11
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
11
Roller Kit (Comment: Includes items 5-9, (Qua GEN RB170002 Contact Us For Availability
11
2 Circuit Plug GEN 56266 Contact Us For Availability
11
Receptacle Housing GEN 90789 Contact Us For Availability
12
Hold-Down Clip GEN 35358 Contact Us For Availability
12
Panel Locator GEN 56079 Contact Us For Availability
12
Booster and Holding Coil (Comment: 50 Hertz) GEN 59063A Contact Us For Availability
12
Screw GEN D514461 Contact Us For Availability
12
Male Pin Terminal (Comment: 1/8 inch) GEN 00127 Contact Us For Availability
12
Insulated Female Terminal (Comment: 3/16 inch GEN 00165 Contact Us For Availability
12
Insulated Female Spade Terminal (Comment: 1/4 GEN 00359 Contact Us For Availability
13
Screw GEN 39733 Contact Us For Availability
13
Hinge GEN D511036 Contact Us For Availability
13
Screw GEN D500824 Contact Us For Availability
13
3 Circuit Connector GEN 58800 Contact Us For Availability
14
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
14
Window Trim GEN D503981W Contact Us For Availability
14
Window Trim (Comment: Gray) GEN D512633 Contact Us For Availability
14
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
14
6 Circuit Receptacle GEN 26708 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (1) 18 gauge GEN 00110 Contact Us For Availability
14
Ring Terminal (Comment: 10 stud, (2) 18 gauge GEN 00111 Contact Us For Availability
15
Door Pull and Wedge Kit (Comment: Black) GEN D511213P Contact Us For Availability
15
Door Pull GEN D512947 Contact Us For Availability
15
Nut GEN 52566 Contact Us For Availability
15
Female Spade Terminal (Comment: 1/4 inch) GEN 00222 Contact Us For Availability
15
GEN 00114 GEN 00114 Contact Us For Availability
16
Motor Mount GEN D510060 Contact Us For Availability
16
9 Circuit Plug GEN 23033 Contact Us For Availability
16
GEN 00139 GEN 00139 Contact Us For Availability
17
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
17
Idler Spring GEN D510185 Contact Us For Availability
17
Wire Tie GEN 38663 Contact Us For Availability
17
GEN 00344 GEN 00344 Contact Us For Availability
18
Leveling Leg GEN D510135 Contact Us For Availability
18
GEN N/A GEN N/A Contact Us For Availability
18
9 Circuit Receptacle GEN 26163 Contact Us For Availability
19
Rubber Foot GEN D501855 Contact Us For Availability
19
Blower Fan Assembly (Comment: Apply anti-seiz GEN D510139P Contact Us For Availability
19
Female Pin Terminal (Comment: 1/8 inch) GEN 00128 Contact Us For Availability
19
Male Pin Terminal (Comment: 1/8 inch) GEN 00129 Contact Us For Availability
20
Dryer Base GEN D513901 Contact Us For Availability
20
Blower Housing Cover GEN D511970 Contact Us For Availability
20
Plug GEN 54522 Contact Us For Availability
21
Blower Housing Seal GEN D510238P Contact Us For Availability
21
12 Circuit Receptacle GEN 56855 Contact Us For Availability
22
Transformer GEN D513763P Contact Us For Availability
23
Contactor Bracket GEN D511859 Contact Us For Availability
23
Bracket Assembly GEN D514351 Contact Us For Availability
24
Transformer Shield GEN D514334 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Almond) GEN 215P4P Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: Bisque) GEN 370P4P Contact Us For Availability
NA
Liner, Seal and Grill Assembly (Comment: Whit GEN D510289W Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
