Model Maytag LDG34CD WASHER – Common Parts & Diagrams
01 - FRONT VIEW-DOOR OPEN
02 - REAR VIEW

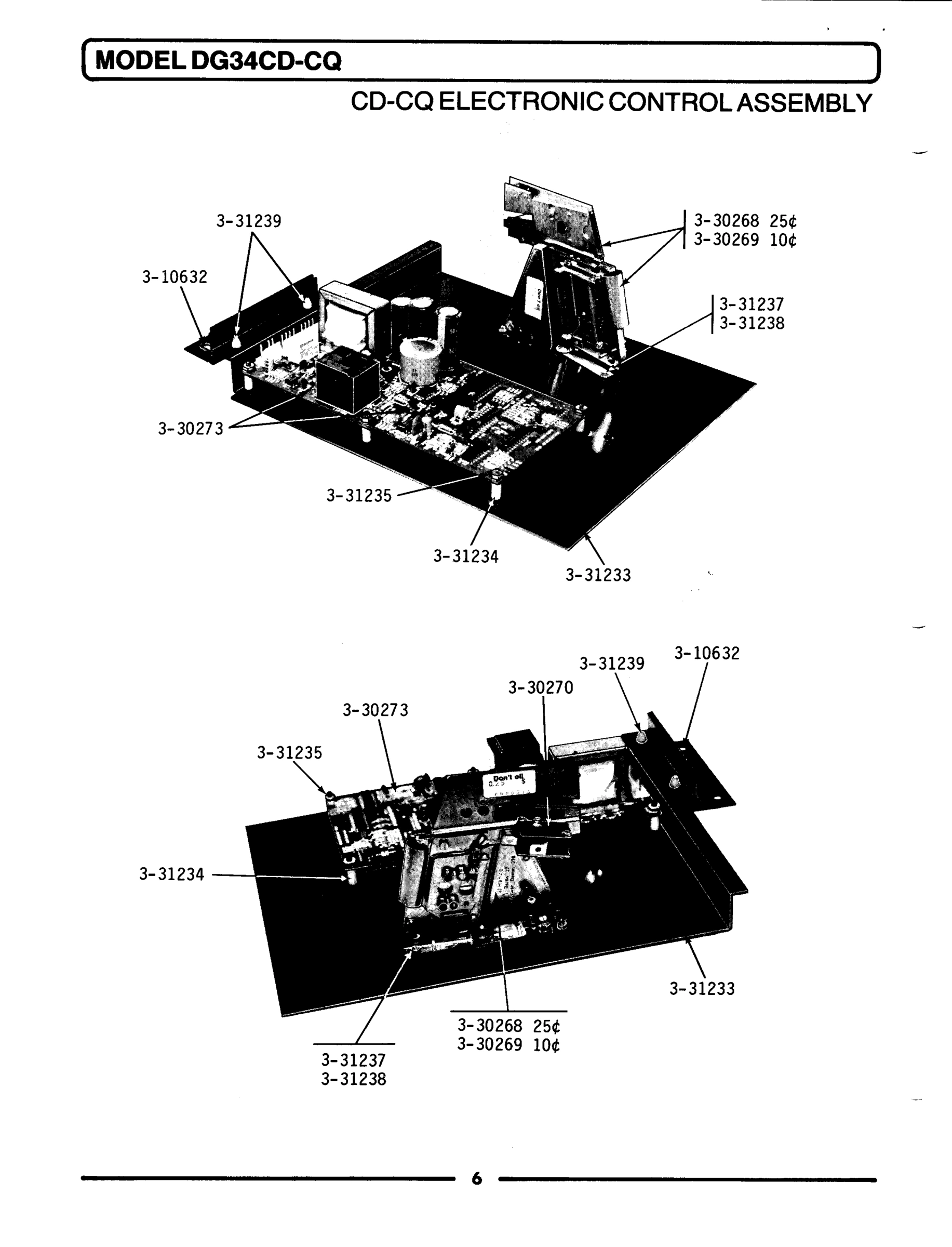

03 - ELECTRONIC CONTROL ASSEMBLY

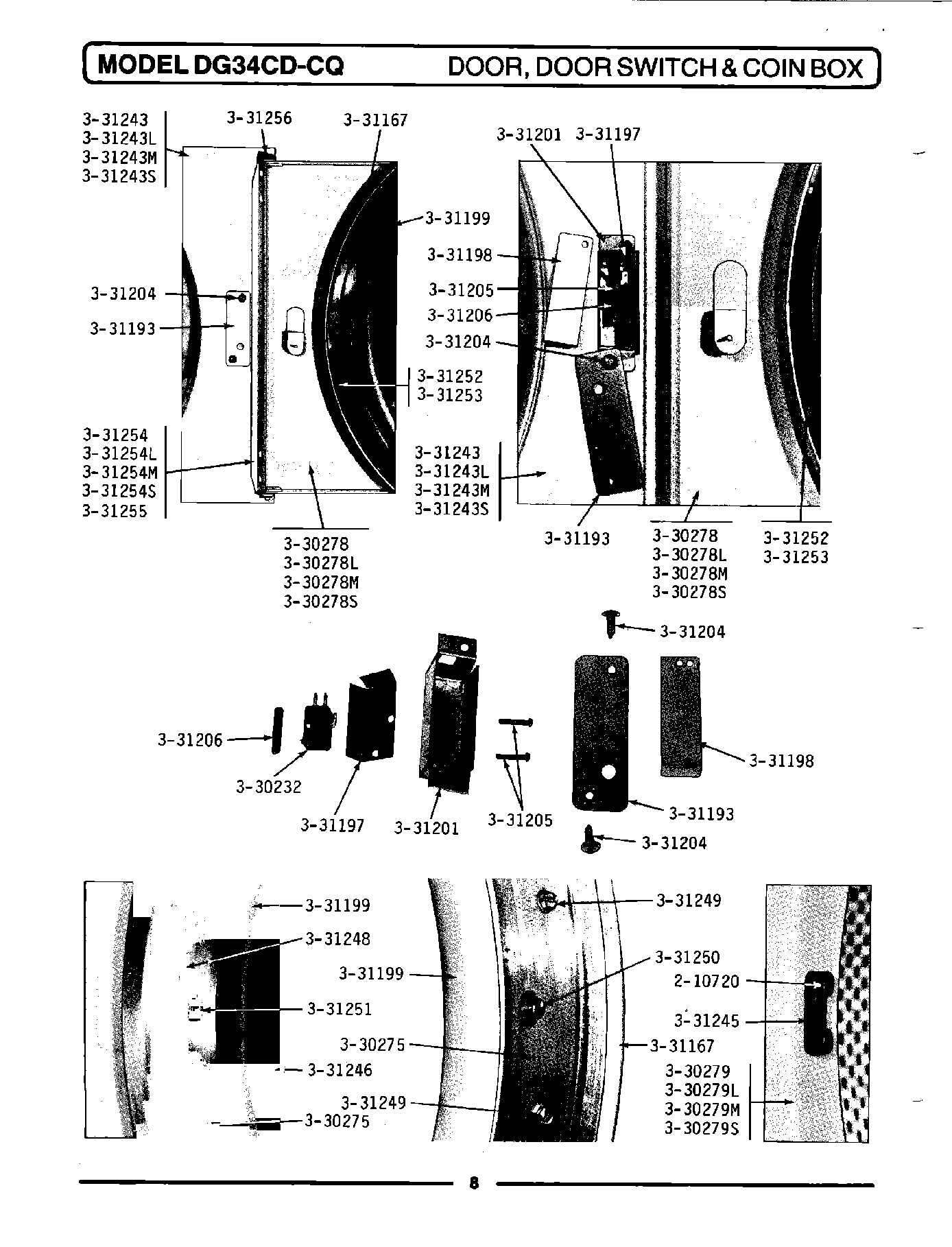

04 - DOOR, DOOR SWITCH, & COIN BOX

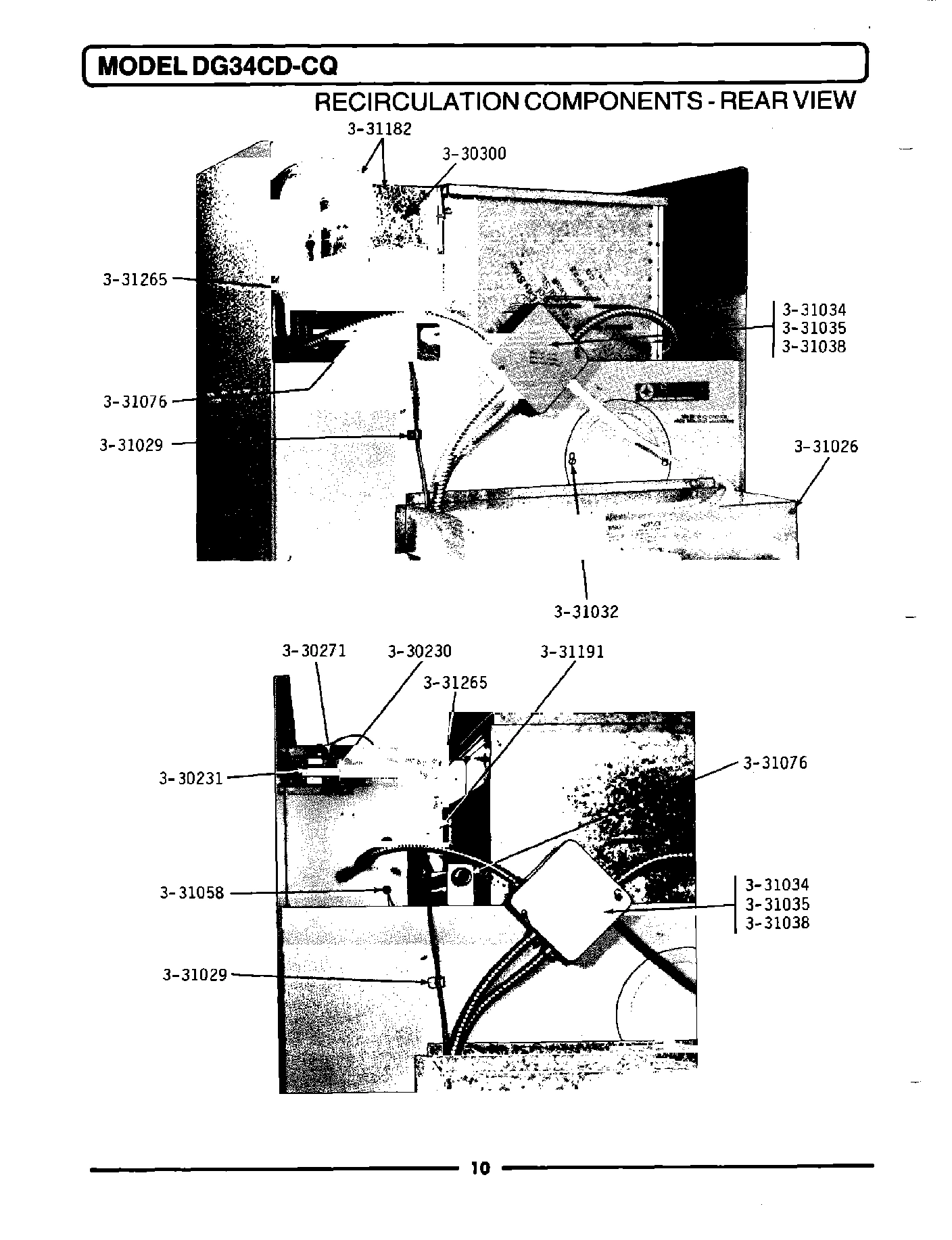

05 - RECIRCULATION COMPONENTS-REAR VIEW

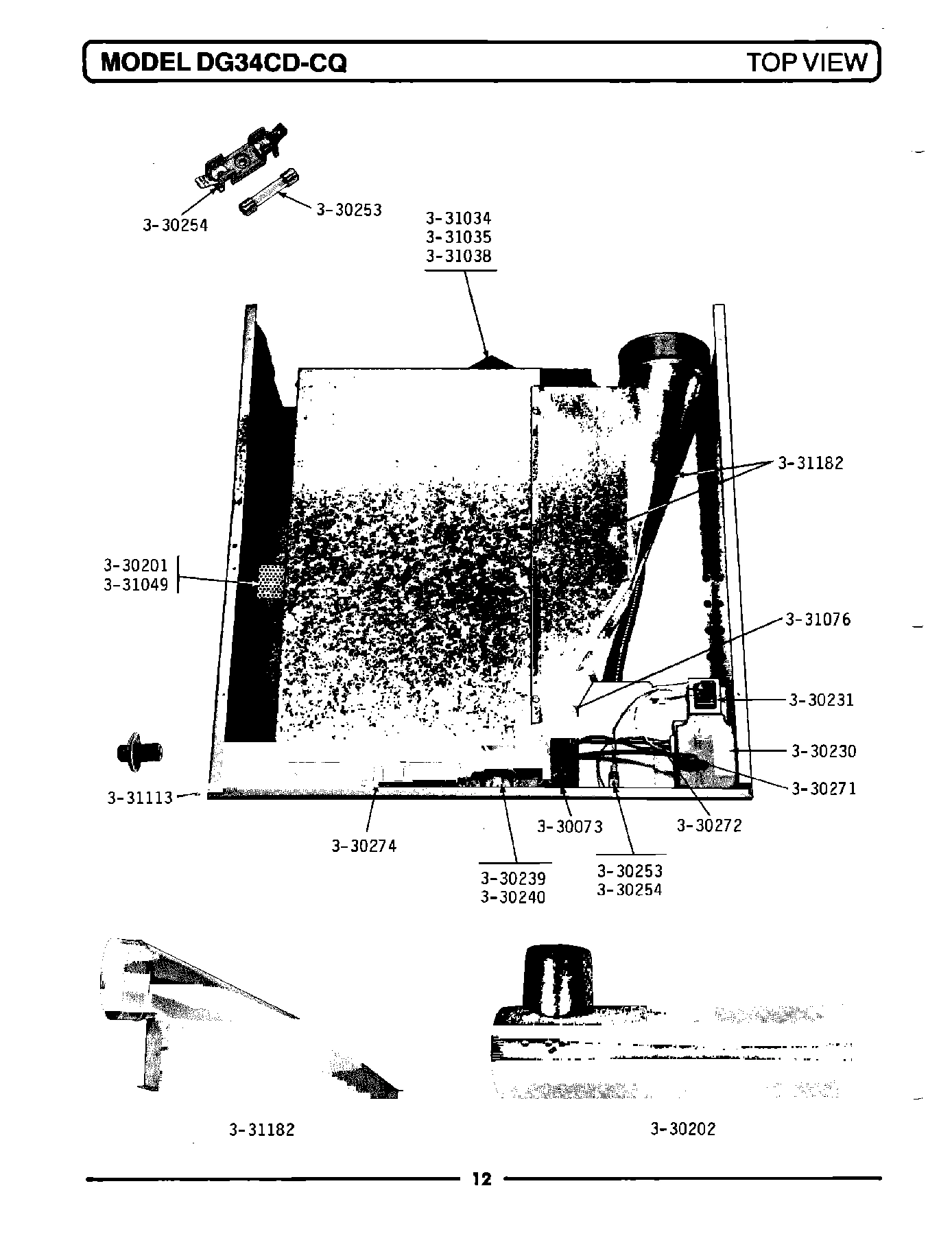

06 - TOP VIEW

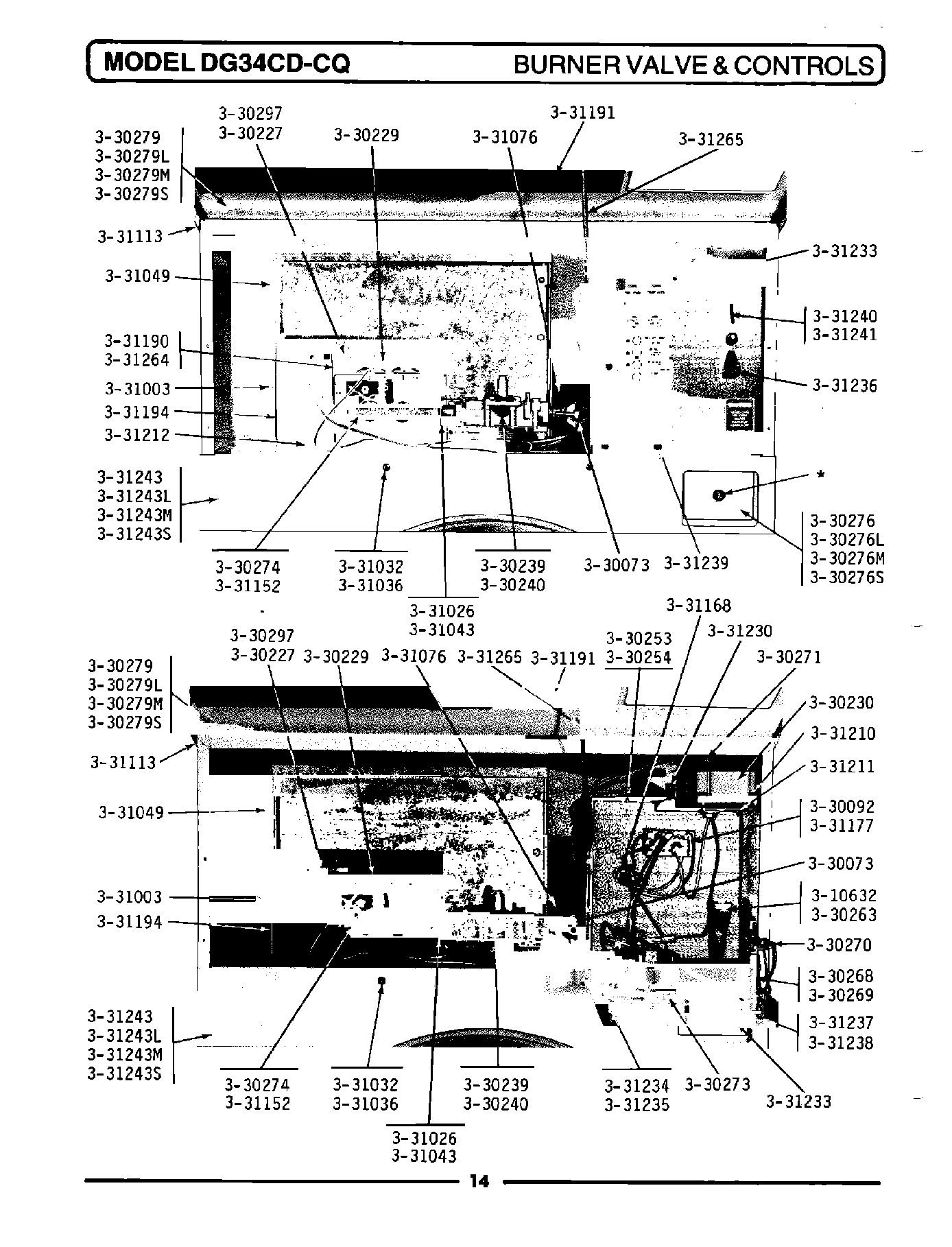

07 - BURNER VALVE & CONTROLS

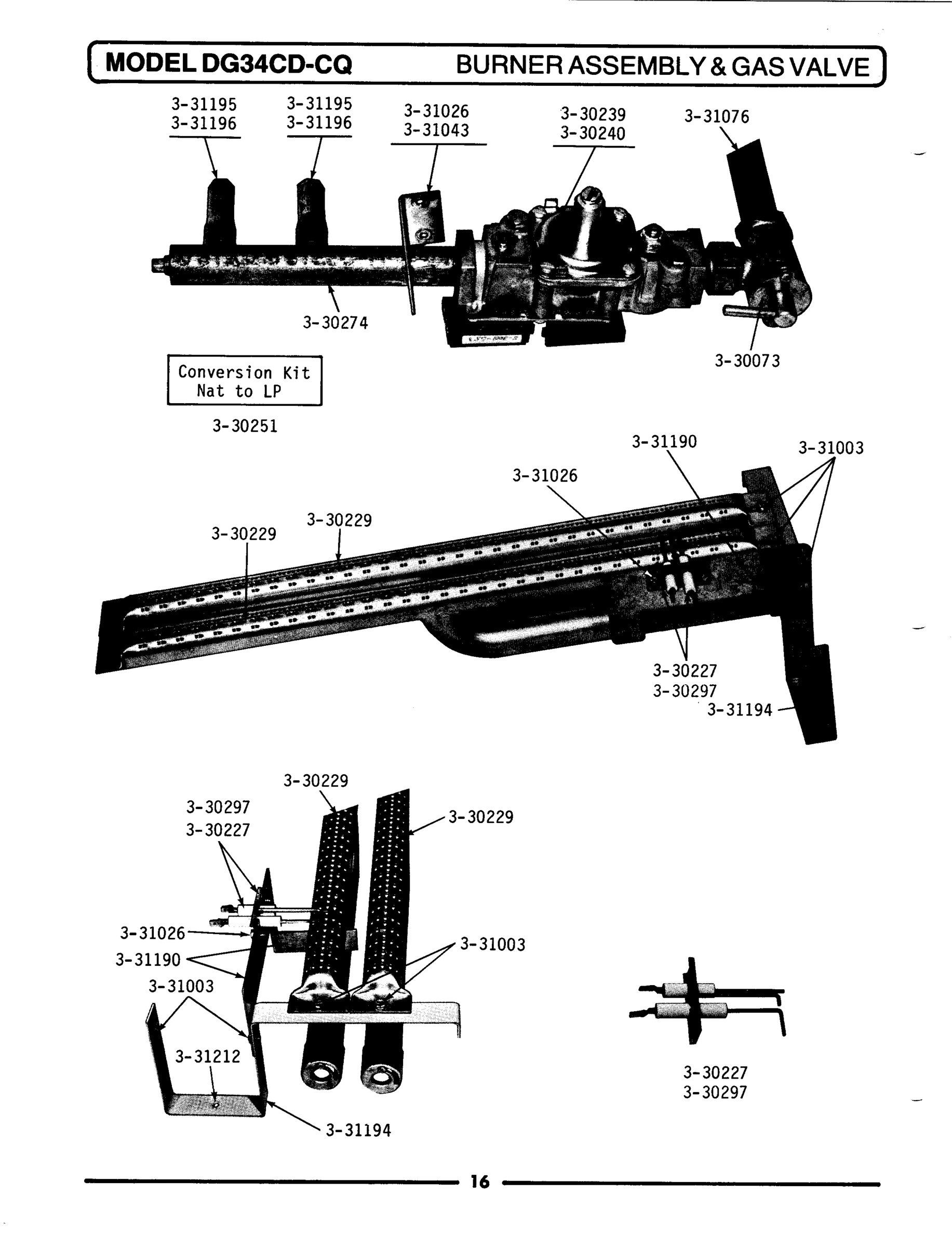

08 - BURNER ASSEMBLY & GAS VALVE

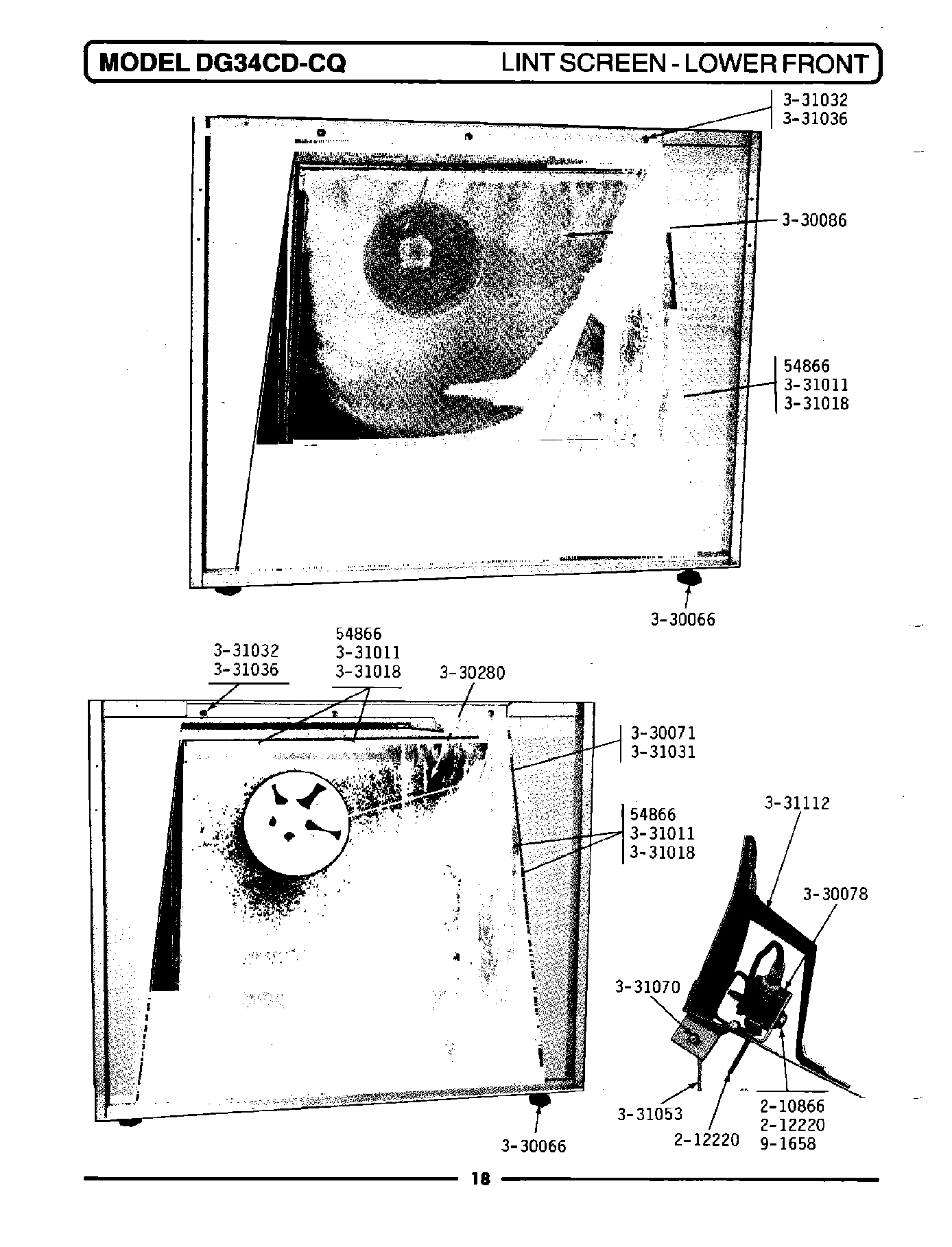

09 - LINT SCREEN-LOWER FRONT

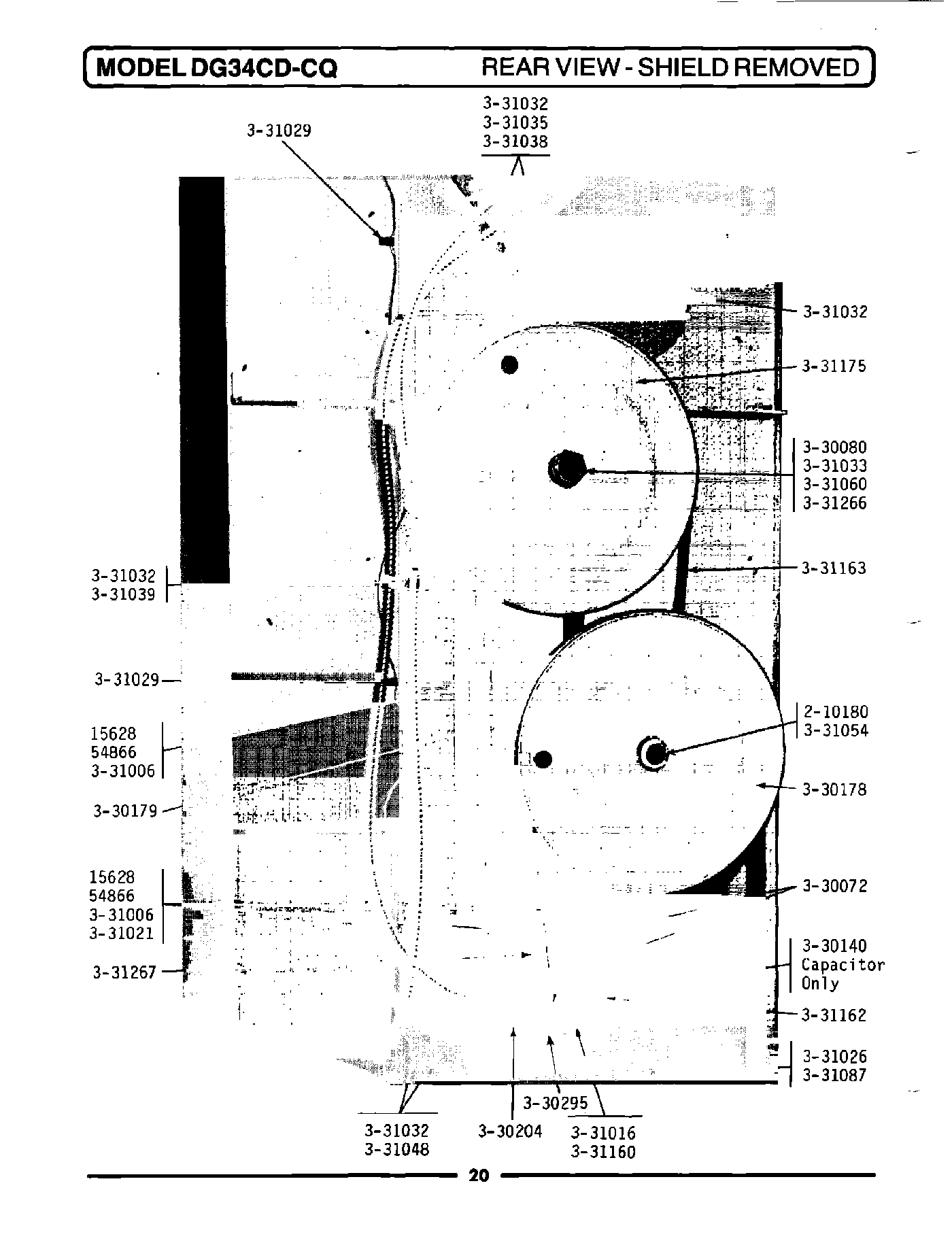

10 - REAR VIEW-SHIELD REMOVED

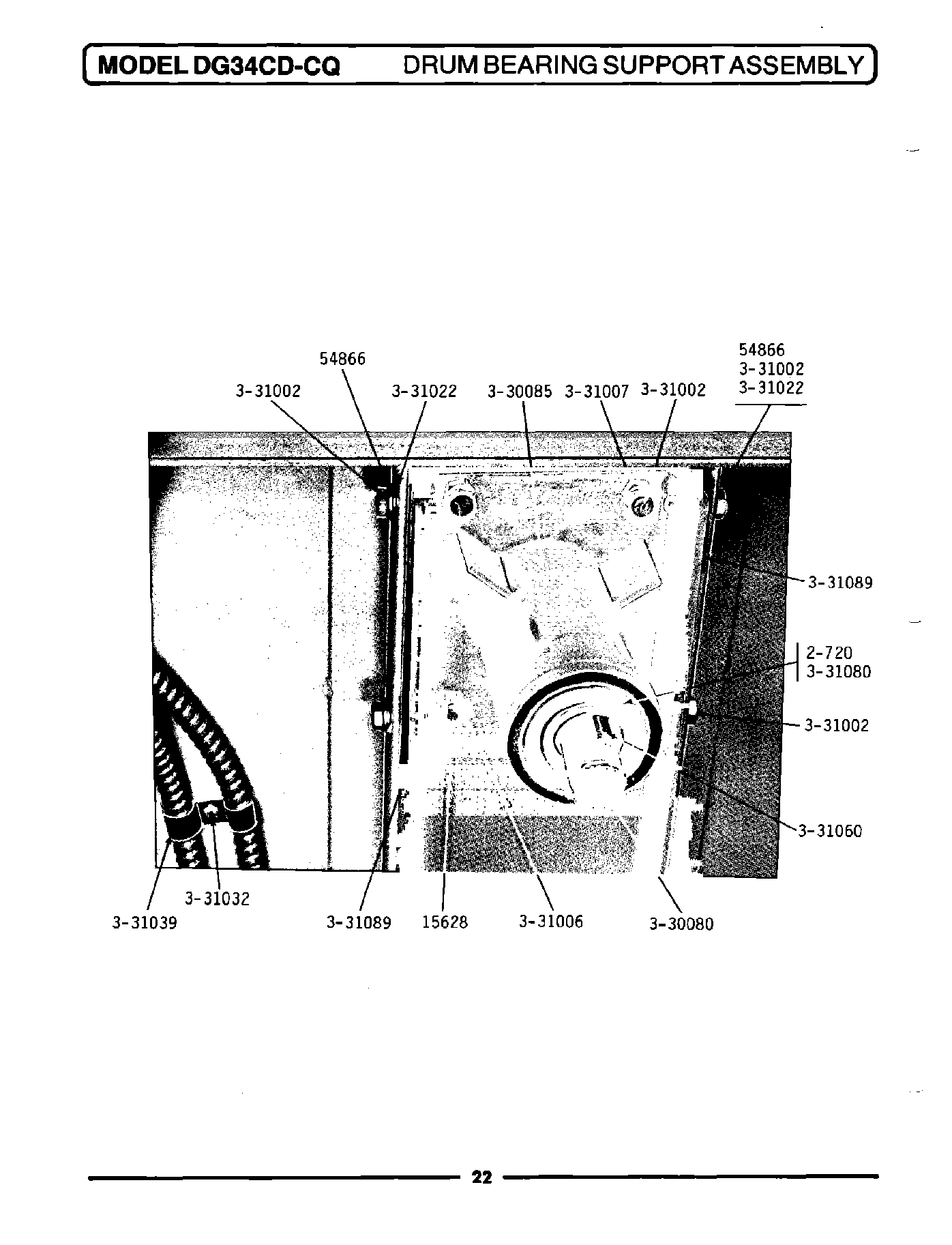

11 - DRUM BEARING SUPPORT ASSEMBLY

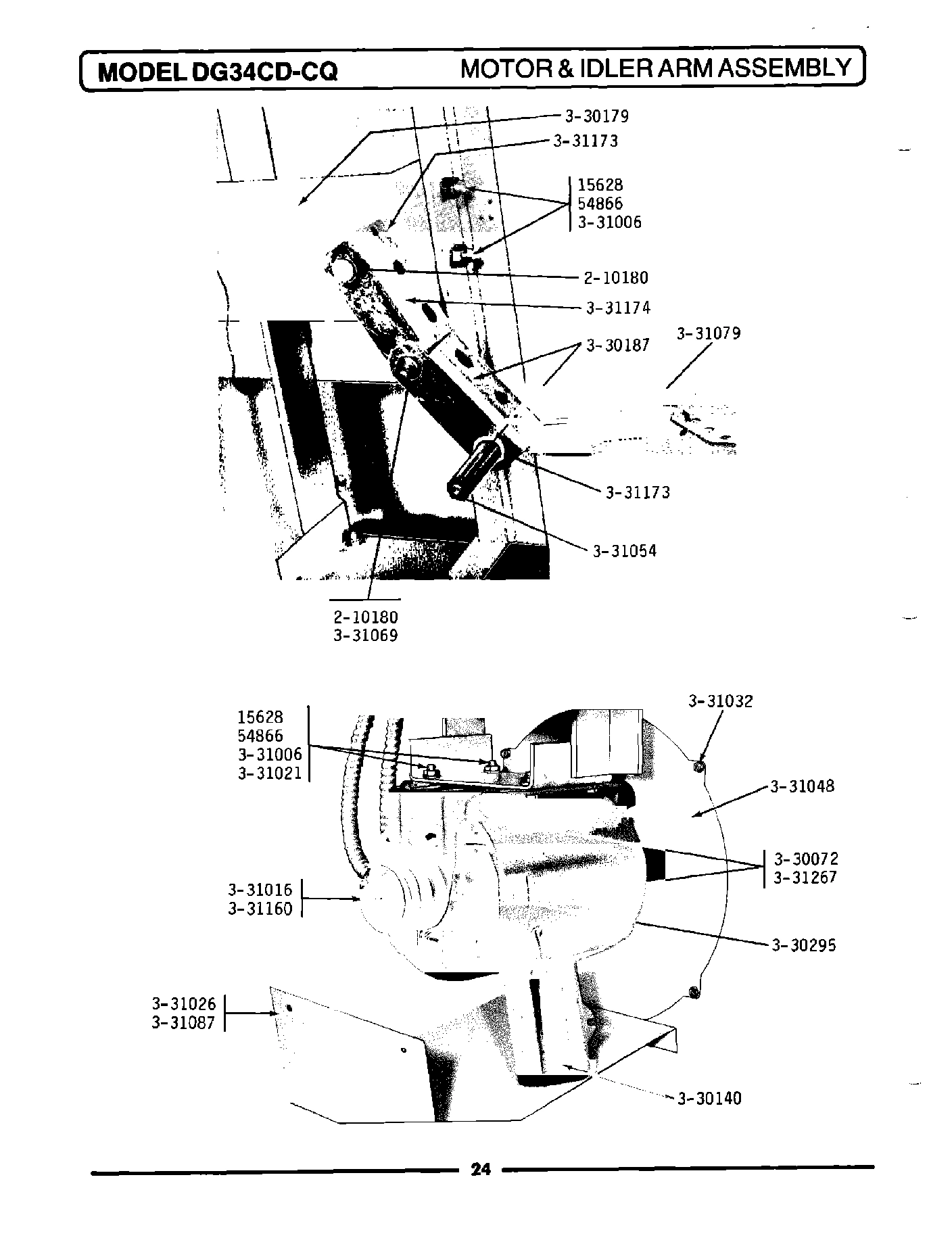

12 - MOTOR & IDLER ARM ASSEMBLY
Common parts from model Maytag LDG34CD WASHER
001
MAY Y052749 MAY Y052749 Contact Us For Availability
001
MAY Y310632 MAY Y310632 Contact Us For Availability
001
MAY Y330073 MAY Y330073 Contact Us For Availability
002
MAY Y054866 MAY Y054866 Contact Us For Availability
002
MAY Y330264 MAY Y330264 Contact Us For Availability
002
MAY Y330232 MAY Y330232 Contact Us For Availability
003
MAY Y330275 MAY Y330275 Contact Us For Availability
003
MAY Y330202 MAY Y330202 Contact Us For Availability
003
MAY Y330265 MAY Y330265 Contact Us For Availability
003
MAY Y330092 MAY Y330092 Contact Us For Availability
003
MAY Y330229 MAY Y330229 Contact Us For Availability
003
MAY 210180 MAY 210180 Contact Us For Availability
003
BALL BEARING, RADIAL----S MAY Y200720 Contact Us For Availability
004
MAY Y330102 MAY Y330102 Contact Us For Availability
004
MAY Y330266 MAY Y330266 Contact Us For Availability
004
MAY Y330080 MAY Y330080 Contact Us For Availability
004
MAY Y330201 MAY Y330201 Contact Us For Availability
004
MAY Y330239 MAY Y330239 Contact Us For Availability
004
MAY Y330072 MAY Y330072 Contact Us For Availability
005
MAY Y330087 MAY Y330087 Contact Us For Availability
005
MAY 210866 MAY 210866 Contact Us For Availability
005
MAY Y330085 MAY Y330085 Contact Us For Availability
006
HARNESS FOR GAS VALVE MAY Y330228 Contact Us For Availability
006
RETAINER FOR GAS VALVE MAY 330249 Contact Us For Availability
006
MAY 212220 MAY 212220 Contact Us For Availability
006
BRACKET AND PIN MAY Y330179 Contact Us For Availability
007
MAY Y330250 MAY Y330250 Contact Us For Availability
007
MAY Y330178 MAY Y330178 Contact Us For Availability
007
IDLER ARM ASSEMBLY WITH PIN MAY 330187 Contact Us For Availability
008
MAY Y330217 MAY Y330217 Contact Us For Availability
008
MAY 36001001 MAY 36001001 Contact Us For Availability
008
MAY 36001002 MAY 36001002 Contact Us For Availability
008
MAY Y330315 MAY Y330315 Contact Us For Availability
008
MAY Y330319 MAY Y330319 Contact Us For Availability
008
MAY Y330320 MAY Y330320 Contact Us For Availability
008
MAY Y330230 MAY Y330230 Contact Us For Availability
008
MAY Y330071 MAY Y330071 Contact Us For Availability
009
MAY Y330218 MAY Y330218 Contact Us For Availability
009
MAY Y330231 MAY Y330231 Contact Us For Availability
009
MAY Y330078 MAY Y330078 Contact Us For Availability
010
MAY 331003 MAY 331003 Contact Us For Availability
010
MAY Y330086 MAY Y330086 Contact Us For Availability
012
MAY Y330253 MAY Y330253 Contact Us For Availability
012
MAY Y330280 MAY Y330280 Contact Us For Availability
012
MAY 331060 MAY 331060 Contact Us For Availability
013
MAY 331026 MAY 331026 Contact Us For Availability
013
MAY Y330254 MAY Y330254 Contact Us For Availability
013
SPACER FOR CENTER BEARING MAY 331080 Contact Us For Availability
014
MAY 331032 MAY 331032 Contact Us For Availability
014
MAY 331089 MAY 331089 Contact Us For Availability
015
MAY 331048 MAY 331048 Contact Us For Availability
015
MAY Y330268 MAY Y330268 Contact Us For Availability
015
SET SCREW FOR IMPELLER MAY 331031 Contact Us For Availability
016
GASKET FOR DOOR-OUTER MAY 331167 Contact Us For Availability
016
GREASE FITTING - PULLEY PIN MAY 331054 Contact Us For Availability
017
WASHER-FRONT PANEL SCREWS MAY 331036 Contact Us For Availability
017
COVER FOR DOOR SWITCH BOX MAY 331193 Contact Us For Availability
017
MAY Y330270 MAY Y330270 Contact Us For Availability
017
MAY Y330300 MAY Y330300 Contact Us For Availability
017
MAY 331033 MAY 331033 Contact Us For Availability
017
MAY 331069 MAY 331069 Contact Us For Availability
018
SHIELD FOR DOOR SWITCH MAY 331197 Contact Us For Availability
018
MAY Y330271 MAY Y330271 Contact Us For Availability
018
MAY 331212 MAY 331212 Contact Us For Availability
018
MAY 331079 MAY 331079 Contact Us For Availability
019
MAY 331053 MAY 331053 Contact Us For Availability
019
ELECTRONIC CONTROL ASSEMBLY MAY Y330273 Contact Us For Availability
019
ACTUATOR FOR DOOR SWITCH MAY 331198 Contact Us For Availability
020
GASKET FOR DOOR GLASS MAY 331199 Contact Us For Availability
020
MAY 331058 MAY 331058 Contact Us For Availability
021
MAY 331201 MAY 331201 Contact Us For Availability
022
MAY 330276L MAY 330276L Contact Us For Availability
022
MAY 331204 MAY 331204 Contact Us For Availability
022
MAY 331160 MAY 331160 Contact Us For Availability
023
MAY 331162 MAY 331162 Contact Us For Availability
024
WASHER MAY 331173 Contact Us For Availability
025
MAY 331242 MAY 331242 Contact Us For Availability
025
IDLER BRACKET MAY 331174 Contact Us For Availability
026
MAY 331083 MAY 331083 Contact Us For Availability
026
MOTOR BRACKET MAY NLA Contact Us For Availability
027
V BELT - REDUCTION MAY 331163 Contact Us For Availability
028
MAY 330279S MAY 330279S Contact Us For Availability
028
MAY 331175 MAY 331175 Contact Us For Availability
029
MAY 331245 MAY 331245 Contact Us For Availability
029
MAY 331266 MAY 331266 Contact Us For Availability
030
MAY 331246 MAY 331246 Contact Us For Availability
030
MAY 331009 MAY 331009 Contact Us For Availability
031
MAY 331012 MAY 331012 Contact Us For Availability
033
MAY 331250 MAY 331250 Contact Us For Availability
036
MAY 331253 MAY 331253 Contact Us For Availability
036
MAY 331049 MAY 331049 Contact Us For Availability
038
MAY 331254L MAY 331254L Contact Us For Availability
042
MAY 331256 MAY 331256 Contact Us For Availability
044
MAY 331258 MAY 331258 Contact Us For Availability
046
MAY 331210 MAY 331210 Contact Us For Availability
047
MAY 331211 MAY 331211 Contact Us For Availability
049
MAY 331230 MAY 331230 Contact Us For Availability
051
MAY 331233 MAY 331233 Contact Us For Availability
052
MAY 331234 MAY 331234 Contact Us For Availability
053
NUT FOR CIRCUIT BOARD MAY 331235 Contact Us For Availability
055
MAY 331237 MAY 331237 Contact Us For Availability
061
MAY 331243L MAY 331243L Contact Us For Availability
× ![]()
