Model Maytag LDEA100ACL ELECTRIC DRYER – Common Parts & Diagrams

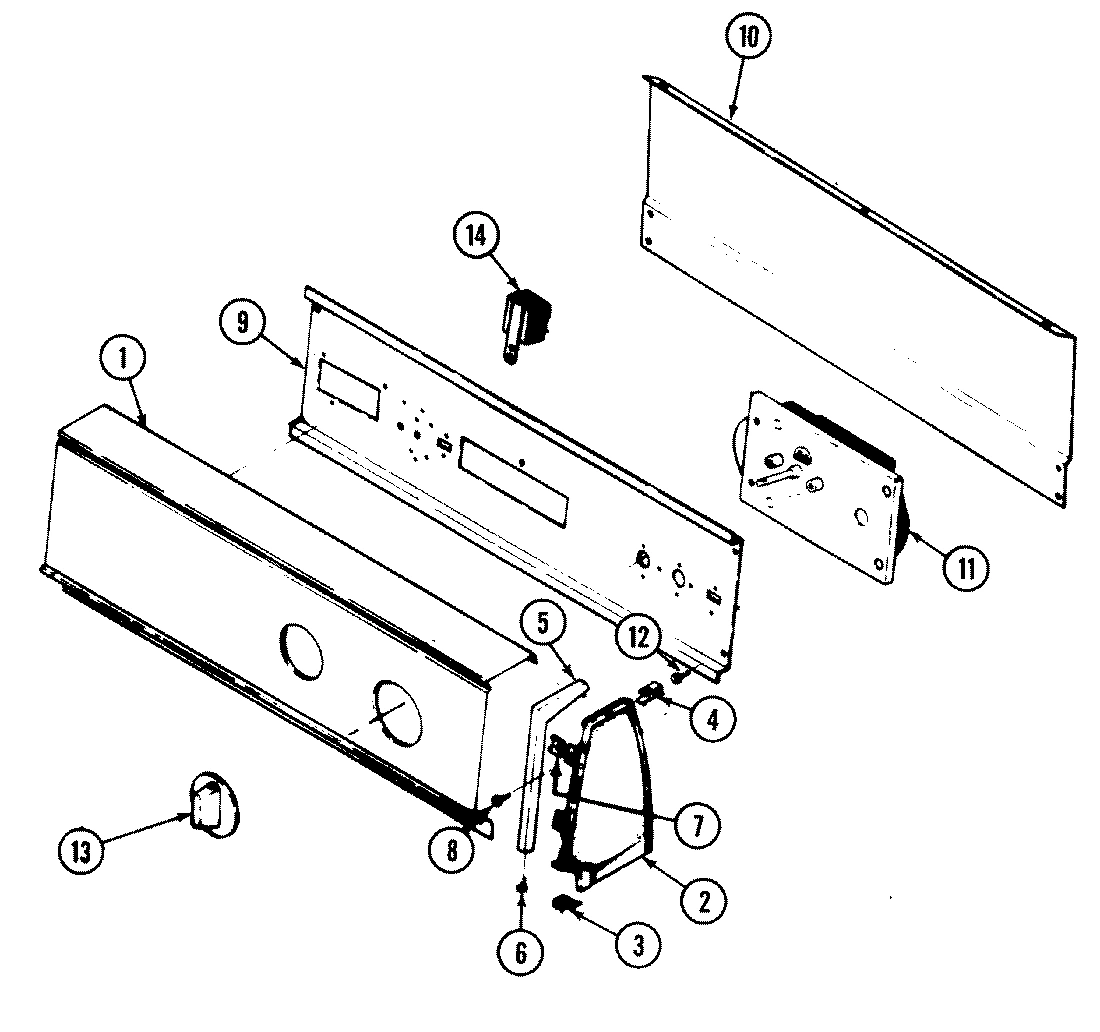

01 - CONTROL PANEL

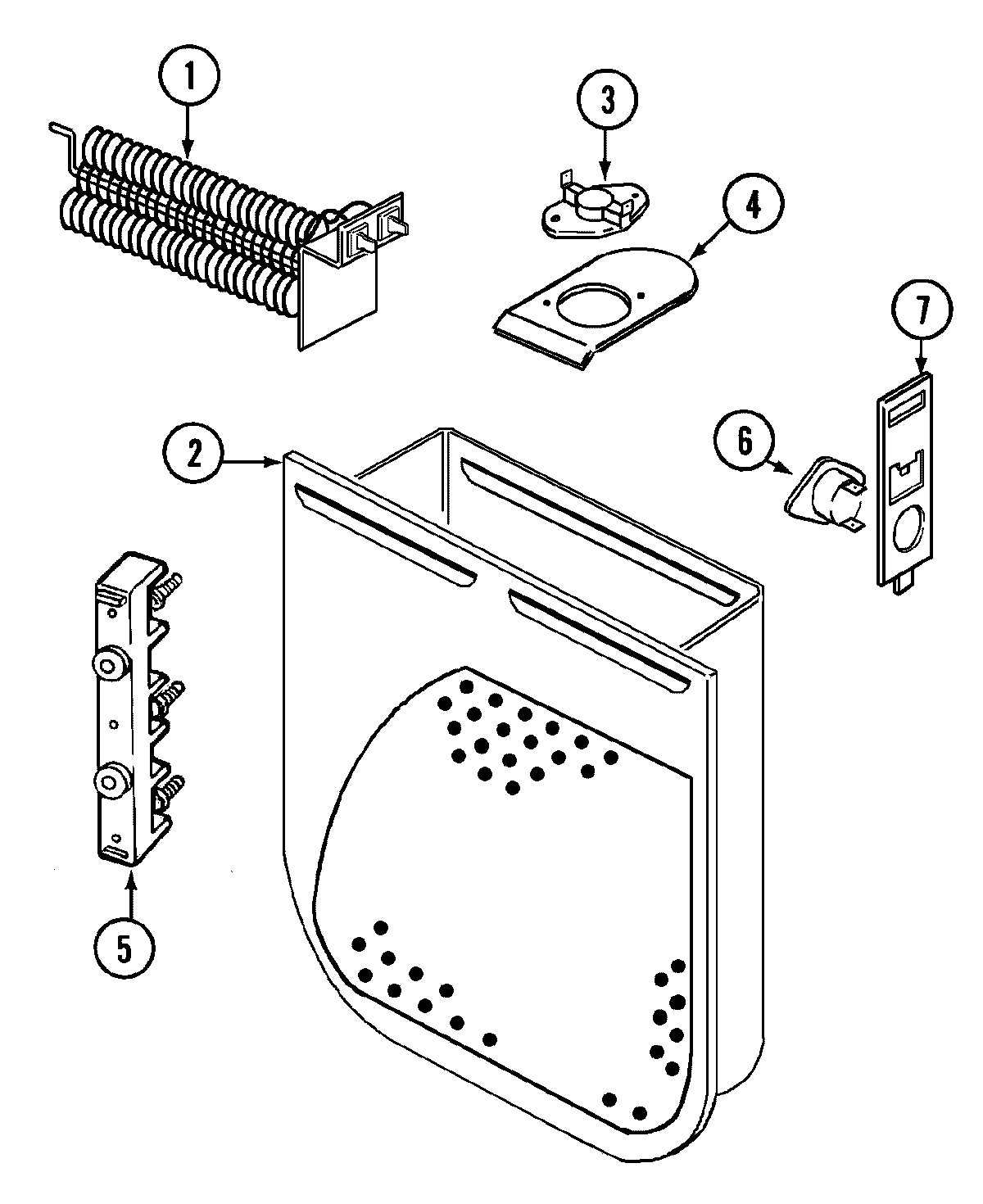

02 - HEATER

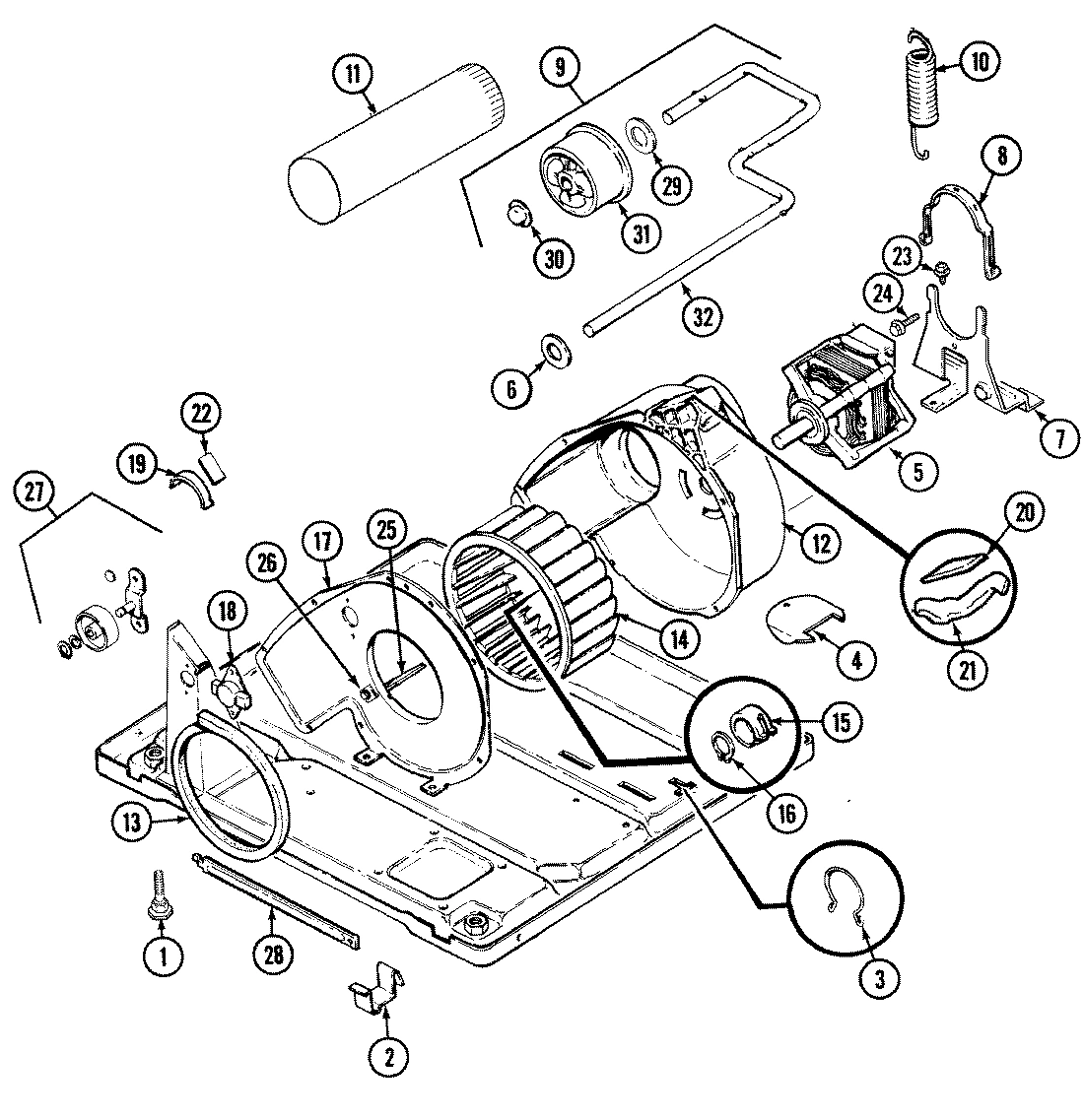

03 - MOTOR & DRIVE

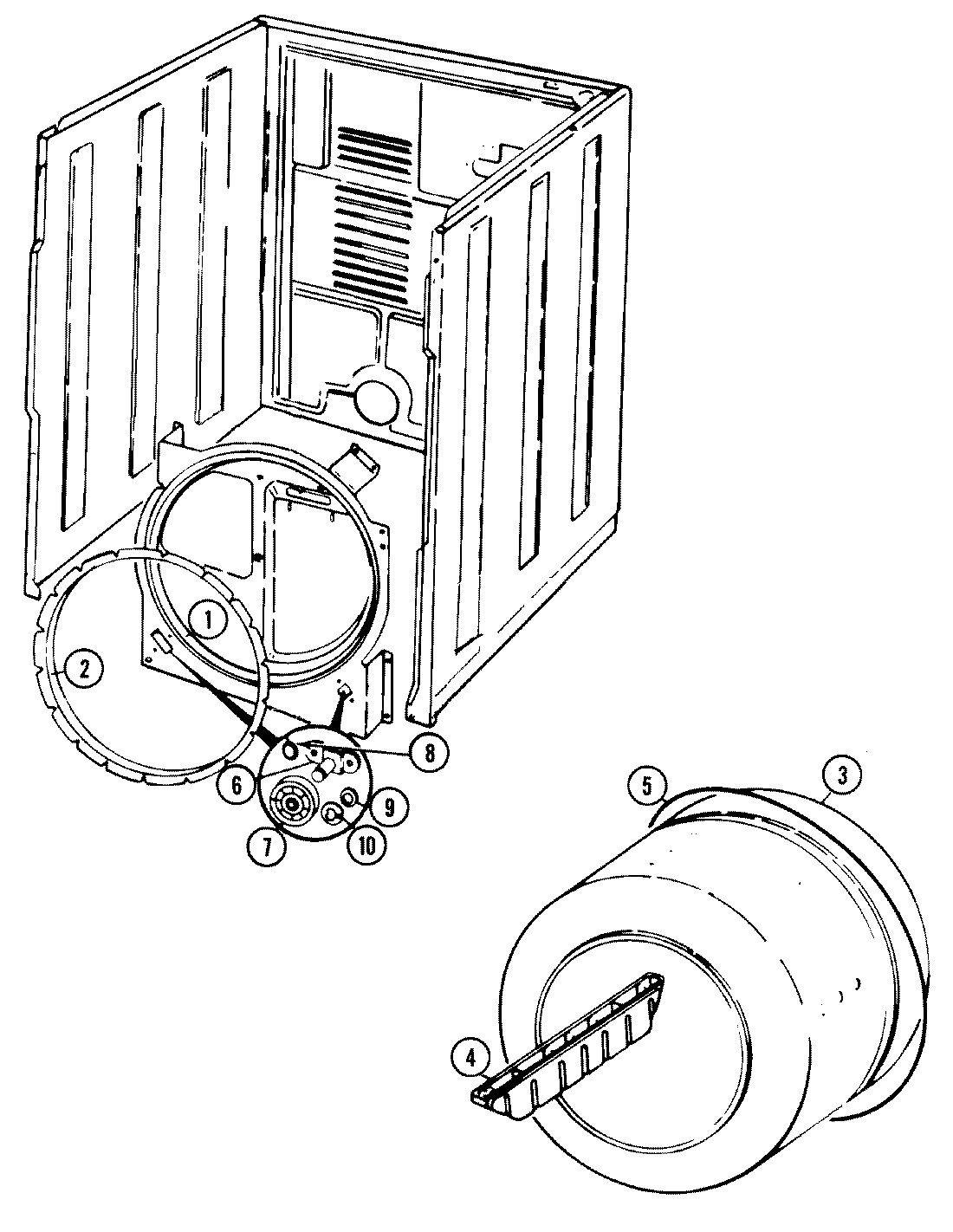

04 - TUMBLER

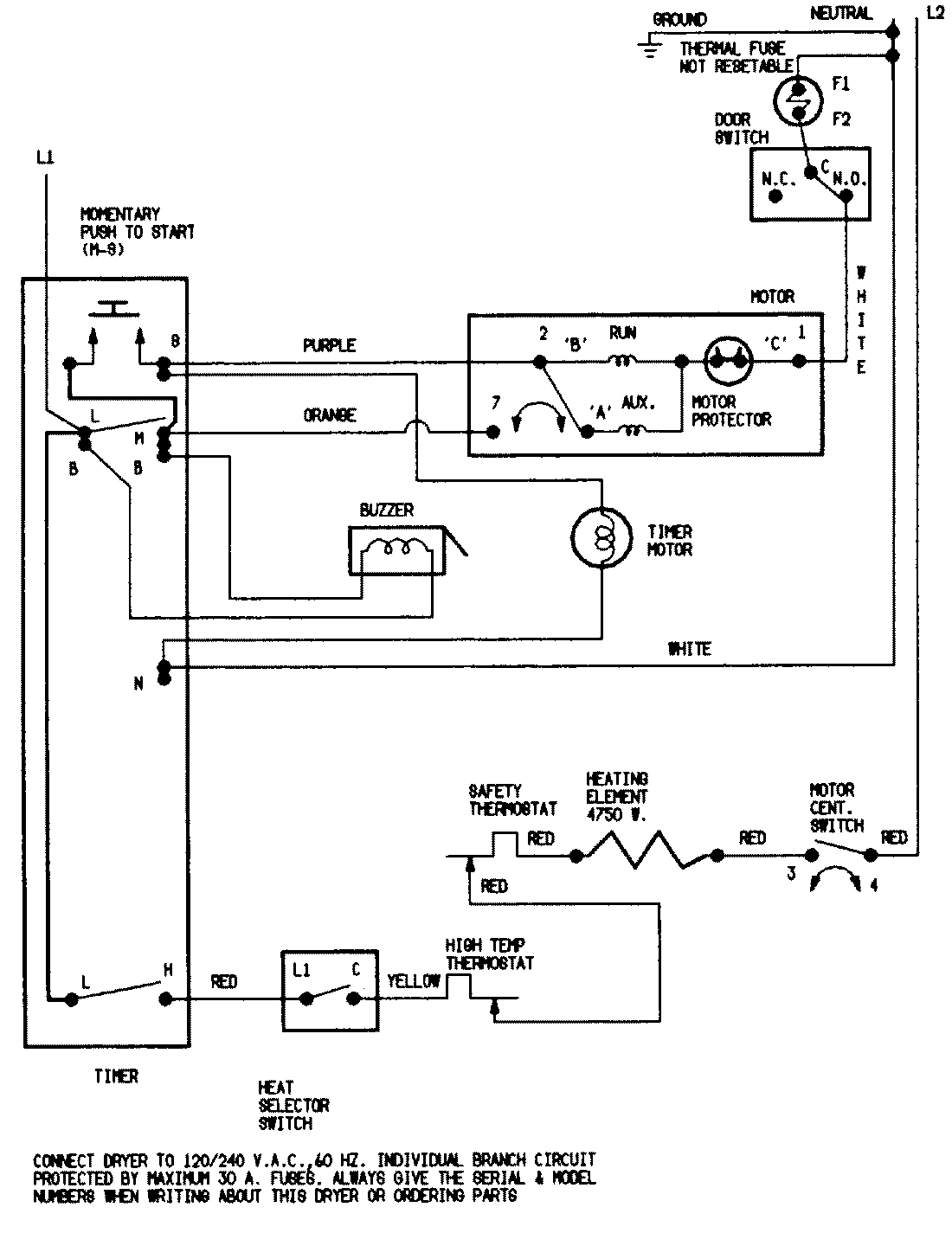

05 - WIRING INFORMATION
Common parts from model Maytag LDEA100ACL ELECTRIC DRYER
1
MAY 25-7733 MAY 25-7733 Contact Us For Availability
1
MAY 53-1703 MAY 53-1703 Contact Us For Availability
2
MAY 25-7819 MAY 25-7819 Contact Us For Availability
2
MAY 53-1232 MAY 53-1232 Contact Us For Availability
3
MAY 25-3083 MAY 25-3083 Contact Us For Availability
3
MAY 25-7027 MAY 25-7027 Contact Us For Availability
3
MAY 53-0178 MAY 53-0178 Contact Us For Availability
4
MAY 25-7741 MAY 25-7741 Contact Us For Availability
4
MAY 53-0285 MAY 53-0285 Contact Us For Availability
4
MAY 53-1921 MAY 53-1921 Contact Us For Availability
4
MAY 25-7759 MAY 25-7759 Contact Us For Availability
4
MAY 53-0117 MAY 53-0117 Contact Us For Availability
5
MAY 53-1518 MAY 53-1518 Contact Us For Availability
5
MAY 25-0027 MAY 25-0027 Contact Us For Availability
5
MAY 25-3122 MAY 25-3122 Contact Us For Availability
5
MAY 25-6124 MAY 25-6124 Contact Us For Availability
5
MAY 53-0965 MAY 53-0965 Contact Us For Availability
5
MAY 53-2275 MAY 53-2275 Contact Us For Availability
5
MAY 53-1589 MAY 53-1589 Contact Us For Availability
6
MAY 53-0693 MAY 53-0693 Contact Us For Availability
7
MAY 53-1181 MAY 53-1181 Contact Us For Availability
7
MAY 25-7811 MAY 25-7811 Contact Us For Availability
7
MAY 53-1932 MAY 53-1932 Contact Us For Availability
7
MAY 53-1578 MAY 53-1578 Contact Us For Availability
8
MAY 25-7813 MAY 25-7813 Contact Us For Availability
9
MAY 25-7814 MAY 25-7814 Contact Us For Availability
10
MAY 35-2688 MAY 35-2688 Contact Us For Availability
11
MAY 53-1803 MAY 53-1803 Contact Us For Availability
11
MAY 63-6743 MAY 63-6743 Contact Us For Availability
11
MAY 53-0134 MAY 53-0134 Contact Us For Availability
12
MAY 25-7435 MAY 25-7435 Contact Us For Availability
12
MAY 53-1801 MAY 53-1801 Contact Us For Availability
13
MAY 53-1533 MAY 53-1533 Contact Us For Availability
14
MAY 53-0106 MAY 53-0106 Contact Us For Availability
14
MAY 53-0456 MAY 53-0456 Contact Us For Availability
15
MAY 35-2185 MAY 35-2185 Contact Us For Availability
15
MAY 25-7823 MAY 25-7823 Contact Us For Availability
16
MAY 25-7855 MAY 25-7855 Contact Us For Availability
16
MAY 53-1639 MAY 53-1639 Contact Us For Availability
17
MAY 31001008 MAY 31001008 Contact Us For Availability
17
MAY 53-2434 MAY 53-2434 Contact Us For Availability
17
MAY 25-7807 MAY 25-7807 Contact Us For Availability
17
MAY 53-1934 MAY 53-1934 Contact Us For Availability
18
MAY 16002079 MAY 16002079 Contact Us For Availability
18
MAY 25-2134 MAY 25-2134 Contact Us For Availability
22
MAY 53-1684 MAY 53-1684 Contact Us For Availability
23
MAY 53-0645 MAY 53-0645 Contact Us For Availability
24
MAY 53-0644 MAY 53-0644 Contact Us For Availability
25
MAY 53-1026 MAY 53-1026 Contact Us For Availability
26
MAY 25-3457 MAY 25-3457 Contact Us For Availability
27
MAY LA-1008 MAY LA-1008 Contact Us For Availability
28
MAY 53-1625 MAY 53-1625 Contact Us For Availability
29
MAY 25-7815 MAY 25-7815 Contact Us For Availability
30
MAY 25-7957 MAY 25-7957 Contact Us For Availability
31
MAY 53-1628 MAY 53-1628 Contact Us For Availability
33
MAY 25-7699 MAY 25-7699 Contact Us For Availability
34
MAY 25-7674 MAY 25-7674 Contact Us For Availability
NI
MAY 15001204 MAY 15001204 Contact Us For Availability
× ![]()
