Model LG LD4210 – Common Parts & Diagrams

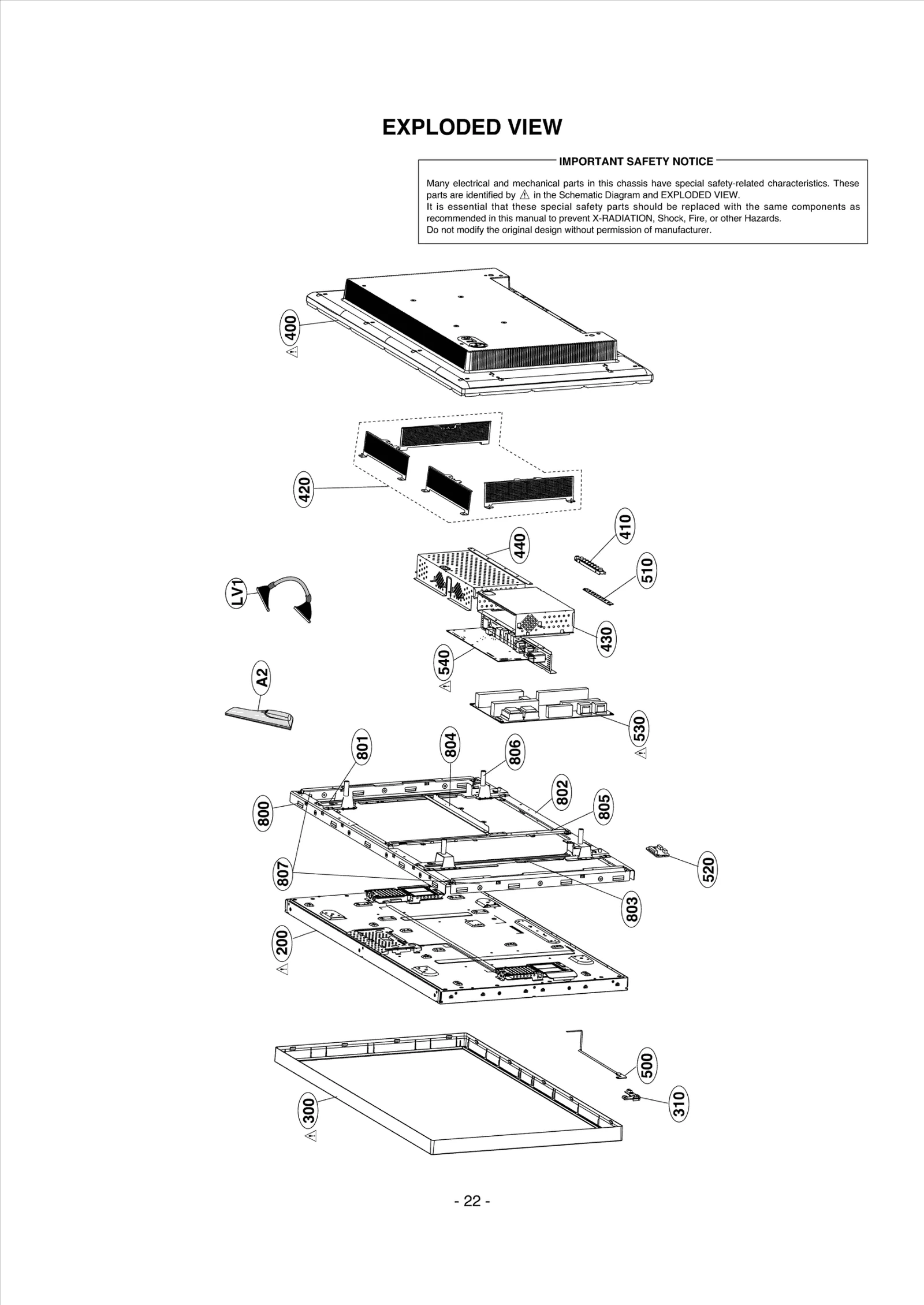

Diagram 0
Diagram 1
Common parts from model LG LD4210
300
Cabinet Assembly LGE ABJ69821207 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ69821312 Contact Us For Availability
410
Knob LGE MEY53379901 Contact Us For Availability
430
Plate,Shield LGE MGJ37884901 Contact Us For Availability
440
Plate,Shield LGE MGJ37885003 Contact Us For Availability
500
PCB Assembly,Sub LGE EBR56323004 Contact Us For Availability
510
PCB Assembly,Sub LGE EBR56322701 Contact Us For Availability
520
PCB Assembly,Sub LGE EBR56323401 Contact Us For Availability
540
Main Total Assembly LGE EBU61105201 Contact Us For Availability
801
Plate,Metal LGE MGJ53393301 Contact Us For Availability
802
Plate,Metal LGE MGJ53393001 Contact Us For Availability
803
Plate,Metal LGE MGJ53393201 Contact Us For Availability
804
Plate,Metal LGE MGJ53393501 Contact Us For Availability
805
Plate,Metal LGE MGJ53393401 Contact Us For Availability
806
Plate,Metal LGE MGJ53393701 Contact Us For Availability
807
Plate,Metal LGE MGJ53393101 Contact Us For Availability
A1
Title LGE SAC35094602 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB72915227 Contact Us For Availability
AR101
Resistor,Array LGE EBC32260501 Contact Us For Availability
AR113
Resistor,Array LGE EBC39283301 Contact Us For Availability
AR1012
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
C1
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C105
Capacitor,AL,Chip LGE 0CE476WK6DC Contact Us For Availability
C110
CAPACITOR,FIXED ELEC LGE 0CE227WJ6DC Contact Us For Availability
C115
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C125
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C134
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C170
Capacitor,AL,Chip LGE EAE61782302 Contact Us For Availability
C214
CAPACITOR,FIXED ELEC LGE 0CE227WF6DC Contact Us For Availability
C219
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C221
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C239
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C246
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C251
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C264
Capacitor,Ceramic,Chip LGE 0CK225DF56A Contact Us For Availability
C277
Capacitor,Ceramic,Ch LGE EAE30281301 Contact Us For Availability
C283
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C293
Capacitor,Ceramic,Ch LGE 0CH5240K416 Contact Us For Availability
C299
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CC560CK41A Contact Us For Availability
C384
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C386
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C387
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C398
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C400
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C417
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C441
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C444
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C452
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C462
Capacitor,Ceramic,Chip LGE EAE38454201 Contact Us For Availability
C1002
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C1003
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C1025
Capacitor,Ceramic,Chip LGE EAE58165801 Contact Us For Availability
C1029
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1051
Capacitor,AL,Chip LGE EAE38362801 Contact Us For Availability
D130
Diode,TVS LGE EAH39491701 Contact Us For Availability
D132
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D133
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D165
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D171
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D1011
Diode,TVS LGE EAH61332601 Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC101
IC,LDO Voltage Regulator LGE EAN38975801 Contact Us For Availability
IC104
IC,DC,DC Converter LGE EAN57653801 Contact Us For Availability
IC108
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC111
IC LGE 0IPH741400E Contact Us For Availability
IC112
Display SOC,Digital TV LGE EAN60350801 Contact Us For Availability
IC114
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC114
IC,Video Amplifier LGE EAN60815201 Contact Us For Availability
IC116
IC,I/O Support Chip LGE EAN60668101 Contact Us For Availability
IC124
IC,Analog Switch LGE EAN60223701 Contact Us For Availability
IC125
IC,DDR2 SDRAM LGE EAN60762901 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN60969601 Contact Us For Availability
IC128
IC,EEPROM LGE 0IMMRCS012C Contact Us For Availability
IC129
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
IC130
IC,Timer LGE EAN54696201 Contact Us For Availability
IC1000
IC,Transceiver LGE EAN61132401 Contact Us For Availability
IC1001
IC,LDO Voltage Regulator LGE EAN60780801 Contact Us For Availability
IC1002
IC,POWER MANAGEMENT LGE 0IPMGRH001G Contact Us For Availability
IC1003
IC Assembly LGE EAN61862301 Contact Us For Availability
IC1004
IC,Receiver LGE EAN61132301 Contact Us For Availability
IC1006
IC,LDO Voltage Regulator LGE EAN42830901 Contact Us For Availability
IC1007
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC1008
IC Assembly LGE EAN61862201 Contact Us For Availability
IC1009
IC,Tx/Rx LGE EAN39308101 Contact Us For Availability
JK100
JACK,DIN LGE 6612B00015A Contact Us For Availability
JK101
JACK,PHONE LGE 6612F00059C Contact Us For Availability
JK107
Connector,Terminal LGE 385-173B Contact Us For Availability
JK109
Jack,Modular LGE EAG38015701 Contact Us For Availability
JK110
Connector,DSUB LGE EAG43472001 Contact Us For Availability
JK111
Connector,DSUB LGE 6630G00004C Contact Us For Availability
JK1001
Connector,I/O LGE EAG60823003 Contact Us For Availability
L2
Filter,Bead LGE EAM30764101 Contact Us For Availability
L3
Filter,Bead LGE EAM38769507 Contact Us For Availability
L118
Inductor,Wire Wound,Chip LGE EAP32842802 Contact Us For Availability
L141
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L1003
Filter,Bead LGE EAM38769505 Contact Us For Availability
LD1
LED,Chip LGE EAV34876201 Contact Us For Availability
LV1
Cable,FFC LGE EAD61220106 Contact Us For Availability
P1
Connector,FFC/FPC/PIC LGE EAG58469801 Contact Us For Availability
P2
Connector,Wafer LGE 6630V90141B Contact Us For Availability
P5
CONNECTOR (CIRC),WAF LGE 6602T20009J Contact Us For Availability
P102
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P103
Connector,Wafer LGE EAG39798201 Contact Us For Availability
P106
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P115
Conector,Wafer LGE 6630V93270A Contact Us For Availability
P116
Connector,Wafer LGE 6602T20008B Contact Us For Availability
P1000
Connector,Wafer LGE 6630V091104 Contact Us For Availability
Q108
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q118
FET LGE EBK60706901 Contact Us For Availability
Q136
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q1001
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
R1
Resistor,Chip LGE 0RJ3601D677 Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ1501D477 Contact Us For Availability
R101
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R102
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R144
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R163
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R200
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R209
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R222
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R243
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R263
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ3600D477 Contact Us For Availability
R265
Resistor,Chip LGE 0RJ4301D477 Contact Us For Availability
R272
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R286
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R294
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R298
Resistor,Chip LGE 0RJ1242D477 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R317
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R342
Resistor,Chip LGE 0RJ3900E472 Contact Us For Availability
R359
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R475
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R476
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R575
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R583
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R643
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R665
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R677
RESISTOR,METAL GLAZE LGE 0RJ1800D677 Contact Us For Availability
R685
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R695
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R726
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R729
Resistor,Chip LGE 0RH0122D622 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R806
Resistor,Chip LGE 0RJ0562D477 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ4302D677 Contact Us For Availability
R822
RESISTOR,METAL GLAZE LGE 0RJ3002D477 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R825
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R849
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R850
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R1003
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R1019
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R1025
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1026
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1094
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R1102
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R1136
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R1157
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R1159
Resistor,Chip LGE EBC60975401 Contact Us For Availability
R1177
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R1186
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
S1
Harness,Single LGE 6631900049A Contact Us For Availability
S2
Cover Assembly,Rear LGE ACQ69872413 Contact Us For Availability
S3
Harness,Single LGE EAD52821205 Contact Us For Availability
S4
Cabinet Assembly LGE ABJ69872307 Contact Us For Availability
S5
Cable,FFC LGE EAD58469905 Contact Us For Availability
S6
CABLE,D-SUB LGE 6850TD9001K Contact Us For Availability
S7
Solder Soldering LGE SS0000011AA Contact Us For Availability
S8
Filter,AC Line LGE EAM36140901 Contact Us For Availability
S9
Primary Cell Battery,Lithium LGE EAC40458601 Contact Us For Availability
S10
Harness,Single LGE 6631T20010H Contact Us For Availability
S11
Cover LGE MCK53380001 Contact Us For Availability
S12
CONNECTOR ASSEMBLY LGE 6631T20041A Contact Us For Availability
SW101
Switch,Tact LGE EBF55334201 Contact Us For Availability
SW116
SWITCH,POLY LGE 6600AR9458Q Contact Us For Availability
SW1002
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X102
Crystal LGE 6212AB2015C Contact Us For Availability
ZD1
Diode,Zener LGE EAH60270608 Contact Us For Availability
× ![]()
Login and Registration Form
