Model LG LD4200TM – Common Parts & Diagrams

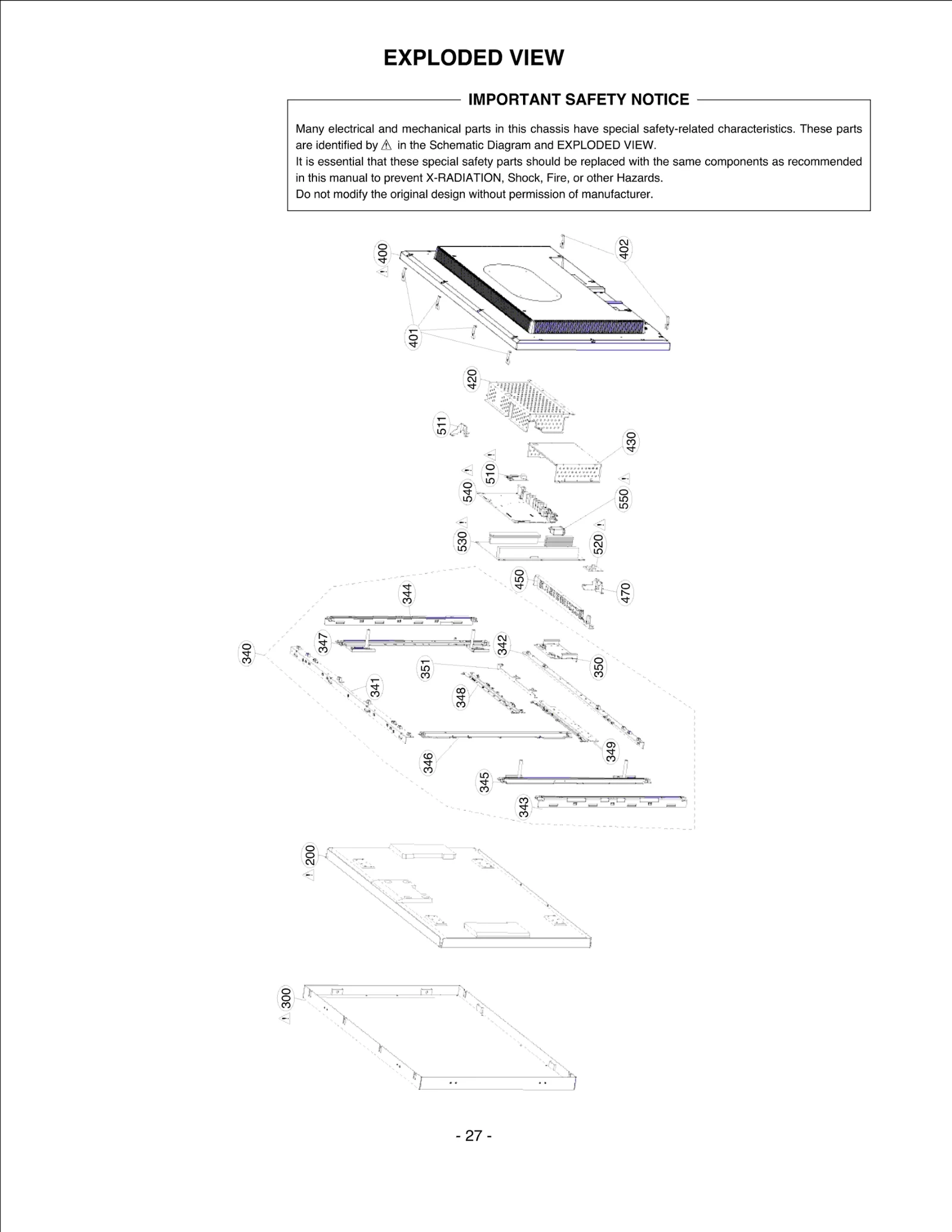

Diagram 0
Diagram 1
Common parts from model LG LD4200TM
200
LCD,Module-TFT LGE EAJ60888401 Contact Us For Availability
300
Chassis Assembly LGE EBT60854401 Contact Us For Availability
340
Frame Assembly LGE ADV72998301 Contact Us For Availability
341
Plate,Metal LGE MGJ36384701 Contact Us For Availability
342
Plate,Metal LGE MGJ36384801 Contact Us For Availability
343
Plate,Metal LGE MGJ36384901 Contact Us For Availability
344
Plate,Metal LGE MGJ36384902 Contact Us For Availability
345
Plate LGE MGJ32902610 Contact Us For Availability
346
Plate LGE MGJ32902723 Contact Us For Availability
347
Plate LGE MGJ32902510 Contact Us For Availability
348
Plate LGE MGJ32902801 Contact Us For Availability
350
Plate,Metal LGE MGJ36385001 Contact Us For Availability
351
Plate,Metal LGE MGJ36425301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ32795314 Contact Us For Availability
402
Bracket LGE MAZ62084402 Contact Us For Availability
420
Plate,Shield LGE MGJ37885001 Contact Us For Availability
430
Plate,Shield LGE MGJ37884901 Contact Us For Availability
450
Plate,Shield LGE MGJ36391105 Contact Us For Availability
470
Plate,Metal LGE MGJ37836501 Contact Us For Availability
510
PCB Assembly LGE EBR64437402 Contact Us For Availability
510
PCB Assembly LGE EBR64437401 Contact Us For Availability
511
Bracket LGE MAZ61979601 Contact Us For Availability
520
Auto SMT PCB Assembly LGE EBR36987901 Contact Us For Availability
530
SMPS,AC/DC LGE EAY40505202 Contact Us For Availability
550
Filter,AC Line LGE EAM36140901 Contact Us For Availability
A1
Title LGE SAC34020404 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB33871417 Contact Us For Availability
A4
CABLE,D-SUB LGE 6850TD9001K Contact Us For Availability
AR100
RESISTOR,METAL GLAZE LGE 0RJ1000C687 Contact Us For Availability
AR106
Resistor,Chip LGE 0RJ0562C687 Contact Us For Availability
C101
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C121
CAPACITOR,FIXED CERA LGE 0CK225DH94A Contact Us For Availability
C124
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C143
CAPACITOR,FIXED ELEC LGE 0CE476WH6DC Contact Us For Availability
C144
Capacitor,AL,Chip LGE EAE36144701 Contact Us For Availability
C145
Capacitor,AL,Chip LGE 0CE107WK6DC Contact Us For Availability
C153
CAPACITOR,FIXED ELEC LGE 0CE107WH6DC Contact Us For Availability
C167
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C196
CAPACITOR,FIXED ELEC LGE 0CE477WF6DC Contact Us For Availability
C200
Capacitor,AL,Chip LGE 0CZZTAT008E Contact Us For Availability
C202
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C203
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C209
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C235
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C250
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C257
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C258
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C270
CAPACITOR,FIXED CERA LGE 0CK225DK94A Contact Us For Availability
C281
Capacitor,Ceramic,Chip LGE 0CK682CK51A Contact Us For Availability
C306
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C311
CAPACITOR,FIXED CERA LGE 0CK104CF56A Contact Us For Availability
C321
CAPACITOR,FIXED CERA LGE 0CC331CK41A Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C337
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C339
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C343
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C356
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C359
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C372
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C389
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C391
CAPACITOR,FIXED ELEC LGE 0CE108EJK18 Contact Us For Availability
C398
Capacitor,AL,Chip LGE EAE34990901 Contact Us For Availability
C401
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
D106
DIODE,RECTIFIERS LGE 0DRON00268A Contact Us For Availability
D110
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D116
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D128
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D131
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D134
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D135
Diode,TVS LGE EAH33945901 Contact Us For Availability
IC1
Receiver Module LGE EAV37989901 Contact Us For Availability
IC101
IC,LDO Voltage Regul LGE 0IPMGS1010A Contact Us For Availability
IC105
IC,POWER MANAGEMENT LGE 0IPMG00048A Contact Us For Availability
IC111
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC113
IC LGE 0IPH741400E Contact Us For Availability
IC114
IC,Voltage Regulator LGE EAN32662801 Contact Us For Availability
IC116
IC,OP Amplifier LGE 0IPRPAD024A Contact Us For Availability
IC118
IC,Voltage Detector LGE 0IPRPKE008A Contact Us For Availability
IC120
IC,Video Processors LGE EAN42073901 Contact Us For Availability
IC125
IC Assembly LGE EAN36016122 Contact Us For Availability
IC126
IC,Audio Amplifier LGE EAN41584001 Contact Us For Availability
IC127
IC,OP Amplifier LGE 0IMO324000C Contact Us For Availability
IC128
Sensor,Temperature LGE EBD38015101 Contact Us For Availability
JK101
Jack,DIN LGE EAG39323101 Contact Us For Availability
JK109
Connector,Terminal LGE 385-173B Contact Us For Availability
JK112
Connector,DSUB LGE EAG43472001 Contact Us For Availability
L1
Filter,Bead LGE EAM38769507 Contact Us For Availability
L141
Filter,Bead LGE EAM30764101 Contact Us For Availability
L147
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
LD2
LED,Chip LGE EAV34876201 Contact Us For Availability
LD2
LED LGE 0DLBE0048AA Contact Us For Availability
LV1
Harness,Single LGE EAD42557901 Contact Us For Availability
M100
Holder LGE MEG41035801 Contact Us For Availability
P1
Harness,Single LGE EAD37197601 Contact Us For Availability
P3
Connector,Wafer LGE 6630VJ01802 Contact Us For Availability
P4
Connector,Wafer LGE 6602T20009D Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20008J Contact Us For Availability
P101
CONNECTOR (CIRC),WAF LGE 6602T20009C Contact Us For Availability
P107
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P108
Connector,Wafer LGE 6630V091112 Contact Us For Availability
P114
Connector,Wafer LGE 6602T25008B Contact Us For Availability
P118
Connector,Wafer LGE EAG39798201 Contact Us For Availability
P119
Connector,Wafer LGE EAG33942601 Contact Us For Availability
Q106
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q112
TRANSISTOR,FETS LGE 0TFIR80016B Contact Us For Availability
Q128
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q133
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
R2
Resistor,Chip LGE 0RJ3300D677 Contact Us For Availability
R105
Resistor,Chip LGE 0RH1302D622 Contact Us For Availability
R106
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R125
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R126
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R189
Resistor,Chip LGE 0RJ3301D477 Contact Us For Availability
R204
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R270
Resistor,Chip LGE 0RJ0271D677 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R320
Resistor,Chip LGE 0RJ0752D477 Contact Us For Availability
R326
RESISTOR,METAL GLAZE LGE 0RJ6201D677 Contact Us For Availability
R374
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R391
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R399
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R400
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R418
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R458
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R470
RESISTOR,METAL GLAZE LGE 0RJ1302D677 Contact Us For Availability
R472
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R525
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R557
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R585
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R586
Resistor,Chip LGE 0RJ0561D677 Contact Us For Availability
R593
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R594
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ6802D677 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ4300D677 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R623
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R651
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R652
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R669
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
S1
PCB Assembly LGE EBR36353209 Contact Us For Availability
S2
Harness,Single LGE 6631900049N Contact Us For Availability
S3
Harness,Single LGE EAD42065903 Contact Us For Availability
S4
Fan Module LGE 5900T52001K Contact Us For Availability
S5
PCB Assembly LGE EBR36105001 Contact Us For Availability
S6
CONNECTOR ASSEMBLY LGE 6631900048A Contact Us For Availability
S7
Plate LGE 4950TKK237A Contact Us For Availability
S8
Plate,Shield LGE MGJ37837201 Contact Us For Availability
S9
Knob LGE MEY36384601 Contact Us For Availability
S10
PCB Assembly,Main LGE EBR36033103 Contact Us For Availability
S11
Filter LGE MDJ42250704 Contact Us For Availability
SW103
SWITCH LGE 140-058E Contact Us For Availability
X100
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
X101
Crystal LGE EAW39040101 Contact Us For Availability
ZD1
Diode,Zener LGE EAH60270608 Contact Us For Availability
× ![]()
