Model LG LD25EL – Common Parts & Diagrams

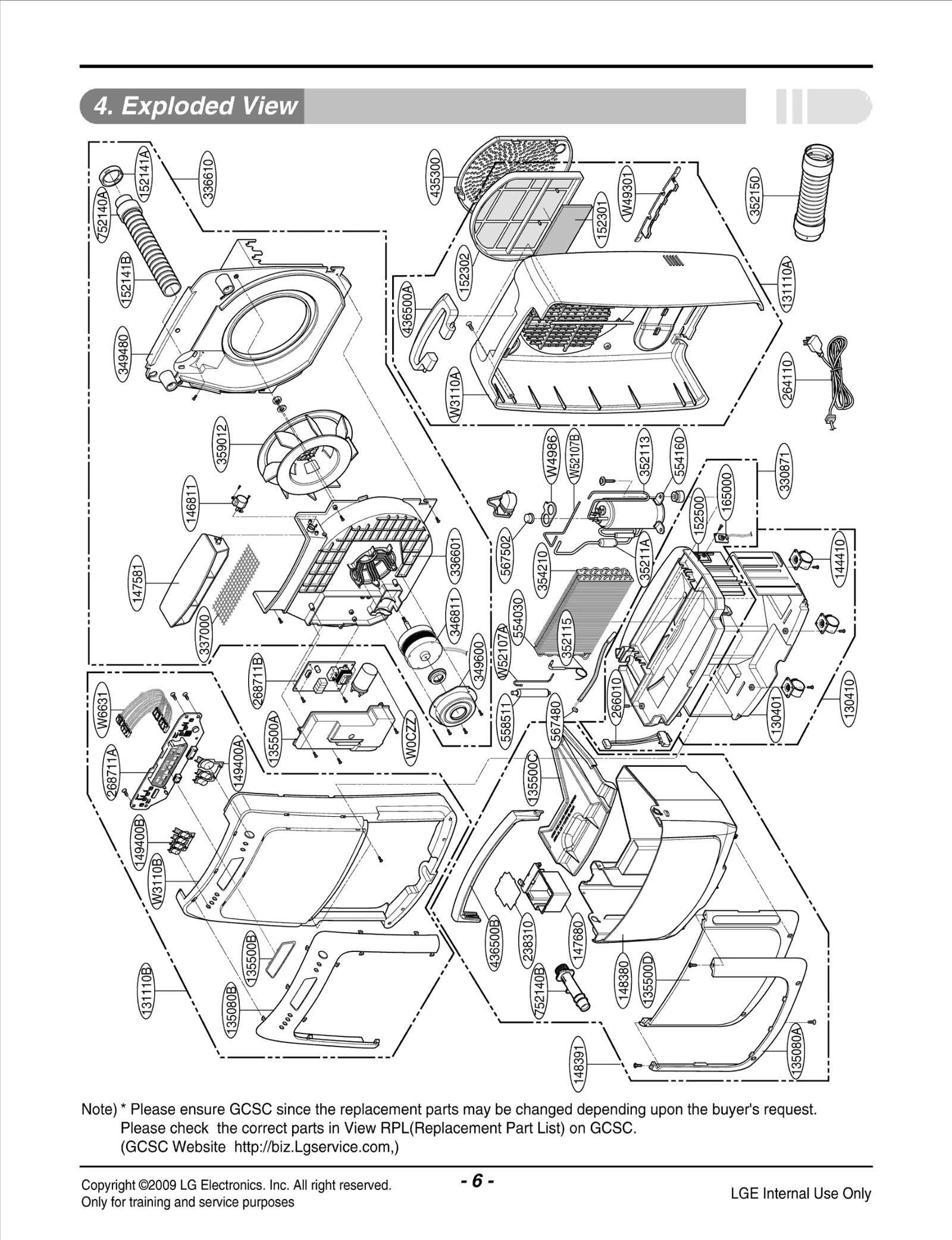

Diagram 0
Common parts from model LG LD25EL
130401
Base,Single LGE 3040A20029A Contact Us For Availability
131110A
Case Assembly,Single LGE 3111A10008H Contact Us For Availability
131110B
Case Assembly,Single LGE 3111A10007W Contact Us For Availability
135080A
Decor LGE 3508A20015H Contact Us For Availability
135080B
Decor LGE 3508A20016S Contact Us For Availability
135500A
Cover LGE 3550A20074B Contact Us For Availability
135500B
Cover LGE MCK31245701 Contact Us For Availability
135500C
Cover LGE MCK41868701 Contact Us For Availability
135500D
Cover LGE 3550A20073G Contact Us For Availability
144410
Roller LGE 4441A30001E Contact Us For Availability
146811
Motor,DC LGE 4681AR2727R Contact Us For Availability
147581
Louver,Horizontal LGE 5990A20006F Contact Us For Availability
147680
Float LGE 4768A30001C Contact Us For Availability
148380
Tank,Bucket LGE 4838A20006A Contact Us For Availability
148391
Tank Assembly,Bucket LGE 4839A00001K Contact Us For Availability
149400A
Knob LGE 4940A30030A Contact Us For Availability
149400B
Knob LGE 4940A30030B Contact Us For Availability
152141A
Hose,Drain LGE 5214A20007G Contact Us For Availability
152141B
Hose,Drain LGE 5214A20009A Contact Us For Availability
152301
Filter,Deodorizing LGE 5230A30005D Contact Us For Availability
152302
Filter,Air LGE 5230A20012A Contact Us For Availability
152500
Pan,Drain LGE 3086A10013A Contact Us For Availability
165000
Sensor,Humidity LGE 6500A90002B Contact Us For Availability
238310
Escutcheon LGE 3831A30003A Contact Us For Availability
264110
Power Cord Assembly LGE 6411A20011Y Contact Us For Availability
266010
Switch Assembly LGE 6601A20004A Contact Us For Availability
268711A
PCB Assembly,Display LGE 6871A20150E Contact Us For Availability
268711B
PCB Assembly,Main LGE 6871A10039E Contact Us For Availability
330871
Pan Assembly,Drain LGE 3087A10007B Contact Us For Availability
336601
Housing,Side LGE 3660A20016B Contact Us For Availability
336610
Housing Assembly LGE 3661A10010L Contact Us For Availability
337000
Mesh,Metal LGE 3700AR3780C Contact Us For Availability
346811
Motor Assembly,AC,Single LGE 4681A20012U Contact Us For Availability
349480
Orifice LGE 4948A20006A Contact Us For Availability
349600
Damper,Motor LGE 3A70182A Contact Us For Availability
352113
Tube Assembly,Discharge LGE AJR55746401 Contact Us For Availability
352115
Tube Assembly,Evaporator(In) LGE 5211A20364E Contact Us For Availability
354210
Evaporator Assembly,First LGE 5421A20080A Contact Us For Availability
359012
Fan,Turbo LGE 5900A20018A Contact Us For Availability
435300
Grille,Rear LGE 3530A20034F Contact Us For Availability
436500A
Handle LGE MEB41868401 Contact Us For Availability
436500B
Handle LGE MEB41868501 Contact Us For Availability
554030
Condenser Assembly,First LGE 5403A20050A Contact Us For Availability
554160
Compressor LGE MCB38343202 Contact Us For Availability
558511
Drier Assembly LGE 5851A30001D Contact Us For Availability
567480
Thermistor,NTC LGE 3Q35015Y Contact Us For Availability
567502
Overload Protect LGE 6750A90001L Contact Us For Availability
752140A
Connector,Hose LGE 5214A20006A Contact Us For Availability
752140B
Connector,Hose LGE MCD47790101 Contact Us For Availability
W0CZZ
Capacitor,Film,Box LGE 0CZZA20003Q Contact Us For Availability
W3110A
Case LGE 3110A20033J Contact Us For Availability
W3110B
Case LGE 3110A20034K Contact Us For Availability
W4986
Gasket LGE 4986A30001R Contact Us For Availability
W6631
Harness,Multi LGE 6631AQ3201D Contact Us For Availability
W49301
Holder,Plate LGE MEG41868801 Contact Us For Availability
W52107A
Tube,Condenser LGE 5210A20871B Contact Us For Availability
W52107B
Tube,Condenser LGE 5210A20866B Contact Us For Availability
× ![]()
