Model Electrolux LCE772LL0 LAUNDRY CENTER – Common Parts & Diagrams

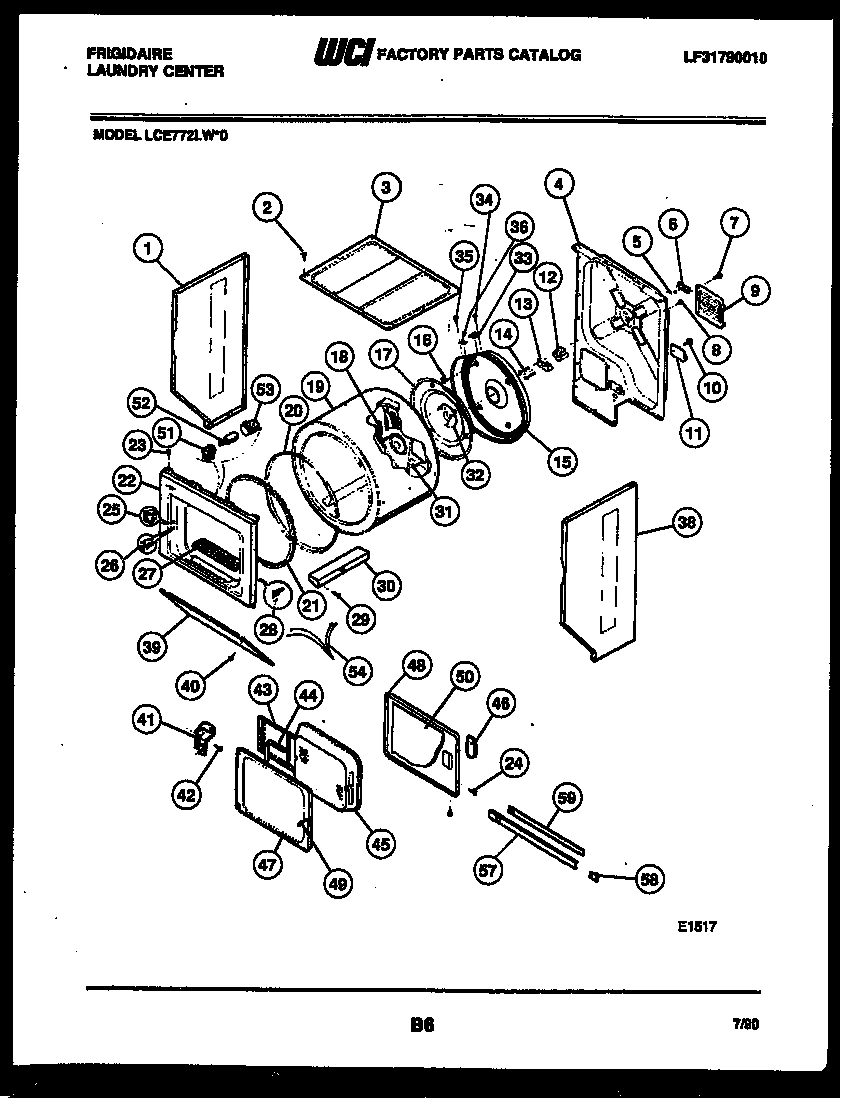

02 - CABINET AND COMPONENT PARTS

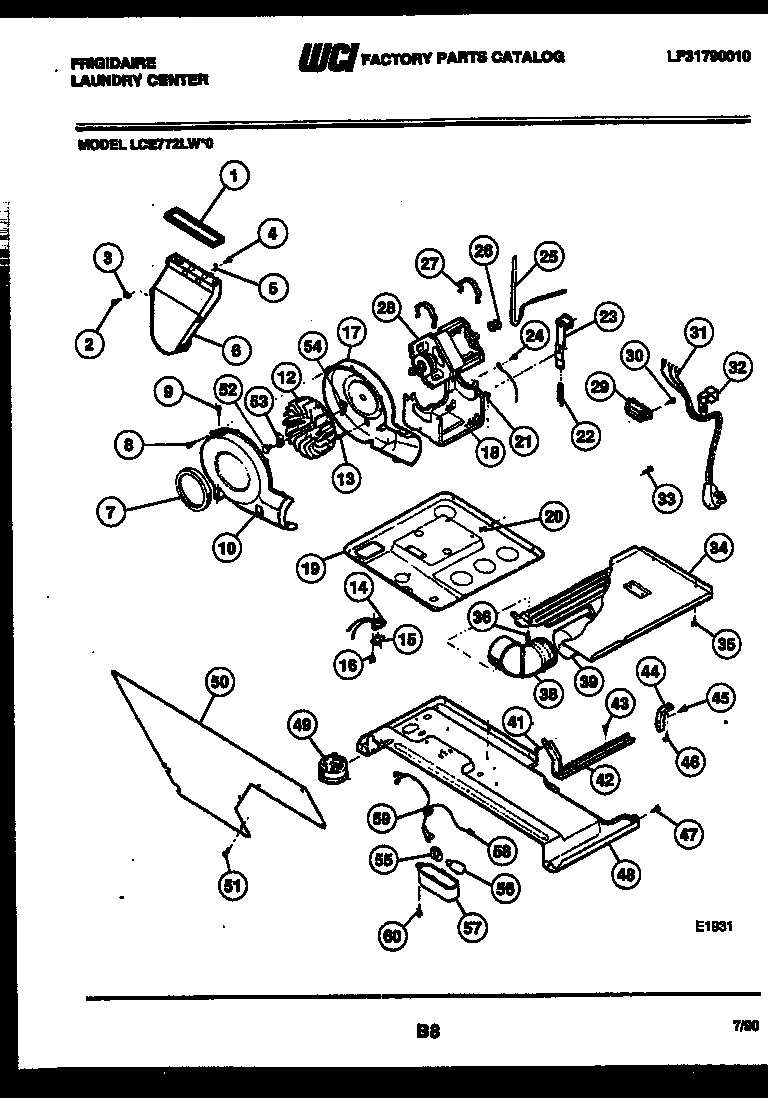

03 - MOTOR, BLOWER AND CABINET PARTS

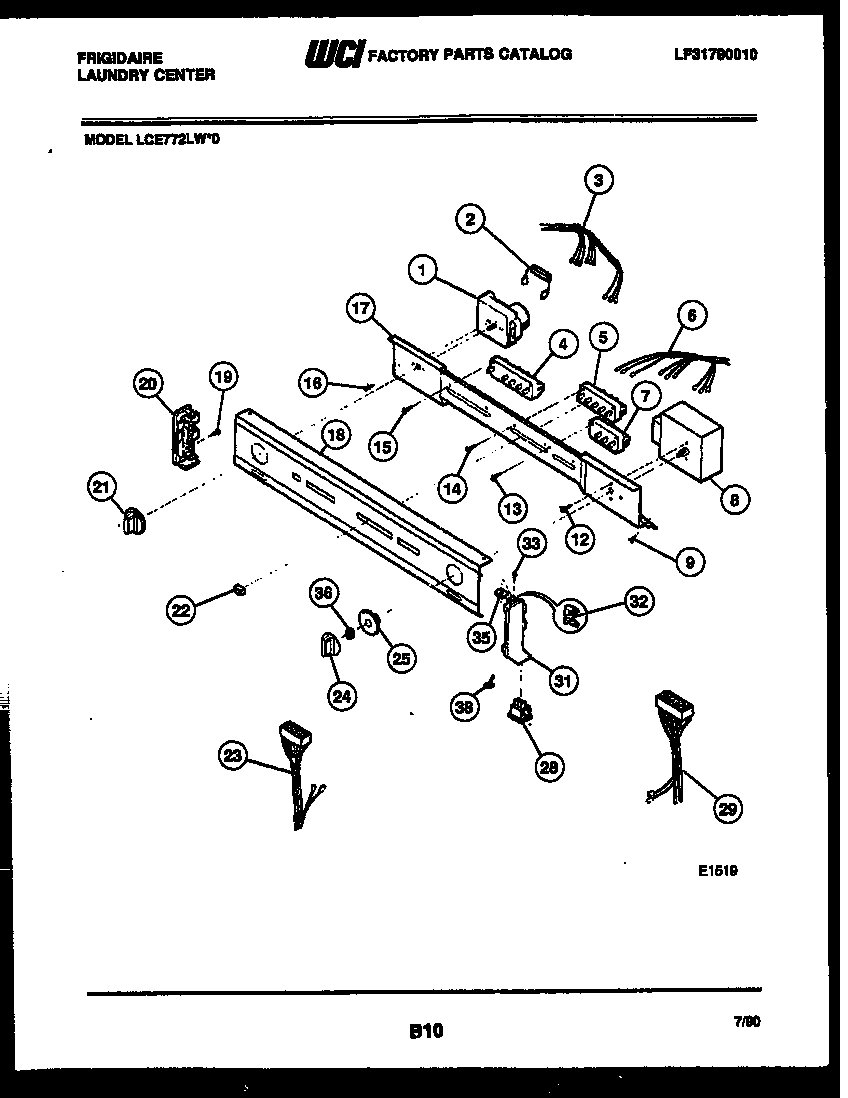

04 - CONSOLE AND CONTROL PARTS

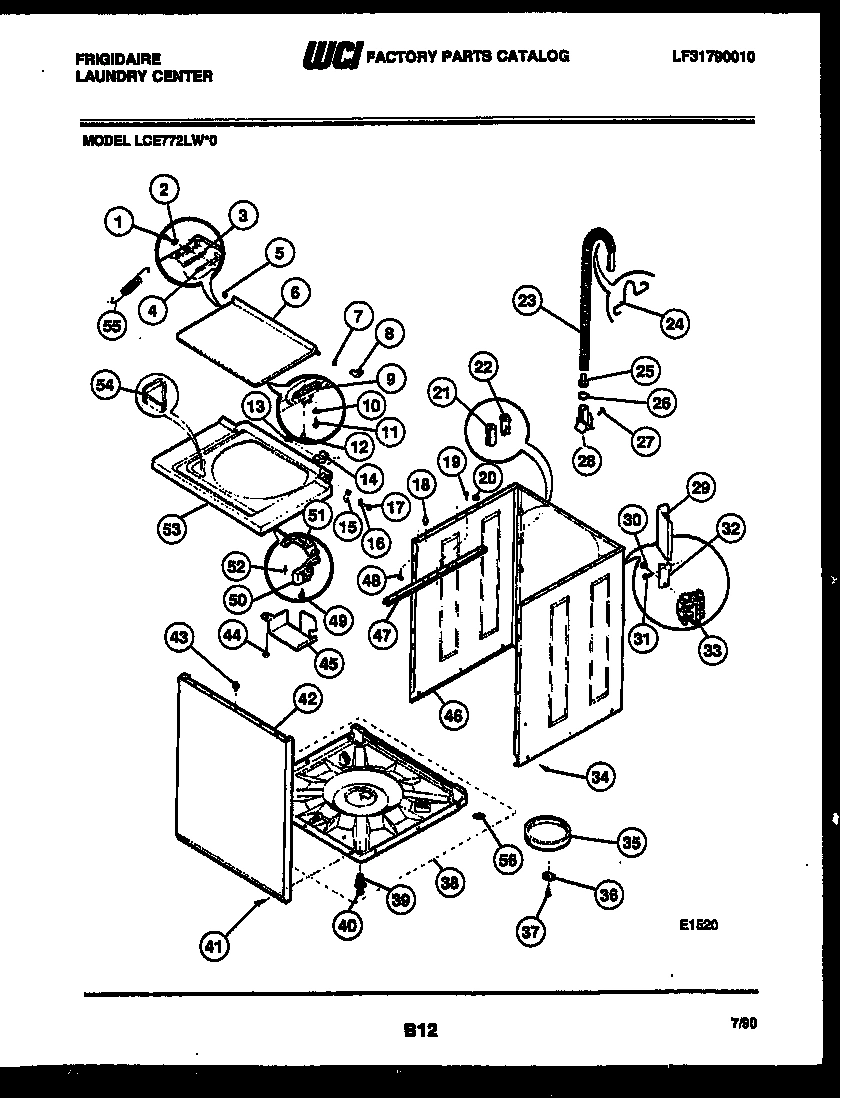

05 - CABINET PARTS

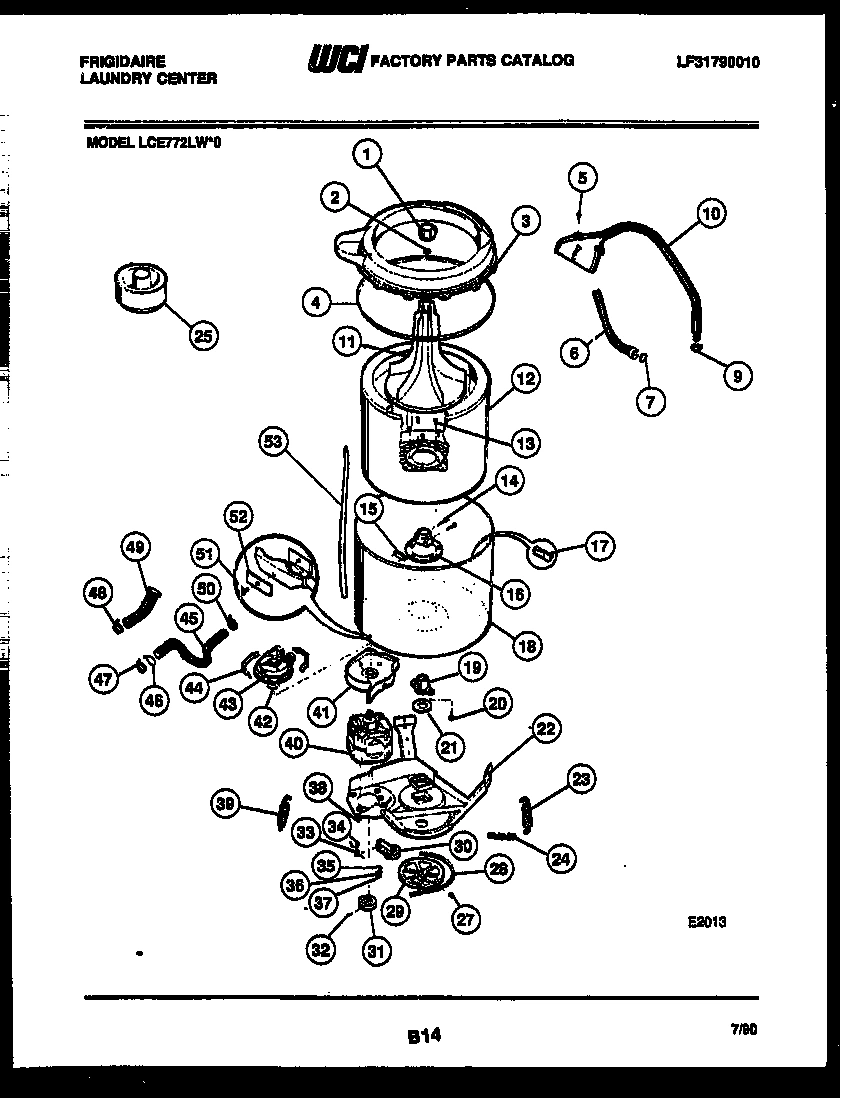

06 - TUB DETAIL

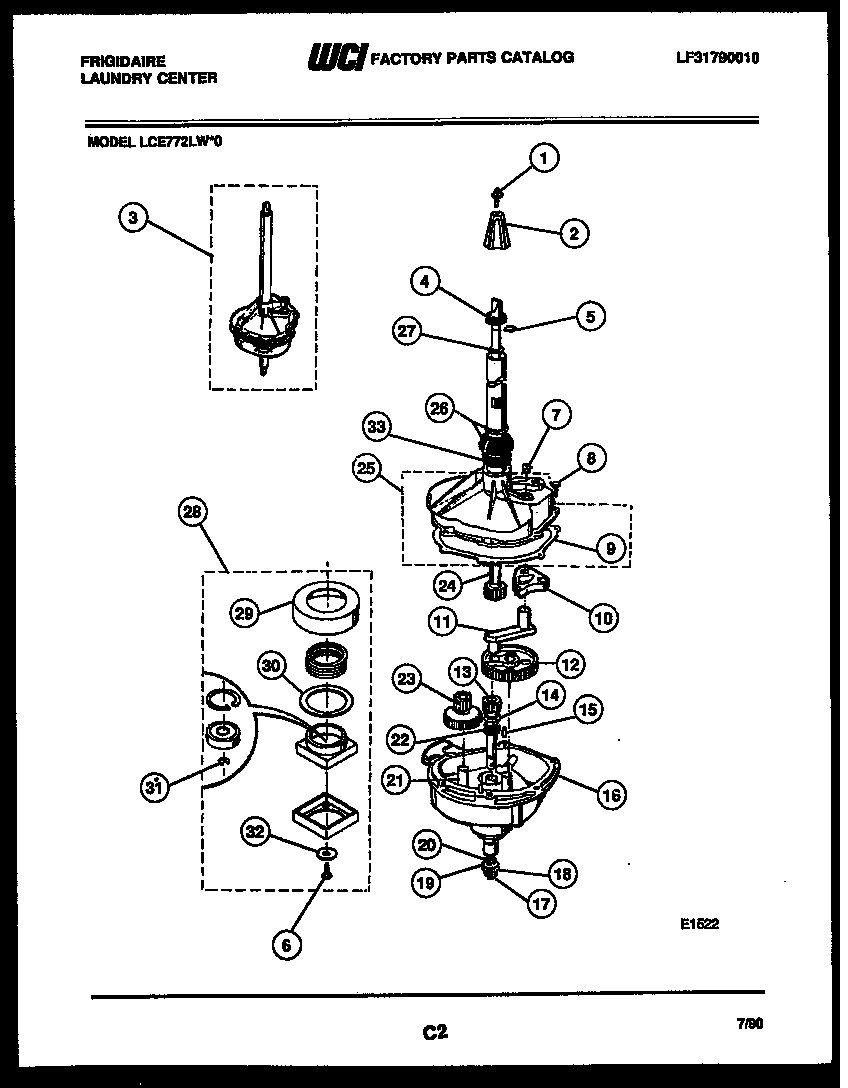

07 - TRANSMISSION PARTS
Common parts from model Electrolux LCE772LL0 LAUNDRY CENTER
1
WCI 3204461 WCI 3204461 Contact Us For Availability
1
AGITATOR CAP WCI 5303208779 Contact Us For Availability
1
WCI 3204330 WCI 3204330 Contact Us For Availability
1
SCREW (2) WCI 3204359 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
2
WCI 3205243 WCI 3205243 Contact Us For Availability
3
WCI 3204331 WCI 3204331 Contact Us For Availability
3
WCI 3204360 WCI 3204360 Contact Us For Availability
3
WCI 3205526 WCI 3205526 Contact Us For Availability
4
WCI 3204332 WCI 3204332 Contact Us For Availability
5
WCI 5303209109 WCI 5303209109 Contact Us For Availability
6
WCI 3204299 WCI 3204299 Contact Us For Availability
6
WCI 5303209110 WCI 5303209110 Contact Us For Availability
6
WCI 3204364 WCI 3204364 Contact Us For Availability
6
SCREW (2) WCI 5308027582 Contact Us For Availability
7
WCI 3204335 WCI 3204335 Contact Us For Availability
7
WCI 3204365 WCI 3204365 Contact Us For Availability
7
WCI 5303151224 WCI 5303151224 Contact Us For Availability
8
WCI 5303209111 WCI 5303209111 Contact Us For Availability
8
WCI 3204366 WCI 3204366 Contact Us For Availability
8
SCREW (6) WCI 08002804 Contact Us For Availability
9
GASKET WCI 5308015778 Contact Us For Availability
9
CLAMP WCI 5303012110 Contact Us For Availability
10
WCI 3204301 WCI 3204301 Contact Us For Availability
10
WASHER (2) WCI 5308002408 Contact Us For Availability
10
NOZZLE & HOSE ASSEMBLY WCI 3204400 Contact Us For Availability
10
WCI 5308011268 WCI 5308011268 Contact Us For Availability
11
WCI 5303208780 WCI 5303208780 Contact Us For Availability
11
WCI 5303161169 WCI 5303161169 Contact Us For Availability
12
WCI 3205233 WCI 3205233 Contact Us For Availability
12
SPIN TUB WCI 3204402 Contact Us For Availability
12
WCI 5308015496 WCI 5308015496 Contact Us For Availability
13
SCREW (5) WCI 5308027519 Contact Us For Availability
13
LOWER SHAFT ASSEMBLY WCI 5308014905 Contact Us For Availability
14
EXTERNAL THERMOSTAT HEATER WCI 5303206879 Contact Us For Availability
14
WCI 3204370 WCI 3204370 Contact Us For Availability
14
WCI 5303151226 WCI 5303151226 Contact Us For Availability
15
WCI 3204371 WCI 3204371 Contact Us For Availability
15
WCI 5303161227 WCI 5303161227 Contact Us For Availability
16
SCREW (2) WCI 3161188 Contact Us For Availability
16
WCI 5308014908 WCI 5308014908 Contact Us For Availability
16
LOWER HOUSING ASSEMBLY WCI 5303912535 Contact Us For Availability
17
WCI 5303161223 WCI 5303161223 Contact Us For Availability
17
WCI 3204309 WCI 3204309 Contact Us For Availability
17
WCI 5303209112 WCI 5303209112 Contact Us For Availability
17
WCI F000131686 WCI F000131686 Contact Us For Availability
17
WCI 3204403 WCI 3204403 Contact Us For Availability
18
WCI 5303209113 WCI 5303209113 Contact Us For Availability
18
SPLASH TUB & BEARING ASSEMBLY WCI 3204404 Contact Us For Availability
18
WCI 5308002475 WCI 5308002475 Contact Us For Availability
19
WCI 5303161226 WCI 5303161226 Contact Us For Availability
19
WCI 3204311 WCI 3204311 Contact Us For Availability
20
WCI 3204343 WCI 3204343 Contact Us For Availability
21
WCI 3204260 WCI 3204260 Contact Us For Availability
21
SCREW-CRADLE TO PAN WCI 3281077 Contact Us For Availability
21
DRYER KNOB ASMY. WCI 3205641 Contact Us For Availability
21
WCI 5308014903 WCI 5308014903 Contact Us For Availability
21
WCI 3005242 WCI 3005242 Contact Us For Availability
22
WCI 5303161174 WCI 5303161174 Contact Us For Availability
22
WCI 5303209115 WCI 5303209115 Contact Us For Availability
22
WCI 5303161252 WCI 5303161252 Contact Us For Availability
22
LEG & DOME ASMY. WCI 3204408 Contact Us For Availability
22A
WCI 5303209118 WCI 5303209118 Contact Us For Availability
22B
WCI 5303207416 WCI 5303207416 Contact Us For Availability
23
IDLER ARM ASMY. WCI 3205242 Contact Us For Availability
23
WCI 3205246 WCI 3205246 Contact Us For Availability
23
DRAIN HOSE WCI 3205414 Contact Us For Availability
23
WCI 3204409 WCI 3204409 Contact Us For Availability
23
WCI 5303161175 WCI 5303161175 Contact Us For Availability
24
RETAINER WCI 5303204987 Contact Us For Availability
24
WCI 3205643 WCI 3205643 Contact Us For Availability
24
WCI 3204410 WCI 3204410 Contact Us For Availability
24
AGITATOR SHAFT ASSEMBLY WCI 3205151 Contact Us For Availability
25
WCI 3204314 WCI 3204314 Contact Us For Availability
25
INDICATOR - WASHER TIMER WCI 3205644 Contact Us For Availability
25
DISPENSER WCI 3205405 Contact Us For Availability
25
UPPER HOUSING ASSEMBLY WCI 5303205527 Contact Us For Availability
26
TUB SEAL ASSEMBLY WCI 5308950197 Contact Us For Availability
26
WCI 5303201237 WCI 5303201237 Contact Us For Availability
26
WCI 5364154013 WCI 5364154013 Contact Us For Availability
27
CLAMP-MOTOR (2) WCI 3204315 Contact Us For Availability
27
WCI 5303151232 WCI 5303151232 Contact Us For Availability
28
GUIDE CLIP (4) WCI 5303281074 Contact Us For Availability
28
WCI 3204316 WCI 3204316 Contact Us For Availability
28
WCI 5303209123 WCI 5303209123 Contact Us For Availability
28
WCI 3204376 WCI 3204376 Contact Us For Availability
28
BEARING-HOUSING PKG WCI 5308950058 Contact Us For Availability
29
WCI 5303209126 WCI 5303209126 Contact Us For Availability
29
WCI 3204377 WCI 3204377 Contact Us For Availability
29
TRANSMISSION PULLEY WCI 3204420 Contact Us For Availability
29
WCI 5303161182 WCI 5303161182 Contact Us For Availability
30
SCREW (2) WCI 5308015309 Contact Us For Availability
30
WCI 5303010202 WCI 5303010202 Contact Us For Availability
30
IDLER ARM ASSEMBLY WCI 3204422 Contact Us For Availability
30
WCI 5308057430 WCI 5308057430 Contact Us For Availability
31
MOTOR PULLEY WCI 3204423 Contact Us For Availability
31
WCI 3204353 WCI 3204353 Contact Us For Availability
31
WCI 5308015536 WCI 5308015536 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
32
WCI 3204317 WCI 3204317 Contact Us For Availability
32
GROUNDING CLIP WCI 3204357 Contact Us For Availability
32
WCI 3204378 WCI 3204378 Contact Us For Availability
32
WCI 5308002467 WCI 5308002467 Contact Us For Availability
33
TORSION SPRING WCI 3204425 Contact Us For Availability
33
SCREW (4) WCI 08010789 Contact Us For Availability
33
WCI 5303161231 WCI 5303161231 Contact Us For Availability
34
WCI 3204319 WCI 3204319 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
35
SNUBBER RING WCI 5308002385 Contact Us For Availability
35
CLIP (4) WCI 5308014350 Contact Us For Availability
36
WCI 5303261031 WCI 5303261031 Contact Us For Availability
36
SPACER-TIMER-SHAFT WCI 3205248 Contact Us For Availability
36
SHIPPING BLOCK WCI 3204380 Contact Us For Availability
37
SHIPPING SCREW WCI 3204381 Contact Us For Availability
37
WCI 5303151306 WCI 5303151306 Contact Us For Availability
38
ELBOW WCI 3204320 Contact Us For Availability
38
SCREW (2) WCI 3205253 Contact Us For Availability
38
BASE ASSEMBLY WCI 3204382 Contact Us For Availability
39
LEVELING LEG & PAD (2) WCI 5303937004 Contact Us For Availability
39
WCI 3204322 WCI 3204322 Contact Us For Availability
40
WCI 3204449 WCI 3204449 Contact Us For Availability
41
MOTOR SHIELD WCI 3204450 Contact Us For Availability
42
WCI 3204324 WCI 3204324 Contact Us For Availability
42
FRONT PANEL-ALMOND WCI 3204385 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
WCI 5303209104 WCI 5303209104 Contact Us For Availability
43
LOCATING PIN WCI 3204373 Contact Us For Availability
43
WCI 3204452 WCI 3204452 Contact Us For Availability
44
SCREW WCI 3018964 Contact Us For Availability
44
WCI 3204453 WCI 3204453 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
45
WCI 3204386 WCI 3204386 Contact Us For Availability
46
SCREW (2) WCI 3204325 Contact Us For Availability
46
WCI 3204388 WCI 3204388 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
47
WCI 3204389 WCI 3204389 Contact Us For Availability
48
WCI 3204327 WCI 3204327 Contact Us For Availability
48
SCREW (2) WCI 08001578 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
49
WCI 3204328 WCI 3204328 Contact Us For Availability
49
WCI 5303209130 WCI 5303209130 Contact Us For Availability
50
SAFETY COVER WCI 3204329 Contact Us For Availability
50
WCI 3205646 WCI 3205646 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
WCI 08011280 WCI 08011280 Contact Us For Availability
51
WCI 3204391 WCI 3204391 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
WCI 5308027430 WCI 5308027430 Contact Us For Availability
52
WCI 3205238 WCI 3205238 Contact Us For Availability
52
RIVET (3) WCI 08002420 Contact Us For Availability
52
WCI 3204460 WCI 3204460 Contact Us For Availability
53
CLAMP-FRONT WCI 3205236 Contact Us For Availability
53
WCI 3204393 WCI 3204393 Contact Us For Availability
54
BLEACH DISPENSER WCI 3204394 Contact Us For Availability
54
WCI 3205237 WCI 3205237 Contact Us For Availability
55
WCI 3204287 WCI 3204287 Contact Us For Availability
55
WCI 3205251 WCI 3205251 Contact Us For Availability
56
PAD-SELF LEVELING LEG (2) WCI 3204383 Contact Us For Availability
57
WCI 5303209106 WCI 5303209106 Contact Us For Availability
58
WCI 5303209107 WCI 5303209107 Contact Us For Availability
59
WCI 5303209108 WCI 5303209108 Contact Us For Availability
× ![]()
