Model Electrolux LCE732LL0 LAUNDRY CENTER – Common Parts & Diagrams

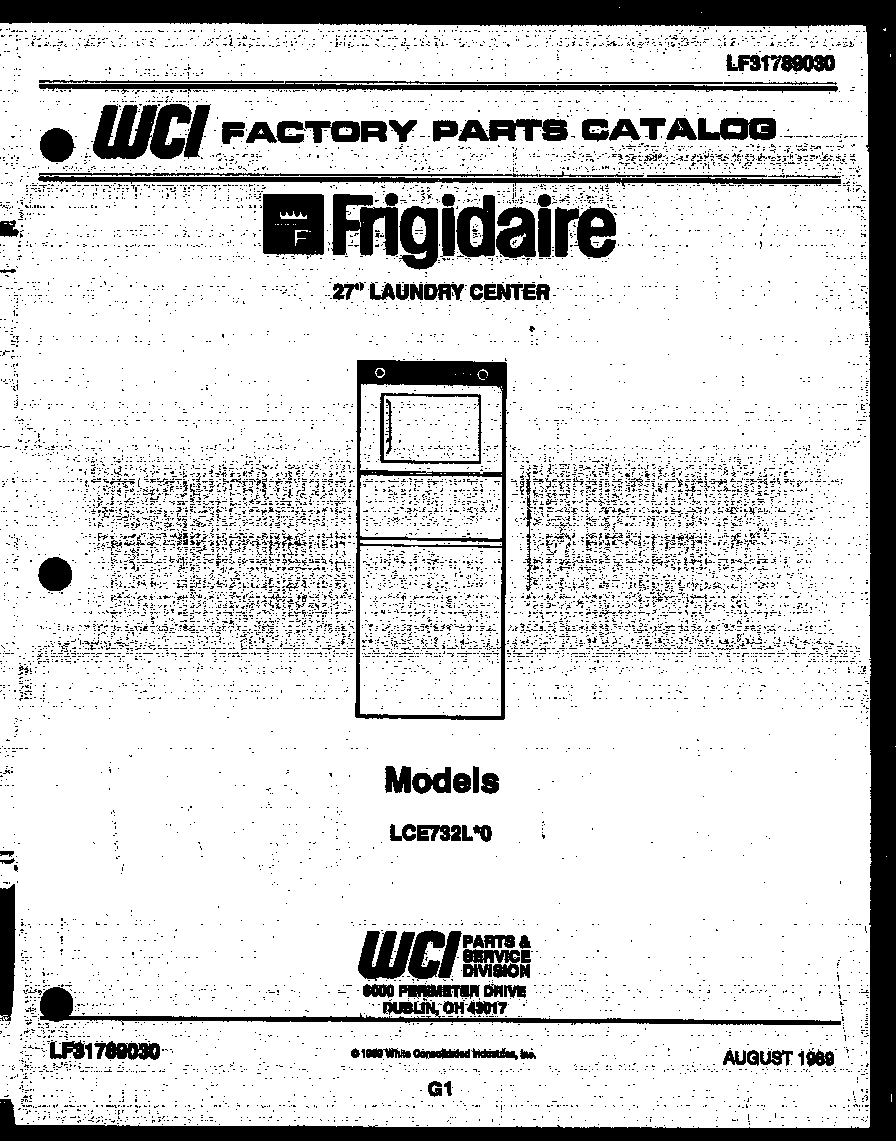

01 - COVER

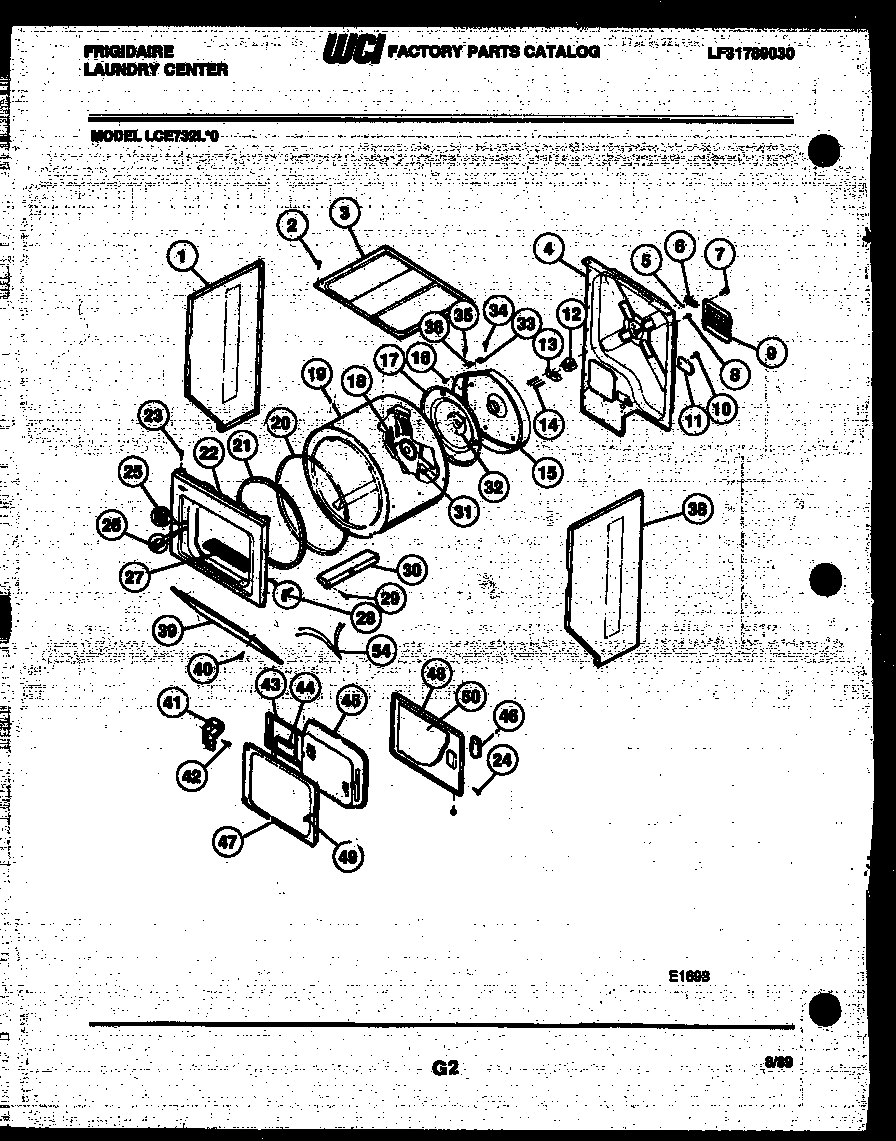

02 - CABINET AND COMPONENT PARTS

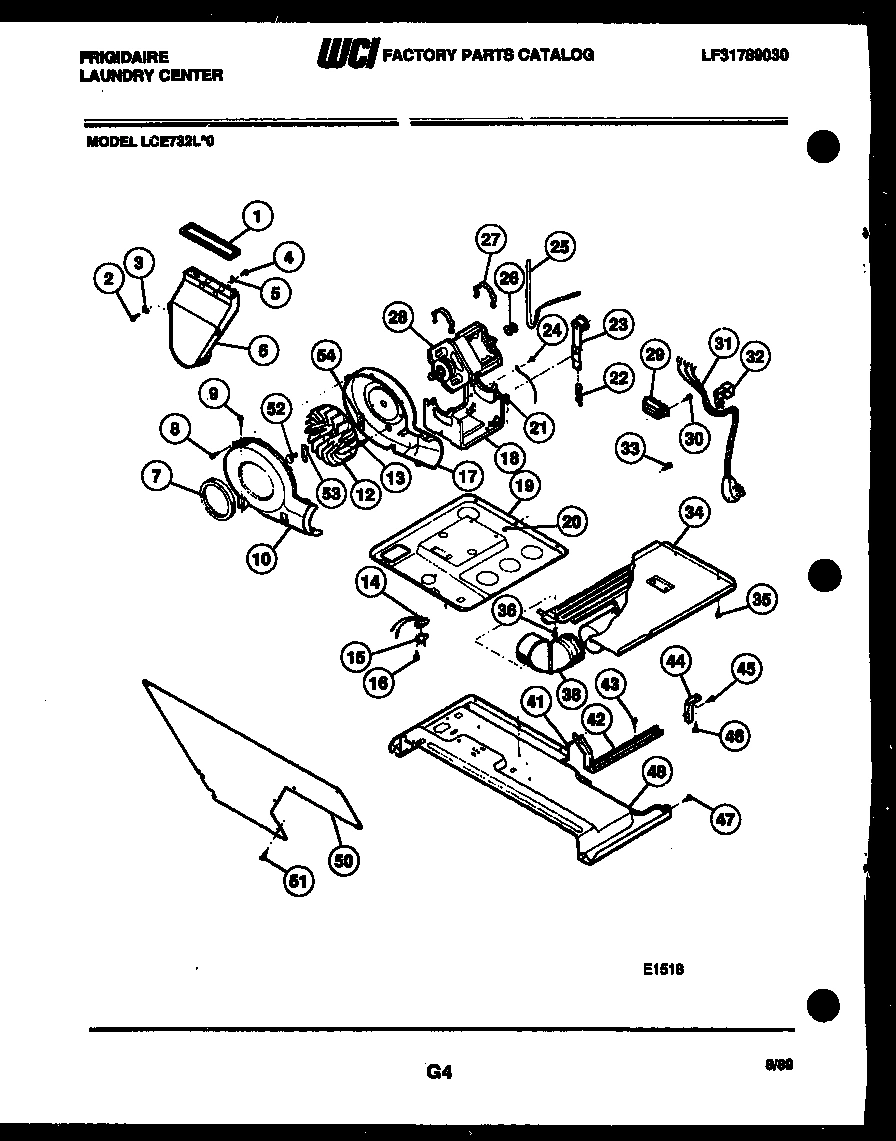

03 - MOTOR AND BLOWER PARTS

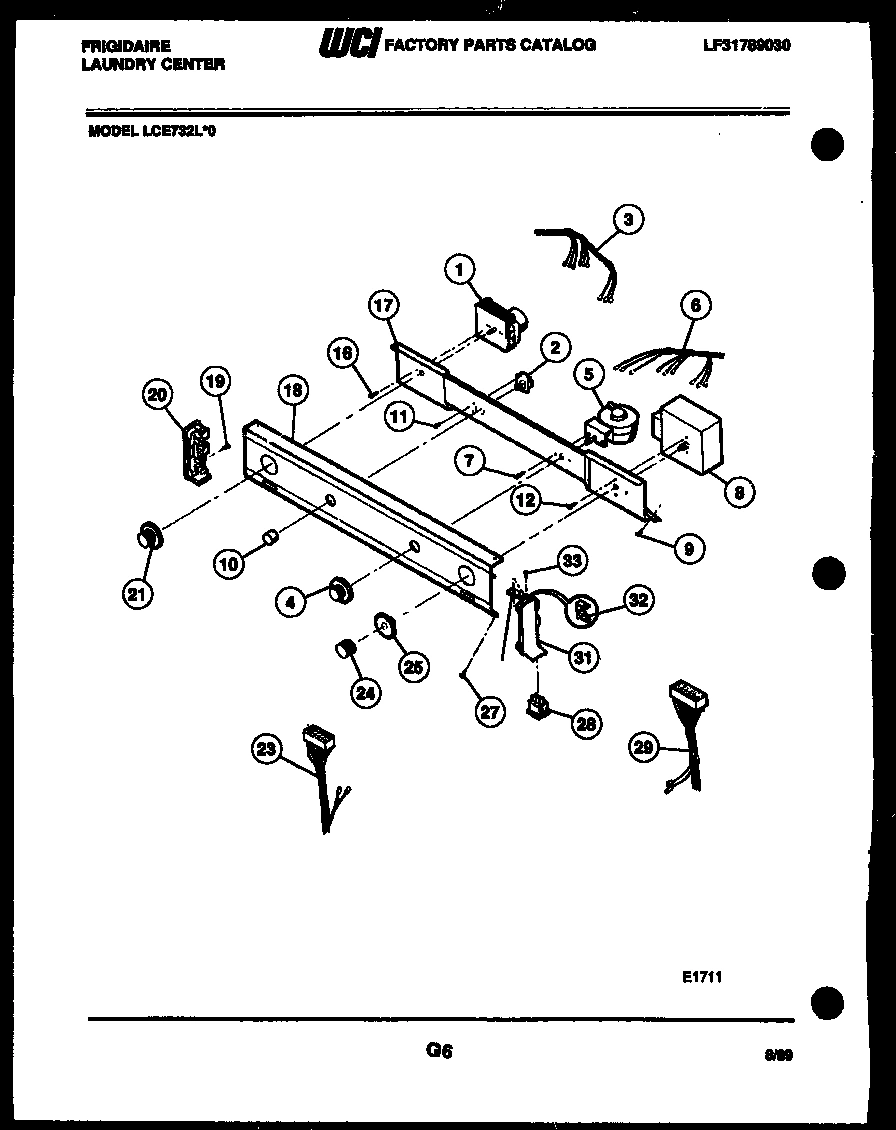

04 - CONSOLE AND CONTROL PARTS

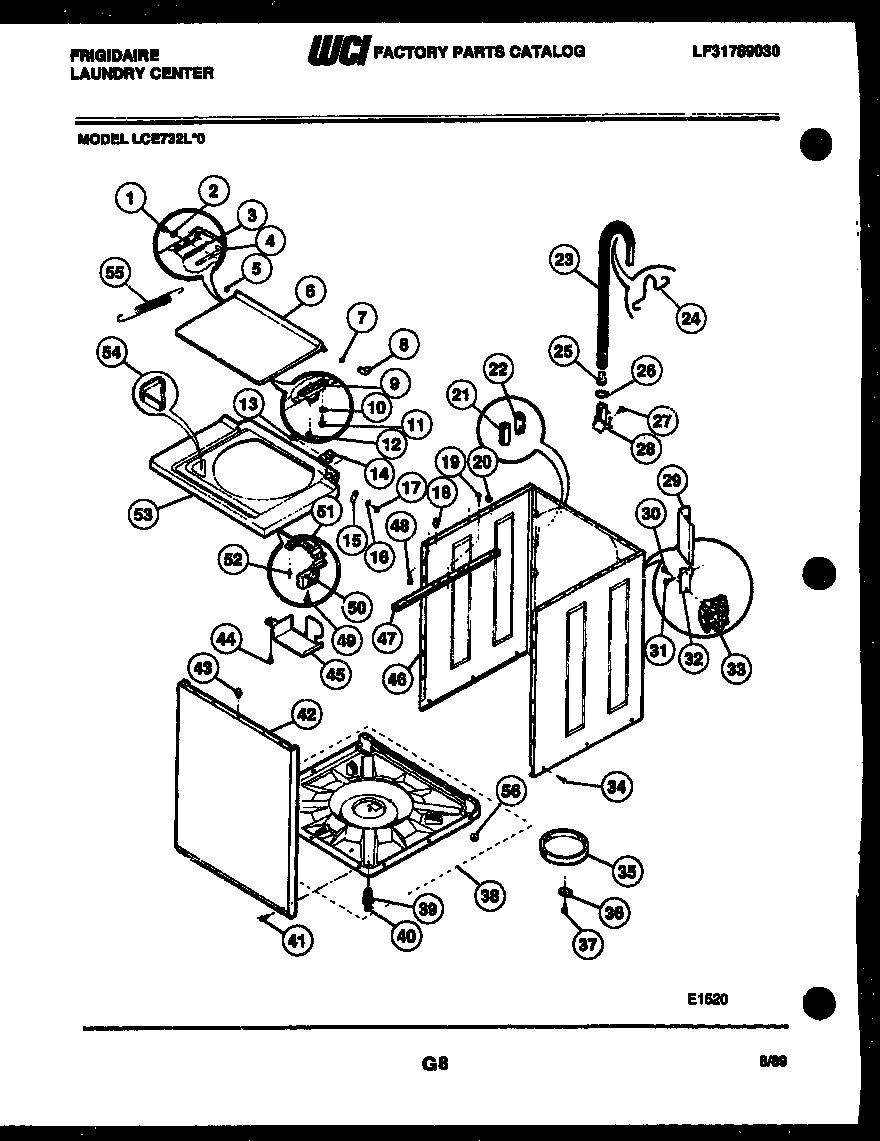

05 - CABINET PARTS

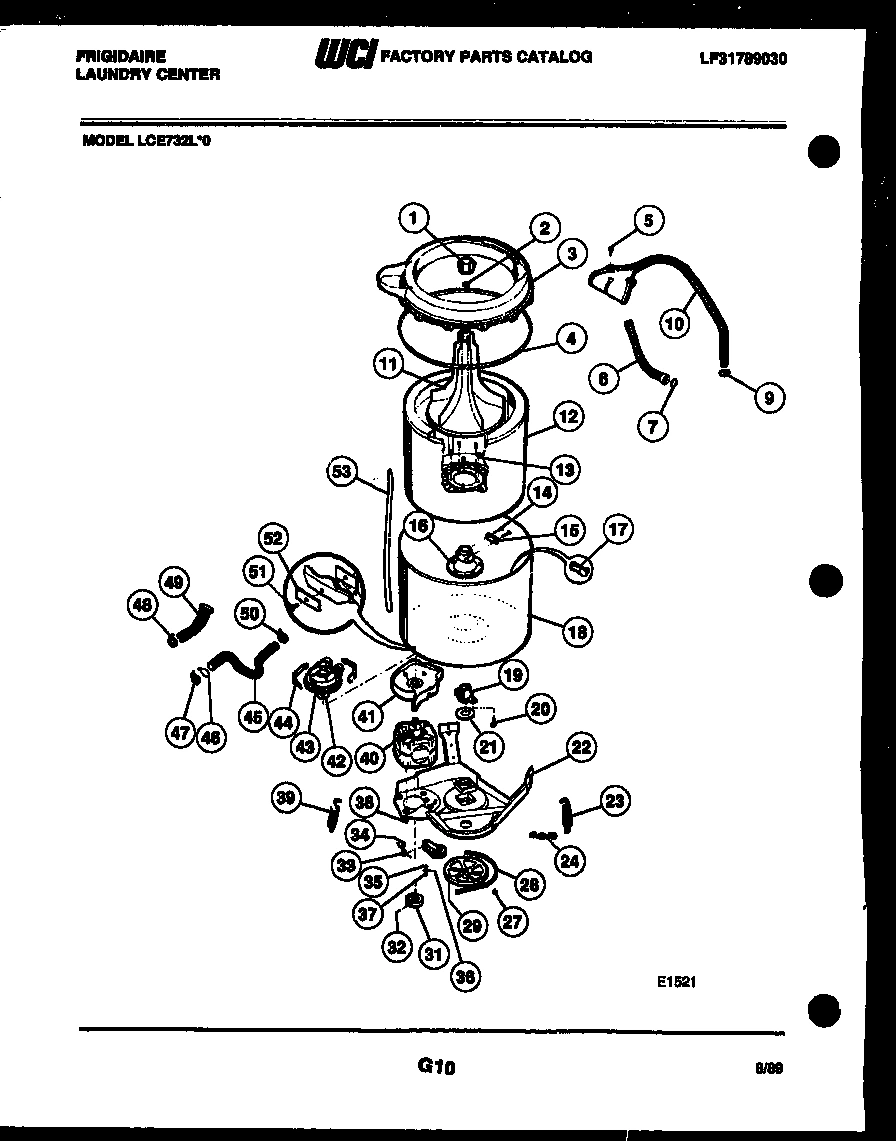

06 - TUB DETAIL

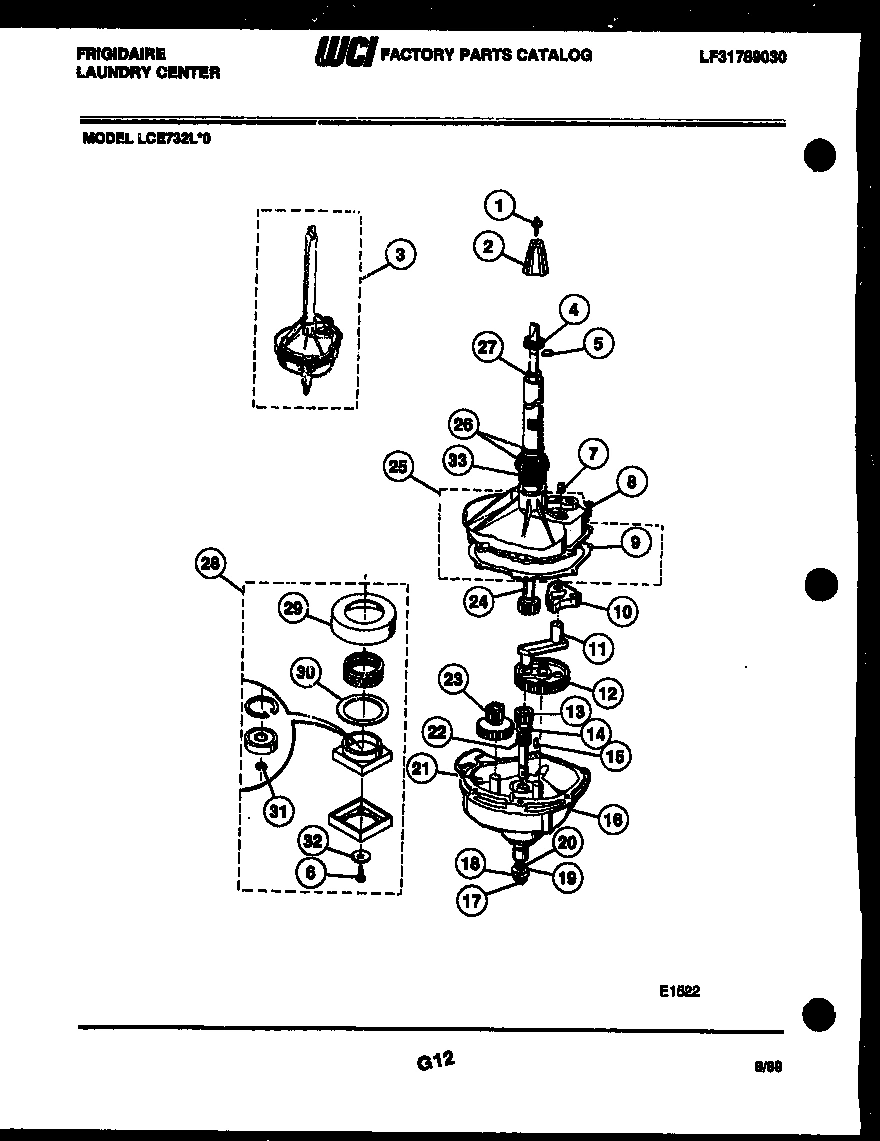

07 - TRANSMISSION PARTS
Common parts from model Electrolux LCE732LL0 LAUNDRY CENTER
*26019
SPACER-WASHER TIMER SHAFT WCI 3205248 Contact Us For Availability
*26019
SCREW-END CAP TO SIDE PANEL WCI 3205253 Contact Us For Availability
1
AGITATOR CAP WCI 3204395 No Longer Available
1
WCI 3204461 WCI 3204461 Contact Us For Availability
1
WCI 3204298 WCI 3204298 Contact Us For Availability
1
DRYER TIMER WCI 3201614 Contact Us For Availability
1
SCREW (2) WCI 3204359 Contact Us For Availability
2
SEAL-AGITATOR CAP WCI 3204396 Contact Us For Availability
2
START SWITCH WCI 3205632 Contact Us For Availability
3
WCI 3205633 WCI 3205633 Contact Us For Availability
3
WCI 3204360 WCI 3204360 Contact Us For Availability
3
WCI 3205526 WCI 3205526 Contact Us For Availability
4
WCI 3205634 WCI 3205634 Contact Us For Availability
5
WCI 5303209894 WCI 5303209894 Contact Us For Availability
5
GROMMET-LEFT WCI 3204362 Contact Us For Availability
6
WCI 3204299 WCI 3204299 Contact Us For Availability
6
WCI 3205636 WCI 3205636 Contact Us For Availability
6
WCI 3204364 WCI 3204364 Contact Us For Availability
6
SCREW (2) WCI 08027582 Contact Us For Availability
7
WCI 3204365 WCI 3204365 Contact Us For Availability
7
PIPE PLUG WCI 3161224 Contact Us For Availability
8
WCI 3205637 WCI 3205637 Contact Us For Availability
8
WCI 3204366 WCI 3204366 Contact Us For Availability
8
SCREW (6) WCI 08002804 Contact Us For Availability
9
CLAMP WCI 3012110 Contact Us For Availability
9
WCI 08015778 WCI 08015778 Contact Us For Availability
10
FRONT-BLOWER HSG WCI 3204301 Contact Us For Availability
10
WCI 3205638 WCI 3205638 Contact Us For Availability
10
WASHER (2) WCI F078259-000 Contact Us For Availability
10
NOZZLE & HOSE ASSY WCI 3204400 Contact Us For Availability
10
SECTOR GEAR WCI 08011268 Contact Us For Availability
11
WCI 3204401 WCI 3204401 Contact Us For Availability
11
WCI F135022000 WCI F135022000 Contact Us For Availability
11
CONNECTING ROD WCI 3161169 Contact Us For Availability
12
WCI 3205233 WCI 3205233 Contact Us For Availability
12
SPIN TUB WCI 3204402 Contact Us For Availability
12
CRANK GEAR WCI 08015496 Contact Us For Availability
13
SCREW (5) WCI 08027519 Contact Us For Availability
13
LOWER SHAFT ASSY WCI 08014905 Contact Us For Availability
14
EXTERNAL THERMOSTAT HEAT WCI F136777-000 Contact Us For Availability
14
WCI 3204370 WCI 3204370 Contact Us For Availability
15
WCI 3204371 WCI 3204371 Contact Us For Availability
15
DOWEL PIN WCI 3161227 Contact Us For Availability
16
SCREW (2) WCI 3161188 Contact Us For Availability
16
WCI 08014908 WCI 08014908 Contact Us For Availability
16
LOWER HOUSING ASSY WCI F140586-000 Contact Us For Availability
17
WCI 3204309 WCI 3204309 Contact Us For Availability
17
BRACKET-CONTROL PANEL WCI 3205639 Contact Us For Availability
17
WCI F131686000 WCI F131686000 Contact Us For Availability
17
WCI 3204403 WCI 3204403 Contact Us For Availability
17
RETAINER RING WCI 3161223 Contact Us For Availability
18
WCI 3205640 WCI 3205640 Contact Us For Availability
18
SPLASH TUB & BEARING ASSEMBLY WCI 3204404 Contact Us For Availability
18
WCI 08002475 WCI 08002475 Contact Us For Availability
19
WCI 3204311 WCI 3204311 Contact Us For Availability
19
THRUST WASHER WCI 3161226 Contact Us For Availability
20
WCI 3204343 WCI 3204343 Contact Us For Availability
21
WCI 3204260 WCI 3204260 Contact Us For Availability
21
SCREW-CRADLE TO PAN WCI 3281077 Contact Us For Availability
21
WCI 3205641 WCI 3205641 Contact Us For Availability
21
WCI 08014903 WCI 08014903 Contact Us For Availability
21
WCI 3005242 WCI 3005242 Contact Us For Availability
22
BRACKET-CAPACITOR WCI 3161252 Contact Us For Availability
22
LEG & DOME ASSEMBLY WCI 3204408 Contact Us For Availability
22
SMALL L.G.S. SPRING WCI 3161174 Contact Us For Availability
23
WCI 3205242 WCI 3205242 Contact Us For Availability
23
WCI 3205642 WCI 3205642 Contact Us For Availability
23
DRAIN HOSE WCI 3205414 Contact Us For Availability
23
WCI 3204409 WCI 3204409 Contact Us For Availability
23
IDLER GEAR WCI 3161175 Contact Us For Availability
24
WCI 3205643 WCI 3205643 Contact Us For Availability
24
RETAINER WCI 3204987 Contact Us For Availability
24
WCI 3204410 WCI 3204410 Contact Us For Availability
24
WCI 3204463 WCI 3204463 Contact Us For Availability
25
WCI 3204375 WCI 3204375 Contact Us For Availability
25
WCI 3204314 WCI 3204314 Contact Us For Availability
25
WCI 3205644 WCI 3205644 Contact Us For Availability
25
WCI 3205527 WCI 3205527 Contact Us For Availability
26
MOTOR PULLEY WCI 3201237 Contact Us For Availability
26
CLAMP WCI 3161183 Contact Us For Availability
26
TUB SEAL ASSEMBLY WCI 08950197 Contact Us For Availability
27
CLAMP-MOTOR (2) WCI 3204315 Contact Us For Availability
27
THRUST WASHER WCI 3161232 Contact Us For Availability
28
GUIDE CLIP (4) WCI 3281074 Contact Us For Availability
28
WCI 3204316 WCI 3204316 Contact Us For Availability
28
WCI 3204376 WCI 3204376 Contact Us For Availability
28
BEARING HOUSING PKG WCI 08950058 Contact Us For Availability
29
WCI 3205645 WCI 3205645 Contact Us For Availability
29
WCI 3204377 WCI 3204377 Contact Us For Availability
29
TRANSMISSION PULLEY WCI 3204420 Contact Us For Availability
29
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
30
WCI 3281024 WCI 3281024 Contact Us For Availability
30
WCI 3010202 WCI 3010202 Contact Us For Availability
30
IDLER ARM ASSY WCI 3204422 Contact Us For Availability
30
WASHER-CLUTCH COIL WCI 08057430 Contact Us For Availability
31
MOTOR PULLEY WCI 3204423 Contact Us For Availability
31
SCREW-BAFFLE TO DRUM (3) WCI 3204265 Contact Us For Availability
31
WCI 3204353 WCI 3204353 Contact Us For Availability
31
WCI 08015536 WCI 08015536 Contact Us For Availability
32
WCI 3204424 WCI 3204424 Contact Us For Availability
32
WCI 3204317 WCI 3204317 Contact Us For Availability
32
GROUNDING CLIP WCI 3204357 Contact Us For Availability
32
WCI 3204378 WCI 3204378 Contact Us For Availability
32
RUBBER SPACER (2) WCI 08002467 Contact Us For Availability
33
TORSION SPRING WCI 3204425 Contact Us For Availability
33
SCREW (4) WCI 08010789 Contact Us For Availability
33
WCI 3161231 WCI 3161231 Contact Us For Availability
34
WCI 3204319 WCI 3204319 Contact Us For Availability
34
WCI 3204426 WCI 3204426 Contact Us For Availability
35
SCREW (2) WCI 3204269 Contact Us For Availability
35
CLIP (4) WCI 08014350 Contact Us For Availability
35
WCI F130789-000 WCI F130789-000 Contact Us For Availability
36
FUSESTAT WCI 3204270 Contact Us For Availability
36
SHIPPING BLOCK WCI 3204380 Contact Us For Availability
36
WASHER-PIVOT SHAFT WCI 3261031 Contact Us For Availability
37
SHIPPING SCREW WCI 3204381 Contact Us For Availability
38
RIGHT SIDE PANEL-ALMD WCI 3204272 Contact Us For Availability
38
ELBOW WCI 3204320 Contact Us For Availability
38
BASE ASSEMBLY WCI 3204382 Contact Us For Availability
39
WCI 3204274 WCI 3204274 Contact Us For Availability
39
LEVLEING LEG & PAD (2) WCI 3937004 Contact Us For Availability
40
SCREW (2) WCI 08011318 Contact Us For Availability
40
WCI 3205647 WCI 3205647 Contact Us For Availability
41
WCI 3204275 WCI 3204275 Contact Us For Availability
41
WCI 3204276 WCI 3204276 Contact Us For Availability
41
MOTOR SHIELD WCI 3204450 Contact Us For Availability
42
INTERIOR MARRIAGE BRKT (2) WCI 3204324 Contact Us For Availability
42
FRONT PANEL-ALMOND WCI 3204385 Contact Us For Availability
42
WCI 3204451 WCI 3204451 Contact Us For Availability
43
LOCATING PIN WCI 3204373 Contact Us For Availability
43
WCI 3204452 WCI 3204452 Contact Us For Availability
44
SCREW WCI 3018964 Contact Us For Availability
44
WCI 3204453 WCI 3204453 Contact Us For Availability
45
WCI 3204454 WCI 3204454 Contact Us For Availability
45
WCI 3204386 WCI 3204386 Contact Us For Availability
46
WCI 3204282 WCI 3204282 Contact Us For Availability
46
SCREW (2) WCI 3204325 Contact Us For Availability
46
WCI 3204388 WCI 3204388 Contact Us For Availability
46
CLIP-HOSE TO LEG WCI 3204455 Contact Us For Availability
47
WCI 3204389 WCI 3204389 Contact Us For Availability
48
WCI 3204285 WCI 3204285 Contact Us For Availability
48
WCI 3204327 WCI 3204327 Contact Us For Availability
48
SCREW (2) WCI 08001578 Contact Us For Availability
49
WCI 3204458 WCI 3204458 Contact Us For Availability
49
SCREW (2) WCI F132144-000 Contact Us For Availability
50
SAFETY COVER WCI 3204329 Contact Us For Availability
50
WCI 3205646 WCI 3205646 Contact Us For Availability
50
CLAMP WCI 3204456 Contact Us For Availability
51
SCREW (7) WCI 3161242 Contact Us For Availability
51
WCI 3204391 WCI 3204391 Contact Us For Availability
51
WCI 3204459 WCI 3204459 Contact Us For Availability
52
WCI 3205238 WCI 3205238 Contact Us For Availability
52
RIVET (3) WCI 08002420 Contact Us For Availability
52
WCI 3204460 WCI 3204460 Contact Us For Availability
53
CLAMP-FRONT WCI 3205236 Contact Us For Availability
53
WCI 3204393 WCI 3204393 Contact Us For Availability
54
BLEACH DISPENSER WCI 3204394 Contact Us For Availability
54
WCI 3205631 WCI 3205631 Contact Us For Availability
54
WCI 3205237 WCI 3205237 Contact Us For Availability
55
WCI 3205251 WCI 3205251 Contact Us For Availability
56
PAD-SELF LEVELING LEG (2) WCI 3204383 Contact Us For Availability
× ![]()
