Model Electrolux LCE462AL1 LAUNDRY CENTER – Common Parts & Diagrams

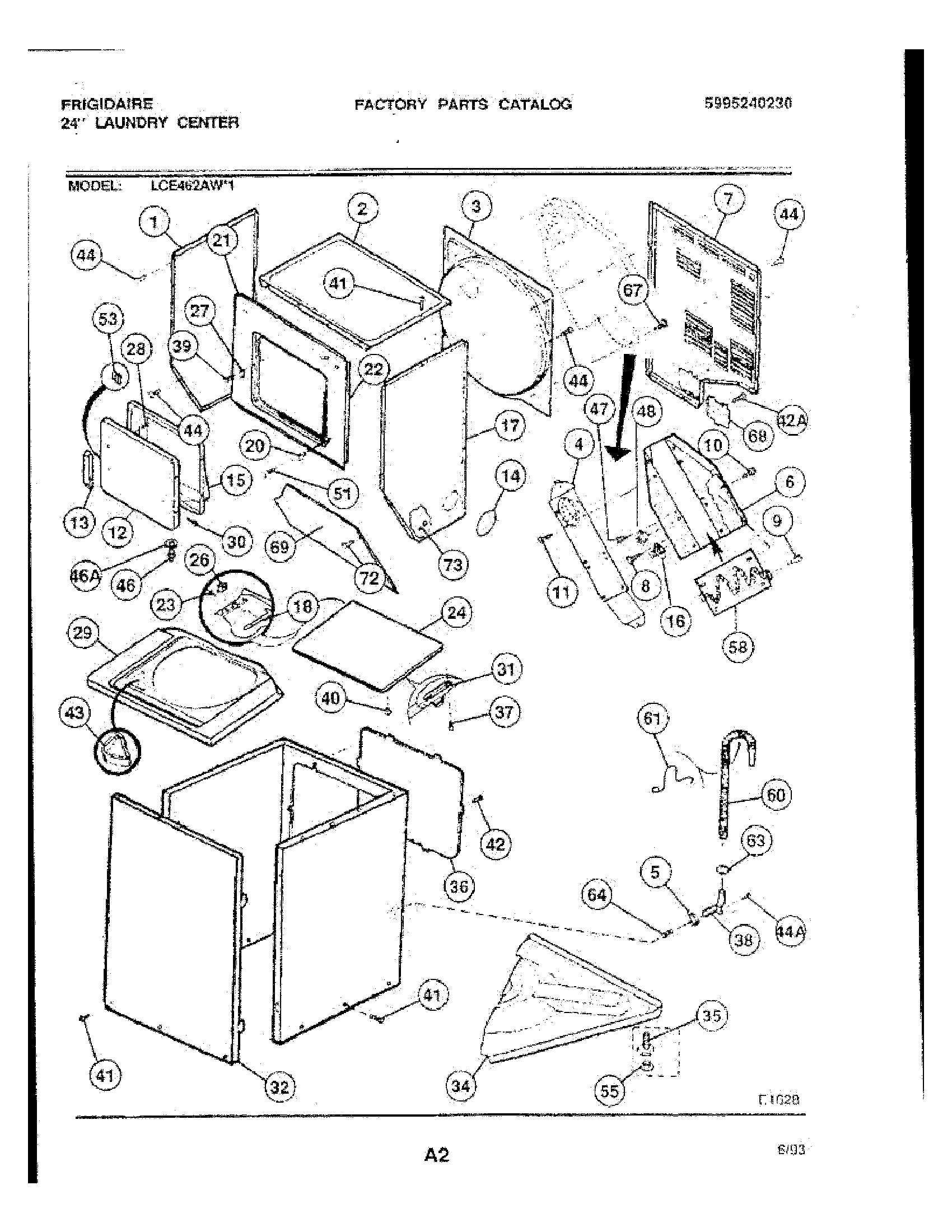

02 - CABINET PARTS AND HEATER

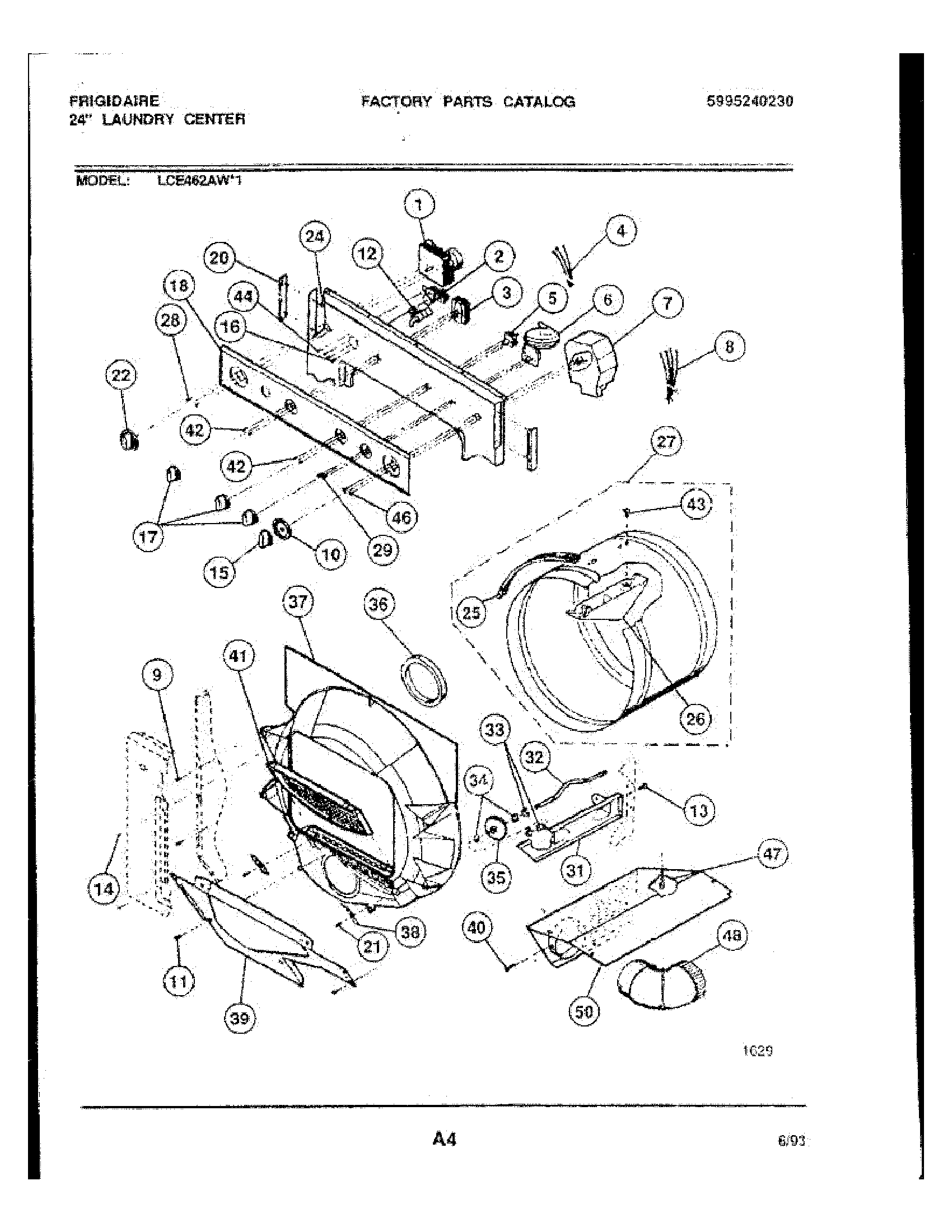

03 - CONSOLE, CONTROL AND DRUM
04 - DRYER MOTOR, BLOWER AND BELT
05 - TUBS, WATER VALVE AND LID SWITCH
06 - MOTOR AND IDLER ARM CLUTCH
07 - TRANSMISSION PARTS
Common parts from model Electrolux LCE462AL1 LAUNDRY CENTER
*76835
SPACER-WASHER TIMER WCI 5308015493 Contact Us For Availability
*76835
WCI 08008454 WCI 08008454 Contact Us For Availability
*76835
RESISTOR 4.4K OHMS DRYER TINER WCI 3205243 Contact Us For Availability
*76835
WCI 5303004951 WCI 5303004951 Contact Us For Availability
*76835
WCI 5303208455 WCI 5303208455 Contact Us For Availability
*76841
WCI 5306598047 WCI 5306598047 Contact Us For Availability
*76845
GASKET-AGITATOR CAP (PARTS NOT ILLUSTRATED AN WCI 5373565000 Contact Us For Availability
*76848
WCI 5303161306 WCI 5303161306 Contact Us For Availability
*76848
CLAMP-PUMP HOSE/TUB WCI 3204456 Contact Us For Availability
*76853
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
*76854
WCI 5303161182 WCI 5303161182 Contact Us For Availability
1
WCI 5303212526 WCI 5303212526 Contact Us For Availability
1
BLOWER HOUSING WCI 5303209767 Contact Us For Availability
1
COVER-TUB WCI 3205029 Contact Us For Availability
1
WCI 5303161221 WCI 5303161221 Contact Us For Availability
2
WCI 5303209765 WCI 5303209765 Contact Us For Availability
2
WCI 5308001875 WCI 5308001875 Contact Us For Availability
2
WCI 5308027515 WCI 5308027515 Contact Us For Availability
2
WCI 5377009100 WCI 5377009100 Contact Us For Availability
3
WCI 5303209769 WCI 5303209769 Contact Us For Availability
3
WCI F140887026 WCI F140887026 Contact Us For Availability
3
WCI 3204994 WCI 3204994 Contact Us For Availability
3
WCI 3161211 WCI 3161211 Contact Us For Availability
4
WCI 5303289658 WCI 5303289658 Contact Us For Availability
4
WCI 5303209770 WCI 5303209770 Contact Us For Availability
4
WCI 5303161121 WCI 5303161121 Contact Us For Availability
4
WCI 3161212 WCI 3161212 Contact Us For Availability
4
WCI 5303280324 WCI 5303280324 Contact Us For Availability
5
WCI 5303161199 WCI 5303161199 Contact Us For Availability
5
WCI 5308008463 WCI 5308008463 Contact Us For Availability
5
WCI 5303211473 WCI 5303211473 Contact Us For Availability
5
WCI 131026500 WCI 131026500 Contact Us For Availability
6
WCI 5303161223 WCI 5303161223 Contact Us For Availability
6
WCI 5303270023 WCI 5303270023 Contact Us For Availability
6
WCI 131065400 WCI 131065400 Contact Us For Availability
6
WCI 5308027520 WCI 5308027520 Contact Us For Availability
7
WCI 5303161099 WCI 5303161099 Contact Us For Availability
7
WCI 5303289594 WCI 5303289594 Contact Us For Availability
8
WCI 5303161122 WCI 5303161122 Contact Us For Availability
8
WCI 131027000 WCI 131027000 Contact Us For Availability
8
WCI 3205019 WCI 3205019 Contact Us For Availability
8
WCI 08027535 WCI 08027535 Contact Us For Availability
9
WCI 3161240 WCI 3161240 Contact Us For Availability
9
WCI 5303283049 WCI 5303283049 Contact Us For Availability
9
WCI 5303283055 WCI 5303283055 Contact Us For Availability
10
WCI 5308950197 No Longer Available
10
WCI 3204999 WCI 3204999 Contact Us For Availability
10
WCI 5303209771 WCI 5303209771 Contact Us For Availability
10
WCI 5303283071 WCI 5303283071 Contact Us For Availability
11
WCI 5303283050 WCI 5303283050 Contact Us For Availability
11
WCI 5303161224 WCI 5303161224 Contact Us For Availability
12
WCI 3205000 WCI 3205000 Contact Us For Availability
12
CLAMP-HOSE WCI 5303283076 Contact Us For Availability
12
WCI 08002804 WCI 08002804 Contact Us For Availability
13
WCI 5308015778 WCI 5308015778 Contact Us For Availability
13
SCREW WCI 5303283072 Contact Us For Availability
13
WCI 5303206879 WCI 5303206879 Contact Us For Availability
13
TUB-SPIN WCI 5303284815 Contact Us For Availability
14
WCI 5303161187 WCI 5303161187 Contact Us For Availability
14
WCI 5363602000 WCI 5363602000 Contact Us For Availability
14
WCI 3205020 WCI 3205020 Contact Us For Availability
14
GEAR-SECTOR WCI 5308011268 Contact Us For Availability
15
WCI 3205947 WCI 3205947 Contact Us For Availability
15
WCI 5308002293 WCI 5308002293 Contact Us For Availability
15
WCI 5303284141 WCI 5303284141 Contact Us For Availability
15
ROD-CONNECTING WCI 5303161169 Contact Us For Availability
16
WCI 5303292169 WCI 5303292169 Contact Us For Availability
16
IDLER ARM & WHEEL ASSEMBLY WCI 5303161103 Contact Us For Availability
16
TUB-OUTER WCI 131033000 Contact Us For Availability
16
GEAR-CRANK WCI 5308015496 Contact Us For Availability
17
WCI 3205948 WCI 3205948 Contact Us For Availability
17
CLAMP-HOSE WCI 5303283073 Contact Us For Availability
17
SHAFT ASSY. - LOWER WCI 5308014905 Contact Us For Availability
18
WCI 131168500 WCI 131168500 Contact Us For Availability
18
WCI 5379171000 WCI 5379171000 Contact Us For Availability
18
WCI 5303283052 WCI 5303283052 Contact Us For Availability
19
WCI 5303209442 WCI 5303209442 Contact Us For Availability
19
WCI 5303283078 WCI 5303283078 Contact Us For Availability
19
WCI 5303161227 WCI 5303161227 Contact Us For Availability
20
WCI 08011280 WCI 08011280 Contact Us For Availability
20
WCI 3205006 WCI 3205006 Contact Us For Availability
20
WCI 131162300 WCI 131162300 Contact Us For Availability
21
SNUBBER RING WCI 5308002385 Contact Us For Availability
21
WCI 3016464 WCI 3016464 Contact Us For Availability
21
SWITCH-MOTOR WCI 5303293588 Contact Us For Availability
21
WCI 5303912535 WCI 5303912535 Contact Us For Availability
22
WCI 3205950 WCI 3205950 Contact Us For Availability
22
BODY ASSEMBLY WCI 3016472 Contact Us For Availability
22
WCI 5303161284 WCI 5303161284 Contact Us For Availability
22
WCI 08002472 WCI 08002472 Contact Us For Availability
22
WCI 5308950058 WCI 5308950058 Contact Us For Availability
23
WCI 5303016473 WCI 5303016473 Contact Us For Availability
23
WCI 5303161202 WCI 5303161202 Contact Us For Availability
23
WCI 5303283079 WCI 5303283079 Contact Us For Availability
24
WCI 3205008 WCI 3205008 Contact Us For Availability
24
WCI 3161203 WCI 3161203 Contact Us For Availability
24
WCI 5303161303 WCI 5303161303 Contact Us For Availability
25
WCI 5303286418 WCI 5303286418 Contact Us For Availability
25
WCI 3016474 WCI 3016474 Contact Us For Availability
25
WCI 5303161131 WCI 5303161131 Contact Us For Availability
25
WCI 131031900 WCI 131031900 Contact Us For Availability
25
WCI 5308015536 WCI 5308015536 Contact Us For Availability
26
WCI 3161076 WCI 3161076 Contact Us For Availability
26
WCI 5308015828 WCI 5308015828 Contact Us For Availability
26
SCREW - PLATE/BRG HSG (2) WCI 5308027582 Contact Us For Availability
26
WCI 5303283054 WCI 5303283054 Contact Us For Availability
26
WCI 5303206869 WCI 5303206869 Contact Us For Availability
27
WCI 5308002456 WCI 5308002456 Contact Us For Availability
27
WCI 3205010 WCI 3205010 Contact Us For Availability
27
WCI 08015824 WCI 08015824 Contact Us For Availability
27
WCI 3161205 WCI 3161205 Contact Us For Availability
28
WCI 3016466 WCI 3016466 Contact Us For Availability
28
WCI 5303269887 WCI 5303269887 Contact Us For Availability
28
WCI 5303283080 WCI 5303283080 Contact Us For Availability
28
WCI 5303207426 WCI 5303207426 Contact Us For Availability
29
WCI 5308015847 WCI 5308015847 Contact Us For Availability
29
SPRING-VERTICAL-SHORT WCI 5303161133 Contact Us For Availability
29
WCI 5303937001 WCI 5303937001 Contact Us For Availability
30
WCI 5308002475 WCI 5308002475 Contact Us For Availability
31
WCI 5303161226 WCI 5303161226 Contact Us For Availability
31
BRACKET - DRUM RH WCI 3017901 Contact Us For Availability
31
WCI 5308004087 WCI 5308004087 Contact Us For Availability
31A
BRACKET - DRUM LH WCI 3017902 Contact Us For Availability
32
SCREW WCI 08001578 Contact Us For Availability
32
WCI 5308004076 WCI 5308004076 Contact Us For Availability
32
WCI 5303212832 WCI 5303212832 Contact Us For Availability
33
WCI 5303161174 WCI 5303161174 Contact Us For Availability
33
WCI 3161255 WCI 3161255 Contact Us For Availability
34
WCI 08012152 WCI 08012152 Contact Us For Availability
34
BASE-DRYER WCI 3205024 Contact Us For Availability
34
WCI 3205035 WCI 3205035 Contact Us For Availability
34
GEAR-IDLER WCI 5303161175 Contact Us For Availability
35
WCI 3205033 WCI 3205033 Contact Us For Availability
35
WCI 5308004077 WCI 5308004077 Contact Us For Availability
35
WASHER WCI 5308002468 Contact Us For Availability
36
WCI 5303209445 WCI 5303209445 Contact Us For Availability
36
WCI 3205034 WCI 3205034 Contact Us For Availability
36
HOUSING-UPPER WCI 5303937037 Contact Us For Availability
37
WCI 5303288388 WCI 5303288388 Contact Us For Availability
38
WCI 5308015078 WCI 5308015078 Contact Us For Availability
38
WCI 3205013 WCI 3205013 Contact Us For Availability
38
WCI 08001572 WCI 08001572 Contact Us For Availability
38
WCI 5303010202 WCI 5303010202 Contact Us For Availability
38
SLINGER WCI 5303272073 Contact Us For Availability
39
WCI 3161237 WCI 3161237 Contact Us For Availability
39
WCI 3205014 WCI 3205014 Contact Us For Availability
40
WCI 3204981 WCI 3204981 Contact Us For Availability
40
WCI 3161274 WCI 3161274 Contact Us For Availability
40
WCI 5308006573 WCI 5308006573 Contact Us For Availability
40
WCI 5303161232 WCI 5303161232 Contact Us For Availability
41
WCI 3205015 WCI 3205015 Contact Us For Availability
41
WCI 08004646 WCI 08004646 Contact Us For Availability
41
CLIP-HARNESS TO LEG WCI 3161288 Contact Us For Availability
41
WCI 5308057579 WCI 5308057579 Contact Us For Availability
42
WCI 3161259 WCI 3161259 Contact Us For Availability
42
WCI 5308057430 WCI 5308057430 Contact Us For Availability
43
WCI 3204983 WCI 3204983 Contact Us For Availability
44
SCREW WCI 08010804 Contact Us For Availability
44A
WCI 3204984 WCI 3204984 Contact Us For Availability
45
WCI 08006557 WCI 08006557 Contact Us For Availability
46
WCI 3016440 WCI 3016440 Contact Us For Availability
46
WCI 08001544 WCI 08001544 Contact Us For Availability
46A
WCI 5303208633 WCI 5303208633 Contact Us For Availability
47
WCI 3204269 WCI 3204269 Contact Us For Availability
47
WCI 3205016 WCI 3205016 Contact Us For Availability
48
THERMAL LIMITER WCI 5303209894 Contact Us For Availability
48
WCI 3205017 WCI 3205017 Contact Us For Availability
48
BRACE WCI 3016468 Contact Us For Availability
49
WCI 08006559 WCI 08006559 Contact Us For Availability
50
WCI 3016460 WCI 3016460 Contact Us For Availability
50
WCI 3016469 WCI 3016469 Contact Us For Availability
53
PLATE-STRIKE WCI 3016442 Contact Us For Availability
55
PAD - LEGS WCI 5303004083 Contact Us For Availability
57
WCI 5303161185 WCI 5303161185 Contact Us For Availability
58
HEATER ASSY WCI 5303161050 Contact Us For Availability
60
WCI 5303292372 WCI 5303292372 Contact Us For Availability
61
WCI 5303204987 WCI 5303204987 Contact Us For Availability
63A
TIE-CABLE (NON-ILLUSTRATED) WCI 3161250 Contact Us For Availability
64
CHECK VALVE WCI 5308014555 Contact Us For Availability
68
WCI 5303212087 WCI 5303212087 Contact Us For Availability
69
WCI 3204992 WCI 3204992 Contact Us For Availability
72
SCREW WCI 5303207397 Contact Us For Availability
× ![]()
