Model Electrolux LC590LXW2 WASHER – Common Parts & Diagrams

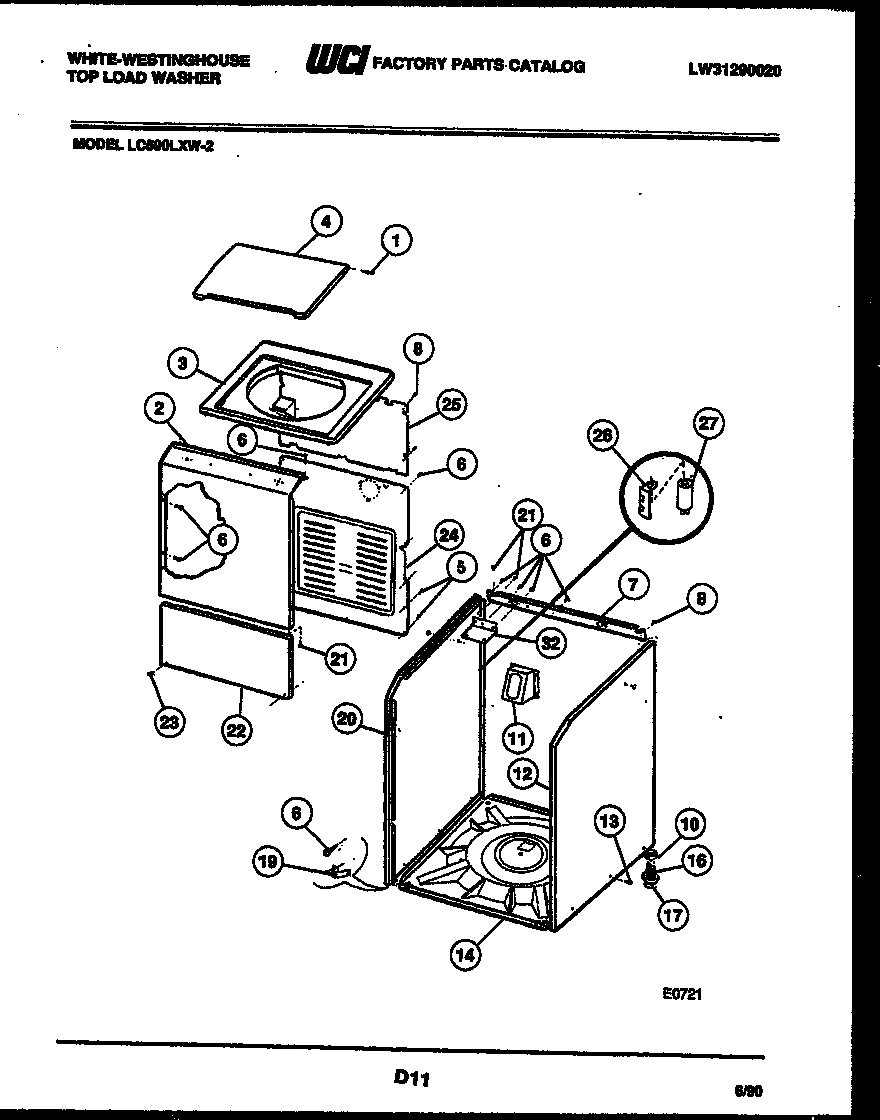

02 - CABINET PARTS

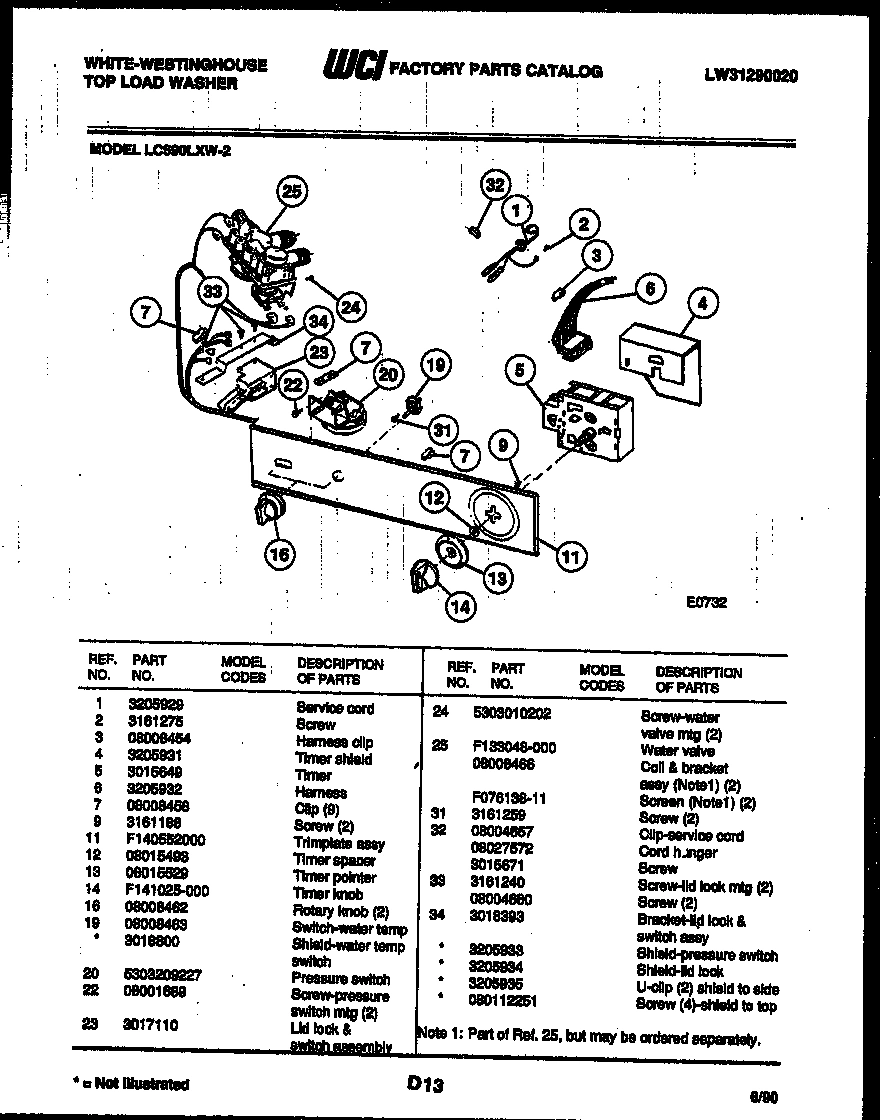

03 - CONSOLE AND CONTROL PARTS
04 - DRAIN RECIRCULATE PARTS
05 - TUBS AND WATER INLET
06 - TRANSMISSION PARTS
07 - PORTABLE WASHER COMPONENTS
Common parts from model Electrolux LC590LXW2 WASHER
*29378
WCI 080112251 WCI 080112251 Contact Us For Availability
*29378
WCI 3205933 WCI 3205933 Contact Us For Availability
*29378
WCI 3205934 WCI 3205934 Contact Us For Availability
*29378
WCI 3205935 WCI 3205935 Contact Us For Availability
*29393
TRANSMISSION-COMPLETE WCI 5303208459 Contact Us For Availability
1
SCREW (2) WCI 3161236 Contact Us For Availability
1
WCI 3205929 WCI 3205929 Contact Us For Availability
1
WCI F077352-000 WCI F077352-000 Contact Us For Availability
1
SPLASH TUB COVER WCI F142025-000 Contact Us For Availability
1
WCI 3161221 WCI 3161221 Contact Us For Availability
1
WCI 3204664 WCI 3204664 Contact Us For Availability
1A
CLAMP (NON-ILLUSTRATED) WCI 3018542 Contact Us For Availability
1A
CLAMP (NON-ILLUSTRATED) WCI 3161301 Contact Us For Availability
1B
SCREW (2) (NON-ILLUSTRATED) WCI 08015500 Contact Us For Availability
1C
WCI 30056492 WCI 30056492 Contact Us For Availability
2
CONTROL PANEL (WHITE) WCI 3205914 Contact Us For Availability
2
SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKE WCI 3161165 Contact Us For Availability
2
SEAL WCI 3161121 Contact Us For Availability
2
WCI F132503-200 WCI F132503-200 Contact Us For Availability
3
TOP PANEL (WHITE) WCI 3205916 Contact Us For Availability
3
WCI 08002396 WCI 08002396 Contact Us For Availability
3
SPEED CLIP (8) WCI 3161199 Contact Us For Availability
3
FRONT CASTERS ASSY (2) WCI 08027586 Contact Us For Availability
4
WCI 3200862 WCI 3200862 Contact Us For Availability
4
TIMER SHIELD WCI 3205931 Contact Us For Availability
4
WCI F079428-000 WCI F079428-000 Contact Us For Availability
4
SCREW (5) WCI 08027519 Contact Us For Availability
4
DRIVE LUG WCI 08014904 Contact Us For Availability
4
SCREW (4) WCI F064337-000 Contact Us For Availability
5
WCI 3015649 WCI 3015649 Contact Us For Availability
5
IMPELLER SCREW WCI 3161217 Contact Us For Availability
5
WCI F141071-000 WCI F141071-000 Contact Us For Availability
6
HARNESS WCI 3205932 Contact Us For Availability
6
WCI 3161489 WCI 3161489 Contact Us For Availability
6
SNAP RING (2) WCI 3161223 Contact Us For Availability
6
WCI F141076-000 WCI F141076-000 Contact Us For Availability
7
WCI 08027553 WCI 08027553 Contact Us For Availability
7
WCI 08008458 WCI 08008458 Contact Us For Availability
7
SPIN TUB ASSY (CONSISTS OF SPIN TUB WITH SPIN WCI 3161486 Contact Us For Availability
7
SHOULDER SCREW (2) WCI Q000199049 Contact Us For Availability
8
SCREW (6) WCI F132144-000 Contact Us For Availability
8
SCREW - PUMP MTG (4) WCI 08002390 Contact Us For Availability
8
SPRING-RETRACTABLE WCI F141066-000 Contact Us For Availability
9
SCREW (2) WCI 3161188 Contact Us For Availability
9
WCI F141060-000 WCI F141060-000 Contact Us For Availability
10
SPACER-LEVELING LEG WCI 08027554 Contact Us For Availability
10
HOSE CLAMP (4) WCI F140887-027 Contact Us For Availability
10
WCI 08014908 WCI 08014908 Contact Us For Availability
10
SEAL KIT WCI 08950197 Contact Us For Availability
11
WCI 3205918 WCI 3205918 Contact Us For Availability
11
TRIMPLATE ASSY WCI F140552000 Contact Us For Availability
11
HOSE WCI 08008997 Contact Us For Availability
11
SPLASH TUB & BEARING ASSY WCI 3161127 Contact Us For Availability
11
PIPE PLUG WCI 3161224 Contact Us For Availability
11
WCI F141062-000 WCI F141062-000 Contact Us For Availability
12
PANEL RH (WHITE) WCI 3205920 Contact Us For Availability
12
PANEL RH (ALMOND) WCI 3205921 Contact Us For Availability
12
TIMER SPACER WCI 08015493 Contact Us For Availability
12
SCREW (6) WCI 08002804 Contact Us For Availability
12
WCI F141064-000 WCI F141064-000 Contact Us For Availability
13
TIMER POINTER WCI 08015529 Contact Us For Availability
13
WCI 5303206795 WCI 5303206795 Contact Us For Availability
13
WCI 08015778 WCI 08015778 Contact Us For Availability
13
WCI F141067-100 WCI F141067-100 Contact Us For Availability
14
WCI F141072-126 WCI F141072-126 Contact Us For Availability
14
WCI F141025-000 WCI F141025-000 Contact Us For Availability
14
HOSE CLAMP WCI 3161208 Contact Us For Availability
14
SECTOR GEAR WCI 08011268 Contact Us For Availability
14
WCI 08027595 WCI 08027595 Contact Us For Availability
15
GROMMET (USE F133016-000 PRIMER ADHESIVE AND WCI 3161286 Contact Us For Availability
15
WCI 08006573 WCI 08006573 Contact Us For Availability
15
WCI 3161169 WCI 3161169 Contact Us For Availability
15
WCI F141063-000 WCI F141063-000 Contact Us For Availability
16
LEVELING LEG PKG. (CONSISTS OF LEVELING LEG, WCI 3937004 Contact Us For Availability
16
WCI 08008462 WCI 08008462 Contact Us For Availability
16
WCI F130789-000 WCI F130789-000 Contact Us For Availability
16
CRANK GEAR WCI 08015496 Contact Us For Availability
16
WCI 08027597 WCI 08027597 Contact Us For Availability
17
LEG CUSHION (PART OF REF. 16, BUT MAY BE ORDE WCI 3004083 Contact Us For Availability
17
SCREW (2) WCI 3161274 Contact Us For Availability
17
SHIPPING SCREW WCI 3161284 Contact Us For Availability
17
LOWER SHAFT WCI 08014905 Contact Us For Availability
18
WCI 3161285 WCI 3161285 Contact Us For Availability
18
SHIPPING BLOCK WCI 3161202 Contact Us For Availability
18
WASHER (2) WCI 08027582 Contact Us For Availability
19
WCI 08027560 WCI 08027560 Contact Us For Availability
19
SWITCH-WATER TEMP WCI 08008463 Contact Us For Availability
19
EXPANSION NUT WCI 3161203 Contact Us For Availability
19
DOWEL PIN (2) WCI 3161227 Contact Us For Availability
19
SCREW (2) WCI 08001638 Contact Us For Availability
19A
SHIELD-WATER TEMP SWITCH (NON-ILLUSTRATED) WCI 3018800 Contact Us For Availability
20
PANEL LH (WHITE) WCI 3205922 Contact Us For Availability
20
SPEED-CLIP (2) WCI 08008454 Contact Us For Availability
20
PRESSURE SWITCH WCI 5303209227 Contact Us For Availability
20
SPRING-VERTICAL-SHORT WCI 3161131 Contact Us For Availability
20
WCI F141233-000 WCI F141233-000 Contact Us For Availability
21
WCI 3161485 WCI 3161485 Contact Us For Availability
21
LOWER HOUSING ASSY WCI F140586-000 Contact Us For Availability
21
WCI F141234-000 WCI F141234-000 Contact Us For Availability
22
WCI F138855-032 WCI F138855-032 Contact Us For Availability
22
BEARING HAG. PKG. (CONSISTS OF REF.S 22, 25, WCI 08027536 Contact Us For Availability
22
WCI 3161132 WCI 3161132 Contact Us For Availability
23
SCREW (2) WCI 08008447 Contact Us For Availability
23
LID LOCK & SWITCH ASSEMBLY WCI 3017110 Contact Us For Availability
23
GASKET WCI F073565-000 Contact Us For Availability
24
REAR PANEL-LOWER WCI 3205924 Contact Us For Availability
24
SCREW-WATER VALVE MTG (2) WCI 5303010202 Contact Us For Availability
24
AGITATOR CAP WCI 3161122 Contact Us For Availability
24
SLEEVE-CLUTCH COIL WCI 3161182 Contact Us For Availability
25
REAR PANEL-UPPER WCI 3205926 Contact Us For Availability
25
WCI F133048-000 WCI F133048-000 Contact Us For Availability
25
KEPS NUT (6) WCI 3161204 Contact Us For Availability
25A
COIL & BRACKET ASSY (PART OF REF. 25, BUT MAY WCI 08008466 Contact Us For Availability
25B
SCREEN (PART OF REF. 25, BUT MAY BE ORDERED S WCI F076138-11 Contact Us For Availability
26
BRACKET-CAPACITOR WCI 3161252 Contact Us For Availability
26
SCREW (6) WCI 3161205 Contact Us For Availability
27
WCI 08014903 WCI 08014903 Contact Us For Availability
27
SPRING-VERTICAL (LONG 2) WCI 3161133 Contact Us For Availability
27
BEARING HAG. PKG. (CONSISTS OF REF.S 22, 25, WCI 08950058 Contact Us For Availability
28
SNAP RING WCI 08015536 Contact Us For Availability
29
HOSE CLAMP WCI 3161207 Contact Us For Availability
29
WCI F077009-100 WCI F077009-100 Contact Us For Availability
30
WCI 3205937 WCI 3205937 Contact Us For Availability
30
SUPPORT PLATE WCI 08002472 Contact Us For Availability
31
SCREW (2) WCI 3161259 Contact Us For Availability
31
HOSE CLAMP WCI 3161206 Contact Us For Availability
31
SCREW (3) WCI 3161211 Contact Us For Availability
32
WCI 3205928 WCI 3205928 Contact Us For Availability
32
CLIP-SERVICE CORD WCI 08004657 Contact Us For Availability
32
WCI 3161212 WCI 3161212 Contact Us For Availability
32A
WCI 08027572 WCI 08027572 Contact Us For Availability
33
SCREW-LID LOCK MTG (2) WCI 3161240 Contact Us For Availability
33
WCI 3161283 WCI 3161283 Contact Us For Availability
33A
SCREW (2) WCI 08004660 Contact Us For Availability
33A
RUBBER SPACER (2) WCI 08002467 Contact Us For Availability
34
BRACKET-LID LOCK & SWITCH ASSY WCI 3018393 Contact Us For Availability
34
WCI 08027515 WCI 08027515 Contact Us For Availability
35
WCI 3937008 WCI 3937008 Contact Us For Availability
38
PLATE-LEG BOLTS (3) WCI 3161134 Contact Us For Availability
39
BUSHING (2) WCI 08027535 Contact Us For Availability
40
MOTOR SHIELD (CONSISTS OF SPIN TUB WITH SPIN WCI F139128000 Contact Us For Availability
40
WCI F078914-000 WCI F078914-000 Contact Us For Availability
41
IDLER ARM & SHAFT ASSY WCI 3937001 Contact Us For Availability
43
WCI F132861-000 WCI F132861-000 Contact Us For Availability
44
WCI 08006564 WCI 08006564 Contact Us For Availability
44
MOTOR PULLEY WCI 08006686 Contact Us For Availability
47
WCI 3161303 WCI 3161303 Contact Us For Availability
48
MOTOR WCI 08015502 Contact Us For Availability
48A
MOTOR SWITCH (NON-ILLUSTRATED) WCI 08014888 Contact Us For Availability
50
WCI 3351064 WCI 3351064 Contact Us For Availability
51
THRUST WASHER WCI 3161226 Contact Us For Availability
53
TRANSMISSION OIL (1 QT) WCI 5303208460 Contact Us For Availability
54
SMALL L.G.S. SPRING WCI 3161174 Contact Us For Availability
55
IDLER GEAR WCI 3161175 Contact Us For Availability
58
UPPER HOUSING ASSY WCI F140588-000 Contact Us For Availability
60
WCI 3161231 WCI 3161231 Contact Us For Availability
62
THRUST WASHER WCI 3161232 Contact Us For Availability
63
SPACER - RUBBER WCI 5303207426 Contact Us For Availability
× ![]()
