Model Electrolux LC550LXD0 WASHER – Common Parts & Diagrams
02 - CABINET PARTS
03 - DRAIN AND RECIRCULATE PARTS

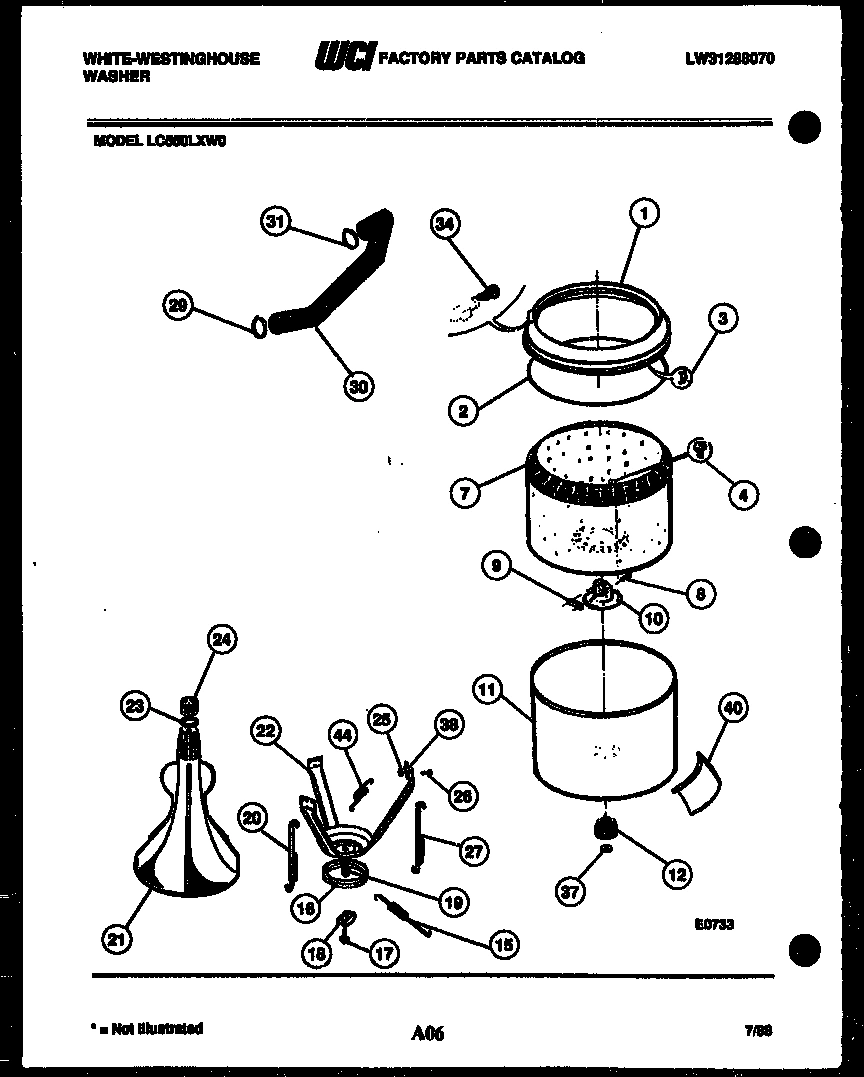

04 - TUB AND WATER INLET

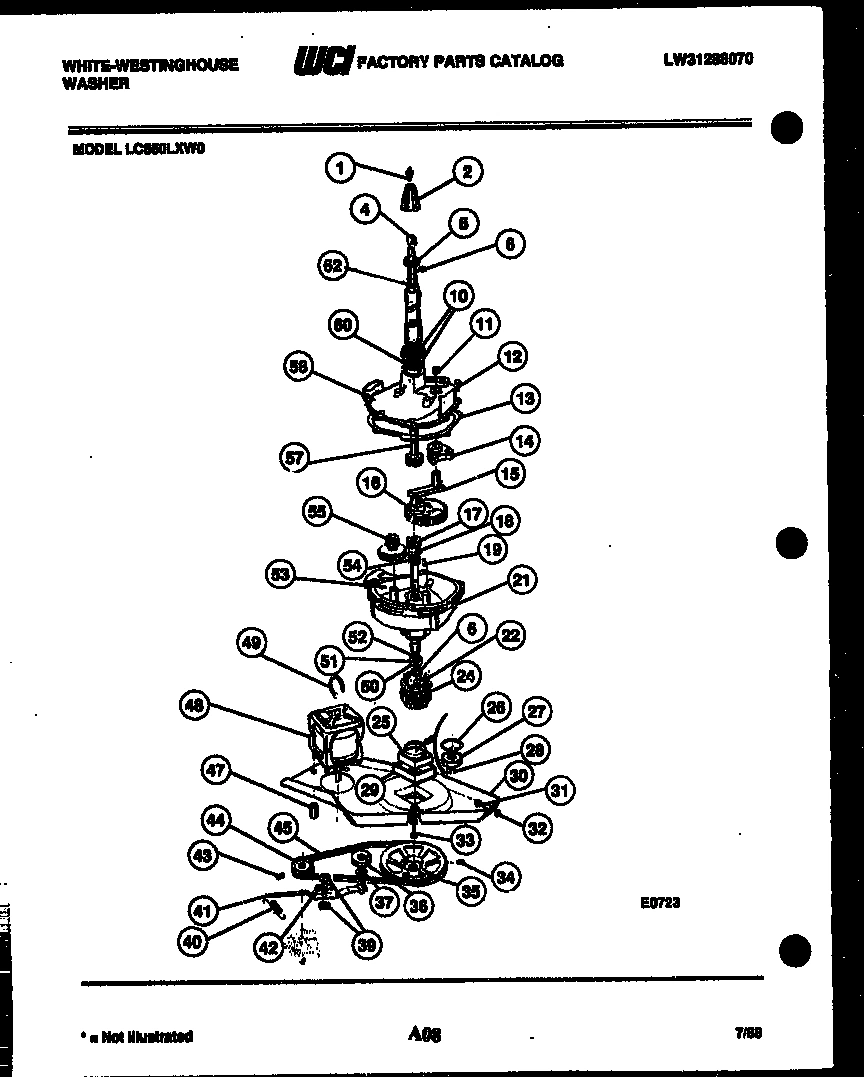

05 - TRANSMISSION PARTS

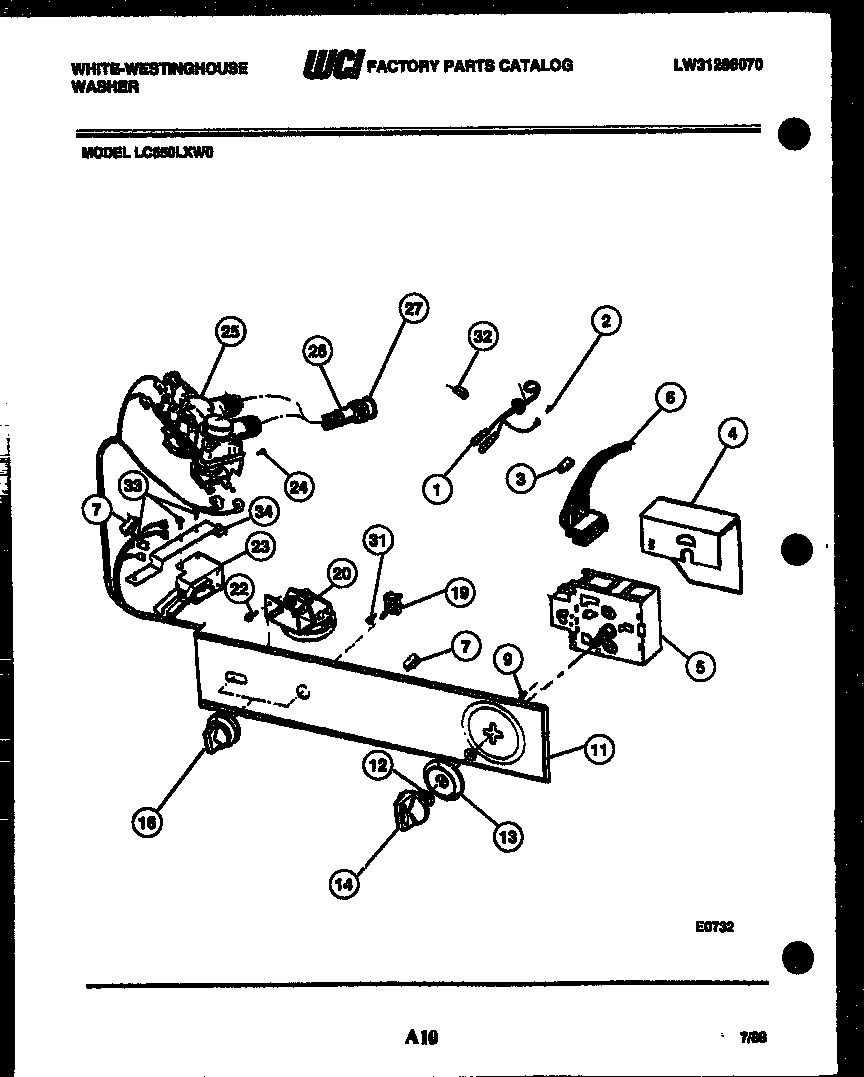

06 - CONSOLE AND CONTROL PARTS
Common parts from model Electrolux LC550LXD0 WASHER
*12699
WCI 3161011 WCI 3161011 Contact Us For Availability
*12699
WCI 3161012 WCI 3161012 Contact Us For Availability
*12701
WCI F077678100 WCI F077678100 Contact Us For Availability
*12701
WCI F133058100 WCI F133058100 Contact Us For Availability
*12707
WCI F140606100 WCI F140606100 Contact Us For Availability
1
SCREW (2) WCI F139410000 Contact Us For Availability
1
WCI F077352000 WCI F077352000 Contact Us For Availability
1
WCI F142025000 WCI F142025000 Contact Us For Availability
1
STUD BOLT WCI F063882000 Contact Us For Availability
1
WCI F140485000 WCI F140485000 Contact Us For Availability
2
WCI F140428439 WCI F140428439 Contact Us For Availability
2
SEAL KIT (CONSISTS OF SEAL ASSEMBLY AND GASKE WCI F076143000 Contact Us For Availability
2
WCI F078611100 WCI F078611100 Contact Us For Availability
2
WCI F140465000 WCI F140465000 Contact Us For Availability
3
PANEL-TOP (ALMOND) WCI 3018540 Contact Us For Availability
3
WCI F077354000 WCI F077354000 Contact Us For Availability
3
WCI F079975000 WCI F079975000 Contact Us For Availability
3
WCI F08008454 WCI F08008454 Contact Us For Availability
4
WCI 3200866 WCI 3200866 Contact Us For Availability
4
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI F079428000 Contact Us For Availability
4
WCI F142055000 WCI F142055000 Contact Us For Availability
4
SHIM (AS REQUIRED) WCI F063881400 Contact Us For Availability
4
WCI Q000199015 WCI Q000199015 Contact Us For Availability
5
SCREW-IMPELLER WCI F077203000 Contact Us For Availability
5
WCI 3015649 WCI 3015649 Contact Us For Availability
6
WCI F141874100 WCI F141874100 Contact Us For Availability
6
SNAP RING (2) WCI F068158000 Contact Us For Availability
6
WCI 3018392 WCI 3018392 Contact Us For Availability
7
SUPPORT-REAR CABINET WCI F138840226 Contact Us For Availability
7
WCI F142026000 WCI F142026000 Contact Us For Availability
7
CLIP-HARNESS (9) WCI F131347000 Contact Us For Availability
8
SCREW-PUMP MTG. (4) WCI F077669000 Contact Us For Availability
8B
SCREW-BACK PNL/SUPPORT (2) WCI F132144000 Contact Us For Availability
9
SCREW (2) WCI F060796000 Contact Us For Availability
10
WCI F140887027 WCI F140887027 Contact Us For Availability
10
WCI F140604100 WCI F140604100 Contact Us For Availability
10
WCI F079420000 WCI F079420000 Contact Us For Availability
11
WCI F000078139 WCI F000078139 Contact Us For Availability
11
HOSE WCI F139191000 Contact Us For Availability
11
WCI F141744000 WCI F141744000 Contact Us For Availability
11
PIPE PLUG WCI F077061000 Contact Us For Availability
11
WCI F000139096 WCI F000139096 Contact Us For Availability
12
PANEL RH SIDE (ALMOND) WCI F140418039 Contact Us For Availability
12
WCI F140581000 WCI F140581000 Contact Us For Availability
12
SCREW (6) WCI F079688000 Contact Us For Availability
12
WCI Q000199081 WCI Q000199081 Contact Us For Availability
13
BUTTON TRAP WCI F077276000 Contact Us For Availability
13
WCI F130895000 WCI F130895000 Contact Us For Availability
13
WCI Q000199019 WCI Q000199019 Contact Us For Availability
14
WCI Q000199005 WCI Q000199005 Contact Us For Availability
14
CLAMP-HOSE WCI F064154020 Contact Us For Availability
14
WCI F130405100 WCI F130405100 Contact Us For Availability
14
WCI Q000199020 WCI Q000199020 Contact Us For Availability
15
WCI F137466000 WCI F137466000 Contact Us For Availability
15
SPRING-HORIZONTAL (2) WCI F078135000 Contact Us For Availability
15
WCI F066078100 WCI F066078100 Contact Us For Availability
16
WCI F000137033 WCI F000137033 Contact Us For Availability
16
WCI F077199002 WCI F077199002 Contact Us For Availability
16
SNUBBER RING WCI F130789000 Contact Us For Availability
16
WCI F130404100 WCI F130404100 Contact Us For Availability
16
KNOB-ROTARY (2) WCI F078949000 Contact Us For Availability
17
LEG CUSHION-(4) (PART OF REFERENCE NO. 16, BU WCI F134166000 Contact Us For Availability
17
WCI F136471000 WCI F136471000 Contact Us For Availability
17
SCREW-SHIPPING WCI F137203000 Contact Us For Availability
17
WCI F141770000 WCI F141770000 Contact Us For Availability
18
WCI F140324000 WCI F140324000 Contact Us For Availability
18
WCI F077075000 WCI F077075000 Contact Us For Availability
19
BRACKET WCI 3004791 Contact Us For Availability
19
NUT-EXPANSION WCI F077074000 Contact Us For Availability
19
DOWEL PIN (2) WCI F077058000 Contact Us For Availability
19
SWITCH-WATER TEMP WCI F137241000 Contact Us For Availability
19A
SHIELD-WATER TEMP SW. (NON-ILLUSTRATED) WCI 3018800 Contact Us For Availability
20
WCI 3018689 WCI 3018689 Contact Us For Availability
20
SPEED-CLIP (2) WCI 08008454 Contact Us For Availability
20
WCI F137997100 WCI F137997100 Contact Us For Availability
20
SWITCH - PRESSURE WCI 3016450 Contact Us For Availability
21
WCI F141970000 WCI F141970000 Contact Us For Availability
21
HOUSING ASSY.-LOWER WCI F140586000 Contact Us For Availability
22
PNL-ACCESS (ALMOND) WCI F138855039 Contact Us For Availability
22
LEG AND DOME ASSY. WCI F079630000 Contact Us For Availability
23
CHROME SCREW (2) WCI F130139000 Contact Us For Availability
23
WCI F073565000 WCI F073565000 Contact Us For Availability
23
LID LOCK AND SWITCH ASSY. WCI 3017110 Contact Us For Availability
24
WCI Q000199011 WCI Q000199011 Contact Us For Availability
24
AGITATOR CAP WCI F131203100 Contact Us For Availability
24
WCI F130417000 WCI F130417000 Contact Us For Availability
24
WCI F141175000 WCI F141175000 Contact Us For Availability
25
WCI Q000199012 WCI Q000199012 Contact Us For Availability
25
WCI Q000199027 WCI Q000199027 Contact Us For Availability
25
KEPS NUT (6) WCI F054287000 Contact Us For Availability
25A
WCI F076138-15 WCI F076138-15 Contact Us For Availability
25B
WCI F076138-11 WCI F076138-11 Contact Us For Availability
26
WCI F140401000 WCI F140401000 Contact Us For Availability
26
WCI F141730000 WCI F141730000 Contact Us For Availability
26
SCREW (6) WCI F063532000 Contact Us For Availability
26A
WCI F130495200 WCI F130495200 Contact Us For Availability
27
WCI F140443000 WCI F140443000 Contact Us For Availability
27
CLAMP, HOSE WCI F064154011 Contact Us For Availability
27
SPRING-LONG VERT. (2) WCI F137997000 Contact Us For Availability
27
BEARING HOUSING PKG.-(CONSISTS OF REF. NO. 22 WCI F137014000 Contact Us For Availability
27
WCI F139814000 WCI F139814000 Contact Us For Availability
28
WCI F141261000 WCI F141261000 Contact Us For Availability
29
WCI F141124000 WCI F141124000 Contact Us For Availability
29
WCI F064154003 WCI F064154003 Contact Us For Availability
29
WCI F077009100 WCI F077009100 Contact Us For Availability
30
RETAINER-DRAIN HOSE WCI F131968000 Contact Us For Availability
30
HOSE-WATER VALVE/INLET WCI F137862000 Contact Us For Availability
30
WCI F132770028 WCI F132770028 Contact Us For Availability
31
WCI F132251000 WCI F132251000 Contact Us For Availability
31
CLAMP-HOSE WCI F064154010 Contact Us For Availability
31
SCREW (3) WCI F077090000 Contact Us For Availability
31
SCREW (2) WCI F135021000 Contact Us For Availability
32
CLAMP-HOSE WCI F064154015 Contact Us For Availability
32
LOCKNUT (3) WCI F073804000 Contact Us For Availability
32
WCI F000077094 WCI F000077094 Contact Us For Availability
33
WCI F139592000 WCI F139592000 Contact Us For Availability
33
WCI F142220000 WCI F142220000 Contact Us For Availability
33A
SCREW BRKT/SIDE PNL WCI F130439000 Contact Us For Availability
33A
WCI F078749000 WCI F078749000 Contact Us For Availability
34
WCI F141123000 WCI F141123000 Contact Us For Availability
34
WCI F142046000 WCI F142046000 Contact Us For Availability
34
BRACKET-LID LOCK AND SWITCH WCI 3018393 Contact Us For Availability
35
WCI F140999100 WCI F140999100 Contact Us For Availability
38
PLATE-LEG BOLTS (3) WCI F132729000 Contact Us For Availability
39
WCI F142027000 WCI F142027000 Contact Us For Availability
40
SHIELD-MOTOR-(FABRICATE LOCALLY) WCI F139128000 Contact Us For Availability
40
WCI F078465000 WCI F078465000 Contact Us For Availability
41
WCI F141786000 WCI F141786000 Contact Us For Availability
43
WCI F132861000 WCI F132861000 Contact Us For Availability
44
SPRING-HORIZONTAL-REAR WCI F079837000 Contact Us For Availability
44
WCI F134881000 WCI F134881000 Contact Us For Availability
47
SPACER (3) WCI F141131000 Contact Us For Availability
48
WCI F140322000 WCI F140322000 Contact Us For Availability
48A
WCI Q000199043 WCI Q000199043 Contact Us For Availability
50
SPACER WASHER WCI F077098000 Contact Us For Availability
51
THRUST WASHER WCI F077051000 Contact Us For Availability
53
TRANSMISSION OIL (1 QT.) WCI F060821100 Contact Us For Availability
54
LGS SPRING (SMALL) WCI F077052000 Contact Us For Availability
55
WCI F130403100 WCI F130403100 Contact Us For Availability
57
WCI 134736400 No Longer Available
58
WCI F140588000 WCI F140588000 Contact Us For Availability
60
WCI F077156000 WCI F077156000 Contact Us For Availability
62
THRUST WASHER WCI F062568000 Contact Us For Availability
× ![]()
