Model Electrolux LC400RXW2 WASHER – Common Parts & Diagrams
02 - CABINET PARTS
03 - CONSOLE AND CONTROL PARTS

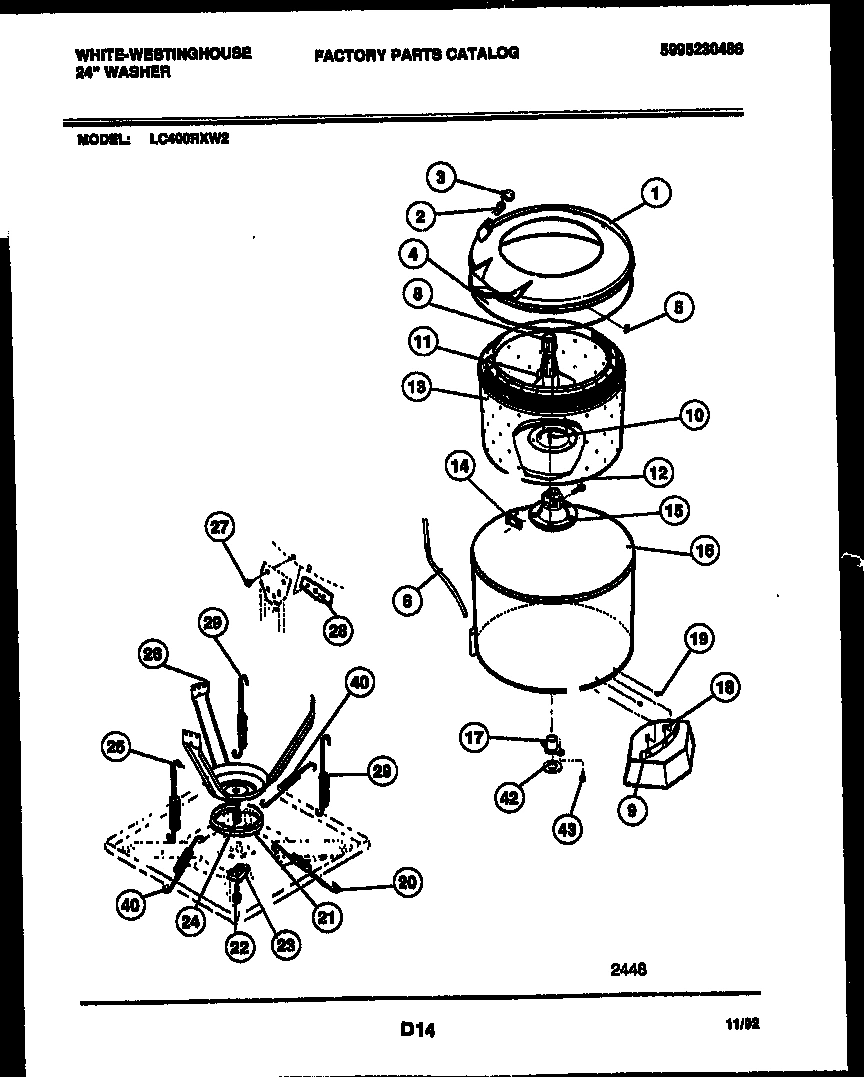

04 - TUB DETAIL

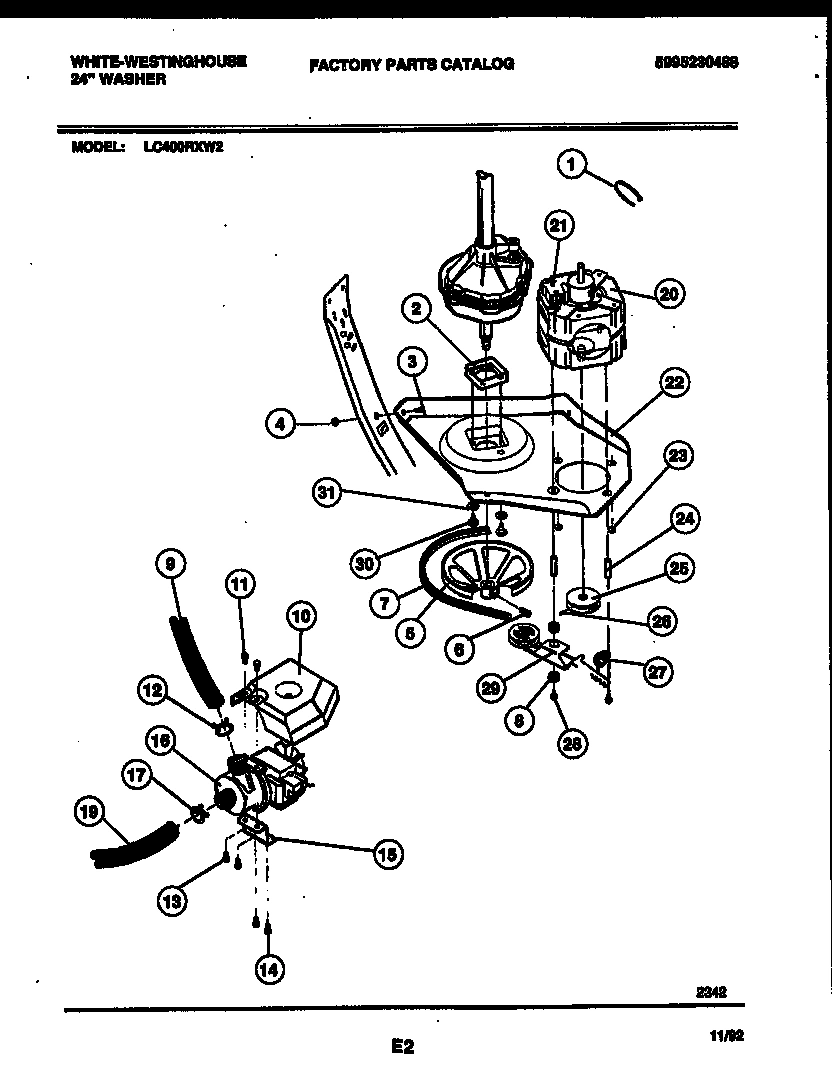

05 - WASHER DRIVE SYSTEM AND PUMP

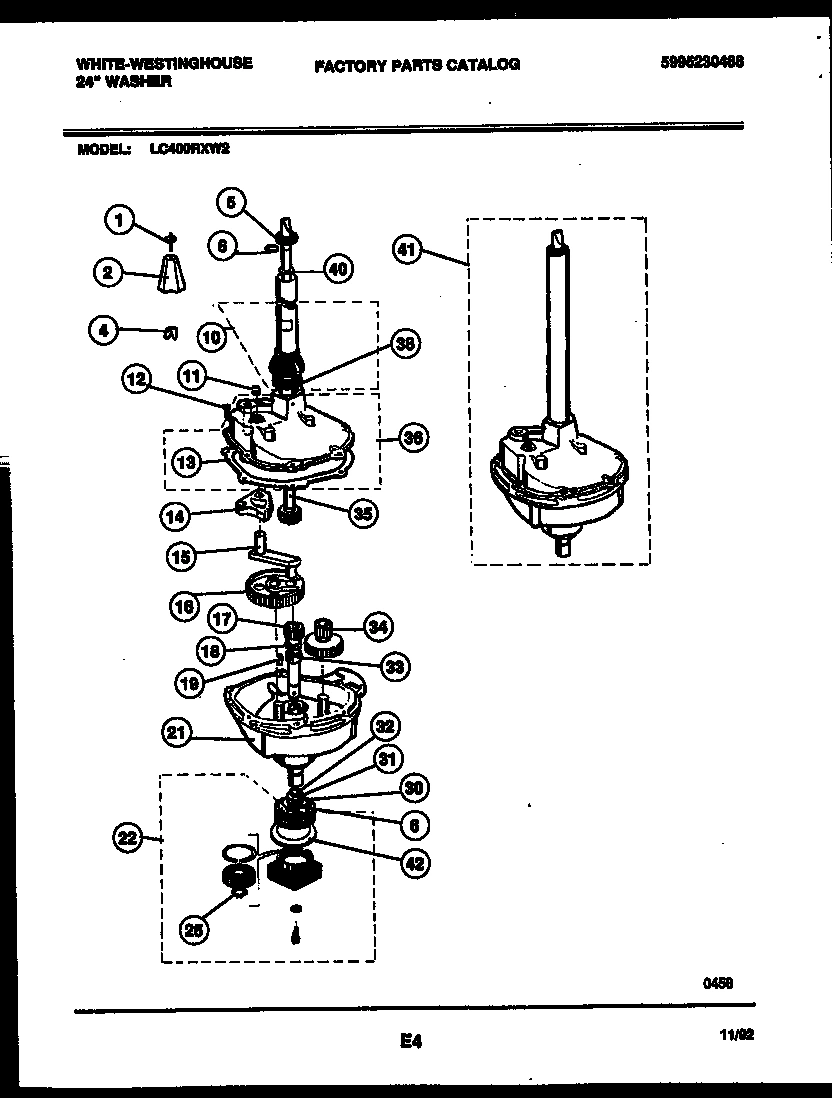

06 - TRANSMISSION PARTS

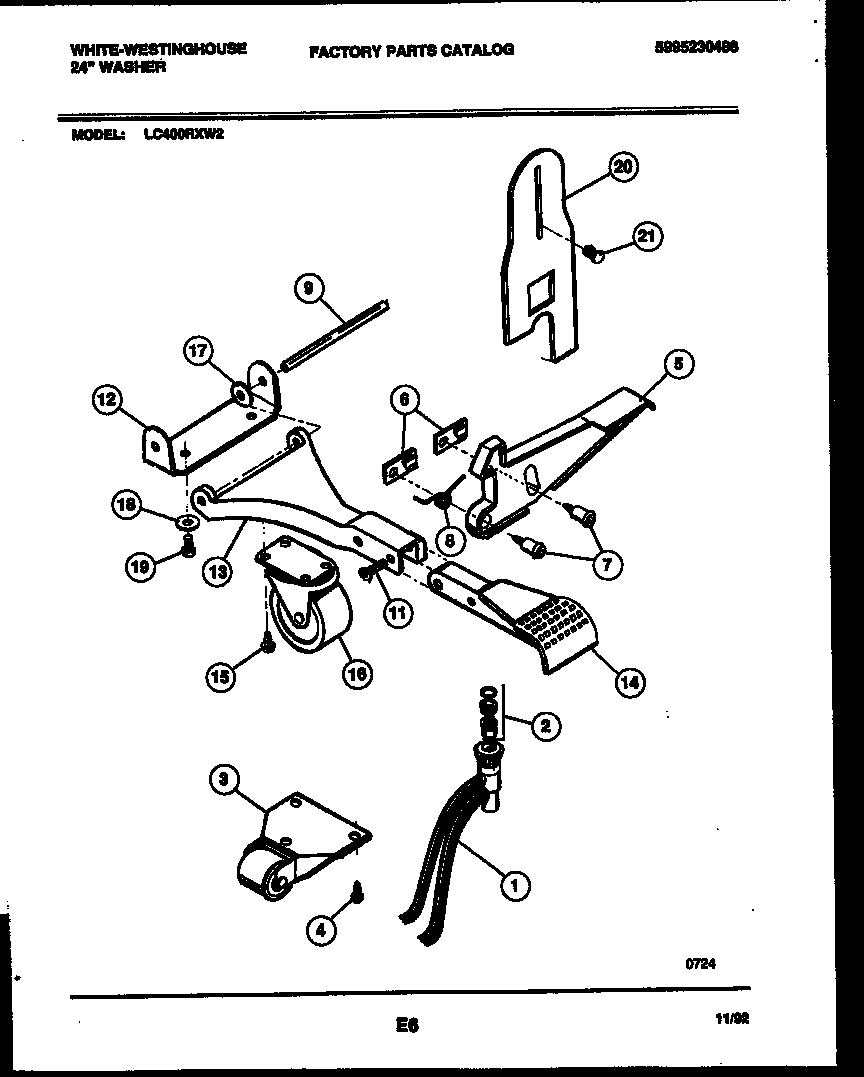

07 - PORTABLE WASHER COMPONENT
Common parts from model Electrolux LC400RXW2 WASHER
*71205
WCI 08011251 WCI 08011251 Contact Us For Availability
*71205
WCI 08027572 WCI 08027572 Contact Us For Availability
*71205
WCI 3205934 WCI 3205934 Contact Us For Availability
*71205
WCI 3205935 WCI 3205935 Contact Us For Availability
*71205
WCI 5303284137 WCI 5303284137 Contact Us For Availability
*71211
WCI 5373565000 WCI 5373565000 Contact Us For Availability
*71216
CLAMP-PUMP HOSE/TUB WCI 3204456 Contact Us For Availability
*71221
OIL-TRANSMISSION (1 QT) WCI 3005242 Contact Us For Availability
*71221
WCI 5303161182 WCI 5303161182 Contact Us For Availability
1
WCI 3205929 WCI 3205929 Contact Us For Availability
1
COVER-TUB WCI 5303207010 Contact Us For Availability
1
STUD BOLT WCI 5303161221 Contact Us For Availability
1
WCI 5303284143 WCI 5303284143 Contact Us For Availability
2
WCI 5308027515 WCI 5308027515 Contact Us For Availability
2
WCI 5377009100 WCI 5377009100 Contact Us For Availability
2
WCI 5303280324 WCI 5303280324 Contact Us For Availability
2
WCI 5303283875 WCI 5303283875 Contact Us For Availability
3
WCI 08008454 WCI 08008454 Contact Us For Availability
3
WCI F140887026 WCI F140887026 Contact Us For Availability
3
WCI 3161211 WCI 3161211 Contact Us For Availability
3
CASTER-FRONT (2) WCI 08027586 Contact Us For Availability
4
WCI 3205931 WCI 3205931 Contact Us For Availability
4
WCI 5303161121 WCI 5303161121 Contact Us For Availability
4
LOCKNUT WCI 3161212 Contact Us For Availability
4
SHIM-DRIVE BLOCK (AS REQUIRED) WCI 5303280325 Contact Us For Availability
4
SCREW-CASTER (4) WCI 08001617 Contact Us For Availability
5
WCI 5303161199 WCI 5303161199 Contact Us For Availability
5
WCI 5303284686 WCI 5303284686 Contact Us For Availability
5
WCI 131026500 WCI 131026500 Contact Us For Availability
5
WCI 08027587 WCI 08027587 Contact Us For Availability
6
WCI 5303161223 WCI 5303161223 Contact Us For Availability
6
WCI 5303270023 WCI 5303270023 Contact Us For Availability
6
WCI 131064400 WCI 131064400 Contact Us For Availability
6
SPEEDNUT WCI 08027588 Contact Us For Availability
7
WCI 08008458 WCI 08008458 Contact Us For Availability
7
WCI 5303283048 WCI 5303283048 Contact Us For Availability
7
WCI 5303283876 WCI 5303283876 Contact Us For Availability
8
WCI 5303161122 WCI 5303161122 Contact Us For Availability
8
WCI 08027535 WCI 08027535 Contact Us For Availability
8
SPRING WCI 08027590 Contact Us For Availability
9
SCREW (2) WCI 3161188 Contact Us For Availability
9
WCI 5303283049 WCI 5303283049 Contact Us For Availability
9
WCI 5303284140 WCI 5303284140 Contact Us For Availability
9
WCI 08027591 WCI 08027591 Contact Us For Availability
10
WCI 5308950197 No Longer Available
10
WCI 5303283071 WCI 5303283071 Contact Us For Availability
11
WCI 131059810 WCI 131059810 Contact Us For Availability
11
WCI 5303283050 WCI 5303283050 Contact Us For Availability
11
WCI 5303161224 WCI 5303161224 Contact Us For Availability
11
WCI 08027592 WCI 08027592 Contact Us For Availability
12
SPACER - TIMER WCI 5308015493 Contact Us For Availability
12
CLAMP-HOSE WCI 5303283073 Contact Us For Availability
12
SCREW WCI 08002804 Contact Us For Availability
12
WCI 08027593 WCI 08027593 Contact Us For Availability
13
SCREW WCI 5303283072 Contact Us For Availability
13
WCI 5308015778 WCI 5308015778 Contact Us For Availability
13
WCI 5303280331 WCI 5303280331 Contact Us For Availability
13
WCI 131000900 WCI 131000900 Contact Us For Availability
13
WCI 08027594 WCI 08027594 Contact Us For Availability
14
WCI 5303280332 WCI 5303280332 Contact Us For Availability
14
WCI 3205020 WCI 3205020 Contact Us For Availability
14
WCI 5308011268 WCI 5308011268 Contact Us For Availability
14
WCI 08027595 WCI 08027595 Contact Us For Availability
15
WCI 5303284141 WCI 5303284141 Contact Us For Availability
15
WCI 5303161169 WCI 5303161169 Contact Us For Availability
15
WCI 08037851 WCI 08037851 Contact Us For Availability
16
WCI 5303292169 WCI 5303292169 Contact Us For Availability
16
WCI 5303280333 WCI 5303280333 Contact Us For Availability
16
WCI 131033000 WCI 131033000 Contact Us For Availability
16
WCI 5308015496 WCI 5308015496 Contact Us For Availability
16
WCI 08027597 WCI 08027597 Contact Us For Availability
17
SPRING WASHER WCI 5303161306 Contact Us For Availability
17
CLAMP HOSE WCI F064154-004 Contact Us For Availability
17
CLAMP-HOSE WCI 5303283076 Contact Us For Availability
17
SHAFT-LOWER WCI 5308014905 Contact Us For Availability
18
HOSE-VALVE TO INLET WCI 3205937 Contact Us For Availability
18
WCI 5303283052 WCI 5303283052 Contact Us For Availability
18
WASHER WCI 5308002468 Contact Us For Availability
19
SWITCH-WATER TEMP WCI 5308014346 Contact Us For Availability
19
WCI 5303284142 WCI 5303284142 Contact Us For Availability
19
WCI 5303161227 WCI 5303161227 Contact Us For Availability
19
SCREW WCI 5308001638 Contact Us For Availability
20
WCI 5303293584 WCI 5303293584 Contact Us For Availability
20
WCI 131065500 WCI 131065500 Contact Us For Availability
20
WCI 131097200 WCI 131097200 Contact Us For Availability
20
WCI 08027598 WCI 08027598 Contact Us For Availability
21
WCI 5308014888 WCI 5308014888 Contact Us For Availability
21
HOUSING-LOWER (INCLUDES GASKET) WCI 5303912535 Contact Us For Availability
21
WCI 08027599 WCI 08027599 Contact Us For Availability
22
WCI 5303283845 WCI 5303283845 Contact Us For Availability
22
SHIPPING BOLT WCI 5303161284 Contact Us For Availability
22
SUPPORT PLATE WCI 08002472 Contact Us For Availability
22
BEARING HSG./LGS SPRING WCI 5308950058 Contact Us For Availability
23
SCREW (2) WCI 08001578 Contact Us For Availability
23
WCI 5303209725 WCI 5303209725 Contact Us For Availability
23
SHIPPING BLOCK WCI 5303161202 Contact Us For Availability
23
WCI 5303283079 WCI 5303283079 Contact Us For Availability
24
WCI 5303284130 WCI 5303284130 Contact Us For Availability
24
SEMS SCREW (2) WCI 5303010202 Contact Us For Availability
24
EXPANSION NUT WCI 3161203 Contact Us For Availability
24
WCI 5303161303 WCI 5303161303 Contact Us For Availability
25
WCI 3205926 WCI 3205926 Contact Us For Availability
25
WCI 5303912509 WCI 5303912509 Contact Us For Availability
25
WCI 5303161131 WCI 5303161131 Contact Us For Availability
25
WCI 131031900 WCI 131031900 Contact Us For Availability
25
WCI 5308015536 WCI 5308015536 Contact Us For Availability
25A
WCI 08008466 WCI 08008466 Contact Us For Availability
25B
WCI 5376138011 WCI 5376138011 Contact Us For Availability
26
WCI 5303161252 WCI 5303161252 Contact Us For Availability
26
WCI 5303283054 WCI 5303283054 Contact Us For Availability
26
WCI 5303206869 WCI 5303206869 Contact Us For Availability
27
WCI 5308014903 WCI 5308014903 Contact Us For Availability
27
SCREW-LEGS WCI 3161205 Contact Us For Availability
27
SPRING TENSION WCI 5308004079 Contact Us For Availability
28
PLATE-LEG BOLT WCI 5303269887 Contact Us For Availability
28
WCI 5303283080 WCI 5303283080 Contact Us For Availability
29
WCI 5303161133 WCI 5303161133 Contact Us For Availability
29
WCI 5303937001 WCI 5303937001 Contact Us For Availability
30
WCI 5308027582 WCI 5308027582 Contact Us For Availability
30
WCI 5308002475 WCI 5308002475 Contact Us For Availability
31
WCI 5303161226 WCI 5303161226 Contact Us For Availability
31
SCREW (2) WCI 3161259 Contact Us For Availability
31
WCI 5303207426 WCI 5303207426 Contact Us For Availability
32
WCI 3205928 WCI 3205928 Contact Us For Availability
32
WCI 08004657 WCI 08004657 Contact Us For Availability
33
WCI 5303161174 WCI 5303161174 Contact Us For Availability
33
SCREW-LID LOCK (2) WCI 3161240 Contact Us For Availability
33A
SCREW-BRACKET/SIDE PANEL (2) WCI 08004660 Contact Us For Availability
34
BRACKET-LID LOCK & SW ASSEMBLY WCI 3018393 Contact Us For Availability
34
WCI 5303161175 WCI 5303161175 Contact Us For Availability
36
HOUSING UPPER (INCLUDES GASKET) WCI 5303937039 Contact Us For Availability
38
WCI 5303272073 WCI 5303272073 Contact Us For Availability
40
SPRING-HORIZONTAL WCI 5308006573 Contact Us For Availability
40
THRUST WASHER WCI 5303161232 Contact Us For Availability
41
WCI 5308057579 WCI 5308057579 Contact Us For Availability
42
WCI 5308057430 WCI 5308057430 Contact Us For Availability
× ![]()
