Model LG LC340CP – Common Parts & Diagrams

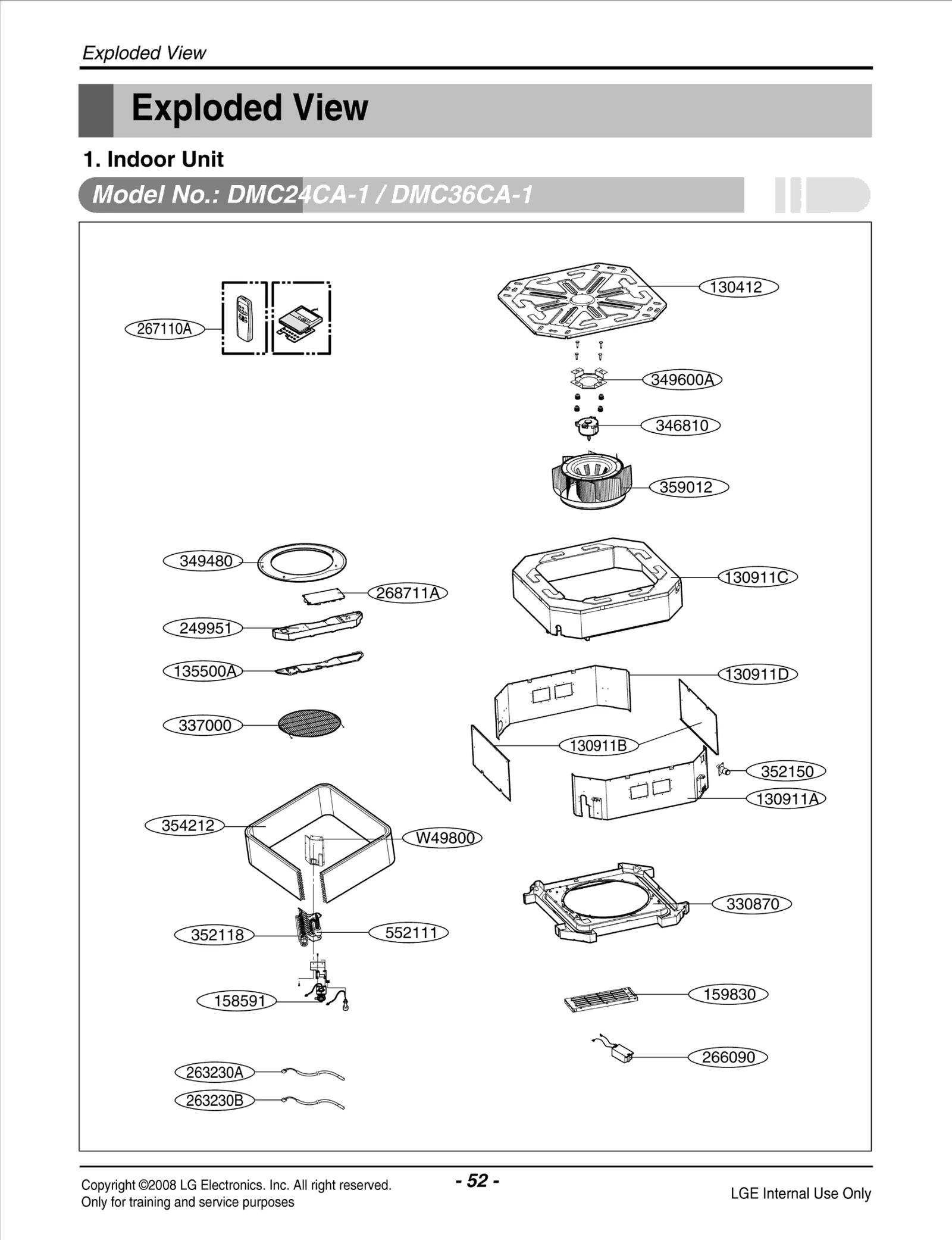

Diagram 0

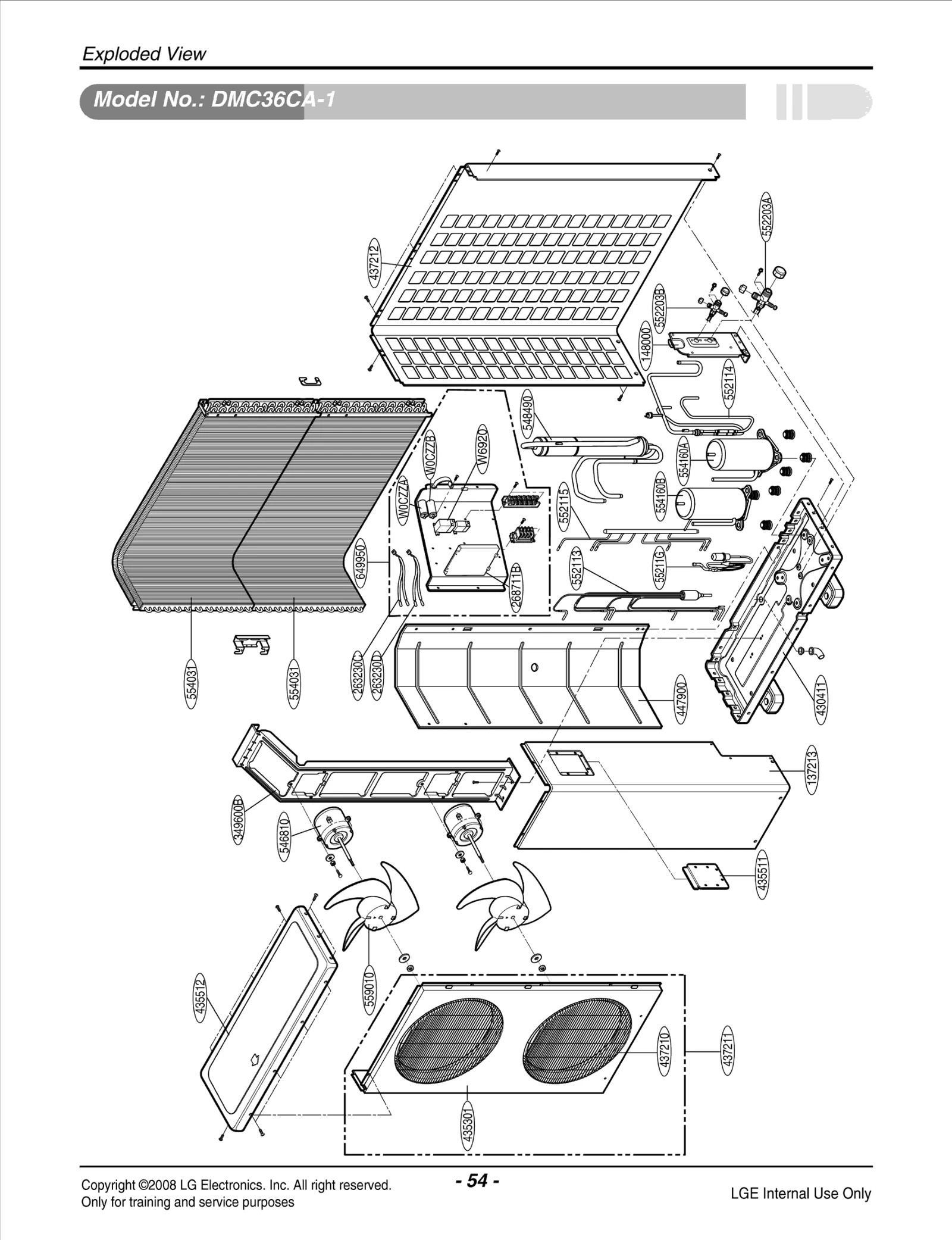

Diagram 1
Common parts from model LG LC340CP
55211G
Tube Assembly,Expansion LGE AJR30127901 Contact Us For Availability
130911A
Cabinet Assembly,Indoor LGE 3091A10075E Contact Us For Availability
130911B
Cabinet Assembly,Indoor LGE 3091A10085C Contact Us For Availability
130911C
Cabinet Assembly,Indoor LGE 3091A10077A Contact Us For Availability
130911D
Cabinet Assembly,Indoor LGE 3091A10075F Contact Us For Availability
137213
PANEL ASSEMBLY,SIDE LGE 3721A20229A Contact Us For Availability
148000
Supporter LGE 4980AP2517D Contact Us For Availability
249951
Case Assembly,Control(Indoor) LGE 4995A10224F Contact Us For Availability
263230A
Thermistor,NTC LGE 6323A30002A Contact Us For Availability
263230B
Thermistor,NTC LGE 6323AQ3226W Contact Us For Availability
263230C
Thermistor,NTC LGE 6323A20019C Contact Us For Availability
263230D
Thermistor,NTC LGE 6323A20023E Contact Us For Availability
266090
HVPS,DC/DC LGE 6609A20009L Contact Us For Availability
268711B
PCB Assembly,Main LGE 6871A21318E Contact Us For Availability
330870
Pan Assembly,Drain LGE 3087A10035H Contact Us For Availability
337000
Mesh,Metal LGE 3700A20036A Contact Us For Availability
346810
Motor Assembly,DC,Indoor LGE 4681A20168D Contact Us For Availability
349600A
Bracket,Motor LGE 4960A20080A Contact Us For Availability
349600B
MOUNT,MOTOR LGE 4960A10004A Contact Us For Availability
354212
Evaporator Assembly,Final LGE 5421A10062A Contact Us For Availability
359012
Fan,Turbo LGE 5900A10016A Contact Us For Availability
430411
Base Assembly,Weld(Outdoor) LGE AAN32562207 Contact Us For Availability
435301
GRILLE,DISCHARGE LGE 3530AP1225D Contact Us For Availability
435511
Cover Assembly,Control(Outdoor) LGE ACQ33125301 Contact Us For Availability
435512
Cover Assembly,Top(Outdoor) LGE ACQ32490301 Contact Us For Availability
437210
PANEL ASSY,FRONT SUB LGE 3720AP1212B Contact Us For Availability
437211
Panel Assembly,Front(Outdoor) LGE AGL32571801 Contact Us For Availability
437212
PANEL ASSEMBLY,REAR(OUTDOOR) LGE 3720AP1202L Contact Us For Availability
447900
BARRIER,OUTDOOR LGE 4760AP1216C Contact Us For Availability
546810
MOTOR ASSEMBLY,OUTDOOR LGE 4681A10030C Contact Us For Availability
548490
Accumulator LGE 4848A20006K Contact Us For Availability
552113
Tube Assembly,Condenser(Out) LGE AJR30109601 Contact Us For Availability
552114
Tube Assembly,Discharge(Outdoor) LGE 5211A19011A Contact Us For Availability
552115
Tube Assembly,Menifold(Outdoor) LGE 5211A00034A Contact Us For Availability
552203A
Valve,Service LGE 5220A20013A Contact Us For Availability
554031
Condenser Assembly,Bending LGE 5403A20044B Contact Us For Availability
554160A
Compressor Set,Korea LGE TBZ30130501 Contact Us For Availability
554160B
Compressor Set,Korea LGE 2520UTBK1AA Contact Us For Availability
649950
Case Assembly,Control(Outdoor) LGE ABQ30144401 Contact Us For Availability
W49800
Supporter Assembly LGE 4981A21011A Contact Us For Availability
× ![]()
