Model Electrolux LC248L1 LAUNDRY CENTER – Common Parts & Diagrams

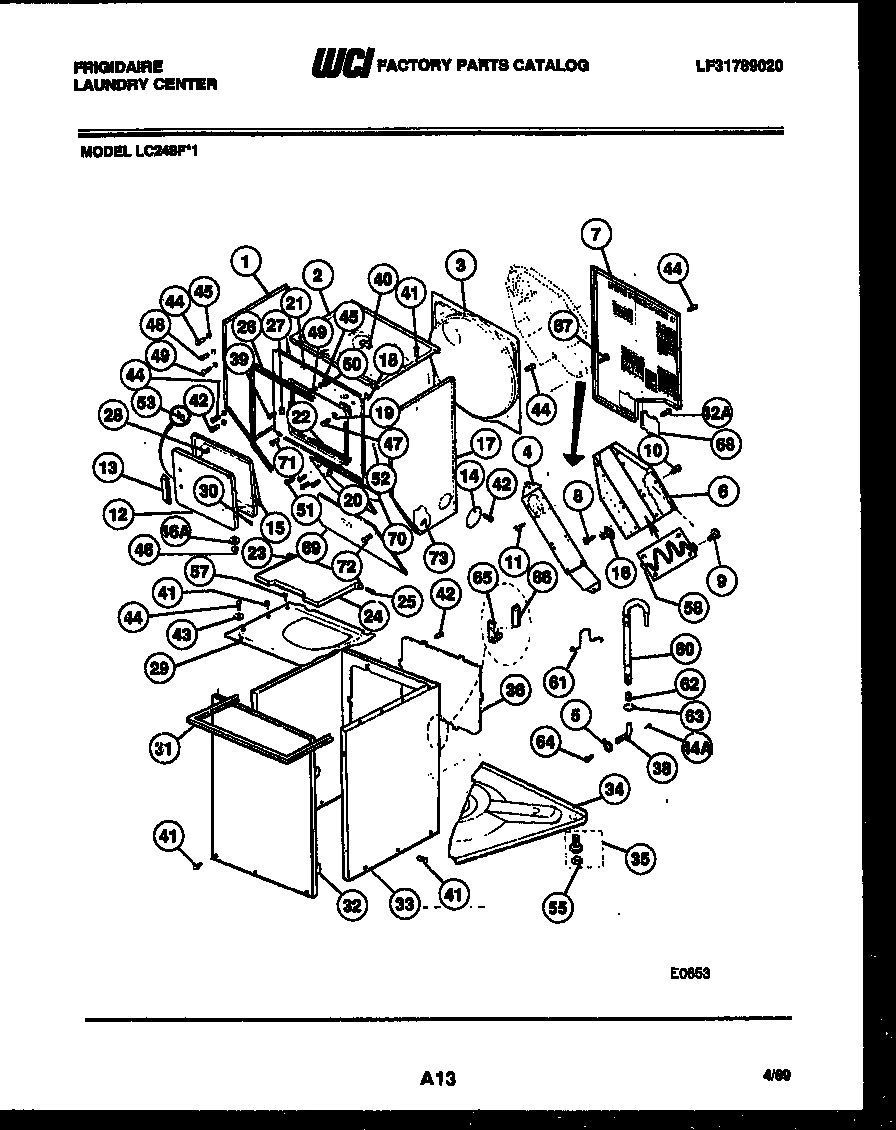

02 - CABINET PARTS AND HEATER

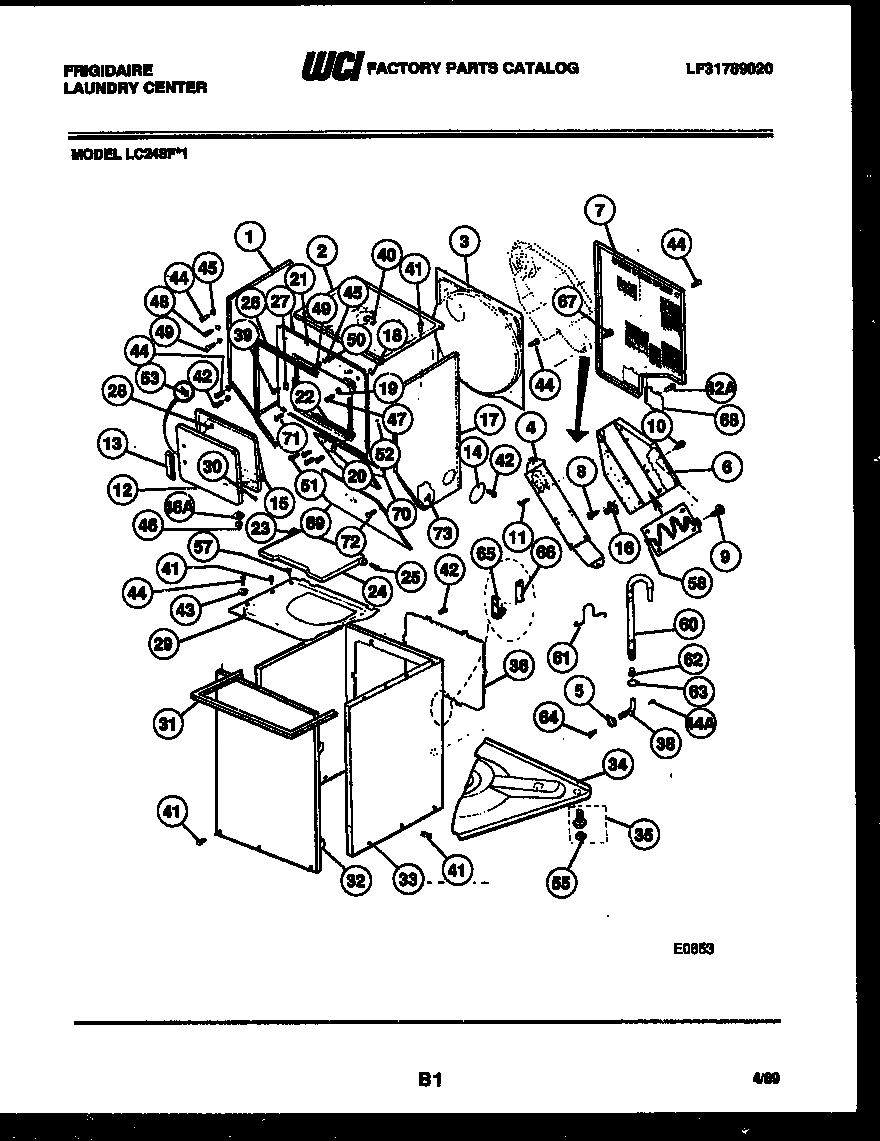

03 - CABINET PARTS AND HEATER

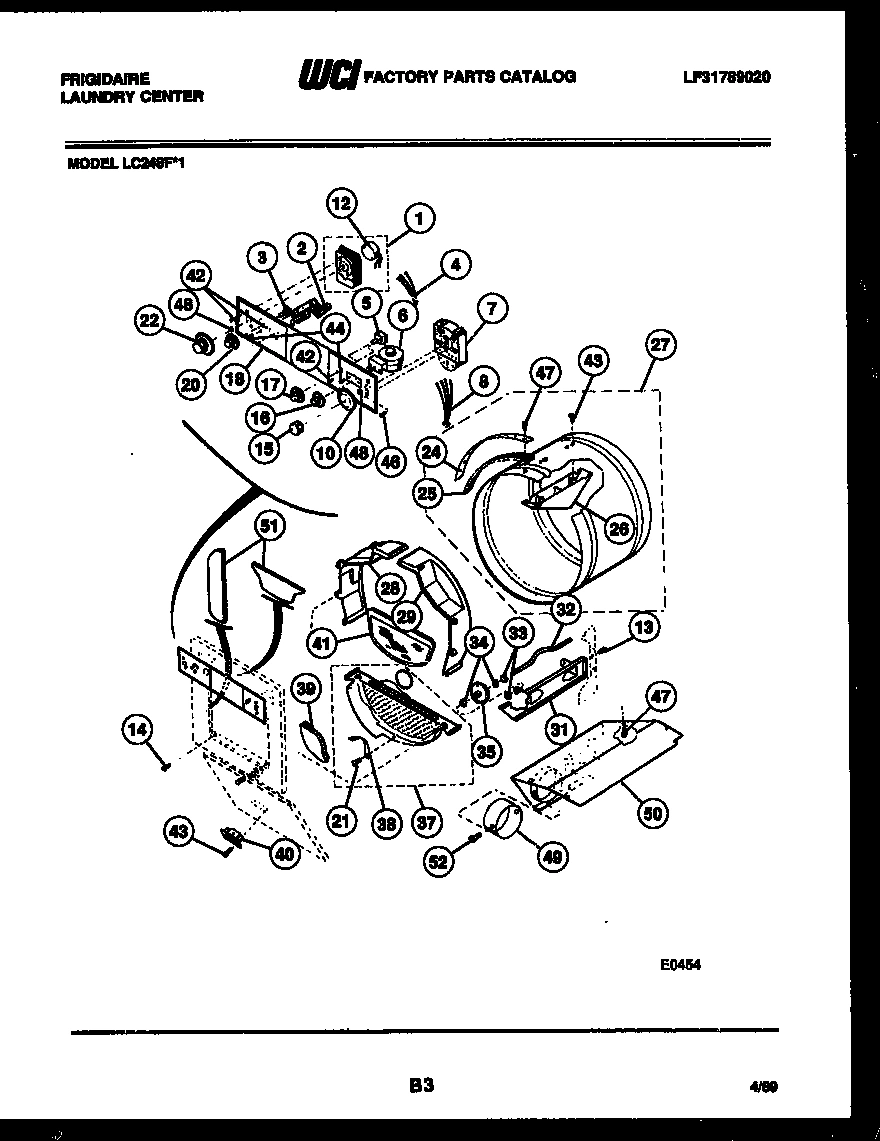

04 - CONSOLE, CONTROL AND DRUM

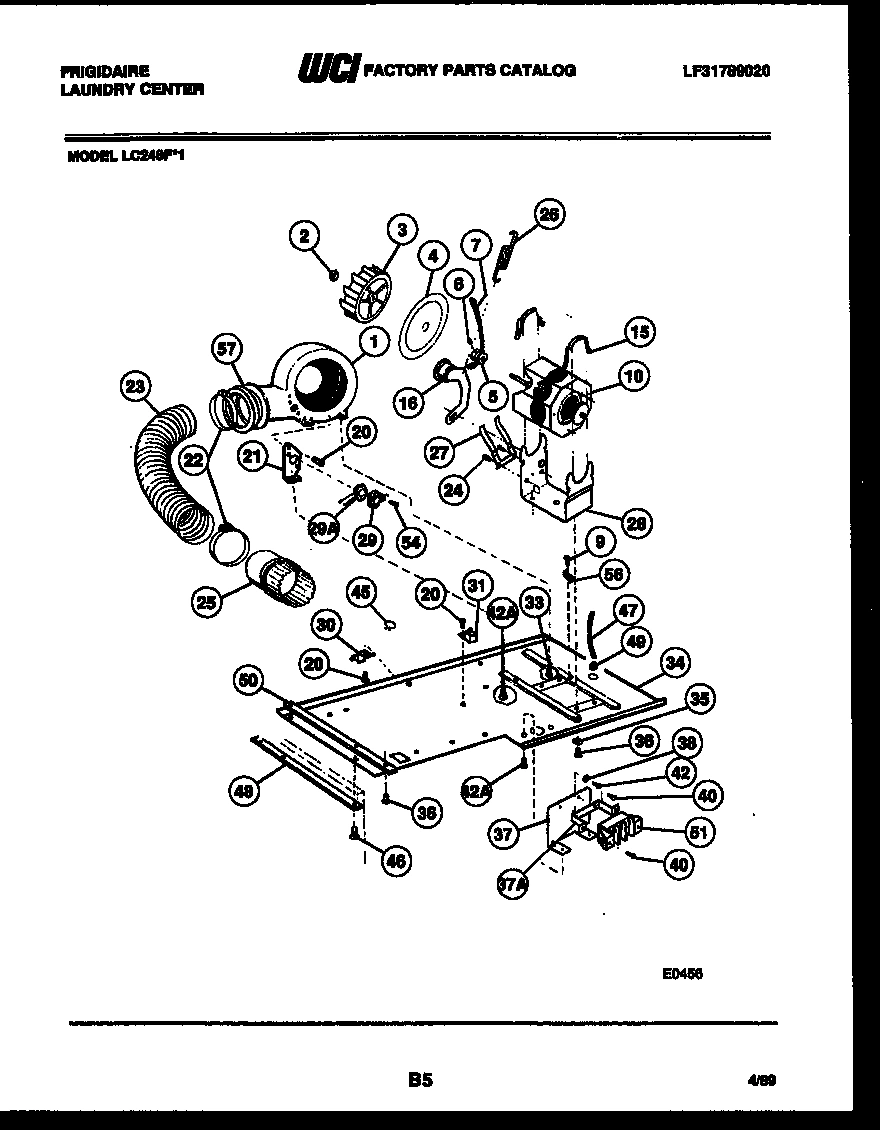

05 - DRYER MOTOR, BLOWER AND BELT

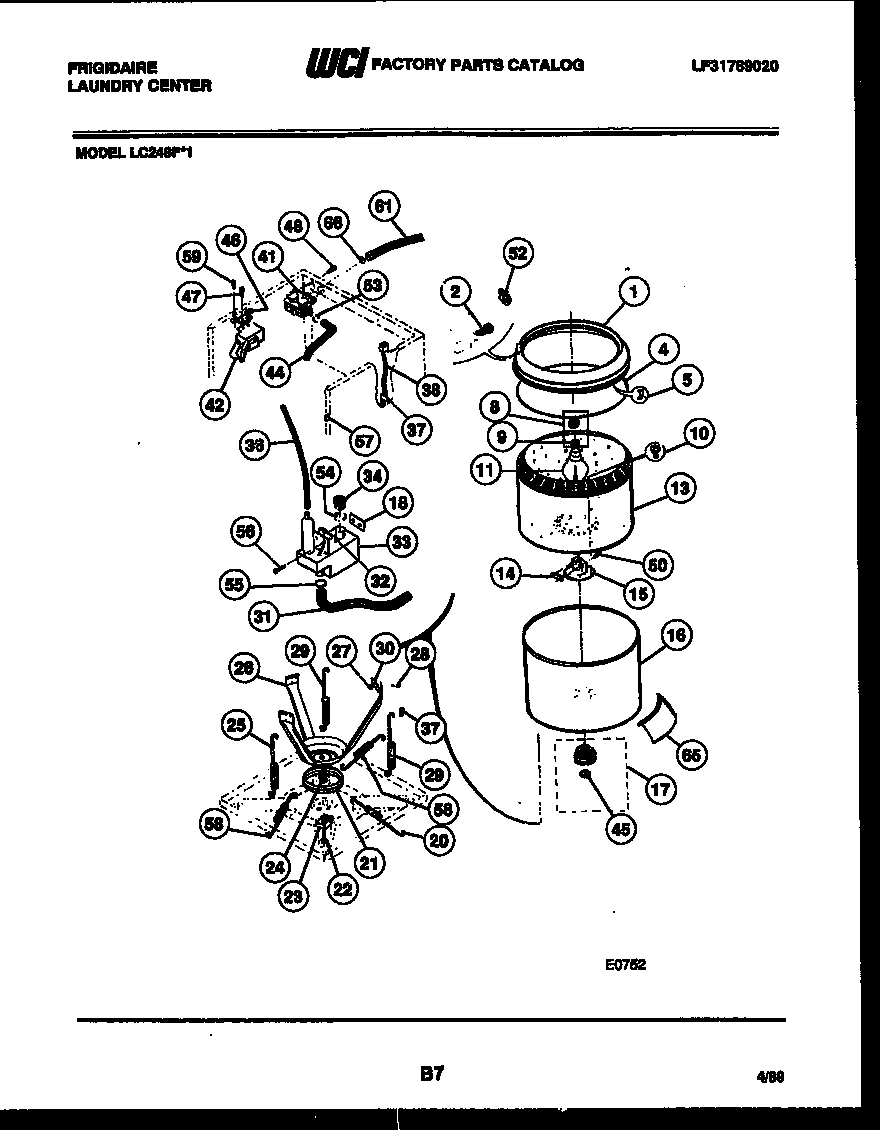

06 - TUBS, WATER VALVE AND LID SWITCH

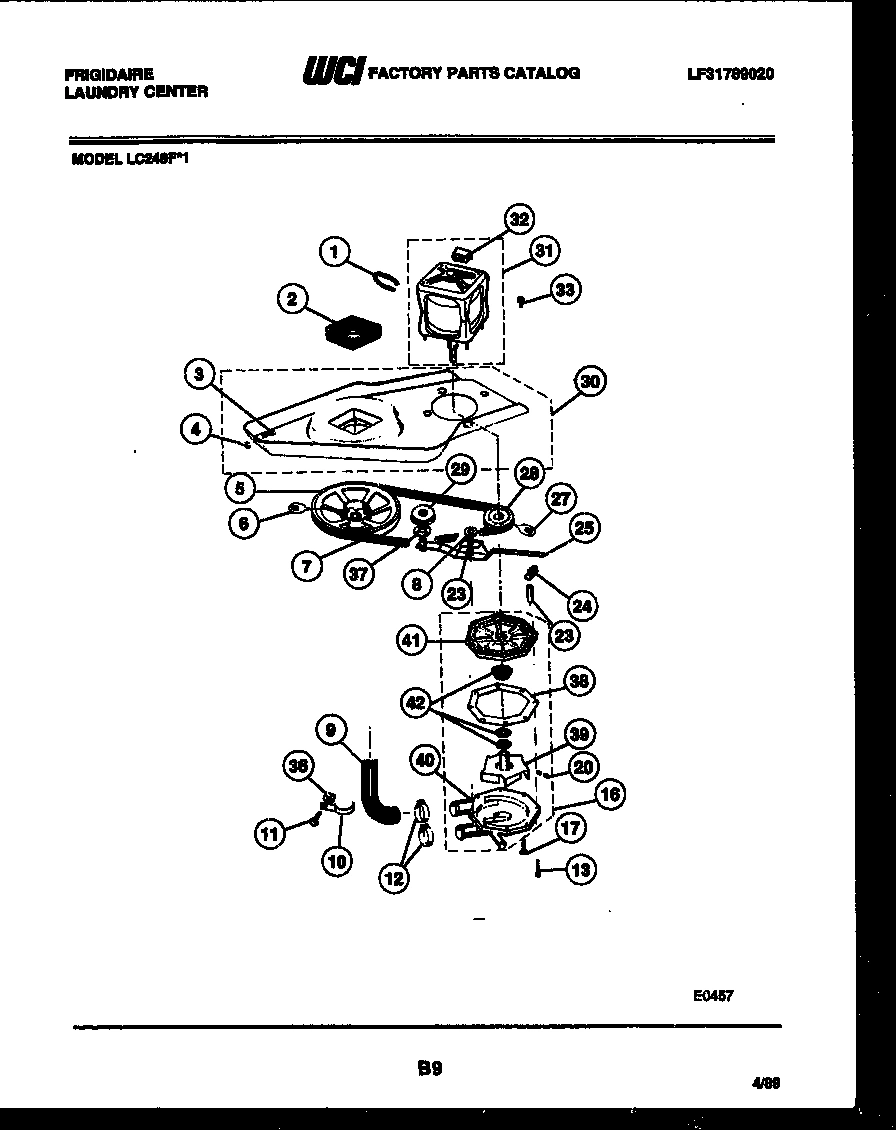

07 - WASHER DRIVE SYSTEM AND PUMP

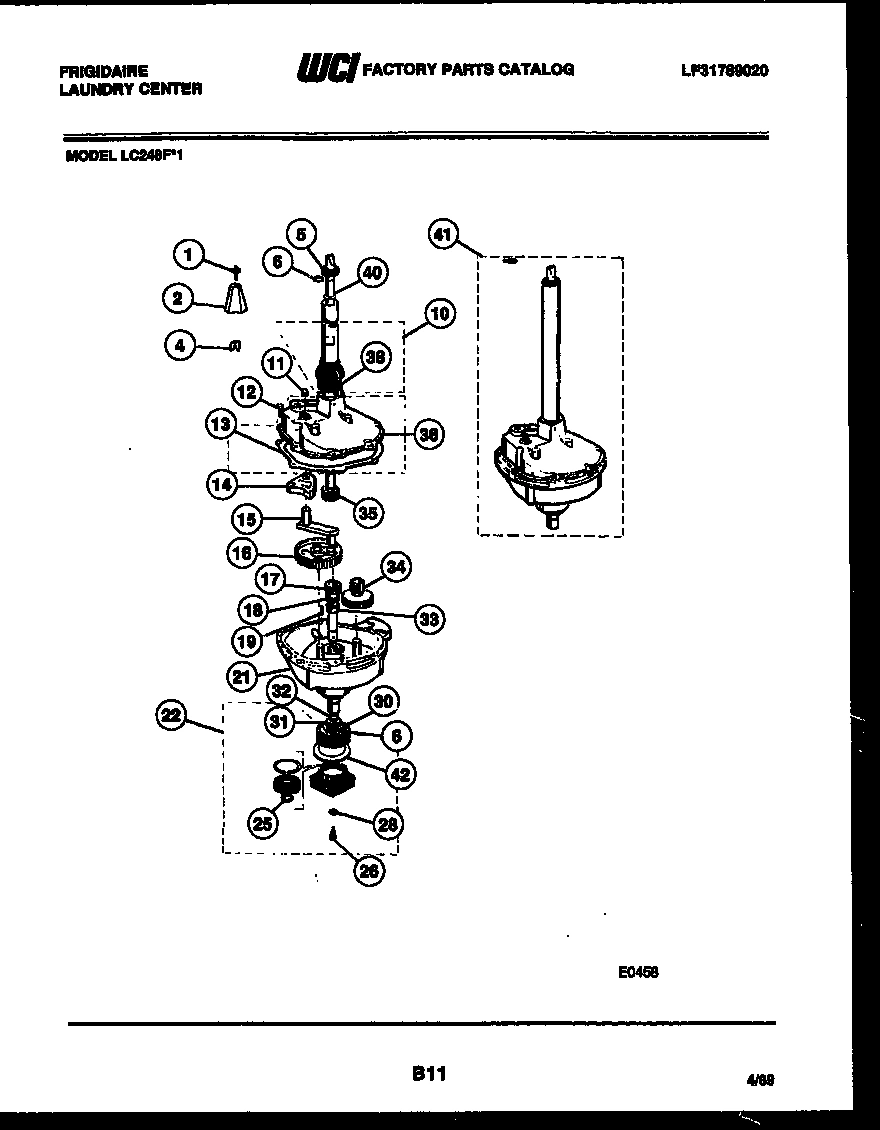

08 - TRANSMISSION PARTS
Common parts from model Electrolux LC248L1 LAUNDRY CENTER
*43716
INSULATION - REAR & VENT PANEL WCI 08027667 Contact Us For Availability
*43716
INSULATION - ALUMINUM BACK WCI 3016444 Contact Us For Availability
*43717
PAINT - 6 OZ. (ALMOND) WCI 08001666 Contact Us For Availability
*43746
WCI 01134149 WCI 01134149 Contact Us For Availability
*43746
WCI 08010855 WCI 08010855 Contact Us For Availability
*43747
WCI 08027502 WCI 08027502 Contact Us For Availability
*43769
WCI 08027675 WCI 08027675 Contact Us For Availability
*43796
ADHESIVE AND PRIMER ADHESIVE WCI 08950157 Contact Us For Availability
*43797
WCI 08014892 WCI 08014892 Contact Us For Availability
*43797
WCI 08014893 WCI 08014893 Contact Us For Availability
*43831
WCI 08002818 WCI 08002818 Contact Us For Availability
*43831
WCI 08011269 WCI 08011269 Contact Us For Availability
1
WCI 3016445 WCI 3016445 Contact Us For Availability
1
WCI 3016461 WCI 3016461 Contact Us For Availability
1
WCI 08027575 WCI 08027575 Contact Us For Availability
1
WCI 08002491 WCI 08002491 Contact Us For Availability
2
WCI 3017969 WCI 3017969 Contact Us For Availability
2
WCI 01128554 WCI 01128554 Contact Us For Availability
2
WCI 08027515 WCI 08027515 Contact Us For Availability
2
WCI 08002473 WCI 08002473 Contact Us For Availability
3
WCI 3017111 WCI 3017111 Contact Us For Availability
3
WCI 3016447 WCI 3016447 Contact Us For Availability
3
WCI 08015787 WCI 08015787 Contact Us For Availability
3
WCI 08002471 WCI 08002471 Contact Us For Availability
4
DUCT - FRONT WCI 08015820 Contact Us For Availability
4
WCI 3203093 WCI 3203093 Contact Us For Availability
4
WCI 00639342 WCI 00639342 Contact Us For Availability
4
WCI 08002430 WCI 08002430 Contact Us For Availability
4
WCI 08002470 WCI 08002470 Contact Us For Availability
4
WCI 08014904 WCI 08014904 Contact Us For Availability
5
CLAMP - HOSE/COUPLER WCI 08004057 Contact Us For Availability
5
SWITCH - WATER TEMP WCI 3017970 Contact Us For Availability
5
WCI 08015796 WCI 08015796 Contact Us For Availability
5
WCI 08002429 WCI 08002429 Contact Us For Availability
5
WCI 08014923 WCI 08014923 Contact Us For Availability
6
WCI 08015854 WCI 08015854 Contact Us For Availability
6
SWITCH - PRESSURE WCI 3016450 Contact Us For Availability
6
WCI 08027520 WCI 08027520 Contact Us For Availability
6
WCI 08002474 WCI 08002474 Contact Us For Availability
7
TIMER-WASHER WCI 3016451 Contact Us For Availability
7
WCI 3016426 WCI 3016426 Contact Us For Availability
7
WCI 00639357 WCI 00639357 Contact Us For Availability
8
WCI 3016452 WCI 3016452 Contact Us For Availability
8
WCI 08006677 WCI 08006677 Contact Us For Availability
8
BUSHING (2) WCI 08027535 Contact Us For Availability
9
WCI 08004061 WCI 08004061 Contact Us For Availability
9
WCI 08002427 WCI 08002427 Contact Us For Availability
9
WCI 08015079 WCI 08015079 Contact Us For Availability
10
WCI 3017971 WCI 3017971 Contact Us For Availability
10
MOTOR & SWITCH ASSY. - DRYER WCI 3203091 Contact Us For Availability
10
SCREW (5) WCI 08027519 Contact Us For Availability
10
CLAMP (2) WCI 08004052 Contact Us For Availability
10
WCI 08950197 WCI 08950197 Contact Us For Availability
11
WCI 3161485 WCI 3161485 Contact Us For Availability
11
WCI 08002803 WCI 08002803 Contact Us For Availability
12
WCI 08027654 WCI 08027654 Contact Us For Availability
12
WCI 08010815 WCI 08010815 Contact Us For Availability
12
WCI 3161302 WCI 3161302 Contact Us For Availability
12
WCI 08011267 WCI 08011267 Contact Us For Availability
13
HANDLE - DOOR (ALMOND) WCI 08027657 Contact Us For Availability
13
WCI 08027576 WCI 08027576 Contact Us For Availability
13
SCREW - PUMP MTG (4) WCI 08002390 Contact Us For Availability
13
WCI 08015863 WCI 08015863 Contact Us For Availability
14
WCI 02832585 WCI 02832585 Contact Us For Availability
14
SCREW WCI 08004125 Contact Us For Availability
14
WCI 08011268 WCI 08011268 Contact Us For Availability
15
WCI 08027662 WCI 08027662 Contact Us For Availability
15
KNOB - WASHER TIMER WCI 3017972 Contact Us For Availability
15
CLIP - MOTOR WCI 08002293 Contact Us For Availability
15
WCI 08014908 WCI 08014908 Contact Us For Availability
15
WCI 08002809 WCI 08002809 Contact Us For Availability
16
WCI 08015856 WCI 08015856 Contact Us For Availability
16
KNOB - PRESSURE SWITCH WCI 3015841 Contact Us For Availability
16
WCI 08015846 WCI 08015846 Contact Us For Availability
16
TUB - SPLASH WCI 08057443 Contact Us For Availability
16
WCI 08015864 WCI 08015864 Contact Us For Availability
16
WCI 08015496 WCI 08015496 Contact Us For Availability
17
PNL. - R.H. DRYER (ALMOND) WCI 08015808 Contact Us For Availability
17
KNOB - WATER TEMP SWITCH WCI 08015842 Contact Us For Availability
17
WCI 08027536 WCI 08027536 Contact Us For Availability
17
WCI 08027581 WCI 08027581 Contact Us For Availability
18
WCI 00639710 WCI 00639710 Contact Us For Availability
18
WCI 3017973 WCI 3017973 Contact Us For Availability
18
WCI 08011303 WCI 08011303 Contact Us For Availability
19
WCI 00639712 WCI 00639712 Contact Us For Availability
19
DOWEL PIN (2) WCI 08002813 Contact Us For Availability
20
WCI 00639713 WCI 00639713 Contact Us For Availability
20
WCI 08015843 WCI 08015843 Contact Us For Availability
20
WCI 08006564 WCI 08006564 Contact Us For Availability
20
WCI 08002392 WCI 08002392 Contact Us For Availability
21
PNL - FRONT DRYER (ALMOND) WCI 3016438 Contact Us For Availability
21
BRACKET - THERMO MOUNTING WCI 3016464 Contact Us For Availability
21
SNUBBER RING ASSY. WCI 08002385 Contact Us For Availability
21
WCI 08015870 WCI 08015870 Contact Us For Availability
22
WCI 00639378 WCI 00639378 Contact Us For Availability
22
WCI 08015849 WCI 08015849 Contact Us For Availability
22
BOLT - SHIPPING WCI 08027679 Contact Us For Availability
22
WCI 08006578 WCI 08006578 Contact Us For Availability
23
WCI 00633925 WCI 00633925 Contact Us For Availability
23
WCI 08004066 WCI 08004066 Contact Us For Availability
23
SPACER - PUMP MTG (4) WCI 08014925 Contact Us For Availability
24
LID - WASHER (ALMOND) WCI 3200872 Contact Us For Availability
24
WCI 0639864 WCI 0639864 Contact Us For Availability
24
WCI 08002382 WCI 08002382 Contact Us For Availability
24
SPRING - TENSION WCI 08002456 Contact Us For Availability
25
WCI 08015844 WCI 08015844 Contact Us For Availability
25
WCI 01132356 WCI 01132356 Contact Us For Availability
25
WCI 3016465 WCI 3016465 Contact Us For Availability
25
WCI 08006565 WCI 08006565 Contact Us For Availability
25
WCI 08950227 WCI 08950227 Contact Us For Availability
25
WCI 08015536 WCI 08015536 Contact Us For Availability
25A
WCI 08016240 WCI 08016240 Contact Us For Availability
26
WCI 08015857 WCI 08015857 Contact Us For Availability
26
WCI 08014895 WCI 08014895 Contact Us For Availability
26
SPRING - IDLER ARM WCI 08015828 Contact Us For Availability
26
LEG & DOME ASSY. WCI 08004065 Contact Us For Availability
26
WCI 08027582 WCI 08027582 Contact Us For Availability
27
WCI 08027658 WCI 08027658 Contact Us For Availability
27
DRUM ASSEMBLY WCI 3004200 Contact Us For Availability
27
WCI 08015824 WCI 08015824 Contact Us For Availability
27
NUT (6) WCI 08002377 Contact Us For Availability
27
WCI 08002453 WCI 08002453 Contact Us For Availability
28
WCI 08015830 WCI 08015830 Contact Us For Availability
28
CRADLE ASSY. MOTOR WCI 3016466 Contact Us For Availability
28
WCI 08002378 WCI 08002378 Contact Us For Availability
28
WCI 08006686 WCI 08006686 Contact Us For Availability
28
WCI 08002467 WCI 08002467 Contact Us For Availability
29
WCI 3017114 WCI 3017114 Contact Us For Availability
29
WCI 08015829 WCI 08015829 Contact Us For Availability
29
WCI 08015847 WCI 08015847 Contact Us For Availability
29
SPRING - VERTICAL (LONG) (2) WCI 08006566 Contact Us For Availability
29A
WCI 08008892 WCI 08008892 Contact Us For Availability
30
WCI 01127285 WCI 01127285 Contact Us For Availability
30
PLATE - LEG BOLT (3) WCI 08002379 Contact Us For Availability
30
WCI 08006581 WCI 08006581 Contact Us For Availability
30
WCI 08002475 WCI 08002475 Contact Us For Availability
31
TRIM STRIP - WASHER WCI 08015789 Contact Us For Availability
31
WCI 3017901 WCI 3017901 Contact Us For Availability
31
WCI 08010853 WCI 08010853 Contact Us For Availability
31
HOSE - PUMP/TRAP WCI 08008997 Contact Us For Availability
31
MOTOR & SWITCH WCI 08014901 Contact Us For Availability
31
WCI 08002812 WCI 08002812 Contact Us For Availability
31A
WCI 3017902 WCI 3017902 Contact Us For Availability
32
WCI 02833352 WCI 02833352 Contact Us For Availability
32
SHAFT ROLLER (2) WCI 08004076 Contact Us For Availability
32
WCI 08015845 WCI 08015845 Contact Us For Availability
32
WCI 08014888 WCI 08014888 Contact Us For Availability
33
CABINET - WASHER (ALMOND) WCI 08007754 Contact Us For Availability
33
WCI 08027670 WCI 08027670 Contact Us For Availability
33
WCI 08002366 WCI 08002366 Contact Us For Availability
33
WCI 08001676 WCI 08001676 Contact Us For Availability
33
WCI 08002817 WCI 08002817 Contact Us For Availability
34
BASE - WASHER WCI 08004025 Contact Us For Availability
34
WCI 07537238 WCI 07537238 Contact Us For Availability
34
WCI 08027503 WCI 08027503 Contact Us For Availability
34
WCI 08006674 WCI 08006674 Contact Us For Availability
34
WCI 08002816 WCI 08002816 Contact Us For Availability
35
LEVELING LEG ASSY. (4) WCI 3161045 Contact Us For Availability
35
WCI 08004077 WCI 08004077 Contact Us For Availability
35
WASHER - MOTOR CRADLE WCI 08002468 Contact Us For Availability
35A
WCI 08001557 WCI 08001557 Contact Us For Availability
36
PNL - REAR ACCESS WCI 08015788 Contact Us For Availability
36
WCI F136240000 WCI F136240000 Contact Us For Availability
36
WCI 08006658 WCI 08006658 Contact Us For Availability
36
SPEEDNUT (2) WCI 08004096 Contact Us For Availability
36
HOUSING UPPER WCI 08015779 Contact Us For Availability
37
WCI 08950156 WCI 08950156 Contact Us For Availability
37
WCI 08015799 WCI 08015799 Contact Us For Availability
37A
WCI 3016467 WCI 3016467 Contact Us For Availability
37A
CLIP - HARNESS/LEG WCI 08004083 Contact Us For Availability
38
COUPLER - DRAIN HOSE WCI 3161452 Contact Us For Availability
38
WCI 00639269 WCI 00639269 Contact Us For Availability
38
WCI 08001572 WCI 08001572 Contact Us For Availability
38
HARNESS WCI 3017109 Contact Us For Availability
38
WCI 08002396 WCI 08002396 Contact Us For Availability
38
WCI 08002479 WCI 08002479 Contact Us For Availability
39
RIVET - LATCH/PANEL (2) WCI 08027659 Contact Us For Availability
39
WCI 01127466 WCI 01127466 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI 3161162 Contact Us For Availability
40
WCI 01126012 WCI 01126012 Contact Us For Availability
40
MAGNET ASSY. (ALMOND) WCI 3016458 Contact Us For Availability
40
WCI 08027680 WCI 08027680 Contact Us For Availability
40
WCI 08002481 WCI 08002481 Contact Us For Availability
41
WCI 00633870 WCI 00633870 Contact Us For Availability
41
COVER - PUMP WCI 08002397 Contact Us For Availability
41
WCI 08016602 WCI 08016602 Contact Us For Availability
42
SCREW - WATER TEMP SW AND FAB SEL SW/PANEL WCI 08002284 Contact Us For Availability
42
WCI 3017110 WCI 3017110 Contact Us For Availability
42
WCI 08002395 WCI 08002395 Contact Us For Availability
42
WCI 08057430 WCI 08057430 Contact Us For Availability
42A
SCREW (4) WCI 08004646 Contact Us For Availability
43
SCREW - MAGNET ASSY./PANEL (2) WCI 08015832 Contact Us For Availability
44
WCI 08006571 WCI 08006571 Contact Us For Availability
44A
WCI 3161453 WCI 3161453 Contact Us For Availability
45
WCI 00639344 WCI 00639344 Contact Us For Availability
45
RETAINER (2) WCI 08006557 Contact Us For Availability
46
WCI 08027663 WCI 08027663 Contact Us For Availability
46
WCI 08006636 WCI 08006636 Contact Us For Availability
46
SCREW (4) WCI 08006685 Contact Us For Availability
46
WCI 08004084 WCI 08004084 Contact Us For Availability
46A
WCI 3016441 WCI 3016441 Contact Us For Availability
47
WCI 08011280 WCI 08011280 Contact Us For Availability
48
WCI 80015493 WCI 80015493 Contact Us For Availability
48
BRACE - DRYER BASE (2) WCI 3016468 Contact Us For Availability
48
SCREW WCI 08015533 Contact Us For Availability
49
WCI 3016459 WCI 3016459 Contact Us For Availability
49
WCI 08006559 WCI 08006559 Contact Us For Availability
50
WCI 08015790 WCI 08015790 Contact Us For Availability
50
SHIELD - DRUM & ROLLER WCI 3016460 Contact Us For Availability
50
WCI 3016469 WCI 3016469 Contact Us For Availability
51
SCREW - HINGE/LINT HSG. & FT. PANEL WCI 08006549 Contact Us For Availability
51
SCREW - HINGE/FRONT PANEL WCI 08027664 Contact Us For Availability
51
WCI 08027671 WCI 08027671 Contact Us For Availability
51A
WCI 08027672 WCI 08027672 Contact Us For Availability
52
WCI 01126075 WCI 01126075 Contact Us For Availability
52
WCI 08008472 WCI 08008472 Contact Us For Availability
53
STRIKE PLATE WCI 08027665 Contact Us For Availability
53
WCI 08006572 WCI 08006572 Contact Us For Availability
54
WCI 08002367 WCI 08002367 Contact Us For Availability
55
WCI 08004120 WCI 08004120 Contact Us For Availability
55
WCI 08014913 WCI 08014913 Contact Us For Availability
56
WCI 08002341 WCI 08002341 Contact Us For Availability
56
WCI 08006548 WCI 08006548 Contact Us For Availability
57
WCI 08004089 WCI 08004089 Contact Us For Availability
57
WCI 3016471 WCI 3016471 Contact Us For Availability
57
CLIP - HARNESS WCI 08004129 Contact Us For Availability
58
WCI 08015855 WCI 08015855 Contact Us For Availability
58
WCI 08006573 WCI 08006573 Contact Us For Availability
59
SCREW (2) WCI 08006670 Contact Us For Availability
60
HOSE - DRAIN ASSY. WCI 3161454 Contact Us For Availability
61
RETAINER - DRAIN HOSE WCI 08002362 Contact Us For Availability
62
WCI 08011277 WCI 08011277 Contact Us For Availability
63
WCI 08002361 WCI 08002361 Contact Us For Availability
63A
WCI 08027366 WCI 08027366 Contact Us For Availability
64
CHECK VALVE - DRAIN HOSE WCI 08014555 Contact Us For Availability
65
WCI 08014902 WCI 08014902 Contact Us For Availability
65
SHIELD (PLASTIC MOTOR SHIELD & TAPE-FABRICATE WCI 08011275 Contact Us For Availability
66
WCI 08014903 WCI 08014903 Contact Us For Availability
68
COVER-TERMINAL WCI 08015822 Contact Us For Availability
69
PNL - ACCESS DRYER (ALMOND) WCI 08015817 Contact Us For Availability
70
WCI 3016443 WCI 3016443 Contact Us For Availability
72
SCREW (2) WCI 08011318 Contact Us For Availability
× ![]()
