Model Electrolux LC248FW0 LAUNDRY CENTER – Common Parts & Diagrams

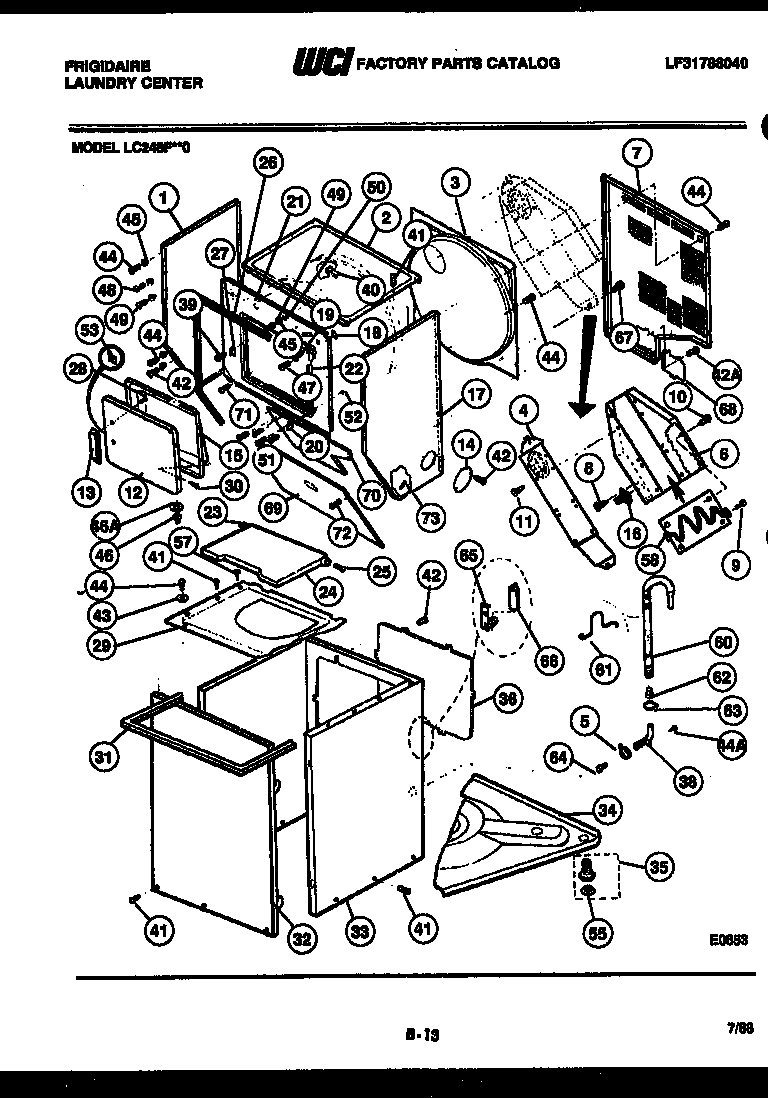

02 - CABINET PARTS AND HEATER

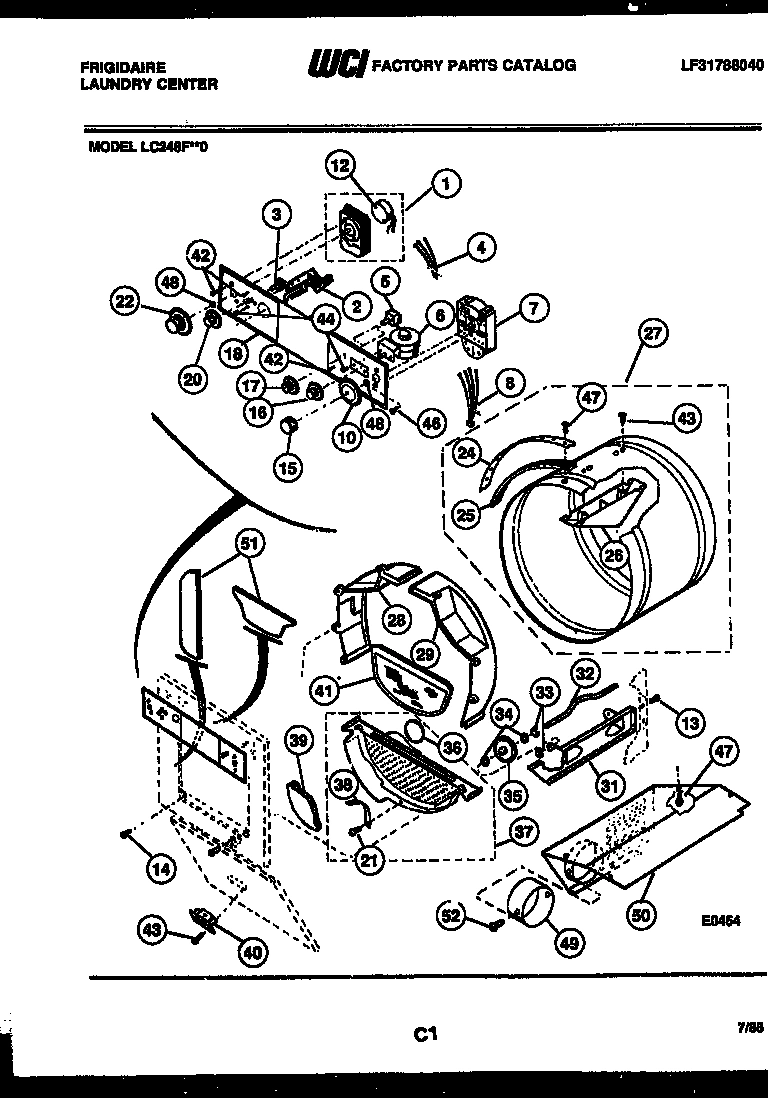

03 - CONSOLE, CONTROL AND DRUM
04 - DRYER MOTOR, BLOWER AND BELT
05 - TUBS, WATER VALVE AND LID SWITCH
06 - WASHER DRIVE SYSTEM AND PUMP
07 - TRANSMISSION PARTS
Common parts from model Electrolux LC248FW0 LAUNDRY CENTER
*16916
PAINT-6 OZ.-ALMOND WCI 8001666 Contact Us For Availability
*16916
INSULATION-REAR & VENT PANELS WCI 8027667 Contact Us For Availability
*16918
SHIELD-WASHER TIMER WCI 1134149 Contact Us For Availability
*16918
WCI 8010855 WCI 8010855 Contact Us For Availability
*16918
RESISTOR-SELECTOR SWITCH (3.9 KOHMS) WCI 8027502 Contact Us For Availability
*16921
WCI 8027675 WCI 8027675 Contact Us For Availability
*16924
ADHESIVE AND PRIMER ADHESIVE WCI 8950157 Contact Us For Availability
*16925
WCI 8014892 WCI 8014892 Contact Us For Availability
*16925
WCI 8014893 WCI 8014893 Contact Us For Availability
*16928
TRANSMISSION OIL (1 QT.) WCI 8002818 Contact Us For Availability
*16928
WCI 8011269 WCI 8011269 Contact Us For Availability
1
PANEL-L.H.-DRYER (WHITE) WCI 8015809 Contact Us For Availability
1
PANEL-L.H.-DRYER (ALMOND) WCI 8015811 Contact Us For Availability
1
WCI 3016445 WCI 3016445 Contact Us For Availability
1
WCI 3016461 WCI 3016461 Contact Us For Availability
1
WCI 8027575 WCI 8027575 Contact Us For Availability
1
WCI 8002819 WCI 8002819 Contact Us For Availability
1
WCI 8002491 WCI 8002491 Contact Us For Availability
2
PNL-TOP-DRYER (WHITE) WCI 8027496 Contact Us For Availability
2
PNL-TOP-DRYER (ALMOND) WCI 8027498 Contact Us For Availability
2
WCI 3017969 WCI 3017969 Contact Us For Availability
2
WCI 1128554 WCI 1128554 Contact Us For Availability
2
WCI 8027515 WCI 8027515 Contact Us For Availability
2
WCI 8002473 WCI 8002473 Contact Us For Availability
3
PNL-REAR WCI 3017111 Contact Us For Availability
3
WCI 3016447 WCI 3016447 Contact Us For Availability
3
WCI 8015787 WCI 8015787 Contact Us For Availability
3
WCI 8002471 WCI 8002471 Contact Us For Availability
4
WCI 8015820 WCI 8015820 Contact Us For Availability
4
WCI 3016448 WCI 3016448 Contact Us For Availability
4
WCI 0639342 WCI 0639342 Contact Us For Availability
4
WCI 8002430 WCI 8002430 Contact Us For Availability
4
WCI 8002470 WCI 8002470 Contact Us For Availability
4
WCI 8014904 WCI 8014904 Contact Us For Availability
5
WCI 8004057 WCI 8004057 Contact Us For Availability
5
SWITCH - WATER TEMP WCI 3017970 Contact Us For Availability
5
WCI 8015796 WCI 8015796 Contact Us For Availability
5
WCI 8002429 WCI 8002429 Contact Us For Availability
5
PULLEY-TRANSMISSION WCI 8014923 Contact Us For Availability
5
SEAL-UPPER LIP WCI 8011270 Contact Us For Availability
6
WCI 8015854 WCI 8015854 Contact Us For Availability
6
SWITCH - PRESSURE WCI 3016450 Contact Us For Availability
6
WCI 8027520 WCI 8027520 Contact Us For Availability
6
WCI 8027475 WCI 8027475 Contact Us For Availability
6
RETAINING RING (2) WCI 8002474 Contact Us For Availability
7
TIMER-WASHER WCI 3016451 Contact Us For Availability
7
WCI 3016426 WCI 3016426 Contact Us For Availability
7
WCI 0639357 WCI 0639357 Contact Us For Availability
7
BELT-DRIVE WCI 8004064 Contact Us For Availability
8
WCI 3016452 WCI 3016452 Contact Us For Availability
8
WCI 3016462 WCI 3016462 Contact Us For Availability
8
AGITATOR CAP (INCLUDES REF. 9) WCI 8006677 Contact Us For Availability
8
WCI 8027535 WCI 8027535 Contact Us For Availability
9
WCI 8004061 WCI 8004061 Contact Us For Availability
9
SCREW-GROUND-TIMER/BASE WCI 8006556 Contact Us For Availability
9
WCI 8002427 WCI 8002427 Contact Us For Availability
9
WCI 8015079 WCI 8015079 Contact Us For Availability
10
WCI 3017971 WCI 3017971 Contact Us For Availability
10
MOTOR & SWITCH ASSY-DRYER WCI 3016463 Contact Us For Availability
10
WCI 8027519 WCI 8027519 Contact Us For Availability
10
WCI 8004052 WCI 8004052 Contact Us For Availability
10
WCI 8950197 WCI 8950197 Contact Us For Availability
11
SWITCH-MOTOR (GE) WCI 8014798 Contact Us For Availability
11
SCREW (2) WCI 8027477 Contact Us For Availability
11
WCI 3161485 WCI 3161485 Contact Us For Availability
11
WCI 8002803 WCI 8002803 Contact Us For Availability
12
WCI 8027652 WCI 8027652 Contact Us For Availability
12
WCI 8027654 WCI 8027654 Contact Us For Availability
12
MOTOR-TIMER-DRYER WCI 8010815 Contact Us For Availability
12
WCI 3161302 WCI 3161302 Contact Us For Availability
12
WCI 8011267 WCI 8011267 Contact Us For Availability
13
HANDLE-DOOR (WHITE) WCI 8027655 Contact Us For Availability
13
HANDLE-DOOR (ALMOND) WCI 8027657 Contact Us For Availability
13
WCI 8027576 WCI 8027576 Contact Us For Availability
13
SCREW-PUMP MOUNTING (4) WCI 8002390 Contact Us For Availability
13
WCI 8015863 WCI 8015863 Contact Us For Availability
14
WCI 1133370 WCI 1133370 Contact Us For Availability
14
COVER-EXHAUST (WHITE) WCI 2832585 Contact Us For Availability
14
SCREW WCI 8004125 Contact Us For Availability
14
WCI 8014907 WCI 8014907 Contact Us For Availability
14
GEAR, SECTOR WCI 8011268 Contact Us For Availability
15
WCI 8027660 WCI 8027660 Contact Us For Availability
15
WCI 8027662 WCI 8027662 Contact Us For Availability
15
KNOB - WASHER TIMER WCI 3017972 Contact Us For Availability
15
CLIP-MOTOR (2) WCI 8002293 Contact Us For Availability
15
WCI 8014908 WCI 8014908 Contact Us For Availability
15
WCI 8002809 WCI 8002809 Contact Us For Availability
16
THERMOSTAT-SAFETY WCI 8015856 Contact Us For Availability
16
KNOB-PRESSURE SWITCH WCI 8015841 Contact Us For Availability
16
IDLER ARM & WHEEL ASSY WCI 8015846 Contact Us For Availability
16
WCI 8057443 WCI 8057443 Contact Us For Availability
16
WCI 8015864 WCI 8015864 Contact Us For Availability
16
WCI 8015496 WCI 8015496 Contact Us For Availability
17
PANEL-R.H.-DRYER (WHITE) WCI 8015806 Contact Us For Availability
17
PANEL-R.H.-DRYER (ALMOND) WCI 8015808 Contact Us For Availability
17
KNOB-WATER TEMP SWITCH WCI 8015842 Contact Us For Availability
17
BEARING HOUSING ASSY. WCI 8027536 Contact Us For Availability
17
WCI 8002389 WCI 8002389 Contact Us For Availability
17
SHAFT ASSY.-LOWER WCI 8027581 Contact Us For Availability
18
WCI 0639710 WCI 0639710 Contact Us For Availability
18
WCI 3017973 WCI 3017973 Contact Us For Availability
18
WCI 8011303 WCI 8011303 Contact Us For Availability
19
WCI 0639712 WCI 0639712 Contact Us For Availability
19
DOWEL PIN (2) WCI 8002813 Contact Us For Availability
20
WCI 0639713 WCI 0639713 Contact Us For Availability
20
SCREW-BRACKET/HOUSING WCI 8002339 Contact Us For Availability
20
WCI 8015843 WCI 8015843 Contact Us For Availability
20
WCI 8006564 WCI 8006564 Contact Us For Availability
20
WCI 8002392 WCI 8002392 Contact Us For Availability
21
WCI 3016436 WCI 3016436 Contact Us For Availability
21
PNL - FRONT DRYER (ALMOND) WCI 3016438 Contact Us For Availability
21
BRACKET - THERMO MOUNTING WCI 3016464 Contact Us For Availability
21
SNUBBER RING ASSY WCI 8002385 Contact Us For Availability
21
WCI 8015870 WCI 8015870 Contact Us For Availability
22
WCI 0639378 WCI 0639378 Contact Us For Availability
22
KNOB & DIAL ASSY. WCI 8015849 Contact Us For Availability
22
WCI 5436685 WCI 5436685 Contact Us For Availability
22
WCI 8027679 WCI 8027679 Contact Us For Availability
22
WCI 8006578 WCI 8006578 Contact Us For Availability
23
WCI 0633925 WCI 0633925 Contact Us For Availability
23
WCI 8004066 WCI 8004066 Contact Us For Availability
23
SPACER-PUMP MOUNTING (4) WCI 8014925 Contact Us For Availability
24
LID-WASHER (WHITE) WCI 8007739 Contact Us For Availability
24
LID-WASHER (ALMOND) WCI 8007743 Contact Us For Availability
24
WCI 0639864 WCI 0639864 Contact Us For Availability
24
WCI 8002382 WCI 8002382 Contact Us For Availability
24
WCI 8002456 WCI 8002456 Contact Us For Availability
25
WCI 8015844 WCI 8015844 Contact Us For Availability
25
DRUM SEAL-FRONT WCI 1132356 Contact Us For Availability
25
DRUM SEAL-REAR WCI 8016240 Contact Us For Availability
25
WCI 3016465 WCI 3016465 Contact Us For Availability
25
WCI 8006565 WCI 8006565 Contact Us For Availability
25
IDLER ARM ASSY WCI 8950227 Contact Us For Availability
25
RETAINING RING WCI 8015536 Contact Us For Availability
26
WCI 8015857 WCI 8015857 Contact Us For Availability
26
WCI 8014895 WCI 8014895 Contact Us For Availability
26
SPRING-IDLER ARM WCI 8015828 Contact Us For Availability
26
LEG & DOME ASSY WCI 8004065 Contact Us For Availability
26
WCI 8027582 WCI 8027582 Contact Us For Availability
27
WCI 8027658 WCI 8027658 Contact Us For Availability
27
DRUM ASSEMBLY WCI 3004200 Contact Us For Availability
27
WCI 8015824 WCI 8015824 Contact Us For Availability
27
WCI 8002377 WCI 8002377 Contact Us For Availability
27
WCI 8002453 WCI 8002453 Contact Us For Availability
28
WCI 8015830 WCI 8015830 Contact Us For Availability
28
CRADLE ASSEMBLY-MOTOR WCI 3016466 Contact Us For Availability
28
WCI 8002378 WCI 8002378 Contact Us For Availability
28
WCI 8006686 WCI 8006686 Contact Us For Availability
28
WCI 8002467 WCI 8002467 Contact Us For Availability
29
WCI 3017112 WCI 3017112 Contact Us For Availability
29
WCI 3017114 WCI 3017114 Contact Us For Availability
29
WCI 8015829 WCI 8015829 Contact Us For Availability
29
WCI 8015847 WCI 8015847 Contact Us For Availability
29
WCI 8006566 WCI 8006566 Contact Us For Availability
29
WCI 8011271 WCI 8011271 Contact Us For Availability
29A
EXTERNAL HEATER-THERMO WCI 8008892 Contact Us For Availability
30
CLIP (2) WCI 1127285 Contact Us For Availability
30
WCI 8002379 WCI 8002379 Contact Us For Availability
30
SUPPORT PLATE & BOLTS WCI 8006581 Contact Us For Availability
30
SPACER WASHER WCI 8002475 Contact Us For Availability
31
TRIM STRIP-WASHER WCI 8015789 Contact Us For Availability
31
WCI 3017901 WCI 3017901 Contact Us For Availability
31
WCI 3017902 WCI 3017902 Contact Us For Availability
31
WCI 8010853 WCI 8010853 Contact Us For Availability
31
WCI 8008997 WCI 8008997 Contact Us For Availability
31
WCI 8014901 WCI 8014901 Contact Us For Availability
31
WCI 8002812 WCI 8002812 Contact Us For Availability
32
PNL-FRONT-WASHER (WHITE) WCI 2833351 Contact Us For Availability
32
PNL-FRONT-WASHER (ALMOND) WCI 2833352 Contact Us For Availability
32
WCI 8004076 WCI 8004076 Contact Us For Availability
32
WCI 8015845 WCI 8015845 Contact Us For Availability
32
WCI 8014888 WCI 8014888 Contact Us For Availability
32
SEAL-LOWER LIP WCI 8002477 Contact Us For Availability
33
CABINET-WASHER (WHITE) WCI 8007750 Contact Us For Availability
33
CABINET-WASHER (ALMOND) WCI 8007754 Contact Us For Availability
33
WCI 8027670 WCI 8027670 Contact Us For Availability
33
WCI 8006553 WCI 8006553 Contact Us For Availability
33
SCREW-GROUND WCI 8001676 Contact Us For Availability
33
WCI 8002366 WCI 8002366 Contact Us For Availability
33
WCI 8002817 WCI 8002817 Contact Us For Availability
34
BASE WASHER WCI 8004025 Contact Us For Availability
34
WASHER (4) WCI 7537238 Contact Us For Availability
34
BASE-DRYER WCI 8027503 Contact Us For Availability
34
WCI 8006674 WCI 8006674 Contact Us For Availability
34
WCI 8002816 WCI 8002816 Contact Us For Availability
35
LEVELING LEG ASSY. (4) WCI 3161045 Contact Us For Availability
35
ROLLER & WHEEL ASSY. (4) WCI 8004077 Contact Us For Availability
35
WCI 8002468 WCI 8002468 Contact Us For Availability
35
WCI 8014910 WCI 8014910 Contact Us For Availability
35A
LOCKWASHER WCI 8001557 Contact Us For Availability
36
PNL-REAR ACCESS WCI 8015788 Contact Us For Availability
36
WCI 0639377 WCI 0639377 Contact Us For Availability
36
WCI 8006658 WCI 8006658 Contact Us For Availability
36
TUBE-PRESSURE (TAPE (MONAFILAMENT)-PRESSURE T WCI 8015785 Contact Us For Availability
36
WCI 8004096 WCI 8004096 Contact Us For Availability
36
WCI 8015779 WCI 8015779 Contact Us For Availability
37
HOUSING ASSY-LINT WCI 8950156 Contact Us For Availability
37
WCI 8015799 WCI 8015799 Contact Us For Availability
37
WCI 8015501 WCI 8015501 Contact Us For Availability
37A
WCI 3016467 WCI 3016467 Contact Us For Availability
37A
CLIP-HARNESS/LEG WCI 8004083 Contact Us For Availability
38
COUPLER - DRAIN HOSE WCI 3161452 Contact Us For Availability
38
WCI 0639269 WCI 0639269 Contact Us For Availability
38
CUP WASHER WCI 8001572 Contact Us For Availability
38
HARNESS WCI 3017109 Contact Us For Availability
38
WCI 8002396 WCI 8002396 Contact Us For Availability
38
WCI 8002479 WCI 8002479 Contact Us For Availability
39
RIVET-LATCH/PANEL (2) WCI 8027659 Contact Us For Availability
39
WCI 1127466 WCI 1127466 Contact Us For Availability
39
IMPELLER KIT (CONSISTS OF SEAL ASSEMBLY, GASK WCI 3161162 Contact Us For Availability
40
WCI 1126012 WCI 1126012 Contact Us For Availability
40
SCREW-TERM BLOCK/BRACKET (2) WCI 5436605 Contact Us For Availability
40
MAGNET ASSY. (WHITE) WCI 3016456 Contact Us For Availability
40
MAGNET ASSY. (ALMOND) WCI 3016458 Contact Us For Availability
40
WCI 8027680 WCI 8027680 Contact Us For Availability
40
WCI 8002481 WCI 8002481 Contact Us For Availability
41
WCI 0633870 WCI 0633870 Contact Us For Availability
41
WATER VALVE WCI 8015532 Contact Us For Availability
41
WCI 8002397 WCI 8002397 Contact Us For Availability
41
WCI 8016602 WCI 8016602 Contact Us For Availability
42
SCREW-WATER TEMP SW. AND FABRIC SELECTOR SW/P WCI 8002284 Contact Us For Availability
42
SCREW WCI 8004113 Contact Us For Availability
42
WCI 3017110 WCI 3017110 Contact Us For Availability
42
SEAL KIT (CONSISTS OF SEAL ASSEMBLY & GASKET. WCI 8002395 Contact Us For Availability
42
WCI 8057430 WCI 8057430 Contact Us For Availability
42A
SCREW (4) WCI 8004646 Contact Us For Availability
43A
SCREW-MAGNET ASSY./PANEL (2) WCI 8015832 Contact Us For Availability
44
WCI 8006571 WCI 8006571 Contact Us For Availability
44A
WCI 3161453 WCI 3161453 Contact Us For Availability
45
WCI 0639344 WCI 0639344 Contact Us For Availability
45
RETAINER (2) WCI 8006557 Contact Us For Availability
45
THRUST WASHER WCI 8002401 Contact Us For Availability
46
WCI 8027663 WCI 8027663 Contact Us For Availability
46
SCREW (2) WCI 8006636 Contact Us For Availability
46
SCREW (4) WCI 8006685 Contact Us For Availability
46
WCI 8004084 WCI 8004084 Contact Us For Availability
46A
WCI 3016441 WCI 3016441 Contact Us For Availability
47
SCREW WCI 8011280 Contact Us For Availability
47
SCREW (9) WCI 8006547 Contact Us For Availability
47
TUBE-PRESSURE WCI 8011257 Contact Us For Availability
48
SPACER-TIMER SHAFT-WASHER WCI 8015493 Contact Us For Availability
48
BRACE - DRYER BASE (2) WCI 3016468 Contact Us For Availability
48
WCI 8015533 WCI 8015533 Contact Us For Availability
49
SCREW (6) WCI 8006546 Contact Us For Availability
49
WCI 3016459 WCI 3016459 Contact Us For Availability
49
CONNECTOR WCI 8006559 Contact Us For Availability
50
WCI 8015790 WCI 8015790 Contact Us For Availability
50
SHIELD - DRUM & ROLLER WCI 3016460 Contact Us For Availability
50
WCI 3016469 WCI 3016469 Contact Us For Availability
50
WCI 8027517 WCI 8027517 Contact Us For Availability
51
SCREW-HINGE/FRONT PANEL WCI 8027664 Contact Us For Availability
51
WCI 8027671 WCI 8027671 Contact Us For Availability
51A
SCREW-HINGE/LINT HSG. & FT. PANEL WCI 8006549 Contact Us For Availability
51A
WCI 8027672 WCI 8027672 Contact Us For Availability
52
ACORN NUT WCI 1126075 Contact Us For Availability
52
WCI 8027674 WCI 8027674 Contact Us For Availability
52
WCI 8008472 WCI 8008472 Contact Us For Availability
53
STRIKE PLATE WCI 8027665 Contact Us For Availability
53
WCI 8006572 WCI 8006572 Contact Us For Availability
54
WCI 8002367 WCI 8002367 Contact Us For Availability
55
WCI 8004120 WCI 8004120 Contact Us For Availability
55
WCI 8014913 WCI 8014913 Contact Us For Availability
56
WCI 8002341 WCI 8002341 Contact Us For Availability
56
SCREW (2) WCI 8006548 Contact Us For Availability
57
WCI 8004089 WCI 8004089 Contact Us For Availability
57
WCI 3016471 WCI 3016471 Contact Us For Availability
57
WCI 8004129 WCI 8004129 Contact Us For Availability
58
WCI 8015855 WCI 8015855 Contact Us For Availability
58
WCI 8006573 WCI 8006573 Contact Us For Availability
59
SCREW (2) WCI 8006670 Contact Us For Availability
60
HOSE - DRAIN ASSY. WCI 3161454 Contact Us For Availability
61
RETAINER, DRAIN HOSE WCI 8002362 Contact Us For Availability
61
WCI 8002443 WCI 8002443 Contact Us For Availability
61
WCI 8011264 WCI 8011264 Contact Us For Availability
62
WCI 8011277 WCI 8011277 Contact Us For Availability
63
WCI 8002361 WCI 8002361 Contact Us For Availability
63A
WCI 8027366 WCI 8027366 Contact Us For Availability
64
CHECK VALVE-DRAIN HOSE WCI 8014555 Contact Us For Availability
65
WCI 8014902 WCI 8014902 Contact Us For Availability
65
SHIELD (PLASTIC MOTOR SHIELD & TAPE-FABRICATE WCI 8011275 Contact Us For Availability
66
WCI 8014903 WCI 8014903 Contact Us For Availability
66
WASHER-HOSE (4) WCI 8015499 Contact Us For Availability
68
WCI 8015822 WCI 8015822 Contact Us For Availability
69
PNL-ACCESS-DRYER (WHITE) WCI 8015815 Contact Us For Availability
69
PNL-ACCESS-DRYER (ALMOND) WCI 8015817 Contact Us For Availability
70
WCI 3016443 WCI 3016443 Contact Us For Availability
72
SCREW (2) WCI 8011318 Contact Us For Availability
× ![]()
