Model LG LBNC15231P – Common Parts & Diagrams
0

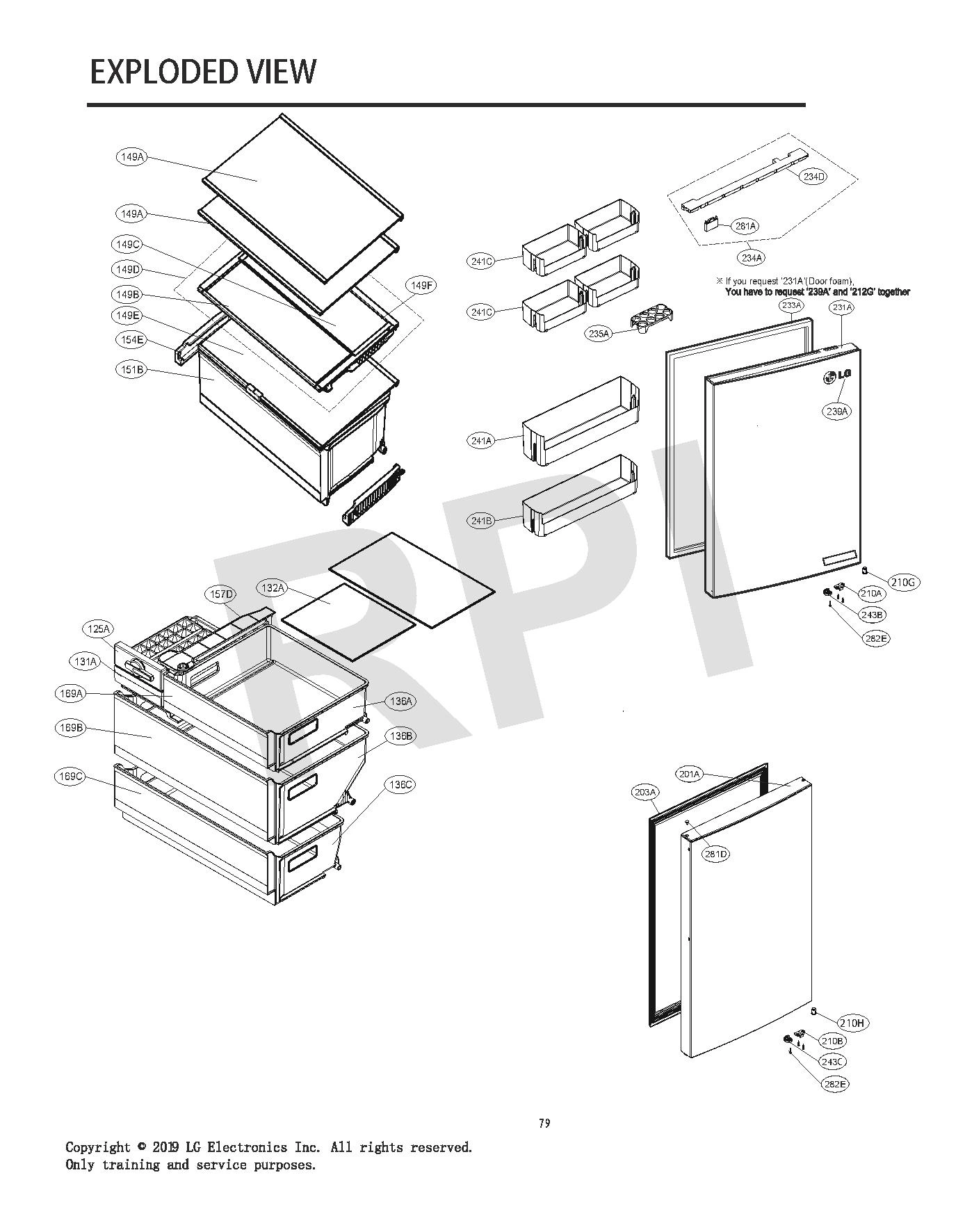

1

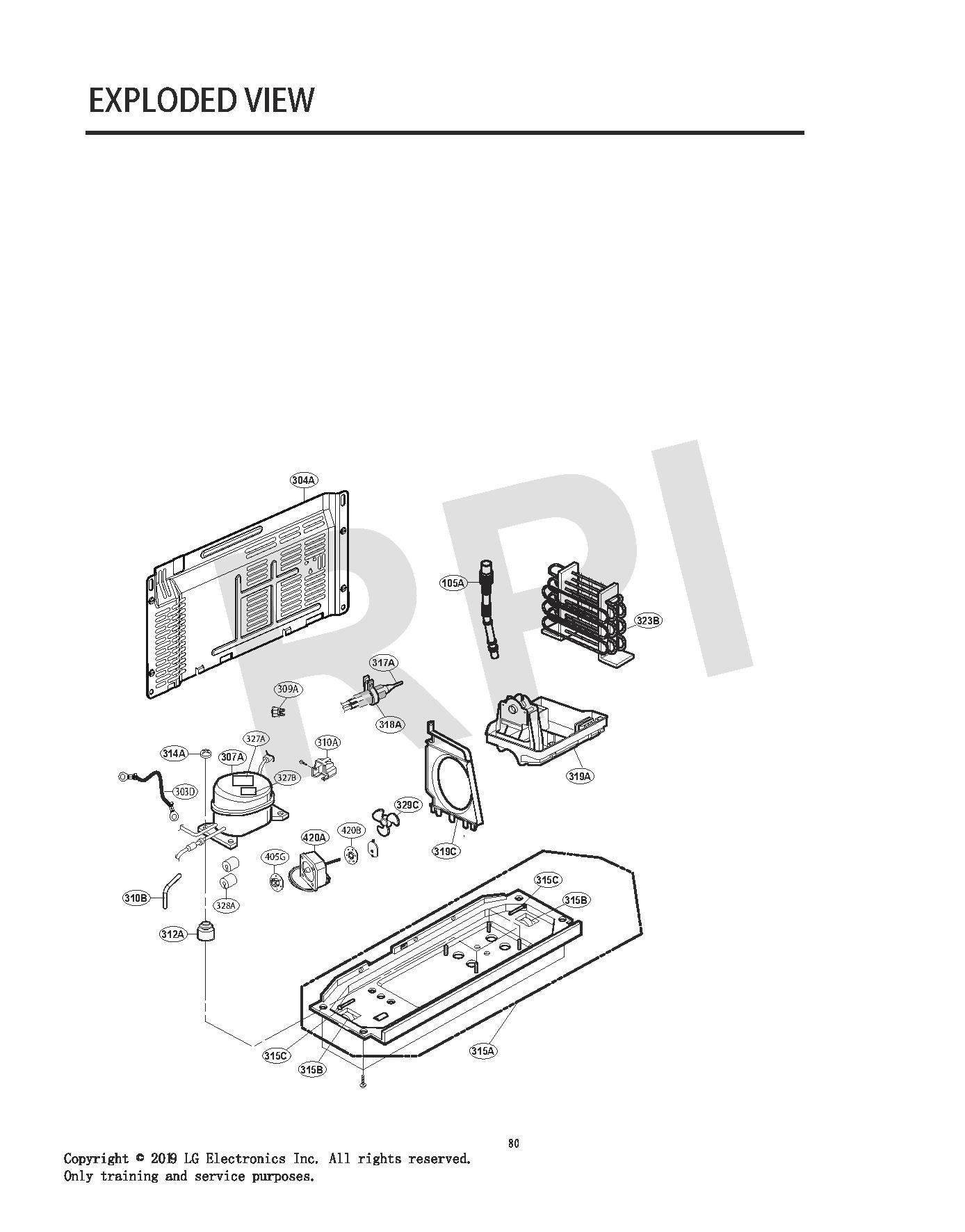

2
Common parts from model LG LBNC15231P
105A
Tube Assembly,Drain LGE 5251JA3001G Contact Us For Availability
120D
Case,Lamp LGE MBN65424603 Contact Us For Availability
120F
LED Assembly LGE EAV64052303 Contact Us For Availability
125A

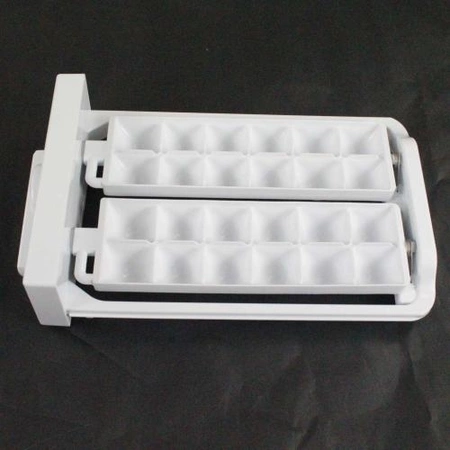

Tray Assembly,Ice LGE AJP32924910 Contact Us For Availability
131A
Bucket,Ice LGE MKK63022402 Contact Us For Availability
132A
Shelf,Glass LGE MHL64011703 Contact Us For Availability
136A
Tray Assembly,Drawer LGE AJP75794401 Contact Us For Availability
136B
Tray Assembly,Drawer LGE AJP75794503 Contact Us For Availability
136C
Tray Assembly,Drawer LGE AJP75794601 Contact Us For Availability
149A
Shelf Assembly,Refrigerator LGE AHT74554007 Contact Us For Availability
149B
Shelf Assembly,Refrigerator LGE AHT75054001 Contact Us For Availability
149C
Shelf,Refrigerator LGE MHL64451601 Contact Us For Availability
149D
Shelf Assembly,Refrigerator LGE AHT75053801 Contact Us For Availability
149E
Cover Assembly,TV LGE ACQ90733107 Contact Us For Availability
149F
Shelf Assembly,Refrigerator LGE AHT75053901 Contact Us For Availability
151B
Tray,Vegetable LGE MJS64751807 Contact Us For Availability
154E
Guide,Rail LGE MEA65430701 Contact Us For Availability
157D
Guide,Rail LGE MEA65510701 Contact Us For Availability
169A
Cover,Drawer LGE MCK68045503 Contact Us For Availability
169B
Cover,Drawer LGE MCK68045506 Contact Us For Availability
169C
Cover,Drawer LGE MCK68045510 Contact Us For Availability
201A
Door Foam Assembly,Freezer LGE ADD74056997 Contact Us For Availability
203A
Gasket Assembly,Door LGE ADX73591405 Contact Us For Availability
207A
Cover Assembly,Display LGE ACQ90733207 Contact Us For Availability
210A
Bracket,Door LGE MAZ63465501 Contact Us For Availability
210B
Bracket,Door LGE MAZ63465502 Contact Us For Availability
210F
PCB Assembly,Sub LGE EBR64730442 Contact Us For Availability
210G
Bush LGE 4984JQ3001A Contact Us For Availability
231A
Door Foam Assembly,Refrigerator LGE ADD74056669 Contact Us For Availability
233A
Gasket Assembly,Door LGE ADX73591404 Contact Us For Availability
234A
Decor Assembly,Door LGE ACW74057506 Contact Us For Availability
234D
Decor,Cover LGE MCR65093206 Contact Us For Availability
235A
Tray,Egg LGE MJS62773801 Contact Us For Availability
241A
Basket,Door LGE MAN64468401 Contact Us For Availability
241B
Basket,Door LGE MAN64468601 Contact Us For Availability
241C
Basket,Door LGE MAN64468301 Contact Us For Availability
243C
Stopper,Door LGE MJB63129903 Contact Us For Availability
281A
Cover,Hinge LGE MCK67705806 Contact Us For Availability
281B
Hinge Assembly,Upper LGE AEH74156802 Contact Us For Availability
281D
Cap,Hinge LGE 5006JQ3012U Contact Us For Availability
281E
Cap Assembly LGE ABN74578226 Contact Us For Availability
282B
Hinge Assembly,Caster LGE AEH75996401 Contact Us For Availability
282E
Screw,Customized LGE FAB30206404 Contact Us For Availability
283B
Hinge,Lower LGE MEF62742603 Contact Us For Availability
301A
Evaporator Assembly LGE ADL74121211 Contact Us For Availability
303D
Harness Assembly LGE 6877JR3007E Contact Us For Availability
304A
Cover Assembly,Machinery(Rear) LGE ACQ85441701 Contact Us For Availability
307A
Compressor,Set Assembly LGE TCA35892744 Contact Us For Availability
309A
Overload Protect LGE EAF61170609 Contact Us For Availability
310A
Cover,PTC LGE MCK67988507 Contact Us For Availability
312A
Damper,Compressor LGE 5040JA3071B Contact Us For Availability
315A
Base Assembly,Compressor LGE AAN73750710 Contact Us For Availability
315A
Base Assembly,Compressor LGE AAN73750711 Contact Us For Availability
315B
Roller LGE MHA61933401 Contact Us For Availability
315C
Pin,Common LGE 1PZZJA3010B Contact Us For Availability
318A
Holder,Drier LGE MEG61863805 Contact Us For Availability
319A
Tray,Drip LGE MJS63992801 Contact Us For Availability
319C
Guide,Fan LGE MEA64652301 Contact Us For Availability
323B
Condenser Assembly,Wire LGE ACG73426008 Contact Us For Availability
323B
Condenser Assembly,Wire LGE ACG74084804 Contact Us For Availability
328A
Damper,Pipe LGE MCQ67286001 Contact Us For Availability
332A
Grille Assembly,Fan LGE AEB75804601 Contact Us For Availability
401A
Pipe Assembly,Evaporator LGE AGR74155101 Contact Us For Availability
404A
Motor,DC LGE EAU63103012 Contact Us For Availability
405G
Damper,Motor Support LGE MCQ65884302 Contact Us For Availability
411A
Power Cord Assembly LGE EAD62108344 Contact Us For Availability
411A
Power Cord Assembly LGE EAD62108365 Contact Us For Availability
411B
Holder,Cord LGE MEG63462713 Contact Us For Availability
411C
Holder,Cord LGE MEG63462714 Contact Us For Availability
416A
Harness Assembly LGE EAD63168814 Contact Us For Availability
416A
Harness Assembly LGE EAD63168817 Contact Us For Availability
418A
Heater,Sheath LGE MEE63064905 Contact Us For Availability
420A
Motor,DC LGE EAU63103013 Contact Us For Availability
501A
PCB Assembly,Main LGE EBR31177534 Contact Us For Availability
501A

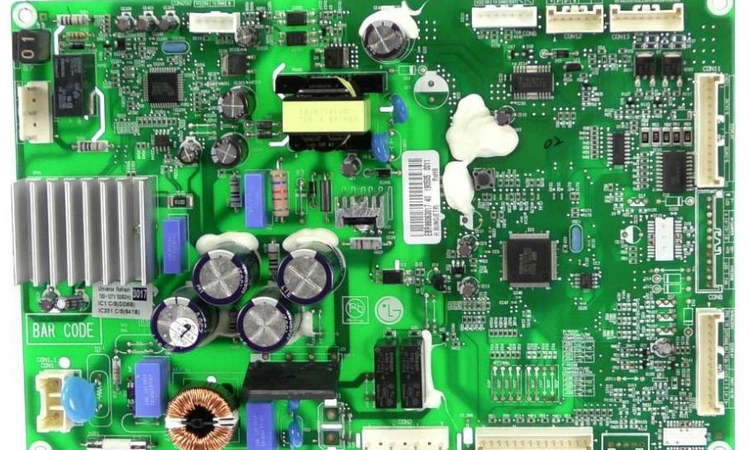

PCB Assembly,Main LGE EBR86063017 Contact Us For Availability
501F
Cover,PCB LGE 3550JQ1133M Contact Us For Availability
501K
Case,PCB LGE MBN61863901 Contact Us For Availability
501K
Case,PCB LGE MBN64762701 Contact Us For Availability
604E
Deodorizer LGE MCS62101810 Contact Us For Availability
D001
Holder,Cord LGE 4930JQ2048A Contact Us For Availability
× ![]()
