Model LG LAS855M Speaker HTS – Common Parts & Diagrams

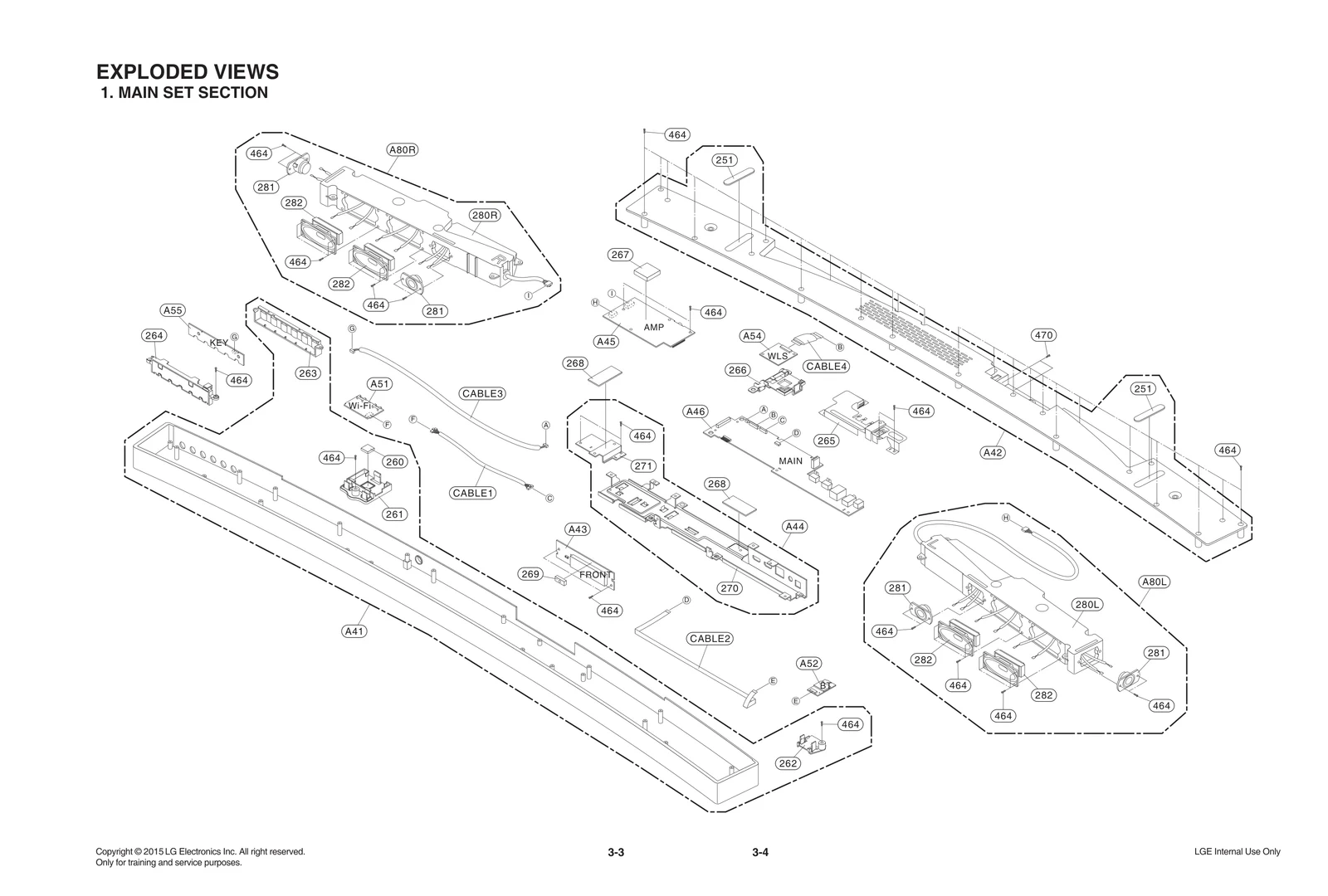

Diagram 0

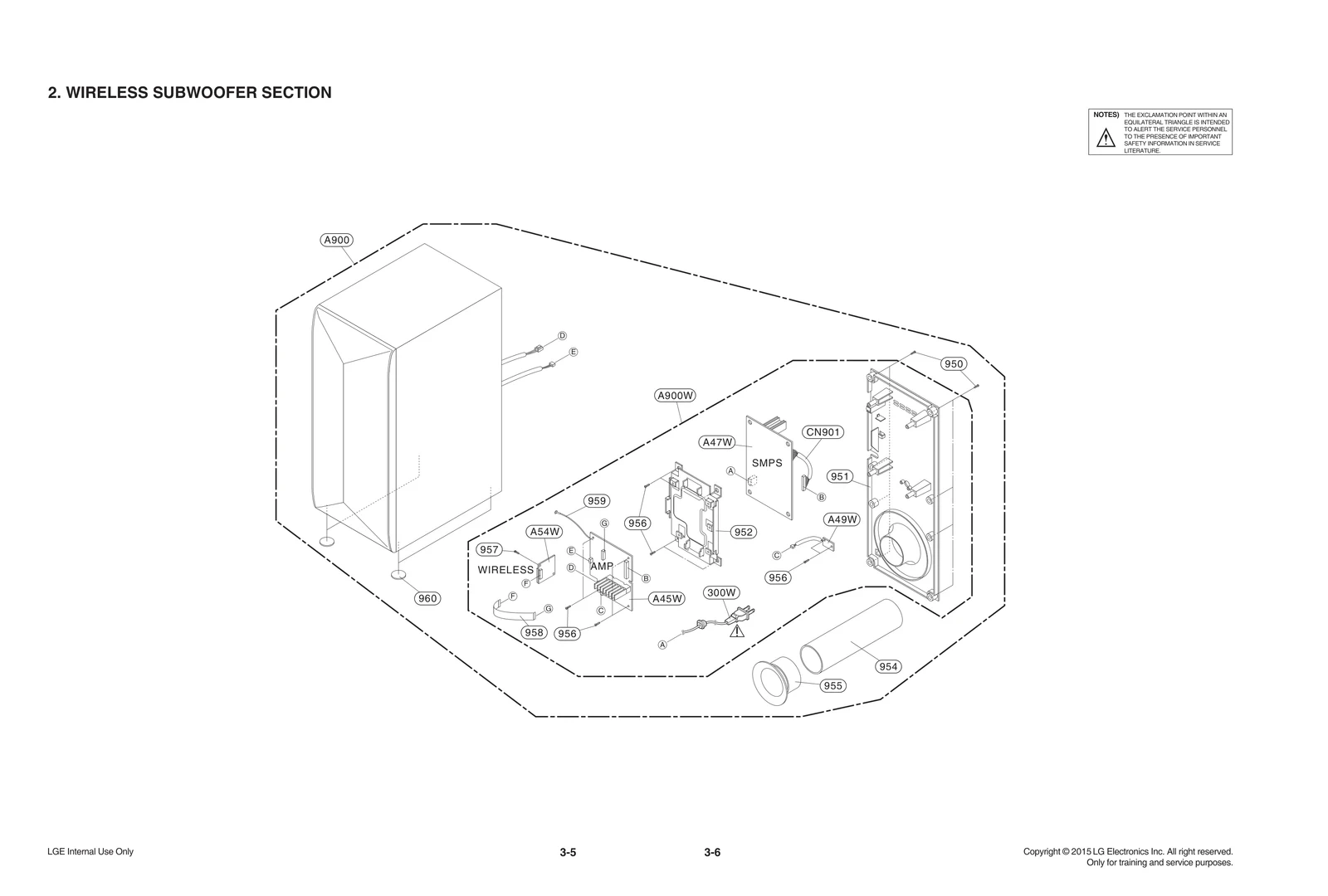

Diagram 1
Diagram 2
Diagram 3
Common parts from model LG LAS855M Speaker HTS
260
Damper LGE MCQ32325007 Contact Us For Availability
261
Holder LGE MEG64598601 Contact Us For Availability
262
Holder LGE MEG64598701 Contact Us For Availability
263
Button LGE MBG65822601 Contact Us For Availability
264
Holder LGE MEG64518701 Contact Us For Availability
265
Plate LGE MGJ64781301 Contact Us For Availability
266
Holder LGE MEG64478901 Contact Us For Availability
267
Heat Sink LGE MED63231205 Contact Us For Availability
268
Damper LGE MCQ62096447 Contact Us For Availability
269
Damper LGE MCQ68664501 Contact Us For Availability
270
Chassis LGE MBS63425401 Contact Us For Availability
271
Bracket LGE MAZ64488401 Contact Us For Availability
280L
Case Assembly LGE ABQ75520302 Contact Us For Availability
280R
Case Assembly LGE ABQ75500302 Contact Us For Availability
281
Speaker,Tweeter LGE EAB62928602 Contact Us For Availability
282
Speaker,Woofer LGE EAB64108901 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly LGE AFN77442322 Contact Us For Availability
802
Box,Master LGE MAY66968191 Contact Us For Availability
803
Packing LGE MFZ64912101 Contact Us For Availability
804
Bag,Vinyl LGE MAF63788305 Contact Us For Availability
806
Cable,Assembly LGE EAD61071205 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
829
Band LGE MAJ62182401 Contact Us For Availability
830
Accessory Assembly LGE AAA73857611 Contact Us For Availability
835
Packing Assembly LGE AGG75520701 Contact Us For Availability
836
Packing Assembly LGE AGG75620701 Contact Us For Availability
837
Packing Assembly LGE AGG75542001 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74375511 Contact Us For Availability
950
Screw,Customized LGE 353M050N Contact Us For Availability
951
Panel,Rear LGE MGC63804104 Contact Us For Availability
952
Chassis LGE MBS63085901 Contact Us For Availability
954
Duct LGE MCZ63611901 Contact Us For Availability
955
Duct LGE MCZ63631801 Contact Us For Availability
956
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
957
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
958
Cable,FFC LGE EAD62131520 Contact Us For Availability
959
Harness,Single LGE EAD60771803 Contact Us For Availability
960
Foot LGE MDP61844201 Contact Us For Availability
A41
Case Assembly LGE ABQ75540311 Contact Us For Availability
A42
Case Assembly LGE ABQ75540203 Contact Us For Availability
A43
PCB Assembly LGE EBR81575901 Contact Us For Availability
A44
Board Assembly,Sub LGE AAX75207403 Contact Us For Availability
A45
PCB Assembly LGE EBR81575801 Contact Us For Availability
A45W
PCB Assembly LGE EBR81576101 Contact Us For Availability
A46
PCB Assembly LGE EBR81575701 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR80517601 Contact Us For Availability
A49W
PCB Assembly LGE EBR81576201 Contact Us For Availability
A51
Module,WLAN LGE EAT61813902 Contact Us For Availability
A51
Module,WLAN LGE EAT61813904 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833301 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT63117401 Contact Us For Availability
A55
PCB Assembly LGE EBR81576001 Contact Us For Availability
A80L
Case Assembly LGE ABQ75501902 Contact Us For Availability
A80R
Case Assembly LGE ABQ75521202 Contact Us For Availability
A900
Speaker System Total LGE TCG36348010 Contact Us For Availability
A900W
Board Assembly LGE AAX75208310 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C5D4
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C5F2
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C200
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C306
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C308
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C312
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C357
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C372
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C383
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C409
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C587
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C643
Capacitor,AL,Chip LGE 0CE226VK6DC Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,AL,Chip LGE 0CZZR00033A Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C906
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C927
CAPACITOR LGE 624-087B Contact Us For Availability
C940
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C942
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C7003
Capacitor,AL,Chip LGE EAE52354701 Contact Us For Availability
C7006
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C7016
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C7019
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C7025
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C7032
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C7033
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C7035
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C7062
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C7066
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
CABLE1
Harness,Single LGE EAD62096911 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62185610 Contact Us For Availability
CABLE3
Harness,Single LGE EAD63766201 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62096305 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN100
Connector,FFC/FPC/PIC LGE EAG38938702 Contact Us For Availability
CN101
Connector,FFC/FPC/PIC LGE 6630R-FB02D Contact Us For Availability
CN102
Connector,BtoB LGE EAG63717503 Contact Us For Availability
CN103
Connector,Wafer LGE EAG60989201 Contact Us For Availability
CN104
Connector,BtoB LGE EAG63717508 Contact Us For Availability
CN200
Connector,Wafer LGE EAG58732906 Contact Us For Availability
CN202
Connector,FFC/FPC/PIC LGE EAG61090207 Contact Us For Availability
CN400
Connector,BtoB LGE EAG63717504 Contact Us For Availability
CN401
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN600
Connector,BtoB LGE EAG63717507 Contact Us For Availability
CN801
Connector,HDMI LGE EAG62611206 Contact Us For Availability
CN803
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
CN804
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
CN901
Harness,Single LGE EAD62497601 Contact Us For Availability
CNA00
Connector,Wafer LGE 6630V901352 Contact Us For Availability
D601
Diode,TVS LGE EAH62033601 Contact Us For Availability
D801
Diode,TVS LGE EAH56919501 Contact Us For Availability
D804
Diode,TVS LGE EAH62735501 Contact Us For Availability
D901
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D910
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D951
Diode,Schottky LGE EAH62232901 Contact Us For Availability
D7005
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
F601
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL201
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL304
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
FL801
Filter,EMI/Power LGE EAM62770301 Contact Us For Availability
FL902
Filter,Line Noise LGE EAM62712401 Contact Us For Availability
FL7004
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
HS901
Heat Sink LGE MED62751601 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC100A
S/W,System Program LGE SAA38108401 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932231 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN63530601 Contact Us For Availability
IC307
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63027302 Contact Us For Availability
IC503
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC505A
S/W,System Program LGE SAA38108301 Contact Us For Availability
IC506
Diode,TVS LGE EAH62055301 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC601
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK200
Jack,Phone LGE 6612F00091C Contact Us For Availability
JK201
Jack,Fiber Optic LGE EAG64171001 Contact Us For Availability
JK202
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK203
Connector,USB LGE 6630S70048D Contact Us For Availability
JK401
Harness,Single LGE EAD63465101 Contact Us For Availability
JK600
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L101
Filter,Bead LGE EAM42641607 Contact Us For Availability
L124
Filter,Bead LGE EAM54407704 Contact Us For Availability
L208
Filter,Bead LGE EAM62151101 Contact Us For Availability
L308
Filter,Bead LGE EAM62155402 Contact Us For Availability
L312
Filter,Bead LGE EAM38769505 Contact Us For Availability
L604
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L7005
Coil,Choke LGE EAP62526302 Contact Us For Availability
LCD
LCD Module LGE EAJ63172301 Contact Us For Availability
LD400
LED,Chip LGE EAV63052001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q105
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q800
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q901
FET LGE EBK62911801 Contact Us For Availability
Q920
TRANSISTOR,BIPOLARS LGE 0TRAU90005A Contact Us For Availability
Q951
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
Q951
TR,Bipolar LGE EBK61591702 Contact Us For Availability
Q7000
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
R1B9
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1C2
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R5C2
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5D2
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R101
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R118
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R210
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R309
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R336
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R347
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R353
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R363
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
R364
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R367
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R400
Resistor,Chip LGE 0RH4700C622 Contact Us For Availability
R402
Resistor,Chip LGE 0RH2700C622 Contact Us For Availability
R403
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RH3903C622 Contact Us For Availability
R406
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R510
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R533
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R602
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R618
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R625
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R628
Resistor,Chip LGE 0RH1503C422 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R815
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0221F608 Contact Us For Availability
R903
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R908
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R909
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R910
Resistor,Carbon Film LGE 0RD2702F608 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R913
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R930
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R931
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R951
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R952
Resistor,Metal Film LGE 0RN1202F408 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN1201F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R962
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R7000
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R7003
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R7020
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R7032
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R7039
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R7041
Resistor,Chip LGE 0RH4701C422 Contact Us For Availability
RA01
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
RA02
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
RA04
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
RC400
Receiver Module LGE EAV62055002 Contact Us For Availability
SW401
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
SW801
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
SWA05
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770154 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC610
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WC613
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
WC615
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
WC616
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
WC618
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
WC646
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC655
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
WC694
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WCA601
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
WCA603
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WCN601
WAFER LGE 6602T25008J Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN605
Connector,Wafer LGE 561-711C Contact Us For Availability
WCN606
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
WD601
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
WD603
Diode,Zener LGE EAH39305801 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932232 Contact Us For Availability
WIC605
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
WL601
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL602
Filter,Line Noise LGE EAM62634202 Contact Us For Availability
WQ608
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WQ609
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
WQ610
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ614
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
WR6A2
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
WR6A4
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
WR6C5
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
WR622
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR626
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR627
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
WR631
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
WR632
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
WR640
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR658
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
WR659
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
WR660
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WR668
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
WX601
Crystal LGE EAW62583505 Contact Us For Availability
WZD604
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
X600
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AJ Contact Us For Availability
ZD910
Diode,Zener LGE 0DZ182609AA Contact Us For Availability
ZD930
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD940
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
× ![]()
Login and Registration Form
