Model LG LAS851M – Common Parts & Diagrams
Diagram 0
Diagram 1

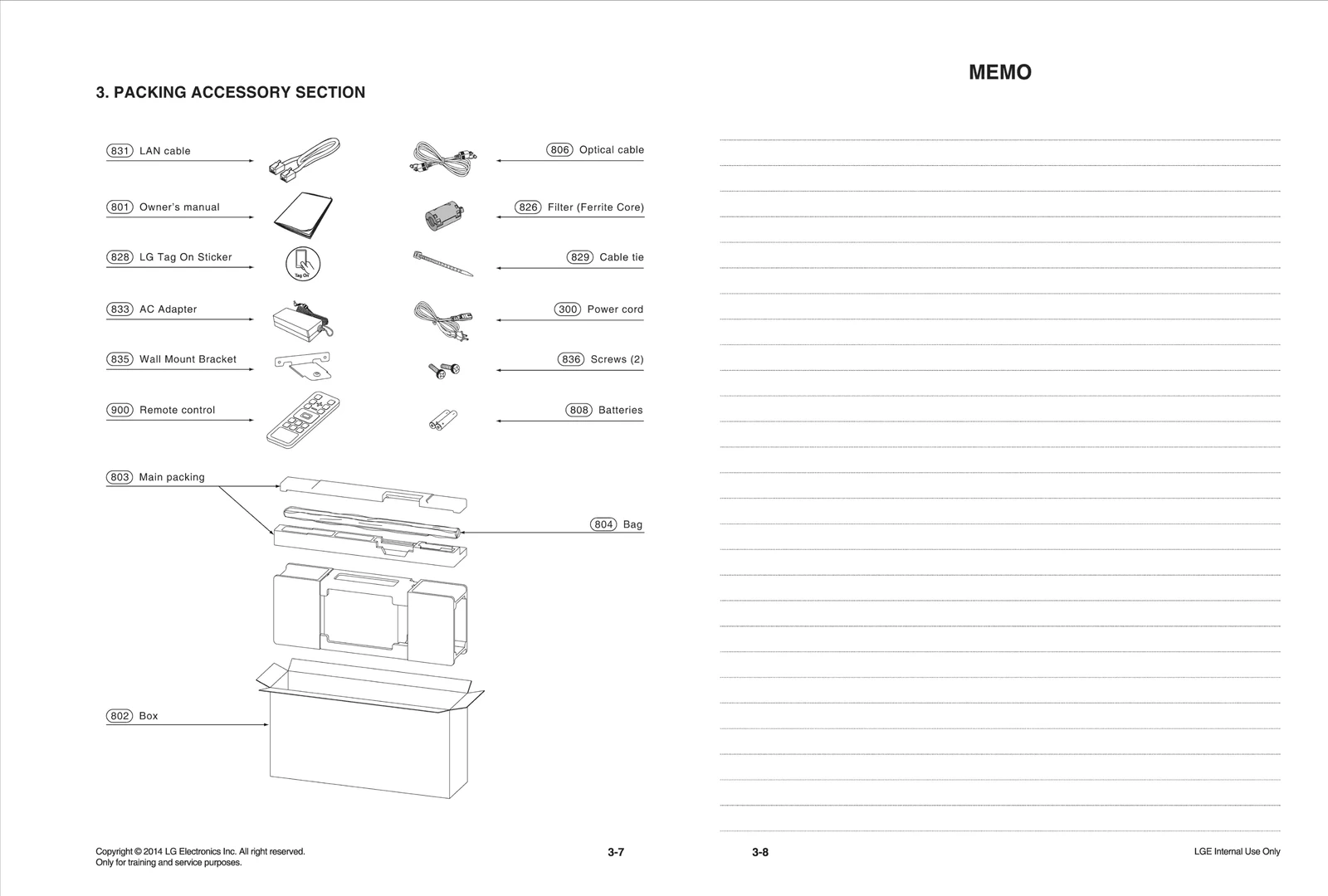

Diagram 2
Diagram 3
Common parts from model LG LAS851M
001
Different Kind Array PCB Assembly LGE EBR78623101 Contact Us For Availability
251
Foot LGE MDP63086701 Contact Us For Availability
252
Bracket LGE MAZ64488401 Contact Us For Availability
253
Damper LGE MCQ32325007 Contact Us For Availability
254
Cover LGE MCK68413302 Contact Us For Availability
255
Damper LGE MCQ62096451 Contact Us For Availability
256
Holder LGE MEG64138601 Contact Us For Availability
258
Speaker,Full Range LGE EAB63088402 Contact Us For Availability
259
Damper LGE MCQ62096452 Contact Us For Availability
260
Button LGE MBG65344601 Contact Us For Availability
261
Button LGE MBG65344701 Contact Us For Availability
262
Grille LGE MDX63332004 Contact Us For Availability
263
Decor Assembly LGE ACW74657001 Contact Us For Availability
300A
Power Cord LGE EAD60816620 Contact Us For Availability
419
Screw,Customized LGE FAB32678901 Contact Us For Availability
457
SCREW, LGE 1SZZH-1007B Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76676166 Contact Us For Availability
802
Box,Master LGE MAY66817424 Contact Us For Availability
803
Packing LGE MFZ64418301 Contact Us For Availability
804
Bag LGE MAF58050930 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6200J000034 Contact Us For Availability
828
Accessory,Wireless LGE EBX61809403 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
831
Cable,Assembly LGE EAD00926128 Contact Us For Availability
835
Packing Assembly LGE AGG74960902 Contact Us For Availability
836
Packing Assembly LGE AGG74482405 Contact Us For Availability
836
Packing Assembly LGE AGG75020902 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74375509 Contact Us For Availability
951
Cover LGE MCK68046054 Contact Us For Availability
952
Chassis LGE MBS62925451 Contact Us For Availability
953
Lens LGE MFB63352952 Contact Us For Availability
954
Heat Sink LGE MED61932603 Contact Us For Availability
955
Cable,FFC LGE EAD62131515 Contact Us For Availability
956
Harness,Single LGE EAD33638850 Contact Us For Availability
957
Harness,Single LGE EAD33638851 Contact Us For Availability
958
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
959
Screw,Customized LGE 353-100AAAB Contact Us For Availability
960
Screw,Customized LGE 353M050N Contact Us For Availability
A42
Case Assembly LGE ABQ74920602 Contact Us For Availability
A43
Auto SMT PCB Assembly LGE EBR79452604 Contact Us For Availability
A44A
Board Assembly,Sub LGE AAX74627607 Contact Us For Availability
A44B
Case Assembly LGE ABQ74920501 Contact Us For Availability
A45
Auto SMT PCB Assembly LGE EBR79518204 Contact Us For Availability
A45A
PCB Assembly LGE EBR79365701 Contact Us For Availability
A46
Auto SMT PCB Assembly LGE EBR79430004 Contact Us For Availability
A47A
PCB Assembly,Power LGE EBR78969201 Contact Us For Availability
A48A
PCB Assembly LGE EBR79365801 Contact Us For Availability
A49A
PCB Assembly LGE EBR79365901 Contact Us For Availability
A51
Module,WLAN LGE EAT61813902 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A54A
Module,RF Full Module(RxTx) LGE EAT61875101 Contact Us For Availability
A55
Auto SMT PCB Assembly LGE EBR79518304 Contact Us For Availability
A900
Active Woofer LGE TCG35788093 Contact Us For Availability
A900A
Cover Assembly LGE ACQ87250723 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
BD901
Diode,Bridge LGE EAH62332601 Contact Us For Availability
C5D3
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5D4
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C5E5
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C201
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C300
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C302
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C309
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C316
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C342
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C347
Capacitor,Ceramic,Chip LGE 0CK471BK56A Contact Us For Availability
C364
Capacitor,Ceramic,Chip LGE 0CH1153K562 Contact Us For Availability
C367
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C368
Capacitor,Ceramic,Chip LGE 0CK182BK56A Contact Us For Availability
C369
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C376
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C410
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C511
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C619
Capacitor,Ceramic,Ch LGE 0CC390BK4AA Contact Us For Availability
C629
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C634
Capacitor,Ceramic,Ch LGE 0CC180BKFAA Contact Us For Availability
C805
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,AL,Radial LGE EAE63203301 Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C906
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C911
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C7013
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C7023
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C7042
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
C7051
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C7061
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C7068
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C7069
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
CABLE1
Harness,Single LGE EAD62096911 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130026 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62096305 Contact Us For Availability
CABLE5
Harness,Single LGE EAD35863025 Contact Us For Availability
CABLE6
PCB Assembly,Sub LGE EBR79526601 Contact Us For Availability
CABLE7
PCB Assembly,Sub LGE EBR79526701 Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN100
Connector,FFC/FPC/PIC LGE 6630X60142K Contact Us For Availability
CN102
Connector,BtoB LGE EAG63717503 Contact Us For Availability
CN104
Connector,BtoB LGE EAG63717508 Contact Us For Availability
CN200
Connector,Wafer LGE EAG58732906 Contact Us For Availability
CN201
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN400
Connector,BtoB LGE EAG63717504 Contact Us For Availability
CN401
Connector,FFC/FPC/PIC LGE EAG61090451 Contact Us For Availability
CN600
Connector,BtoB LGE EAG63717507 Contact Us For Availability
CN800
Connector,HDMI LGE EAG62611206 Contact Us For Availability
CN803
Connector,Wafer LGE 6630VK20704 Contact Us For Availability
CN804
Connector,Wafer LGE 6630VK19605 Contact Us For Availability
CN901
Harness,Single LGE EAD62497601 Contact Us For Availability
D100
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D101
Diode,TVS LGE EAH62033601 Contact Us For Availability
D301
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D400
Diode,Schottky LGE EAH60993301 Contact Us For Availability
D801
Diode,TVS LGE EAH56919501 Contact Us For Availability
D803
Diode,TVS LGE EAH61515001 Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D903
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D903
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D951
Diode,Schottky LGE EAH62134501 Contact Us For Availability
F601
Fuse,Non Time Delay LGE EAF61631901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB901
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL202
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL901
Filter,Line Noise LGE EAM60672506 Contact Us For Availability
HS901
Heat Sink LGE MED62471901 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC100A
S/W,System Program LGE SAA37380701 Contact Us For Availability
IC101A
S/W,System Program LGE SAA37380801 Contact Us For Availability
IC102A
S/W,System Program LGE SAA35932221 Contact Us For Availability
IC103
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC300
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC301
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC304
IC,LDO Voltage Regulator LGE EAN62206201 Contact Us For Availability
IC306
IC,Voltage Regulator LGE EAN60772301 Contact Us For Availability
IC308
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC501
IC,Video Processors LGE EAN63027302 Contact Us For Availability
IC504
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC505A
S/W,System Program LGE SAA37597501 Contact Us For Availability
IC506
Diode,TVS LGE EAH62055301 Contact Us For Availability
IC600
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62388901 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
IC7001
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
JK200
Jack,Phone LGE 6612F00091C Contact Us For Availability
JK201
Jack,Fiber Optic LGE EAG64171001 Contact Us For Availability
JK202
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK203
Connector,USB LGE 6630S70048D Contact Us For Availability
JK600
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L208
Filter,Bead LGE EAM62151101 Contact Us For Availability
L302
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L312
Filter,Bead LGE EAM38769505 Contact Us For Availability
L503
Filter,Bead LGE EAM62155401 Contact Us For Availability
L7005
Coil,Choke LGE EAP62526301 Contact Us For Availability
LCD
LCD Module LGE EAJ61468604 Contact Us For Availability
LD400
LED,Chip LGE EAV63052001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q104
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q401
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q403
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q901
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q951
TR,Bipolar LGE EBK61591702 Contact Us For Availability
Q7001
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q7002
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
R1B8
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R1C2
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R5C2
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R5D2
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R122
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R165
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RJ6801C678 Contact Us For Availability
R205
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R300
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R301
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R303
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R312
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R314
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R317
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R319
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R320
RESISTOR,METAL GLAZE LGE 0RJ2700C678 Contact Us For Availability
R321
Resistor,Chip LGE EBC33932801 Contact Us For Availability
R322
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R324
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R334
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R335
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R345
Resistor,Chip LGE 0RH5602C622 Contact Us For Availability
R350
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R351
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R401
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R403
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R405
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R406
Resistor,Chip LGE EBC32176201 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R519
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ0752C478 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R537
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R600
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R604
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R624
Resistor,Chip LGE 0RJ6800C678 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R803
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R807
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R816
Resistor,Chip LGE 0RJ0471C678 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0182F608 Contact Us For Availability
R903
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R905
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R907
Resistor,Metal Oxide Film LGE EBC62498201 Contact Us For Availability
R951
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM 6.8 LGE 0RD6801F608 Contact Us For Availability
R954
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R7003
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R7006
RESISTOR CHIP 82K 1/10W 5 D.R LGE 0RH8202D622 Contact Us For Availability
R7026
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
RA00
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
RA01
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
RA02
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
RA04
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
RC400
Receiver Module LGE EAV62055002 Contact Us For Availability
SW800
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
SWA03
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC610
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WC619
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC632
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC637
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
WC644
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC689
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
WC690
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
WCA601
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
WCA603
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
WCN601
WAFER LGE 6602T25008J Contact Us For Availability
WCN602
Connector,FFC/FPC/PIC LGE EAG61090203 Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
Connector,Wafer LGE EAG60989201 Contact Us For Availability
WCN605
Connector,Wafer LGE 6630V90078P Contact Us For Availability
WCN611
Connector,Wafer LGE 6630V901352 Contact Us For Availability
WCN621
Connector,Wafer LGE 6630V90135A Contact Us For Availability
WD603
Diode,Zener LGE EAH39305801 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932218 Contact Us For Availability
WIC604
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
WIC607
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
WL601
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL603
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
WL618
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
WL627
Filter,Bead LGE EAM42641607 Contact Us For Availability
WLD622
LED,Chip LGE EAV62172301 Contact Us For Availability
WQ602
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ608
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WR605
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
WR615
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR622
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR627
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
WR628
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
WR629
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
WR631
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
WR632
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
WR634
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
WR640
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR648
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
WR658
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
WR660
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WR667
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
WR692
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
WSW611
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
X501
Crystal LGE EAW62583501 Contact Us For Availability
X600
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
ZD901
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AJ Contact Us For Availability
× ![]()
Login and Registration Form
