Model LG LAS450H – Common Parts & Diagrams
Diagram 0
Diagram 1

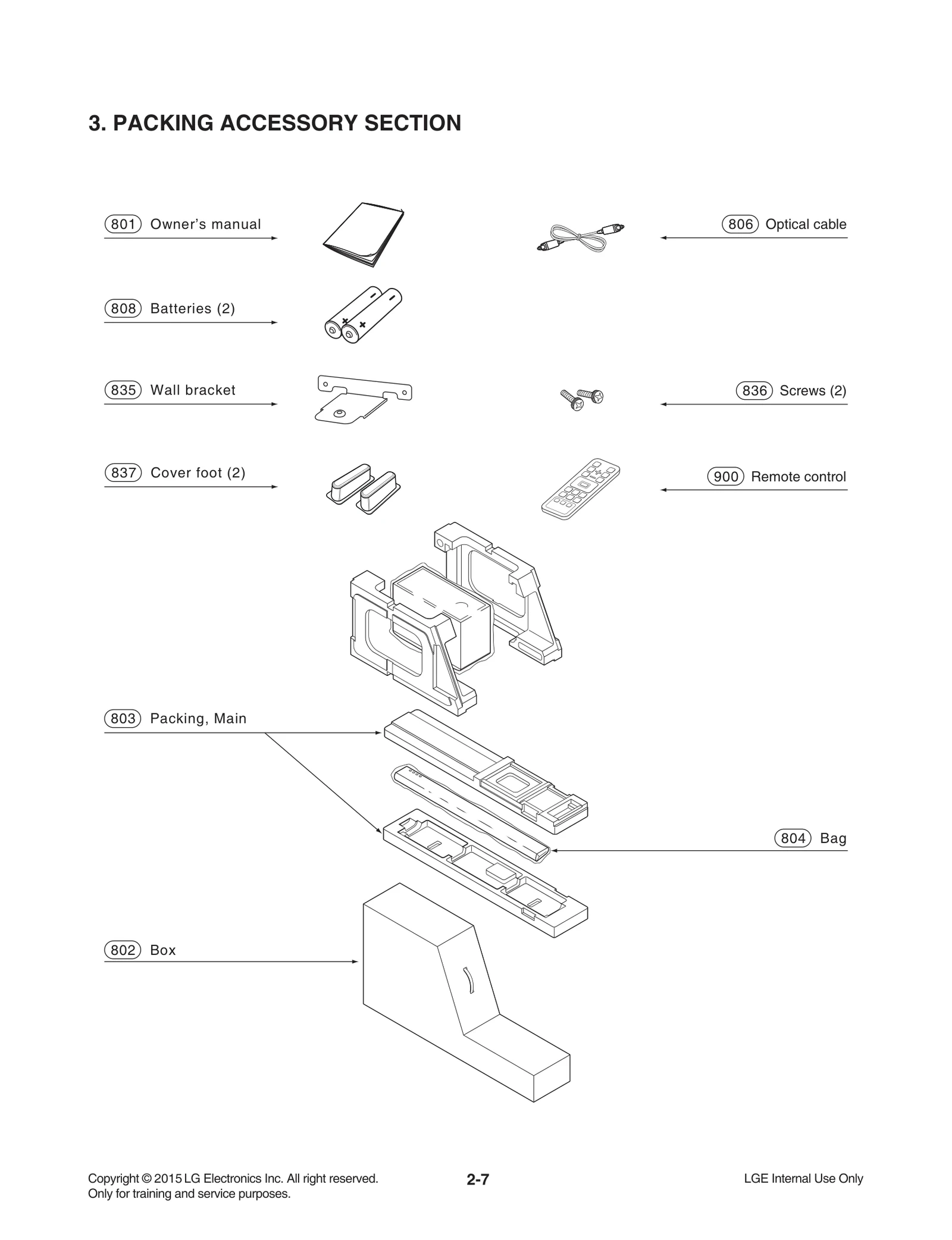

Diagram 2
Diagram 3
Common parts from model LG LAS450H
251
Foot LGE MDP63146702 Contact Us For Availability
252
Damper LGE MCQ67844602 Contact Us For Availability
253
Damper LGE MCQ68524601 Contact Us For Availability
255
Damper LGE MCQ62096450 Contact Us For Availability
256
Damper LGE MCQ32777528 Contact Us For Availability
257
Speaker,Tweeter LGE EAB63708601 Contact Us For Availability
258
Speaker,Woofer LGE EAB63609301 Contact Us For Availability
259
Damper LGE MCQ68406002 Contact Us For Availability
260
Damper LGE MCQ68406003 Contact Us For Availability
261L
Case Assembly LGE ABQ75282001 Contact Us For Availability
261R
Case Assembly LGE ABQ75281901 Contact Us For Availability
262
Case Assembly LGE ABQ75242402 Contact Us For Availability
263L
Decor LGE MCR66107401 Contact Us For Availability
263R
Decor LGE MCR66086401 Contact Us For Availability
270
Sheet LGE MHK65165601 Contact Us For Availability
271
Sheet LGE MHK65265702 Contact Us For Availability
272
Gasket LGE MDS65390701 Contact Us For Availability
273
Gasket LGE MDS65410601 Contact Us For Availability
274
Sheet LGE MHK65086607 Contact Us For Availability
275
Plate LGE 3300R-D079F Contact Us For Availability
276
Sheet LGE MHK64926804 Contact Us For Availability
300W
Power Cord LGE EAD60816718 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
506
Screw,Customized LGE 1SZZR-0097X Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77053751 Contact Us For Availability
802
Box,Master LGE MAY67008434 Contact Us For Availability
803
Packing LGE MFZ64775204 Contact Us For Availability
804
Bag LGE MAF37454653 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
826
FILTER(CIRC),EMC LGE 6210VH0004B Contact Us For Availability
835
Packing Assembly LGE AGG74482303 Contact Us For Availability
836
Packing Assembly LGE AGG74482405 Contact Us For Availability
837
Accessory Assembly LGE AAA75831505 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74435311 Contact Us For Availability
950
Screw,Customized LGE 353M050N Contact Us For Availability
951
Panel,Rear LGE MGC63939502 Contact Us For Availability
952
Chassis LGE MBS63085901 Contact Us For Availability
953
Damper LGE MCQ68305001 Contact Us For Availability
954
Duct LGE MCZ63611901 Contact Us For Availability
955
Duct LGE MCZ63631801 Contact Us For Availability
956
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
A42
Case Assembly LGE ABQ75261904 Contact Us For Availability
A43
PCB Assembly LGE EBR80383004 Contact Us For Availability
A44A
Chassis LGE MBS63105501 Contact Us For Availability
A44B
Case Assembly LGE ABQ75500201 Contact Us For Availability
A45W
PCB Assembly LGE EBR80813901 Contact Us For Availability
A46
PCB Assembly,Main LGE EBR81222301 Contact Us For Availability
A47
PCB Assembly LGE EBR81104701 Contact Us For Availability
A47W
PCB Assembly,Power LGE EBR80387301 Contact Us For Availability
A48
PCB Assembly,HDMI LGE EBR81202801 Contact Us For Availability
A49W
PCB Assembly LGE EBR80773401 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
A54W
Module,RF Full Module(RxTx) LGE EAT62833401 Contact Us For Availability
A55
PCB Assembly,Keypad LGE EBR81183101 Contact Us For Availability
A900
Speaker System Total LGE TCG36288001 Contact Us For Availability
A900W
Board Assembly LGE AAX75187401 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C5A1
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C5B4
Capacitor,AL,Chip LGE 0CZZQE2018A Contact Us For Availability
C5H1
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C5H3
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5K5
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C7A2
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C7A4
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C207
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C560
Capacitor,Ceramic,Chip LGE EAE31992101 Contact Us For Availability
C572
Capacitor,Ceramic,Ch LGE 0CK330BK4DA Contact Us For Availability
C605
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C611
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C633
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C636
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C641
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C696
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C708
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C718
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C719
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C736
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C744
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C746
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C754
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C769
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C776
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C797
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C803
Capacitor,Ceramic,Chip LGE 0CH4100K412 Contact Us For Availability
C828
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C853
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C869
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
C871
Capacitor,Ceramic,Chip LGE 0CC4R7BHFAA Contact Us For Availability
C875
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C900
Capacitor,AL,Radial LGE EAE63203307 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C902
Capacitor,AL,Chip LGE 0CZZR00033A Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C906
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C909
Capacitor,AL,Radial LGE 0CE2262K638 Contact Us For Availability
C921
Capacitor,AL,Radial LGE EAE61224401 Contact Us For Availability
C922
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C927
CAPACITOR LGE 624-087B Contact Us For Availability
C940
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C950
Capacitor,AL,Radial LGE EAE62604201 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C991
Capacitor,AL,Radial LGE EAE63162002 Contact Us For Availability
CA801
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8226F611 Contact Us For Availability
CA851
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8227C621 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD63427003 Contact Us For Availability
CABLE3
Harness,Single LGE EAD33638854 Contact Us For Availability
CM900
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM901
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM901
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN201
Connector,BtoB LGE EAG63717501 Contact Us For Availability
CN301
Connector,Wafer LGE 6630V90135B Contact Us For Availability
CN501
Connector,BtoB LGE EAG63717502 Contact Us For Availability
CN504
Connector,Wafer LGE 6630V90078D Contact Us For Availability
CN506
Connector,BtoB LGE EAG63717511 Contact Us For Availability
CN507
Connector,BtoB LGE EAG63717509 Contact Us For Availability
CN508
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN601
Connector,BtoB LGE EAG63717513 Contact Us For Availability
CN703
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN704
Connector,Wafer LGE EAG63270203 Contact Us For Availability
CN801
Connector,BtoB LGE EAG63717510 Contact Us For Availability
CN901
Harness,Single LGE EAD62497601 Contact Us For Availability
CN990
Connector,BtoB LGE EAG63717512 Contact Us For Availability
D502
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D602
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D701
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D801
Diode,Switching LGE 0DD160009AB Contact Us For Availability
D804
Diode,TVS LGE EAH56919501 Contact Us For Availability
D900
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D930
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D991
Diode,Schottky LGE EAH62232901 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB900
COIL LGE 636-004D Contact Us For Availability
FB910
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL802
Filter,EMI/Power LGE EAM62770301 Contact Us For Availability
FL851
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL902
Filter,Line Noise LGE EAM62712401 Contact Us For Availability
HS901
Heat Sink LGE MED62751601 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC501A
S/W,System Program LGE SAA37921001 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62909503 Contact Us For Availability
IC503
IC,SDRAM LGE EAN60700803 Contact Us For Availability
IC504
IC,Voltage Detector LGE EAN38061301 Contact Us For Availability
IC505A
S/W,System Program LGE SAA35932227 Contact Us For Availability
IC506A
S/W,System Program LGE SAA37920901 Contact Us For Availability
IC507
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC604
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC605
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC702
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC801
IC,Tx/Rx LGE EAN63547801 Contact Us For Availability
IC803
IC,LDO Voltage Regulator LGE EAN62682301 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK401
Harness,Single LGE EAD63465101 Contact Us For Availability
JK851
Jack,Phone LGE 6612F00091C Contact Us For Availability
JK852
Jack,Fiber Optic LGE EAG64171001 Contact Us For Availability
JK853
Connector,USB LGE EAG62571101 Contact Us For Availability
L516
Filter,Bead LGE EAM62151101 Contact Us For Availability
L520
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
L619
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L631
Filter,Bead LGE EAM62155402 Contact Us For Availability
L631
Filter,Bead LGE EAM62155401 Contact Us For Availability
L709
Coil,Choke LGE EAP62526301 Contact Us For Availability
L801
Filter,Bead LGE EAM42641607 Contact Us For Availability
L854
Filter,Bead LGE EAM62151001 Contact Us For Availability
L854
INDUCTOR,CHIP LGE 0LC11608C01 Contact Us For Availability
LCD
LCD Module LGE EAJ63172301 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC901
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q201
TR,Bipolar LGE EBK33822201 Contact Us For Availability
Q503
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q504
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q702
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q705
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q901
FET LGE EBK62911801 Contact Us For Availability
Q901
FET LGE EBK62212301 Contact Us For Availability
Q901HS
Heat Sink LGE MED61841604 Contact Us For Availability
Q920
TRANSISTOR,BIPOLARS LGE 0TRAU90005A Contact Us For Availability
Q951
TR,Bipolar LGE 0TR120309AE Contact Us For Availability
R5A2
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R5C8
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R5D8
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R5E8
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R5L3
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R5L6
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R5R7
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R7A5
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R7A7
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R7B4
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R7B9
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R205
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R207
RESISTOR,CHIP LGE 0RH1000C622 Contact Us For Availability
R210
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R301
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R302
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R303
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R504
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RJ3900C477 Contact Us For Availability
R554
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R577
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R581
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R608
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RH2003C622 Contact Us For Availability
R610
Resistor,Chip LGE 0RH1003B622 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R618
Resistor,Chip LGE 0RH5102C422 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R623
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R624
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R708
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R776
Resistor,Chip LGE 0RJ6802C678 Contact Us For Availability
R781
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R786
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R803
Resistor,Chip LGE 0RH4701C622 Contact Us For Availability
R808
Resistor,Chip LGE EBC61057301 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R821
Resistor,Chip LGE 0RJ1303C477 Contact Us For Availability
R823
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R828
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R867
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0221F609 Contact Us For Availability
R905
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R905
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD7500F609 Contact Us For Availability
R908
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R909
Resistor,Wire Wound LGE EBC30416601 Contact Us For Availability
R910
Resistor,Carbon Film LGE 0RD2702F609 Contact Us For Availability
R911
Resistor,Carbon Film LGE 0RD4701F609 Contact Us For Availability
R913
Resistor,Carbon Film LGE 0RD0222F609 Contact Us For Availability
R921
Resistor,Carbon Film LGE 0RD0471F609 Contact Us For Availability
R930
Resistor,Carbon Film LGE 0RD8200F609 Contact Us For Availability
R932
RESISTOR FIXED CARBON FILM R- LGE 0RD2200F609 Contact Us For Availability
R951
Resistor,Metal Film LGE 0RN2202F409 Contact Us For Availability
R952
Resistor,Carbon Film LGE 0RD1202F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1102F409 Contact Us For Availability
R954
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
R955
R METAL FILM LGE 0RN1201F409 Contact Us For Availability
R956
RESISTOR FIX METAL 4.70K 1/6W LGE 0RN4701F409 Contact Us For Availability
R957
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R962
Resistor,Carbon Film LGE 0RD5103F609 Contact Us For Availability
RC200
Receiver Module LGE EAV61333201 Contact Us For Availability
SPK703
PCB Assembly,Sub LGE EBR80815101 Contact Us For Availability
SPK704
PCB Assembly,Sub LGE EBR80815201 Contact Us For Availability
SW301
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW401
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770154 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
U1
Heat Sink LGE MED61841614 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC613
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
WC619
Capacitor,Ceramic,Chip LGE 0CH1562K562 Contact Us For Availability
WC622
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC624
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
WC634
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
WC686
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WC694
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WCA601
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
WCN601
WAFER LGE 6602T25008J Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
CONNECTOR (CIRC),WAF LGE 561-711B Contact Us For Availability
WCN605
Connector,Wafer LGE 561-711C Contact Us For Availability
WD603
Diode,Zener LGE EAH39305801 Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932228 Contact Us For Availability
WIC604
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
WIC606
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
WL601
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL605
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
WL605
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
WL631
Filter,Line Noise LGE EAM62634203 Contact Us For Availability
WL631
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
WQ602
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WQ615
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
WR6A2
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
WR6A4
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
WR6C3
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
WR609
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
WR611
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
WR615
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR618
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
WR619
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
WR623
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR627
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
WR629
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
WR631
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
WR640
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR641
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
WR643
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
WR659
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
WR660
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WX601
Crystal LGE EAW62583505 Contact Us For Availability
X501
Crystal LGE EAW62583502 Contact Us For Availability
X801
Crystal LGE EAW62583501 Contact Us For Availability
ZD901
Diode,Zener LGE 0DZSE00134A Contact Us For Availability
ZD902
Diode,Zener LGE 0DZ220009AE Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AH Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AJ Contact Us For Availability
ZD910
Diode,Zener LGE 0DZ180009AE Contact Us For Availability
ZD930
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD940
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
