Model LG LAS260B Speaker HTS – Common Parts & Diagrams

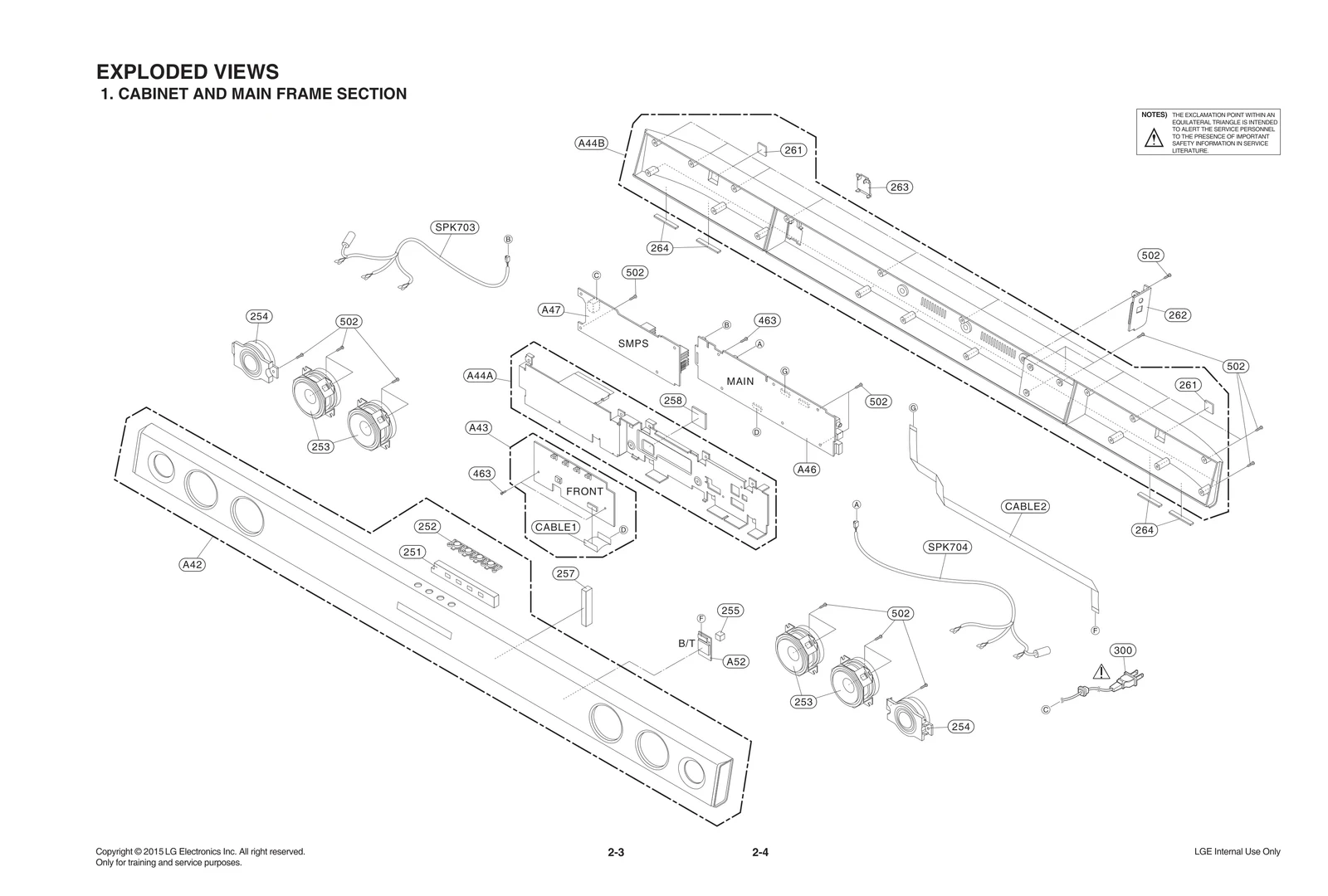

Diagram 0

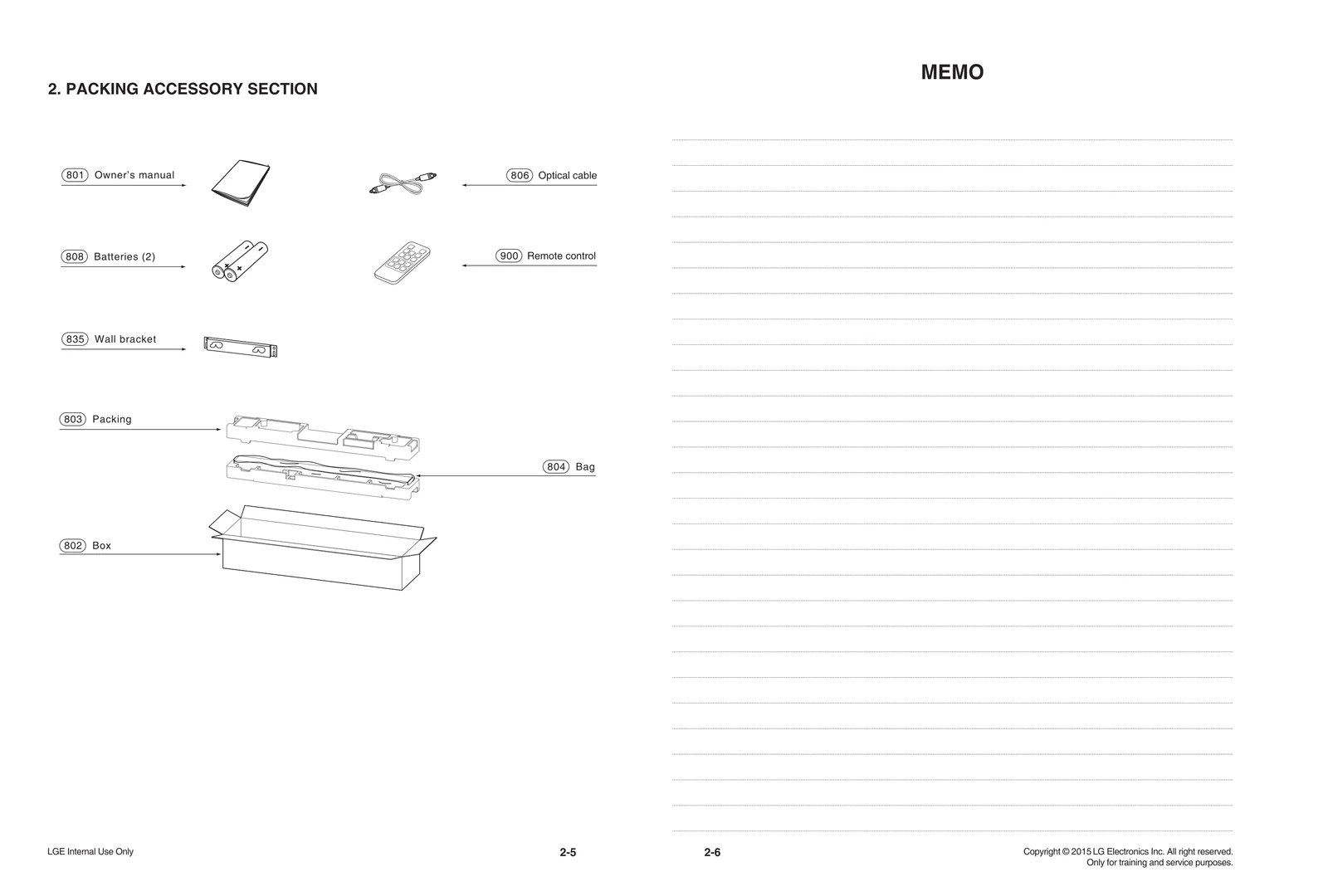

Diagram 1
Diagram 2
Common parts from model LG LAS260B Speaker HTS
251
Plate Assembly LGE AGU74229202 Contact Us For Availability
252
Button LGE MBG65982601 Contact Us For Availability
253
Speaker,Woofer LGE EAB62851803 Contact Us For Availability
254
Speaker,Tweeter LGE EAB62870201 Contact Us For Availability
255
Foot LGE MDP63426801 Contact Us For Availability
257
Gasket LGE MDS61951120 Contact Us For Availability
258
Damper LGE MCQ62096416 Contact Us For Availability
261
Damper LGE MCQ32325007 Contact Us For Availability
262
Cover LGE MCK68987901 Contact Us For Availability
263
Holder LGE MEG63340701 Contact Us For Availability
264
Foot LGE MDP62707001 Contact Us For Availability
463
SCREW,DRAWING LGE 1SZZR-0098G Contact Us For Availability
502
Screw,Customized LGE 1SZZR-0097D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN77455122 Contact Us For Availability
802
Box,Master LGE MAY67008495 Contact Us For Availability
803
Packing LGE MFZ63598201 Contact Us For Availability
804
Bag LGE MAF64727401 Contact Us For Availability
806
Cable,Assembly LGE EAD63345601 Contact Us For Availability
806
Cable,Assembly LGE EAD61071210 Contact Us For Availability
806
Cable,Assembly LGE EAD63727901 Contact Us For Availability
808
BATTERY LGE 534-008C Contact Us For Availability
835
Accessory Assembly LGE AAA74310301 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74815311 Contact Us For Availability
A42
Panel Assembly,Front LGE AGL75453001 Contact Us For Availability
A43
PCB Assembly,Front LGE EBR82127801 Contact Us For Availability
A44A
Frame Assembly LGE ADV74467708 Contact Us For Availability
A44B
Case Assembly LGE ABQ74102004 Contact Us For Availability
A46
LFS Total PCB Assembly LGE EBT64117301 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR82059201 Contact Us For Availability
A52
Module,Bluetooth LGE EAT62833601 Contact Us For Availability
AR503
Resistor,Array LGE 0RR0222T621 Contact Us For Availability
AR506
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR511
RESISTOR,VARIABLE[ME LGE 0RR0332B621 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C5A2
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C5A5
Capacitor,Ceramic,Chip LGE 0CK331BKFDA Contact Us For Availability
C5H2
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C5H3
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5H8
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5K5
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C7A2
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C7A4
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C301
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C552
Capacitor,Ceramic,Chip LGE ECZH0001215 Contact Us For Availability
C601
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C609
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C613
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C615
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C623
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C628
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C633
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C730
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C736
Capacitor,Ceramic,Chip LGE 0CH4101K412 Contact Us For Availability
C741
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
C744
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C755
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
C759
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
C772
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C779
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C786
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
C900
Capacitor,AL,Radial LGE 0CE686JV6A0 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C920
Capacitor,Film,DIP,DC LGE EAE50550202 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C923
CAPACITOR POLYESTER(MYLAR) CD- LGE 0CQ1041N409 Contact Us For Availability
C924
Capacitor,Film,DIP LGE EAE41288101 Contact Us For Availability
C925
Capacitor,Ceramic,Radial,Disc LGE 624-087S Contact Us For Availability
C951
Capacitor,AL,Radial LGE EAE63162002 Contact Us For Availability
C953
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
CA502
Capacitor,AL,Chip LGE 0CZZQE2018A Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130022 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD62130028 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62130033 Contact Us For Availability
CM900
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM900
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM900
Capacitor,Film,Box,X-CAP LGE EAE61103302 Contact Us For Availability
CN504
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN508
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN601
Connector,BtoB LGE EAG63717513 Contact Us For Availability
CN703
Connector,Wafer LGE EAG63514501 Contact Us For Availability
CN704
Connector,Wafer LGE EAG62569901 Contact Us For Availability
CN900
Connector,BtoB LGE EAG63270301 Contact Us For Availability
D300
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D500
Diode,Zener LGE EAH39305801 Contact Us For Availability
D603
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D702
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D920
Diode,Switching LGE EAH61853601 Contact Us For Availability
D921
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D951
DIODE,RECTIFIERS LGE 0DRVH00020A Contact Us For Availability
D951
Diode,Switching LGE EAH31951401 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
IC501A
S/W,System Program LGE SAA38244501 Contact Us For Availability
IC502
IC,Digital Signal Processors LGE EAN62909503 Contact Us For Availability
IC503
IC,SDRAM LGE 0IMMREB004H Contact Us For Availability
IC503
IC,SDRAM LGE EAN60700803 Contact Us For Availability
IC504
IC,Voltage Detector LGE EAN61547501 Contact Us For Availability
IC506A
S/W,System Program LGE SAA38244401 Contact Us For Availability
IC507
IC,I/O Support Chip LGE EAN57065701 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
IC604
IC,DC,DC Converter LGE EAN63530001 Contact Us For Availability
IC607
IC,Analog Switch LGE EAN62871401 Contact Us For Availability
IC701
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
IC703
IC,Audio Amplifier LGE EAN62395902 Contact Us For Availability
IC920
IC,PWM Controller LGE EAN64091901 Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK501
Jack,Fiber Optic LGE EAG37842010 Contact Us For Availability
JK501
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK502
Jack,Phone LGE 6612F00091C Contact Us For Availability
JK503
Connector,USB LGE EAG62571101 Contact Us For Availability
L501
Filter,Bead LGE EAM62151001 Contact Us For Availability
L516
Filter,Bead LGE EAM62151101 Contact Us For Availability
L520
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
L604
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L609
Filter,Bead LGE EAM62155402 Contact Us For Availability
L618
Inductor,Wire Wound,Chip LGE EAP63026901 Contact Us For Availability
L618
Inductor,Wire Wound,Chip LGE EAP63026904 Contact Us For Availability
L707
Filter,Bead LGE EAM42641607 Contact Us For Availability
L710
Coil,Choke LGE EAP62526301 Contact Us For Availability
L710
Coil,Choke LGE EAP62526302 Contact Us For Availability
LD302
LED,Chip LGE EAV62832701 Contact Us For Availability
LF900
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN900
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q303
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q601
TR,Bipolar LGE EBK61231501 Contact Us For Availability
Q701
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q703
TRANSISTOR,BIPOLARS LGE 0TR150409AB Contact Us For Availability
Q707
TR,Bipolar LGE 0TR102009AA Contact Us For Availability
Q708
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
Q709
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
R5A1
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R5A2
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R5L3
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R5L6
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R5R6
Resistor,Chip LGE 0RJ5600C678 Contact Us For Availability
R7A6
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R7B0
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R7B3
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R7B4
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R300
Resistor,Chip LGE 0RH1500C622 Contact Us For Availability
R306
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R307
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R308
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R504
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
R515
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R517
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R518
Resistor,Chip LGE 0RH0102C622 Contact Us For Availability
R523
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R555
RESISTOR,METAL GLAZE LGE 0RJ8201C678 Contact Us For Availability
R562
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R581
Resistor,Chip LGE EBC62736001 Contact Us For Availability
R582
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
R599
Resistor,Chip LGE 0RH1003B622 Contact Us For Availability
R601
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R603
RH 47K-J 1/16W GVC-F475,F477 LGE 0RH4702C622 Contact Us For Availability
R605
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ2203C678 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R614
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R615
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R617
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R619
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
R622
Resistor,Chip LGE 0RJ2703C478 Contact Us For Availability
R625
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R634
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R636
Resistor,Chip LGE 0RJ1802C678 Contact Us For Availability
R639
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R654
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
R768
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R772
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R785
Resistor,Chip LGE 0RH3303D622 Contact Us For Availability
R797
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R920
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R921
RESISTOR FIXED CARBON FILM LGE 0RD0102F609 Contact Us For Availability
R923
RESISTOR,FIXED METAL LGE 0RS0600K619 Contact Us For Availability
R924
Resistor,Metal Oxide Film LGE 0RS0470K619 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM KCN LGE 0RD1001F609 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R954
RESISTOR FIXED CARBON FILM KCN LGE 0RD2701F609 Contact Us For Availability
R957
Resistor,Metal Film LGE 0RN2001F409 Contact Us For Availability
RC300
Receiver Module LGE EAV61333201 Contact Us For Availability
SPK703
PCB Assembly,Sub LGE EBR81526702 Contact Us For Availability
SPK704
PCB Assembly,Sub LGE EBR81526802 Contact Us For Availability
SW301
Switch,Tact LGE EBF61874701 Contact Us For Availability
T900
Transformer,Switching LGE EBJ60770138 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
VR900
Varistor LGE EAF43134201 Contact Us For Availability
X501
Crystal LGE EAW62583502 Contact Us For Availability
X502
Crystal LGE EAW62583505 Contact Us For Availability
ZD920
Diode,Zener LGE EAH62753301 Contact Us For Availability
ZD920
Diode,Zener LGE 0DZSE00104A Contact Us For Availability
ZD921
Diode,Zener LGE 0DZGD00064B Contact Us For Availability
ZD921
Diode,Zener LGE 0DZSE00044A Contact Us For Availability
× ![]()
Login and Registration Form
