Model LG LAP240 – Common Parts & Diagrams

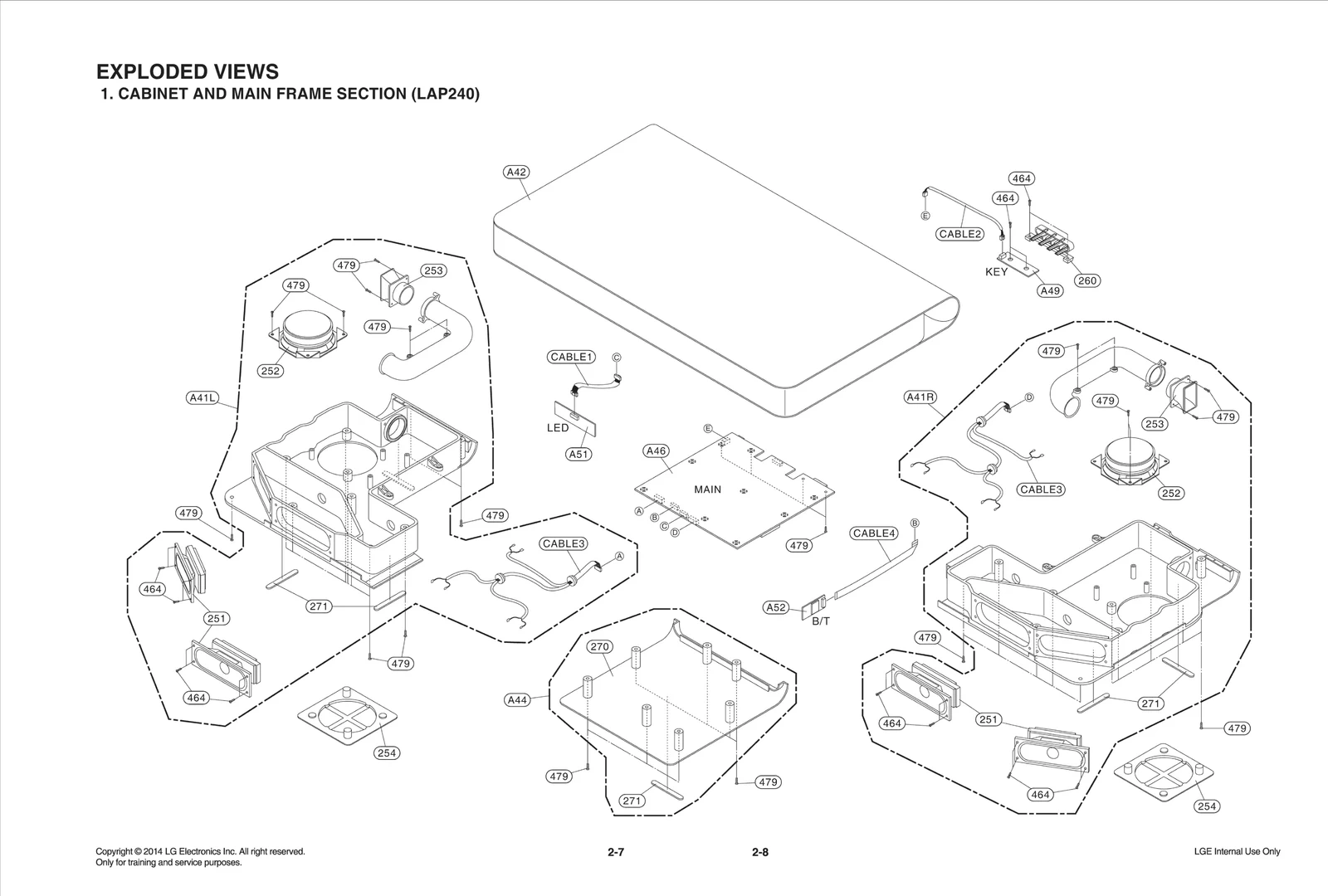

Diagram 0

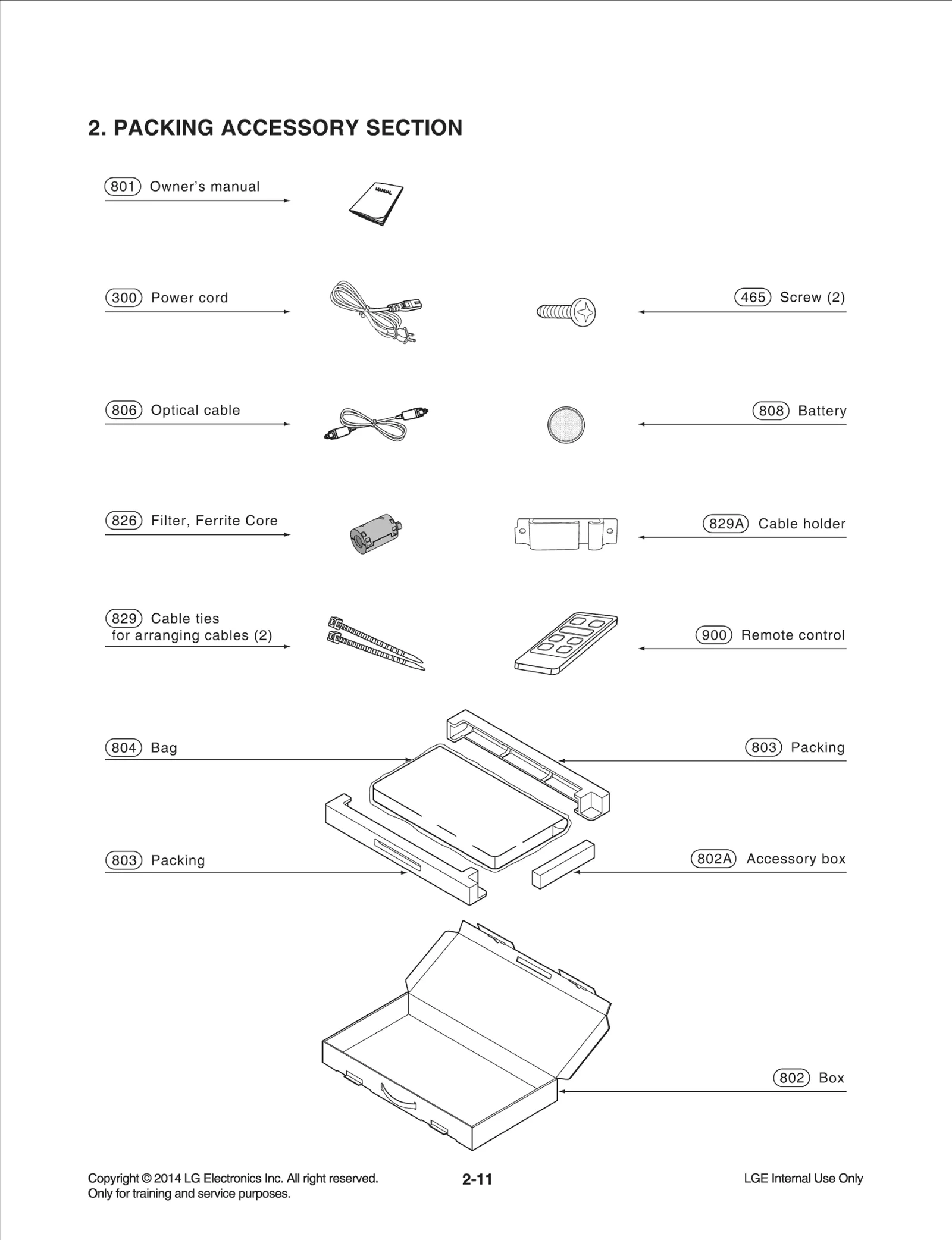

Diagram 1
Diagram 2
Common parts from model LG LAP240
251
Speaker,Woofer LGE EAB63169901 Contact Us For Availability
252
Speaker,Sub Woofer LGE EAB63170001 Contact Us For Availability
253
Duct LGE MCZ63152401 Contact Us For Availability
254
Cover LGE MCK68344401 Contact Us For Availability
260
Button LGE MBG65042701 Contact Us For Availability
270
Case LGE MBN63344301 Contact Us For Availability
271
Foot LGE MDP62846702 Contact Us For Availability
300
Power Cord LGE EAD60816745 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
465
SCREW,DRAWING LGE 1SZZR-0097N Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76291801 Contact Us For Availability
802
Box,Master LGE MAY66244380 Contact Us For Availability
802A
Box LGE MAY65499422 Contact Us For Availability
803
Packing LGE MFZ64019901 Contact Us For Availability
804
Bag LGE MAF61906424 Contact Us For Availability
806
Cable,Assembly LGE EAD61071206 Contact Us For Availability
808
Primary Cell Battery,Lithium LGE EAC52293601 Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004C Contact Us For Availability
826
Filter,Ferrite Core LGE 6210VH0004D Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
829A
Holder LGE MEG63424301 Contact Us For Availability
900
Remote Controller Assembly LGE AKB73996711 Contact Us For Availability
A41L
Case Assembly LGE ABQ74522801 Contact Us For Availability
A41R
Case Assembly LGE ABQ74522901 Contact Us For Availability
A42
Case Assembly LGE ABQ74522702 Contact Us For Availability
A44
Case Assembly LGE ABQ74720301 Contact Us For Availability
A46
PCB Assembly LGE EBR79341301 Contact Us For Availability
A49
PCB Assembly LGE EBR79341601 Contact Us For Availability
A51
PCB Assembly LGE EBR79360701 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
C7A1
CHIP CAPA CERAMIC M/L T.C F/S LGE 0CH4470K412 Contact Us For Availability
C7A4
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C7E2
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C7H7
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
C7K1
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C7R1
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C7R4
Capacitor,Ceramic,Chip LGE EAE61381601 Contact Us For Availability
C106
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C117
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
C167
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C357
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C358
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C359
Capacitor,Ceramic,Ch LGE 0CK105BF94A Contact Us For Availability
C360
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C382
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C603
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C623
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C636
Capacitor,Ceramic,Chip LGE 0CK332BK56A Contact Us For Availability
C638
Capacitor,Ceramic,Chip LGE EAE30276501 Contact Us For Availability
C645
Capacitor,Ceramic,Chip LGE EAE60364701 Contact Us For Availability
C651
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C712
Capacitor,AL,Radial LGE 0CE477EJ630 Contact Us For Availability
C753
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C759
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C777
Capacitor,Ceramic,Chip LGE 0CH1224K512 Contact Us For Availability
C779
Capacitor,Ceramic,Ch LGE 0CK100BKMDA Contact Us For Availability
C784
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C900
Capacitor,AL,Radial LGE EAE63203301 Contact Us For Availability
C902
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C912
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C914
Capacitor,Ceramic,Chip LGE 0CH4681K416 Contact Us For Availability
C920
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C921
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C922
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C923
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C950
Capacitor,AL,Radial LGE EAE62406601 Contact Us For Availability
C953
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C954
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
CA101
Capacitor,AL,Radial LGE 0CE4766F618 Contact Us For Availability
CABLE1
Harness,Single LGE EAD62632401 Contact Us For Availability
CABLE2
Harness,Single LGE EAD35829014 Contact Us For Availability
CABLE3
PCB Assembly,Sub LGE EBR78508401 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62130005 Contact Us For Availability
CM900
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CN104
Connector,Wafer LGE 6602T12005J Contact Us For Availability
CN107
Connector,Wafer LGE EAG58732904 Contact Us For Availability
CN201
Connector,Wafer LGE EAG62569901 Contact Us For Availability
CN302
CONNECTOR (CIRC),FFC LGE 6630XE00110 Contact Us For Availability
CN702
Connector,Wafer LGE EAG63270201 Contact Us For Availability
CN800
Connector,Wafer LGE 6630V90141C Contact Us For Availability
D600
Diode,TVS LGE EAH62033601 Contact Us For Availability
D601
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D800
Diode,Switching LGE EDSY0017701 Contact Us For Availability
D919
Diode,Schottky LGE 0DRKE00048A Contact Us For Availability
D920
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D922
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D922
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D952
Diode,Switching LGE EAH30982401 Contact Us For Availability
D952
Diode,Schottky LGE EAH62095001 Contact Us For Availability
F900
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB903
Filter,Bead LGE EAM38769505 Contact Us For Availability
FB920
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL301
Filter,EMI/Power LGE EAM62092401 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36765202 Contact Us For Availability
IC101
IC,EEPROM LGE EAN57037601 Contact Us For Availability
IC301
IC,Digital Signal Processors LGE EAN62408102 Contact Us For Availability
IC302
IC,SDRAM LGE 0IMMREO001E Contact Us For Availability
IC303A
S/W,System Program LGE SAA36765103 Contact Us For Availability
IC602
IC,DC,DC Converter LGE EAN62766801 Contact Us For Availability
IC603
IC,DC,DC Converter LGE EAN62698701 Contact Us For Availability
IC700
IC,LDO Voltage Regulator LGE EAN40225301 Contact Us For Availability
IC701
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC704
IC,Line Driver LGE EAN62579201 Contact Us For Availability
IC705
IC,D/A Converter LGE EAN62889801 Contact Us For Availability
IC707
IC,Audio Amplifier LGE EAN62910601 Contact Us For Availability
IC709
IC,Volume Control LGE EAN62910701 Contact Us For Availability
IC801
IC,Inverter LGE EAN30375501 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62700201 Contact Us For Availability
IC950
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK301
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK601
Jack,DC Power LGE EAG63410102 Contact Us For Availability
L605
Filter,Bead LGE EAM42641607 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
L612
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
L711
Coil,Choke LGE EAP62526301 Contact Us For Availability
L712
Inductor,Wire Wound,Chip LGE EAP62267602 Contact Us For Availability
L712
Inductor,Wire Wound,Chip LGE EAP62267601 Contact Us For Availability
L715
Filter,Bead LGE EAM32500205 Contact Us For Availability
L715
Filter,Bead LGE EAM62151101 Contact Us For Availability
LD802
LED,Chip LGE EAV61492301 Contact Us For Availability
LD803
LED,Chip LGE EAV62172301 Contact Us For Availability
LD804
LED,Chip LGE EAV30476901 Contact Us For Availability
LF900
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV61253101 Contact Us For Availability
PN900
Socket,Power LGE EAG63193901 Contact Us For Availability
Q701
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q800
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q804
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q901
FET LGE EBK60872301 Contact Us For Availability
Q902
TR,Bipolar LGE 0TRKE80041A Contact Us For Availability
Q902
TR,Bipolar LGE EBK36400001 Contact Us For Availability
R7A5
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R7C8
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R7F3
Resistor,Chip LGE 0RH3300D622 Contact Us For Availability
R7H1
Resistor,Chip LGE 0RH2204C622 Contact Us For Availability
R7H7
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R100
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R125
Resistor,Chip LGE 0RH7501C622 Contact Us For Availability
R134
Resistor,Chip LGE 0RH1502C622 Contact Us For Availability
R151
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R154
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R155
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R157
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R182
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R201
Resistor,Chip LGE 0RH8200C422 Contact Us For Availability
R202
Resistor,Chip LGE 0RH6800C422 Contact Us For Availability
R203
Resistor,Chip LGE 0RH7500C622 Contact Us For Availability
R331
Resistor,Chip LGE 0RJ0562C678 Contact Us For Availability
R369
Resistor,Chip LGE 0RH1003C622 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R600
RESISTOR,CHIP LGE 0RH1002C622 Contact Us For Availability
R602
Resistor,Chip LGE 0RH1302C422 Contact Us For Availability
R603
Resistor,Chip LGE 0RH2202C622 Contact Us For Availability
R604
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
R606
Resistor,Chip LGE 0RH2401C622 Contact Us For Availability
R607
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R608
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R610
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R612
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R613
Resistor,Chip LGE 0RJ1203C478 Contact Us For Availability
R614
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R620
Resistor,Chip LGE 0RJ4701C478 Contact Us For Availability
R626
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R627
Resistor,Chip LGE 0RJ8201C478 Contact Us For Availability
R702
Resistor,Chip LGE 0RH0000C622 Contact Us For Availability
R709
Resistor,Chip LGE 0RH2200C622 Contact Us For Availability
R723
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R727
Resistor,Chip LGE 0RH1002C422 Contact Us For Availability
R728
Resistor,Chip LGE 0RH1003C422 Contact Us For Availability
R729
Resistor,Chip LGE 0RH7502C622 Contact Us For Availability
R732
RESISTOR,CHIP LGE 0RH3301C422 Contact Us For Availability
R741
Resistor,Chip LGE 0RH2002C622 Contact Us For Availability
R750
Resistor,Chip LGE 0RH6801C422 Contact Us For Availability
R753
Resistor,Chip LGE 0RH3301C622 Contact Us For Availability
R764
Resistor,Chip LGE 0RH1500C422 Contact Us For Availability
R765
Resistor,Chip LGE 0RH4702C422 Contact Us For Availability
R767
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R800
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R904
Resistor,Chip LGE 0RH5103D622 Contact Us For Availability
R907
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R908
Resistor,Chip LGE 0RH7500D622 Contact Us For Availability
R911
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
R912
RESISTOR CHIP 820 1/10W 5 D.R LGE 0RH8200D622 Contact Us For Availability
R913
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R914
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
R919
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R920
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R921
Resistor,Chip LGE 0RH0561D622 Contact Us For Availability
R948
Resistor,Chip LGE 0RH0471D622 Contact Us For Availability
R954
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R957
Resistor,Chip LGE 0RH2001D422 Contact Us For Availability
R958
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
RC800
Receiver Module LGE EAV61333201 Contact Us For Availability
SW105
Switch,Slide LGE EBF62114401 Contact Us For Availability
SW204
Switch,Tact LGE 6600R000005 Contact Us For Availability
T900
Transformer,Switching LGE EBJ61890601 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
VR900
Varistor LGE EAF43134202 Contact Us For Availability
X100
Crystal LGE EAW61645504 Contact Us For Availability
X300
Crystal LGE EAW32919201 Contact Us For Availability
X300
Crystal LGE EAW61645208 Contact Us For Availability
ZD100
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
ZD104
Diode,Zener LGE EAH39305801 Contact Us For Availability
ZD601
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD901
Diode,Zener LGE 0DZPH00098A Contact Us For Availability
ZD902
Diode,Zener LGE EAH42410401 Contact Us For Availability
ZD904
Diode,Zener LGE EAH61433801 Contact Us For Availability
ZD905
Diode,Zener LGE 0DZPH00128A Contact Us For Availability
× ![]()
Login and Registration Form
