Model LG LAB540W – Common Parts & Diagrams

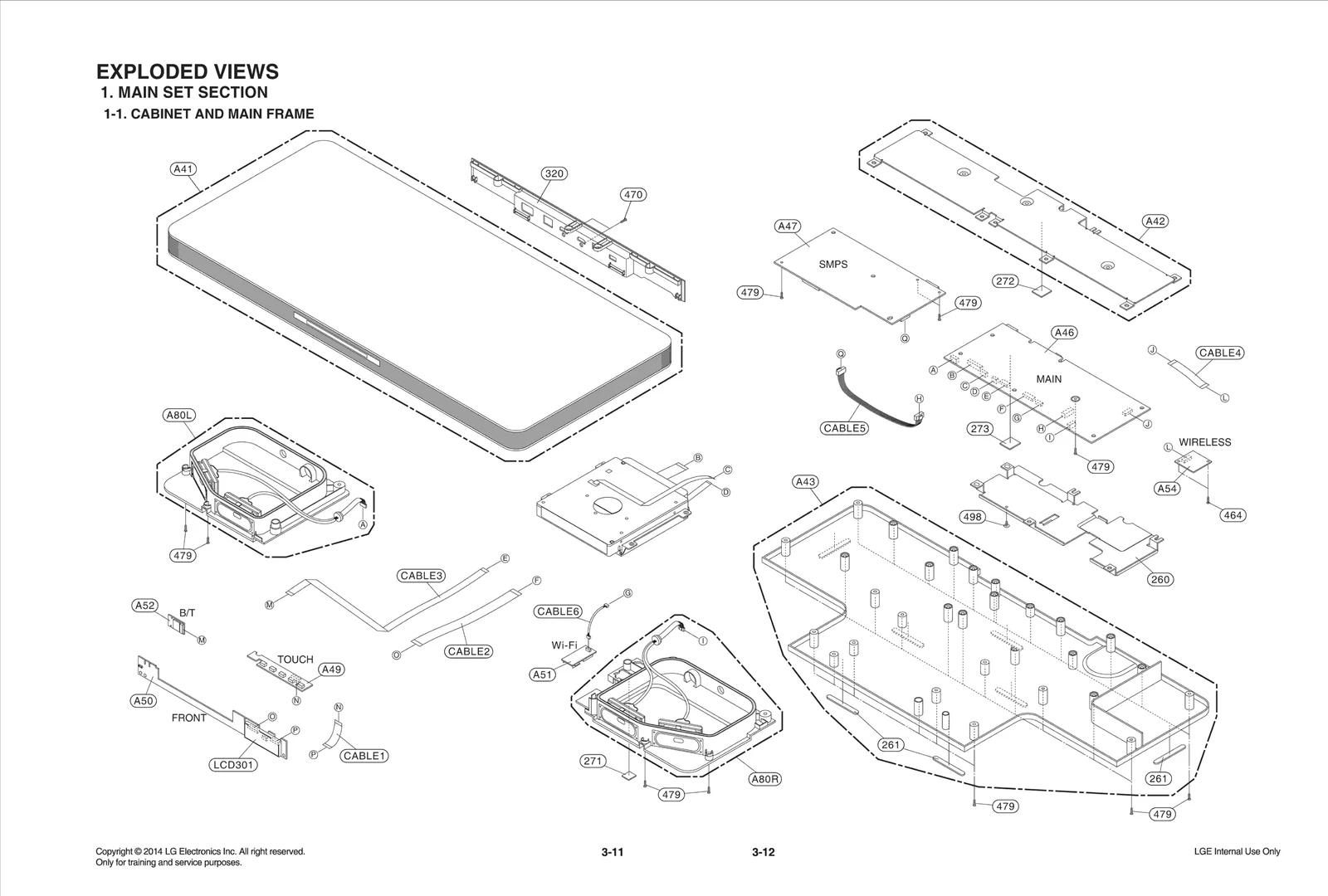

Diagram 0

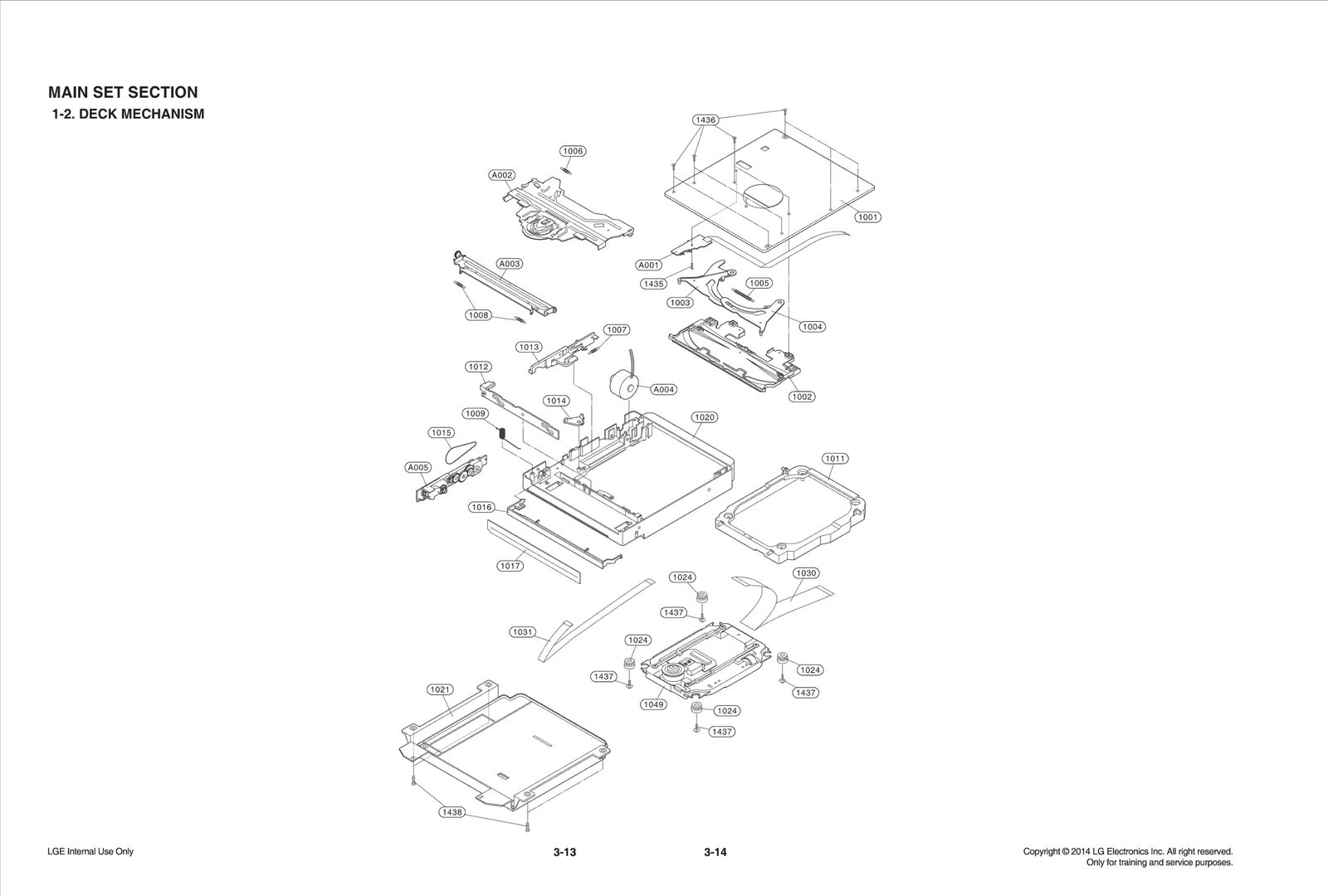

Diagram 1
Diagram 2
Diagram 3
Diagram 4
Common parts from model LG LAB540W
260
Chassis LGE MBS62905703 Contact Us For Availability
261
Foot LGE MDP62846701 Contact Us For Availability
271
Damper LGE MCQ32325007 Contact Us For Availability
272
Damper LGE MCQ62096444 Contact Us For Availability
273
Heat Sink LGE MED63231202 Contact Us For Availability
300A
Power Cord LGE EAD60816620 Contact Us For Availability
320
Panel,Rear LGE MGC63421101 Contact Us For Availability
464
SCREW,DRAWING LGE 1SZZR-0097K Contact Us For Availability
470
Screw,Customzied LGE 353-022S Contact Us For Availability
479
SCREW,DRAWING LGE 1SZZR-0098D Contact Us For Availability
801
Manual Assembly,Owners LGE AFN76214063 Contact Us For Availability
802
Box,Master LGE MAY66244324 Contact Us For Availability
803
Packing LGE MFZ63999601 Contact Us For Availability
804
Bag LGE MAF61906420 Contact Us For Availability
808
BATTERY,ALKALINE LGE 6910A90004A Contact Us For Availability
820
Cable,Assembly LGE EAD61077706 Contact Us For Availability
829
Band LGE MAJ62422501 Contact Us For Availability
832
Title LGE SAC36313301 Contact Us For Availability
900
Remote Controller Assembly LGE AKB74095501 Contact Us For Availability
951
Cover LGE MCK68046051 Contact Us For Availability
952
Chassis LGE MBS62925451 Contact Us For Availability
953
Lens LGE MFB63352951 Contact Us For Availability
954
Heat Sink LGE MED61932603 Contact Us For Availability
955
Cable,FFC LGE EAD62131515 Contact Us For Availability
956
Harness,Single LGE EAD33638850 Contact Us For Availability
957
Harness,Single LGE EAD33638851 Contact Us For Availability
958
SCREW,DRAWING LGE 1SZZR-0098A Contact Us For Availability
959
Screw,Customized LGE 353-100AAAB Contact Us For Availability
960
Screw,Customized LGE 353M050N Contact Us For Availability
1001
Cover LGE MCK66964901 Contact Us For Availability
1002
Guide LGE MEA62870001 Contact Us For Availability
1003
Lever LGE MFC62469601 Contact Us For Availability
1004
Lever LGE MFC62469701 Contact Us For Availability
1005
Spring LGE MHY39334801 Contact Us For Availability
1006
Spring LGE MHY62824731 Contact Us For Availability
1007
Spring LGE MHY62824721 Contact Us For Availability
1008
Spring LGE MHY62824711 Contact Us For Availability
1009
Spring LGE MHY62824701 Contact Us For Availability
1011
Base LGE MAM62664101 Contact Us For Availability
1012
Guide LGE MEA62870101 Contact Us For Availability
1013
Plate LGE MGJ63181401 Contact Us For Availability
1014
Lever LGE MFC62469801 Contact Us For Availability
1015
Belt LGE MAS62103801 Contact Us For Availability
1016
Door LGE MCV62493301 Contact Us For Availability
1017
Sheet LGE MHK63610301 Contact Us For Availability
1020
Base LGE MAM62644001 Contact Us For Availability
1021
Cover LGE MCK67973801 Contact Us For Availability
1024
Damper LGE MCQ65785001 Contact Us For Availability
1030
Cable,FFC LGE EAD61048215 Contact Us For Availability
1031
Cable,FFC LGE EAD61049025 Contact Us For Availability
1049
Pick Up Assembly LGE EAZ61522406 Contact Us For Availability
1435
Screw,Customized LGE FAB31442001 Contact Us For Availability
1436
Screw,Customized LGE FAB31442101 Contact Us For Availability
1437
Screw,Customized LGE FAB30840502 Contact Us For Availability
1438
Screw,Customized LGE 353-028H Contact Us For Availability
A001
PCB Assembly,Deck LGE EBR78595701 Contact Us For Availability
A002
Holder Assembly LGE AEJ73539501 Contact Us For Availability
A003
Frame Assembly LGE ADV74147301 Contact Us For Availability
A004
Motor Assembly,DC LGE EAU61704301 Contact Us For Availability
A005
Gear Assembly LGE ADY73009301 Contact Us For Availability
A41
Case Assembly LGE ABQ74542202 Contact Us For Availability
A42
Frame Assembly LGE ADV74807003 Contact Us For Availability
A43
Case Assembly LGE ABQ74562006 Contact Us For Availability
A45A
PCB Assembly LGE EBR79365701 Contact Us For Availability
A46
PCB Assembly LGE EBR79381401 Contact Us For Availability
A47
PCB Assembly,Power LGE EBR79008001 Contact Us For Availability
A47A
PCB Assembly,Power LGE EBR78969201 Contact Us For Availability
A48A
PCB Assembly LGE EBR79365801 Contact Us For Availability
A49
PCB Assembly LGE EBR79381601 Contact Us For Availability
A49A
PCB Assembly LGE EBR79365901 Contact Us For Availability
A50
PCB Assembly LGE EBR79381501 Contact Us For Availability
A51
Module,WLAN LGE EAT61613202 Contact Us For Availability
A52
Module,Bluetooth LGE EAT61976201 Contact Us For Availability
A54A
Module,RF Full Module(RxTx) LGE EAT61875101 Contact Us For Availability
A80L
Case Assembly LGE ABQ74524102 Contact Us For Availability
A80R
Case Assembly LGE ABQ74542102 Contact Us For Availability
A900
Active Woofer LGE TCG35788006 Contact Us For Availability
A900A
Cover Assembly LGE ACQ87250703 Contact Us For Availability
BD900
Diode,Bridge LGE EAH31952201 Contact Us For Availability
BD901
Diode,Bridge LGE EAH62332601 Contact Us For Availability
BD901
Diode,Bridge LGE EAH42986602 Contact Us For Availability
C1A22
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C1A23
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C1A26
Capacitor,Ceramic,Chip LGE 0CZZB00019A Contact Us For Availability
C1A29
Capacitor,Ceramic,Chip LGE 0CK226FF56A Contact Us For Availability
C1A31
Capacitor,Ceramic,Chip LGE EAE33947201 Contact Us For Availability
C1A48
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C1A64
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C1A90
Capacitor,Ceramic,Ch LGE 0CC221BKFAA Contact Us For Availability
C3F8
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C3F10
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C5D3
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C5D4
Capacitor,Ceramic,Chip LGE 0CC3R9BKF1A Contact Us For Availability
C101
Capacitor,AL,Chip LGE EAE39330001 Contact Us For Availability
C104
Capacitor,Ceramic,Chip LGE 0CK223BF5CA Contact Us For Availability
C213
Capacitor,Ceramic,Ch LGE 0CC120BK4AA Contact Us For Availability
C309
CAPACITOR,FIXED CERA LGE 0CK225CFK7A Contact Us For Availability
C319
Capacitor,AL,Chip LGE EAE60659001 Contact Us For Availability
C326
Capacitor,Ceramic,Chip LGE 0CK681BK56A Contact Us For Availability
C327
Capacitor,Ceramic,Chip LGE 0CK682BKK6A Contact Us For Availability
C587
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C700
Capacitor,Ceramic,Chip LGE 0CK103DN56A Contact Us For Availability
C727
Capacitor,Ceramic,Chip LGE 0CK222DN56A Contact Us For Availability
C729
Capacitor,Ceramic,Chip LGE EAE37475001 Contact Us For Availability
C747
CAPACITOR,FIXED ELEC LGE 0CE337WJ6D8 Contact Us For Availability
C759
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C785
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C900
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG2220U630 Contact Us For Availability
C900
Capacitor,Ceramic,Radial LGE EAE42617201 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42617701 Contact Us For Availability
C901
Capacitor,Ceramic,Radial,Y-Cap LGE 0CG4710U610 Contact Us For Availability
C901
Capacitor,Ceramic,Radial LGE EAE42618801 Contact Us For Availability
C902
Capacitor,AL,Radial LGE EAE63203301 Contact Us For Availability
C904
Capacitor,Film,DIP LGE EAE50550201 Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CE1066K618 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 624-085D Contact Us For Availability
C907
Capacitor,Ceramic,Radial,Disc LGE 624-087H Contact Us For Availability
C908
Capacitor,Film,DIP,DC LGE 0CQ4742L439 Contact Us For Availability
C909
Capacitor,Ceramic,Axial LGE 0CN4710K518 Contact Us For Availability
C909
Capacitor,Film,DIP LGE 0CQ1521N409 Contact Us For Availability
C910
Capacitor,Ceramic,Axial LGE 0CN1040K948 Contact Us For Availability
C911
Capacitor,Ceramic,Radial,Disc LGE EAE60686401 Contact Us For Availability
C912
Capacitor,Film,DIP LGE 0CQ4731N409 Contact Us For Availability
C922
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE4756K618 Contact Us For Availability
C940
Capacitor,Film,DIP,DC LGE 0CQ6821N409 Contact Us For Availability
C950
CAPACITOR ELECTROLYTIC KCN21C2 LGE 0CE1056K618 Contact Us For Availability
C951
CAPACITOR,FIXED ELEC LGE 0CE228EK650 Contact Us For Availability
C952
CAPACITOR,FIXED ELEC LGE 0CE108AK610 Contact Us For Availability
C954
CAPACITOR LGE 624-087D Contact Us For Availability
C955
Capacitor,AL,Radial LGE 0CE105BK638 Contact Us For Availability
C990
Capacitor,AL,Radial LGE EAE62406601 Contact Us For Availability
CABLE1
Cable,FFC LGE EAD39304211 Contact Us For Availability
CABLE2
Cable,FFC LGE EAD62226404 Contact Us For Availability
CABLE3
Cable,FFC LGE EAD62130016 Contact Us For Availability
CABLE4
Cable,FFC LGE EAD62131514 Contact Us For Availability
CABLE5
Harness,Single LGE EAD42218228 Contact Us For Availability
CABLE6
Harness,Single LGE EAD33638849 Contact Us For Availability
CM902
Capacitor,Film,Box LGE EAE61103301 Contact Us For Availability
CM902
Capacitor,Film,DIP LGE EAE39104801 Contact Us For Availability
CM902
CAPACITOR,DRAWING LGE 624-088L Contact Us For Availability
CN3F1
CONNECTOR (CIRC),FFC LGE 6630XE00313 Contact Us For Availability
CN3F2
CONNECTOR (CIRC),FFC/FPC LGE 6630XE00115 Contact Us For Availability
CN3F3
Connector,FFC/FPC/PIC LGE EAG61090451 Contact Us For Availability
CN202
Connector,Wafer LGE 6630V90078E Contact Us For Availability
CN203
Connector,Wafer LGE EAG62611102 Contact Us For Availability
CN204
Connector,Wafer LGE EAG62611105 Contact Us For Availability
CN301
CONNECTOR (CIRC),FFC LGE 6630XE00108 Contact Us For Availability
CN302
Connector,FFC/FPC/PIC LGE 6630XE00106 Contact Us For Availability
CN303
Connector,FFC/FPC/PIC LGE 6630X60142J Contact Us For Availability
CN700
Connector,Wafer LGE EAG63270202 Contact Us For Availability
CN901
Harness,Single LGE EAD62497601 Contact Us For Availability
CN990
Connector,Wafer LGE 6602T25008F Contact Us For Availability
CR900
Filter,EMI/Power LGE EAM63110001 Contact Us For Availability
D1A2
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D3F1
DIODE,ZENERS LGE 0DZPH00088A Contact Us For Availability
D201
Diode,TVS LGE EAH56919501 Contact Us For Availability
D700
DIODE,SWITCHING LGE 0DSRM00148A Contact Us For Availability
D804
Diode,TVS LGE EAH61515001 Contact Us For Availability
D900
Diode,Rectifier LGE EAH61252701 Contact Us For Availability
D901
Diode,Switching LGE EAH61853601 Contact Us For Availability
D903
Diode,Rectifier LGE 0DRGF00239A Contact Us For Availability
D905
DIODE,RECTIFIERS LGE 0DRRE00163A Contact Us For Availability
D910
Diode,Schottky LGE 0DRRE00083A Contact Us For Availability
D921
DIODE,RECTIFIER LGE 0DR104009BA Contact Us For Availability
D951
Diode,Schottky LGE EAH62134501 Contact Us For Availability
D951
DIODE,SWITCHING LGE 0DSTW00010A Contact Us For Availability
D992
Diode,Switching LGE EAH30982401 Contact Us For Availability
F901
FUSE,SLOW BLOW LGE 0FS5001B51D Contact Us For Availability
FB901
COIL LGE 636-004D Contact Us For Availability
FB910
Filter,Bead LGE EAM56488801 Contact Us For Availability
FL201
Filter,Common Mode LGE EAM61090601 Contact Us For Availability
FL902
Filter,Line Noise LGE EAM60672506 Contact Us For Availability
HS901
Heat Sink LGE MED62471901 Contact Us For Availability
HS951
Heat Sink LGE MED61841613 Contact Us For Availability
IC1A1
IC,DC,DC Converter LGE EAN61969901 Contact Us For Availability
IC1A7
IC,DC,DC Converter LGE EAN61127301 Contact Us For Availability
IC3F1A
S/W,System Program LGE SAA36908401 Contact Us For Availability
IC100A
S/W,System Program LGE SAA36929501 Contact Us For Availability
IC101
IC,EEPROM LGE EAN60743402 Contact Us For Availability
IC101
IC,EEPROM LGE EAN63106401 Contact Us For Availability
IC201A
S/W,System Program LGE SAA35932219 Contact Us For Availability
IC301
IC,Motor Driver LGE EAN62351201 Contact Us For Availability
IC305
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC501
IC,Video Processors LGE EAN62626903 Contact Us For Availability
IC504
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC504
IC,DDR3 SDRAM LGE EAN61859702 Contact Us For Availability
IC505
IC,DDR3 SDRAM LGE EAN61829003 Contact Us For Availability
IC505
IC,DDR3 SDRAM LGE EAN61859502 Contact Us For Availability
IC506A
S/W,System Program LGE SAA36830002 Contact Us For Availability
IC701
IC,Audio Amplifier LGE EAN62994901 Contact Us For Availability
IC705
IC,CMOS LGE EAN60070301 Contact Us For Availability
IC707
IC,LDO Voltage Regulator LGE EAN61866701 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62700101 Contact Us For Availability
IC901
IC,PWM Controller LGE EAN62388901 Contact Us For Availability
IC951
IC,Voltage Reference LGE EAN60911701 Contact Us For Availability
JK201
Connector,USB LGE EAG35130503 Contact Us For Availability
JK202
Jack,Fiber Optic LGE EAG37842006 Contact Us For Availability
JK203
Jack,Modular LGE EAG32089104 Contact Us For Availability
JK803
Connector,HDMI LGE EAG62611205 Contact Us For Availability
L1A23
Inductor,Wire Wound,Chip LGE EAP62147201 Contact Us For Availability
L708
Coil,Choke LGE EAP62526301 Contact Us For Availability
LCD301
LCD Module LGE EAJ61468604 Contact Us For Availability
LD3F1
LED,Chip LGE EAV62414301 Contact Us For Availability
LF901
Filter,Line Noise LGE EAM61230103 Contact Us For Availability
PC900
Photo,Coupler LGE EAV59176001 Contact Us For Availability
PC901
Photo,Coupler LGE EAV61473101 Contact Us For Availability
PN900
Socket,Power LGE EAG63193901 Contact Us For Availability
PN901
CONNECTOR (CIRC) LGE 561-292B Contact Us For Availability
Q3F1
TRANSISTOR KRA103S-T1(PC)22-22 LGE 0TR103009AC Contact Us For Availability
Q3F2
TR,Bipolar LGE 0TR103009AM Contact Us For Availability
Q102
TRANSISTOR,BIPOLARS LGE 0TRRH80042A Contact Us For Availability
Q114
TR,Bipolar LGE 0TR103009AA Contact Us For Availability
Q701
TR CHIP KTC3875S-GR-T1(ALG) K LGE 0TR387509AC Contact Us For Availability
Q901
FET LGE EBK60872301 Contact Us For Availability
Q901HS
Heat Sink LGE MED62970801 Contact Us For Availability
Q920
TRANSISTOR KTC3202-TP-Y(KTC195 LGE 0TR320209AA Contact Us For Availability
Q950
TR,Bipolar LGE EBK61591702 Contact Us For Availability
R1A6
Resistor,Chip LGE EBC40092901 Contact Us For Availability
R1A9
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R1A19
Resistor,Chip LGE 0RJ3301C478 Contact Us For Availability
R1A21
Resistor,Chip LGE 0RJ3302C478 Contact Us For Availability
R1A22
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R1A30
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1A32
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R1A34
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R1A43
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R1A44
Resistor,Chip LGE 0RH5102C422 Contact Us For Availability
R1A47
Resistor,Chip LGE 0RJ2202C678 Contact Us For Availability
R1A48
RESISTOR,METAL GLAZE LGE 0RJ3300C477 Contact Us For Availability
R1A51
Resistor,Chip LGE 0RJ4700C478 Contact Us For Availability
R1A60
Resistor,Chip LGE 0RJ2403C678 Contact Us For Availability
R1A63
Resistor,Chip LGE 0RJ6202C478 Contact Us For Availability
R1A64
Resistor,Chip LGE 0RJ6801C478 Contact Us For Availability
R1A65
Resistor,Chip LGE 0RJ2001C478 Contact Us For Availability
R1A66
Resistor,Chip LGE 0RJ2201C478 Contact Us For Availability
R1A67
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R1A75
Resistor,Chip LGE 0RH0101C622 Contact Us For Availability
R3F4
Resistor,Chip LGE 0RJ2200C678 Contact Us For Availability
R3F8
RESISTOR CHIP LGE 0RH3000D622 Contact Us For Availability
R3F13
RESISTOR CHIP LGE 0RH0472D622 Contact Us For Availability
R3F15
Resistor,Chip LGE 0RH5100C622 Contact Us For Availability
R5D3
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R136
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R161
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R172
Resistor,Chip LGE 0RJ1004C678 Contact Us For Availability
R210
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R211
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R316
Resistor,Chip LGE 0RH8202B622 Contact Us For Availability
R321
Resistor,Chip LGE 0RJ2002C678 Contact Us For Availability
R337
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R343
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R346
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R509
Resistor,Chip LGE ERHY0008207 Contact Us For Availability
R535
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R536
Resistor,Chip LGE EBC61155501 Contact Us For Availability
R545
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R701
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R721
Resistor,Chip LGE 0RJ3902C678 Contact Us For Availability
R726
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R771
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R772
RESISTOR,CHIP LGE 0RH1001C622 Contact Us For Availability
R777
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R780
Resistor,Chip LGE 0RH2701C622 Contact Us For Availability
R782
Resistor,Chip LGE 0RH6800C622 Contact Us For Availability
R802
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R804
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R805
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R817
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R818
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R819
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R900
RESISTOR,FIXED CARBON FILM LGE 0RD1504H632 Contact Us For Availability
R900
Resistor,Carbon Film LGE EBC60972001 Contact Us For Availability
R901
RESISTOR,FIX METAL FILM OXIDE LGE 0RS5602K619 Contact Us For Availability
R902
Resistor,Carbon Film LGE 0RD0182F608 Contact Us For Availability
R904
Resistor,Carbon Film LGE 0RD5103F608 Contact Us For Availability
R905
Resistor,Metal Oxide Film LGE 0RS1003K619 Contact Us For Availability
R906
Resistor,Carbon Film LGE 0RD1002F608 Contact Us For Availability
R907
Resistor,Metal Oxide Film LGE EBC62498201 Contact Us For Availability
R907
Resistor,Carbon Film LGE 0RD7500F608 Contact Us For Availability
R908
RESISTOR,FIXED METAL LGE 0RS0220K619 Contact Us For Availability
R910
Resistor,Carbon Film LGE 0RD2702F608 Contact Us For Availability
R911
FIXED CARBON FILM 4.7K UG8*NSP LGE 0RD4701F608 Contact Us For Availability
R912
Resistor,Carbon Film LGE 0RD0471F608 Contact Us For Availability
R913
Resistor,Carbon Film LGE 0RD0222F608 Contact Us For Availability
R930
Resistor,Carbon Film LGE 0RD8200F608 Contact Us For Availability
R931
FIXED CARBON FILM 1M-J *NSP LGE 0RD1004F608 Contact Us For Availability
R932
Resistor,Carbon Film LGE 0RD2200F608 Contact Us For Availability
R951
RESISTOR,FIXED METAL FILM LGE 0RN2202F408 Contact Us For Availability
R952
RESISTOR FIXED CARBON FILM 6.8 LGE 0RD6801F608 Contact Us For Availability
R953
Resistor,Metal Film LGE 0RN1502F408 Contact Us For Availability
R954
Resistor,Metal Film LGE 0RN3901F408 Contact Us For Availability
R954
Resistor,Metal Film LGE 0RN1001F408 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN2701F408 Contact Us For Availability
R955
Resistor,Metal Film LGE 0RN3301F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN4701F408 Contact Us For Availability
R956
Resistor,Metal Film LGE 0RN8201F408 Contact Us For Availability
RC3F1
Receiver Module LGE EAV62055002 Contact Us For Availability
SW801
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
T900
Transformer,Switching LGE EBJ61890601 Contact Us For Availability
T901
Transformer,Switching LGE EBJ60770107 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG61026201 Contact Us For Availability
TH900
Thermistor,NTC LGE EBG43134001 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG61045701 Contact Us For Availability
TH901
Thermistor,NTC LGE EBG43133901 Contact Us For Availability
VR900
Varistor LGE EAF43134202 Contact Us For Availability
VR901
Varistor LGE EAF43134201 Contact Us For Availability
WC608
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
WC613
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
WC619
Capacitor,Ceramic,Chip LGE 0CH1562K566 Contact Us For Availability
WC622
Capacitor,Ceramic,Ch LGE 0CK104DN56A Contact Us For Availability
WC625
Capacitor,Ceramic,Chip LGE 0CH1333K562 Contact Us For Availability
WC629
Capacitor,Ceramic,Chip LGE EAE36194101 Contact Us For Availability
WC637
CAPACITOR,FIXED CERA LGE 0CK106EF56A Contact Us For Availability
WC638
Capacitor,Ceramic,Ch LGE 0CK104CKG6A Contact Us For Availability
WC639
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
WC643
Capacitor,Ceramic,Ch LGE 0CK103BFD6A Contact Us For Availability
WC650
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
WC673
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
WC686
Capacitor,AL,Chip LGE EAE30174501 Contact Us For Availability
WCA601
Capacitor,AL,Radial LGE 0CE337EK630 Contact Us For Availability
WCN601
WAFER LGE 6602T25008J Contact Us For Availability
WCN602
Connector,FFC/FPC/PIC LGE EAG61090203 Contact Us For Availability
WCN603
Connector,Wafer LGE 6630VM015A2 Contact Us For Availability
WCN604
Connector,Wafer LGE EAG60989201 Contact Us For Availability
WCN605
Connector,Wafer LGE 6630V90078P Contact Us For Availability
WCN611
Connector,Wafer LGE 6630V901352 Contact Us For Availability
WCN621
Connector,Wafer LGE 6630V90135A Contact Us For Availability
WD603
Diode,Zener LGE EAH39305801 Contact Us For Availability
WIC601
IC,Sound/Audio Processor LGE EAN62580901 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396102 Contact Us For Availability
WIC602
IC,Audio Amplifier LGE EAN62396101 Contact Us For Availability
WIC603A
S/W,System Program LGE SAA35932218 Contact Us For Availability
WIC604
IC,LDO Voltage Regulator LGE EAN62780901 Contact Us For Availability
WIC607
IC,DC,DC Converter LGE EAN62994601 Contact Us For Availability
WL601
Coil,Choke LGE EAP62127101 Contact Us For Availability
WL602
Filter,Line Noise LGE EAM62634201 Contact Us For Availability
WL605
Inductor,Wire Wound,Chip LGE EAP61747401 Contact Us For Availability
WL605
Inductor,Wire Wound,Chip LGE EAP61747403 Contact Us For Availability
WL625
Filter,Bead LGE EAM42641607 Contact Us For Availability
WLD622
LED,Chip LGE EAV62172301 Contact Us For Availability
WQ602
TR,Bipolar LGE 0TR150409AC Contact Us For Availability
WR616
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
WR620
Resistor,Chip LGE 0RJ1200C678 Contact Us For Availability
WR621
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
WR623
Resistor,Chip LGE 0RH0332C622 Contact Us For Availability
WR626
Resistor,Chip LGE 0RJ1503C478 Contact Us For Availability
WR627
Resistor,Chip LGE 0RH2203C622 Contact Us For Availability
WR628
Resistor,Chip LGE 0RJ5602C678 Contact Us For Availability
WR631
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
WR640
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
WR648
RESISTOR CHIP 220 1/10W 5 D.R LGE 0RH2200D622 Contact Us For Availability
WR658
Resistor,Chip LGE 0RH2702C622 Contact Us For Availability
WR659
Resistor,Chip LGE 0RH2201C622 Contact Us For Availability
WR660
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
WR692
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
WSW611
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
WX601
RESONATOR,CRYSTAL LGE 6212AB2246C Contact Us For Availability
X100
Crystal LGE 6212AB2220C Contact Us For Availability
X501
Crystal LGE EAW32919201 Contact Us For Availability
ZD107
DIODE,ZENERS LGE 0DZPH00048A Contact Us For Availability
ZD906
Diode,Zener LGE 0DZ102609AB Contact Us For Availability
ZD908
Diode,Zener LGE 0DZ510009AJ Contact Us For Availability
ZD910
Diode,Zener LGE 0DZ180009AE Contact Us For Availability
ZD920
Diode,Zener LGE 0DZ222609AA Contact Us For Availability
ZD921
Diode,Zener LGE 0DZ332609AA Contact Us For Availability
× ![]()
Login and Registration Form
