Model LG LAAA015-G32 – Common Parts & Diagrams

125
Speaker Assembly
Speaker Assembly LGE EAB65831302 Contact Us For Availability
View on Model
200
Frame Assembly
Frame Assembly LGE ADV30090707 Contact Us For Availability
View on Model
250
Module,Assembly
Module,Assembly LGE EAT65218001 Contact Us For Availability
View on Model
300
Accessory Assembly
Accessory Assembly LGE AAA31220802 Contact Us For Availability
View on Model
301
Bracket Assembly
Bracket Assembly LGE ABA30107001 Contact Us For Availability
View on Model
302
Bracket Assembly
Bracket Assembly LGE ABA30107002 Contact Us For Availability
View on Model
303
Bracket Assembly
Bracket Assembly LGE ABA30107003 Contact Us For Availability
View on Model
304
Bracket Assembly
Bracket Assembly LGE ABA30107022 Contact Us For Availability
View on Model
305
Bracket Assembly
Bracket Assembly LGE ABA30107005 Contact Us For Availability
View on Model
306
Bracket Assembly
Bracket Assembly LGE ABA30107006 Contact Us For Availability
View on Model
307
Bracket Assembly
Bracket Assembly LGE ABA30107007 Contact Us For Availability
View on Model
308
Bracket Assembly
Bracket Assembly LGE ABA30107008 Contact Us For Availability
View on Model
309
Bracket Assembly
Bracket Assembly LGE ABA30107009 Contact Us For Availability
View on Model
310
Bracket Assembly
Bracket Assembly LGE ABA30107010 Contact Us For Availability
View on Model
320
Frame Assembly
Frame Assembly LGE ADV30122301 Contact Us For Availability
View on Model
330
Frame Assembly
Frame Assembly LGE ADV30093305 Contact Us For Availability
View on Model
340
Frame Assembly
Frame Assembly LGE ADV30093306 Contact Us For Availability
View on Model
350
Frame Assembly
Frame Assembly LGE ADV30093307 Contact Us For Availability
View on Model
360
Frame Assembly
Frame Assembly LGE ADV30093308 Contact Us For Availability
View on Model
370
Frame Assembly
Frame Assembly LGE ADV30093309 Contact Us For Availability
View on Model
400
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30629704 Contact Us For Availability
View on Model
410
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30629705 Contact Us For Availability
View on Model
420
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30629706 Contact Us For Availability
View on Model
430
Cover Assembly,Rear
Cover Assembly,Rear LGE ACQ30629707 Contact Us For Availability
View on Model
510
Chassis Assembly
Chassis Assembly LGE EBT67745901 Contact Us For Availability
View on Model
530
Power Supply Assembly
Power Supply Assembly LGE EAY65899803 Contact Us For Availability
View on Model
535
Power Supply Assembly
Power Supply Assembly LGE EAY65914601 Contact Us For Availability
View on Model
536
Power Supply Assembly
Power Supply Assembly LGE EAY65914701 Contact Us For Availability
View on Model
540
Chassis Assembly
Chassis Assembly LGE EBT30274701 Contact Us For Availability
View on Model
541
Bracket
Bracket LGE MAZ67734903 Contact Us For Availability
View on Model
550
Socket,Power
Socket,Power LGE EAG63450112 Contact Us For Availability
View on Model
580
Chassis Assembly
Chassis Assembly LGE EBT30248401 Contact Us For Availability
View on Model
590
Chassis Assembly
Chassis Assembly LGE EBT30248501 Contact Us For Availability
View on Model

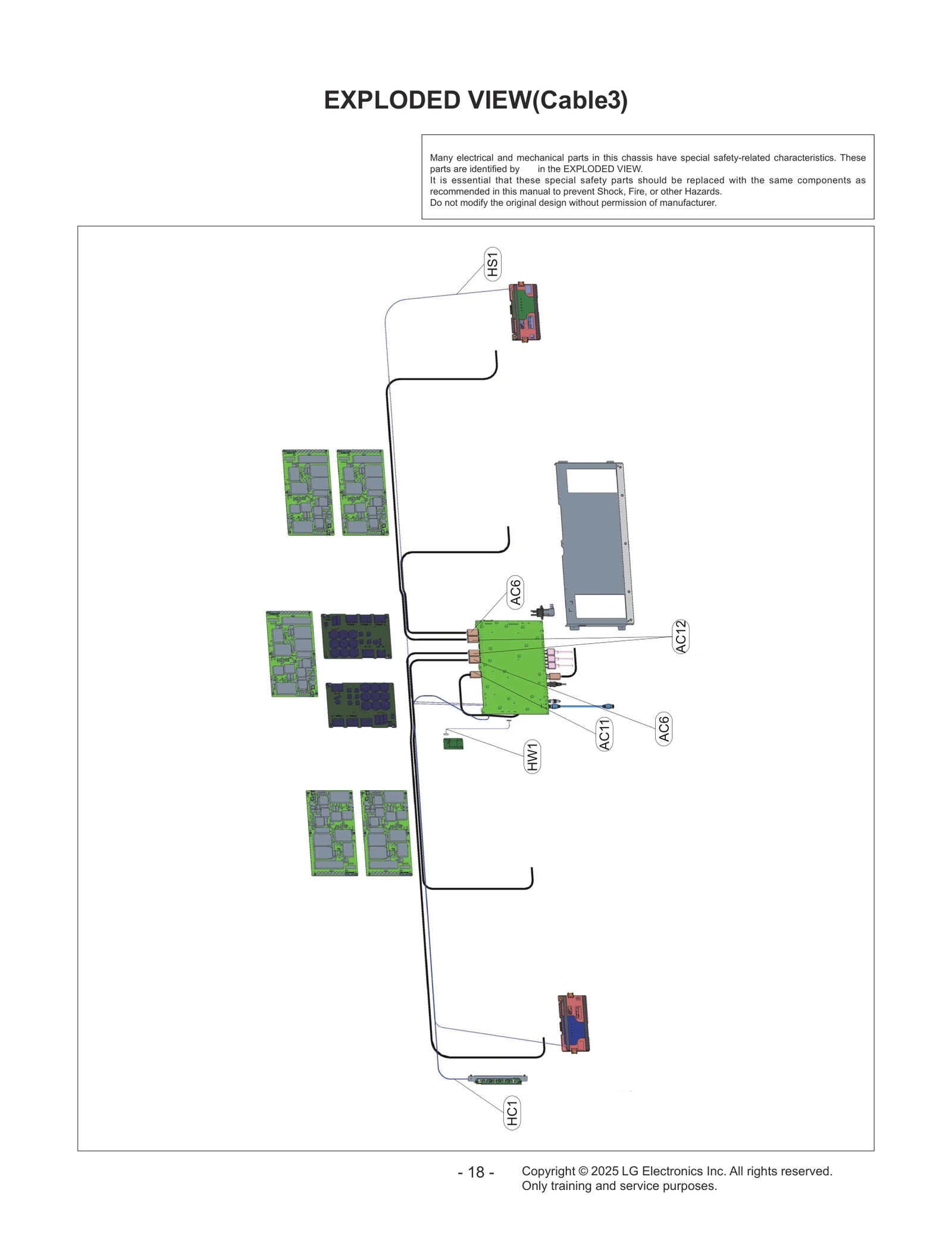

AC11
Cable,Assembly
Cable,Assembly LGE EAD65185311 Contact Us For Availability
View on Model
AC12
Cable,Assembly
Cable,Assembly LGE EAD65185312 Contact Us For Availability
View on Model
AR1
Remote Controller Assembly
Remote Controller Assembly LGE AKB76039803 Contact Us For Availability
View on Model
AR2
Remote Controller Assembly
Remote Controller Assembly LGE AKB76040501 Contact Us For Availability
View on Model
HC1
Harness,Single
Harness,Single LGE EAD66024901 Contact Us For Availability
View on Model

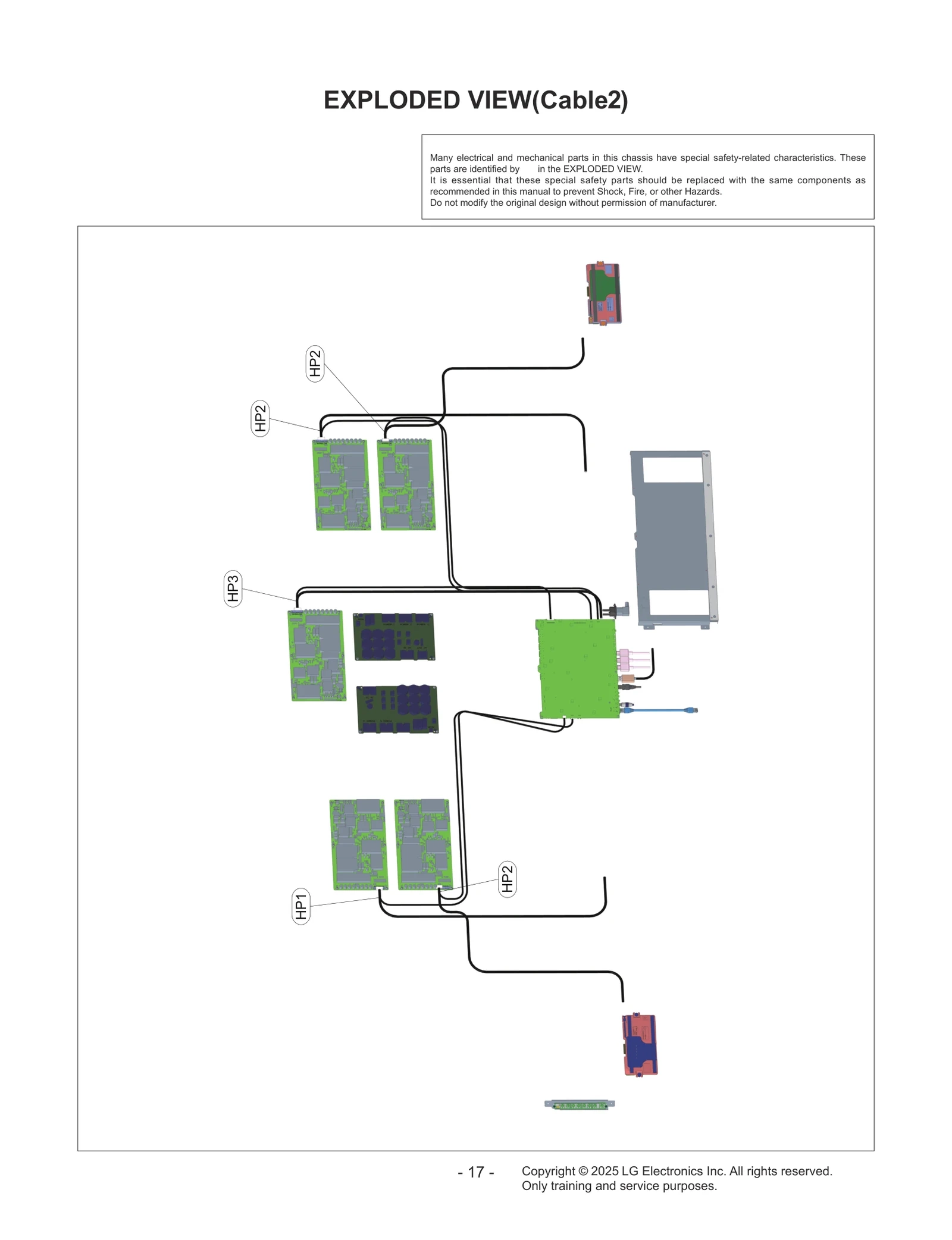

HP1
Harness,Multi
Harness,Multi LGE EAD00574901 Contact Us For Availability
View on Model
HP2
Harness,Multi
Harness,Multi LGE EAD00574902 Contact Us For Availability
View on Model
HP3
Harness,Multi
Harness,Multi LGE EAD00575001 Contact Us For Availability
View on Model
HP11
Harness,Single
Harness,Single LGE EAD64506301 Contact Us For Availability
View on Model
HP12
Harness,Single
Harness,Single LGE EAD64506304 Contact Us For Availability
View on Model
HP20
Harness,Single
Harness,Single LGE EAD63895514 Contact Us For Availability
View on Model
HS1
Harness,Multi
Harness,Multi LGE EAD63727380 Contact Us For Availability
View on Model
HW1
Harness,Single
Harness,Single LGE EAD64126117 Contact Us For Availability
View on Model
