Model Electrolux LA640JXD3 WASHER – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP PANEL

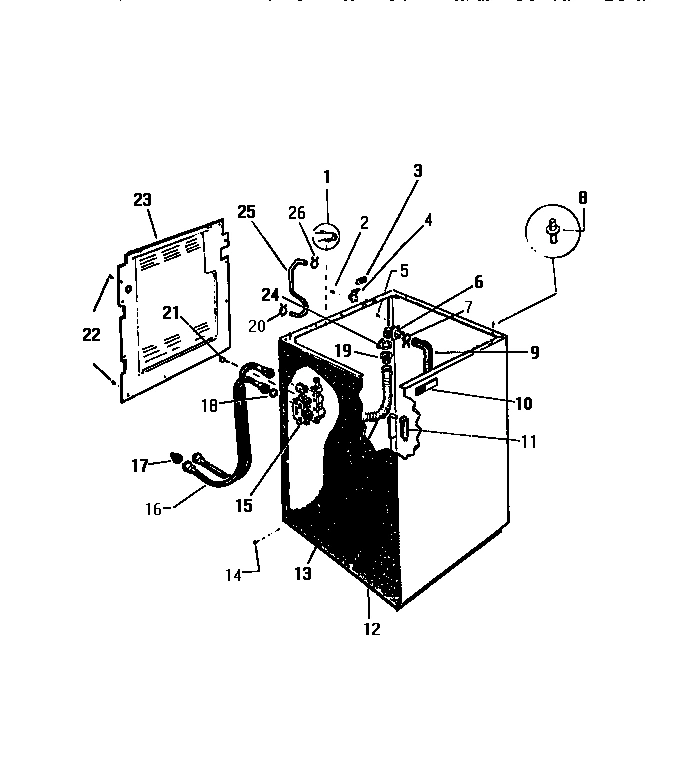

04 - CABINET, HOSES

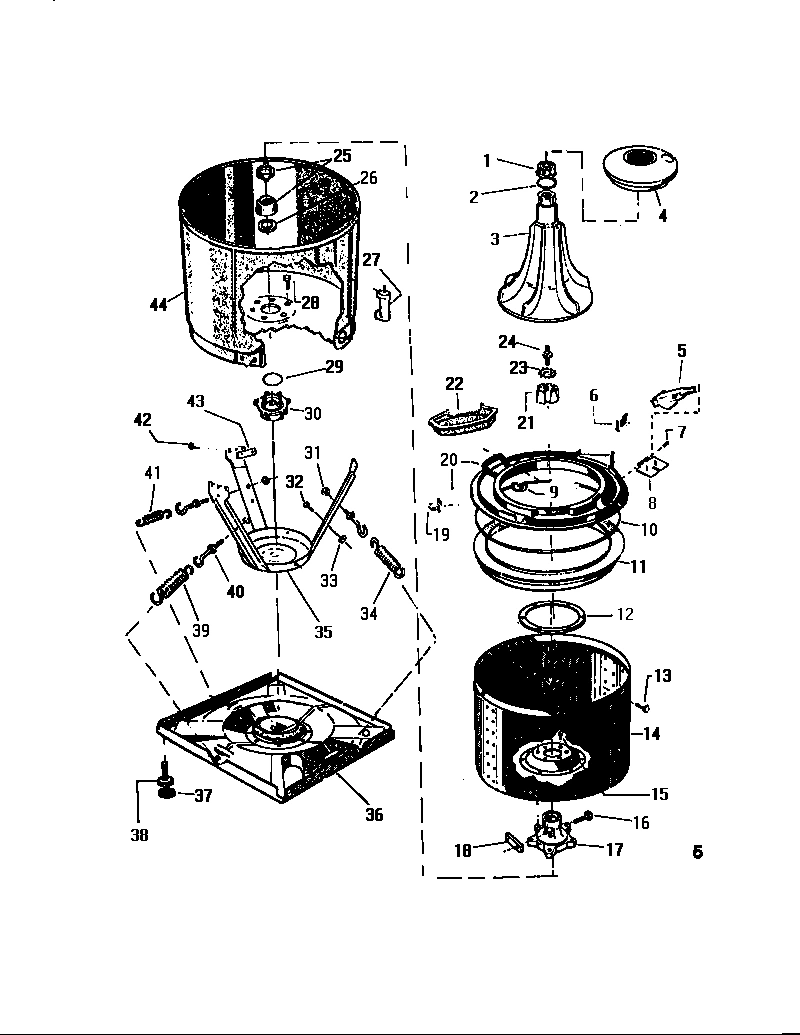

05 - TUBS

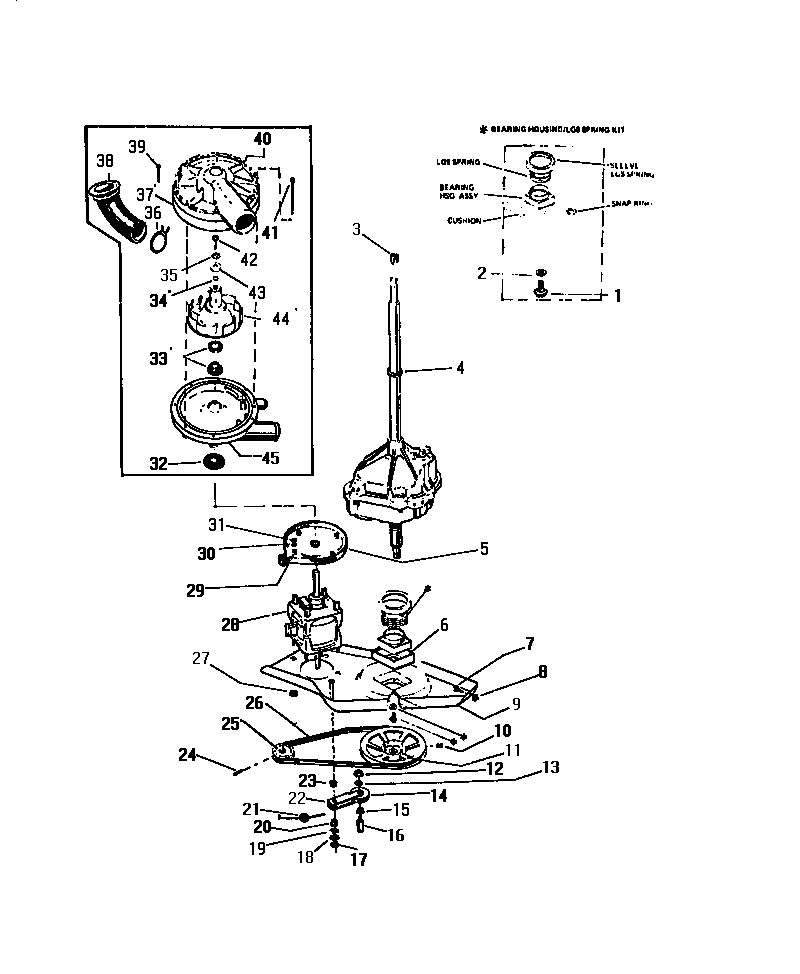

06 - DRIVE MOTOR & PUMP ASSEMBLY

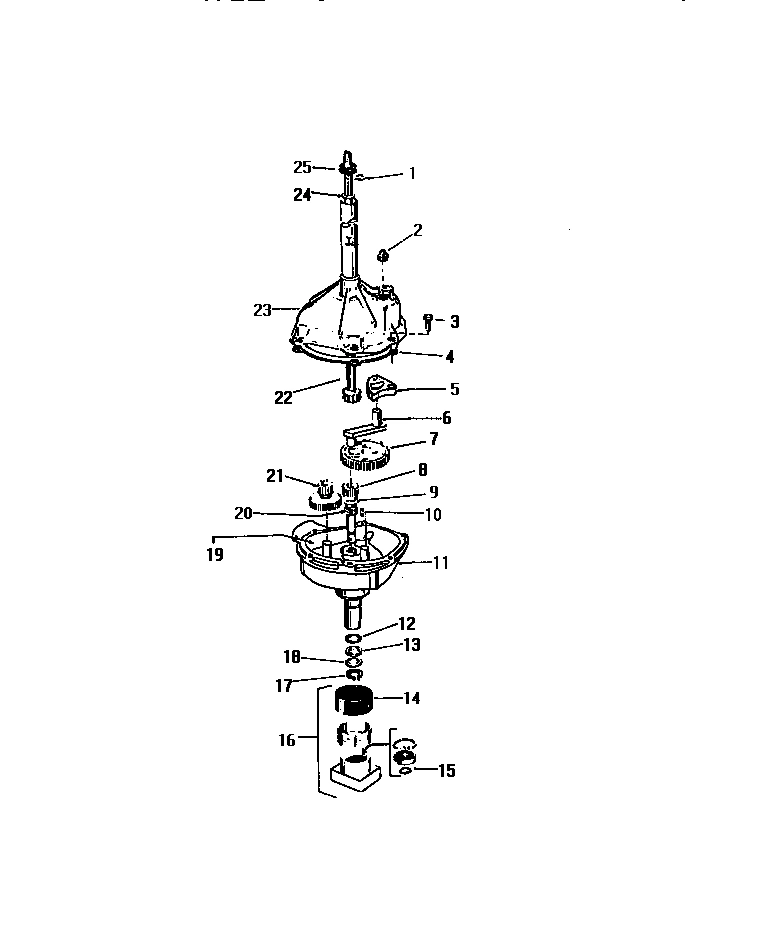

07 - TRANSMISSION

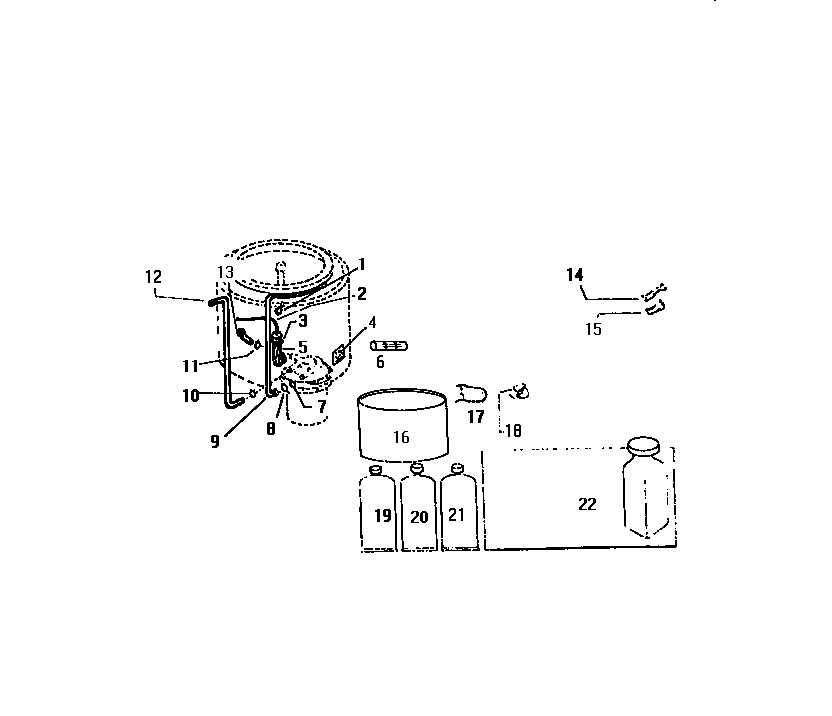

08 - HARNESS & MISCELLANEOUS
Common parts from model Electrolux LA640JXD3 WASHER
*70200
WCI Q631032 WCI Q631032 Contact Us For Availability
*70201
WCI Q634582 WCI Q634582 Contact Us For Availability
*70202
WASHER, GROUND WCI Q500411 Contact Us For Availability
*70203
SCREW, GROUND WCI Q500665 Contact Us For Availability
*70204
WCI Q198163 WCI Q198163 Contact Us For Availability
1
WCI Q613923 WCI Q613923 Contact Us For Availability
1
WCI Q623031 WCI Q623031 Contact Us For Availability
1
WCI Q501171 WCI Q501171 Contact Us For Availability
1
CAP & WASHER WCI Q603993 Contact Us For Availability
1
BOLT WCI Q505081 Contact Us For Availability
1
TIE, HOSE WCI Q502072 Contact Us For Availability
2
WCI Q616741 WCI Q616741 Contact Us For Availability
2
WCI Q13435 WCI Q13435 Contact Us For Availability
2
WASHER WCI Q147985 Contact Us For Availability
2
WASHER NEOPRENE WCI Q69546 Contact Us For Availability
2
WCI F077061000 WCI F077061000 Contact Us For Availability
2
WCI Q29554 WCI Q29554 Contact Us For Availability
3
WCI Q633732 WCI Q633732 Contact Us For Availability
3
WCI Q143172 WCI Q143172 Contact Us For Availability
3
WCI Q17471 WCI Q17471 Contact Us For Availability
3
WCI Q620852 WCI Q620852 Contact Us For Availability
3
WCI Q631521 WCI Q631521 Contact Us For Availability
3
SCREW (6) WCI F079688000 Contact Us For Availability
3
WCI Q502070 WCI Q502070 Contact Us For Availability
3A
WCI Q631522 WCI Q631522 Contact Us For Availability
3B
WCI Q631524 WCI Q631524 Contact Us For Availability
4
SCREW (4) WCI Q405802 Contact Us For Availability
4
WCI Q503065 WCI Q503065 Contact Us For Availability
4
WCI Q17461 WCI Q17461 Contact Us For Availability
4
DISPENSER, FABRIC WCI Q613877 Contact Us For Availability
4
WCI Q440115 WCI Q440115 Contact Us For Availability
4
WCI F130895000 WCI F130895000 Contact Us For Availability
4
WCI Q607191 WCI Q607191 Contact Us For Availability
5
WCI Q617723 WCI Q617723 Contact Us For Availability
5
WCI Q152491 WCI Q152491 Contact Us For Availability
5
WCI Q154491 WCI Q154491 Contact Us For Availability
5
WCI Q620951 WCI Q620951 Contact Us For Availability
5
WCI Q164261 WCI Q164261 Contact Us For Availability
5
WCI F130405100 WCI F130405100 Contact Us For Availability
6
WCI Q634571 WCI Q634571 Contact Us For Availability
6
WCI Q604401 WCI Q604401 Contact Us For Availability
6
WCI Q152472 WCI Q152472 Contact Us For Availability
6
WCI Q622331 WCI Q622331 Contact Us For Availability
6
CONNECTING, ROD WCI F066078100 Contact Us For Availability
6
WCI 1468271 WCI 1468271 Contact Us For Availability
7
WCI Q500925 WCI Q500925 Contact Us For Availability
7
WCI Q63137 WCI Q63137 Contact Us For Availability
7
WCI Q504892 WCI Q504892 Contact Us For Availability
7
WCI Q435008 WCI Q435008 Contact Us For Availability
7
BOLT (3) WCI Q502126 Contact Us For Availability
7
WCI F130404100 WCI F130404100 Contact Us For Availability
7
WCI Q501142 WCI Q501142 Contact Us For Availability
8
WCI Q616711 WCI Q616711 Contact Us For Availability
8
CORD WCI Q86065 Contact Us For Availability
8
WCI Q152431 WCI Q152431 Contact Us For Availability
8
WCI Q152601 WCI Q152601 Contact Us For Availability
8
LOCKNUT WCI Q500831 Contact Us For Availability
8
LOWER DRIVE SHAFT & PINION ASSEMBLY WCI F140472000 Contact Us For Availability
8
WCI Q440057 WCI Q440057 Contact Us For Availability
9
WCI Q503033 WCI Q503033 Contact Us For Availability
9
PANEL TOP, ALMOND WCI Q632912 Contact Us For Availability
9
WCI Q180711 WCI Q180711 Contact Us For Availability
9
PLATE, SUPPORT WCI Q623011 Contact Us For Availability
9
WCI Q158303 WCI Q158303 Contact Us For Availability
10
SPRING (2) WCI Q503041 Contact Us For Availability
10
WCI Q604443 WCI Q604443 Contact Us For Availability
10
WCI Q606791 WCI Q606791 Contact Us For Availability
10
WCI Q500870 WCI Q500870 Contact Us For Availability
10
WCI F077058000 WCI F077058000 Contact Us For Availability
10
WCI Q504897 WCI Q504897 Contact Us For Availability
11
WCI Q616732 WCI Q616732 Contact Us For Availability
11
WCI Q165346 WCI Q165346 Contact Us For Availability
11
WCI Q149413 WCI Q149413 Contact Us For Availability
11
WCI Q618862 WCI Q618862 Contact Us For Availability
11
PULLEY, TRANSMISSION WCI Q631112 Contact Us For Availability
11
WCI Q501154 WCI Q501154 Contact Us For Availability
11
HOUSING, LOWER ASSEMBLY WCI F140586000 Contact Us For Availability
12
WCI Q504533 WCI Q504533 Contact Us For Availability
12
WCI Q603021 WCI Q603021 Contact Us For Availability
12
HOSE, INNER DRAIN WCI Q158314 Contact Us For Availability
12
BODY, ALMOND WCI Q601459 Contact Us For Availability
12
WCI Q631141 WCI Q631141 Contact Us For Availability
12
WCI Q501084 WCI Q501084 Contact Us For Availability
13
WCI Q635021 WCI Q635021 Contact Us For Availability
13
WCI Q165347 WCI Q165347 Contact Us For Availability
13
WCI Q502125 WCI Q502125 Contact Us For Availability
13
WCI Q622261 WCI Q622261 Contact Us For Availability
13
WASHER, SPACER WCI F077051000 Contact Us For Availability
14
WCI Q621221 WCI Q621221 Contact Us For Availability
14
SCREW (6) WCI Q504382 Contact Us For Availability
14
WCI Q174604 WCI Q174604 Contact Us For Availability
14
WCI Q622341 WCI Q622341 Contact Us For Availability
14
WCI F130417000 WCI F130417000 Contact Us For Availability
14
RECEPTACLE TERMINAL WCI Q81002 Contact Us For Availability
14A
RECEPTACLE TERMINAL (PKG OF 12) WCI Q301295 Contact Us For Availability
15
WCI Q621212 WCI Q621212 Contact Us For Availability
15
WCI Q171447 WCI Q171447 Contact Us For Availability
15
WCI Q502144 WCI Q502144 Contact Us For Availability
15
WCI F141261000 WCI F141261000 Contact Us For Availability
15
FLAG RECEPTACLE TERMINAL WCI Q8663 Contact Us For Availability
15A
FLAG RECEPTACLE TERMINAL (PKG OF 12) WCI Q301296 Contact Us For Availability
16
KNOB WCI Q633726 Contact Us For Availability
16
WCI Q600921 WCI Q600921 Contact Us For Availability
16
BOLT WCI Q425102 Contact Us For Availability
16
WCI Q622462 WCI Q622462 Contact Us For Availability
16
WCI F137014000 WCI F137014000 Contact Us For Availability
16
WCI Q137186 WCI Q137186 Contact Us For Availability
17
WCI Q616731 WCI Q616731 Contact Us For Availability
17
HINGE, ALMOND WCI Q622182 Contact Us For Availability
17
WASHER (2) WCI Q19801 Contact Us For Availability
17
WCI Q631052 WCI Q631052 Contact Us For Availability
17
WCI 1467173 WCI 1467173 Contact Us For Availability
17
WCI F068158000 WCI F068158000 Contact Us For Availability
17
WCI Q502063 WCI Q502063 Contact Us For Availability
18
SPEEDNUT (8) WCI Q502958 Contact Us For Availability
18
SCREW (2) WCI Q505101 Contact Us For Availability
18
WCI Q412501 WCI Q412501 Contact Us For Availability
18
WCI Q600032 WCI Q600032 Contact Us For Availability
18
WCI Q409004 WCI Q409004 Contact Us For Availability
18
WASHER, THRUST WCI F077098000 Contact Us For Availability
18
WCI Q502207 WCI Q502207 Contact Us For Availability
19
WCI Q504803 WCI Q504803 Contact Us For Availability
19
SPACER WCI Q409308 Contact Us For Availability
19
WCI Q17891 WCI Q17891 Contact Us For Availability
19
WCI Q500685 WCI Q500685 Contact Us For Availability
19
WASHER SPRING WCI 1147601 Contact Us For Availability
19
OIL, TRANSMISSION, 1 QUART WCI F060821100 Contact Us For Availability
19
WCI Q22072 WCI Q22072 Contact Us For Availability
20
WCI Q435056 WCI Q435056 Contact Us For Availability
20
NUT (2) WCI 1076115 Contact Us For Availability
20
WCI Q102271 WCI Q102271 Contact Us For Availability
20
WCI F077052000 WCI F077052000 Contact Us For Availability
20
GLUE WCI Q15142 Contact Us For Availability
21
WCI Q501589 WCI Q501589 Contact Us For Availability
21
SCREW, VALVE MOUNTING WCI Q505564 Contact Us For Availability
21
WCI Q622981 WCI Q622981 Contact Us For Availability
21
WCI Q623001 WCI Q623001 Contact Us For Availability
21
WCI F130403100 WCI F130403100 Contact Us For Availability
21
LUBRIPLATE WCI Q15141 Contact Us For Availability
22
SCREW (16) WCI Q505553 Contact Us For Availability
22
WCI Q610671 WCI Q610671 Contact Us For Availability
22
WCI Q622472 WCI Q622472 Contact Us For Availability
22
WCI F140482000 WCI F140482000 Contact Us For Availability
22
TOUCH-UP PAINT, 1 OUNCE, ALMOND WCI Q171155 Contact Us For Availability
22
TOUCH-UP PAINT, 1 OUNCE, WHITE WCI Q49587 Contact Us For Availability
23
WCI Q171312 WCI Q171312 Contact Us For Availability
23
WCI Q500377 WCI Q500377 Contact Us For Availability
23
WCI Q607121 WCI Q607121 Contact Us For Availability
23
HOUSING, UPPER ASSEMBLY WCI F140587000 Contact Us For Availability
24
WCI Q504921 WCI Q504921 Contact Us For Availability
24
WCI Q605802 WCI Q605802 Contact Us For Availability
24
PIN WCI Q501623 Contact Us For Availability
24
WCI F062568000 WCI F062568000 Contact Us For Availability
25
WCI Q156173 WCI Q156173 Contact Us For Availability
25
WCI Q631335 WCI Q631335 Contact Us For Availability
25
WCI Q622991 WCI Q622991 Contact Us For Availability
26
CLAMP WCI C503356 Contact Us For Availability
26
WCI Q69545 WCI Q69545 Contact Us For Availability
26
WCI Q622451 WCI Q622451 Contact Us For Availability
27
NUT WCI Q500829 Contact Us For Availability
28
BOLT (6) WCI Q502147 Contact Us For Availability
28
WCI Q603183 WCI Q603183 Contact Us For Availability
29
WCI Q147982 WCI Q147982 Contact Us For Availability
29
WCI Q502788 WCI Q502788 Contact Us For Availability
30
WCI Q622483 WCI Q622483 Contact Us For Availability
30
WCI Q440120 WCI Q440120 Contact Us For Availability
30A
SPACER WCI Q440063 Contact Us For Availability
30B
WCI Q440113 WCI Q440113 Contact Us For Availability
31
NUT (3) WCI Q402601 Contact Us For Availability
31
WCI Q502404 WCI Q502404 Contact Us For Availability
32
WCI Q69543 WCI Q69543 Contact Us For Availability
33
WCI Q69781 WCI Q69781 Contact Us For Availability
34
WCI Q503081 WCI Q503081 Contact Us For Availability
35
WCI Q631152 WCI Q631152 Contact Us For Availability
35
WCI Q500374 WCI Q500374 Contact Us For Availability
36
PAN WCI Q142968 Contact Us For Availability
37
CUP WCI Q16971 Contact Us For Availability
37
WCI Q181082 WCI Q181082 Contact Us For Availability
38
WCI Q16567 WCI Q16567 Contact Us For Availability
39
WCI Q6872 WCI Q6872 Contact Us For Availability
39
WCI Q435106 WCI Q435106 Contact Us For Availability
40
BOLT, HOOK (3) WCI Q502665 Contact Us For Availability
40
WCI Q612631 WCI Q612631 Contact Us For Availability
41
SPRING - RED WCI Q6871 Contact Us For Availability
41
WCI Q502492 WCI Q502492 Contact Us For Availability
42
BOLT WCI Q504881 Contact Us For Availability
42
WCI Q504204 WCI Q504204 Contact Us For Availability
43
WCI Q607012 WCI Q607012 Contact Us For Availability
43
WCI Q69561 WCI Q69561 Contact Us For Availability
44
WCI Q102262 WCI Q102262 Contact Us For Availability
44
WCI Q181601 WCI Q181601 Contact Us For Availability
45
WCI Q612641 WCI Q612641 Contact Us For Availability
× ![]()
