Model Electrolux LA271LXW1 WASHER – Common Parts & Diagrams

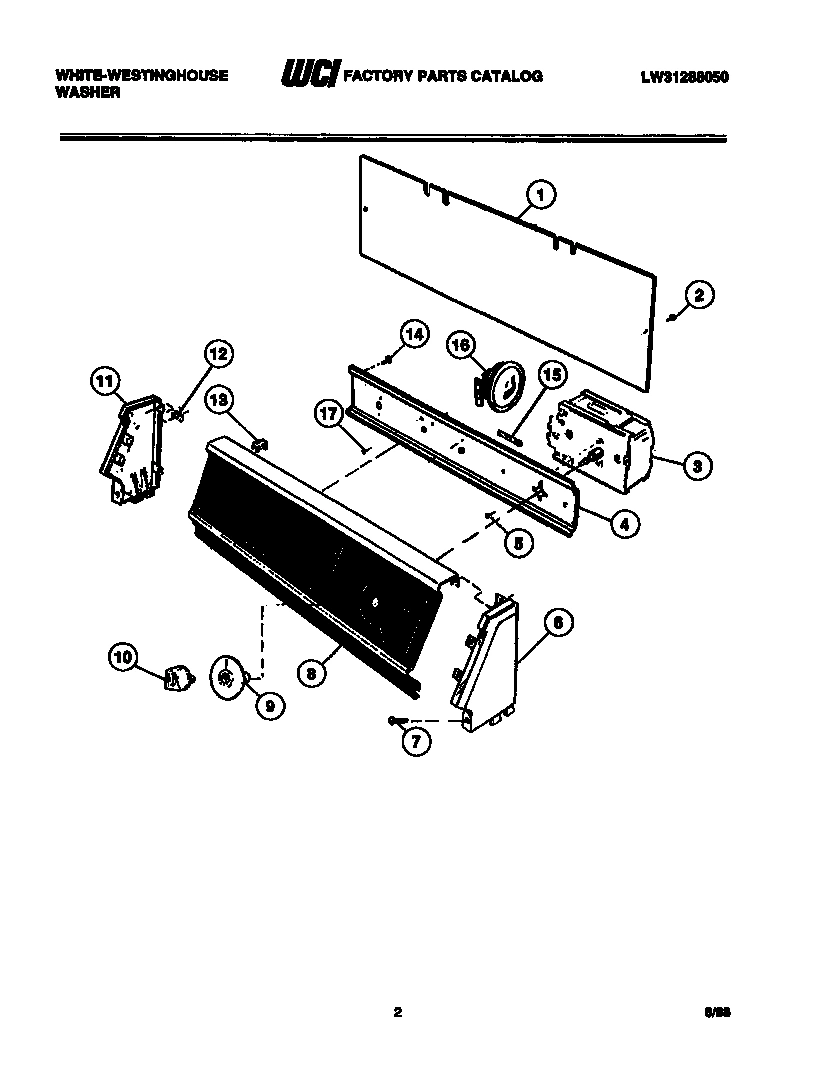

02 - CONSOLE AND CONTROL PARTS

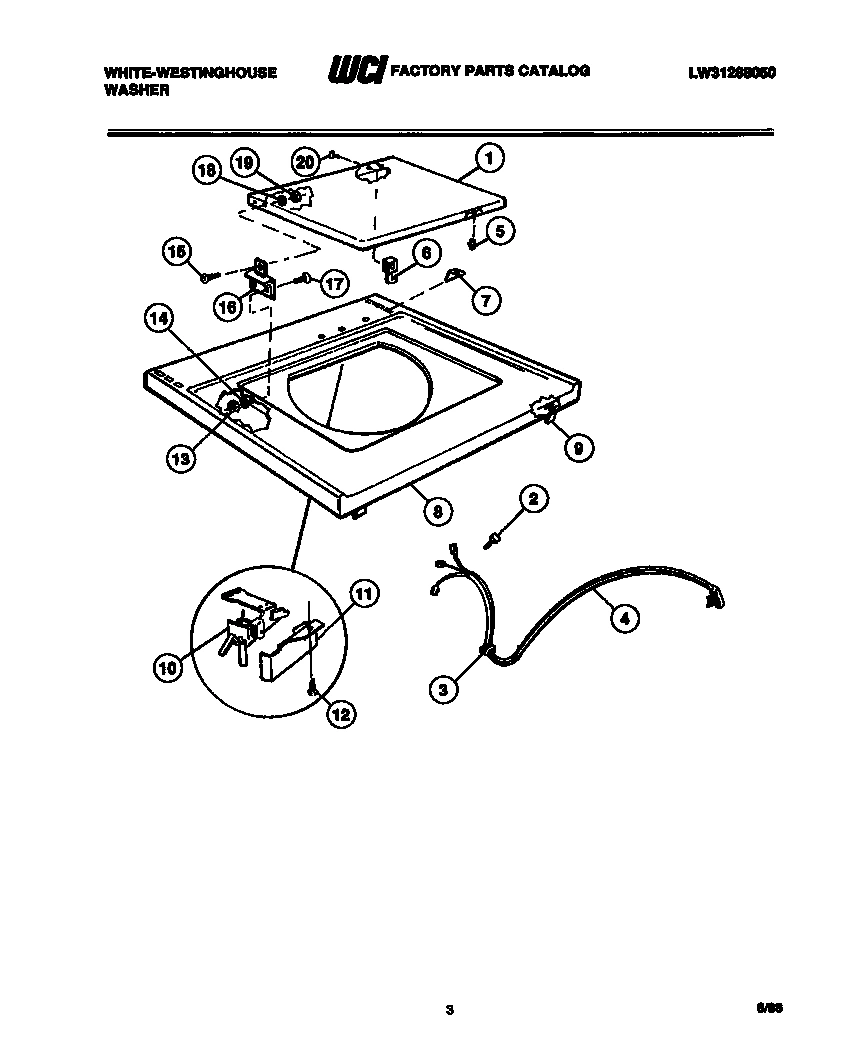

03 - TOP PARTS

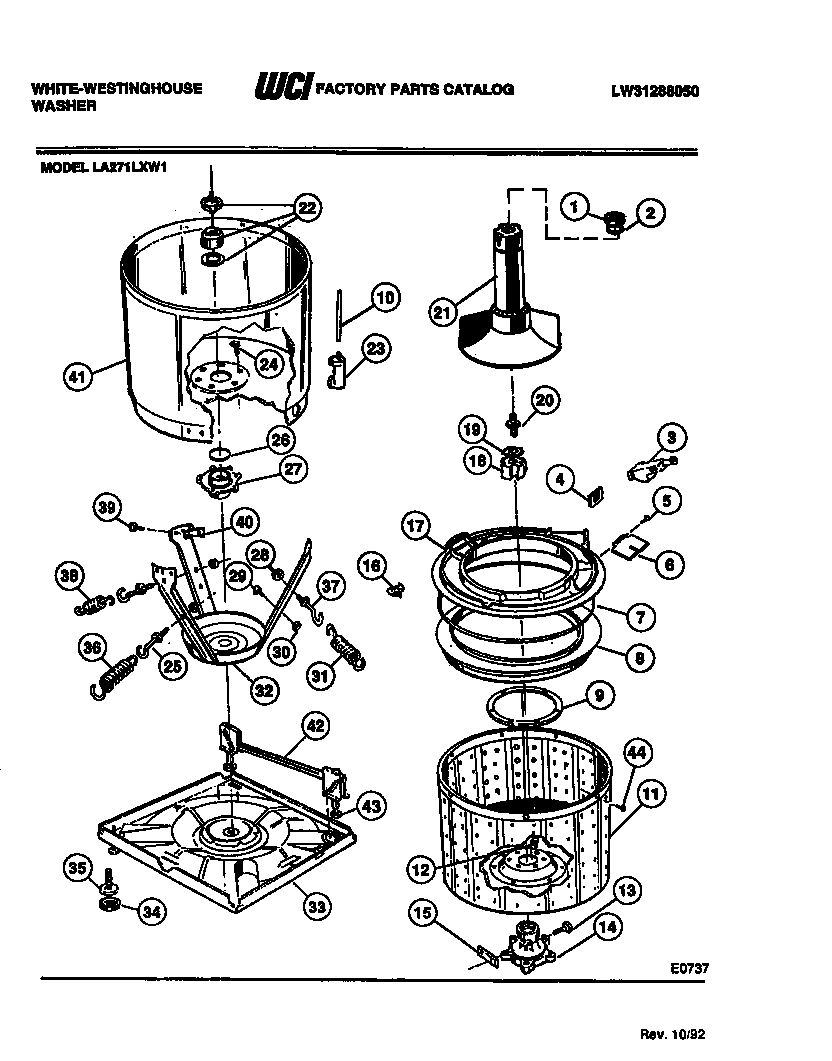

04 - TUB DETAIL

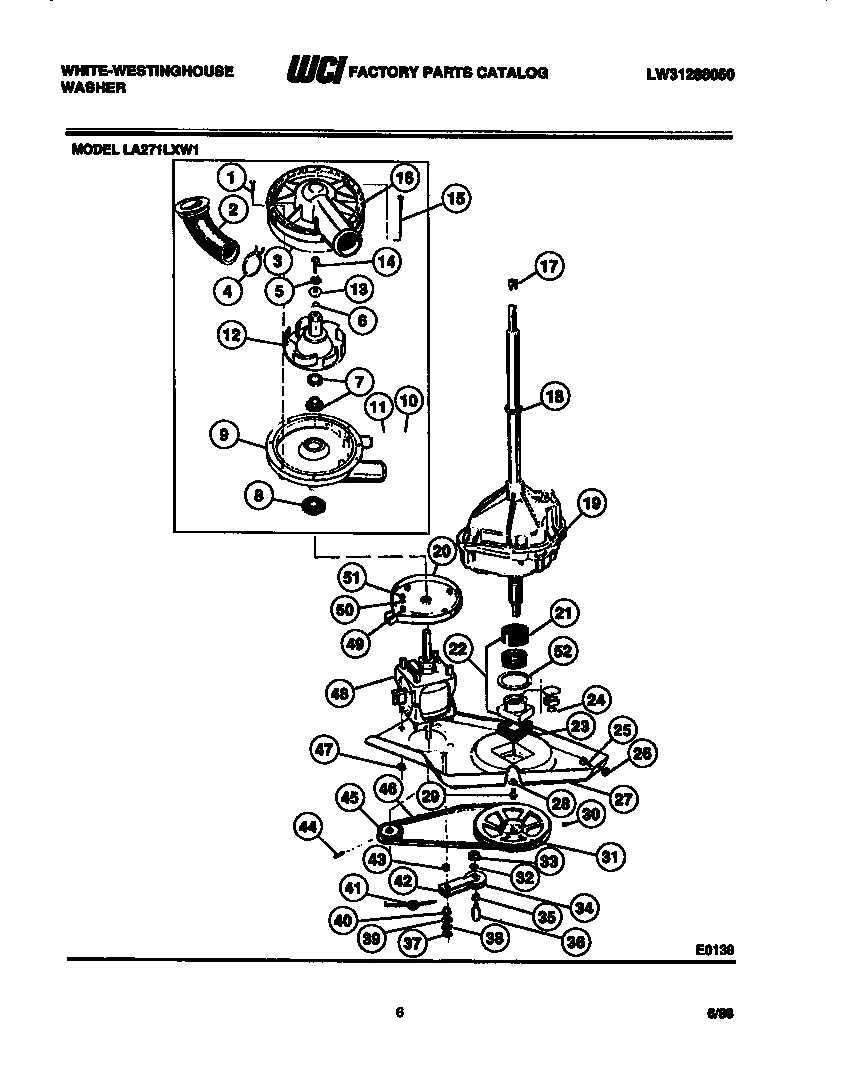

05 - MOTOR, TRANSMISSION AND DRIVE PARTS

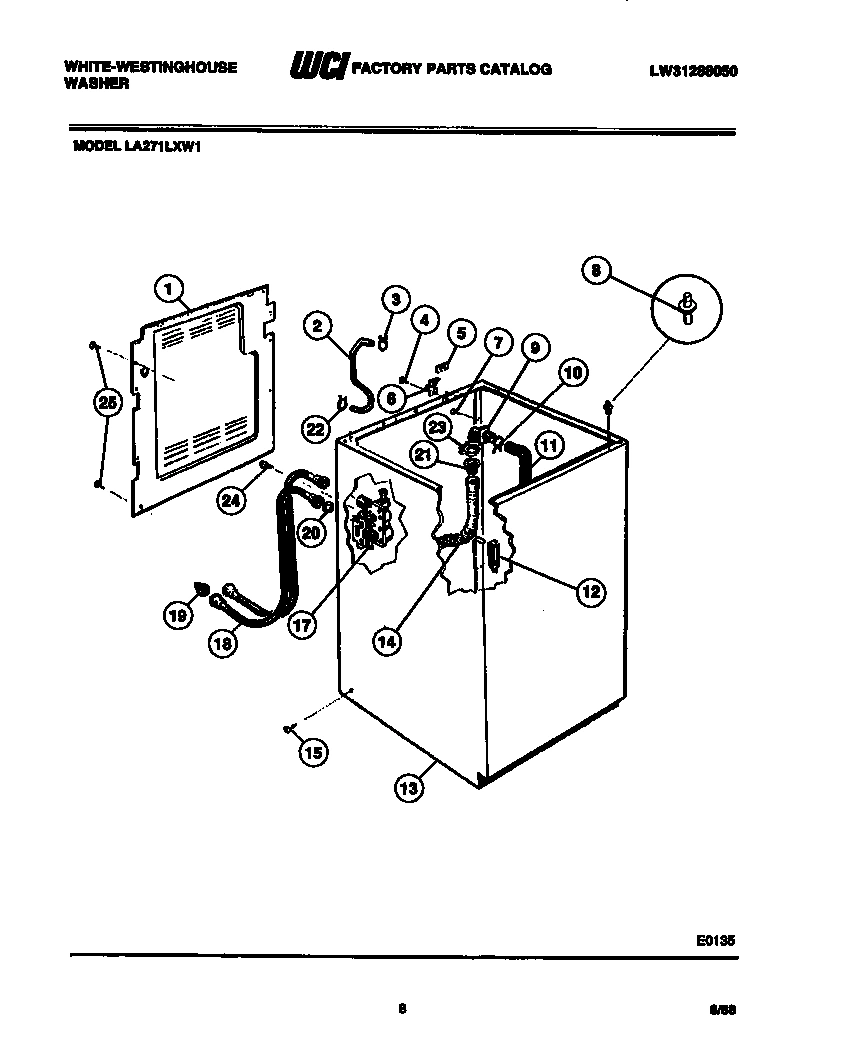

06 - CABINET PARTS

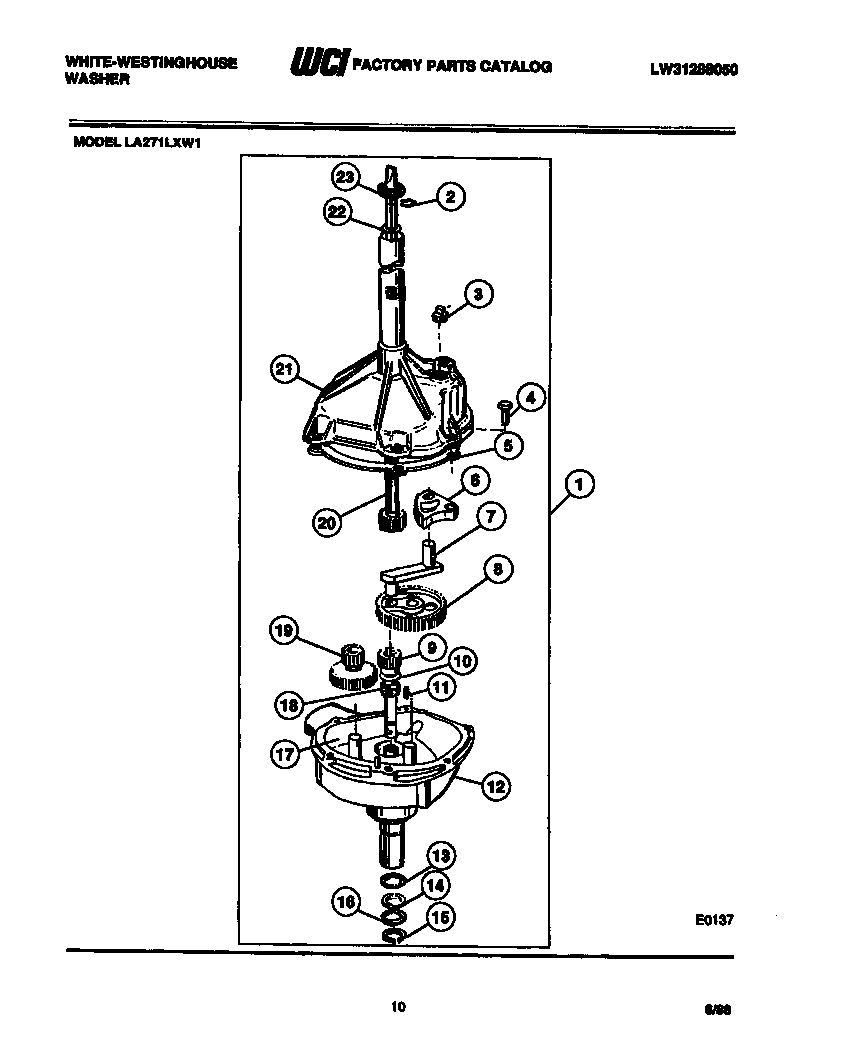

07 - TRANSMISSION PARTS

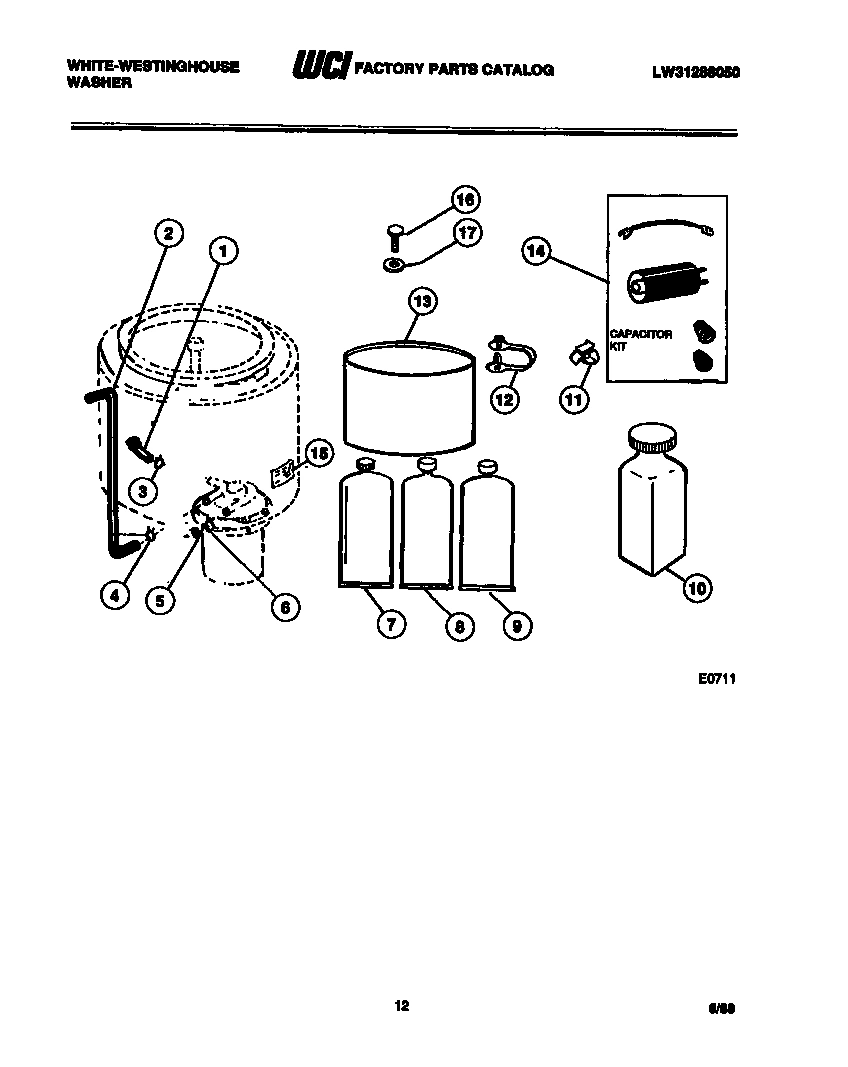

08 - WASHER AND MISCELLANEOUS PARTS
Common parts from model Electrolux LA271LXW1 WASHER
*11545
WCI Q604412 WCI Q604412 Contact Us For Availability
*11548
WCI Q198163 WCI Q198163 Contact Us For Availability
*11548
WCI Q14922 WCI Q14922 Contact Us For Availability
*11548
WCI Q500930 WCI Q500930 Contact Us For Availability
*11548
WCI Q634671 WCI Q634671 Contact Us For Availability
1
WCI Q616741 WCI Q616741 Contact Us For Availability
1
WCI 3016991 WCI 3016991 Contact Us For Availability
1
CAP & WASHER WCI Q605815 Contact Us For Availability
1
SCREW-COVER (4) WCI Q435106 Contact Us For Availability
1
WCI Q622261 WCI Q622261 Contact Us For Availability
1
WCI Q171312 WCI Q171312 Contact Us For Availability
2
WCI Q502491 WCI Q502491 Contact Us For Availability
2
WCI Q501523 WCI Q501523 Contact Us For Availability
2
WCI Q147985 WCI Q147985 Contact Us For Availability
2
WCI Q156173 WCI Q156173 Contact Us For Availability
2
HOSE, INNER DRAIN WCI Q158314 Contact Us For Availability
3
TIMER WCI 3017967 Contact Us For Availability
3
WCI Q63137 WCI Q63137 Contact Us For Availability
3
WCI Q154491 WCI Q154491 Contact Us For Availability
3
GASKET (INCLUDED IN IMPELLER KIT Q198163) WCI Q181082 Contact Us For Availability
3
WCI Q504893 WCI Q504893 Contact Us For Availability
3
WCI F077061000 WCI F077061000 Contact Us For Availability
4
WCI Q616711 WCI Q616711 Contact Us For Availability
4
WCI Q169083 WCI Q169083 Contact Us For Availability
4
WCI Q152472 WCI Q152472 Contact Us For Availability
4
SCREW (6) WCI F079688000 Contact Us For Availability
4
WCI Q504897 WCI Q504897 Contact Us For Availability
5
SCREW (2) WCI Q503033 Contact Us For Availability
5
WCI Q13435 WCI Q13435 Contact Us For Availability
5
WCI Q435008 WCI Q435008 Contact Us For Availability
5
WCI Q500374 WCI Q500374 Contact Us For Availability
5
WCI Q16701 WCI Q16701 Contact Us For Availability
5
WCI Q17471 WCI Q17471 Contact Us For Availability
5
WCI F130895000 WCI F130895000 Contact Us For Availability
6
WCI Q616734 WCI Q616734 Contact Us For Availability
6
WCI Q143172 WCI Q143172 Contact Us For Availability
6
WCI Q152601 WCI Q152601 Contact Us For Availability
6
O-RING (INCLUDED IN IMPELLER KIT Q198163) WCI Q503081 Contact Us For Availability
6
WCI Q504891 WCI Q504891 Contact Us For Availability
6
WCI Q17461 WCI Q17461 Contact Us For Availability
6
WCI F130405100 WCI F130405100 Contact Us For Availability
7
SCREW (2) WCI Q504533 Contact Us For Availability
7
WCI Q503065 WCI Q503065 Contact Us For Availability
7
WCI Q606791 WCI Q606791 Contact Us For Availability
7
SEAL, KIT (INCLUDED IN IMPELLER KIT Q198163) WCI Q69781 Contact Us For Availability
7
CONNECTING, ROD WCI F066078100 Contact Us For Availability
7
WCI Q22072 WCI Q22072 Contact Us For Availability
8
WCI 3018017 WCI 3018017 Contact Us For Availability
8
WCI Q632905 WCI Q632905 Contact Us For Availability
8
WCI Q615651 WCI Q615651 Contact Us For Availability
8
WCI Q69543 WCI Q69543 Contact Us For Availability
8
WCI Q152431 WCI Q152431 Contact Us For Availability
8
WCI F130404100 WCI F130404100 Contact Us For Availability
8
GLUE WCI Q15142 Contact Us For Availability
9
WCI Q621221 WCI Q621221 Contact Us For Availability
9
SPRING (2) WCI Q503041 Contact Us For Availability
9
WCI Q631141 WCI Q631141 Contact Us For Availability
9
WCI Q612641 WCI Q612641 Contact Us For Availability
9
WCI Q604401 WCI Q604401 Contact Us For Availability
9
WCI F141770000 WCI F141770000 Contact Us For Availability
9
LUBRIPLATE WCI Q15141 Contact Us For Availability
10
WCI Q621214 WCI Q621214 Contact Us For Availability
10
WCI Q165346 WCI Q165346 Contact Us For Availability
10
WCI Q29533 WCI Q29533 Contact Us For Availability
10
WCI Q504892 WCI Q504892 Contact Us For Availability
10
PAINT-WHITE, 1 OZ. WCI Q49587 Contact Us For Availability
11
WCI Q616733 WCI Q616733 Contact Us For Availability
11
SHIELD, LID LOCK WCI Q603021 Contact Us For Availability
11
WCI Q174604 WCI Q174604 Contact Us For Availability
11
PIN WCI F077058000 Contact Us For Availability
11
WCI Q502207 WCI Q502207 Contact Us For Availability
12
SPEEDNUT (8) WCI Q502958 Contact Us For Availability
12
WCI Q502149 WCI Q502149 Contact Us For Availability
12
IMPELLER (INCLUDED IN IMPELLER KIT Q198163) WCI Q181601 Contact Us For Availability
12
HOUSING, LOWER WCI F140586000 Contact Us For Availability
12
WCI Q502063 WCI Q502063 Contact Us For Availability
13
WCI Q504803 WCI Q504803 Contact Us For Availability
13
WCI Q425102 WCI Q425102 Contact Us For Availability
13
WCI Q69561 WCI Q69561 Contact Us For Availability
13
BODY - WHITE WCI Q601463 Contact Us For Availability
13
LITHIUM, GREASE WCI Q137186 Contact Us For Availability
14
WCI Q631052 WCI Q631052 Contact Us For Availability
14
WCI Q504204 WCI Q504204 Contact Us For Availability
14
CAPACITOR KIT WCI Q149413 Contact Us For Availability
14
WCI Q165347 WCI Q165347 Contact Us For Availability
14
WASHER, SPACER WCI F077051000 Contact Us For Availability
15
SPACER (2) WCI Q500925 Contact Us For Availability
15
WCI Q600032 WCI Q600032 Contact Us For Availability
15
SCREW-CVR/MTR (4) WCI Q502492 Contact Us For Availability
15
SCREW (5) WCI Q504382 Contact Us For Availability
15
WCI F068158000 WCI F068158000 Contact Us For Availability
15
CAUTION LABEL WCI Q607191 Contact Us For Availability
16
WCI 3018018 WCI 3018018 Contact Us For Availability
16
HINGE-WHITE (2) WCI Q622186 Contact Us For Availability
16
WCI Q500685 WCI Q500685 Contact Us For Availability
16
WCI Q612631 WCI Q612631 Contact Us For Availability
16
WASHER, THRUST WCI F077098000 Contact Us For Availability
16
SCREW, GROUND WCI Q500665 Contact Us For Availability
17
SCREW WCI Q405901 Contact Us For Availability
17
SCREW (4) WCI Q505101 Contact Us For Availability
17
WCI Q102271 WCI Q102271 Contact Us For Availability
17
SHIM WCI Q631524 Contact Us For Availability
17
WCI Q171447 WCI Q171447 Contact Us For Availability
17
OIL, 1 QUART WCI F060821100 Contact Us For Availability
17
WASHER-GROUND (PRONGED) WCI Q500411 Contact Us For Availability
18
SPACER (2) WCI Q409308 Contact Us For Availability
18
WCI Q622981 WCI Q622981 Contact Us For Availability
18
WCI Q440115 WCI Q440115 Contact Us For Availability
18
WCI Q600924 WCI Q600924 Contact Us For Availability
18
WCI F077052000 WCI F077052000 Contact Us For Availability
19
NUT (2) WCI 1076115 Contact Us For Availability
19
WCI Q500377 WCI Q500377 Contact Us For Availability
19
WASHER (2) WCI Q19801 Contact Us For Availability
19
WCI F130403100 WCI F130403100 Contact Us For Availability
20
WCI Q501589 WCI Q501589 Contact Us For Availability
20
WCI Q605802 WCI Q605802 Contact Us For Availability
20
WCI Q164261 WCI Q164261 Contact Us For Availability
20
WASHER (2) WCI Q412501 Contact Us For Availability
20
WCI Q199041 WCI Q199041 Contact Us For Availability
21
WCI Q101942 WCI Q101942 Contact Us For Availability
21
SLEEVE, COIL WCI F130417000 Contact Us For Availability
21
WCI Q17891 WCI Q17891 Contact Us For Availability
21
HOUSING, UPPER WCI F140587000 Contact Us For Availability
22
WCI Q615642 WCI Q615642 Contact Us For Availability
22
BEARING, HSG ASSY WCI F137014000 Contact Us For Availability
22
CLAMP WCI C503356 Contact Us For Availability
22
WCI F062568000 WCI F062568000 Contact Us For Availability
23
WCI Q620951 WCI Q620951 Contact Us For Availability
23
WCI Q622331 WCI Q622331 Contact Us For Availability
23
WCI Q504921 WCI Q504921 Contact Us For Availability
24
BOLT (6) WCI Q502147 Contact Us For Availability
24
SCREW (2) WCI Q505564 Contact Us For Availability
24
WCI F141261000 WCI F141261000 Contact Us For Availability
25
SCREW (17) WCI Q505553 Contact Us For Availability
25
HOOK-BOLT WCI 3016989 Contact Us For Availability
25
BOLT (3) WCI Q502126 Contact Us For Availability
26
WCI Q147982 WCI Q147982 Contact Us For Availability
26
LOCKNUT (3) WCI Q500831 Contact Us For Availability
27
WCI Q622483 WCI Q622483 Contact Us For Availability
27
PLATE, SUPPORT WCI Q623011 Contact Us For Availability
28
WCI Q443003 WCI Q443003 Contact Us For Availability
28
WASHER-NEPRENE (2) WCI Q69546 Contact Us For Availability
29
BOLT (2) WCI Q505081 Contact Us For Availability
30
WCI Q500871 WCI Q500871 Contact Us For Availability
31
SPRING-BLACK WCI Q6872 Contact Us For Availability
31
PULLEY, TRANSMISSION WCI Q631112 Contact Us For Availability
32
WCI Q634722 WCI Q634722 Contact Us For Availability
33
WCI 3016987 WCI 3016987 Contact Us For Availability
33
WCI Q501084 WCI Q501084 Contact Us For Availability
34
CUP (2) WCI Q16971 Contact Us For Availability
34
WCI Q622341 WCI Q622341 Contact Us For Availability
35
FOOT BOLT (2) WCI Q16567 Contact Us For Availability
36
WCI 3016986 WCI 3016986 Contact Us For Availability
36
WCI Q622462 WCI Q622462 Contact Us For Availability
37
BOLT-HOOK (2) WCI Q502665 Contact Us For Availability
37
WCI 1467173 WCI 1467173 Contact Us For Availability
38
SPRING - RED WCI Q6871 Contact Us For Availability
38
WCI Q409004 WCI Q409004 Contact Us For Availability
39
WCI Q504881 WCI Q504881 Contact Us For Availability
39
WASHER SPRING WCI 1147601 Contact Us For Availability
40
NUT-PLATE (3) WCI Q607012 Contact Us For Availability
41
WCI Q102262 WCI Q102262 Contact Us For Availability
41
WCI Q623001 WCI Q623001 Contact Us For Availability
42
LEVELING LEG ASSY WCI 3016988 Contact Us For Availability
42
WCI Q622474 WCI Q622474 Contact Us For Availability
43
WCI 3201413 WCI 3201413 Contact Us For Availability
43
WCI Q607121 WCI Q607121 Contact Us For Availability
44
WCI 3202001 WCI 3202001 Contact Us For Availability
44
PIN WCI Q501623 Contact Us For Availability
45
WCI Q622991 WCI Q622991 Contact Us For Availability
46
WCI Q622451 WCI Q622451 Contact Us For Availability
47
WCI Q500829 WCI Q500829 Contact Us For Availability
48
WCI Q603184 WCI Q603184 Contact Us For Availability
49
WCI Q502788 WCI Q502788 Contact Us For Availability
50
SPACER (4) WCI Q440120 Contact Us For Availability
51
WCI Q502404 WCI Q502404 Contact Us For Availability
52
WCI F141714000 WCI F141714000 Contact Us For Availability
× ![]()
