Model Electrolux LA271JXW3 WASHER – Common Parts & Diagrams
01 - COVER

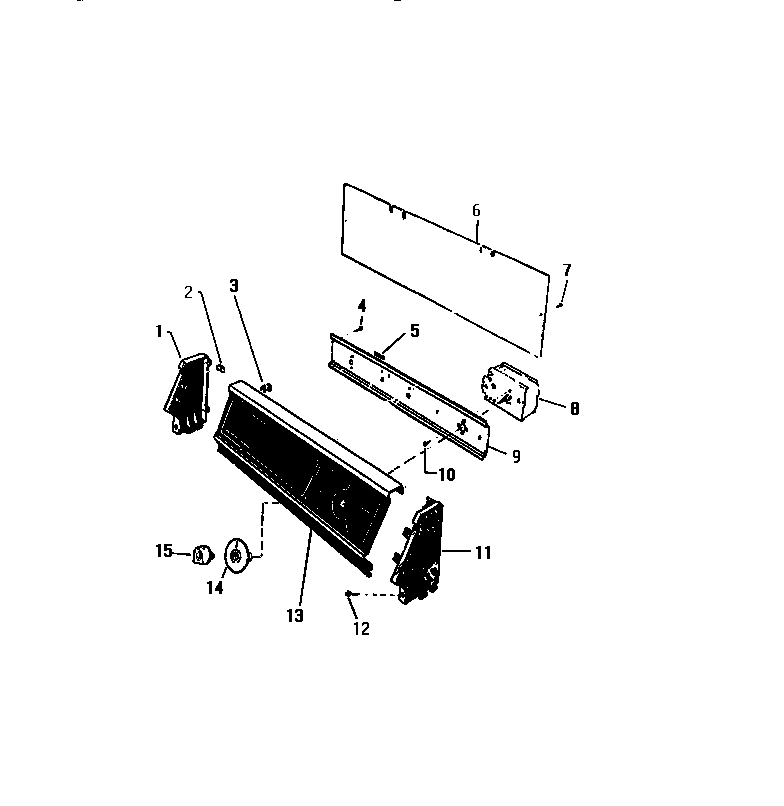

02 - CONSOLE & CONTROLS

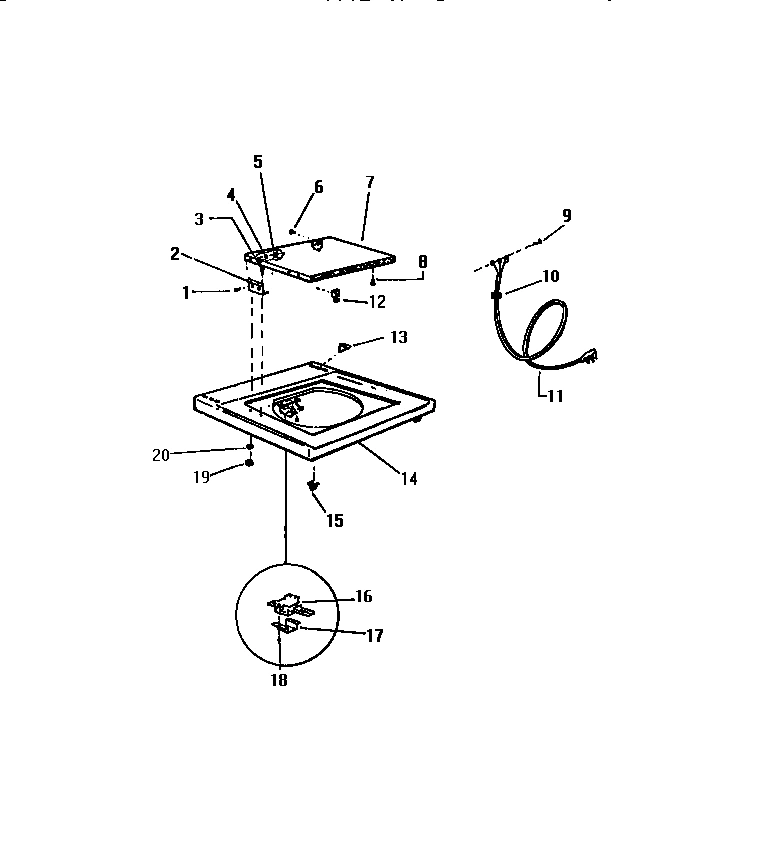

03 - TOP PANEL

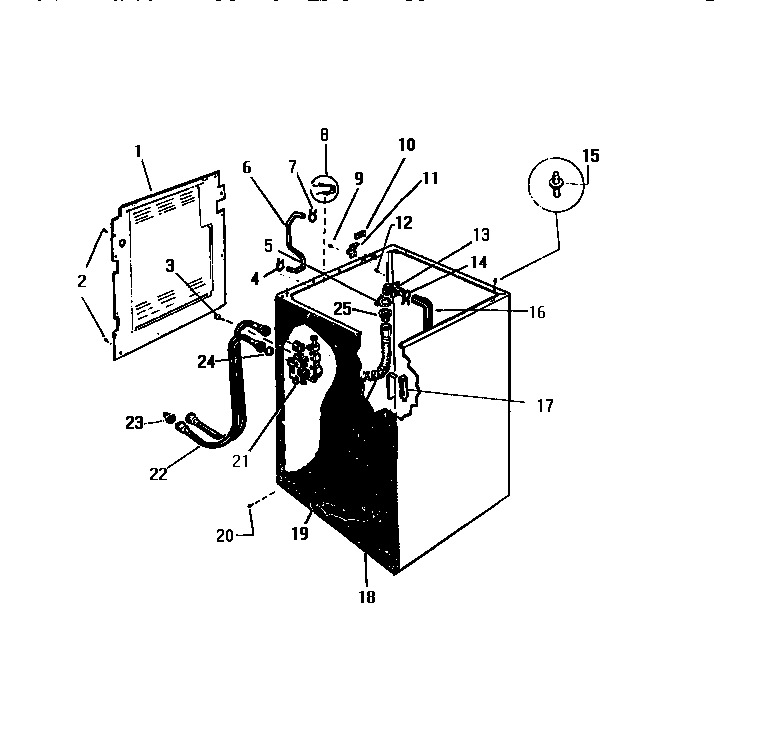

04 - CABINET, HOSES

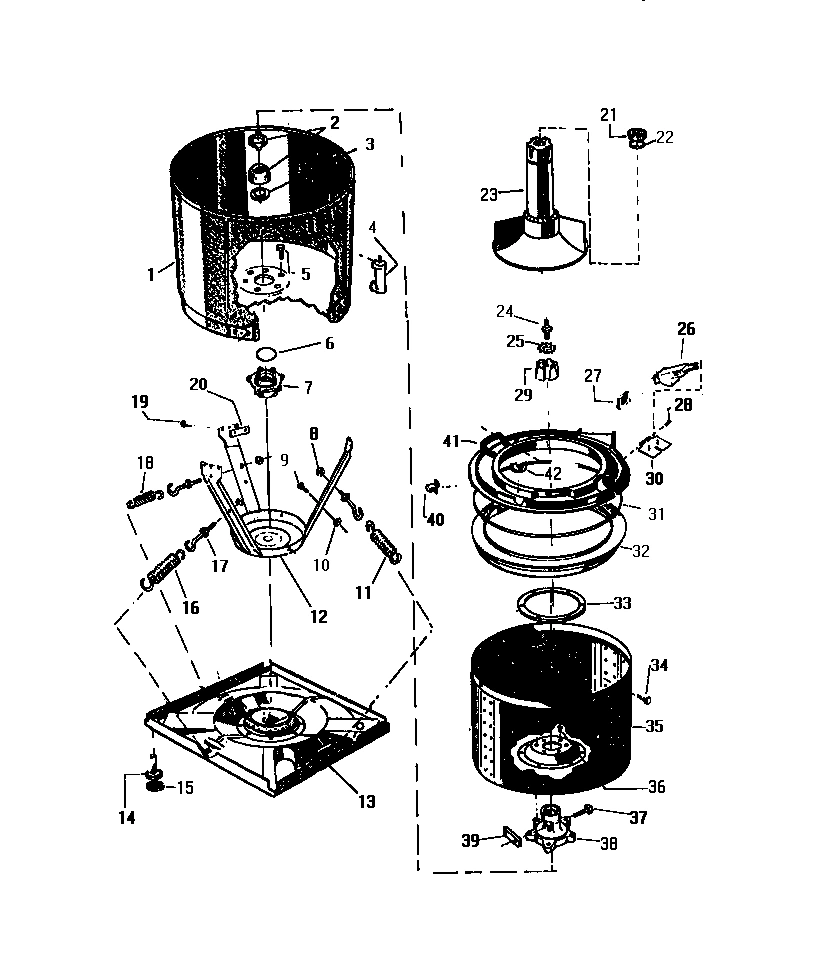

05 - TUBS, TRANSMISSION, BASE

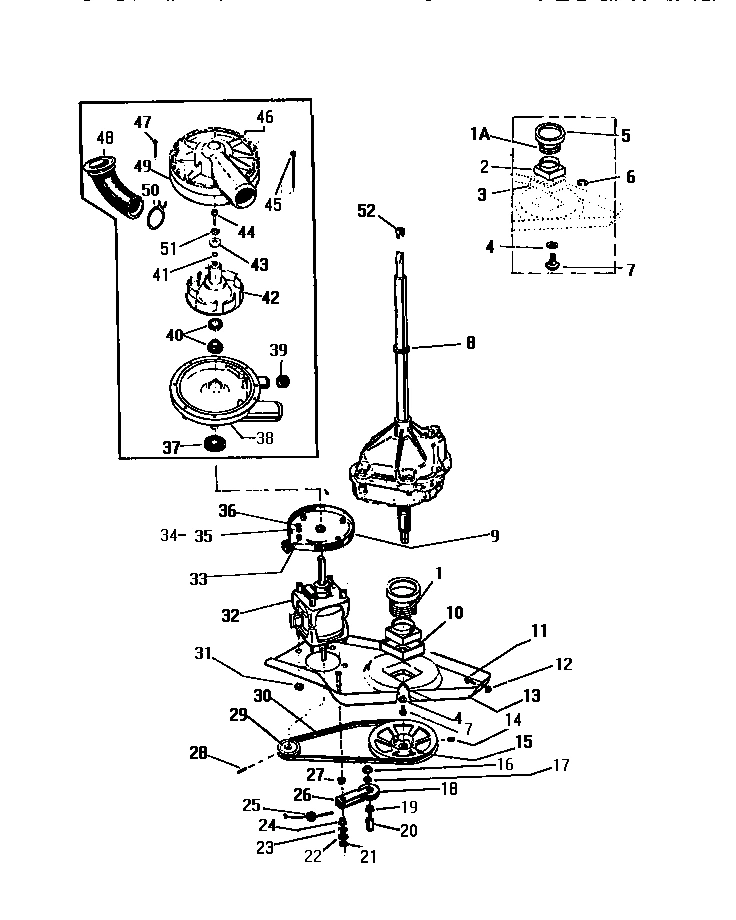

06 - DRIVE MOTOR & PUMP ASSEMBLY

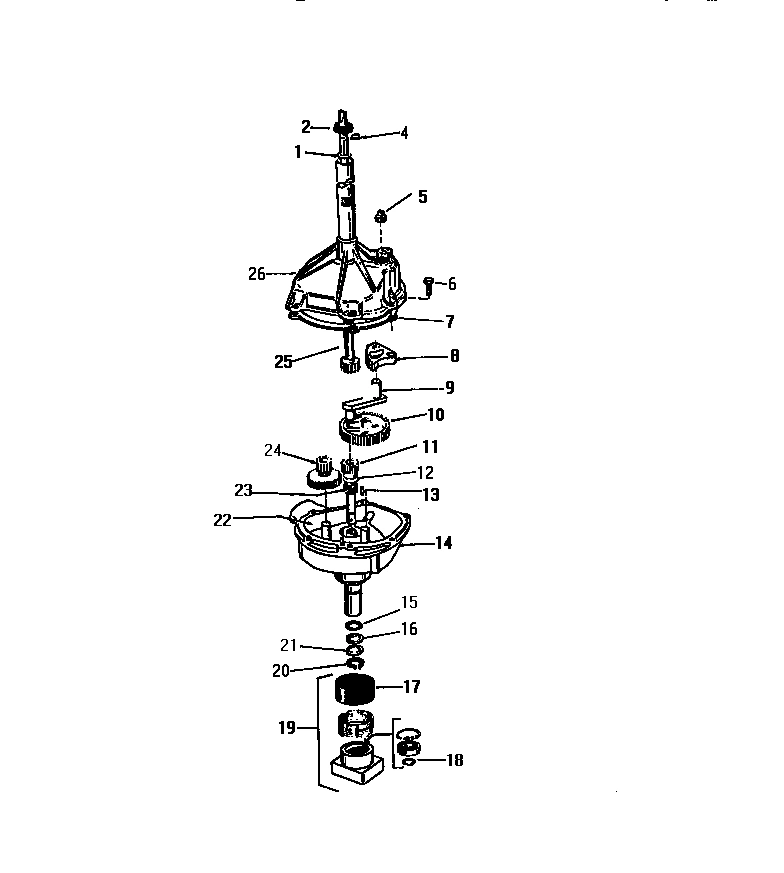

07 - TRANSMISSION

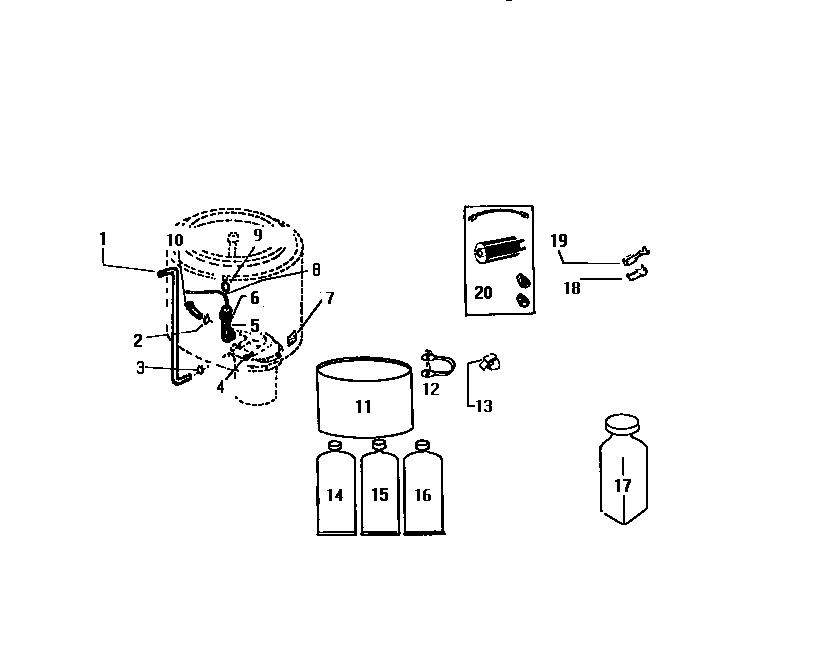

08 - MISCELLANEOUS
Common parts from model Electrolux LA271JXW3 WASHER
*24760
WCI Q634672 WCI Q634672 Contact Us For Availability
*24761
WCI Q198163 WCI Q198163 Contact Us For Availability
*24762
WCI Q631032 WCI Q631032 Contact Us For Availability
1
WCI Q616733 WCI Q616733 Contact Us For Availability
1
WCI Q171312 WCI Q171312 Contact Us For Availability
1
HOSE, INNER DRAIN WCI Q158314 Contact Us For Availability
1
WCI Q102262 WCI Q102262 Contact Us For Availability
1
WCI F062568000 WCI F062568000 Contact Us For Availability
2
WCI Q502958 WCI Q502958 Contact Us For Availability
2
SCREW (16 REQ.) WCI Q505553 Contact Us For Availability
2
HINGE (2 REQ.) WCI Q622181 Contact Us For Availability
2
WCI Q631335 WCI Q631335 Contact Us For Availability
2
WCI Q501154 WCI Q501154 Contact Us For Availability
3
WCI Q504803 WCI Q504803 Contact Us For Availability
3
WCI Q505101 WCI Q505101 Contact Us For Availability
3
WCI Q69545 WCI Q69545 Contact Us For Availability
3
WCI Q504897 WCI Q504897 Contact Us For Availability
4
WCI Q69546 WCI Q69546 Contact Us For Availability
4
WCI Q16701 WCI Q16701 Contact Us For Availability
5
WCI Q500925 WCI Q500925 Contact Us For Availability
5
WCI Q504921 WCI Q504921 Contact Us For Availability
5
HOSE WCI Q620951 Contact Us For Availability
5
WCI Q502147 WCI Q502147 Contact Us For Availability
5
WCI F077061000 WCI F077061000 Contact Us For Availability
6
WCI Q616741 WCI Q616741 Contact Us For Availability
6
WCI Q501589 WCI Q501589 Contact Us For Availability
6
WCI Q156173 WCI Q156173 Contact Us For Availability
6
WCI Q147982 WCI Q147982 Contact Us For Availability
6
SNAP RING (INCL IN ITEM 1) WCI N/A Contact Us For Availability
6
SCREW (6 REQ.) WCI F079688000 Contact Us For Availability
6
WCI Q502070 WCI Q502070 Contact Us For Availability
7
SCREW (4 REQ) WCI Q405802 Contact Us For Availability
7
WCI Q127625 WCI Q127625 Contact Us For Availability
7
CLAMP WCI C503356 Contact Us For Availability
7
WCI Q622483 WCI Q622483 Contact Us For Availability
7
WCI Q505081 WCI Q505081 Contact Us For Availability
7
WCI F130895000 WCI F130895000 Contact Us For Availability
7
WCI Q607191 WCI Q607191 Contact Us For Availability
8
WCI Q617871 WCI Q617871 Contact Us For Availability
8
BUMPER, (2 REQ) WCI Q13435 Contact Us For Availability
8
WCI Q501171 WCI Q501171 Contact Us For Availability
8
NUT (3 REQ.) WCI Q402601 Contact Us For Availability
8
WCI Q440115 WCI Q440115 Contact Us For Availability
8
WCI F130405100 WCI F130405100 Contact Us For Availability
8
WCI Q29554 WCI Q29554 Contact Us For Availability
9
WCI Q616711 WCI Q616711 Contact Us For Availability
9
SHEILD WCI Q164261 Contact Us For Availability
9
CONNECTING, ROD WCI F066078100 Contact Us For Availability
9
TIE, HOSE WCI Q502072 Contact Us For Availability
10
WCI Q503033 WCI Q503033 Contact Us For Availability
10
WCI Q63137 WCI Q63137 Contact Us For Availability
10
WCI Q17471 WCI Q17471 Contact Us For Availability
10
WCI Q622331 WCI Q622331 Contact Us For Availability
10
WCI Q622261 WCI Q622261 Contact Us For Availability
10
WCI F130404100 WCI F130404100 Contact Us For Availability
11
WCI Q616734 WCI Q616734 Contact Us For Availability
11
CORD WCI Q86065 Contact Us For Availability
11
WCI Q17461 WCI Q17461 Contact Us For Availability
11
WCI Q502126 WCI Q502126 Contact Us For Availability
11
WCI F140472000 WCI F140472000 Contact Us For Availability
11
LITHIUM GREASE (1 LB.) WCI Q137186 Contact Us For Availability
12
WCI Q504533 WCI Q504533 Contact Us For Availability
12
WCI Q143172 WCI Q143172 Contact Us For Availability
12
SCREW, ( 2 REQ ) WCI Q505564 Contact Us For Availability
12
LOCKNUT WCI Q500831 Contact Us For Availability
12
WCI Q631152 WCI Q631152 Contact Us For Availability
12
WCI Q502063 WCI Q502063 Contact Us For Availability
13
WCI Q634681 WCI Q634681 Contact Us For Availability
13
GROMMET (2 REQ) WCI Q503065 Contact Us For Availability
13
WCI C604401 WCI C604401 Contact Us For Availability
13
PAN WCI Q142968 Contact Us For Availability
13
WCI Q623011 WCI Q623011 Contact Us For Availability
13
WCI F077058000 WCI F077058000 Contact Us For Availability
13
WCI Q502207 WCI Q502207 Contact Us For Availability
14
WCI Q621222 WCI Q621222 Contact Us For Availability
14
WCI Q632905 WCI Q632905 Contact Us For Availability
14
WCI Q504892 WCI Q504892 Contact Us For Availability
14
WCI Q16567 WCI Q16567 Contact Us For Availability
14
WCI Q500870 WCI Q500870 Contact Us For Availability
14
WCI F140586000 WCI F140586000 Contact Us For Availability
14
WCI Q22072 WCI Q22072 Contact Us For Availability
15
WCI Q621214 WCI Q621214 Contact Us For Availability
15
SPRING (2 REQ.) WCI Q503041 Contact Us For Availability
15
PIN (2 REQ.) WCI Q152431 Contact Us For Availability
15
CUP WCI Q16971 Contact Us For Availability
15
WCI Q631112 WCI Q631112 Contact Us For Availability
15
GLUE WCI Q15142 Contact Us For Availability
16
WCI Q165346 WCI Q165346 Contact Us For Availability
16
WCI Q6872 WCI Q6872 Contact Us For Availability
16
WCI Q501084 WCI Q501084 Contact Us For Availability
16
WASHER, SPACER WCI F077051000 Contact Us For Availability
16
LUBRIPLATE WCI Q15141 Contact Us For Availability
17
WCI Q603021 WCI Q603021 Contact Us For Availability
17
WCI Q502665 WCI Q502665 Contact Us For Availability
17
WCI F130417000 WCI F130417000 Contact Us For Availability
17
TOUCH-UP PAINT, FR. AVOCADO (1 OZ) WCI Q171154 Contact Us For Availability
17
TOUCH UP PAINT, ALMOND (1 OZ) WCI Q171155 Contact Us For Availability
17
TOUCH-UP PAINT, COFFEE (1 OZ) WCI Q171156 Contact Us For Availability
17
TOUCH-UP PAINT, WHEAT (1 OZ) WCI Q171157 Contact Us For Availability
17
TOUCH-UP PAINT, WHITE (1 OZ) WCI Q49587 Contact Us For Availability
18
BODY - WHITE WCI Q601463 Contact Us For Availability
18
SPRING - RED WCI Q6871 Contact Us For Availability
18
WCI Q622341 WCI Q622341 Contact Us For Availability
18
WCI F141261000 WCI F141261000 Contact Us For Availability
18
FLAG RECEPTACLE TERMINAL (Q301296 PKG OF 12) WCI Q8663 Contact Us For Availability
19
WCI 1076115 WCI 1076115 Contact Us For Availability
19
WCI Q165347 WCI Q165347 Contact Us For Availability
19
BOLT WCI Q504881 Contact Us For Availability
19
BEARING, HSG ASSY WCI F137014000 Contact Us For Availability
19
RECEPTACLE TERMINAL- 1/4`` (Q301295 PKG OF 12 WCI Q81002 Contact Us For Availability
20
WASHER (2 REQ.) WCI Q409308 Contact Us For Availability
20
CAPACITOR KIT WCI Q149413 Contact Us For Availability
20
WCI Q504382 WCI Q504382 Contact Us For Availability
20
WCI Q607012 WCI Q607012 Contact Us For Availability
20
WCI Q622462 WCI Q622462 Contact Us For Availability
20
WCI F068158000 WCI F068158000 Contact Us For Availability
21
WCI Q171441 WCI Q171441 Contact Us For Availability
21
CAP & WASHER WCI Q605815 Contact Us For Availability
21
WCI 1467173 WCI 1467173 Contact Us For Availability
21
WASHER, THRUST WCI F077098000 Contact Us For Availability
22
HOSE (2 REQ.) WCI Q600921 Contact Us For Availability
22
WCI Q147985 WCI Q147985 Contact Us For Availability
22
WCI Q409004 WCI Q409004 Contact Us For Availability
22
WCI F060821100 WCI F060821100 Contact Us For Availability
23
WASHER (2 REQ.) WCI Q19801 Contact Us For Availability
23
WCI Q101942 WCI Q101942 Contact Us For Availability
23
WASHER SPRING WCI 1147601 Contact Us For Availability
23
WCI F077052000 WCI F077052000 Contact Us For Availability
24
WCI Q412501 WCI Q412501 Contact Us For Availability
24
WCI Q605802 WCI Q605802 Contact Us For Availability
24
WCI F130403100 WCI F130403100 Contact Us For Availability
25
WCI Q17891 WCI Q17891 Contact Us For Availability
25
WCI Q500377 WCI Q500377 Contact Us For Availability
25
WCI Q623001 WCI Q623001 Contact Us For Availability
25
WCI F140482000 WCI F140482000 Contact Us For Availability
26
WCI Q154491 WCI Q154491 Contact Us For Availability
26
WCI Q622472 WCI Q622472 Contact Us For Availability
26
WCI F140587000 WCI F140587000 Contact Us For Availability
27
WCI Q152472 WCI Q152472 Contact Us For Availability
27
WCI Q607121 WCI Q607121 Contact Us For Availability
28
SCREW (2 REQ.) WCI Q435008 Contact Us For Availability
28
PIN WCI Q501623 Contact Us For Availability
29
WCI Q622981 WCI Q622981 Contact Us For Availability
29
WCI Q622991 WCI Q622991 Contact Us For Availability
30
WCI Q152601 WCI Q152601 Contact Us For Availability
30
WCI Q622451 WCI Q622451 Contact Us For Availability
31
WCI Q606791 WCI Q606791 Contact Us For Availability
31
NUT WCI Q500829 Contact Us For Availability
32
WCI Q618862 WCI Q618862 Contact Us For Availability
32
WCI Q603184 WCI Q603184 Contact Us For Availability
33
WCI Q631141 WCI Q631141 Contact Us For Availability
33
BUSHING (4 REQ.) WCI Q502788 Contact Us For Availability
34
SCREW (3 REQ.) WCI Q502125 Contact Us For Availability
34
WCI Q440120 WCI Q440120 Contact Us For Availability
35
WCI Q174604 WCI Q174604 Contact Us For Availability
35
SPACER WCI Q440063 Contact Us For Availability
35
WCI Q440113 WCI Q440113 Contact Us For Availability
36
BOLT (6 REQ.) WCI Q502144 Contact Us For Availability
36
CUP WASHER (4 REQ.) WCI Q502404 Contact Us For Availability
37
BOLT WCI Q425102 Contact Us For Availability
37
WCI Q69543 WCI Q69543 Contact Us For Availability
38
WCI Q631052 WCI Q631052 Contact Us For Availability
38
WCI Q612641 WCI Q612641 Contact Us For Availability
39
WCI Q600032 WCI Q600032 Contact Us For Availability
40
CLIP (9 REQ.) WCI Q500685 Contact Us For Availability
40
SEAL, KIT (INCL IN IMPELLER KIT) WCI Q69781 Contact Us For Availability
41
WCI Q102271 WCI Q102271 Contact Us For Availability
41
O RING (INCL IN IMPELLER KIT) WCI Q503081 Contact Us For Availability
42
WCI Q180711 WCI Q180711 Contact Us For Availability
42
IMPELLER (INCL IN IMPELLER KIT) WCI Q181601 Contact Us For Availability
43
WCI Q69561 WCI Q69561 Contact Us For Availability
44
WCI Q504204 WCI Q504204 Contact Us For Availability
45
SCREW, CVR TO MTR WCI Q502492 Contact Us For Availability
46
WCI Q612631 WCI Q612631 Contact Us For Availability
47
WCI Q435106 WCI Q435106 Contact Us For Availability
49
GASKET (INCL IN IMPELLER KIT) WCI Q181082 Contact Us For Availability
51
WCI Q500374 WCI Q500374 Contact Us For Availability
52
WCI Q631521 WCI Q631521 Contact Us For Availability
52
WCI Q631522 WCI Q631522 Contact Us For Availability
52
WCI Q631524 WCI Q631524 Contact Us For Availability
× ![]()
