Model Maytag L9845XUB ELECTRIC WALL OVEN – Common Parts & Diagrams

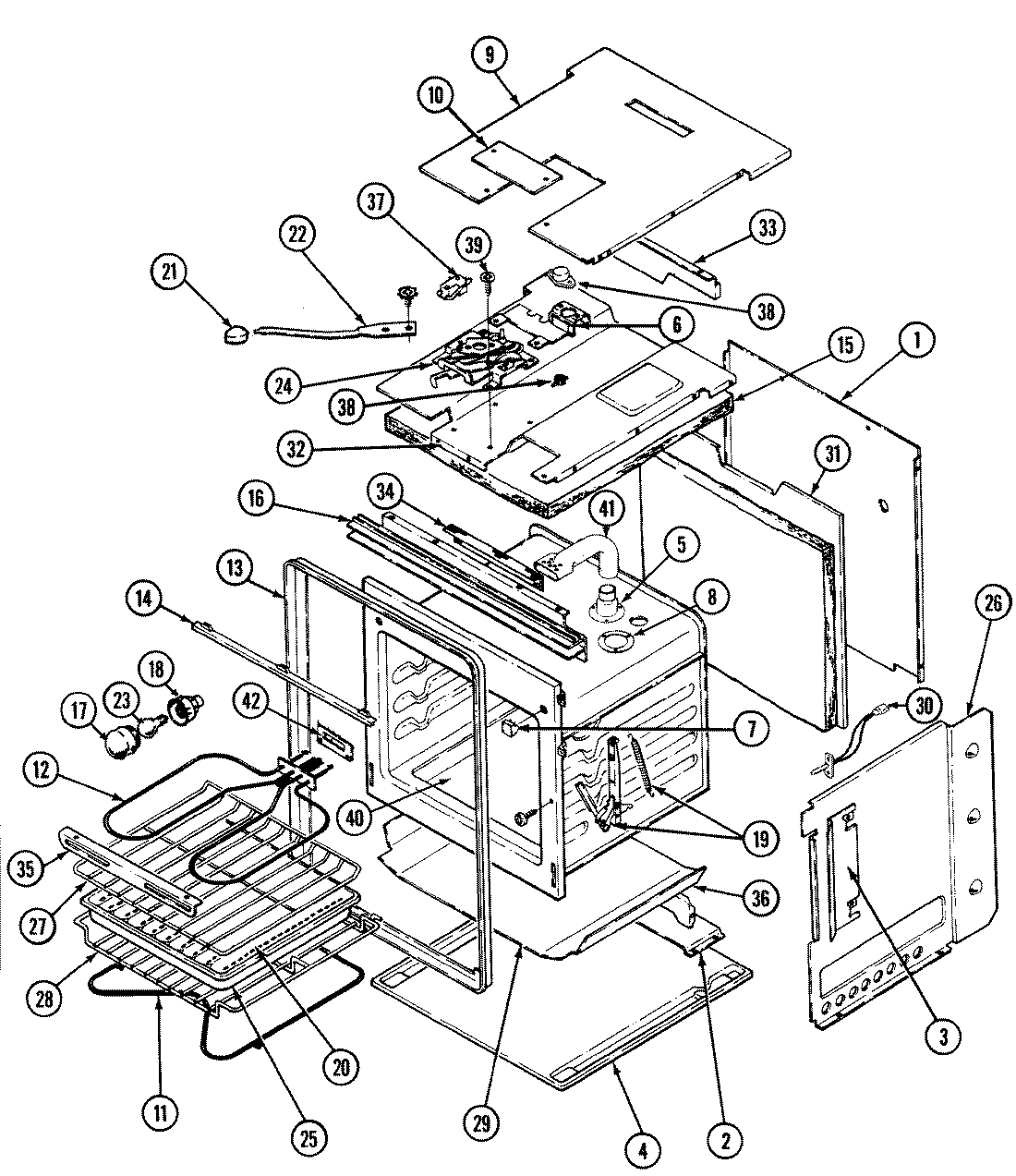

01 - BODY

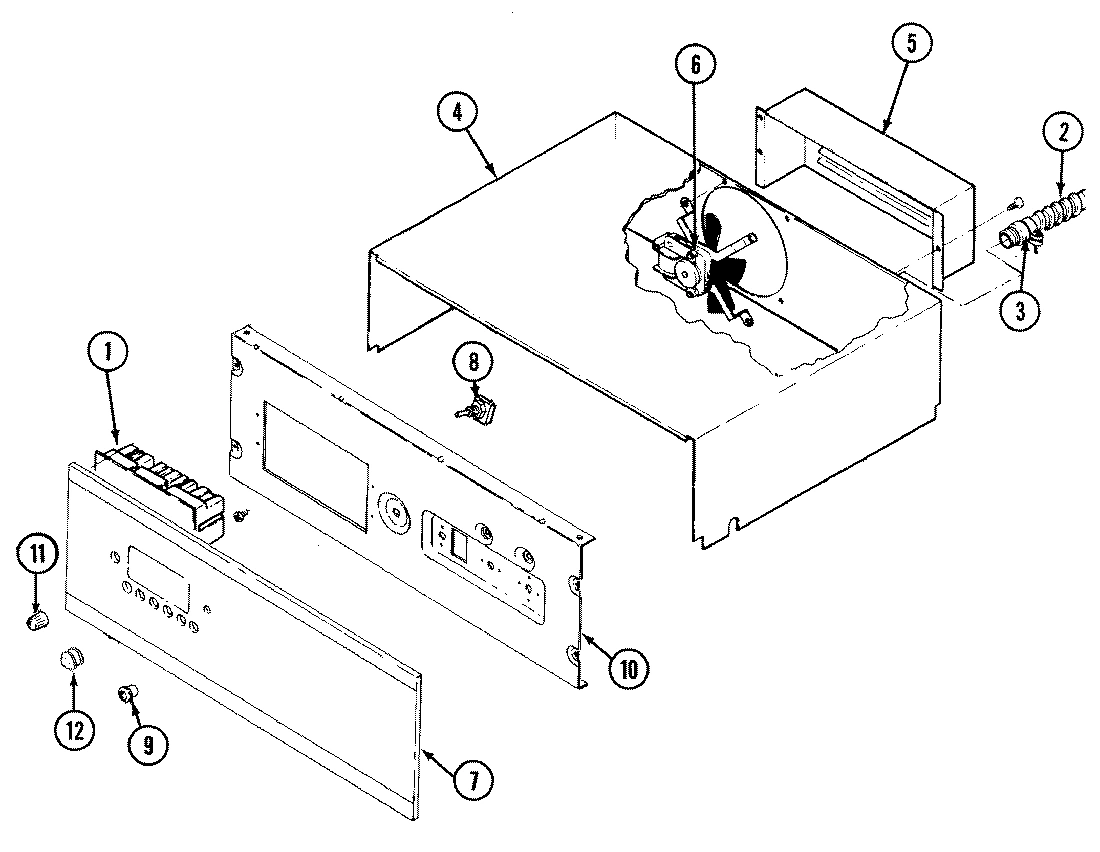

02 - CONTROL PANEL

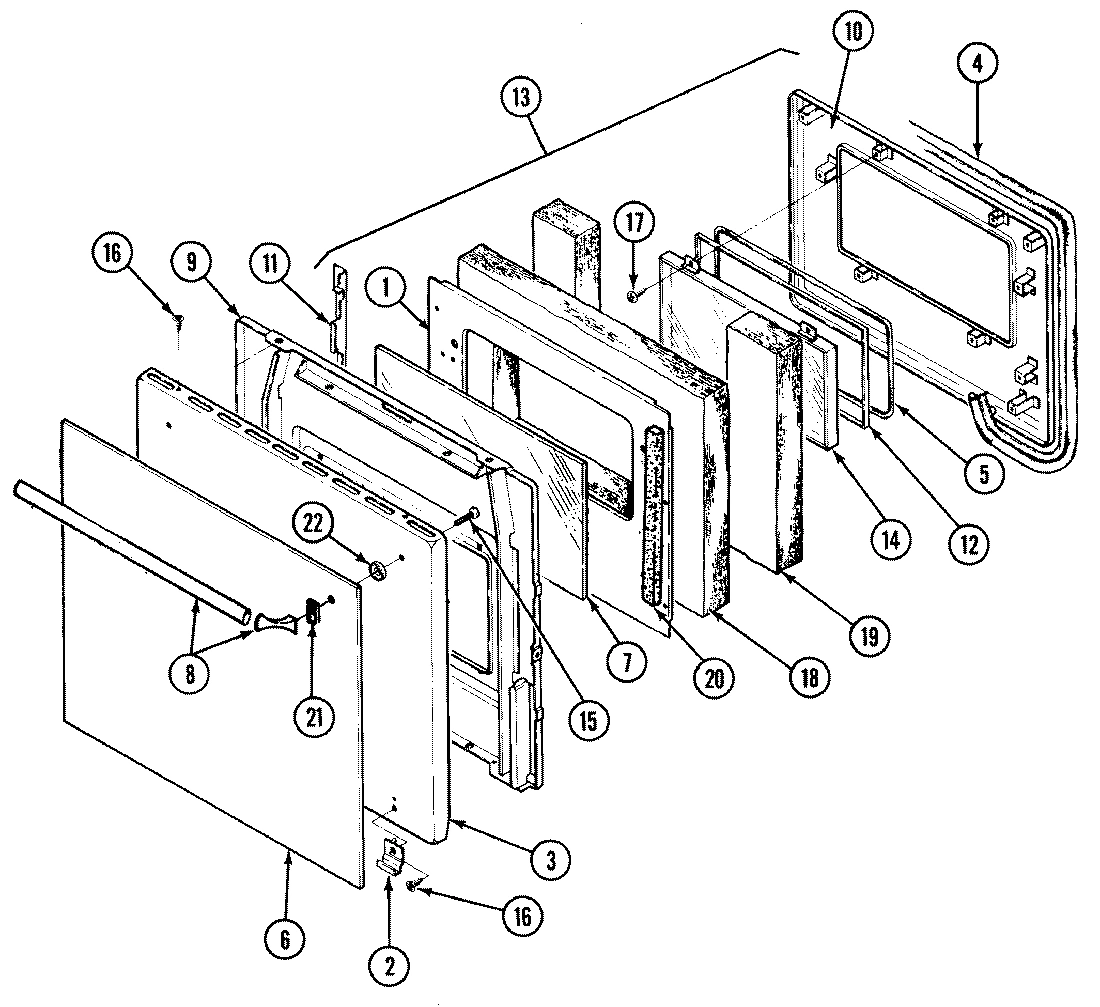

03 - DOOR
Common parts from model Maytag L9845XUB ELECTRIC WALL OVEN
1
MAY 74001544 MAY 74001544 Contact Us For Availability
1
MAY 8010P100-60 MAY 8010P100-60 Contact Us For Availability
1
MAY 3601F131-51 MAY 3601F131-51 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
2
MAY 7434P003-60 MAY 7434P003-60 Contact Us For Availability
3
MAY 2401F103-70 MAY 2401F103-70 Contact Us For Availability
3
MAY 7417P003-60 MAY 7417P003-60 Contact Us For Availability
4
MAY 4005F150-51 MAY 4005F150-51 Contact Us For Availability
4
MAY 7201P053-60 MAY 7201P053-60 Contact Us For Availability
5
MAY 7101P356-60 MAY 7101P356-60 Contact Us For Availability
5
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
5
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
6
MAY 7902P336-60 MAY 7902P336-60 Contact Us For Availability
6
MAY 7101P239-60 MAY 7101P239-60 Contact Us For Availability
6
MAY 7427P010-60 MAY 7427P010-60 Contact Us For Availability
6
MAY 8008P004-60 MAY 8008P004-60 Contact Us For Availability
6
TAPE MAY 8270P098-60 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
MAY 7912P096-60 MAY 7912P096-60 Contact Us For Availability
8
MAY 7701P024-60 MAY 7701P024-60 Contact Us For Availability
8
MAY 7403P109-60 MAY 7403P109-60 Contact Us For Availability
9
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
9
MAY 4005F452-51 MAY 4005F452-51 Contact Us For Availability
9
MAY 2402W130-19 MAY 2402W130-19 Contact Us For Availability
10
MAY 4005F160-45 MAY 4005F160-45 Contact Us For Availability
10
MAY 3605F196-80 MAY 3605F196-80 Contact Us For Availability
10
MAY 7208P008-60 MAY 7208P008-60 Contact Us For Availability
10
MAY 2410W042-19 MAY 2410W042-19 Contact Us For Availability
11
MAY 7406P075-60 MAY 7406P075-60 Contact Us For Availability
11
MAY 3804F021-45 MAY 3804F021-45 Contact Us For Availability
12
MAY 7406P090-60 MAY 7406P090-60 Contact Us For Availability
12
MAY 5125A391-60 MAY 5125A391-60 Contact Us For Availability
12
MAY 74001545 MAY 74001545 Contact Us For Availability
12
MAY 7711P490-60 MAY 7711P490-60 Contact Us For Availability
12
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
13
MAY 7750P025-60 MAY 7750P025-60 Contact Us For Availability
13
MAY 74001522 MAY 74001522 Contact Us For Availability
13
MAY 8112P119-60 MAY 8112P119-60 Contact Us For Availability
13
MAY 2410A042-19 MAY 2410A042-19 Contact Us For Availability
14
MAY 5700A082-60 MAY 5700A082-60 Contact Us For Availability
14
MAY 7706P163-60 MAY 7706P163-60 Contact Us For Availability
14
MAY 16000329 MAY 16000329 Contact Us For Availability
15
MAY 7002P153-60 MAY 7002P153-60 Contact Us For Availability
15
MAY 7002P154-60 MAY 7002P154-60 Contact Us For Availability
15
MAY 7002P163-60 MAY 7002P163-60 Contact Us For Availability
15
MAY 7101P004-60 MAY 7101P004-60 Contact Us For Availability
16
MAY 7756P022-60 MAY 7756P022-60 Contact Us For Availability
17
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
18
MAY 7002P023-60 MAY 7002P023-60 Contact Us For Availability
19
MAY 7106P037-60 MAY 7106P037-60 Contact Us For Availability
19
MAY 7002P021-60 MAY 7002P021-60 Contact Us For Availability
20
MAY 7212P007-60 MAY 7212P007-60 Contact Us For Availability
20
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
20
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
21
MAY 7112P003-60 MAY 7112P003-60 Contact Us For Availability
21
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
21
MAY 8010P015-60 MAY 8010P015-60 Contact Us For Availability
22
MAY 8009P011-60 MAY 8009P011-60 Contact Us For Availability
22
MAY 8010P016-60 MAY 8010P016-60 Contact Us For Availability
25
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
26
MAY 2618F113-51 MAY 2618F113-51 Contact Us For Availability
26
MAY 2618F114-51 MAY 2618F114-51 Contact Us For Availability
27
MAY 7801P005-60 MAY 7801P005-60 Contact Us For Availability
28
MAY 7801P007-60 MAY 7801P007-60 Contact Us For Availability
29
MAY 3804F104-51 MAY 3804F104-51 Contact Us For Availability
30
MAY Y04000052 MAY Y04000052 Contact Us For Availability
31
MAY 3804F096-51 MAY 3804F096-51 Contact Us For Availability
32
MAY 3804F118-51 MAY 3804F118-51 Contact Us For Availability
33
MAY 3604F101-80 MAY 3604F101-80 Contact Us For Availability
34
MAY 3604F048-80 MAY 3604F048-80 Contact Us For Availability
35
MAY 3807F176-19 MAY 3807F176-19 Contact Us For Availability
36
MAY 3807F137-80 MAY 3807F137-80 Contact Us For Availability
37
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
37
MAY 7403P347-60 MAY 7403P347-60 Contact Us For Availability
38
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
40
MAY 2205F003-19 MAY 2205F003-19 Contact Us For Availability
41
MAY 8026P022-60 MAY 8026P022-60 Contact Us For Availability
42
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
42
MAY 8028P004-60 MAY 8028P004-60 Contact Us For Availability
× ![]()
