Model Maytag L9844XPB ELECTRIC WALL OVEN – Common Parts & Diagrams

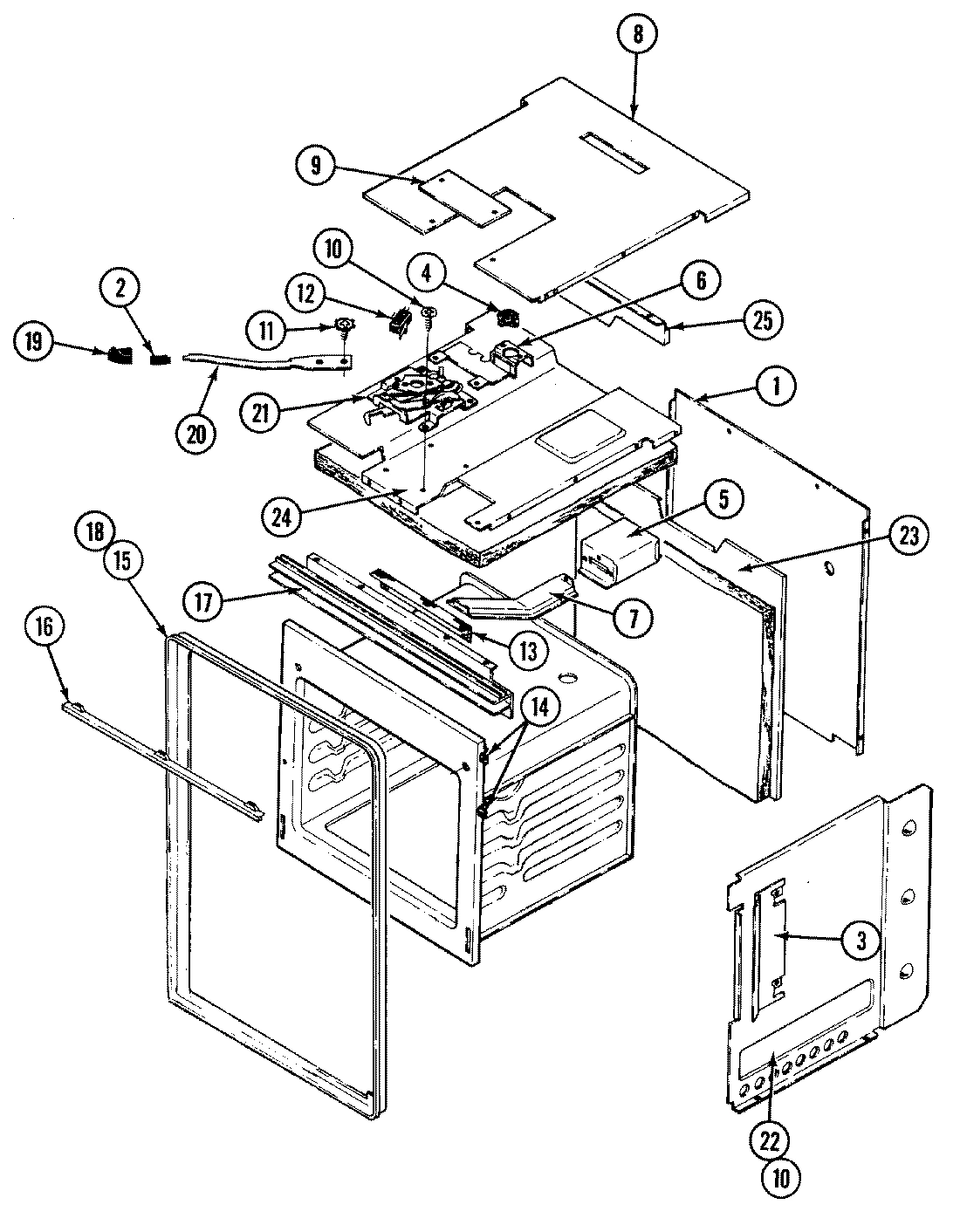

01 - BODY

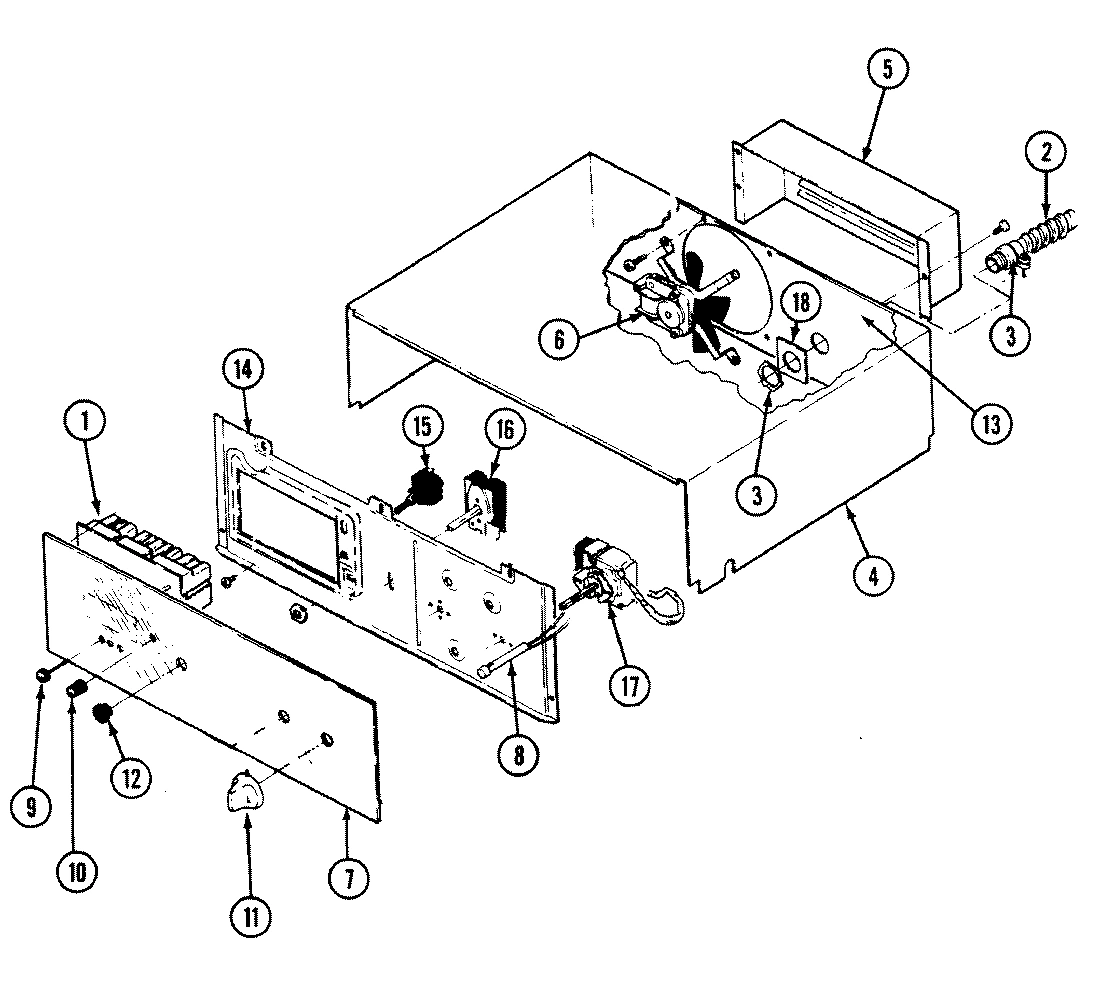

02 - CONTROL PANEL

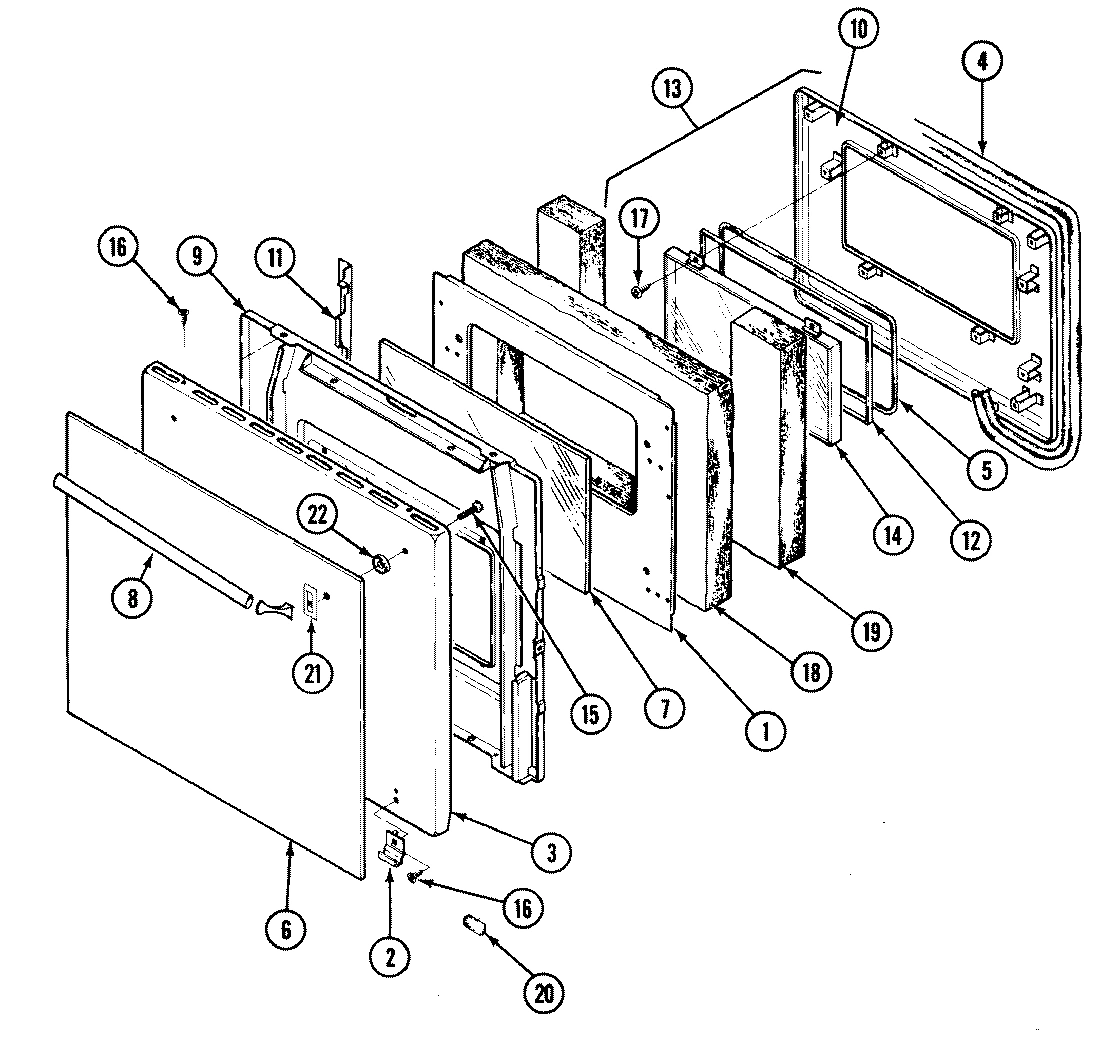

03 - DOOR

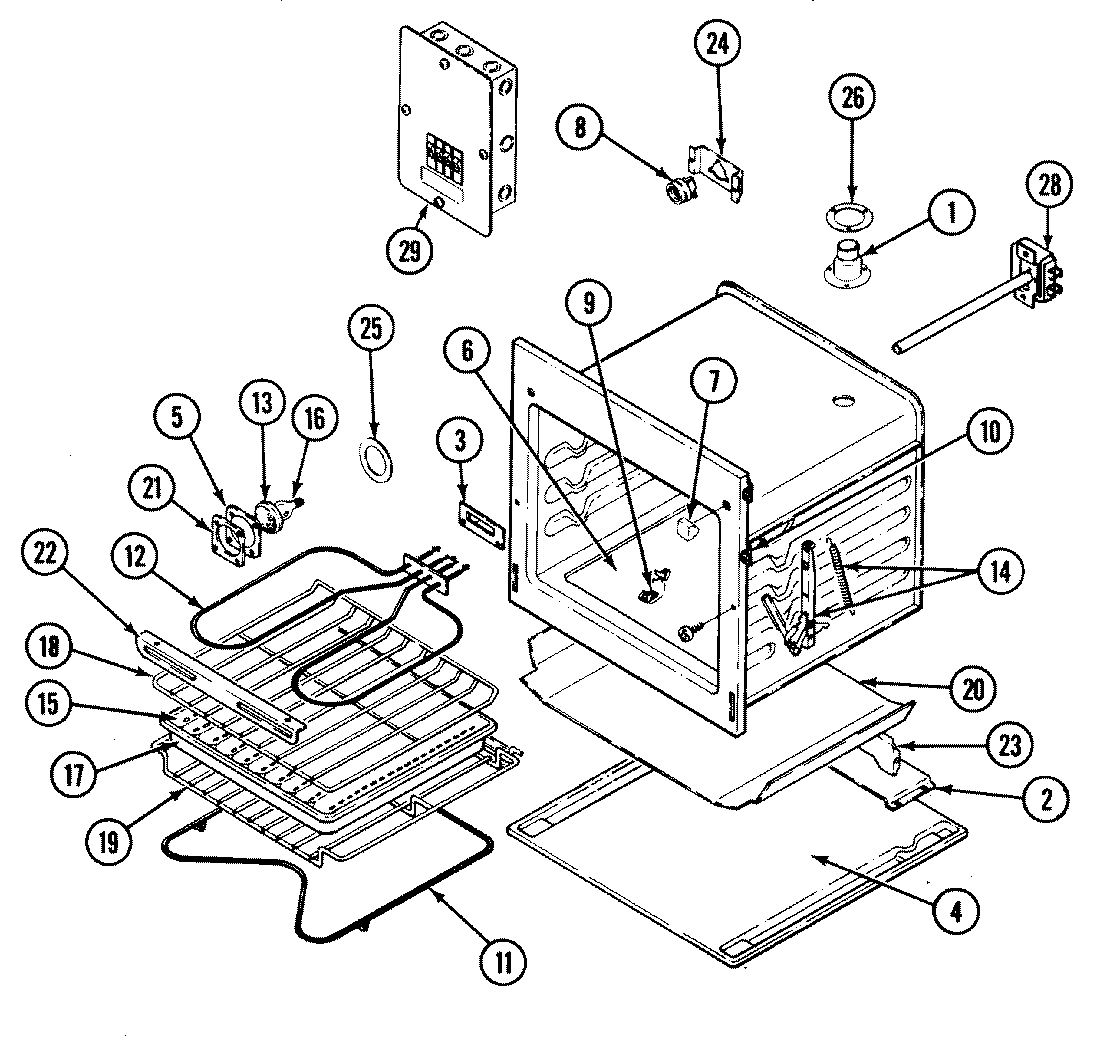

04 - OVEN
Common parts from model Maytag L9844XPB ELECTRIC WALL OVEN
1
MAY 7601P197-60 MAY 7601P197-60 Contact Us For Availability
1
MAY 3601W131-51 MAY 3601W131-51 Contact Us For Availability
1
SCREW (10ABX1.0-ZN) MAY 7101P060-60 Contact Us For Availability
1
MAY 7505P018-60 MAY 7505P018-60 Contact Us For Availability
2
MAY 7434P010-60 MAY 7434P010-60 Contact Us For Availability
2
MAY 3601F005-61 MAY 3601F005-61 Contact Us For Availability
3
MAY 2401F103-70 MAY 2401F103-70 Contact Us For Availability
3
MAY 7201P003-60 MAY 7201P003-60 Contact Us For Availability
3
MAY 5150A051-60 MAY 5150A051-60 Contact Us For Availability
3
MAY 7417P003-60 MAY 7417P003-60 Contact Us For Availability
4
MAY 4005F150-51 MAY 4005F150-51 Contact Us For Availability
4
MAY 7201P053-60 MAY 7201P053-60 Contact Us For Availability
4
MAY 4003F011-80 MAY 4003F011-80 Contact Us For Availability
5
MAY 4005F262-51 MAY 4005F262-51 Contact Us For Availability
5
MAY 7201P018-60 MAY 7201P018-60 Contact Us For Availability
5
MAY 7201P015-60 MAY 7201P015-60 Contact Us For Availability
6
MAY 7902P336-60 MAY 7902P336-60 Contact Us For Availability
6
MAY 7427P006-60 MAY 7427P006-60 Contact Us For Availability
6
MAY 8270P065-60 MAY 8270P065-60 Contact Us For Availability
6
MAY 2205F003-19 MAY 2205F003-19 Contact Us For Availability
7
MAY 7902P097-60 MAY 7902P097-60 Contact Us For Availability
7
MAY 7912P055-60 MAY 7912P055-60 Contact Us For Availability
7
MAY 8003P009-60 MAY 8003P009-60 Contact Us For Availability
8
MAY 7701P024-60 MAY 7701P024-60 Contact Us For Availability
8
MAY 5700A236-60 MAY 5700A236-60 Contact Us For Availability
8
MAY 7408P034-60 MAY 7408P034-60 Contact Us For Availability
9
MAY 7711P171-60 MAY 7711P171-60 Contact Us For Availability
9
MAY 2402W130-19 MAY 2402W130-19 Contact Us For Availability
9
MAY 4005F011-35 MAY 4005F011-35 Contact Us For Availability
10
MAY 7711P172-60 MAY 7711P172-60 Contact Us For Availability
10
MAY 8312P017-60 MAY 8312P017-60 Contact Us For Availability
10
MAY 2410W042-19 MAY 2410W042-19 Contact Us For Availability
10
MAY 7112P020-60 MAY 7112P020-60 Contact Us For Availability
11
MAY 7711P291-60 MAY 7711P291-60 Contact Us For Availability
11
MAY 3804F051-80 MAY 3804F051-80 Contact Us For Availability
11
MAY Y04000047 MAY Y04000047 Contact Us For Availability
12
MAY 7214P007-60 MAY 7214P007-60 Contact Us For Availability
12
MAY 3804F021-45 MAY 3804F021-45 Contact Us For Availability
13
MAY 3605F164-51 MAY 3605F164-51 Contact Us For Availability
13
MAY 2410A042-19 MAY 2410A042-19 Contact Us For Availability
13
MAY 7902P057-60 MAY 7902P057-60 Contact Us For Availability
14
MAY 5700A082-60 MAY 5700A082-60 Contact Us For Availability
14
MAY 7712P020-60 MAY 7712P020-60 Contact Us For Availability
14
MAY 3605F139-80 MAY 3605F139-80 Contact Us For Availability
14
MAY 7106P037-60 MAY 7106P037-60 Contact Us For Availability
15
MAY 7750P025-60 MAY 7750P025-60 Contact Us For Availability
15
MAY 7403P109-60 MAY 7403P109-60 Contact Us For Availability
15
MAY 7101P004-60 MAY 7101P004-60 Contact Us For Availability
15
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
16
MAY 7706P163-60 MAY 7706P163-60 Contact Us For Availability
16
MAY 7403P023-60 MAY 7403P023-60 Contact Us For Availability
16
MAY 7101P276-60 MAY 7101P276-60 Contact Us For Availability
16
MAY 4001W012-51 MAY 4001W012-51 Contact Us For Availability
16
MAY 7002P094-60 MAY 7002P094-60 Contact Us For Availability
16
MAY 7407P095-60 MAY 7407P095-60 Contact Us For Availability
17
MAY 7404P039-60 MAY 7404P039-60 Contact Us For Availability
17
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
17
MAY 7103P040-60 MAY 7103P040-60 Contact Us For Availability
17
MAY 7103P051-60 MAY 7103P051-60 Contact Us For Availability
17
MAY 7756P022-60 MAY 7756P022-60 Contact Us For Availability
17
MAY 7101P061-60 MAY 7101P061-60 Contact Us For Availability
17
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
18
MAY 3605F131-51 MAY 3605F131-51 Contact Us For Availability
18
MAY 5180A118-60 MAY 5180A118-60 Contact Us For Availability
18
MAY 5180A119-60 MAY 5180A119-60 Contact Us For Availability
18
MAY 7401P003-60 MAY 7401P003-60 Contact Us For Availability
18
MAY 7401P006-60 MAY 7401P006-60 Contact Us For Availability
18
MAY 7401P011-60 MAY 7401P011-60 Contact Us For Availability
18
MAY 7401P013-60 MAY 7401P013-60 Contact Us For Availability
18
MAY 7002P023-60 MAY 7002P023-60 Contact Us For Availability
18
MAY 7801P005-60 MAY 7801P005-60 Contact Us For Availability
19
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
19
MAY 7002P021-60 MAY 7002P021-60 Contact Us For Availability
19
MAY 7801P007-60 MAY 7801P007-60 Contact Us For Availability
20
MAY 8009P011-60 MAY 8009P011-60 Contact Us For Availability
20
MAY 8112P038-60 MAY 8112P038-60 Contact Us For Availability
20
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
20
MAY 3804F104-51 MAY 3804F104-51 Contact Us For Availability
21
MAY 3801F127-51 MAY 3801F127-51 Contact Us For Availability
21
MAY 7003P001-60 MAY 7003P001-60 Contact Us For Availability
21
MAY 8010P015-60 MAY 8010P015-60 Contact Us For Availability
21
MAY 3804F011-45 MAY 3804F011-45 Contact Us For Availability
22
MAY 2618F053-51 MAY 2618F053-51 Contact Us For Availability
22
MAY 2618F054-51 MAY 2618F054-51 Contact Us For Availability
22
MAY 8010P016-60 MAY 8010P016-60 Contact Us For Availability
22
MAY 3807F176-19 MAY 3807F176-19 Contact Us For Availability
23
MAY 3804F096-51 MAY 3804F096-51 Contact Us For Availability
23
MAY 3807F137-80 MAY 3807F137-80 Contact Us For Availability
24
MAY 3804F053-51 MAY 3804F053-51 Contact Us For Availability
24
MAY 3801F024-51 MAY 3801F024-51 Contact Us For Availability
25
MAY 3604F101-80 MAY 3604F101-80 Contact Us For Availability
25
MAY 7201P014-60 MAY 7201P014-60 Contact Us For Availability
26
MAY 7201P016-60 MAY 7201P016-60 Contact Us For Availability
27
MAY Y7101P25460 MAY Y7101P25460 Contact Us For Availability
28
MAY 3605F166-51 MAY 3605F166-51 Contact Us For Availability
28
MAY 7404P057-60 MAY 7404P057-60 Contact Us For Availability
29
MAY 8028P004-60 MAY 8028P004-60 Contact Us For Availability
× ![]()
