Model RCA L3K340GL1 Electric Range – Common Parts & Diagrams
0
1
2
Common parts from model RCA L3K340GL1 Electric Range
1
GEN WB37M0002 GEN WB37M0002 Contact Us For Availability
2
END CAP LT GEN WB07X1693 Contact Us For Availability
2
END CAP RT GEN WB07X1694 Contact Us For Availability
3
GEN WB07X1713 GEN WB07X1713 Contact Us For Availability
5
GEN WB20M0003 GEN WB20M0003 Contact Us For Availability
6
HOUSING CONTROL TOP GEN WB63M0005 Contact Us For Availability
7
CONTROL PANEL BRACKET GEN WB02X9658 Contact Us For Availability
8
GEN WB02X9884 GEN WB02X9884 Contact Us For Availability
9
RACEWAY-UPPER GEN WB63M0007 Contact Us For Availability
9
RACEWAY-LOWER GEN WB63M0008 Contact Us For Availability
11
HOUSING CONTROL TOP GEN WB56X1995 Contact Us For Availability
12
GEN WB63X0388 GEN WB63X0388 Contact Us For Availability
13
GEN WB02X9668 GEN WB02X9668 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB19X0267 Contact Us For Availability
17
GEN WB12M0001 GEN WB12M0001 Contact Us For Availability
18
CLOCK PLATE GEN WB02X9669 Contact Us For Availability
21
GRAY ROCKER SWITCH GEN WB24X0450 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0780 Contact Us For Availability
31
GEN WB27M0001 GEN WB27M0001 Contact Us For Availability
32
FAN ASM GEN WB26X0113 Contact Us For Availability
34
GEN WB25X0098 GEN WB25X0098 Contact Us For Availability
40
GEN WB03M0005 GEN WB03M0005 Contact Us For Availability
41
GEN WB02X9667 GEN WB02X9667 Contact Us For Availability
42
HEAT SHIELD GEN WB02X9660 Contact Us For Availability
43
PCB SPACER GEN WB02X9657 Contact Us For Availability

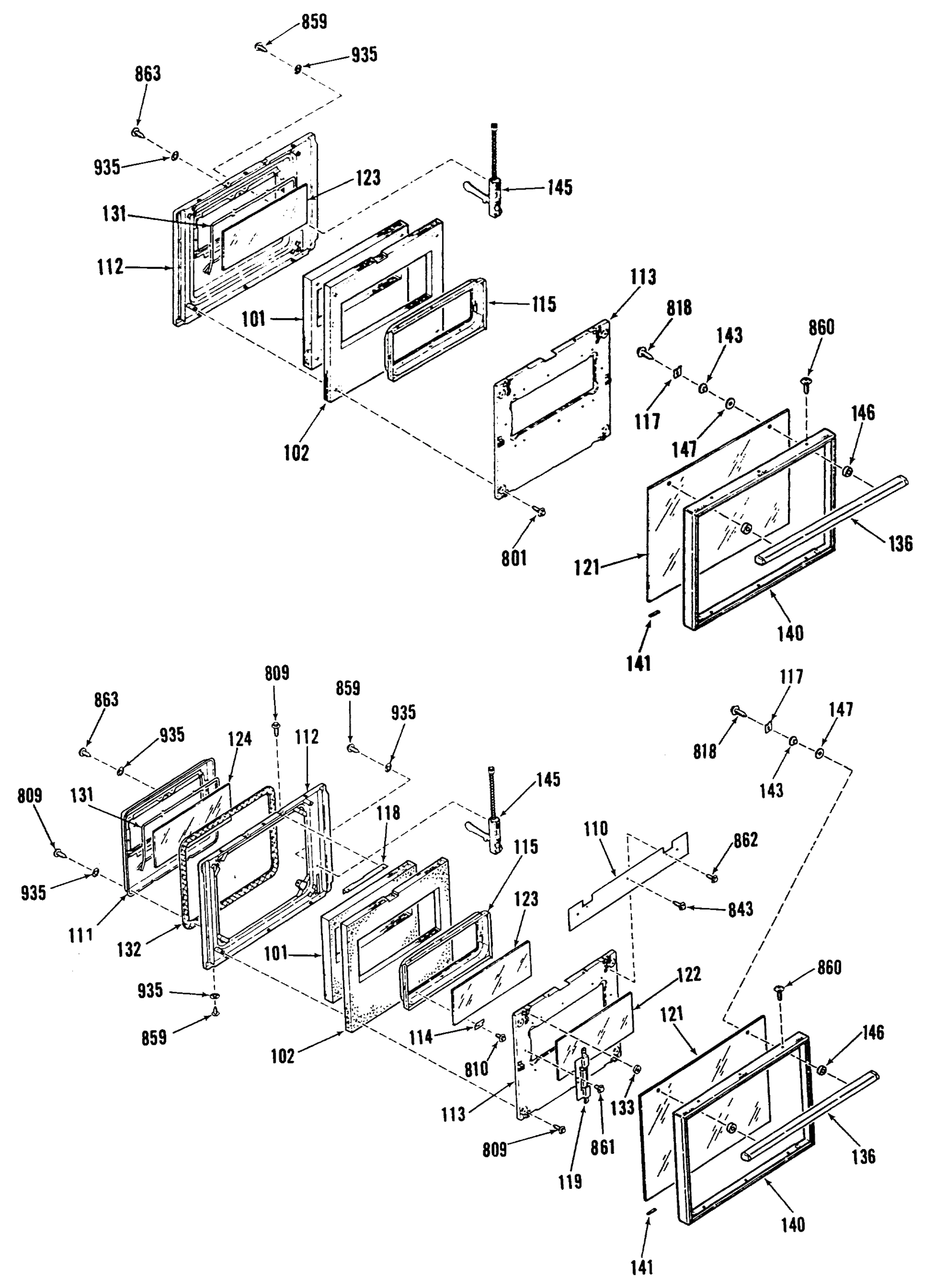

102
OV DR LINING INSULATION GEN WB02X9685 Contact Us For Availability
110
GEN WB02X9689 GEN WB02X9689 Contact Us For Availability
111
GEN WB55K5019 GEN WB55K5019 Contact Us For Availability
112
OV DR LINING ASM-UPPER GEN WB55K5020 Contact Us For Availability
112
GEN WB55K5021 GEN WB55K5021 Contact Us For Availability
113
GEN WB02X9687 GEN WB02X9687 Contact Us For Availability
114
DR GLASS RETAINER GEN WB02X9177 Contact Us For Availability
115
INSULATION RETAINER GEN WB02X9690 Contact Us For Availability
117
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
118
OV DR LINING STIFFENER GEN WB55M0001 Contact Us For Availability
119
GEN WB02M0018 GEN WB02M0018 Contact Us For Availability
121
OV DR OUTER GLASS GEN WB36X0782 Contact Us For Availability
122
GEN WB36X0783 GEN WB36X0783 Contact Us For Availability
123
GEN WB36X0784 GEN WB36X0784 Contact Us For Availability
124
GEN WB57M0001 GEN WB57M0001 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0289 Contact Us For Availability
140
OV DR FRAME GEN WB07X1716 Contact Us For Availability
141
GEN WB02X9036 GEN WB02X9036 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
145
GEN WB10M0002 GEN WB10M0002 Contact Us For Availability
145
OV DR HINGE-UPPER GEN WB14X0144 Contact Us For Availability
146
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
151
GEN WB10X0268 GEN WB10X0268 Contact Us For Availability
161
GEN WB24X0453 GEN WB24X0453 Contact Us For Availability
169
GEN WB02X9681 GEN WB02X9681 Contact Us For Availability
191
GEN WB02M9670 GEN WB02M9670 Contact Us For Availability
192
LOCK KNOB GEN WB03X0809 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
LOCK SPRING GEN WB09X0251 Contact Us For Availability
201
GEN WB63M0011 GEN WB63M0011 Contact Us For Availability
201
OVEN BODY ASM-UPPER GEN WB63M0014 Contact Us For Availability
202
GEN WB63M0012 GEN WB63M0012 Contact Us For Availability
202
FRONT FRAME-UPPER GEN WB63X0395 Contact Us For Availability
203
MAIN BACK GEN WB63M0015 Contact Us For Availability
209
GEN WB63M0006 GEN WB63M0006 Contact Us For Availability
211
GEN WB02M0017 GEN WB02M0017 Contact Us For Availability
212
GEN WB35M0001 GEN WB35M0001 Contact Us For Availability
213
GEN WB02M0016 GEN WB02M0016 Contact Us For Availability
221
CABINET SIDE LT & RT GEN WB63M0017 Contact Us For Availability
223
GEN WB63M0016 GEN WB63M0016 Contact Us For Availability
227
INSULATION RETAINER GEN WB63X0394 Contact Us For Availability
231
OV TOP & SIDE INSULATION GEN WB02X9676 Contact Us For Availability
231
OV TOP INS RETAINER ASM GEN WB63X0397 Contact Us For Availability
232
OV BTM & BACK INSULATION GEN WB02X9692 Contact Us For Availability
233
DR SPRING INSULATION GEN WB02X9592 Contact Us For Availability
235
OV LITE INSULATION UP/LO GEN WB02X9430 Contact Us For Availability
236
GEN WB02M0015 GEN WB02M0015 Contact Us For Availability
241
GEN WB48M0002 GEN WB48M0002 Contact Us For Availability
242
OV RACK GUIDE GEN WB48M0001 Contact Us For Availability
250
GEN WB63M0013 GEN WB63M0013 Contact Us For Availability
251
GEN WB44M0003 GEN WB44M0003 Contact Us For Availability
252
GEN WB44M0004 GEN WB44M0004 Contact Us For Availability
256
OV LAMP HOLDER GEN WB08X0295 Contact Us For Availability
257
OVEN LIGHT GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
LENS RETAINER GEN WB02X9150 Contact Us For Availability
262
GEN WB07X1717 GEN WB07X1717 Contact Us For Availability
262
GEN WB07X1817 GEN WB07X1817 Contact Us For Availability
262
FRT LOWER TRIM GEN WB63M0033 Contact Us For Availability
263
GEN WB02X9634 GEN WB02X9634 Contact Us For Availability
264
GEN WB07M0004 GEN WB07M0004 Contact Us For Availability
265
ACCESS PLATE GEN WB02X9682 Contact Us For Availability
275
GEN WB32M0003 GEN WB32M0003 Contact Us For Availability
275
GEN WB32M0004 GEN WB32M0004 Contact Us For Availability
278
OVEN VENT CLAMP GEN WB02X9678 Contact Us For Availability
279
GEN WB38M0003 GEN WB38M0003 Contact Us For Availability
279
GEN WB63M0010 GEN WB63M0010 Contact Us For Availability
280
GEN WB10M0003 GEN WB10M0003 Contact Us For Availability
281
HINGE BOX ASM LT. OR RT. GEN WB10M0001 Contact Us For Availability
282
OV VENT TUBE-UPPER GEN WB02X9679 Contact Us For Availability
282
GEN WB38M0002 GEN WB38M0002 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
294
GEN WB02X9675 GEN WB02X9675 Contact Us For Availability
299
THMST BULB RETAINER CLIP GEN WB02X9105 Contact Us For Availability
300
FRONT TRIM SPACER GEN WB02M0014 Contact Us For Availability
590
CONDUIT NUT GEN WB01X1299 Contact Us For Availability
595
COND HARNESS PLATE GEN WB02X9666 Contact Us For Availability
600
GEN WB18M0008 GEN WB18M0008 Contact Us For Availability
802
GEN WB01X1265 GEN WB01X1265 Contact Us For Availability
809
GEN WB01M0002 GEN WB01M0002 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
854
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
856
SCREW GEN WB01X1271 Contact Us For Availability
857
GEN WB01X1324 GEN WB01X1324 Contact Us For Availability
859
GEN WB01X1186 GEN WB01X1186 Contact Us For Availability
860
GEN WB01X1325 GEN WB01X1325 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
863
GEN WB01X1341 GEN WB01X1341 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
987
NUT SPEED GEN WB01X1311 Contact Us For Availability
999
GEN 31-0731 GEN 31-0731 Contact Us For Availability
999
GEN 79-4032 GEN 79-4032 Contact Us For Availability
× ![]()
