Model RCA L3J335GL0 Electric Range – Common Parts & Diagrams

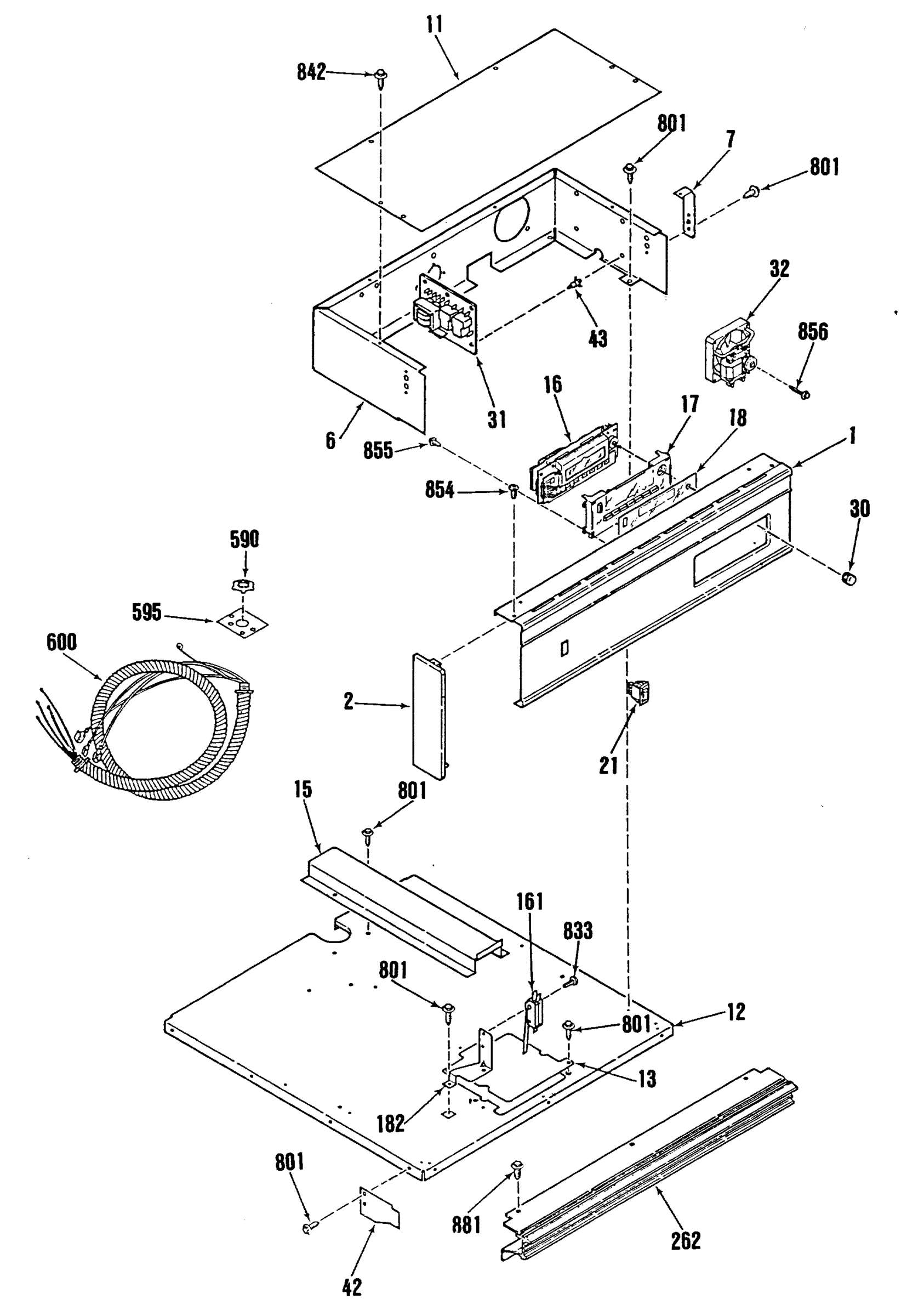

0

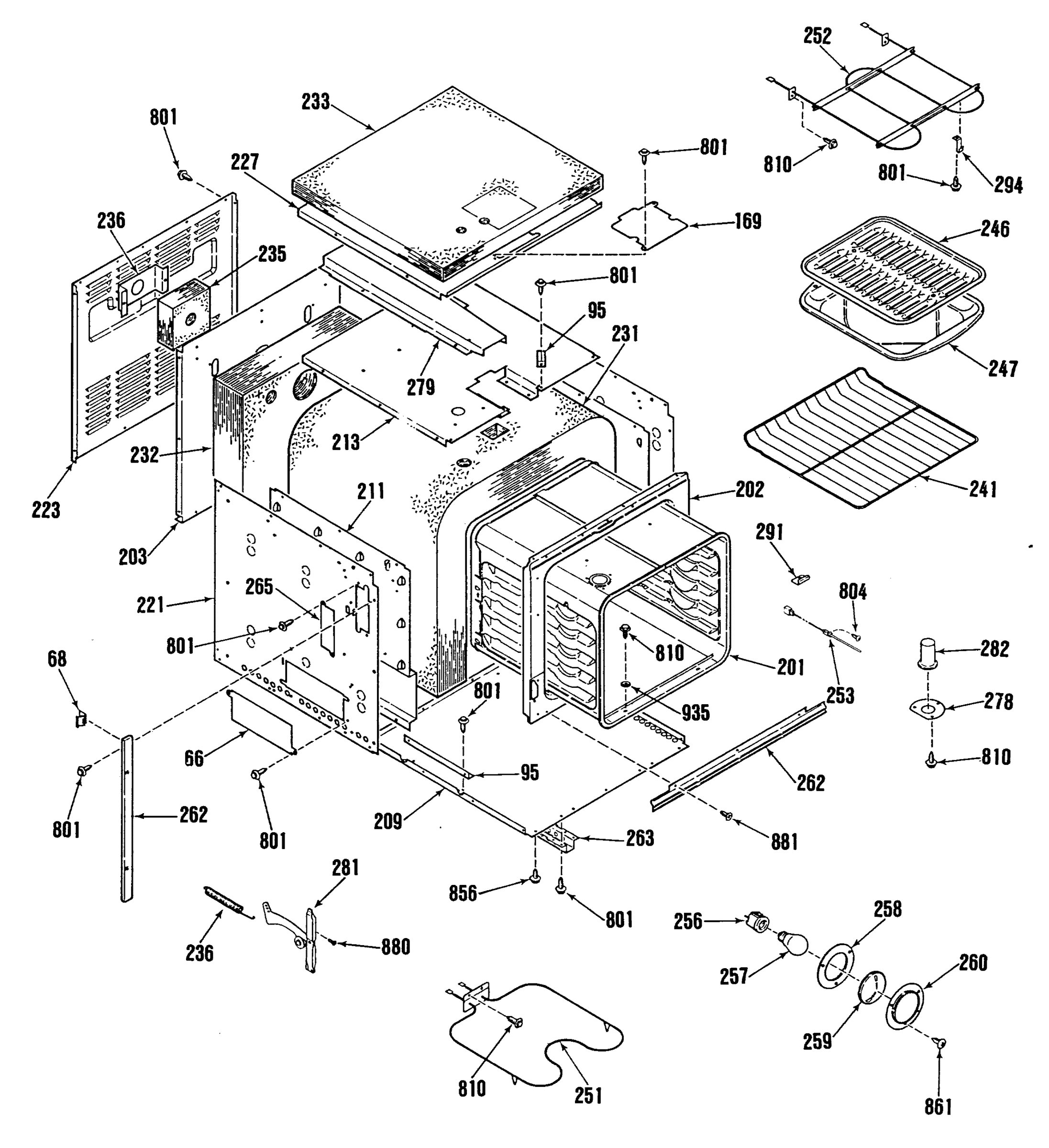

1

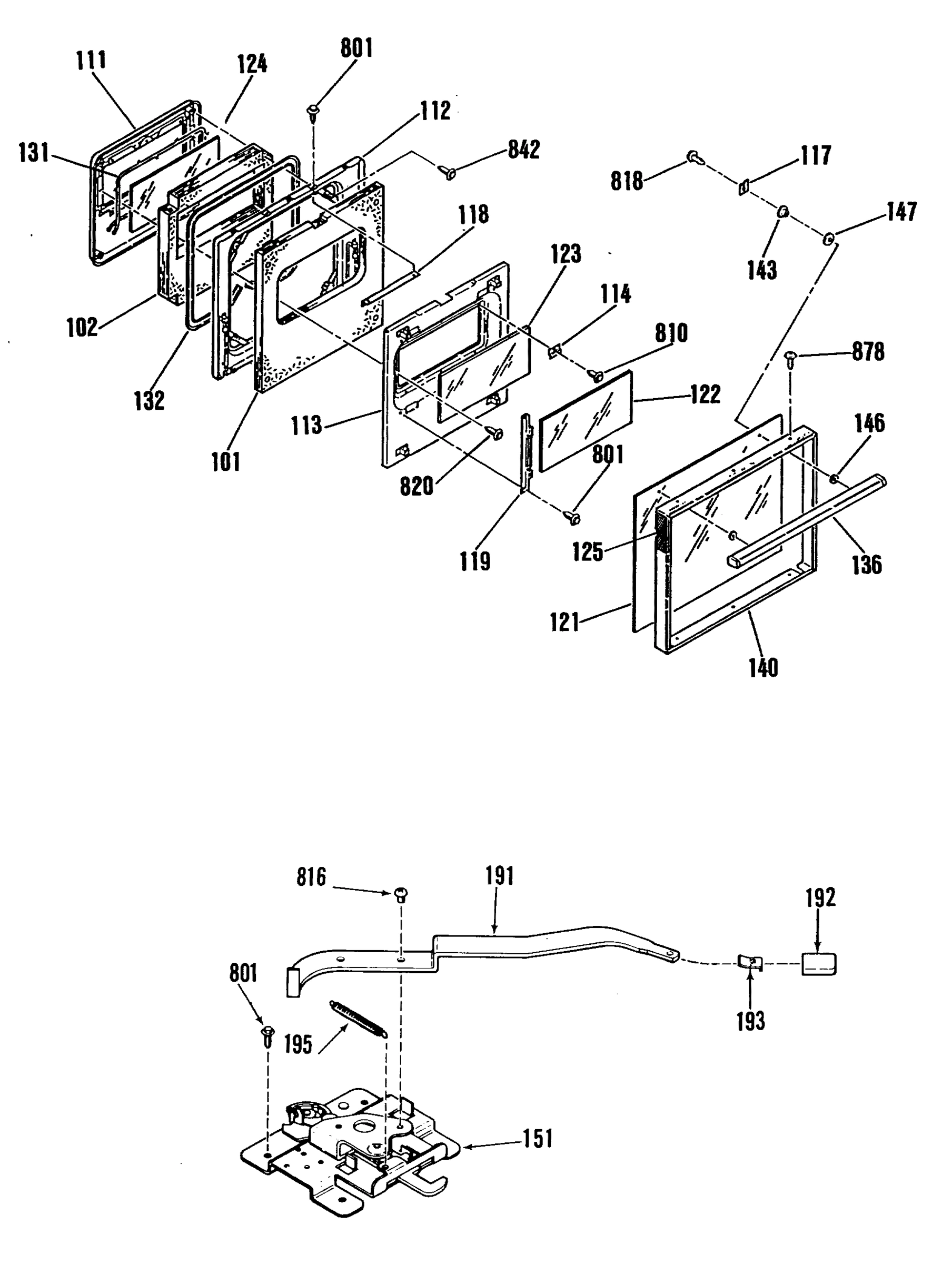

2
Common parts from model RCA L3J335GL0 Electric Range
1
GEN WB07X1774 GEN WB07X1774 Contact Us For Availability
2
END CAP LT GEN WB07X1693 Contact Us For Availability
2
END CAP RT GEN WB07X1694 Contact Us For Availability
6
HOUSING CONTROL TOP GEN WB63M0005 Contact Us For Availability
7
CONTROL PANEL BRACKET GEN WB02X9658 Contact Us For Availability
11
CONTROL HOUSING GEN WB56X1995 Contact Us For Availability
12
GEN WB63M0043 GEN WB63M0043 Contact Us For Availability
13
GEN WB02X9681 GEN WB02X9681 Contact Us For Availability
16
GEN WB19X0267 GEN WB19X0267 Contact Us For Availability
17
CLOCK LENS ASM GEN WB25M0004 Contact Us For Availability
18
CLOCK PLATE GEN WB02X9669 Contact Us For Availability
21
SWITCH ROCKER GEN WB24X0450 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0780 Contact Us For Availability
31
GEN WB27M0001 GEN WB27M0001 Contact Us For Availability
32
FAN ASM GEN WB26X0113 Contact Us For Availability
42
HEAT SHIELD GEN WB02X9660 Contact Us For Availability
43
PCB SPACER GEN WB02X9657 Contact Us For Availability
66
COVER PLATE GEN WB02X9642 Contact Us For Availability
68
FRONT TRIM SPACER GEN WB02M0040 Contact Us For Availability
95
GEN WB02M0030 GEN WB02M0030 Contact Us For Availability
95
INS RETAINER BRACKET GEN WB02M0041 Contact Us For Availability
101
OV DR INS LINING GEN WB02X9654 Contact Us For Availability
102
OV DR PLUG INSULATION GEN WB02X9652 Contact Us For Availability
111
OV DR LING PLUG GEN WB55K5014 Contact Us For Availability
112
OV DR LINING GEN WB55K5015 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X2007 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
118
LINING OV DR STIFFENER GEN WB55M0001 Contact Us For Availability
119
OV DR GLASS RETAINER GEN WB02X9655 Contact Us For Availability
121
OVEN DOOR OUTER GLASS GEN WB36X0776 Contact Us For Availability
122
OV DR INNER GLASS GEN WB36X0778 Contact Us For Availability
124
GEN WB57M0022 GEN WB57M0022 Contact Us For Availability
132
GEN WB02X9653 GEN WB02X9653 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0287 Contact Us For Availability
140
OV DOOR FRAME GEN WB07X1692 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
151
GEN WB10X0268 GEN WB10X0268 Contact Us For Availability
161
GEN WB24X0453 GEN WB24X0453 Contact Us For Availability
169
GEN WB02X9668 GEN WB02X9668 Contact Us For Availability
182
GEN WB02X9667 GEN WB02X9667 Contact Us For Availability
191
GEN WB02X9670 GEN WB02X9670 Contact Us For Availability
192
LOCK KNOB GEN WB03X0809 Contact Us For Availability
193
KNOB CLIP GEN WB02X9404 Contact Us For Availability
195
GEN WB09X0251 GEN WB09X0251 Contact Us For Availability
201
GEN WB63M0002 GEN WB63M0002 Contact Us For Availability
202
GEN WB63M0046 GEN WB63M0046 Contact Us For Availability
203
GEN WB63M0042 GEN WB63M0042 Contact Us For Availability
209
GEN WB63M0041 GEN WB63M0041 Contact Us For Availability
211
GEN WB02M0043 GEN WB02M0043 Contact Us For Availability
213
GEN WB02M0039 GEN WB02M0039 Contact Us For Availability
221
GEN WB63M0044 GEN WB63M0044 Contact Us For Availability
227
GEN WB02M0042 GEN WB02M0042 Contact Us For Availability
231
INSULATION OV TOP & SIDE GEN WB02X9676 Contact Us For Availability
232
GEN WB35M0007 GEN WB35M0007 Contact Us For Availability
233
GEN WB35M0008 GEN WB35M0008 Contact Us For Availability
235
INSULATION OV LIGHT GEN WB02X9430 Contact Us For Availability
236
GEN WB02M0015 GEN WB02M0015 Contact Us For Availability
236
OV DR SPRING GEN WB09X0261 Contact Us For Availability
251
GEN WB44M0006 GEN WB44M0006 Contact Us For Availability
256
OV LAMP HOLDER GEN WB08X0295 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LITE LENS RETAINER GEN WB02X9150 Contact Us For Availability
262
GEN WB07M0010 GEN WB07M0010 Contact Us For Availability
262
GEN WB07M0011 GEN WB07M0011 Contact Us For Availability
262
LOWER FRONT FRAME TRIM GEN WB07M0012 Contact Us For Availability
263
GEN WB02X9634 GEN WB02X9634 Contact Us For Availability
265
GEN WB02X9682 GEN WB02X9682 Contact Us For Availability
278
GEN WB02X9678 GEN WB02X9678 Contact Us For Availability
279
GEN WB38M0008 GEN WB38M0008 Contact Us For Availability
281
HINGE LT GEN WB14X0140 Contact Us For Availability
281
HINGE RT GEN WB14X0141 Contact Us For Availability
282
GEN WB02X9679 GEN WB02X9679 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
294
GEN WB02X9675 GEN WB02X9675 Contact Us For Availability
590
CONDUIT NUT GEN WB01X1299 Contact Us For Availability
595
CONDUIT HARNESS PLATE GEN WB02X9666 Contact Us For Availability
600
GEN WB18X0371 GEN WB18X0371 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
854
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
878
SCREW GEN WB01X1317 Contact Us For Availability
881
GEN WB01X1271 GEN WB01X1271 Contact Us For Availability
935
GEN WB01X1201 GEN WB01X1201 Contact Us For Availability
999
GEN 31-0730 GEN 31-0730 Contact Us For Availability
999
GEN 31-0915 GEN 31-0915 Contact Us For Availability
999
GEN 79-4025 GEN 79-4025 Contact Us For Availability
999
GEN WB18M0039 GEN WB18M0039 Contact Us For Availability
999
GEN WB18M0041 GEN WB18M0041 Contact Us For Availability
999
GEN WB18X0384 GEN WB18X0384 Contact Us For Availability
999
GEN WB27X0520 GEN WB27X0520 Contact Us For Availability
× ![]()
