Model Maytag L3872XYB ELECTRIC RANGE – Common Parts & Diagrams

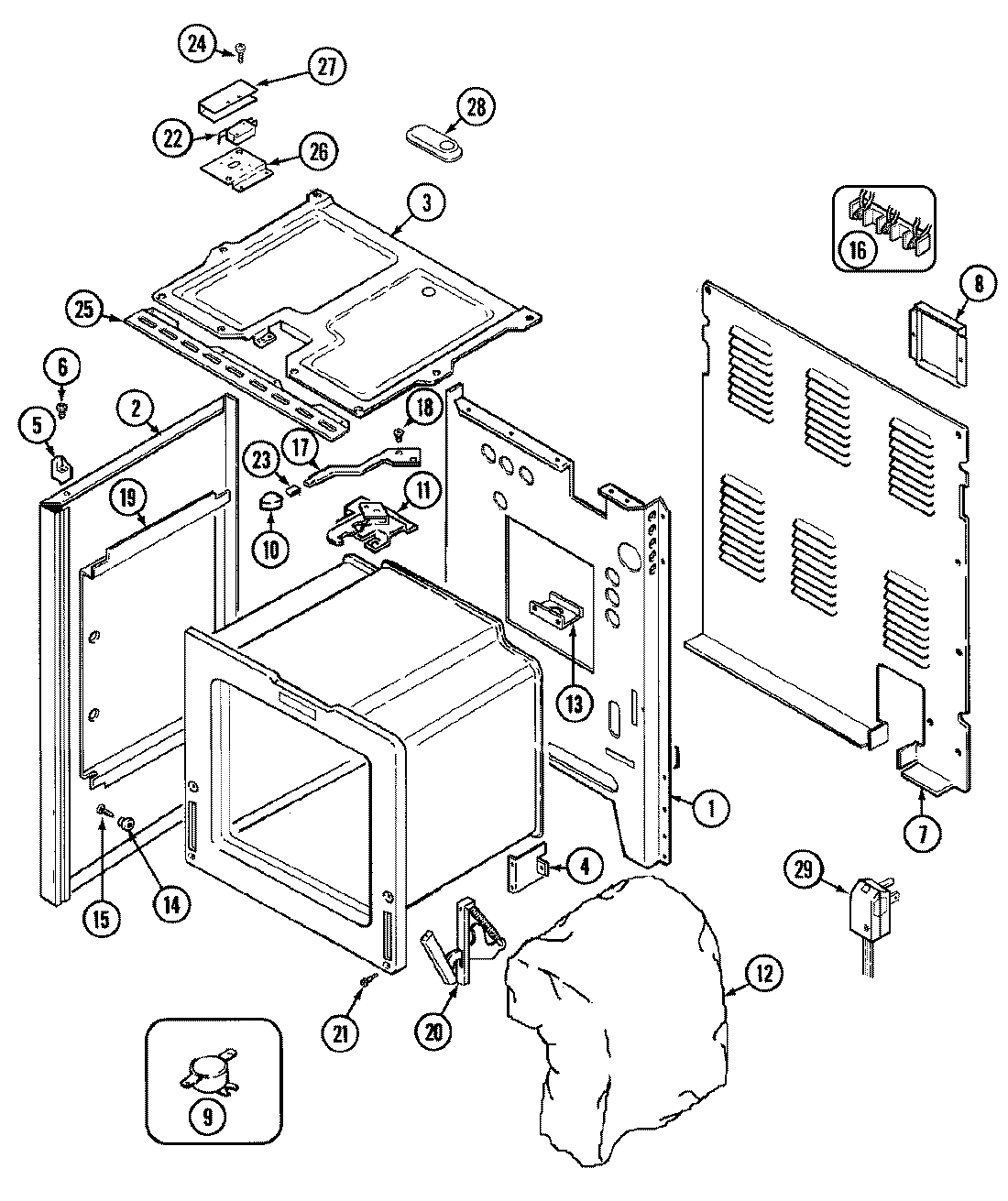

01 - BODY

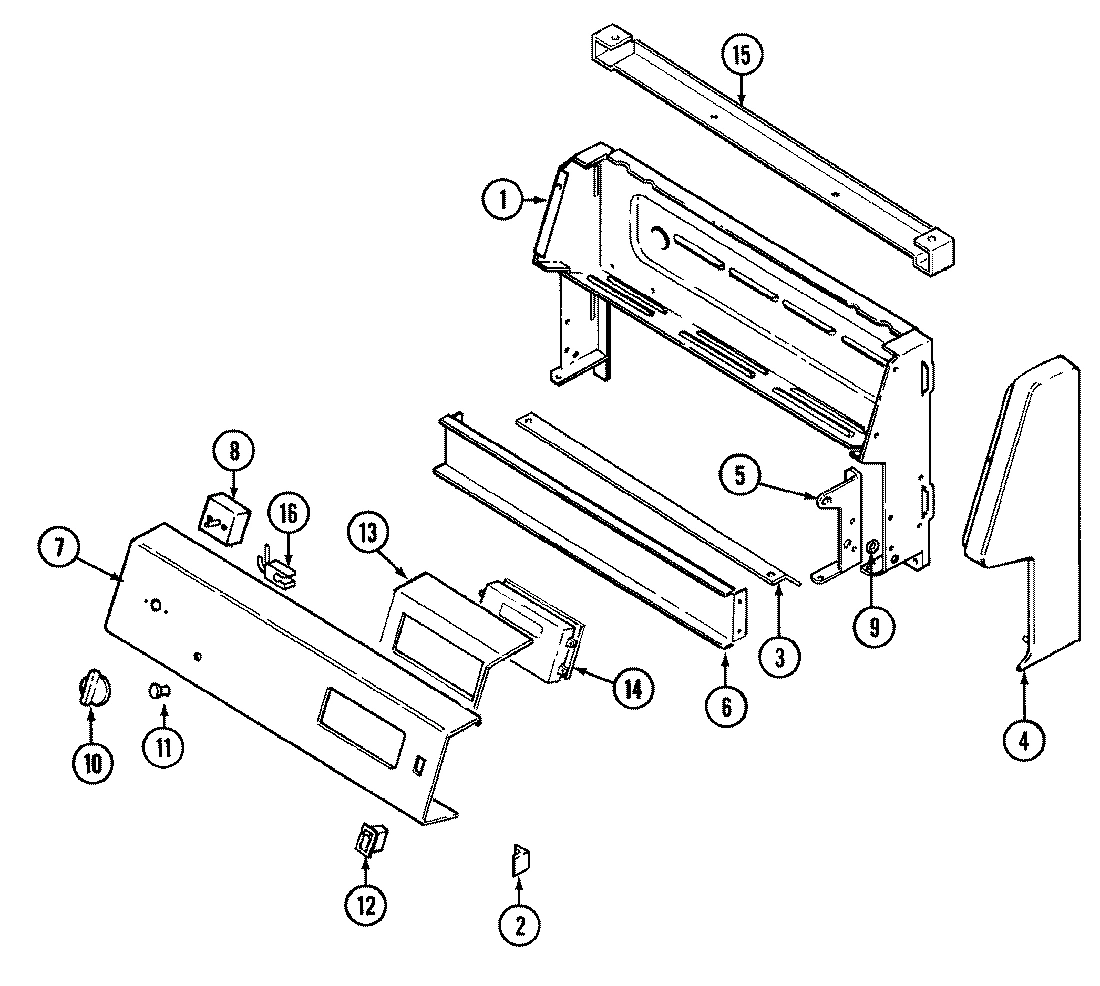

02 - CONTROL PANEL

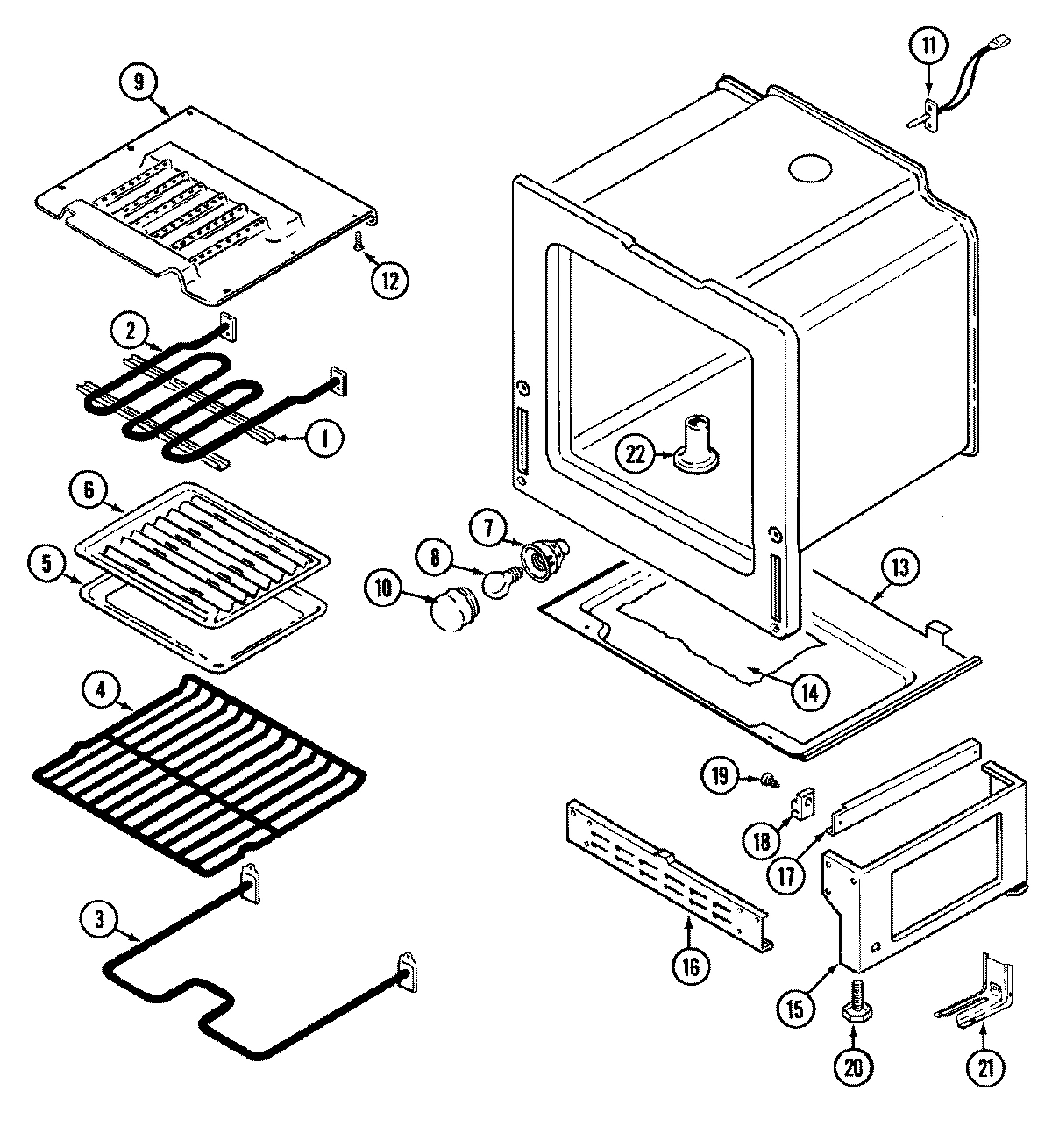

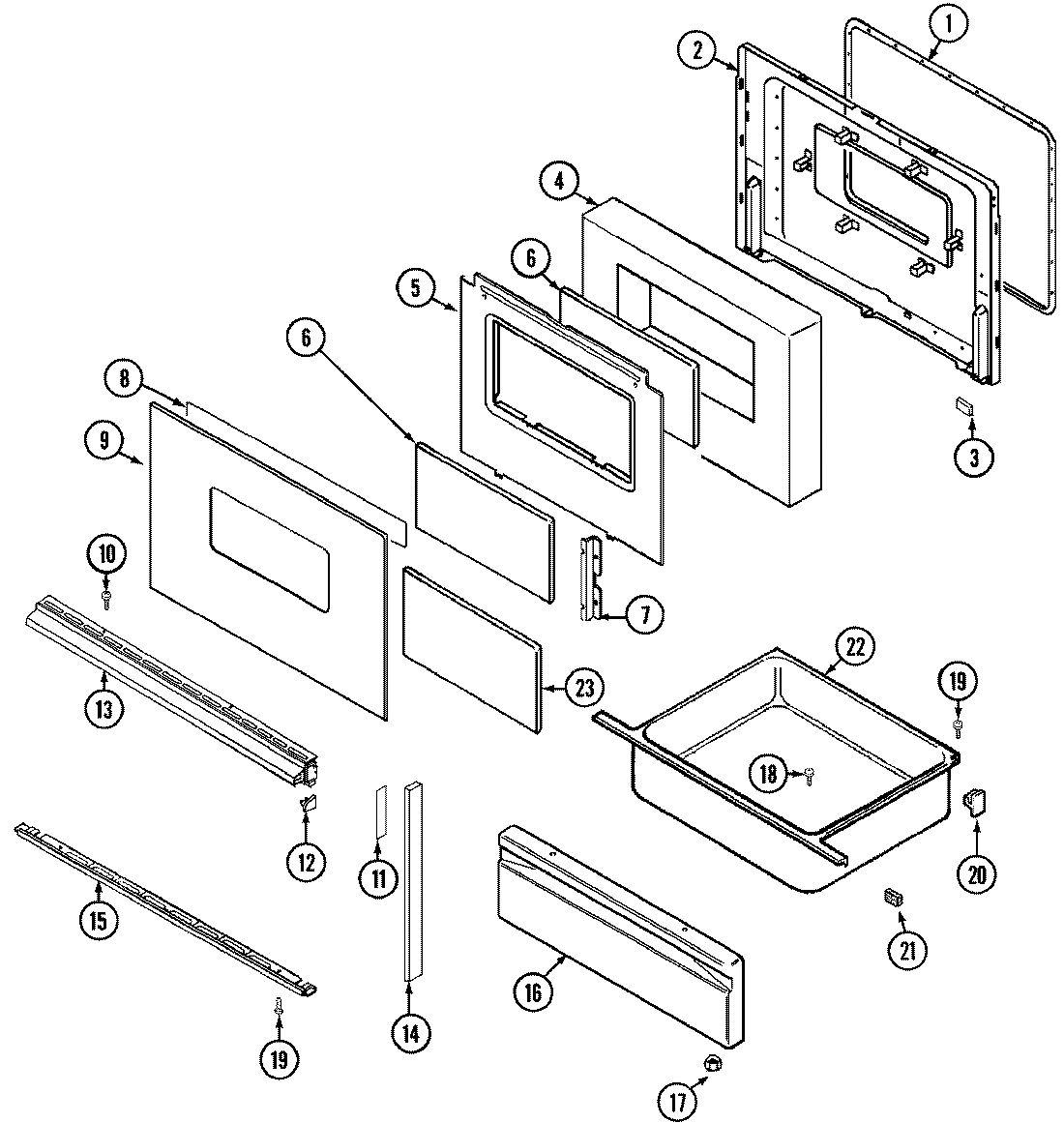

03 - DOOR/DRAWER
04 - OVEN/BASE

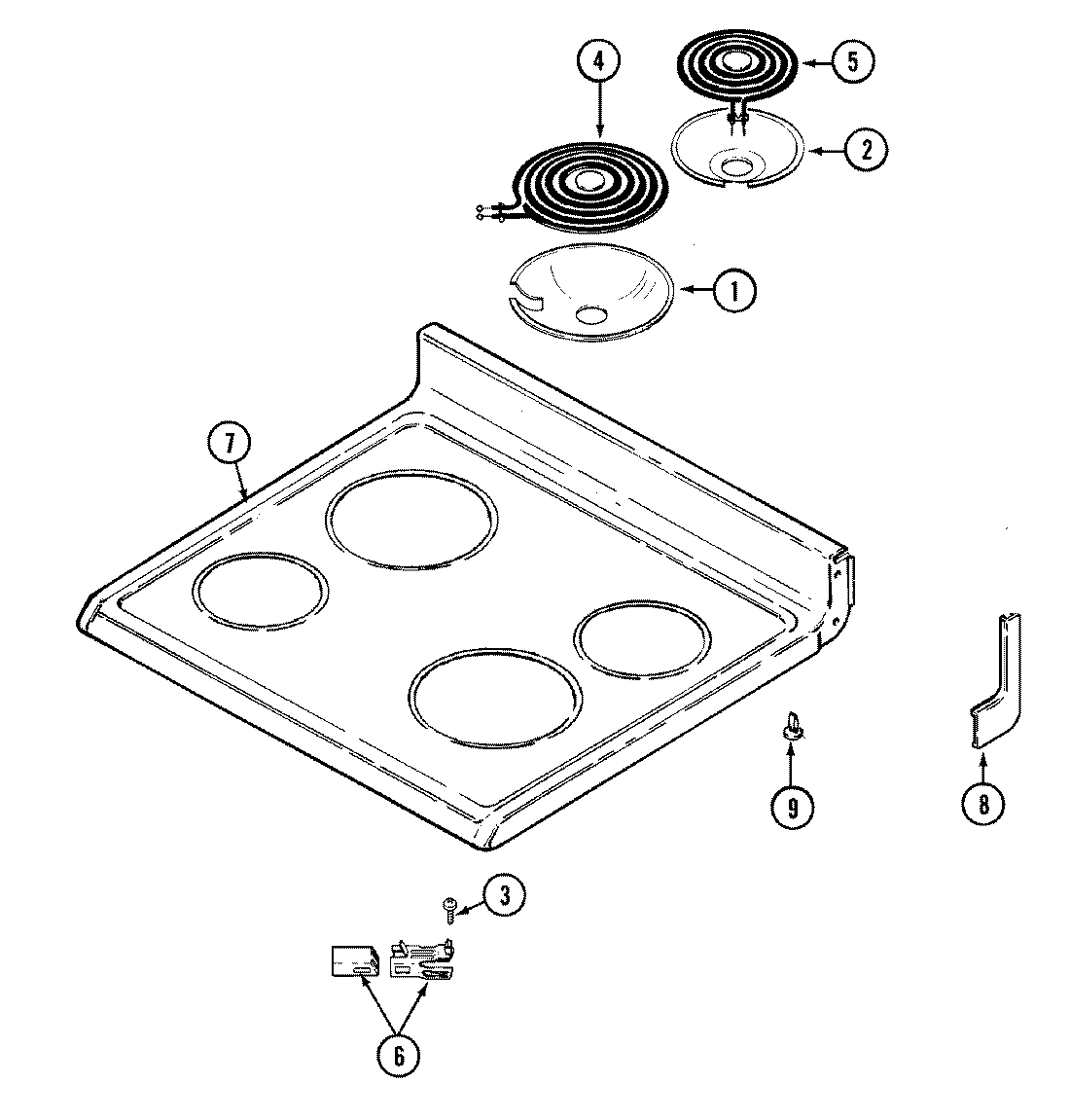

05 - TOP ASSEMBLY
06 - WIRING INFORMATION
Common parts from model Maytag L3872XYB ELECTRIC RANGE
1
MAY 74002162 MAY 74002162 Contact Us For Availability
1
MAY 3807F387-45 MAY 3807F387-45 Contact Us For Availability
1
MAY Y04100393 MAY Y04100393 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
2
MAY 74003244 MAY 74003244 Contact Us For Availability
2
MAY 74002961 MAY 74002961 Contact Us For Availability
2
MAY 7725P040-60 MAY 7725P040-60 Contact Us For Availability
3
MAY 3604F201-80 MAY 3604F201-80 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY Y04000058 MAY Y04000058 Contact Us For Availability
3
SCREW MAY 7101P349-60 Contact Us For Availability
4
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
4
MAY 74001352 MAY 74001352 Contact Us For Availability
4
MAY 74001355 MAY 74001355 Contact Us For Availability
4
MAY 74001842 MAY 74001842 Contact Us For Availability
4
MAY 7801P047-60 MAY 7801P047-60 Contact Us For Availability
4
MAY 74001774 MAY 74001774 Contact Us For Availability
5
MAY 3807F453-51 MAY 3807F453-51 Contact Us For Availability
5
MAY 3807F454-51 MAY 3807F454-51 Contact Us For Availability
5
MAY 74001843 MAY 74001843 Contact Us For Availability
5
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
5
MAY 74001776 MAY 74001776 Contact Us For Availability
6
MAY 3802F088-51 MAY 3802F088-51 Contact Us For Availability
6
MAY 74001841 MAY 74001841 Contact Us For Availability
6
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
6
MAY 1430306K MAY 1430306K Contact Us For Availability
7
MAY 74001002 MAY 74001002 Contact Us For Availability
7
MAY 74001844 MAY 74001844 Contact Us For Availability
7
MAY 74003125 MAY 74003125 Contact Us For Availability
7
MAY 2002W103-09 MAY 2002W103-09 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
8
MAY 74002563 MAY 74002563 Contact Us For Availability
8
MAY 7746P030-60 MAY 7746P030-60 Contact Us For Availability
8
MAY 7746P031-60 MAY 7746P031-60 Contact Us For Availability
9
MAY 74003431 MAY 74003431 Contact Us For Availability
9
MAY 7902P321-60 MAY 7902P321-60 Contact Us For Availability
9
MAY 3601F237-47 MAY 3601F237-47 Contact Us For Availability
9
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
10
MAY 7737P032-60 MAY 7737P032-60 Contact Us For Availability
11
MAY 7101P280-60 MAY 7101P280-60 Contact Us For Availability
11
MAY 74003032 MAY 74003032 Contact Us For Availability
11
MAY 8002P025-60 MAY 8002P025-60 Contact Us For Availability
11
MAY 8270P093-60 MAY 8270P093-60 Contact Us For Availability
11
MAY 7430P010-60 MAY 7430P010-60 Contact Us For Availability
12
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
12
MAY 74001800 MAY 74001800 Contact Us For Availability
12
MAY 7403P102-60 MAY 7403P102-60 Contact Us For Availability
12
MAY 74002539 MAY 74002539 Contact Us For Availability
12
MAY 74002540 MAY 74002540 Contact Us For Availability
13
MAY 74003429 MAY 74003429 Contact Us For Availability
13
MAY 3605F174-51 MAY 3605F174-51 Contact Us For Availability
13
MAY 74001703 MAY 74001703 Contact Us For Availability
13
MAY 7701P103-60 MAY 7701P103-60 Contact Us For Availability
13
MAY 7701P144-60 MAY 7701P144-60 Contact Us For Availability
13
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
14
MAY 74003430 MAY 74003430 Contact Us For Availability
14
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
14
MAY 74003892 MAY 74003892 Contact Us For Availability
14
MAY 74002084 MAY 74002084 Contact Us For Availability
14
MAY 8312P058-60 MAY 8312P058-60 Contact Us For Availability
15
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
15
MAY 4001F064-51 MAY 4001F064-51 Contact Us For Availability
15
MAY 74003432 MAY 74003432 Contact Us For Availability
15
MAY 7744P105-60 MAY 7744P105-60 Contact Us For Availability
15
MAY 4020W017-80 MAY 4020W017-80 Contact Us For Availability
15
MAY 74003016 MAY 74003016 Contact Us For Availability
16
MAY 7401P038-60 MAY 7401P038-60 Contact Us For Availability
16
MAY 2416F039-65 MAY 2416F039-65 Contact Us For Availability
16
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
17
MAY 74001725 MAY 74001725 Contact Us For Availability
17
MAY 74003005 MAY 74003005 Contact Us For Availability
17
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
17
RUNNER, DRAWER MAY 74003565 Contact Us For Availability
18
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
18
MAY 74003566 MAY 74003566 Contact Us For Availability
18
MAY 8004P033-60 MAY 8004P033-60 Contact Us For Availability
19
MAY 74002599 MAY 74002599 Contact Us For Availability
20
MAY 74001311 MAY 74001311 Contact Us For Availability
20
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
20
MAY 5170P205-60 MAY 5170P205-60 Contact Us For Availability
20
MAY 5195D082-60 MAY 5195D082-60 Contact Us For Availability
20
MAY 74001013 MAY 74001013 Contact Us For Availability
21
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
21
MAY 74002466 MAY 74002466 Contact Us For Availability
21
MAY 74002467 MAY 74002467 Contact Us For Availability
21
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
21
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
21
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
22
MAY 8026P019-60 MAY 8026P019-60 Contact Us For Availability
22
MAY 74001708 MAY 74001708 Contact Us For Availability
22
MAY 74001745 MAY 74001745 Contact Us For Availability
22
MAY 16002081 MAY 16002081 Contact Us For Availability
22
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
22
MAY 74003618 MAY 74003618 Contact Us For Availability
23
MAY 74002002 MAY 74002002 Contact Us For Availability
23
MAY W10124350 MAY W10124350 Contact Us For Availability
23
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
24
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
25
MAY 3801F305-80 MAY 3801F305-80 Contact Us For Availability
26
MAY 74001744 MAY 74001744 Contact Us For Availability
27
MAY 74001999 MAY 74001999 Contact Us For Availability
28
MAY 74001449 MAY 74001449 Contact Us For Availability
28
COVER, VENT MAY 4005F432-45 Contact Us For Availability
29
MAY 7402P050-60 MAY 7402P050-60 Contact Us For Availability
NI
MAY 15001813 MAY 15001813 Contact Us For Availability
× ![]()
