Model RCA L2J345GEL2 Electric Range – Common Parts & Diagrams
0
1
2
3
Common parts from model RCA L2J345GEL2 Electric Range
1

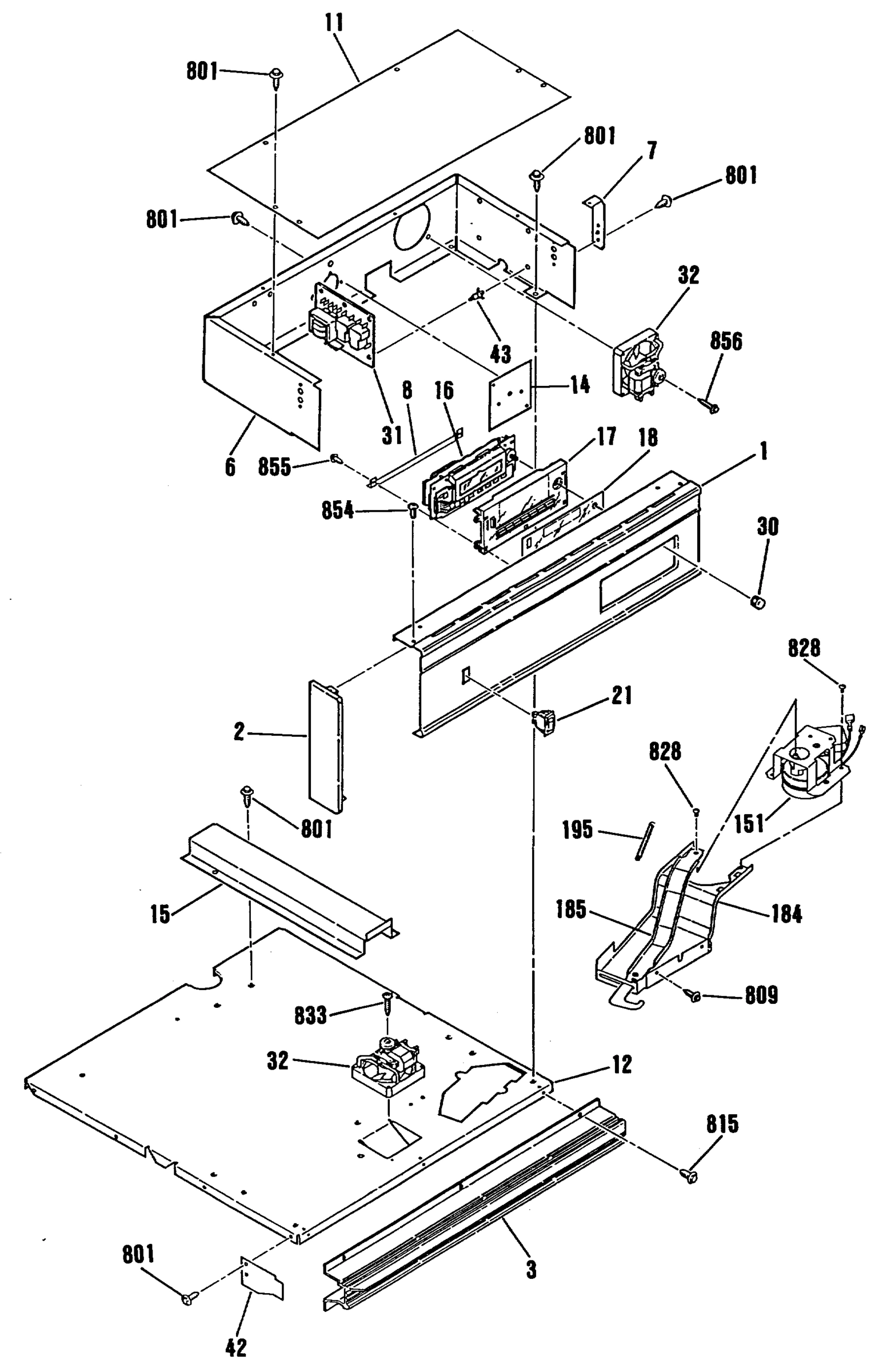

CONT PANEL GEN WB07X1774 Contact Us For Availability
2
END CAP-LT GEN WB07X1693 Contact Us For Availability
2
END CAP-RT GEN WB07X1694 Contact Us For Availability
3
TRIM GEN WB07X1697 Contact Us For Availability
6
CONTROL HOUSING GEN WB63M0007 Contact Us For Availability
7
CONT PNL BRACKET GEN WB02X9658 Contact Us For Availability
8
CLOCK LENS STIFFENER GEN WB02X9884 Contact Us For Availability
11
HOUSING CONTROL TOP GEN WB56X1995 Contact Us For Availability
12
GEN WB56X1997 GEN WB56X1997 Contact Us For Availability
14
GEN WB02X9662 GEN WB02X9662 Contact Us For Availability
16
GEN WB19X0264 GEN WB19X0264 Contact Us For Availability
17
CLOCK LENS ASM GEN WB25M0004 Contact Us For Availability
18
CLOCK PLATE GEN WB02X9669 Contact Us For Availability
21
ROCKER SWITCH GEN WB24X0450 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0780 Contact Us For Availability
31
GEN WB27X0425 GEN WB27X0425 Contact Us For Availability
32
FAN ASM-CONTROL HOUSING GEN WB26X0113 Contact Us For Availability
42
HEAT SHIELD GEN WB02X9660 Contact Us For Availability
43
SPACER GEN WB02X9657 Contact Us For Availability
101
INSULATION-OV DR LINING GEN WB35K5030 Contact Us For Availability
102
INSULATOR-OV DR PLUG GEN WB35K5033 Contact Us For Availability
112
GEN WB55K5014 GEN WB55K5014 Contact Us For Availability
112
GEN WB56K5058 GEN WB56K5058 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X2007 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
118
OV DR LINING STIFFENER GEN WB02X9656 Contact Us For Availability
119
OV DR GLASS RETAINER GEN WB02X9655 Contact Us For Availability
121
OV DR OUTER GLASS GEN WB36X0776 Contact Us For Availability
122
GEN WB36X0778 GEN WB36X0778 Contact Us For Availability
124
GEN WB57M0022 GEN WB57M0022 Contact Us For Availability
132
GEN WB02X9653 GEN WB02X9653 Contact Us For Availability
136
OV DR HANDLE GEN WB15X0287 Contact Us For Availability
140

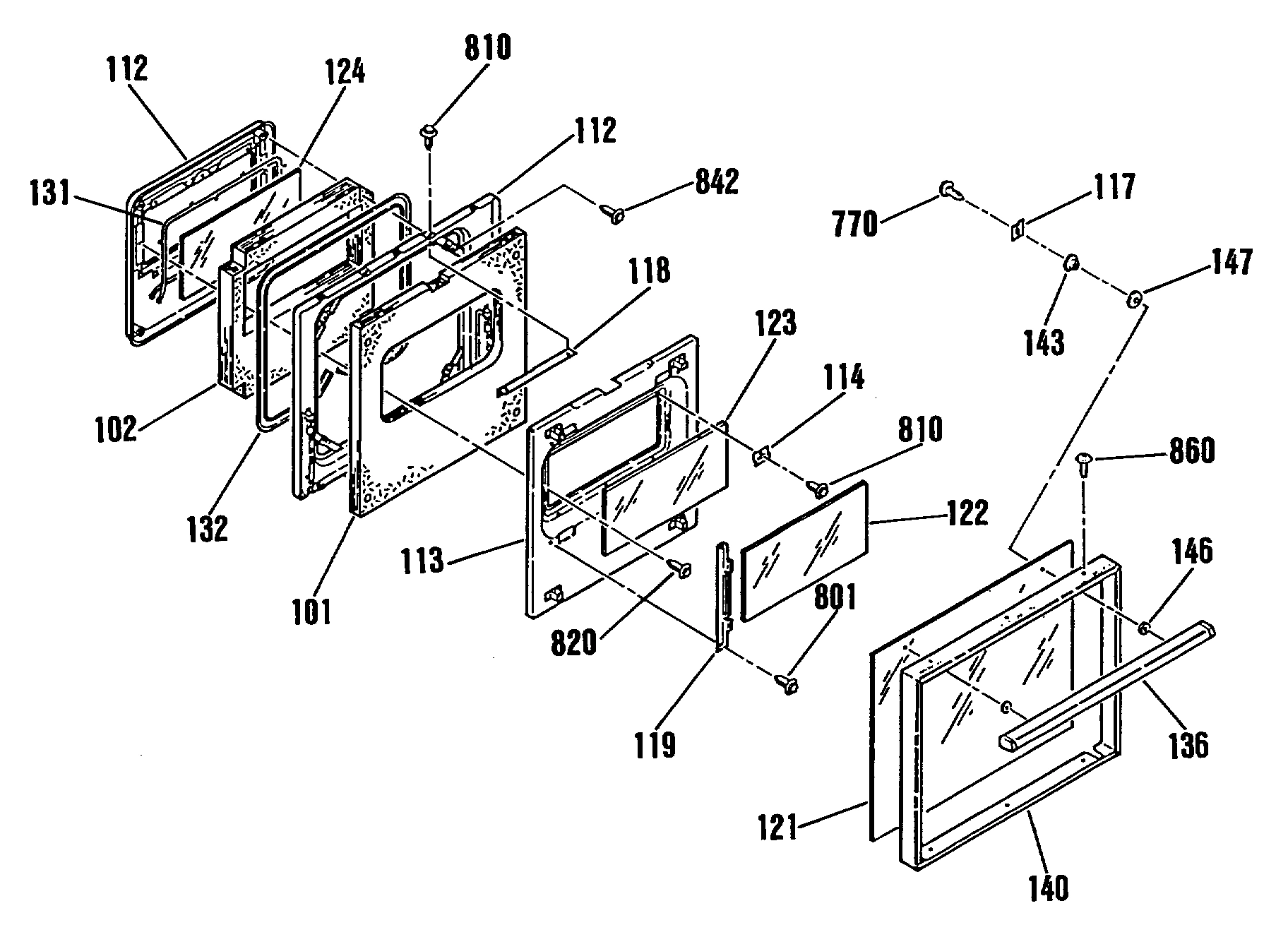

OV DR FRAME GEN WB07X1692 Contact Us For Availability
143
DOOR HANDLE SPACER GEN WB02X9039 Contact Us For Availability
146
DOOR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
151
LOCK MOTOR GEN WB26X0127 Contact Us For Availability
161
GEN WB24X0452 GEN WB24X0452 Contact Us For Availability
178
INSULATION TOP/SIDES GEN WB02X9633 Contact Us For Availability
184
DOOR LOCK PLATE GEN WB02X9661 Contact Us For Availability
185
LOCK LEVER ASM GEN WB15K5015 Contact Us For Availability
195
GEN WB09X0243 GEN WB09X0243 Contact Us For Availability
201

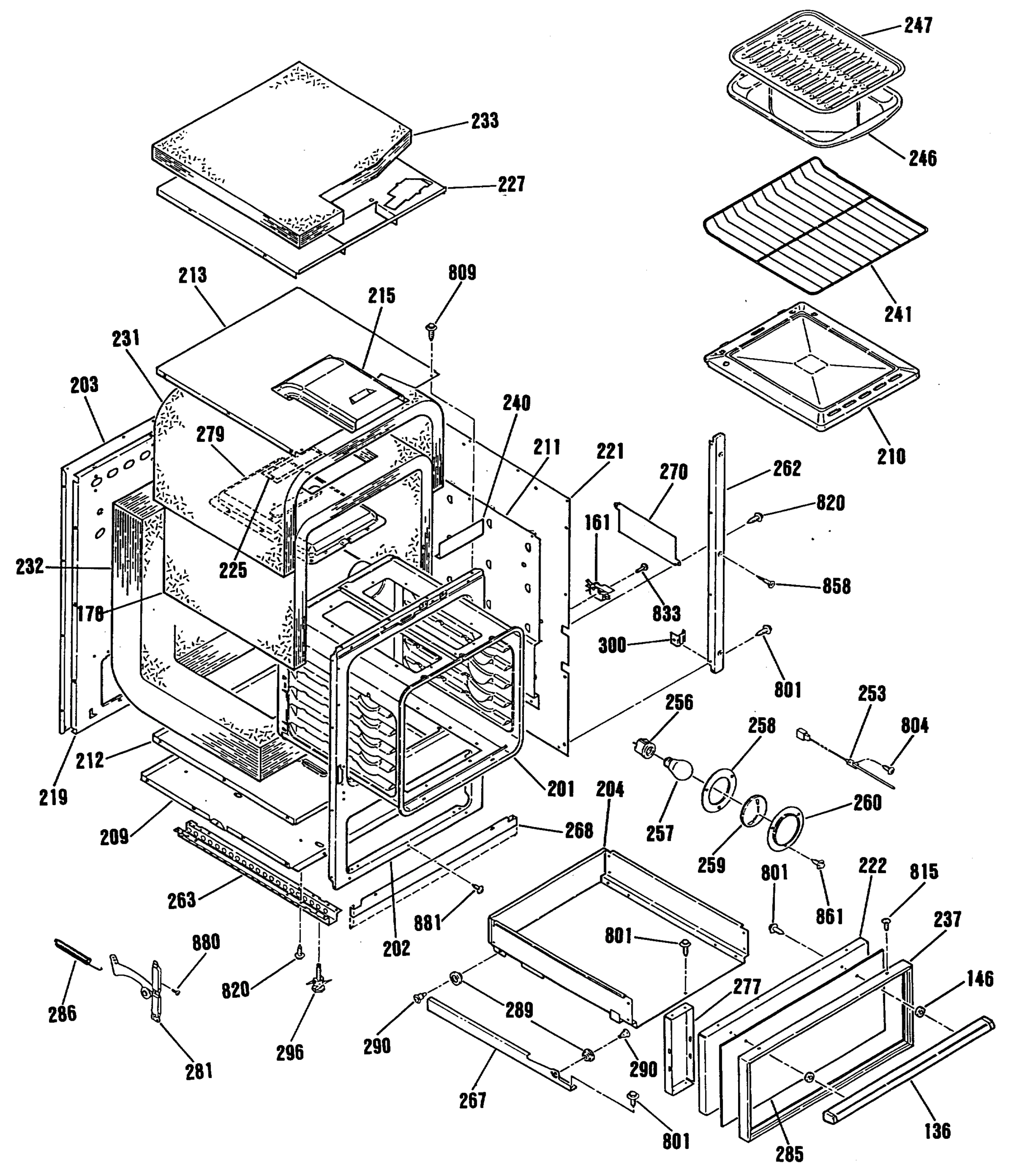

OVEN CAVITY GEN WB53X0289 Contact Us For Availability
202
FRT FRAME ASM GEN WB63K5062 Contact Us For Availability
203
GEN WB56X1999 GEN WB56X1999 Contact Us For Availability
204
STORAGE DRAWER W/ROLLER GEN WB58K5003 Contact Us For Availability
209
GEN WB53X0288 GEN WB53X0288 Contact Us For Availability
210
GEN WB53X0290 GEN WB53X0290 Contact Us For Availability
211
OV SIDE INS RETAINER GEN WB56X2003 Contact Us For Availability
212
GEN WB02K5162 GEN WB02K5162 Contact Us For Availability
213
OV TOP INS RETAINER GEN WB56X2009 Contact Us For Availability
215
FLUE DEFLECTOR ASM GEN WB38X0118 Contact Us For Availability
219
GEN WB02K5099 GEN WB02K5099 Contact Us For Availability
221
GEN WB63K5099 GEN WB63K5099 Contact Us For Availability
225
FLUE DEFLECTOR GASKET GEN WB02X9644 Contact Us For Availability
227
INS TOP RETAINER GEN WB56X1998 Contact Us For Availability
231
INSULATION-TOP/SIDES-OUT GEN WB02X9631 Contact Us For Availability
232
INSULATION BACK/BTM-INN GEN WB02X9632 Contact Us For Availability
233
INSULATION-CABINET TOP GEN WB02X9630 Contact Us For Availability
237
FRT FRAME-LO PNL GEN WB56X2049 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
240
GEN WB38K5036 GEN WB38K5036 Contact Us For Availability
257
OV LIGHT GEN BUY LOCAL Contact Us For Availability
258
LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
OV LIGHT LENS RETAINER GEN WB02X9150 Contact Us For Availability
262
GEN WB07X1706 GEN WB07X1706 Contact Us For Availability
263
BTM CHANNEL GEN WB02X9634 Contact Us For Availability
267
GEN WB39M0004 GEN WB39M0004 Contact Us For Availability
268
LO FRT TRIM-1 1/16" GEN WB07K5019 Contact Us For Availability
268
LO FRT TRIM-2 7/8" GEN WB07M0003 Contact Us For Availability
270
GEN WB02X9642 GEN WB02X9642 Contact Us For Availability
277
LO PANEL LINER GEN WB55K5024 Contact Us For Availability
279
GEN WB38X0117 GEN WB38X0117 Contact Us For Availability
281
HINGE ASM-LT GEN WB14X0140 Contact Us For Availability
281
HINGE ASM-RT GEN WB14X0141 Contact Us For Availability
285
OVERLAY-LO PANEL GEN WB56X2004 Contact Us For Availability
286
OV DR SPRING GEN WB09X0261 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
GEN WB01X1331 GEN WB01X1331 Contact Us For Availability
296
LEG LEVELER GEN WB02X9635 Contact Us For Availability
300
FRT TRIM SPACER-BLK GEN WB02X9641 Contact Us For Availability
301
3/8 TUBE W/NUTS GEN WB02X9649 Contact Us For Availability
303
GEN WB02X9648 GEN WB02X9648 Contact Us For Availability
309
GEN WB28X0108 GEN WB28X0108 Contact Us For Availability
310

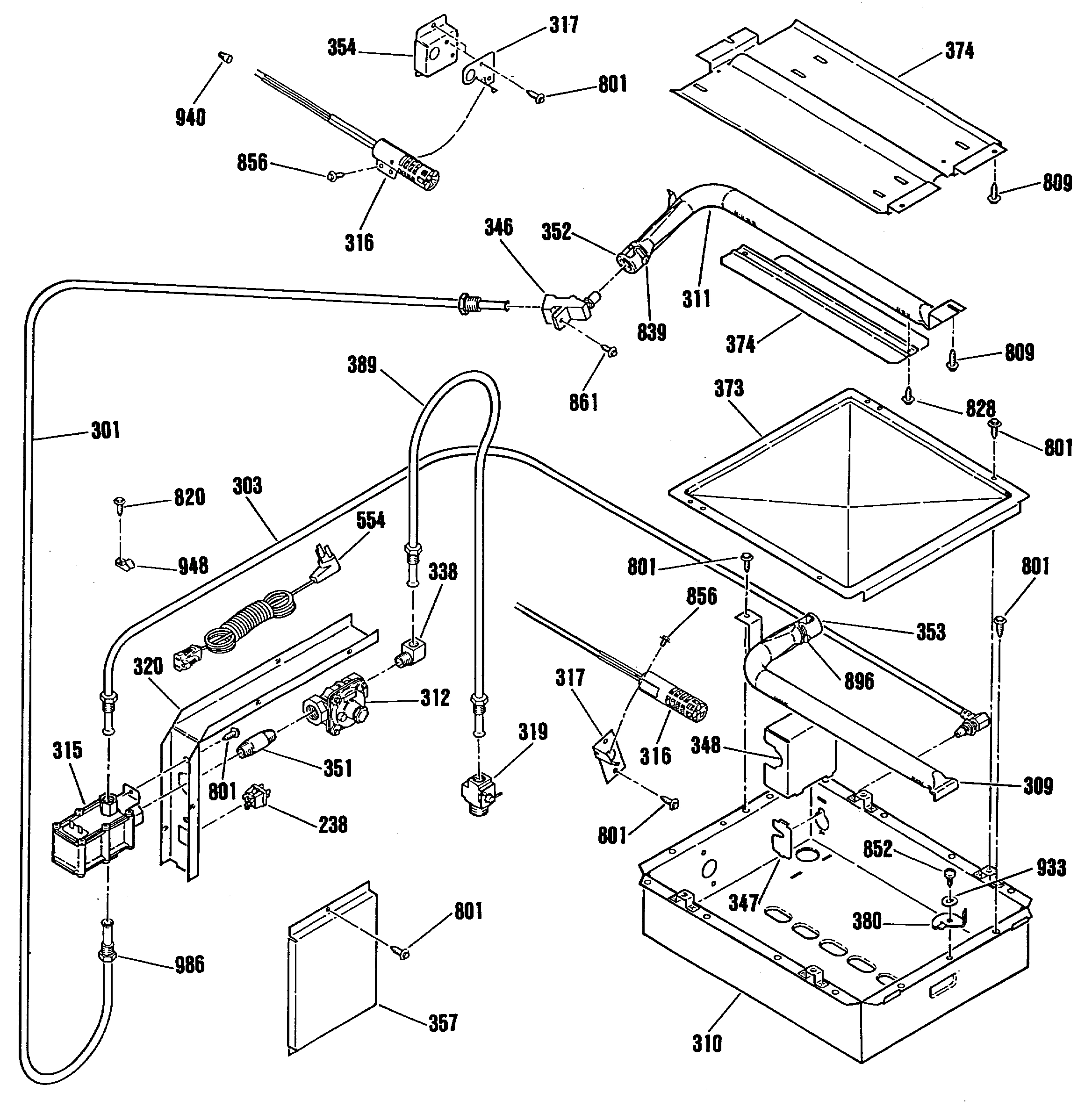

OV BURN BOX ASM GEN WB63X0386 Contact Us For Availability
311
GEN WB28X0109 GEN WB28X0109 Contact Us For Availability
312
GEN WB19K5010 GEN WB19K5010 Contact Us For Availability
317
IGN BR BURN BRACKET GEN WB02X9155 Contact Us For Availability
319
GEN WB21X0520 GEN WB21X0520 Contact Us For Availability
320
GEN WB02X9651 GEN WB02X9651 Contact Us For Availability
338
STREET ELBOW 90 GEN WB02X9613 Contact Us For Availability
346
GEN WB02X9646 GEN WB02X9646 Contact Us For Availability
348
OFIFICE FITTING SHIELD GEN WB02X9159 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
354
GEN WB02X9645 GEN WB02X9645 Contact Us For Availability
357
GEN WB02X9650 GEN WB02X9650 Contact Us For Availability
373
OV BTM BAFFLE GEN WB49X0654 Contact Us For Availability
374
GEN WB49X0655 GEN WB49X0655 Contact Us For Availability
389
3/8 TUBE W/NUTS GEN WB02X9647 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
815
SCREW GEN WB01X1176 Contact Us For Availability
852
SCREW GEN WB01X1179 Contact Us For Availability
854
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
860
GEN WB01X1325 GEN WB01X1325 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
881
TRIM SCREW-BLK GEN WB01X1271 Contact Us For Availability
896
ADJUSTMENT SCREW GEN WB01X1124 Contact Us For Availability
933
SPRING WASHER GEN WB01X1256 Contact Us For Availability
948
HARNESS CLAMP GEN WB02X1422 Contact Us For Availability
986
NUT GEN WB01X1117 Contact Us For Availability
999
GEN 31-13027 GEN 31-13027 Contact Us For Availability
999
USE & CARE MANUAL GEN 79-4033 Contact Us For Availability
999
GEN WB18K5120 GEN WB18K5120 Contact Us For Availability
999
LOCK MOTOR W HARNESS GEN WB18K5121 Contact Us For Availability
999
GEN WB18K5321 GEN WB18K5321 Contact Us For Availability
999
GEN WB18K5322 GEN WB18K5322 Contact Us For Availability
999
GEN WB18X0352 GEN WB18X0352 Contact Us For Availability
× ![]()
