Model RCA L2J345GEL1 Electric Range – Common Parts & Diagrams
0
1
2
3

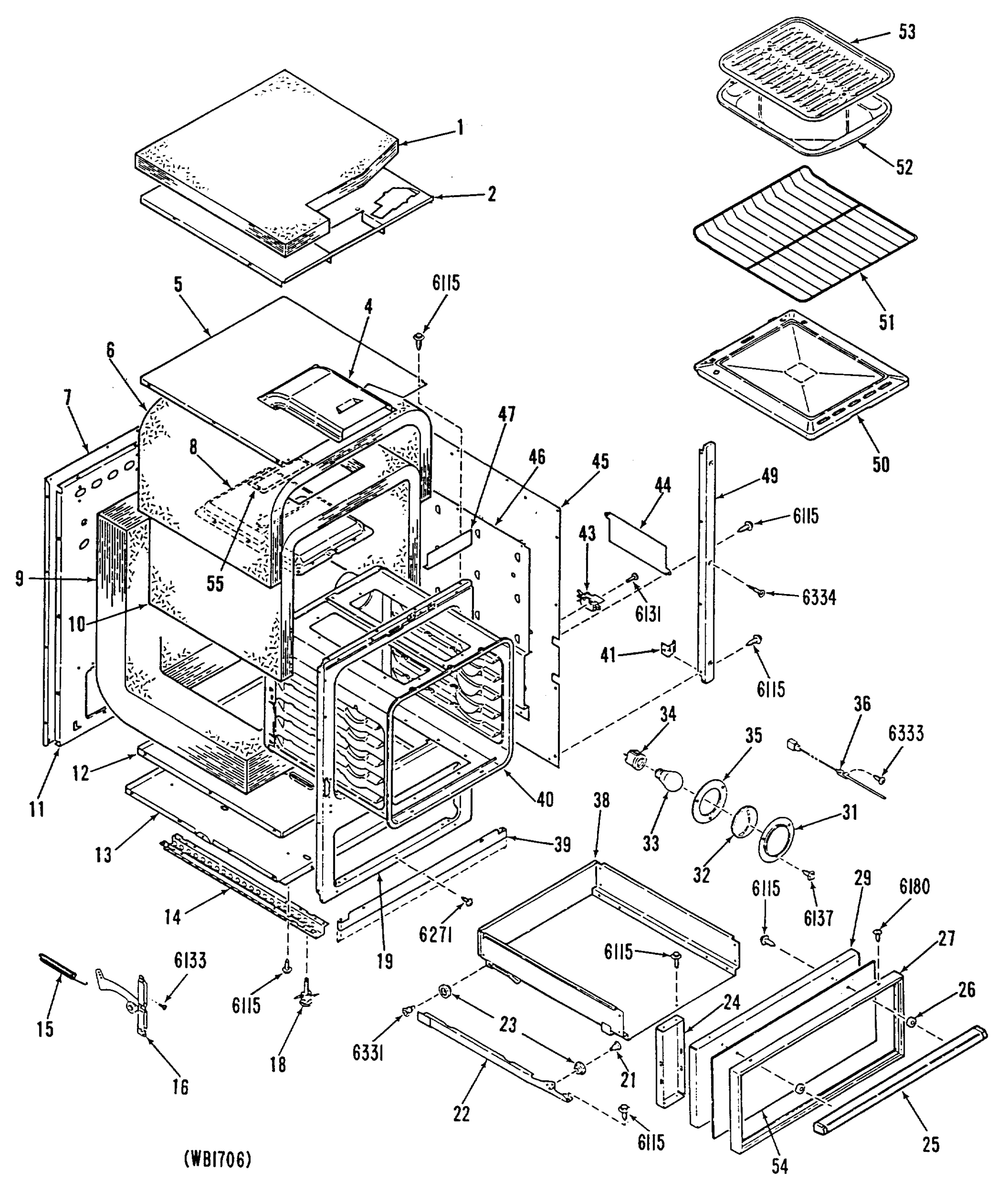

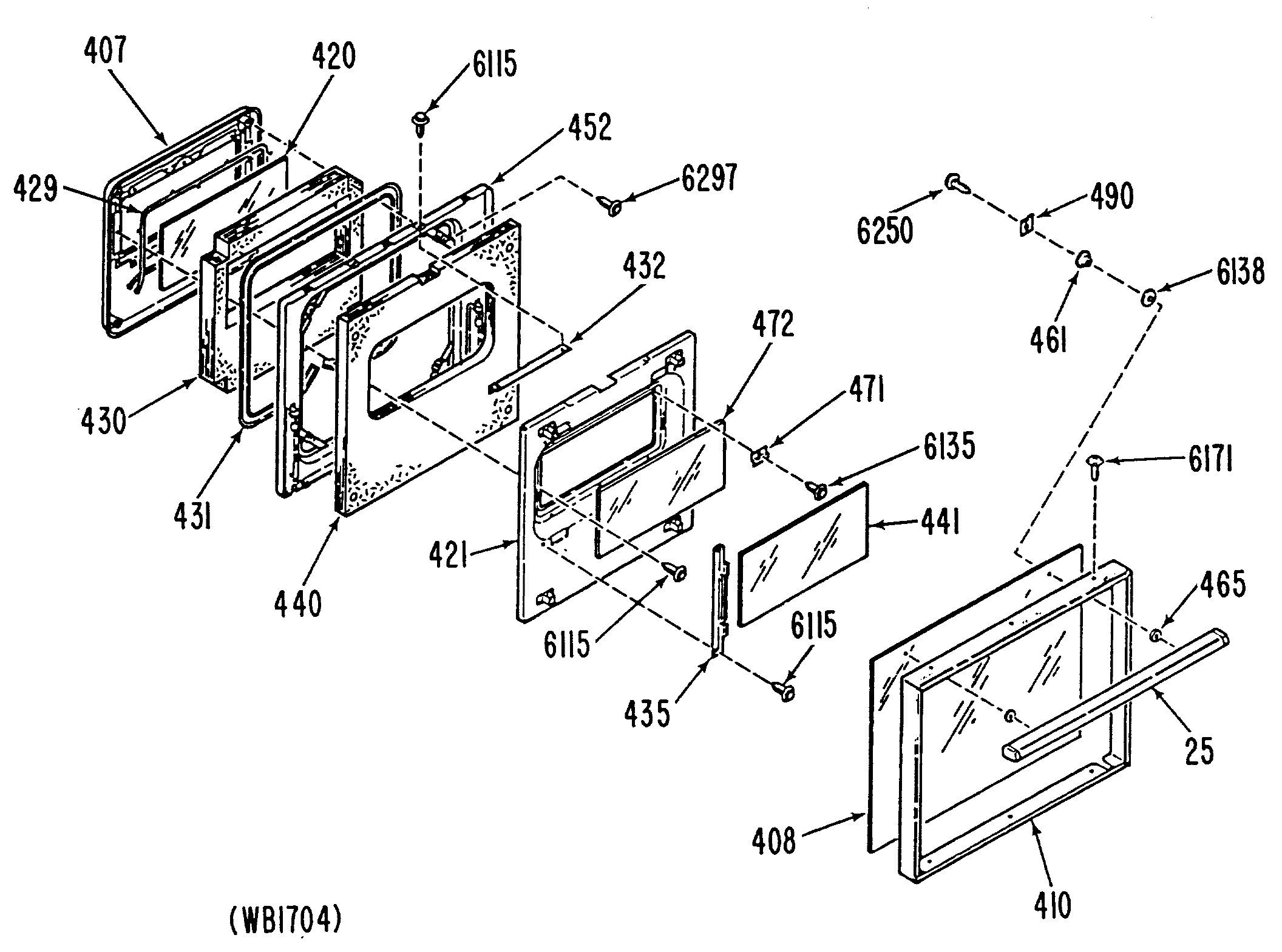

Common parts from model RCA L2J345GEL1 Electric Range
1
GEN WB02X9630 GEN WB02X9630 Contact Us For Availability
2
GEN WB56X1998 GEN WB56X1998 Contact Us For Availability
4
GEN WB38X0118 GEN WB38X0118 Contact Us For Availability
5
GEN WB56X2009 GEN WB56X2009 Contact Us For Availability
6
INSULATION-TOP & SIDES GEN WB02X9631 Contact Us For Availability
7
GEN WB56X1999 GEN WB56X1999 Contact Us For Availability
8
GEN WB38X0117 GEN WB38X0117 Contact Us For Availability
9
GEN WB02X9632 GEN WB02X9632 Contact Us For Availability
10
GEN WB02X9633 GEN WB02X9633 Contact Us For Availability
11
GEN WB56X2000 GEN WB56X2000 Contact Us For Availability
12
GEN WB56X2001 GEN WB56X2001 Contact Us For Availability
13
OVEN BOTTOM GEN WB53X0288 Contact Us For Availability
14
GEN WB02X9634 GEN WB02X9634 Contact Us For Availability
15
GEN WB09X0261 GEN WB09X0261 Contact Us For Availability
16
GEN WB14X0140 GEN WB14X0140 Contact Us For Availability
16
GEN WB14X0141 GEN WB14X0141 Contact Us For Availability
18
GEN WB02X9635 GEN WB02X9635 Contact Us For Availability
19
GEN WB63X0384 GEN WB63X0384 Contact Us For Availability
22
GEN WB02X9636 GEN WB02X9636 Contact Us For Availability
22
GEN WB02X9637 GEN WB02X9637 Contact Us For Availability
23
GEN WB02X9638 GEN WB02X9638 Contact Us For Availability
24
GEN WB02X9639 GEN WB02X9639 Contact Us For Availability
25
GEN WB15X0287 GEN WB15X0287 Contact Us For Availability
27
GEN WB56X2049 GEN WB56X2049 Contact Us For Availability
31
LENS RETAINER GEN WB02X9150 Contact Us For Availability
32
LENS-OVEN LIGHT GEN WB36X0754 Contact Us For Availability
33
BULB-OVEN LIGHT-40 WATT GEN BUY LOCAL Contact Us For Availability
35
GASKET-OVEN LIGHT GEN WB02X9151 Contact Us For Availability
38
GEN WB58X0066 GEN WB58X0066 Contact Us For Availability
39
TRIM-FRONT-LOWER-1-7/16" GEN WB07K5019 Contact Us For Availability
39
GEN WB07X1702 GEN WB07X1702 Contact Us For Availability
39
GEN WB07X1703 GEN WB07X1703 Contact Us For Availability
40
OVEN LINER GEN WB53X0289 Contact Us For Availability
41
GEN WB02X9641 GEN WB02X9641 Contact Us For Availability
43
GEN WB24X0452 GEN WB24X0452 Contact Us For Availability
45
GEN WB63X0385 GEN WB63X0385 Contact Us For Availability
46
GEN WB56X2003 GEN WB56X2003 Contact Us For Availability
47
BARRIER-LOCK ASSEMBLY GEN WB02X9643 Contact Us For Availability
49
TRIM-SIDE GEN WB07X1706 Contact Us For Availability
50
GEN WB53X0290 GEN WB53X0290 Contact Us For Availability
54
GEN WB56X2004 GEN WB56X2004 Contact Us For Availability
55
GEN WB02X9644 GEN WB02X9644 Contact Us For Availability
201
GEN WB56X1996 GEN WB56X1996 Contact Us For Availability
206
GEN WB07X1693 GEN WB07X1693 Contact Us For Availability
206
GEN WB07X1694 GEN WB07X1694 Contact Us For Availability
214
GEN WB02X9662 GEN WB02X9662 Contact Us For Availability
215
SWITCH GEN WB24X0479 Contact Us For Availability
216
GEN WB02X9658 GEN WB02X9658 Contact Us For Availability
217
KNOB-CLOCK GEN WB03X0780 Contact Us For Availability
218
GEN WB07X1774 GEN WB07X1774 Contact Us For Availability
220
GEN WB36X0798 GEN WB36X0798 Contact Us For Availability
222
GEN WB56X1995 GEN WB56X1995 Contact Us For Availability
223
GEN WB19X0264 GEN WB19X0264 Contact Us For Availability
228
LENS STIFFENER GEN WB02X9884 Contact Us For Availability
255
GEN WB07X1697 GEN WB07X1697 Contact Us For Availability
258
GEN WB02X9660 GEN WB02X9660 Contact Us For Availability
260
GEN WB26X0113 GEN WB26X0113 Contact Us For Availability
270
GEN WB56X1997 GEN WB56X1997 Contact Us For Availability
280
LOCK MOTOR GEN WB26X0099 Contact Us For Availability
281
DOOR LOCK PLATE GEN WB02X9661 Contact Us For Availability
282
LOCK LEVER GEN WB02X9124 Contact Us For Availability
283
SPRING-LOCK GEN WB09X0243 Contact Us For Availability
290
RELAY CIRCUIT BOARD GEN WB27X0519 Contact Us For Availability
292
GEN WB02X9657 GEN WB02X9657 Contact Us For Availability
293
THERMAL SWITCH GEN WB24X0478 Contact Us For Availability
407
GEN WB56X2006 GEN WB56X2006 Contact Us For Availability
408
GEN WB36X0776 GEN WB36X0776 Contact Us For Availability
410
FRAME-OVEN DOOR GEN WB07X1692 Contact Us For Availability
420
GLASS-OVEN DOOR-INNER GEN WB36X0780 Contact Us For Availability
421
GEN WB56X2007 GEN WB56X2007 Contact Us For Availability
430
GEN WB02X9652 GEN WB02X9652 Contact Us For Availability
431
GASKET-OVEN DOOR GEN WB02X9653 Contact Us For Availability
432
GEN WB02X9656 GEN WB02X9656 Contact Us For Availability
435
GEN WB02X9655 GEN WB02X9655 Contact Us For Availability
440
GEN WB02X9654 GEN WB02X9654 Contact Us For Availability
441
GLASS-INTERMEDIATE GEN WB36X0778 Contact Us For Availability
452
GEN WB56X2008 GEN WB56X2008 Contact Us For Availability
461
GEN WB02X9039 GEN WB02X9039 Contact Us For Availability
465
SPACER GEN WB02X9037 Contact Us For Availability
471
RETAINER-OVEN GLASS GEN WB02X9382 Contact Us For Availability
490
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
701
SHIELD GEN WB02X9159 Contact Us For Availability
703
GEN WB63X0386 GEN WB63X0386 Contact Us For Availability
704
GEN WB02X9650 GEN WB02X9650 Contact Us For Availability
705
GEN WB02X9613 GEN WB02X9613 Contact Us For Availability
706
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
715
WIRE COVER-LOWER GEN WB02X9651 Contact Us For Availability
725
GEN WB49X0654 GEN WB49X0654 Contact Us For Availability
726
GEN WB28X0108 GEN WB28X0108 Contact Us For Availability
729
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
729
AIR SHUTTER GEN WB02X9618 Contact Us For Availability
751
IGNITER BRACKET-BROILER GEN WB02X9155 Contact Us For Availability
752
GEN WB49X0656 GEN WB49X0656 Contact Us For Availability
753
GEN WB28X0109 GEN WB28X0109 Contact Us For Availability
754
BROIL BURNER BAFFLE GEN WB49X0655 Contact Us For Availability
756
TUBING-SHUT OFF/ELBOW GEN WB02X9647 Contact Us For Availability
757
GEN WB02X9646 GEN WB02X9646 Contact Us For Availability
763
DISCONNECT GEN WB17X0207 Contact Us For Availability
765
GEN WB20X0127 GEN WB20X0127 Contact Us For Availability
774
TUBING-OVEN BURNER GEN WB02X9648 Contact Us For Availability
776
GEN WB02X9649 GEN WB02X9649 Contact Us For Availability
780
IGNITER COVER GEN WB02X9645 Contact Us For Availability
781
CORD-POWER SUPPLY GEN WB18X0370 Contact Us For Availability
783
GEN WB20X0122 GEN WB20X0122 Contact Us For Availability
6117
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
6124
SCREW GEN WB01X1124 Contact Us For Availability
6138
WASHER GEN WB01X1138 Contact Us For Availability
6164
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
6169
SCREW GEN WB01X1169 Contact Us For Availability
6171
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
6179
GEN WB01X1179 GEN WB01X1179 Contact Us For Availability
6250
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
6256
SPRING WASHER GEN WB01X1256 Contact Us For Availability
6271
SCREW GEN WB01X1271 Contact Us For Availability
6317
SCREW GEN WB01X1317 Contact Us For Availability
6328
GEN WB01X1328 GEN WB01X1328 Contact Us For Availability
6330
GEN WB01X1330 GEN WB01X1330 Contact Us For Availability
6331
GEN WB01X1331 GEN WB01X1331 Contact Us For Availability
6333
GEN WB01X1333 GEN WB01X1333 Contact Us For Availability
32767
GEN 31-0720 GEN 31-0720 Contact Us For Availability
32767
GEN 31-0832 GEN 31-0832 Contact Us For Availability
32767
GEN 79-4033 GEN 79-4033 Contact Us For Availability
× ![]()
