Model RCA L2J120EL0 Electric Range – Common Parts & Diagrams
0
1
2
3

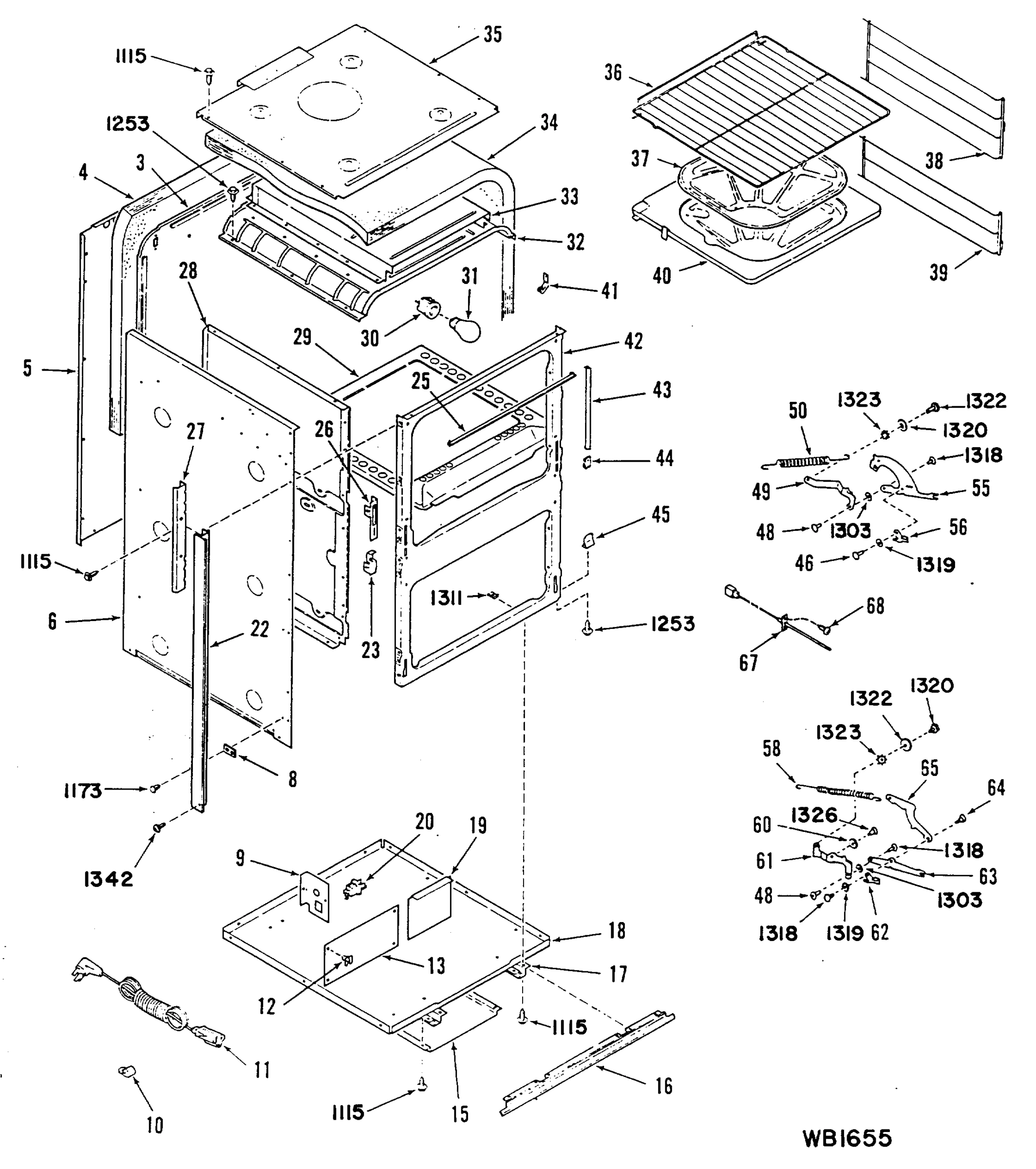

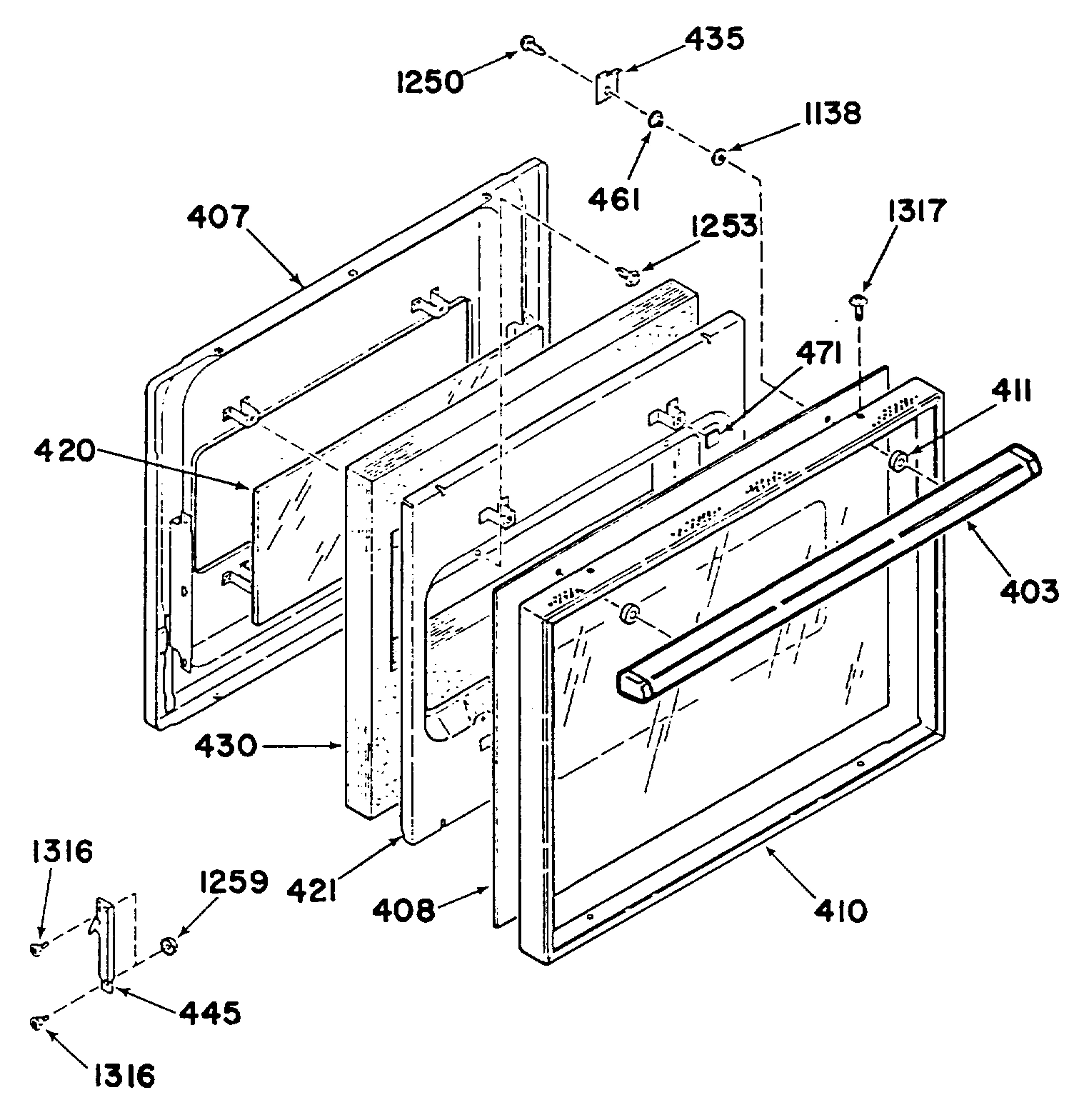

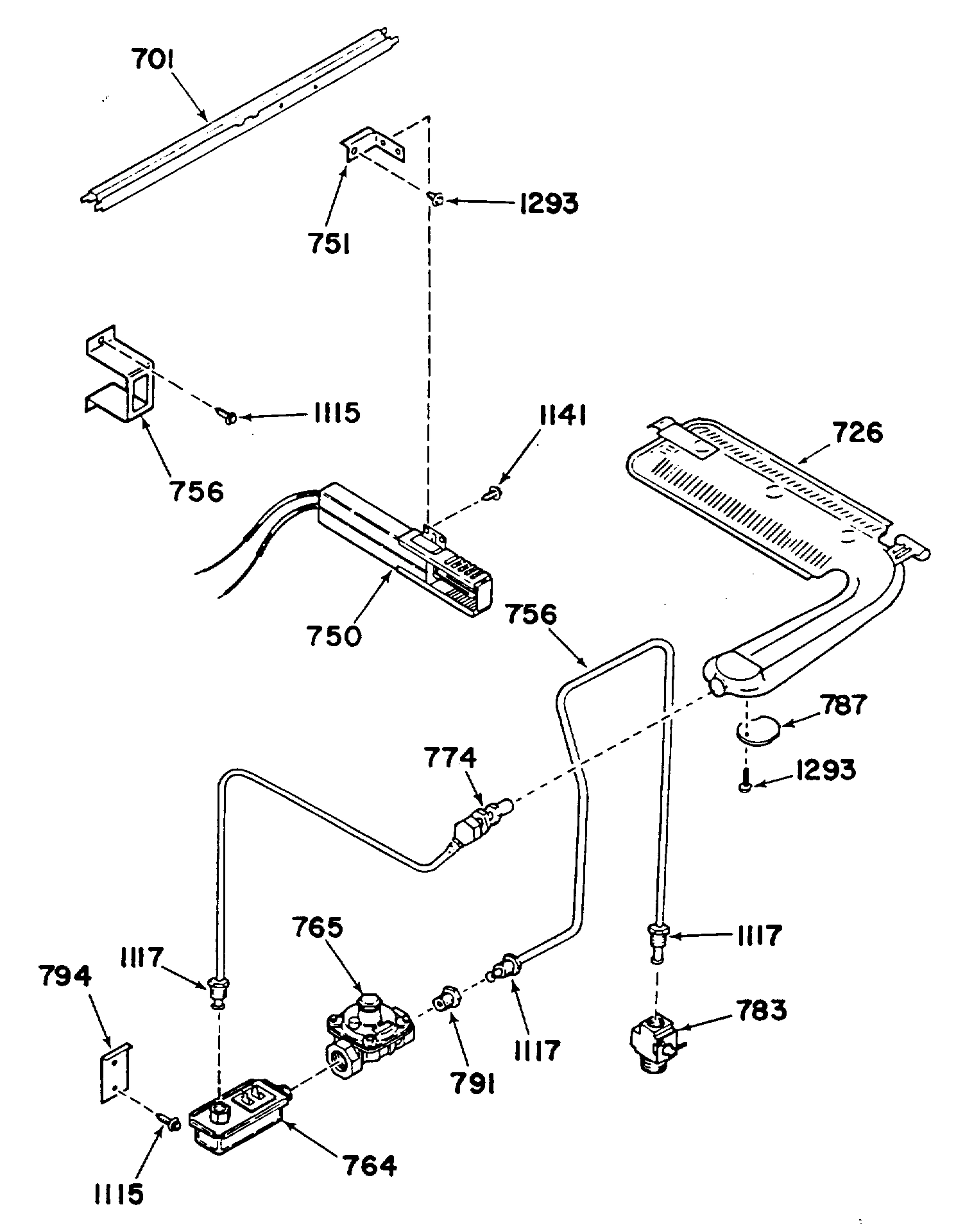

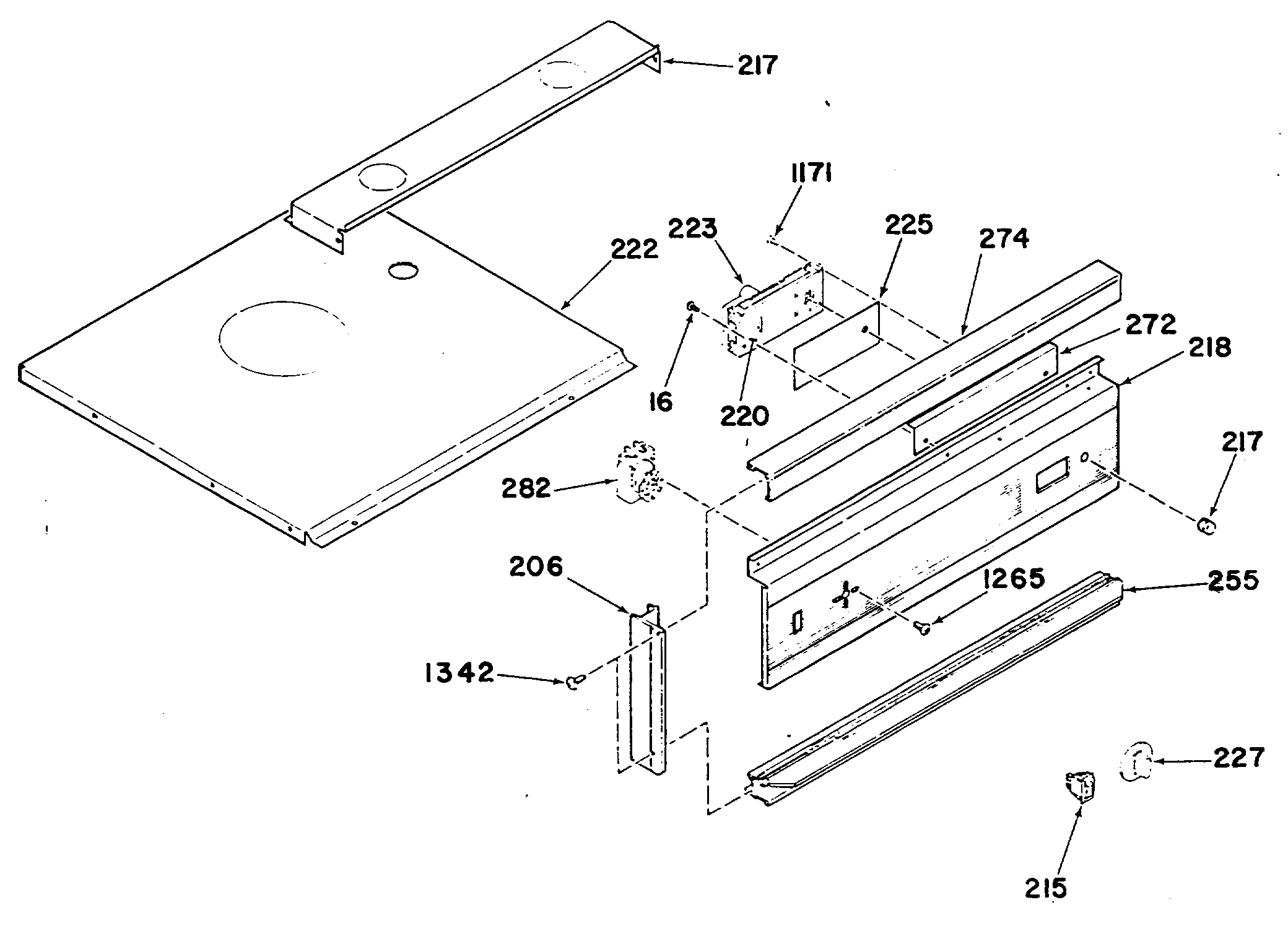

Common parts from model RCA L2J120EL0 Electric Range
3
GEN WB63X0408 GEN WB63X0408 Contact Us For Availability
4
GEN WB02X9701 GEN WB02X9701 Contact Us For Availability
5
GEN WB02X9702 GEN WB02X9702 Contact Us For Availability
5
GEN WB63X0399 GEN WB63X0399 Contact Us For Availability
5
GEN WB63X0410 GEN WB63X0410 Contact Us For Availability
8
GEN WB02X9582 GEN WB02X9582 Contact Us For Availability
9
PLATE-DISCONNECT GEN WB02X9703 Contact Us For Availability
10
GEN WB02X9020 GEN WB02X9020 Contact Us For Availability
11
CORD-POWER SUPPLY GEN WB18X0370 Contact Us For Availability
13
COVER PLATE GEN WB02X9716 Contact Us For Availability
15
BAFFLE-MAIN BOTTOM GEN WB63X0400 Contact Us For Availability
17
CHANNEL-BOTTOM-RIGHT/LEFT GEN WB02X9634 Contact Us For Availability
18
GEN WB63X0401 GEN WB63X0401 Contact Us For Availability
19
GEN WB02X9704 GEN WB02X9704 Contact Us For Availability
20
DISCONNECT GEN WB17X0207 Contact Us For Availability
22
SIDE TRIM-FRONT FRAME-R GEN WB07X1722 Contact Us For Availability
22
GEN WB07X1723 GEN WB07X1723 Contact Us For Availability
23
GEN WB02X9600 GEN WB02X9600 Contact Us For Availability
26
HINGE SUPPORT-LEFT GEN WB02X9705 Contact Us For Availability
26
HINGE SUPPORT-RIGHT GEN WB02X9706 Contact Us For Availability
27
GEN WB07X1609 GEN WB07X1609 Contact Us For Availability
28
GEN WB63X0403 GEN WB63X0403 Contact Us For Availability
29
GEN WB63X0404 GEN WB63X0404 Contact Us For Availability
30
GEN WB08X0279 GEN WB08X0279 Contact Us For Availability
32
GEN WB63X0405 GEN WB63X0405 Contact Us For Availability
33
GEN WB38X0120 GEN WB38X0120 Contact Us For Availability
34
INSULATION-TOP AND SIDES GEN WB02X9631 Contact Us For Availability
35
OVEN CABINET TOP GEN WB63X0406 Contact Us For Availability
36
GEN WB48X0217 GEN WB48X0217 Contact Us For Availability
37
BROILER PAN RACK GEN WB49X0650 Contact Us For Availability
38
GEN WB02X9707 GEN WB02X9707 Contact Us For Availability
39
GEN WB02X9708 GEN WB02X9708 Contact Us For Availability
39
GEN WB02X9709 GEN WB02X9709 Contact Us For Availability
40
GEN WB49X0657 GEN WB49X0657 Contact Us For Availability
41
GEN WB02X9027 GEN WB02X9027 Contact Us For Availability
42
GEN WB63X0407 GEN WB63X0407 Contact Us For Availability
43
OVEN DOOR GASKET-R/L GEN WB02X9596 Contact Us For Availability
44
BLOCK-HINGE ARM GUIDE-R GEN WB02X9710 Contact Us For Availability
44
BLOCK-HINGE ARM GUIDE-L GEN WB02X9711 Contact Us For Availability
45
SUPPORT-BROIL DOOR HINGE GEN WB02X9601 Contact Us For Availability
48
GEN WB02X9626 GEN WB02X9626 Contact Us For Availability
49
GEN WB14X0145 GEN WB14X0145 Contact Us For Availability
49
GEN WB14X0146 GEN WB14X0146 Contact Us For Availability
50
GEN WB09X0262 GEN WB09X0262 Contact Us For Availability
55
GEN WB10X0269 GEN WB10X0269 Contact Us For Availability
55
GEN WB10X0270 GEN WB10X0270 Contact Us For Availability
56
HINGE STOP-OVEN DOOR-LEFT GEN WB02X9712 Contact Us For Availability
56
HINGE STOP-OVEN DOOR-R GEN WB02X9713 Contact Us For Availability
58
GEN WB09X0263 GEN WB09X0263 Contact Us For Availability
60
GEN WB02X9583 GEN WB02X9583 Contact Us For Availability
61
HINGE-BROILER DOOR-RIGHT GEN WB14X0129 Contact Us For Availability
61
HINGE-BROILER DOOR-LEFT GEN WB14X0138 Contact Us For Availability
62
HINGE LATCH-BROILER-LEFT GEN WB10X0263 Contact Us For Availability
62
HINGE LATCH-BROILER-RIGHT GEN WB10X0264 Contact Us For Availability
63
HINGE ARM-BROILER-LEFT GEN WB10X0265 Contact Us For Availability
63
HINGE ARM-BROILER-RIGHT GEN WB10X0266 Contact Us For Availability
64
HINGE PILOT SLEEVE GEN WB02X9548 Contact Us For Availability
65
SPRING LINK-BROILER DOOR GEN WB10X0267 Contact Us For Availability
206
GEN WB07X1718 GEN WB07X1718 Contact Us For Availability
206
GEN WB07X1719 GEN WB07X1719 Contact Us For Availability
215
GEN WB24X0450 GEN WB24X0450 Contact Us For Availability
217
GEN WB02X9693 GEN WB02X9693 Contact Us For Availability
217
GEN WB03X0780 GEN WB03X0780 Contact Us For Availability
218
GEN WB07X1721 GEN WB07X1721 Contact Us For Availability
220
CLOCK LENS GEN WB36X0785 Contact Us For Availability
222
INSULATION RETAINER TOP GEN WB02X9579 Contact Us For Availability
223
GEN WB19X0259 GEN WB19X0259 Contact Us For Availability
225
GEN WB02X9694 GEN WB02X9694 Contact Us For Availability
227
GEN WB03X0810 GEN WB03X0810 Contact Us For Availability
255
GEN WB07X1720 GEN WB07X1720 Contact Us For Availability
272
GEN WB49X0649 GEN WB49X0649 Contact Us For Availability
274
GEN WB36X0773 GEN WB36X0773 Contact Us For Availability
282
GEN WB21X0505 GEN WB21X0505 Contact Us For Availability
403
DOOR HANDLE-UPPER/LOWER GEN WB15X0286 Contact Us For Availability
407
DOOR LINER-UPPER DOOR GEN WB55X0711 Contact Us For Availability
407
DOOR LINER-LOWER DOOR GEN WB55X0713 Contact Us For Availability
408
GLASS-DOOR-OUTER-UPPER GEN WB36X0771 Contact Us For Availability
408
GLASS-DOOR-OUTER-LOWER GEN WB36X0786 Contact Us For Availability
410
GEN WB07X1725 GEN WB07X1725 Contact Us For Availability
410
GEN WB07X1726 GEN WB07X1726 Contact Us For Availability
411
HANDLE SPACER GEN WB02X9037 Contact Us For Availability
420
GLASS-DOOR INNER-UP/LOW GEN WB36X0772 Contact Us For Availability
421
INSULATION BAFFLE-UPPER GEN WB56X1934 Contact Us For Availability
421
INSULATION BAFFLE-LOWER GEN WB56X2012 Contact Us For Availability
430
INSULATION-DOOR-UPPER GEN WB02X9652 Contact Us For Availability
430
GEN WB02X9714 GEN WB02X9714 Contact Us For Availability
435
GLASS RETAINER GEN WB02X9384 Contact Us For Availability
445
GEN WB10X0261 GEN WB10X0261 Contact Us For Availability
445
GEN WB10X0262 GEN WB10X0262 Contact Us For Availability
461
SPACER GEN WB02X9039 Contact Us For Availability
471
GEN WB02X9624 GEN WB02X9624 Contact Us For Availability
701
GEN WB02X9695 GEN WB02X9695 Contact Us For Availability
726
GEN WB28X0110 GEN WB28X0110 Contact Us For Availability
750
GEN WB02X9697 GEN WB02X9697 Contact Us For Availability
751
IGNITER BRACKET GEN WB02X9696 Contact Us For Availability
756
TUBING-W/NUTS GEN WB02X9157 Contact Us For Availability
756
BRACKET-IGNITER SUPPORT GEN WB02X9700 Contact Us For Availability
764
CONTROL VALVE GEN WB20X0129 Contact Us For Availability
765
GEN WB20X0123 GEN WB20X0123 Contact Us For Availability
774
ORIFICE TUBING-W/NUT GEN WB02X9715 Contact Us For Availability
783
GEN WB20X0122 GEN WB20X0122 Contact Us For Availability
787
GEN WB02X9622 GEN WB02X9622 Contact Us For Availability
791
GEN WB02X9698 GEN WB02X9698 Contact Us For Availability
794
GEN WB02X9699 GEN WB02X9699 Contact Us For Availability
1117
INVERTED NUT-3/8" GEN WB01X1117 Contact Us For Availability
1131
GEN WB01X1311 GEN WB01X1311 Contact Us For Availability
1138
FIBER WASHER GEN WB01X1138 Contact Us For Availability
1171
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
1250
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
1265
GEN WB01X1265 GEN WB01X1265 Contact Us For Availability
1303
GEN WB01X1303 GEN WB01X1303 Contact Us For Availability
× ![]()
