Model RCA L2B135GPL2 Electric Range – Common Parts & Diagrams
0
1
2
3

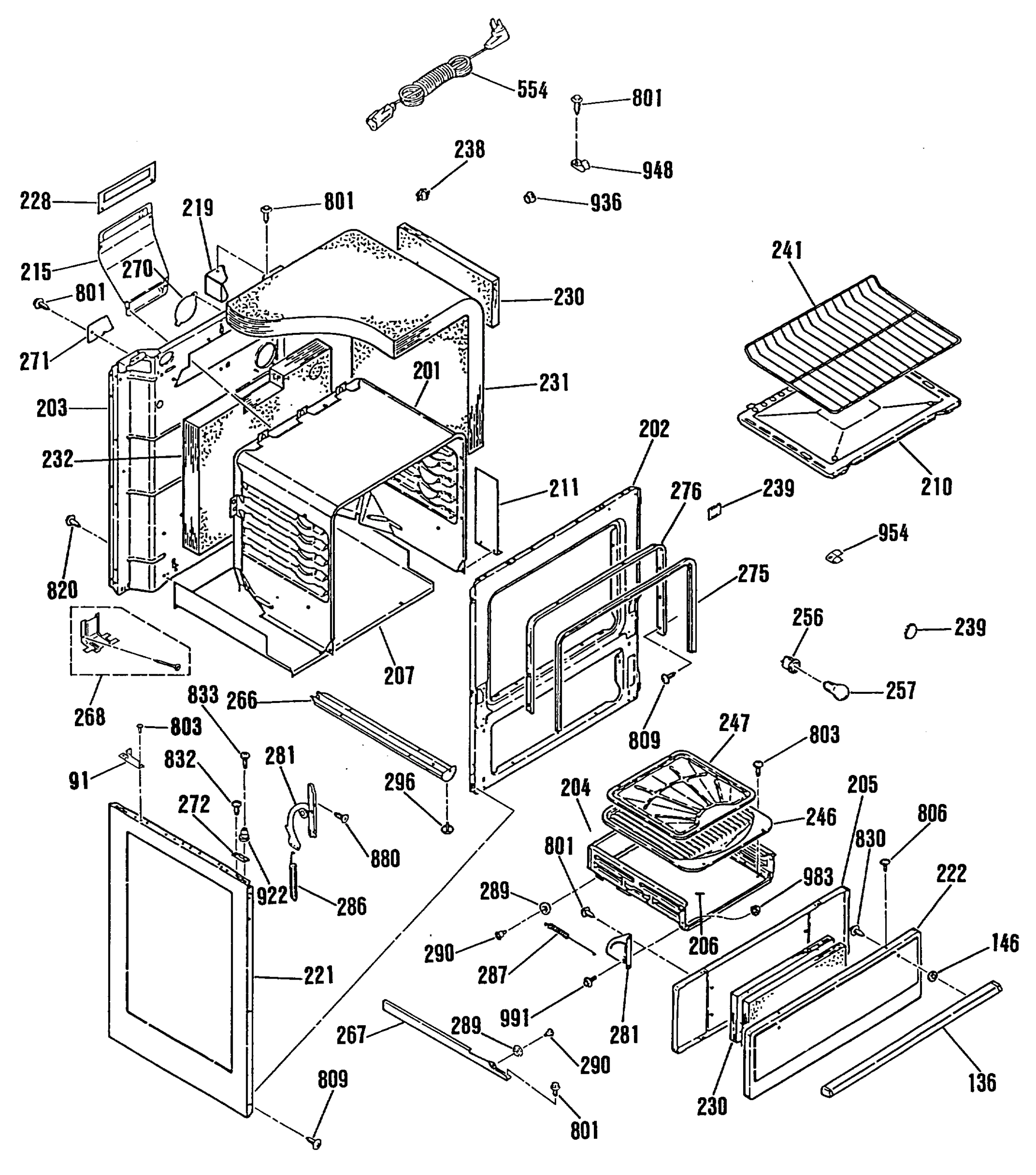

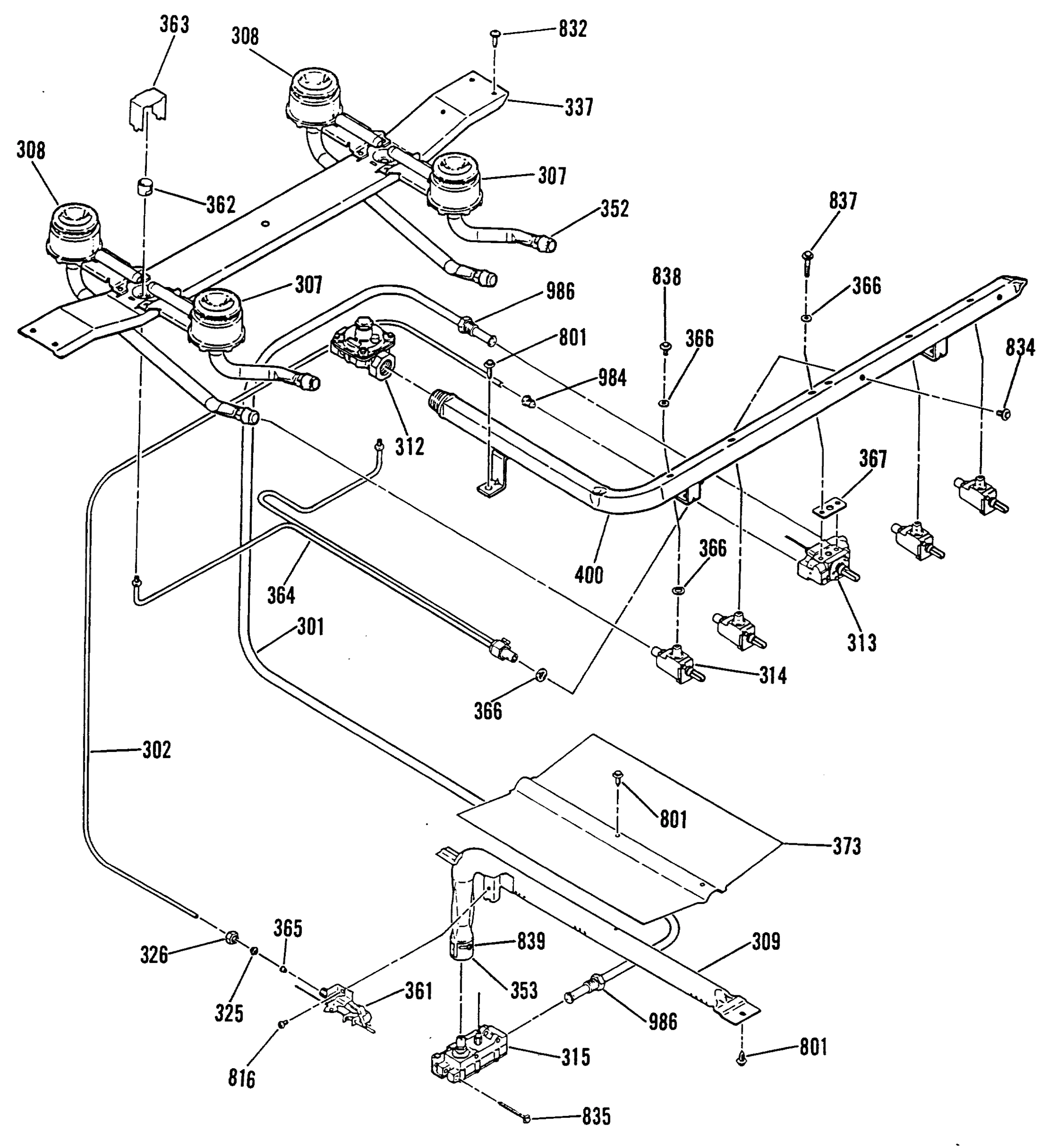

Common parts from model RCA L2B135GPL2 Electric Range
2
END CAP RT GEN WB07X1665 Contact Us For Availability
4
BACKGUARD PANEL FRONT GEN WB07X1738 Contact Us For Availability
6
GEN WB37M0004 GEN WB37M0004 Contact Us For Availability
7
GEN WB07X1647 GEN WB07X1647 Contact Us For Availability
16
CLOCK GEN WB19X0257 Contact Us For Availability
17
CLOCK LENS GEN WB36X0755 Contact Us For Availability
18
GEN WB02X9694 GEN WB02X9694 Contact Us For Availability
21
ROCKER SWITCH GEN WB24X0450 Contact Us For Availability
29
GAS VALVE KNOB GEN WB03X0815 Contact Us For Availability
30
CLOCK KNOB GEN WB03X0780 Contact Us For Availability
51
MAIN TOP WHITE GEN WB62X1675 Contact Us For Availability
51
MAIN TOP ALMOND GEN WB62X1676 Contact Us For Availability
52
MANIFOLD PANEL GEN WB07X1741 Contact Us For Availability
61
GEN WB63X0336 GEN WB63X0336 Contact Us For Availability
73
AERATION PAN GEN WB32X0102 Contact Us For Availability
74
GRATE GEN WB32X0095 Contact Us For Availability
85
END CAP LT-BLACK GEN WB07X1739 Contact Us For Availability
85
END CAP RT-BLACK GEN WB07X1740 Contact Us For Availability
88
THERMOSTAT KNOB GEN WB03X0761 Contact Us For Availability
89
MANIF PANEL BRACKET LT GEN WB02X9001 Contact Us For Availability
89
MANIF PANEL BRACKET RT GEN WB02X9002 Contact Us For Availability
90
SUPPORT ROD GEN WB02X9084 Contact Us For Availability
91
GEN WB14K5004 GEN WB14K5004 Contact Us For Availability
91
GEN WB14K5005 GEN WB14K5005 Contact Us For Availability
102
OV DR INSULATION GEN WB02X9123 Contact Us For Availability
112
OV DR LINING GEN WB56M0002 Contact Us For Availability
113
OV DR INS RETAINER GEN WB56X1910 Contact Us For Availability
117
OV DR GLASS RETAINER GEN WB02X9384 Contact Us For Availability
124
OV DR GLASS GEN WB56X1901 Contact Us For Availability
133
FELT WASHER GEN WB01X1159 Contact Us For Availability
136
OV DOOR HANDLE GEN WB15X0272 Contact Us For Availability
140
OV DR FRAME GEN WB07X1667 Contact Us For Availability
143
DR GLASS SPACER GEN WB02X9039 Contact Us For Availability
146
DR HANDLE SPACER GEN WB02X9037 Contact Us For Availability
147
FIBER WASHER GEN WB01X1138 Contact Us For Availability
201
OV BODY GEN WB53X0274 Contact Us For Availability
202
GEN WB63X0328 GEN WB63X0328 Contact Us For Availability
203
GEN WB63M0047 GEN WB63M0047 Contact Us For Availability
204
GEN WB58M0001 GEN WB58M0001 Contact Us For Availability
205
GEN WB56X0215 GEN WB56X0215 Contact Us For Availability
206
BROILER DRAWER BOTTOM GEN WB49X0625 Contact Us For Availability
207
GEN WB63M0028 GEN WB63M0028 Contact Us For Availability
210
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
211
INS RETAINER GEN WB02X9030 Contact Us For Availability
215
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
219
GEN WB02X9102 GEN WB02X9102 Contact Us For Availability
221
BODY SIDE-WHITE GEN WB63K5065 Contact Us For Availability
221
GEN WB63K5066 GEN WB63K5066 Contact Us For Availability
222
BROILER DR PANEL-WHITE GEN WB56X2013 Contact Us For Availability
222
BROILER DR PANEL-ALMOND GEN WB56X2014 Contact Us For Availability
228
FLUE INSULATION GEN WB02X9035 Contact Us For Availability
230
INSULATION BBB OR BRO DR GEN WB02X9394 Contact Us For Availability
231
OV BODY INSULATION GEN WB02X9031 Contact Us For Availability
232
OV BACK INSULATION GEN WB02X9631 Contact Us For Availability
238
DISCONNECT GEN WB17X0207 Contact Us For Availability
239
ROUND PLUG BUTTON GEN WB02X9097 Contact Us For Availability
239
MT PLUG BUTTON GEN WB02X9587 Contact Us For Availability
241
OV RACK GEN WB48X0210 Contact Us For Availability
246
BROILER PAN GEN WB49X0619 Contact Us For Availability
247
BROILER PAN GRID GEN WB49X0620 Contact Us For Availability
256
OV LAMP HOLDER GEN WB08X0276 Contact Us For Availability
257
GEN BUY LOCAL GEN BUY LOCAL Contact Us For Availability
266
BASE ASM GEN WB02X9040 Contact Us For Availability
267
DRAWER GUIDE ASM RT GEN WB39M0004 Contact Us For Availability
270
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
271
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
272
BODY SIDE SUPPORT-LT GEN WB02X9023 Contact Us For Availability
272
BODY SIDE SUPPORT-RT GEN WB02X9024 Contact Us For Availability
275
OV DOOR SEAL GEN WB02X9747 Contact Us For Availability
276
GEN WB02K5123 GEN WB02K5123 Contact Us For Availability
281
BROILER DRAWER HINGE LT GEN WB14X0116 Contact Us For Availability
281
BROILER DRAWER HINGE RT GEN WB14X0117 Contact Us For Availability
286
OV DR SPRING GEN WB09X0267 Contact Us For Availability
287
GEN WB09X0240 GEN WB09X0240 Contact Us For Availability
289
ROLLER GEN WB02X9638 Contact Us For Availability
290
RIVET GEN WB01X1331 Contact Us For Availability
296
LEG LEVELER GEN WB02X9025 Contact Us For Availability
301
3/8 TUBE W/NUTS GEN WB02X9282 Contact Us For Availability
302
3/16 TUBE GEN WB02X9019 Contact Us For Availability
307
TOP BURNER ASM-FRONT GEN WB28X0112 Contact Us For Availability
308
TOP BURNER ASM-REAR GEN WB28X0111 Contact Us For Availability
309
OV BURNER W/BAFFLE ASM GEN WB16K5011 Contact Us For Availability
312
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
313
OV THERMOSTAT GEN WB21X0471 Contact Us For Availability
314
GAS VALVE 90 DEGREES GEN WB21X0467 Contact Us For Availability
315
GEN WB21X0474 GEN WB21X0474 Contact Us For Availability
325
3/16 TUBING SLEEVE GEN WB02X9016 Contact Us For Availability
326
3/16 TUBING W/NUT GEN WB01X1126 Contact Us For Availability
337
TOP BURNER SUPPORT GEN WB02X9087 Contact Us For Availability
352
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
353
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
361
GEN WB02X9186 GEN WB02X9186 Contact Us For Availability
362
GEN WB19M0006 GEN WB19M0006 Contact Us For Availability
363
GEN WB02X9185 GEN WB02X9185 Contact Us For Availability
364
FILTER W/PILOT GEN WB02X9091 Contact Us For Availability
365
GEN WB02X9017 GEN WB02X9017 Contact Us For Availability
366
VALVE GASKET SCREW GEN WB02X9008 Contact Us For Availability
366
THERMOSTAT SCREW GASKET GEN WB02X9009 Contact Us For Availability
366
VALVE GASKET GEN WB02X9011 Contact Us For Availability
366
FILTER GASKET GEN WB02X9089 Contact Us For Availability
367
THERMOSTAT GASKET GEN WB02X9010 Contact Us For Availability
373
OV BURN BAFFLE GEN WB49X0618 Contact Us For Availability
400
MANIFOLD PIPE ASM GEN WB02X9088 Contact Us For Availability
554
GEN WB18X0370 GEN WB18X0370 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
806
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
816
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
818
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
826
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
834
FILTER MTG SCREW GEN WB01X1155 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
837
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
838
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
839
ADJUSTING SCREW GEN WB01X1124 Contact Us For Availability
846
SCREW GEN WB01X1169 Contact Us For Availability
881
TRIM SCREW-BLACK GEN WB01X1271 Contact Us For Availability
922
MT STRIKE GEN WB14X0105 Contact Us For Availability
936
GEN WB02X9033 GEN WB02X9033 Contact Us For Availability
954
THMST BULB RETAINER CLIP GEN WB02X9105 Contact Us For Availability
965
GEN WB02X9000 GEN WB02X9000 Contact Us For Availability
983
HEX NUT GEN WB01X1153 Contact Us For Availability
984
HEX NUT GEN WB01X1120 Contact Us For Availability
986
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
991
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
999
GEN 31-0733 GEN 31-0733 Contact Us For Availability
999
GEN 31-0924 GEN 31-0924 Contact Us For Availability
999
GEN 79-4036 GEN 79-4036 Contact Us For Availability
999
GEN WB18M0049 GEN WB18M0049 Contact Us For Availability
999
GEN WB18M0050 GEN WB18M0050 Contact Us For Availability
× ![]()
