Common parts from model RCA L2B135GEL0 Gas Range Or Dual Fuel
2
GEN WB02X9035 GEN WB02X9035 Contact Us For Availability
3
GEN WB38X0105 GEN WB38X0105 Contact Us For Availability
4
GEN WB63X0347 GEN WB63X0347 Contact Us For Availability
5
GEN WB02X9631 GEN WB02X9631 Contact Us For Availability
7
SPACER GEN WB02X9022 Contact Us For Availability
8
GEN WB02X9023 GEN WB02X9023 Contact Us For Availability
8
GEN WB02X9024 GEN WB02X9024 Contact Us For Availability
9
GEN WB14X0105 GEN WB14X0105 Contact Us For Availability
10
GEN WB02X9040 GEN WB02X9040 Contact Us For Availability
11
MAIN BOTTOM GEN WB63X0325 Contact Us For Availability
12
GEN WB02X0525 GEN WB02X0525 Contact Us For Availability
15
SPRING-OVEN DOOR GEN WB09X0267 Contact Us For Availability
16
BODY SIDE-WHITE GEN WB63X0326 Contact Us For Availability
16
BODY SIDE-ALMOND GEN WB63X0327 Contact Us For Availability
18

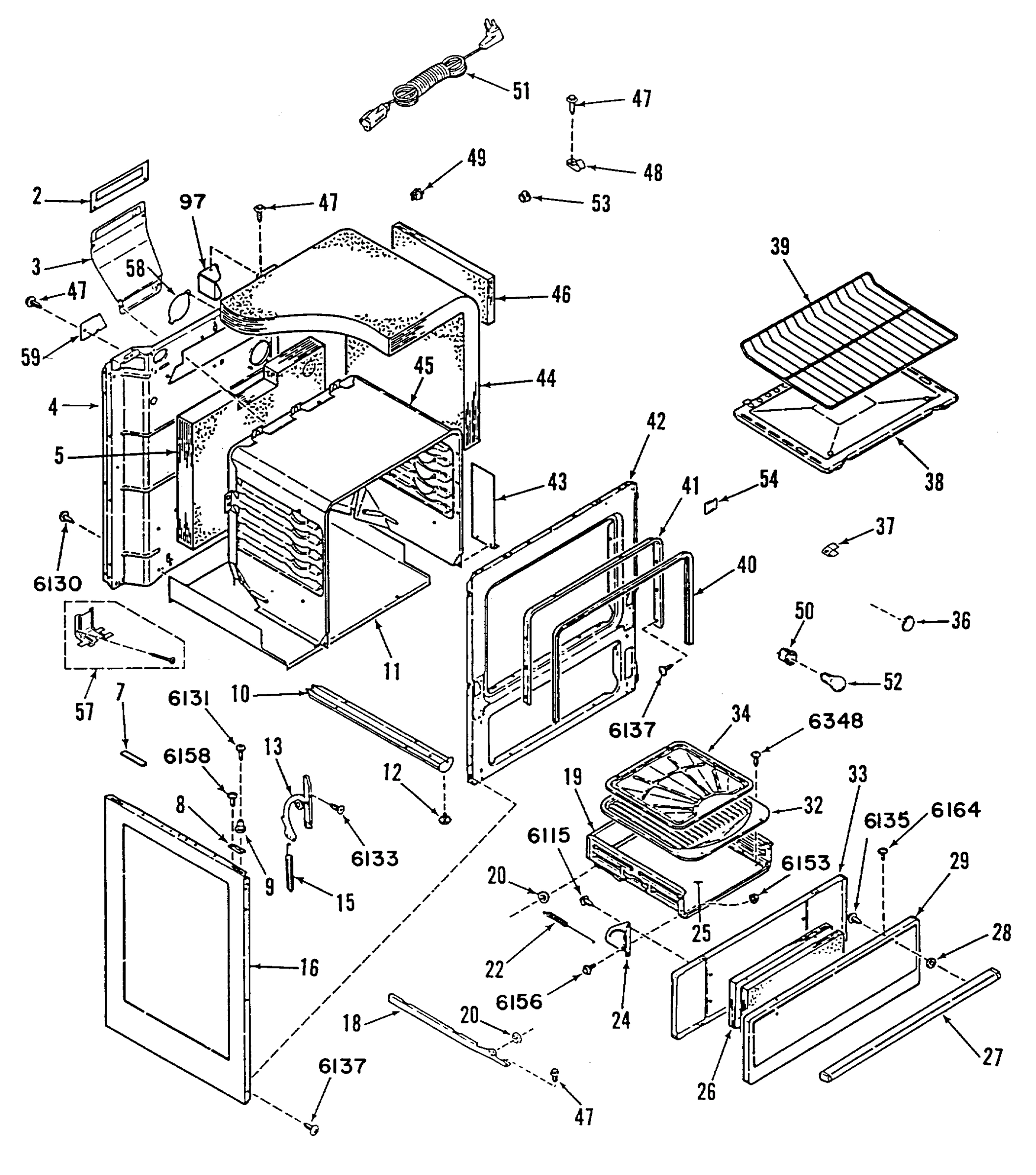

BROILER DRAWER GUIDE-L GEN WB39X0068 Contact Us For Availability
18
BROILER DRAWER GUIDE-R GEN WB39X0069 Contact Us For Availability
19
BROILER DRAWER GEN WB58X0062 Contact Us For Availability
22
SPRING-BROILER SPRING GEN WB09X0240 Contact Us For Availability
24
HINGE-BROILER-LEFT GEN WB14X0116 Contact Us For Availability
24
HINGE-BROILER-RIGHT GEN WB14X0117 Contact Us For Availability
25
BROILER DRWAER BOTTOM GEN WB49X0625 Contact Us For Availability
26
INSULATION GEN WB02X9032 Contact Us For Availability
27
HANDLE-OVEN/BROILER GEN WB15X0272 Contact Us For Availability
28
SPACER GEN WB02X9037 Contact Us For Availability
29
DRAWER PANEL-WHITE GEN WB56X2013 Contact Us For Availability
29
DRAWER PANEL-ALMOND GEN WB56X2014 Contact Us For Availability
32
BROILER PAN GEN WB49X0619 Contact Us For Availability
33
GEN WB56X2015 GEN WB56X2015 Contact Us For Availability
34
GRID-BROILER PAN GEN WB49X0620 Contact Us For Availability
37
GEN WB02X9105 GEN WB02X9105 Contact Us For Availability
38
OVEN BOTTOM GEN WB53X0273 Contact Us For Availability
39
GEN WB48X0208 GEN WB48X0208 Contact Us For Availability
40
GASKET-OVEN DOOR GEN WB02X9747 Contact Us For Availability
42
GEN WB63X0328 GEN WB63X0328 Contact Us For Availability
43
INSULATION RETAINER GEN WB02X9030 Contact Us For Availability
44
INSULATION-TOP AND SIDES GEN WB02X9031 Contact Us For Availability
45
GEN WB53X0274 GEN WB53X0274 Contact Us For Availability
48
GEN WB02X9493 GEN WB02X9493 Contact Us For Availability
49
DISCONNECT GEN WB17X0207 Contact Us For Availability
50
RECEPTACLE-OVEN LAMP GEN WB08X0276 Contact Us For Availability
51
GEN WB18X0298 GEN WB18X0298 Contact Us For Availability
52
OVEN LAMP - 40 WATT GEN BUY LOCAL Contact Us For Availability
53
GEN WB02X9033 GEN WB02X9033 Contact Us For Availability
58
LIGHT COVER PLATE GEN WB02X9748 Contact Us For Availability
59
GEN WB02X9749 GEN WB02X9749 Contact Us For Availability
97
GEN WB02X9102 GEN WB02X9102 Contact Us For Availability
203
GEN WB07X1664 GEN WB07X1664 Contact Us For Availability
203
GEN WB07X1665 GEN WB07X1665 Contact Us For Availability
209
CLEAT GEN WB02X9000 Contact Us For Availability
211
SUPPORT-BACKSPLASH GEN WB07X1647 Contact Us For Availability
212
GEN WB07X1738 GEN WB07X1738 Contact Us For Availability
215
GEN WB24X0450 GEN WB24X0450 Contact Us For Availability
217
KNOB-CLOCK GEN WB03X0780 Contact Us For Availability
218
GEN WB07X1737 GEN WB07X1737 Contact Us For Availability
220
GEN WB02X9694 GEN WB02X9694 Contact Us For Availability
221
GEN WB36X0785 GEN WB36X0785 Contact Us For Availability
223
GEN WB19X0259 GEN WB19X0259 Contact Us For Availability
302
GEN WB32X0095 GEN WB32X0095 Contact Us For Availability
303
GEN WB62X1675 GEN WB62X1675 Contact Us For Availability
303
GEN WB62X1676 GEN WB62X1676 Contact Us For Availability
305
GEN WB14X0147 GEN WB14X0147 Contact Us For Availability
307
GEN WB63X0336 GEN WB63X0336 Contact Us For Availability
309
ROD-COOKTOP SUPPORT GEN WB02X9084 Contact Us For Availability
313
GEN WB07X1741 GEN WB07X1741 Contact Us For Availability
314
GEN WB03X0815 GEN WB03X0815 Contact Us For Availability
315
GEN WB03X0761 GEN WB03X0761 Contact Us For Availability
321
DRIP PAN-DOUBLE GEN WB32X0102 Contact Us For Availability
329
GEN WB07X1739 GEN WB07X1739 Contact Us For Availability
329
GEN WB07X1740 GEN WB07X1740 Contact Us For Availability
359
MANIFOLD PANEL BRACKET-L GEN WB02X9001 Contact Us For Availability
359
MANIFOLD PANEL BRACKET-R GEN WB02X9002 Contact Us For Availability
401

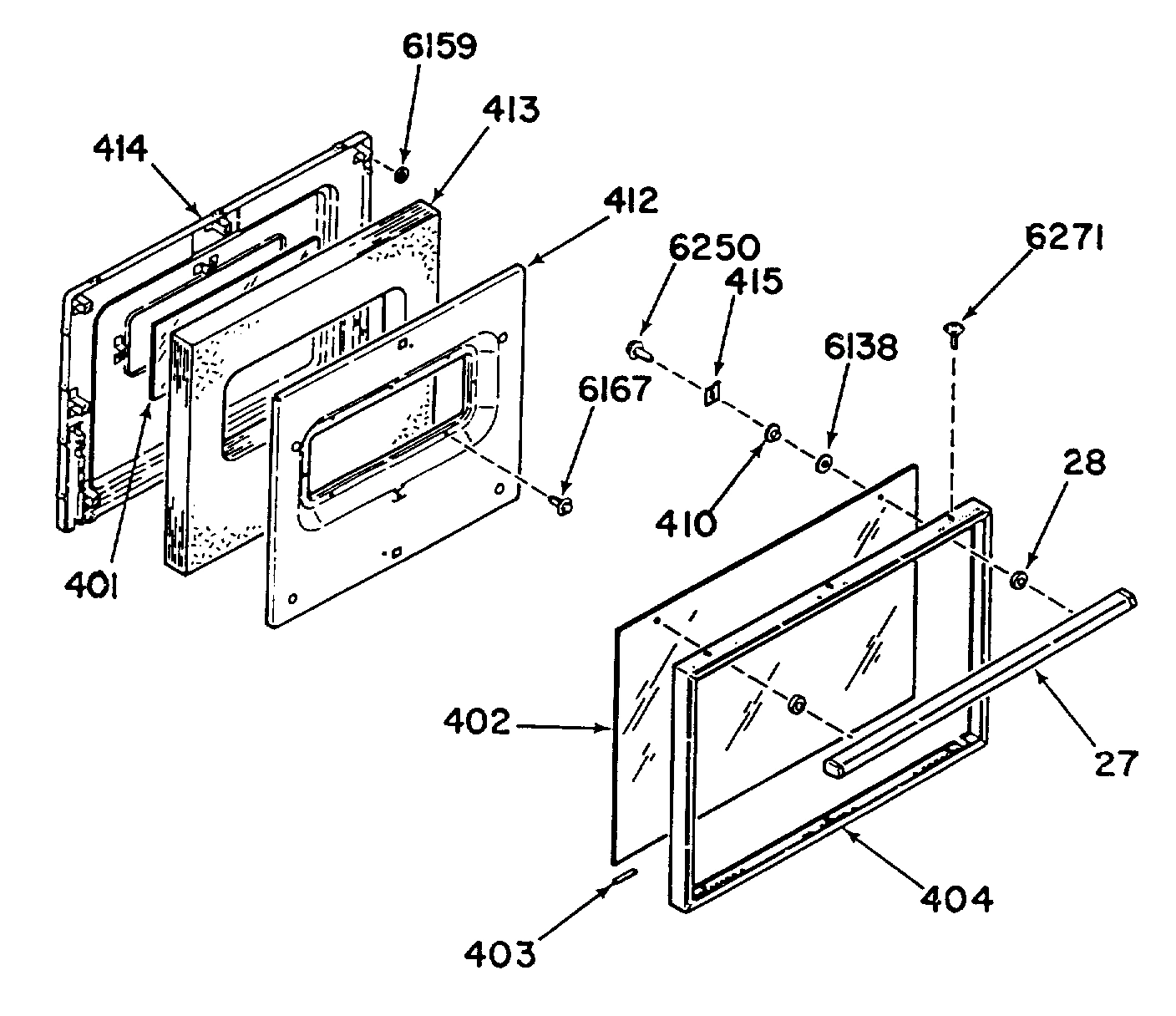

INNER GLASS-OVEN DOOR GEN WB56X1901 Contact Us For Availability
403
GEN WB02X9036 GEN WB02X9036 Contact Us For Availability
404
GEN WB07X1667 GEN WB07X1667 Contact Us For Availability
410
SPACER GEN WB02X9039 Contact Us For Availability
412
RETAINER-OVEN DOOR GEN WB56X1910 Contact Us For Availability
413
GEN WB02X9123 GEN WB02X9123 Contact Us For Availability
414
GEN WB56X1911 GEN WB56X1911 Contact Us For Availability
415
GEN WB02X9384 GEN WB02X9384 Contact Us For Availability
601
GEN WB02X9003 GEN WB02X9003 Contact Us For Availability
602
GEN WB02X9742 GEN WB02X9742 Contact Us For Availability
602
GEN WB02X9743 GEN WB02X9743 Contact Us For Availability
603

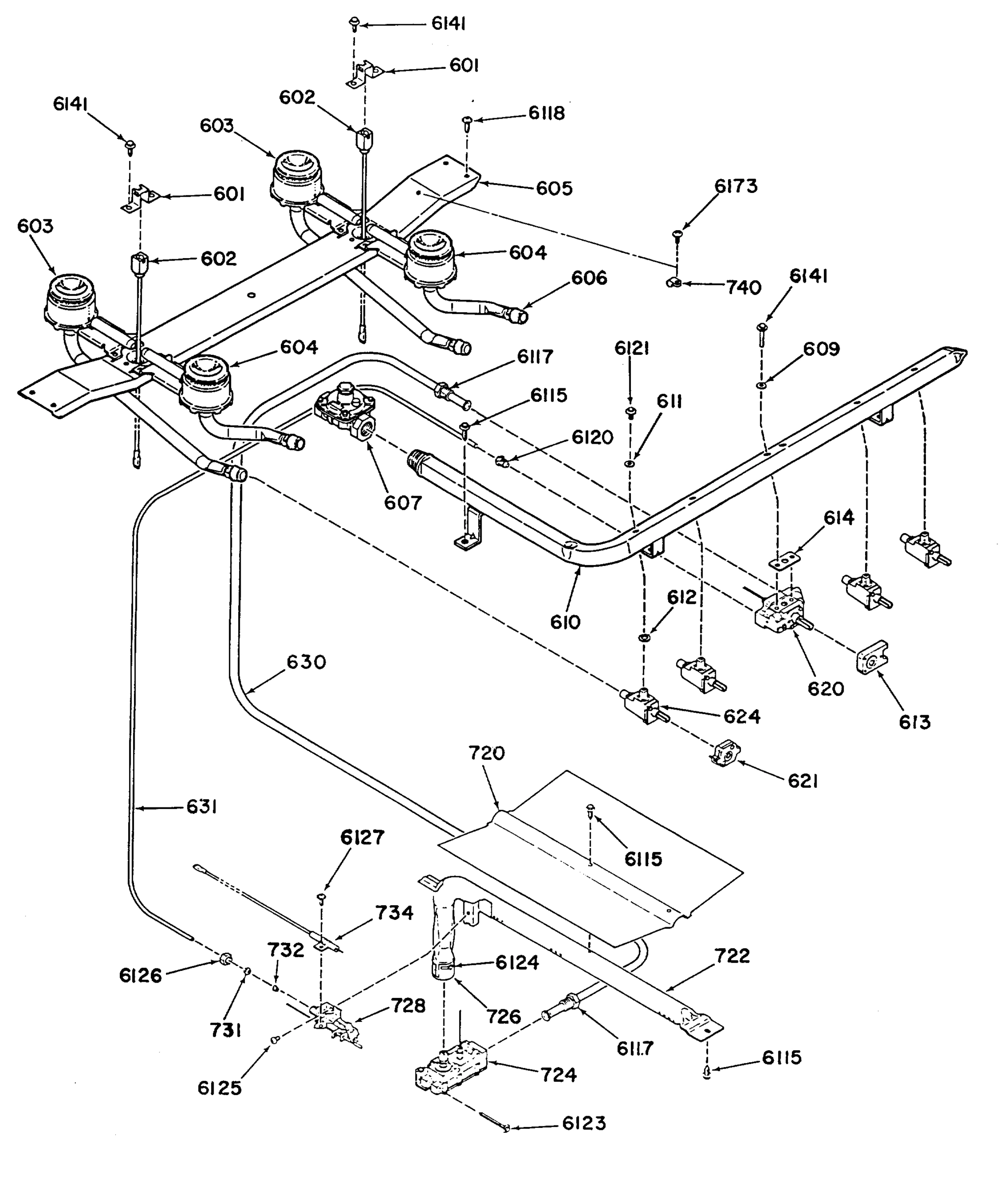

TOP BURNER-REAR-R/L GEN WB28X0111 Contact Us For Availability
603
TOP BURNER-FRONT-R/L GEN WB28X0112 Contact Us For Availability
605
SUPPORT-TOP BURNERS GEN WB02X9744 Contact Us For Availability
606
GEN WB02X9739 GEN WB02X9739 Contact Us For Availability
607
GEN WB21X0465 GEN WB21X0465 Contact Us For Availability
609
GEN WB02X9009 GEN WB02X9009 Contact Us For Availability
610
GEN WB02X9012 GEN WB02X9012 Contact Us For Availability
611
GEN WB02X9008 GEN WB02X9008 Contact Us For Availability
612
GEN WB02X9011 GEN WB02X9011 Contact Us For Availability
613
GEN WB24X0411 GEN WB24X0411 Contact Us For Availability
614
GEN WB02X9010 GEN WB02X9010 Contact Us For Availability
620
GEN WB21X0466 GEN WB21X0466 Contact Us For Availability
621
SWITCH-BURNER IGNITER GEN WB24X0412 Contact Us For Availability
624
VALVE-TOP BURNER GEN WB21X0467 Contact Us For Availability
630
TUBING-THERMOSTAT/VALVE GEN WB02X9282 Contact Us For Availability
631
TUBING-THERMOSTAT/PILOT GEN WB02X9019 Contact Us For Availability
710
SPARK MODULE GEN WB20X0104 Contact Us For Availability
712
GEN WB02X9741 GEN WB02X9741 Contact Us For Availability
720
GEN WB49X0618 GEN WB49X0618 Contact Us For Availability
722
GEN WB28X0083 GEN WB28X0083 Contact Us For Availability
724
GEN WB21X0506 GEN WB21X0506 Contact Us For Availability
726
GEN WB02X9014 GEN WB02X9014 Contact Us For Availability
728
GEN WB02X9015 GEN WB02X9015 Contact Us For Availability
731
GEN WB02X9016 GEN WB02X9016 Contact Us For Availability
732
GEN WB02X9017 GEN WB02X9017 Contact Us For Availability
734
GEN WB02X9018 GEN WB02X9018 Contact Us For Availability
740
GEN WB02X9750 GEN WB02X9750 Contact Us For Availability
6113
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
6117
GEN WB01X1117 GEN WB01X1117 Contact Us For Availability
6120
GEN WB01X1120 GEN WB01X1120 Contact Us For Availability
6121
GEN WB01X1121 GEN WB01X1121 Contact Us For Availability
6123
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
6124
GEN WB01X1124 GEN WB01X1124 Contact Us For Availability
6125
GEN WB01X1125 GEN WB01X1125 Contact Us For Availability
6126
GEN WB01X1126 GEN WB01X1126 Contact Us For Availability
6138
WASHER GEN WB01X1138 Contact Us For Availability
6151
GEN WB01X1151 GEN WB01X1151 Contact Us For Availability
6153
HEX NUT GEN WB01X1153 Contact Us For Availability
6156
GEN WB01X1156 GEN WB01X1156 Contact Us For Availability
6159
FELT WASHER GEN WB01X1159 Contact Us For Availability
6164
GEN WB01X1164 GEN WB01X1164 Contact Us For Availability
6167
GEN WB01X1167 GEN WB01X1167 Contact Us For Availability
6169
SCREW GEN WB01X1169 Contact Us For Availability
6171
GEN WB01X1171 GEN WB01X1171 Contact Us For Availability
6250
GEN WB01X1250 GEN WB01X1250 Contact Us For Availability
6271
SCREW GEN WB01X1271 Contact Us For Availability
6348
SCREW GEN WB01X1348 Contact Us For Availability
× ![]()
