Model LG L246WH-BN – Common Parts & Diagrams

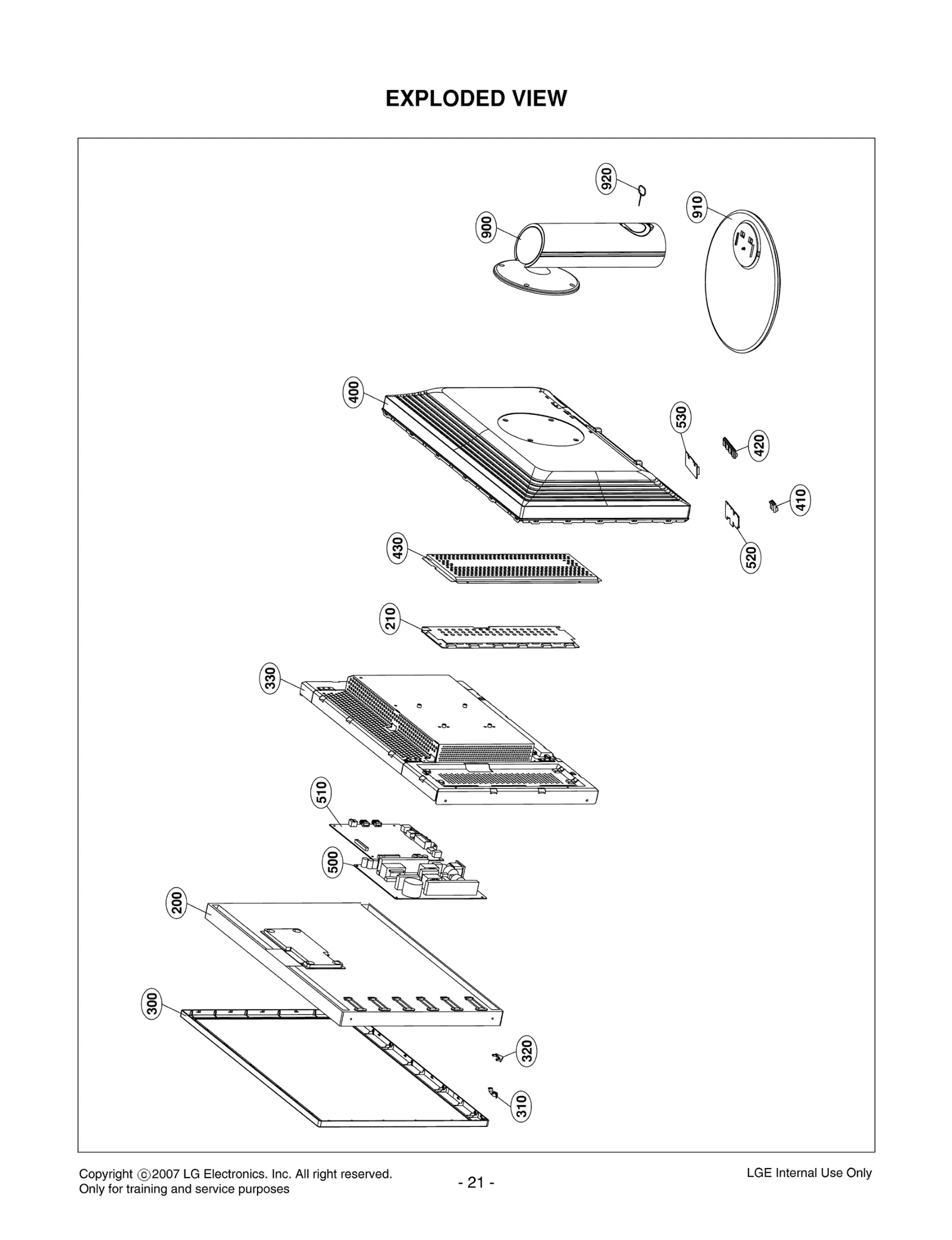

Diagram 0
Diagram 1
Common parts from model LG L246WH-BN
0
Inverter,DC/AC LGE EAY40297101 Contact Us For Availability
300
Cabinet Assembly LGE ABJ32255604 Contact Us For Availability
310
Lens LGE MFB35704001 Contact Us For Availability
320
Cover LGE MCK35704601 Contact Us For Availability
330
Plate Assembly LGE AGU30305701 Contact Us For Availability
400
Cover Assembly LGE ACQ30305506 Contact Us For Availability
410
Knob LGE MEY35704301 Contact Us For Availability
420
Knob LGE MEY30311002 Contact Us For Availability
430
Plate LGE MGJ30313701 Contact Us For Availability
500
Power Supply Assembl LGE 6709900034C Contact Us For Availability
510
Main Total Assembly LGE EBU38386701 Contact Us For Availability
520
PCB Assembly LGE EBR35741501 Contact Us For Availability
530
PCB Assembly LGE EBR39871501 Contact Us For Availability
900
Base Assembly LGE AAN30364304 Contact Us For Availability
910
Base Assembly LGE AAN30364404 Contact Us For Availability
A1
S/W Package LGE SAB30808402 Contact Us For Availability
A4
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
A6
Cable,Assembly LGE EAD32701402 Contact Us For Availability
A7
Holder LGE MEG41097301 Contact Us For Availability
B1
Box LGE MAY39472807 Contact Us For Availability
C1
Harness,Single LGE EAD31342002 Contact Us For Availability
C2
Harness,Single LGE EAD32744101 Contact Us For Availability
C3
Harness,Single LGE EAD30368603 Contact Us For Availability
C4
Harness,Single LGE 6631V12031F Contact Us For Availability
C5
Harness,Single LGE 6631900047C Contact Us For Availability
C6
CONNECTOR ASSEMBLY LGE 6631T20038H Contact Us For Availability
C148
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C249
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C303
Capacitor,AL,Radial LGE 0CE226EK638 Contact Us For Availability
C307
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE476SF6DC Contact Us For Availability
C320
Capacitor,Ceramic,Chip LGE 0CK224CFG6A Contact Us For Availability
C322
CAPACITOR,FIXED CERA LGE 0CK152CK51A Contact Us For Availability
C326
Capacitor,AL,Radial LGE 0CZZTAT005D Contact Us For Availability
C330
CAPACITOR,AL.ELECTRO LGE 0CE107EF638 Contact Us For Availability
C334
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C351
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C353
LGE 0CE337EJ618 LGE 0CE337EJ618 Contact Us For Availability
C354
Capacitor,Ceramic,Chip LGE 0CK273CK56A Contact Us For Availability
C358
CAPACITOR,FIXED ELEC LGE 0CE227EH638 Contact Us For Availability
C401
CAPACITOR,FIXED CERA LGE 0CC390CK41A Contact Us For Availability
C415
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C420
CAPACITOR,FIXED CERA LGE 0CK475DD57A Contact Us For Availability
C505
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C525
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C526
CAPACITOR,FIXED CERA LGE 0CK105CF94A Contact Us For Availability
C545
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C546
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C561
CAPACITOR,FIXED CERA LGE 0CK102DK51A Contact Us For Availability
C575
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C583
Capacitor,AL,Chip LGE 0CE476VC6DC Contact Us For Availability
D100
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
D112
Diode,TVS LGE 0DRCE00028A Contact Us For Availability
D310
DIODE,RECTIFIERS LGE 0DRON00268A Contact Us For Availability
D405
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
IC100
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC201
IC Assembly LGE EAN38909801 Contact Us For Availability
IC202
IC,Video Processors LGE EAN38226701 Contact Us For Availability
IC204
IC,SDRAM LGE EAN32236001 Contact Us For Availability
IC205
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC206
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC301
IC,POWER MANAGEMENT LGE 0IPMGSG016A Contact Us For Availability
IC305
IC,PERIPHERALS LGE 0IPRPTI034B Contact Us For Availability
IC310
IC,POWER MANAGEMENT LGE 0IPMG00063A Contact Us For Availability
IC400
IC,Bus Controller LGE EAN32038601 Contact Us For Availability
IC401
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
IC502
IC,ROHM LGE 0IRH033200A Contact Us For Availability
IC503
IC,PERIPHERALS LGE 0IPRPM3002D Contact Us For Availability
J101
JACK,DIN LGE 6612B00015A Contact Us For Availability
J301
JACK,DC POWER LGE 6612A00011A Contact Us For Availability
J302
JACK,PHONE LGE 6612F00001D Contact Us For Availability
J303
Connector,Wafer LGE 6602T20008A Contact Us For Availability
J501
Jack,RCA LGE 6612J10003Q Contact Us For Availability
L310
COIL,CHOKE LGE 6140TBZ048A Contact Us For Availability
L401
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
L505
FILTER(CIRC),EMC LGE 6210TCE001Y Contact Us For Availability
LED2
LED LGE 0DLBE0248AA Contact Us For Availability
P1
Connector,Wafer LGE 6602T12005C Contact Us For Availability
P2
Packing LGE MFZ37832801 Contact Us For Availability
P102
CONNECTOR (CIRC),D-S LGE 6630TGA004A Contact Us For Availability
P300
Connector,Wafer LGE 6602T25008N Contact Us For Availability
P301
Connector,Wafer LGE 6602T12005E Contact Us For Availability
P304
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
P400
Connector,USB LGE 6630SK00804 Contact Us For Availability
Q102
TRANSISTOR LGE 0TR830009BA Contact Us For Availability
Q303
FET,Array LGE 0TFIR80009C Contact Us For Availability
Q505
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q902
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
R105
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R114
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R137
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R194
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R246
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R252
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R264
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R267
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R274
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R290
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R314
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ2002D477 Contact Us For Availability
R342
Resistor,Chip LGE 0RH5102D622 Contact Us For Availability
R344
RESISTOR,METAL GLAZED(CHIP) LGE 0RJ1003E672 Contact Us For Availability
R351
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R401
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R411
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R431
RESISTOR,METAL GLAZE LGE 0RJ5603D677 Contact Us For Availability
R518
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R520
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R538
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R911
RESISTOR,METAL GLAZE LGE 0RJ1202D677 Contact Us For Availability
R916
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R918
RESISTOR,METAL GLAZE LGE 0RJ1802D677 Contact Us For Availability
RA281
RESISTOR,METAL GLAZE LGE 0RJ0222C687 Contact Us For Availability
SW906
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X201
CRYSTAL LGE 6202TST001A Contact Us For Availability
X400
Crystal LGE EAW30536501 Contact Us For Availability
ZD903
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
