Model LG L206WU-WF – Common Parts & Diagrams

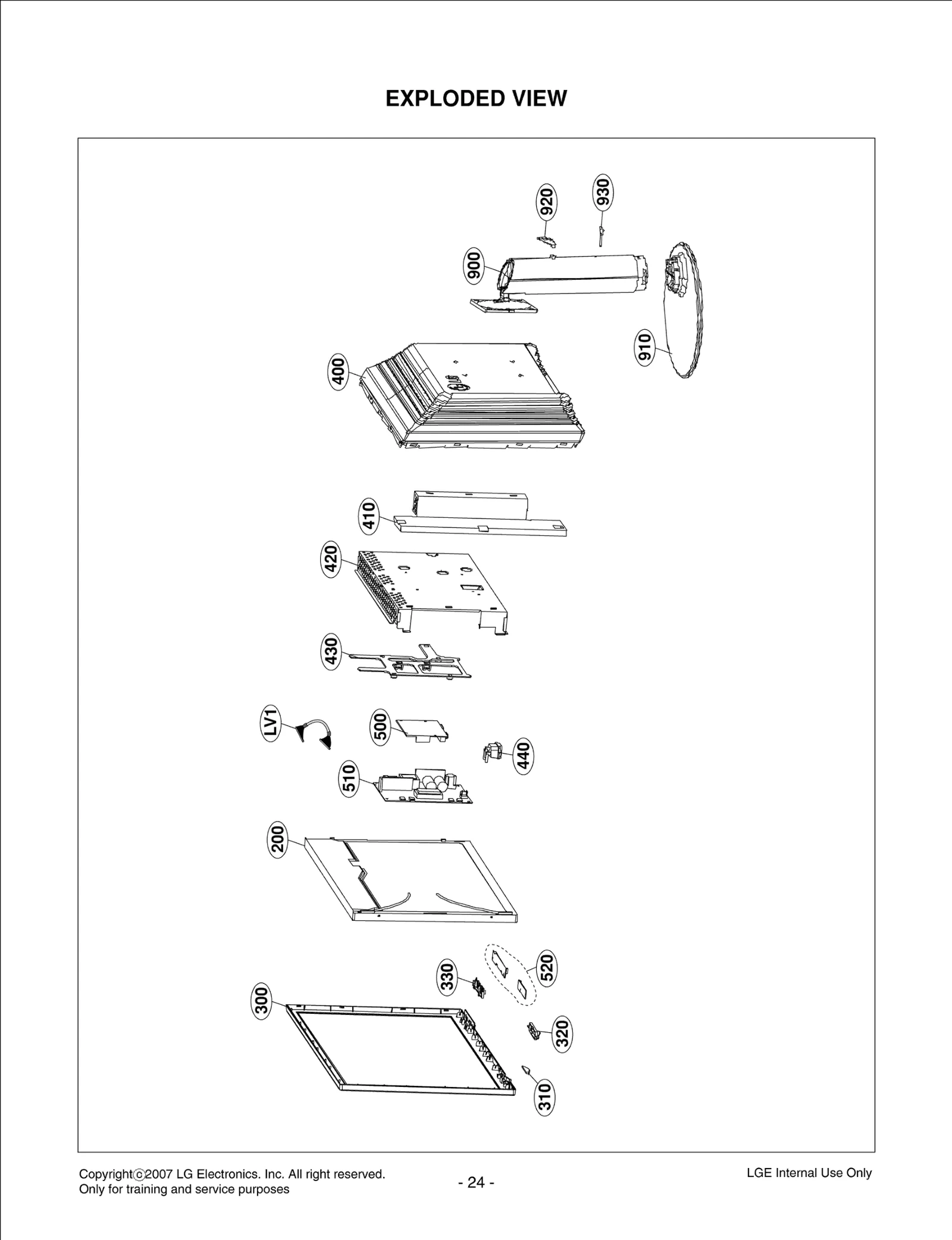

Diagram 0
Diagram 1
Common parts from model LG L206WU-WF
300
Cabinet Assembly LGE ABJ32510012 Contact Us For Availability
310
Lens LGE MFB35938701 Contact Us For Availability
320
Knob LGE MEY35940501 Contact Us For Availability
330
Knob LGE MEY35940301 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ32510420 Contact Us For Availability
410
Frame LGE MDQ35941901 Contact Us For Availability
420
Frame Assembly LGE ADV32509412 Contact Us For Availability
430
Cover LGE MCK35940801 Contact Us For Availability
440
Drawing,Assembly LGE 6620K00003N Contact Us For Availability
500
Main Total Assembly LGE EBU42974801 Contact Us For Availability
510
PCB Assembly,Power LGE 6871TPT318G Contact Us For Availability
520
PCB Assembly,Sub LGE EBR35809101 Contact Us For Availability
900
Base Assembly LGE AAN30837814 Contact Us For Availability
910
Base Assembly LGE AAN30837705 Contact Us For Availability
920
Cover LGE 3550TKK954E Contact Us For Availability
930
Locker LGE MFG34448601 Contact Us For Availability
A1
S/W Package LGE SAB31674202 Contact Us For Availability
A3
POWER CORD LGE 174-206M Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
AR554
RESISTOR,METAL GLAZE LGE 0RJ0000C687 Contact Us For Availability
B1
Box LGE MAY39472803 Contact Us For Availability
C2
Harness,Single LGE EAD35660901 Contact Us For Availability
C3
Harness,Single LGE 6631T12002H Contact Us For Availability
C300
CAPACITOR,FIXED CERA LGE 0CK474DH56A Contact Us For Availability
C309
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C310
CAPACITOR,FIXED CERA LGE 0CK226FF67A Contact Us For Availability
C316
Capacitor,Ceramic,Ch LGE 0CK225DD66A Contact Us For Availability
C322
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C354
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C539
CAPACITOR,FIXED CERA LGE 0CC151CK41A Contact Us For Availability
C552
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C607
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C612
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C628
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C703
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C727
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C728
CAPACITOR,FIXED CERA LGE 0CK474CH94A Contact Us For Availability
C738
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
D1
LED LGE 0DLBE0048AA Contact Us For Availability
D300
DIODE,RECTIFIERS LGE 0DRON00268A Contact Us For Availability
D703
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D711
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC200
IC,Video Processors LGE 0IPRP00784C Contact Us For Availability
IC201
IC Assembly LGE EAN36785401 Contact Us For Availability
IC202
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC300
IC,MICRO CONTROLLER LGE 0IMCRMZ001A Contact Us For Availability
IC302
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
IC303
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
IC305
IC,LDO Voltage Regulator LGE 0IPMGFA065A Contact Us For Availability
IC306
IC,POWER MANAGEMENT LGE 0IPMG00028A Contact Us For Availability
IC500
IC Assembly LGE EAN37029001 Contact Us For Availability
IC501
IC,DDR SDRAM LGE EAN32205201 Contact Us For Availability
IC502
IC,Tx/Rx LGE 0IS5160000C Contact Us For Availability
IC504
IC,Video Processors LGE EAN37055401 Contact Us For Availability
IC601
IC,Microcontrollers LGE EAN30231001 Contact Us For Availability
IC602
IC,PERIPHERALS LGE 0IPRP00016A Contact Us For Availability
IC605
IC,NAND Flash Memory LGE EAN38563401 Contact Us For Availability
IC701
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC702
IC,Analog Switch LGE EAN30399701 Contact Us For Availability
J1
Connector,Wafer LGE 6602T12005E Contact Us For Availability
J3
Connector,Wafer LGE 6602T12005C Contact Us For Availability
L300
COIL,CHOKE LGE 61409B0002A Contact Us For Availability
L305
FILTER(CIRC),EMC LGE 0LCML00003B Contact Us For Availability
L600
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
L603
FILTER(CIRC),EMC LGE 6210TCE001Z Contact Us For Availability
LV1
CONNECTOR ASSEMBLY LGE 6631900109A Contact Us For Availability
P1
CARTON PLATE LGE 3918TKK038Z Contact Us For Availability
P2
Packing LGE MFZ37401601 Contact Us For Availability
P600
Connector,USB LGE 6630SK00804 Contact Us For Availability
P601
Connector,USB LGE 6630SK00704 Contact Us For Availability
P700
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P701
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P704
Conector,Wafer LGE 6630V90219A Contact Us For Availability
P705
Connector,Wafer LGE 6602T12004E Contact Us For Availability
Q200
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q300
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q700
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R6
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R201
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R209
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R223
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R300
RESISTOR,FIXED SMALL LGE 0RX0681K668 Contact Us For Availability
R303
RESISTOR,METAL GLAZE LGE 0RJ6801D477 Contact Us For Availability
R311
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R515
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R527
RESISTOR,METAL GLAZE LGE 0RJ1001D477 Contact Us For Availability
R528
RESISTOR,METAL GLAZE LGE 0RJ1211D477 Contact Us For Availability
R539
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R551
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R610
RESISTOR,METAL GLAZE LGE 0RJ1202D477 Contact Us For Availability
R617
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R621
RESISTOR,METAL GLAZE LGE 0RJ2200D677 Contact Us For Availability
R622
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R625
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R706
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R741
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R749
Resistor,Chip LGE 0RH0202D622 Contact Us For Availability
R750
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R752
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X200
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
X600
RESONATOR,CRYSTAL LGE 6212AA2004A Contact Us For Availability
ZD602
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
