Model LG L204WT-BF – Common Parts & Diagrams

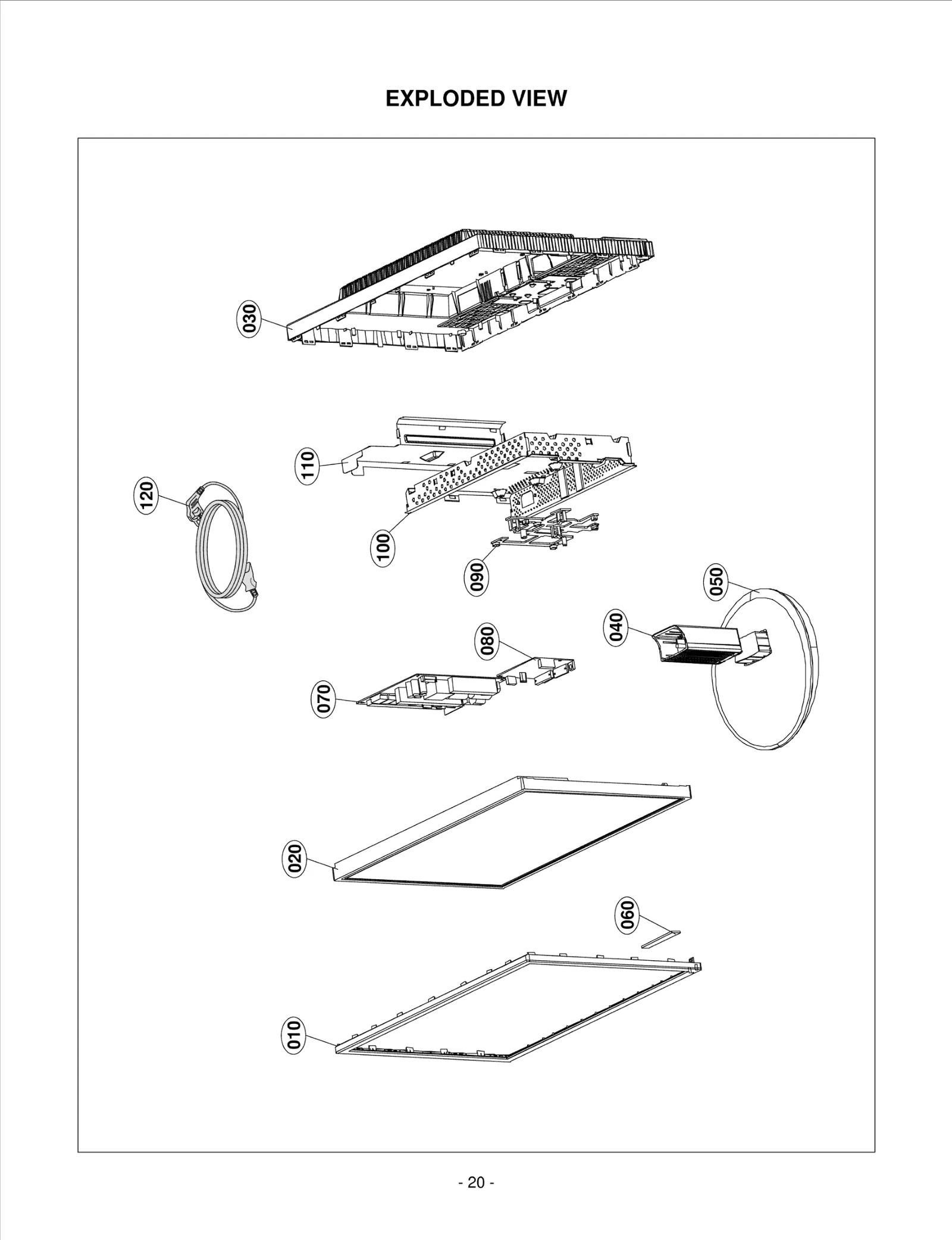

Diagram 0
Diagram 1
Common parts from model LG L204WT-BF
010
Cover Assembly LGE 30919L0033E Contact Us For Availability
020
LCD,Module-TFT LGE EAJ33945702 Contact Us For Availability
020
LCD,Module-TFT LGE EAJ33945701 Contact Us For Availability
030
Cover Assembly LGE ACQ30549401 Contact Us For Availability
030
Cover Assembly LGE ACQ34379204 Contact Us For Availability
040
Cover LGE 35509K0346A Contact Us For Availability
050
Base Assembly LGE 3043900057C Contact Us For Availability
060
PCB Assembly LGE EBR30204402 Contact Us For Availability
070
PCB Assembly,Power LGE 6871TPT318E Contact Us For Availability
080
Main Total Assembly LGE EBU35522001 Contact Us For Availability
090
Cover LGE MCK36459401 Contact Us For Availability
100
Plate,Shield LGE MGJ35936501 Contact Us For Availability
110
Plate,Shield LGE MGJ35937302 Contact Us For Availability
120
POWER CORD LGE 6410TBW004A Contact Us For Availability
120
Power Cord LGE 64109BP001A Contact Us For Availability
A1
S/W Package LGE SAB31038315 Contact Us For Availability
A4
Card LGE MBM36714311 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631900109A Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C510
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C601
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK333CK56A Contact Us For Availability
C603
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C604
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C717
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
D709
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D709
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC501
IC,Video Processors LGE EAN30386101 Contact Us For Availability
IC502
IC,MEMORIES LGE 0IMMRSG036B Contact Us For Availability
IC503
IC Assembly LGE EAN35523301 Contact Us For Availability
IC504
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC601
IC,LDO Voltage Regul LGE EAN33480601 Contact Us For Availability
IC601
IC,LDO Voltage Regulator LGE 0IPMGSG020A Contact Us For Availability
IC702
IC,EEPROM LGE 0IMMRAL014D Contact Us For Availability
IC702
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
IC702
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
J1
Connector,Wafer LGE 6602T12004E Contact Us For Availability
LED1
LED,Chip LGE 0DLGP0128AA Contact Us For Availability
LED1
LED LGE 0DLBE0048AA Contact Us For Availability
P701
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
P701
Connector,DSUB LGE EAG41681101 Contact Us For Availability
P702
Connector,Wafer LGE 6630V90220K Contact Us For Availability
P703
Connector,DSUB LGE 6630G100316 Contact Us For Availability
P703
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
P705
Conector,Wafer LGE 6630V90219A Contact Us For Availability
Q502
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q502
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q701
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R2
RESISTOR,METAL GLAZE LGE 0RJ7501D677 Contact Us For Availability
R3
Resistor,Chip LGE 0RJ1201D677 Contact Us For Availability
R5
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R507
Resistor,Chip LGE 0RJ2702D677 Contact Us For Availability
R525
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R527
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R574
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R602
RESISTOR,FIXED SMALL LGE 0RX0331K668 Contact Us For Availability
R603
Resistor,Metal Oxide LGE 0RX0560J609 Contact Us For Availability
R713
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R714
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R737
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R740
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
SW1
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
ZD704
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
