Model LG L2000CN-BF – Common Parts & Diagrams

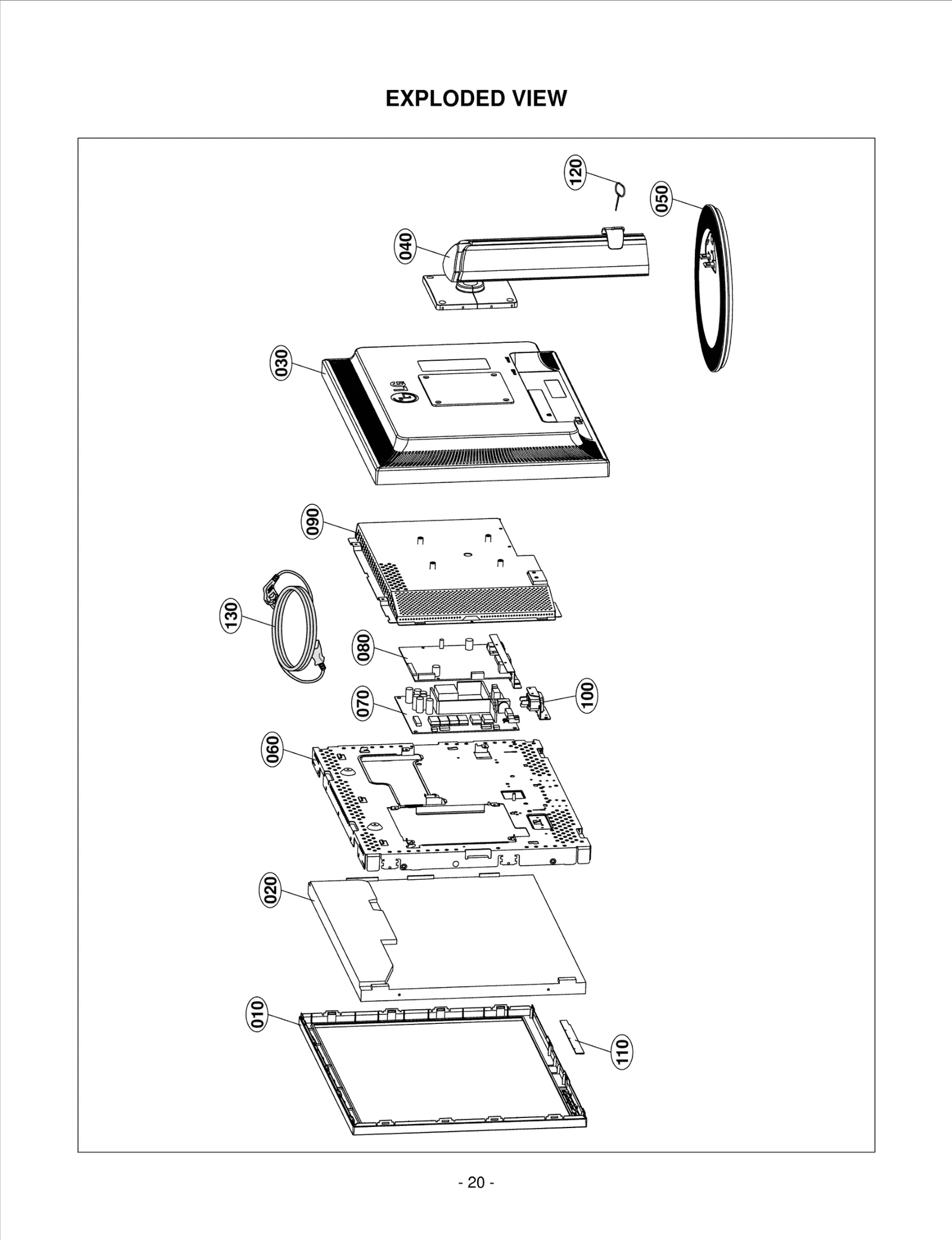

Diagram 0
Diagram 1
Common parts from model LG L2000CN-BF
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
Screw,Taptite LGE FAB30007505 Contact Us For Availability
0
CARTON PLATE LGE 3918TKK038C Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
0
Screw,Taptite LGE FAB30018402 Contact Us For Availability
0
BOX LGE 3890900120A Contact Us For Availability
0
PACKING LGE 3920900057A Contact Us For Availability
0
Screw,Taptite LGE FAB30012106 Contact Us For Availability
0
Screw,Taptite LGE FAB30013604 Contact Us For Availability
0
Card LGE 3840TRL085Y Contact Us For Availability
0
Screw,Taptite LGE FAB30005104 Contact Us For Availability
0
Screw Assembly LGE FAB30009501 Contact Us For Availability
0
S/W Package LGE SAB30157102 Contact Us For Availability
0
Cable,FFC LGE EAD31341401 Contact Us For Availability
0
Screw,Taptite LGE FAB30012902 Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZZ001G Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004U Contact Us For Availability
0
Screw,Taptite LGE FAB30012103 Contact Us For Availability
0
Screw,Taptite LGE FAB30013601 Contact Us For Availability
0
PACKING LGE 3920900086B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900109A Contact Us For Availability
020
LCD,Module-TFT LGE EAJ32132101 Contact Us For Availability
030
Cover Assembly LGE 3809900120L Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK190P Contact Us For Availability
050
TILT SWIVEL ASSEMBLY LGE 3043TKK191F Contact Us For Availability
060
Plate Assembly LGE 4951TKS207P Contact Us For Availability
070
PCB Assembly,Power LGE 6871TPT318D Contact Us For Availability
080
Main Total Assembly LGE EBU30313702 Contact Us For Availability
090
Plate Assembly LGE 4951TKS220J Contact Us For Availability
100
SOCKET(CIRC),POWER LGE 6620K00003H Contact Us For Availability
110
PCB Assembly,Sub LGE 68719ST823D Contact Us For Availability
120
Spring LGE 4970TKK017A Contact Us For Availability
C107
CAPACITOR,FIXED CERA LGE 0CK103CK56A Contact Us For Availability
C111
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C205
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C212
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C214
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C307
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C329
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C331
Capacitor,AL,Radial LGE 0CE227EF610 Contact Us For Availability
D101
LED LGE 0DLBE0048AA Contact Us For Availability
D309
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D316
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
IC101
IC,Video Processors LGE 0IPRP00750A Contact Us For Availability
IC102
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
IC103
IC Assembly LGE 0IZZ9H9014C Contact Us For Availability
IC104
IC,KEC LGE 0IKE704200H Contact Us For Availability
IC202
IC,POWER MANAGEMENT LGE 0IPMGFA003G Contact Us For Availability
IC305
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC306
IC,POWER MANAGEMENT LGE 0IPMGSG016A Contact Us For Availability
Q104
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q201
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
Q202
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R102
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ8201D677 Contact Us For Availability
R109
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R111
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R112
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
R114
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R143
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R204
RESISTOR SMALL FIX METAL FILM LGE 0RX0331K607 Contact Us For Availability
R215
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R217
RESISTOR,FIXED SMALL LGE 0RX0271K668 Contact Us For Availability
R302
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R304
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R309
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R315
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R328
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
SW105
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
X101
RESONATOR,CRYSTAL LGE 6202VDT002B Contact Us For Availability
ZD303
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
