Model LG L1953TX-BF – Common Parts & Diagrams

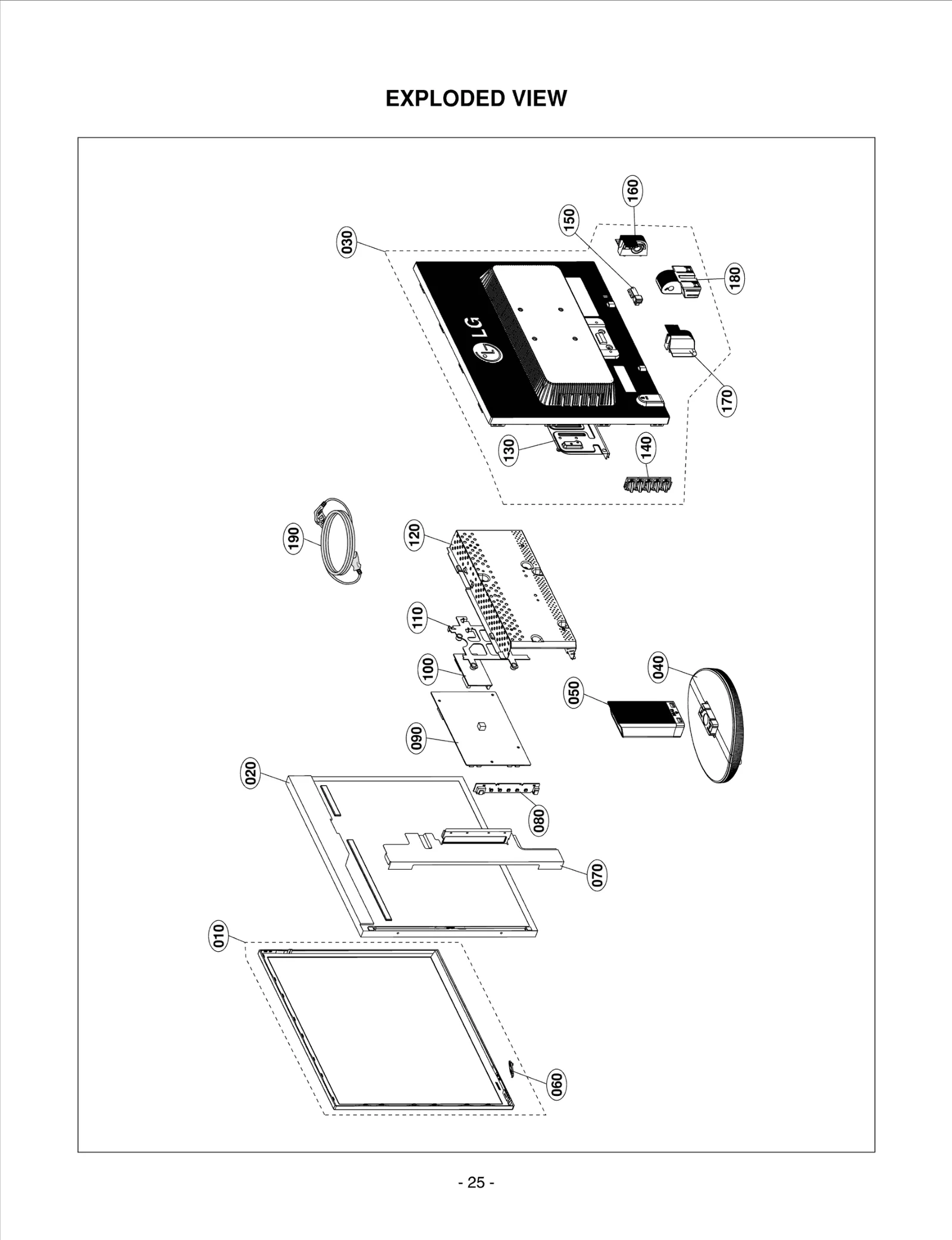

Diagram 0
Diagram 1
Common parts from model LG L1953TX-BF
0
CONNECTOR ASSEMBLY LGE 6631900109A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900125A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631900011H Contact Us For Availability
0
Screw Assembly LGE FAB30007701 Contact Us For Availability
0
Box LGE MAY36997101 Contact Us For Availability
0
Packing LGE MFZ39222601 Contact Us For Availability
0
Harness,Single LGE 6631T20023J Contact Us For Availability
0
TRANSISTOR,FETS LGE 0TFAN00002A Contact Us For Availability
0
Bag LGE 38809P0013U Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
Screw Assembly LGE FAB30021802 Contact Us For Availability
0
PACKING LGE 3920900158A Contact Us For Availability
0
Screw,Taptite LGE FAB30012104 Contact Us For Availability
0
Card LGE 3840TRL071V Contact Us For Availability
020
LCD,Module-TFT LGE EAJ32189001 Contact Us For Availability
030
Cover Assembly LGE 3809900178B Contact Us For Availability
040
Base Assembly LGE AAN32608906 Contact Us For Availability
050
Cover LGE 35509K0246D Contact Us For Availability
060
Indicator LGE 3520900038A Contact Us For Availability
070
Plate LGE 49509K0267F Contact Us For Availability
080
PCB Assembly,Sub LGE EBR36756701 Contact Us For Availability
090
PWB(PCB) ASSEMBLY,PO LGE 68719PT298A Contact Us For Availability
100
Main Total Assembly LGE EBU36749101 Contact Us For Availability
110
COVER LGE 35509K0247A Contact Us For Availability
120
METAL LGE 49509S0034B Contact Us For Availability
130
KNOB LGE 4940900022B Contact Us For Availability
140
METAL LGE 49509K0263A Contact Us For Availability
150
METAL ASSEMBLY LGE 49519K0137A Contact Us For Availability
160
COVER LGE 35509K0243A Contact Us For Availability
170
COVER LGE 35509K0242A Contact Us For Availability
180
COVER LGE 35509K0244A Contact Us For Availability
BD101
Diode,Bridge LGE 0DRTW00121A Contact Us For Availability
C101
CAPACITOR,DRAWING LGE 0CZZ9ST017A Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C103
CAPACITOR,DRAWING LGE 0CZZ9ST014A Contact Us For Availability
C104
CAPACITOR,FIXED CERA LGE 0CH5271K416 Contact Us For Availability
C105
CAPACITOR,DRAWING LGE 0CZZ9ST013A Contact Us For Availability
C106
CAPACITOR,FIXED CERA LGE 0CK222DK4DA Contact Us For Availability
C107
CAPACITOR CERAMIC (HIGH DIELE) LGE 0CK1040K945 Contact Us For Availability
C201
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C202
CAPACITOR,DRAWING LGE 0CZZ9ST021A Contact Us For Availability
C203
CAPACITOR,DRAWING LGE 0CZZ9ST020A Contact Us For Availability
C205
CAPACITOR,DRAWING LGE 0CZZ9ST018A Contact Us For Availability
C207
Capacitor,AL,Radial LGE 0CZZ9ST019A Contact Us For Availability
C208
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C208
Capacitor,Ceramic,Radial LGE 0CKZTTA002B Contact Us For Availability
C301
CAPACITOR,DRAWING LGE 0CZZTCT006D Contact Us For Availability
C301
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C302
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C306
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C306
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C310
Capacitor,Ceramic,Chip LGE 0CK105DH56A Contact Us For Availability
C314
CAPACITOR,FIXED CERA LGE 0CK152DK51A Contact Us For Availability
C315
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C317
Capacitor,Ceramic,Chip LGE 0CH5221K416 Contact Us For Availability
C405
Capacitor,Ceramic,Radial LGE 0CK22201510 Contact Us For Availability
C407
Capacitor,Ceramic,Chip LGE 0CH2153K516 Contact Us For Availability
C411
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C419
Capacitor,Ceramic,Chip LGE 0CH2222K516 Contact Us For Availability
C424
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C425
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
CY102
Capacitor,Ceramic,Ra LGE 0CZZ9ST024A Contact Us For Availability
CY104
Capacitor,Ceramic,Ra LGE 0CZZ9ST023A Contact Us For Availability
D103
DIODE,SWITCHING LGE 0DSGF00019A Contact Us For Availability
D306
Diode,Switching LGE 0DSGD00048A Contact Us For Availability
D403
Diode,Switching LGE 0DSDI00038A Contact Us For Availability
D418
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D420
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
FB101
CORE (CIRC),BEAD LGE 6210TCE003G Contact Us For Availability
J1
WAFER LGE 6602T20009E Contact Us For Availability
J3
Conector,Wafer LGE 6602T20009B Contact Us For Availability
J401
Connector,DSUB LGE 6630G100316 Contact Us For Availability
J402
Conector,Wafer LGE 6630V90219A Contact Us For Availability
J404
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J406
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
LED1
LED,DIP LGE EAV30486601 Contact Us For Availability
LF101
FILTER(CIRC),EMC LGE 6200J000154 Contact Us For Availability
P404
Conector,Wafer LGE 6630V90218A Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
Q101
FET LGE 0TFFC10017A Contact Us For Availability
Q301
TR,Bipolar LGE 0TR144009AI Contact Us For Availability
Q308
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q402
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R2
Resistor,Carbon Film LGE 0RD7501Q609 Contact Us For Availability
R3
RESISTOR,FIXED CARBON FILM LGE 0RD1801Q609 Contact Us For Availability
R102
RESISTOR,METAL GLAZE LGE 0RJ6801E472 Contact Us For Availability
R103
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R105
Resistor,Carbon Film LGE 0RD0912Q609 Contact Us For Availability
R106
Resistor,Chip LGE 0RH2201D622 Contact Us For Availability
R107
Resistor,Carbon Film LGE 0RD8203A609 Contact Us For Availability
R108
Resistor,Carbon Film LGE 0RD4702A609 Contact Us For Availability
R109
Resistor,Metal Oxide LGE 0RX0560J609 Contact Us For Availability
R110
Resistor,Metal Oxide Film LGE 0RX1003K607 Contact Us For Availability
R112
RESISTOR,METAL GLAZE LGE 0RJ1302E472 Contact Us For Availability
R115
RESISTOR,METAL GLAZE LGE 0RJ4703G676 Contact Us For Availability
R202
Resistor,Metal Oxide Film LGE 0RX0242K665 Contact Us For Availability
R203
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R204
Resistor,Metal Film LGE 0RN3002F409 Contact Us For Availability
R205
RESISTOR FIX METAL FILM 2.20K LGE 0RN2201F409 Contact Us For Availability
R205
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ1601E472 Contact Us For Availability
R208
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R212
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R219
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R223
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R301
Resistor,Carbon Film LGE 0RD1001Q609 Contact Us For Availability
R303
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R303
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R304
Resistor,Carbon Film LGE 0RD1002Q609 Contact Us For Availability
R307
RESISTOR,FIXED SMALL LGE 0RX0681K668 Contact Us For Availability
R309
Resistor,Metal Film LGE 0RN1502F409 Contact Us For Availability
R311
Resistor,Chip LGE 0RH1502D422 Contact Us For Availability
R313
Resistor,Chip LGE 0RJ6202E472 Contact Us For Availability
R316
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R318
Resistor,Chip LGE 0RJ1503E472 Contact Us For Availability
R319
Resistor,Chip LGE 0RH1303D622 Contact Us For Availability
R321
RESISTOR CHIP, 10K 1/10W 1% D LGE 0RH1002D422 Contact Us For Availability
R402
RESISTOR,METAL GLAZE LGE 0RJ1001G476 Contact Us For Availability
R407
RESISTOR,METAL GLAZE LGE 0RJ3600E472 Contact Us For Availability
R420
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R426
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R432
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R443
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R446
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
SC101
SOCKET(CIRC),POWER LGE 6620K00020A Contact Us For Availability
SW5
Switch,Tact LGE 6600R000133 Contact Us For Availability
T101
TRANSFORMER,SMPS[COI LGE 61709MC011A Contact Us For Availability
T302
TRANSFORMER,SMPS[COI LGE 61709MC010A Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
U101
IC,POWER MANAGEMENT LGE 0IPMG78425A Contact Us For Availability
U201
IC,POWER MANAGEMENT LGE 0IPMG78424A Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRP00705A Contact Us For Availability
U202
IC Assembly LGE 0IZZ9H0187C Contact Us For Availability
U203
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
U301
IC,POWER MANAGEMENT LGE 0IPMG78426A Contact Us For Availability
U301
IC,LDO Voltage Regul LGE EAN33480801 Contact Us For Availability
U302
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U303
IC,LDO Voltage Regul LGE EAN33480501 Contact Us For Availability
U304
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
X201
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
ZD3
Diode,Zener LGE 0DZ560009AG Contact Us For Availability
ZD301
DIODE,ZENERS LGE 0DZGD00128A Contact Us For Availability
ZD406
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
