Model LG L1953H-BF.AUSSQPN – Common Parts & Diagrams

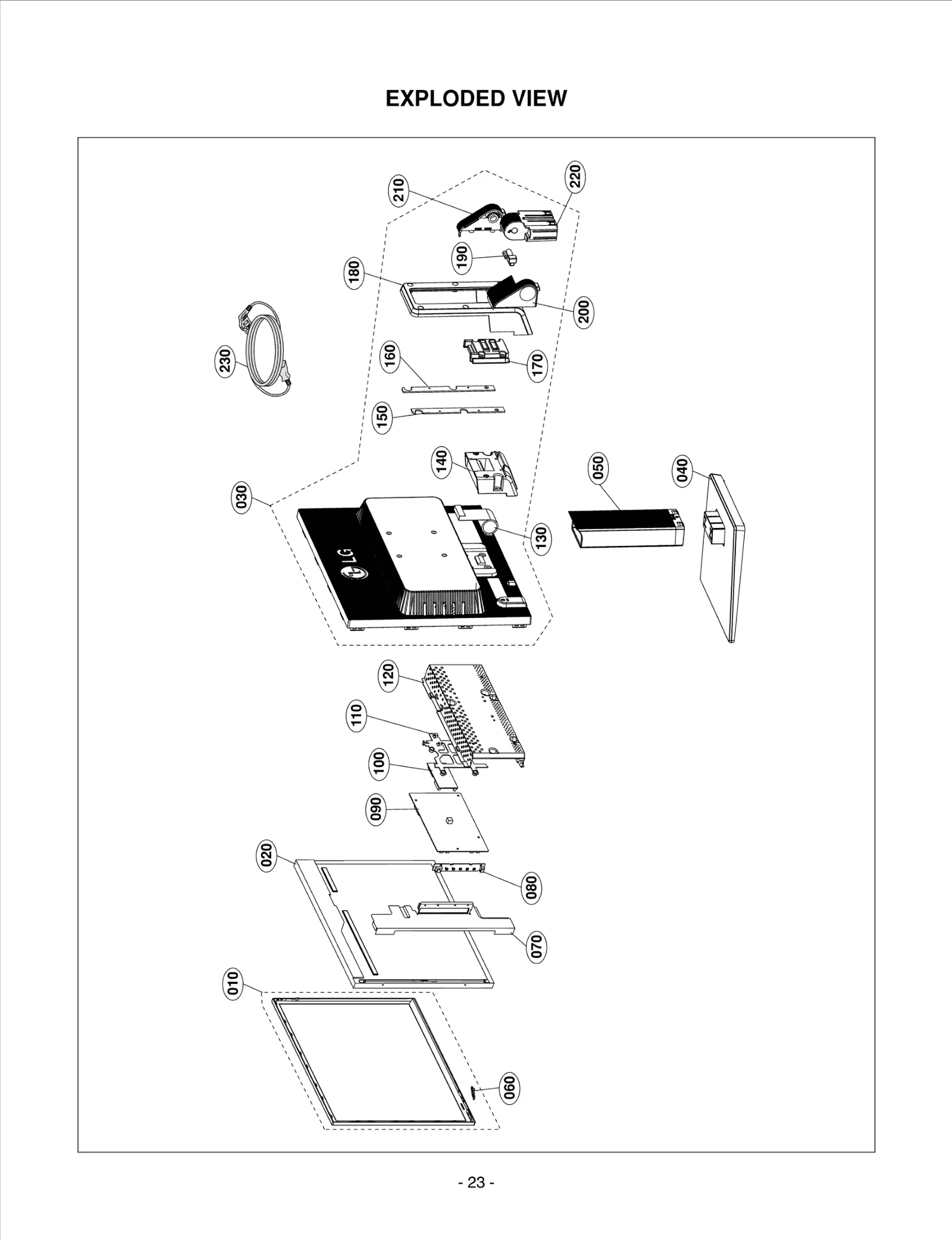

Diagram 0

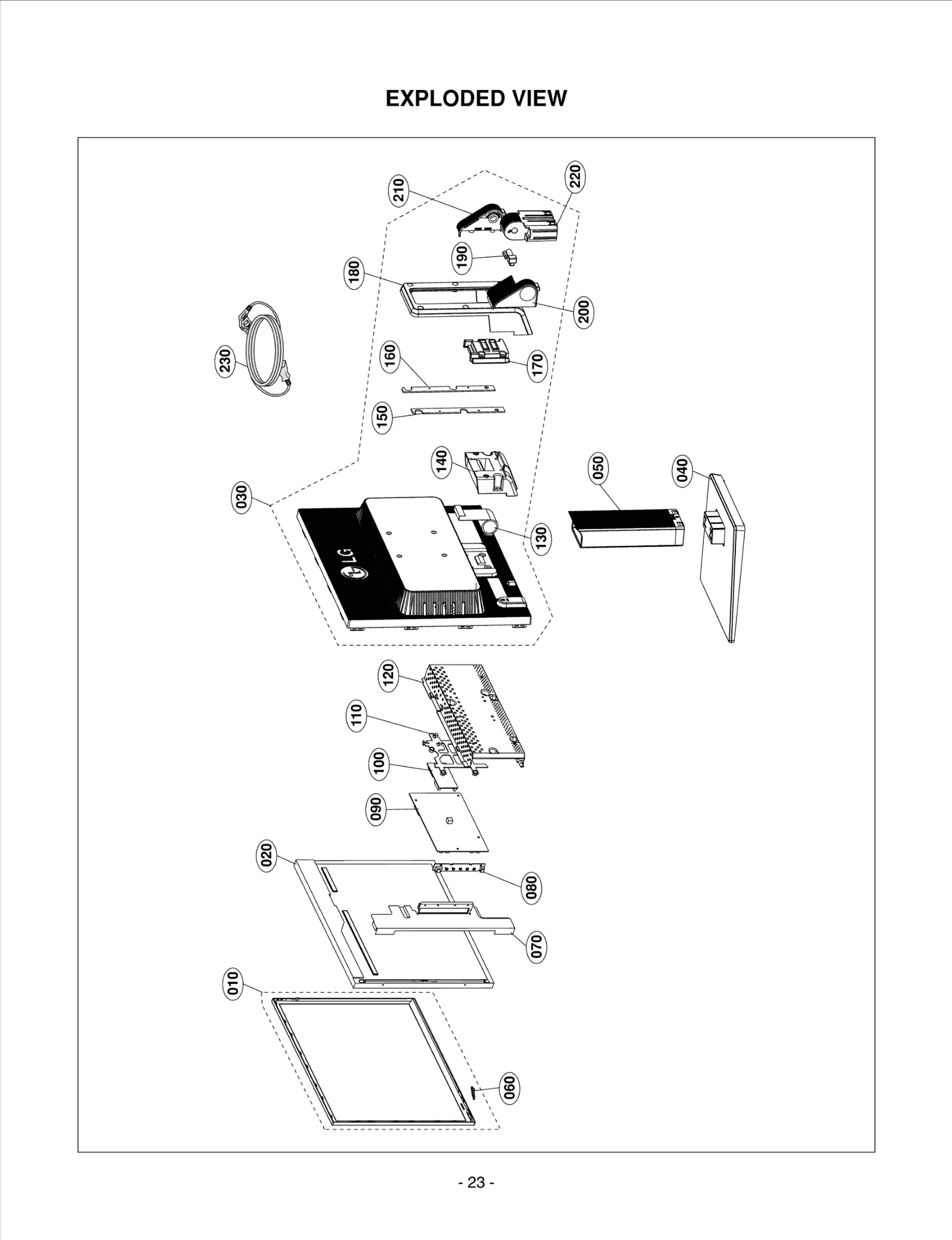

Diagram 1
Common parts from model LG L1953H-BF.AUSSQPN
020
LCD,Module-TFT LGE EAJ38170606 Contact Us For Availability
020
LCD,Module-TFT LGE EAJ38170605 Contact Us For Availability
020
LCD,Module-TFT LGE EAJ38170601 Contact Us For Availability
020
LCD,Module-TFT LGE EAJ38170602 Contact Us For Availability
040
Base Assembly LGE AAN32694606 Contact Us For Availability
050
Cover LGE 35509K0256E Contact Us For Availability
060
Indicator LGE 3520900038A Contact Us For Availability
070
Plate LGE 49509K0267F Contact Us For Availability
080
PCB Assembly LGE EBR37001501 Contact Us For Availability
090
Power Supply Assembl LGE EAY36304901 Contact Us For Availability
090
PCB Assembly,Power LGE EBR36269401 Contact Us For Availability
100
Main Total Assembly LGE EBU36999307 Contact Us For Availability
120
Plate,Metal LGE MGJ37924108 Contact Us For Availability
140
Cover LGE 35509K0269A Contact Us For Availability
150
Cover LGE 35509K0274A Contact Us For Availability
160
Cover LGE 35509K0273A Contact Us For Availability
170
Cover LGE 35509K0260A Contact Us For Availability
180
Cover LGE 35509K0266A Contact Us For Availability
190
Plate Assembly LGE 49519K0137B Contact Us For Availability
200
Cover LGE 35509K0258A Contact Us For Availability
210
Cover LGE 35509K0259A Contact Us For Availability
220
Cover LGE 35509K0257A Contact Us For Availability
240
Plate LGE MGJ30075901 Contact Us For Availability
250
KNOB LGE 4940900022B Contact Us For Availability
A1
S/W Package LGE SAB30844202 Contact Us For Availability
A4
Card LGE MBM41933001 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
B1
Box LGE MAY39460407 Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631900011H Contact Us For Availability
C2
Harness,Single LGE 6631T20023J Contact Us For Availability
C4
CONNECTOR ASSEMBLY LGE 6631900125A Contact Us For Availability
C504
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C520
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C604
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF610 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C720
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
D703
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D703
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
J1
WAFER LGE 6602T20009E Contact Us For Availability
J1
Connector,Wafer LGE EAG31366106 Contact Us For Availability
J2
Connector,Wafer LGE EAG31366103 Contact Us For Availability
J2
Conector,Wafer LGE 6602T20009B Contact Us For Availability
J701
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
J701
Connector,DSUB LGE 6630G100316 Contact Us For Availability
J703
Connector,Wafer LGE 6630V90220K Contact Us For Availability
J704
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J706
Connector,DSUB LGE EAG41681101 Contact Us For Availability
J706
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
LED1
LED,DIP LGE EAV30486601 Contact Us For Availability
Q601
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q701
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q701
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
R2
Resistor,Carbon Film LGE 0RD7501Q609 Contact Us For Availability
R3
RESISTOR,FIXED CARBON FILM LGE 0RD1801Q609 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R506
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R509
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R514
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R605
RESISTOR,FIXED SMALL LGE 0RX0681K668 Contact Us For Availability
R716
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R736
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
SW3
SWITCH LGE 140-058E Contact Us For Availability
SW3
Switch,Tact LGE 6600R000133 Contact Us For Availability
U501
IC,PERIPHERALS LGE 0IPRP00705A Contact Us For Availability
U502
IC Assembly LGE EAN37000507 Contact Us For Availability
U503
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U503
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
U601
IC,LDO Voltage Regul LGE EAN33480801 Contact Us For Availability
U602
IC,LDO Voltage Regul LGE EAN33480501 Contact Us For Availability
U603
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
U603
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
X501
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
X501
Crystal LGE 6212AA2001G Contact Us For Availability
ZD2
Diode,Zener LGE 0DZ560009AG Contact Us For Availability
ZD710
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
