Model LG L1950H – Common Parts & Diagrams

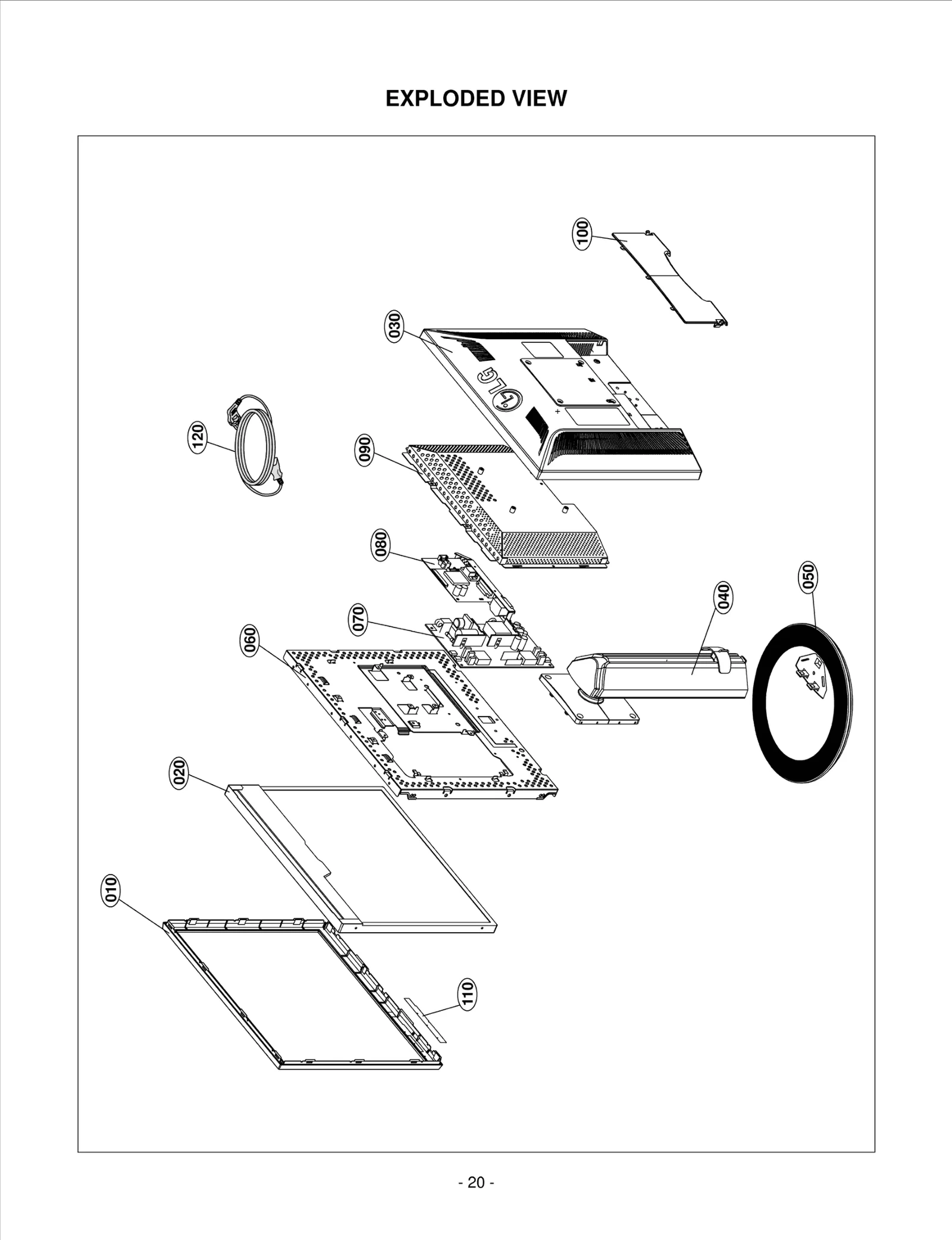

Diagram 0
Diagram 1
Common parts from model LG L1950H
0
SOCKET(CIRC),POWER LGE 6620K00003F Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004J Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
Screw Assembly LGE FAB30009501 Contact Us For Availability
0
Screw,Taptite LGE FAB30013604 Contact Us For Availability
0
BOX LGE 3890TSE955D Contact Us For Availability
0
PACKING LGE 3920TKE327A Contact Us For Availability
0
Screw,Taptite LGE FAB30018402 Contact Us For Availability
0
Spring LGE 4970TKK017A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012W Contact Us For Availability
0
Screw,Taptite LGE FAB30005104 Contact Us For Availability
0
Bag LGE 38809P0013S Contact Us For Availability
0
LGE 4950TKK583A LGE 4950TKK583A Contact Us For Availability
0
Screw,Taptite LGE FAB30012902 Contact Us For Availability
0
Packing LGE 3918TKK038G Contact Us For Availability
0
DISKETTE ASSEMBLY LGE 3171TZ1570C Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20034M Contact Us For Availability
0
Screw,Taptite LGE FAB30012103 Contact Us For Availability
0
Card LGE 3840TRL073X Contact Us For Availability
0
SHIELD ASSY LGE 4815TKK035A Contact Us For Availability
0
Screw,Taptite LGE FAB30007505 Contact Us For Availability
0
Screw,Taptite LGE FAB30012106 Contact Us For Availability
020
LCD(LIQUID CRYSTAL D LGE 6304FLP210A Contact Us For Availability
030
BACK COVER ASSEMBLY LGE 3809TKL101L Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK190J Contact Us For Availability
050
TILT SWIVEL ASSEMBLY LGE 3043TKK191D Contact Us For Availability
060
METAL ASSEMBLY LGE 4951TKS200C Contact Us For Availability
070
PWB(PCB) ASSEMBLY,PO LGE 6871TPT282Q Contact Us For Availability
080
MAIN TOTAL ASSEMBLY LGE 3313TL9081E Contact Us For Availability
090
METAL ASSEMBLY LGE 4951TKS203B Contact Us For Availability
100
COVER LGE 3550TKK741A Contact Us For Availability
C504
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C708
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C725
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C744
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C812
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C817
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
J701
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
J702
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
J703
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
LED1
LED,Chip LGE 0DLLT0208AA Contact Us For Availability
Q502
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q503
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q803
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R210
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R523
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R706
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R727
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R729
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R777
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R814
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3018A Contact Us For Availability
U501
IC,DRAWING LGE 0IZZTSZ601A Contact Us For Availability
U502
IC,EEPROM LGE EAN30296801 Contact Us For Availability
U703
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U801
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U802
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
X501
Crystal LGE 6212AA2005C Contact Us For Availability
ZD1
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
