Model LG L1950B-BF – Common Parts & Diagrams

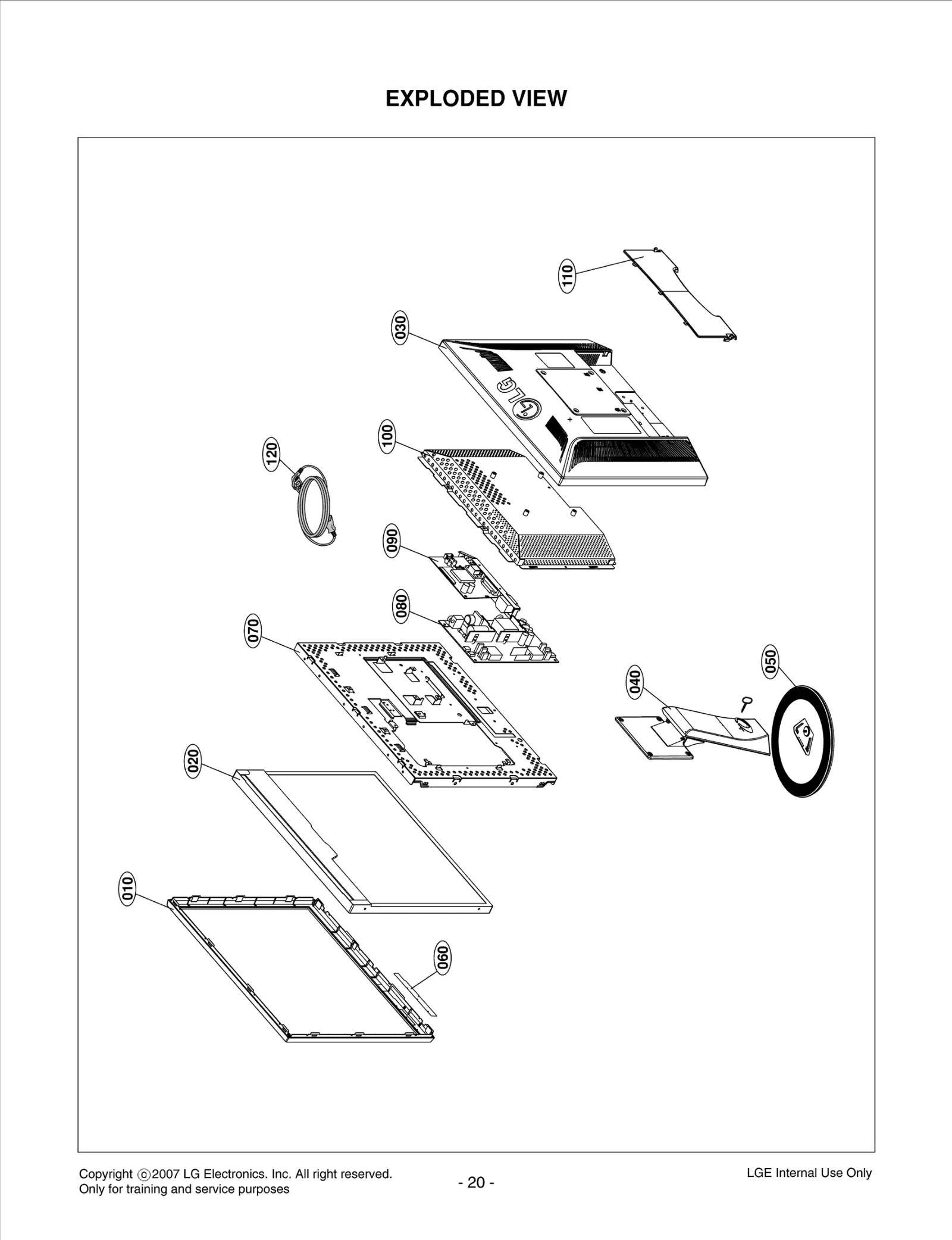

Diagram 0
Diagram 1
Common parts from model LG L1950B-BF
020
LCD(LIQUID CRYSTAL D LGE 6304FLP310A Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP313A Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP312A Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP336A Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP355A Contact Us For Availability
020
LCD,Module-TFT LGE 6304FLP337A Contact Us For Availability
030
BACK COVER ASSEMBLY LGE 3809TKL101L Contact Us For Availability
040
TILT SWIVEL ASSEMBLY LGE 3043TKK270F Contact Us For Availability
050
TILT SWIVEL ASSEMBLY LGE 3043TKK271A Contact Us For Availability
060
PWB(PCB) ASSEMBLY,SU LGE 6871TST911A Contact Us For Availability
070
METAL ASSEMBLY LGE 4951TKS200E Contact Us For Availability
080
PWB(PCB) ASSEMBLY,PO LGE 6871TPT312A Contact Us For Availability
090
MAIN TOTAL ASSEMBLY LGE 33139L9004A Contact Us For Availability
100
METAL ASSEMBLY LGE 4951TKS203A Contact Us For Availability
110
COVER LGE 3550TKK741A Contact Us For Availability
B1
Box LGE 3890TSE955M Contact Us For Availability
C1
CONNECTOR ASSEMBLY LGE 6631T20034M Contact Us For Availability
C2
CONNECTOR ASSEMBLY LGE 6631T20023A Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631T11012W Contact Us For Availability
C3
CONNECTOR ASSEMBLY LGE 6631T11020W Contact Us For Availability
C504
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C707
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C738
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C812
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C819
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D708
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D708
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
J701
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
J702
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
J703
Connector,DSUB LGE 6630G100315 Contact Us For Availability
J703
CONNECTOR (CIRC),D-S LGE 6630TGA004F Contact Us For Availability
J708
Connector,FFC/FPC/PIC LGE 6630VA00710 Contact Us For Availability
LED1
LED LGE 0DLBE0028AA Contact Us For Availability
LED1
LED,Chip LGE 0DLLT0208AA Contact Us For Availability
P1
PACKING LGE 3920900006A Contact Us For Availability
Q502
IC,KEC LGE 0IKE704200H Contact Us For Availability
Q504
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q504
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q504
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q704
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
Q803
TRANSISTOR LGE 0TR127309AA Contact Us For Availability
R207
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R209
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R240
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R544
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R703
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R712
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R729
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R774
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R814
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R816
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R824
Resistor,Chip LGE 0RJ0272D677 Contact Us For Availability
R825
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
U201
IC,PERIPHERALS LGE 0IPRPM3018C Contact Us For Availability
U501
IC,DRAWING LGE 0IZZ9H0054A Contact Us For Availability
U502
IC,EEPROM LGE EAN30296801 Contact Us For Availability
U703
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
U703
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
U801
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U801
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U802
TRANSISTOR,FETS LGE 0TFVI80067A Contact Us For Availability
U802
TRANSISTOR,FETS LGE 0TFVI80023A Contact Us For Availability
X501
Crystal LGE 6212AA2005C Contact Us For Availability
ZD712
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
