Model LG L1942TE-BF – Common Parts & Diagrams

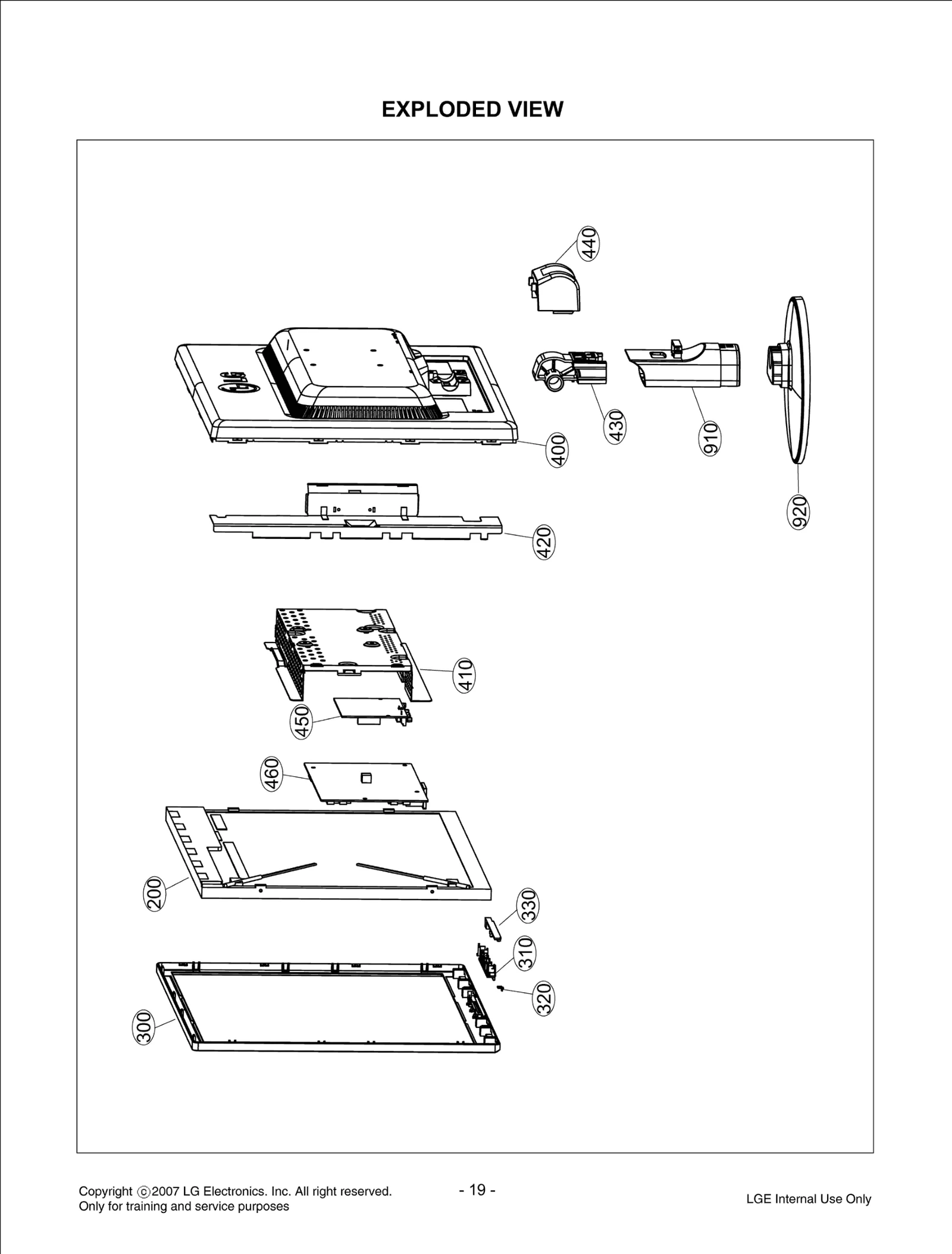

Diagram 0
Diagram 1
Common parts from model LG L1942TE-BF
200
LCD,Module-TFT LGE EAJ61108801 Contact Us For Availability
200
LCD,Module-TFT LGE EAJ60871401 Contact Us For Availability
300
Cabinet Assembly LGE ABJ52726955 Contact Us For Availability
310
Knob LGE MEY42882101 Contact Us For Availability
320
Lens LGE MFB42881801 Contact Us For Availability
330
PCB Assembly LGE EBR37001507 Contact Us For Availability
400
Cover,Rear LGE MCK42876501 Contact Us For Availability
410
Frame LGE MDQ41956328 Contact Us For Availability
420
Frame LGE MDQ42883001 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
450
Main Total Assembly LGE EBU36999328 Contact Us For Availability
460
PCB Assembly,Power LGE EBR36269415 Contact Us For Availability
460
Power Supply Assembly LGE EAY60848701 Contact Us For Availability
910
Base Assembly LGE AAN59846101 Contact Us For Availability
920
Base Assembly LGE AAN55833901 Contact Us For Availability
A1
S/W Package LGE SAB33074507 Contact Us For Availability
A4
Card LGE MBM41933015 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
C101
Capacitor,AL,Radial LGE EAE48859721 Contact Us For Availability
C102
CAPACITOR,DRAWING LGE 0CKZTTA002Q Contact Us For Availability
C103
Capacitor,AL,Radial LGE EAE48859704 Contact Us For Availability
C206
CAPACITOR,DRAWING LGE 0CZZ9ST018A Contact Us For Availability
C206
Capacitor,AL,Radial LGE EAE48875607 Contact Us For Availability
C206
Capacitor,AL,Radial LGE EAE61104901 Contact Us For Availability
C301
CAPACITOR,DRAWING LGE 0CZZ9ST021A Contact Us For Availability
C301
Capacitor,AL,Radial LGE EAE48859715 Contact Us For Availability
C301
Capacitor,AL,Radial LGE EAE61104903 Contact Us For Availability
C307
Capacitor,Ceramic,Chip LGE 0CH5101K416 Contact Us For Availability
C309
Capacitor,Ceramic,Chip LGE 0CK224DH56A Contact Us For Availability
C311
CAPACITOR,FIXED CERA LGE 0CK105EJ56A Contact Us For Availability
C312
Capacitor,Ceramic,Chip LGE 0CH2333K516 Contact Us For Availability
C314
Capacitor,Ceramic,Ch LGE 0CK334DK56A Contact Us For Availability
C315
Capacitor,Ceramic,Chip LGE 0CH1102K566 Contact Us For Availability
C316
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C403
Capacitor,Ceramic,Ra LGE EAE36975601 Contact Us For Availability
C406
Capacitor,Ceramic,Ch LGE EAE36711701 Contact Us For Availability
C408
Capacitor,Ceramic,Chip LGE 0CH1103K566 Contact Us For Availability
C503
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C601
CAPACITOR,FIXED ELEC LGE 0CE107EF610 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE227EF638 Contact Us For Availability
C608
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C666
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C708
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C713
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C723
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
CX101
Capacitor,Film,Box LGE EAE36629401 Contact Us For Availability
CY102
Capacitor,Ceramic,Ra LGE 0CKZTBU004D Contact Us For Availability
CY104
Capacitor,Ceramic,Radial LGE 0CKZTBU004E Contact Us For Availability
D104
Diode,Rectifier LGE 0DRTW00274A Contact Us For Availability
D105
Diode,Rectifier LGE EAH39171701 Contact Us For Availability
D105
Diode,Rectifier LGE EAH58801901 Contact Us For Availability
D106
Diode,Rectifier LGE EAH36077301 Contact Us For Availability
D106
Diode,Rectifier LGE 0DRGF00354A Contact Us For Availability
D203
Diode,Schottky LGE EAH59167101 Contact Us For Availability
D203
Diode,Rectifier LGE EAH52293801 Contact Us For Availability
D402
Diode,Switching LGE EAH39577901 Contact Us For Availability
D402
Diode,Switching LGE 0DSDI00068A Contact Us For Availability
J10
Wire,Jump LGE EAD60796901 Contact Us For Availability
J10
Wire,Jump LGE 971-0016 Contact Us For Availability
J10
Wire,Jump LGE EAD60905001 Contact Us For Availability
J704
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J707
Connector,FFC/FPC/PIC LGE EAG60908201 Contact Us For Availability
LF101
FILTER(CIRC),EMC LGE 6200J000154 Contact Us For Availability
LV1
Cable,FFC LGE EAD57188316 Contact Us For Availability
P201
Connector,Wafer LGE 6630V90220K Contact Us For Availability
PC201
IC,POWER MANAGEMENT LGE 0IPMG78432A Contact Us For Availability
PG2
CASE TERMINAL EARTH CM-770 CS- LGE 302-987A Contact Us For Availability
Q501
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRIH80001A Contact Us For Availability
Q501
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q501
TRANSISTOR,BIPOLARS LGE 0TRDI80002A Contact Us For Availability
Q702
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R1
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R101
Resistor,Chip LGE 0RH7503D622 Contact Us For Availability
R104
Resistor,Metal Oxide Film LGE 0RX4302K607 Contact Us For Availability
R117
RESISTOR,FIXED CARBO LGE 0RD3602A609 Contact Us For Availability
R208
Resistor,Chip LGE 0RH2401D422 Contact Us For Availability
R210
Resistor,Chip LGE 0RH1001D422 Contact Us For Availability
R304
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R305
Resistor,Chip LGE 0RH3902D422 Contact Us For Availability
R307
Resistor,Chip LGE 0RJ1503E472 Contact Us For Availability
R308
RESISTOR,METAL GLAZE LGE 0RH4702D422 Contact Us For Availability
R309
Resistor,Chip LGE 0RH4701D422 Contact Us For Availability
R310
Resistor,Chip LGE 0RH1003D422 Contact Us For Availability
R313
Resistor,Chip LGE 0RH1000D422 Contact Us For Availability
R314
Resistor,Chip LGE 0RH1503D622 Contact Us For Availability
R401
RESISTOR CHIP 150 1/10W 5 D.R LGE 0RH1500D622 Contact Us For Availability
R406
Resistor,Chip LGE 0RH3900D622 Contact Us For Availability
R504
Resistor,Chip LGE 0RJ0562C478 Contact Us For Availability
R505
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3900C678 Contact Us For Availability
R511
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R527
Resistor,Chip LGE 0RJ4700C678 Contact Us For Availability
R609
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R704
Resistor,Chip LGE 0RJ2000C678 Contact Us For Availability
R709
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R720
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R725
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R731
Resistor,Chip LGE 0RJ0682C678 Contact Us For Availability
R734
Resistor,Chip LGE 0RJ0752C678 Contact Us For Availability
R738
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
SC101
SOCKET(CIRC),POWER LGE 6620K00020A Contact Us For Availability
SW5
Switch,Tact LGE EBF61054601 Contact Us For Availability
SW5
Switch,Tact LGE 6600S-TV01A Contact Us For Availability
TH101
THERMISTOR,NTC LGE 6322A00035A Contact Us For Availability
TH101
Thermistor,NTC LGE EBG60662801 Contact Us For Availability
U502
IC Assembly LGE EAN37000521 Contact Us For Availability
X501
Crystal LGE EAW60658001 Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD101
DIODE,ZENERS LGE 0DZ200009AF Contact Us For Availability
ZD102
Diode,Zener LGE 0DZPT11009A Contact Us For Availability
× ![]()
