Model LG L1942T-BF – Common Parts & Diagrams

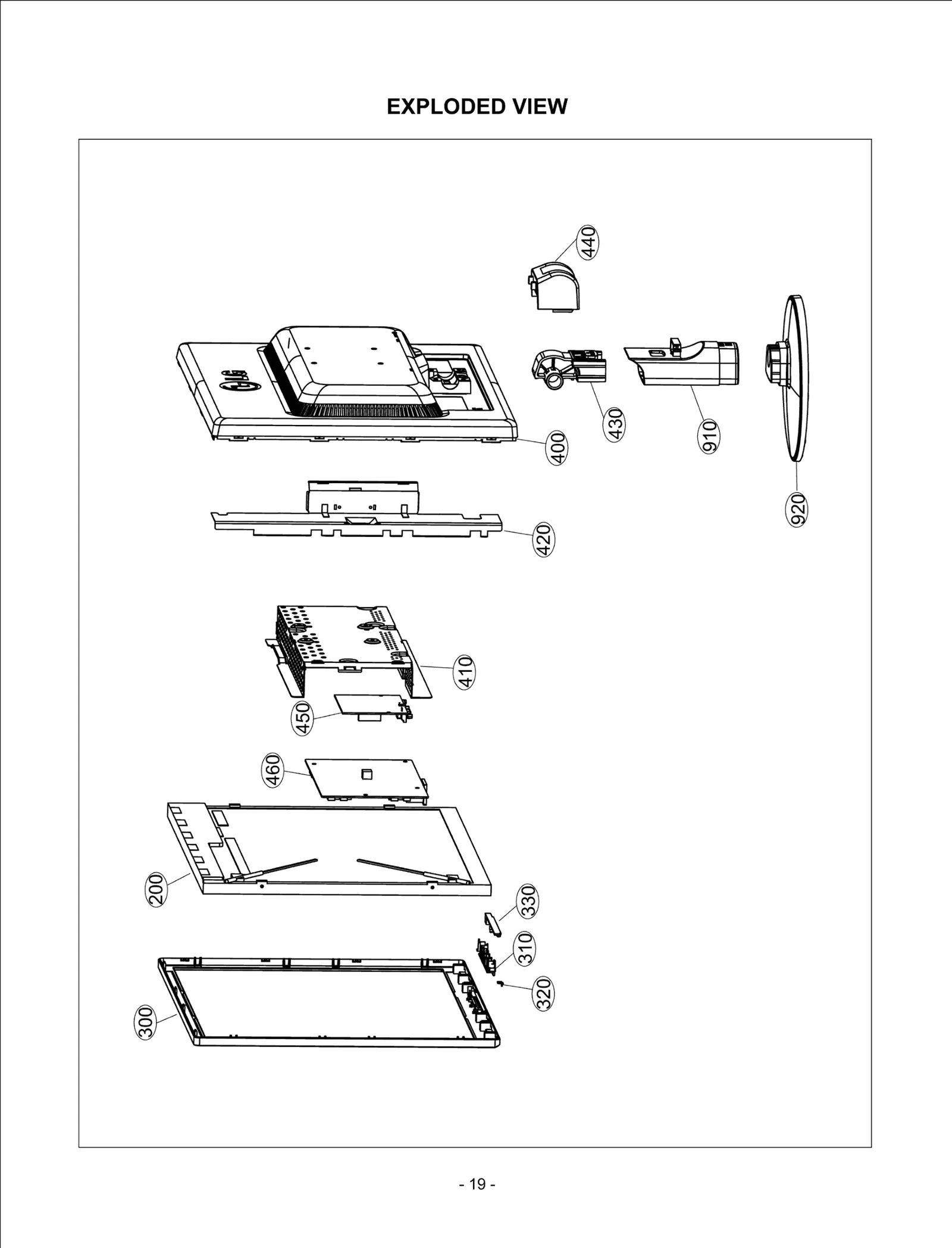

Diagram 0
Diagram 1
Common parts from model LG L1942T-BF
200
LCD,Module-TFT LGE EAJ38170605 Contact Us For Availability
300
Cabinet Assembly LGE ABJ52726901 Contact Us For Availability
310
Knob LGE MEY42882101 Contact Us For Availability
320
Lens LGE MFB42881801 Contact Us For Availability
330
PCB Assembly LGE EBR37001507 Contact Us For Availability
400
Cover Assembly,Rear LGE ACQ52727101 Contact Us For Availability
410
Frame LGE MDQ41956328 Contact Us For Availability
420
Frame LGE MDQ42883001 Contact Us For Availability
430
Cover LGE MCK40926801 Contact Us For Availability
440
Cover LGE MCK40927901 Contact Us For Availability
450
PCB Assembly,Power LGE EBR36269403 Contact Us For Availability
450
Power Supply Assembly LGE EAY41830902 Contact Us For Availability
460
Main Total Assembly LGE EBU36999310 Contact Us For Availability
910
Base Assembly LGE AAN59846101 Contact Us For Availability
920
Base Assembly LGE AAN55833901 Contact Us For Availability
A1
S/W Package LGE SAB33074502 Contact Us For Availability
A4
Card LGE MBM41933005 Contact Us For Availability
A5
Cable,Assembly LGE 68509F0003A Contact Us For Availability
A5
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
C1
Harness,Single LGE EAD42157802 Contact Us For Availability
C2
Harness,Single LGE 6631900011J Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK473CK56A Contact Us For Availability
C601
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
C602
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF638 Contact Us For Availability
C605
Capacitor,AL,Radial LGE 0CE477EF610 Contact Us For Availability
C666
CAPACITOR,FIXED CERA LGE 0CK475CC94A Contact Us For Availability
C705
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C712
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C721
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DSIH00018A Contact Us For Availability
D713
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D715
DIODE,SWITCHING LGE 0DSON00138A Contact Us For Availability
J1
Connector,Wafer LGE 6602T20008E Contact Us For Availability
J701
Connector,DSUB LGE EAG54220901 Contact Us For Availability
J703
Connector,Wafer LGE 6630V90220K Contact Us For Availability
J706
Connector,DSUB LGE EAG41681101 Contact Us For Availability
J706
CONNECTOR (CIRC),D-S LGE 6630TGA005B Contact Us For Availability
Q601
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q601
TR,Bipolar LGE 0TRKE80046A Contact Us For Availability
Q602
TR,Bipolar LGE EBK39150701 Contact Us For Availability
Q702
TR,Bipolar LGE 0TR390609DC Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R2
Resistor,Chip LGE 0RH7501D422 Contact Us For Availability
R5
Resistor,Chip LGE 0RH1801D422 Contact Us For Availability
R505
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R506
RESISTOR,METAL GLAZE LGE 0RJ0562D677 Contact Us For Availability
R528
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R601
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R602
RESISTOR,METAL GLAZE LGE 0RJ3900D677 Contact Us For Availability
R604
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R605
RESISTOR,FIXED SMALL LGE 0RX0681K668 Contact Us For Availability
R709
RESISTOR,METAL GLAZE LGE 0RJ2001D677 Contact Us For Availability
R713
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R720
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R730
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
SW4
Switch,Tact LGE 6600S-TV01A Contact Us For Availability
U502
IC Assembly LGE EAN37000510 Contact Us For Availability
U503
IC,EEPROM LGE 0IMMR00203A Contact Us For Availability
U503
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U603
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
U603
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
X501
Crystal LGE 6212AA2001H Contact Us For Availability
ZD710
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
× ![]()
