Model LG L1810B(LB800H-UL) – Common Parts & Diagrams

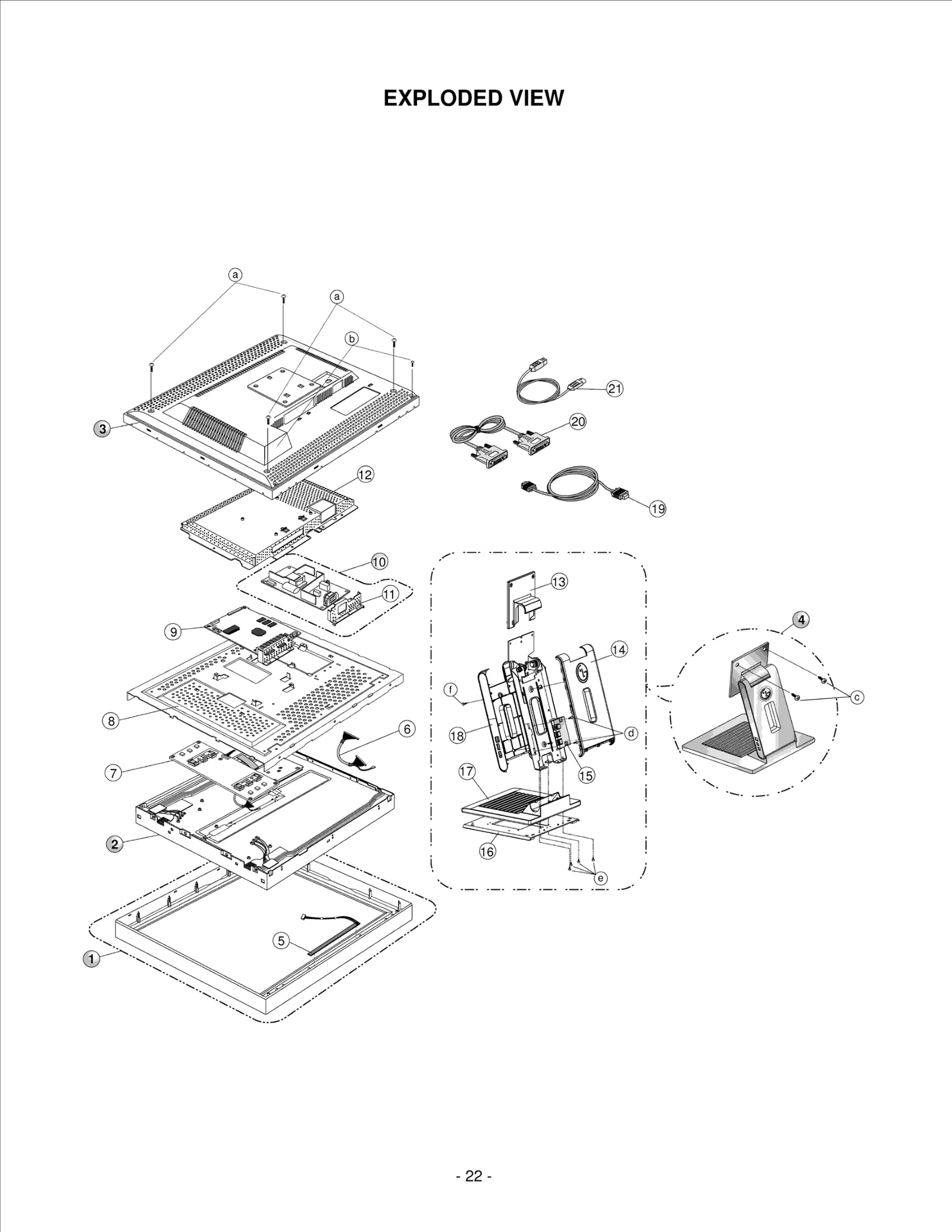

Diagram 0
Common parts from model LG L1810B(LB800H-UL)
0
SCREW, LGE 1SZZTER001A Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL038A Contact Us For Availability
0
SCREW,DRAWING LGE 332-113S Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL025A Contact Us For Availability
0
LGE 3880TKZ010B LGE 3880TKZ010B Contact Us For Availability
0
CABLE,DVI LGE 6866TDV004C Contact Us For Availability
0
LGE 3313TL8014C LGE 3313TL8014C Contact Us For Availability
0
Cover LGE 3550TKK236A Contact Us For Availability
0
LGE 6304FLP023A LGE 6304FLP023A Contact Us For Availability
0
LGE 6871TMT275C LGE 6871TMT275C Contact Us For Availability
0
LGE 3911TKK369B LGE 3911TKK369B Contact Us For Availability
0
Plate LGE 4814TKK188B Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST287A Contact Us For Availability
0
SCREW,DRAWING LGE 332-105K Contact Us For Availability
0
Bag LGE 373-071D Contact Us For Availability
0
LGE 6633TZA011C LGE 6633TZA011C Contact Us For Availability
0
LGE 6871TUT017A LGE 6871TUT017A Contact Us For Availability
0
LGE 1MCC0302423 LGE 1MCC0302423 Contact Us For Availability
0
LGE 3171TZ1228C LGE 3171TZ1228C Contact Us For Availability
0
SCREW,DRAWING LGE 332-112F Contact Us For Availability
0
SCREW,DRAWING LGE 332-113R Contact Us For Availability
0
LGE 3550TKK254A LGE 3550TKK254A Contact Us For Availability
0
LGE 3550TKK255A LGE 3550TKK255A Contact Us For Availability
0
LGE 3920TKE177A LGE 3920TKE177A Contact Us For Availability
0
Plate LGE 4950TKK429A Contact Us For Availability
0
SIGNAL CABLE LGE 6866TDU002D Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT225A Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
LGE 3043TKK091A LGE 3043TKK091A Contact Us For Availability
0
SCREW, LGE 332-105G Contact Us For Availability
0
LGE 3550TKK257A LGE 3550TKK257A Contact Us For Availability
0
Cable,Assembly LGE 6631T11012P Contact Us For Availability
0
Harness,Single LGE 6631T20015R Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTER001H Contact Us For Availability
0
SCREW,DRAWING LGE 332-068U Contact Us For Availability
0
SCREW ASSY LGE 339-006A Contact Us For Availability
0
Cover LGE 3550TKK237A Contact Us For Availability
0
LGE 3550TKK256A LGE 3550TKK256A Contact Us For Availability
0
LGE 3890TSE309L LGE 3890TSE309L Contact Us For Availability
0
Plate Assembly LGE 4951TKS078B Contact Us For Availability
0
POWER CORD LGE 6410TUW002B Contact Us For Availability
0
Harness,Single LGE 6631T25008Q Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9001A Contact Us For Availability
BD901
DIODE D3SBA60 SHINDENKEN CM-77 LGE 0DD360000DA Contact Us For Availability
C6
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH3105F946 Contact Us For Availability
C27
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C112
Capacitor,TA,Niobium LGE DCH7476C621 Contact Us For Availability
C122
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C214
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C221
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6330K416 Contact Us For Availability
C235
LGE 0CH6680K416 LGE 0CH6680K416 Contact Us For Availability
C262
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6150K416 Contact Us For Availability
C265
CAPACITOR,CHIP[CERAMIC LD-LESS LGE 0CH6470K416 Contact Us For Availability
C270
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C403
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C408
CAPACITOR,CHIP[AL. E LGE 0CH8226F691 Contact Us For Availability
C508
CAPACITOR,FIXED CERA LGE 0CK222CK51A Contact Us For Availability
C515
Capacitor,Ceramic,Chip LGE 0CC470CK41A Contact Us For Availability
C706
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C822
CAPACITOR,FIXED ELECTROLYTIC LGE 0CE107WF6DC Contact Us For Availability
C850
CAPACITOR,AL.ELECTRO LGE 0CE477EH618 Contact Us For Availability
C861
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C901
Capacitor,Film,Box LGE 0CBZTBU002B Contact Us For Availability
C904
Capacitor,Film,Box LGE 0CBZTBU002A Contact Us For Availability
C905
Capacitor,AL,Radial LGE 0CZZTAB002C Contact Us For Availability
C906
Capacitor,Ceramic,Radial LGE 0CK10302945 Contact Us For Availability
C907
Capacitor,AL,Radial LGE 0CE476EK638 Contact Us For Availability
C908
Capacitor,Film,DIP LGE 0CQ2721N419 Contact Us For Availability
C909
CAPACITOR CERAMIC(HIGH DIELE) LGE 0CK1020K515 Contact Us For Availability
C913
Capacitor,AL,Radial LGE 0CE108BF630 Contact Us For Availability
C915
Capacitor,AL,Radial LGE 0CE228ED630 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 181-288L Contact Us For Availability
C919
LGE 0CKZTTA003B LGE 0CKZTTA003B Contact Us For Availability
C921
Capacitor,AL,Radial LGE 0CE228EF630 Contact Us For Availability
C923
Capacitor,Ceramic,Radial LGE 0CKZTTA002E Contact Us For Availability
C924
CAPACITOR,ELECTROLYTIC LGE 0CE336BH638 Contact Us For Availability
D1
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D503
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
D737
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D901
Diode,Rectifier LGE 0DD400709CB Contact Us For Availability
D902
DIODE,RECTIFIER LGE 0DR400409AB Contact Us For Availability
D903
Diode,Schottky LGE 0DRIR00011B Contact Us For Availability
D906
Diode,Schottky LGE 0DRIR00021A Contact Us For Availability
D907
DIODE,SWITCHING LGE 0DS113309AA Contact Us For Availability
F901
FUSE HBC 250V 3.15A UL/S (CH47 LGE 131-040C Contact Us For Availability
FH2
Fuse Holder LGE 430-858C Contact Us For Availability
IC901
IC,POWER MANAGEMENT LGE 0IPMGIH001A Contact Us For Availability
IC904
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
IC905
IC LGE 0ISS780500F Contact Us For Availability
J1
CONNECTOR (CIRC),USB LGE 6630TSB002A Contact Us For Availability
J6
LGE 6630TSA003A LGE 6630TSA003A Contact Us For Availability
J704
CONNECTOR (CIRC),D-S LGE 6630TGA004A Contact Us For Availability
J705
CONNECTOR (CIRC),WAF LGE 6630VF00530 Contact Us For Availability
J708
CONNECTOR (CIRC),D-S LGE 6630TGA005A Contact Us For Availability
L13
Filter,Bead LGE 6210TCE001B Contact Us For Availability
L201
RESISTOR CHIP 56 1/10W 5 D.R/ LGE 0RH0562D622 Contact Us For Availability
L205
FILTER(CIRC),EMC LGE 6210TCE001R Contact Us For Availability
L207
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L902
Coil,Choke LGE 150-A85F Contact Us For Availability
LED1
LED,Chip LGE 0DLLT0148AA Contact Us For Availability
LF902
FILTER(CIRC),DRAWING LGE 6200TZZ001A Contact Us For Availability
PC1
IC,LITEON LGE 0ILI817000E Contact Us For Availability
Q103
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q703
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
Q902
LGE 0TFFN10004A LGE 0TFFN10004A Contact Us For Availability
R9
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R22
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R23
RESISTOR,METAL GLAZE LGE 0RJ1502D677 Contact Us For Availability
R135
RESISTOR,METAL GLAZE LGE 0RJ4703D677 Contact Us For Availability
R149
Resistor,Chip LGE 0RJ2000D677 Contact Us For Availability
R153
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R201
RESISTOR CHIP 2.0K 1/10W 5 D.R LGE 0RH2001D622 Contact Us For Availability
R213
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R233
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R235
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R534
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R731
RESISTOR,METAL GLAZE LGE 0RJ2700D677 Contact Us For Availability
R752
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R753
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R761
RESISTOR,METAL GLAZE LGE 0RJ0472D677 Contact Us For Availability
R768
Resistor,Chip LGE 0RJ1801D677 Contact Us For Availability
R822
RESISTOR CHIP LGE 0RH5600D622 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD6803A609 Contact Us For Availability
R903
RESISTOR,FIXED CARBON FILM LGE 0RD3902A609 Contact Us For Availability
R906B
Resistor,Metal Oxide Film LGE 0RX5102J609 Contact Us For Availability
R908
Resistor,Carbon Film LGE 0RD0222Q609 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD1001Q609 Contact Us For Availability
R910
Resistor,Carbon Film LGE 0RD0431A609 Contact Us For Availability
R913
Resistor,Metal Film LGE 0RN1102F409 Contact Us For Availability
R914
Resistor,Carbon Film LGE 0RD1002Q609 Contact Us For Availability
R918
RESISTOR,FIXED CARBON FILM LGE 0RD1000Q609 Contact Us For Availability
R921
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R923
Resistor,Wire Wound LGE 0RB0330K607 Contact Us For Availability
R924
Resistor,Carbon Film LGE 0RD0752Q609 Contact Us For Availability
R926
Resistor,Metal Film LGE 0RN0471H609 Contact Us For Availability
R927
Resistor,Carbon Film LGE 0RD0102A609 Contact Us For Availability
R928
LGE 0RD0202Q609 LGE 0RD0202Q609 Contact Us For Availability
RA216
Resistor,Array LGE 0RHZTCZ001A Contact Us For Availability
SW7
SWITCH LGE 140-058E Contact Us For Availability
T901
TRANSFORMER,SMPS[COI LGE 6170TMZ125B Contact Us For Availability
TH902
Thermistor,NTC LGE 6322TA080AA Contact Us For Availability
U105
IC,Inverter LGE 0IMO741420B Contact Us For Availability
U106
IC,ROHM LGE 0IRH765700B Contact Us For Availability
U107
IC,Gate LGE 0ITI748600N Contact Us For Availability
U110
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U201
IC,Video Processors LGE 0IPRPGN001A Contact Us For Availability
U303
IC,ELITE MEMORY TECH LGE 0IEB121616A Contact Us For Availability
U401
IC,LINEAR LGE 0ILNRTH001A Contact Us For Availability
U501
IC Assembly LGE 0IZZTSZ160A Contact Us For Availability
U503
IC,EEPROM LGE 0ICS240813B Contact Us For Availability
U509
IC,MEMORIES LGE 0ISS524202B Contact Us For Availability
U803
IC,POWER MANAGEMENT LGE 0IPMGFA003B Contact Us For Availability
U804
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U821
IC,ROHM LGE 0IRH033200A Contact Us For Availability
X1
Crystal LGE 6202TST001C Contact Us For Availability
ZD4
DIODE,ZENERS LGE 0DZ560009GB Contact Us For Availability
ZD901
DIODE,ZENERS LGE 0DZ470009BC Contact Us For Availability
× ![]()
